Model AHS24DXL1 – Common Parts & Diagrams

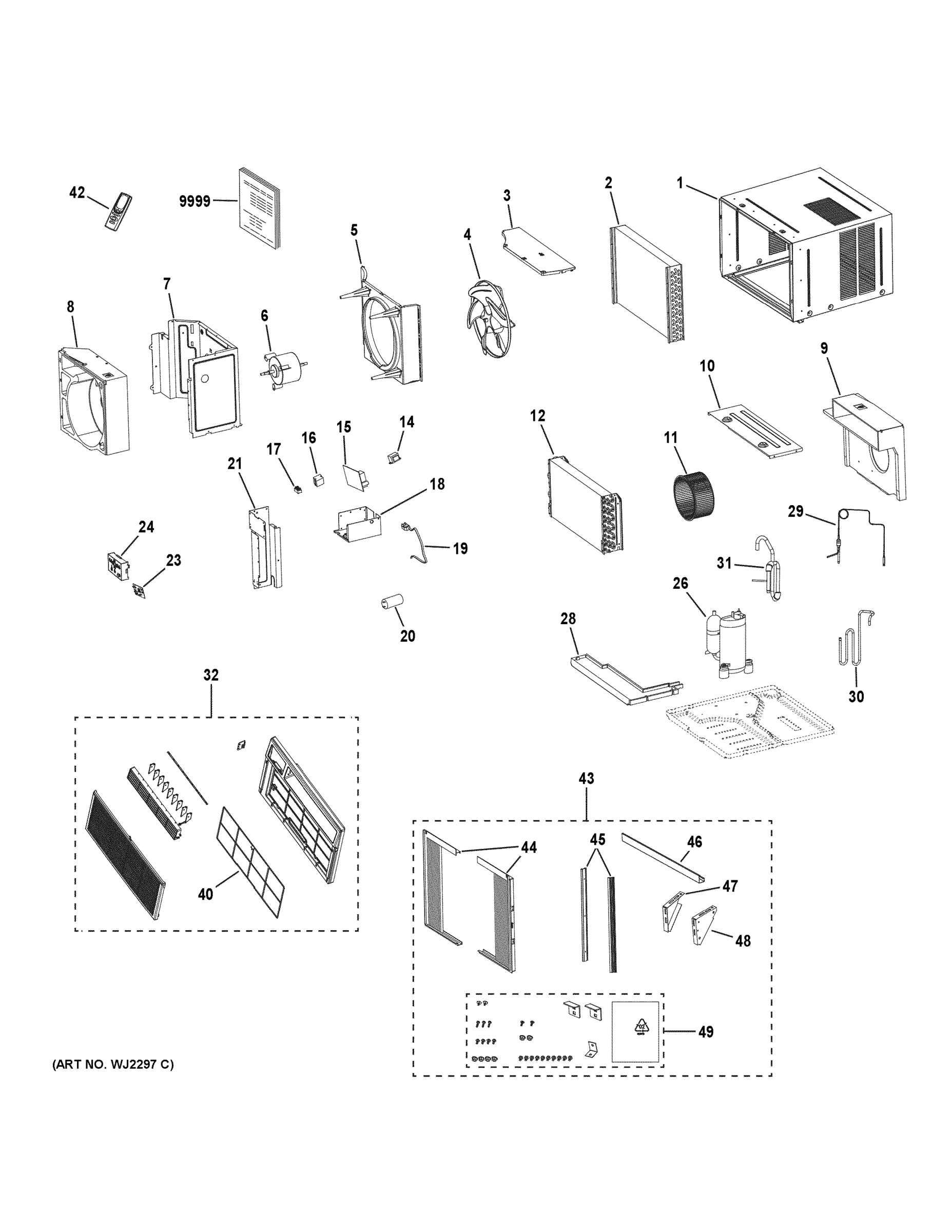

Common parts from model AHS24DXL1

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

×

4

WJ73X21247 GE Air Conditioner Axial Flow Fan Out of Stock GEN WJ73X21247 View Details $28.73

View on Model

12

WJ87X21931 GE Air Conditioner Evaporator Asse Out of Stock GEN WJ87X21931 View Details $263.20

View on Model

14

WJ27X10154 GE Air Conditioner Transformer Out of Stock GEN WJ27X10154 View Details $57.70

View on Model

15

WJ26X21885 GE Air Conditioner Main Board Out of Stock GEN WJ26X21885 View Details $56.05

View on Model

16

RELAY Out of Stock GEN WJ24X20540 View Details $56.42

View on Model

18

ELECTRIC BOX SUB-ASSY 1 Out of Stock GEN WJ07X20206 View Details $21.17

View on Model

19

WJ35X10168 GE Air Conditioner Power Cord In Stock GEN WJ35X10168 View Details $193.20

View on Model

20

CAPACITOR Out of Stock GEN WJ20X24725 View Details $44.42

View on Model

21

CONTROL ASM COVER Out of Stock GEN WJ26X21932 View Details $23.40

View on Model

23

WJ26X21846 GE Air Conditioner Display Board Out of Stock GEN WJ26X21846 View Details $45.18

View on Model

24

LCD COVER Out of Stock GEN WJ07X20210 View Details $9.83

View on Model

26

COMPRESSOR AND FITTINGS Out of Stock GEN WJ98X21928 View Details $387.84

View on Model

28

TRAY WATER Out of Stock GEN WJ05X10064 View Details $34.92

View on Model

29

WJ53X21927 GE Air Conditioner Capillary Assem Out of Stock GEN WJ53X21927 View Details $25.33

View on Model

30

DISCHARGE TUBE 1 Out of Stock GEN WJ53X24726 View Details $22.50

View on Model

31

INHALATION TUBE SUB ASSY Out of Stock GEN WJ53X21933 View Details $50.22

View on Model

32

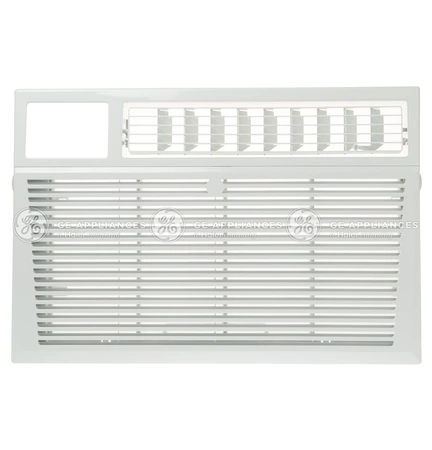

WJ71X23462 GE Air Conditioner Front Panel Ass Out of Stock GEN WJ71X23462 View Details $62.48

View on Model

40

WJ71X10710 GE Air Conditioner Filter Out of Stock GEN WJ71X10710 View Details $17.77

View on Model

42

WJ26X20522 GE Air Conditioner Remote Controll In Stock GEN WJ26X20522 View Details $39.96

View on Model

43

WJ01X23360 GE Air Conditioner Installation Ha Out of Stock GEN WJ01X23360 View Details $15.12

View on Model

44

WJ86X23363 GE Air Conditioner Curtain Assembl Out of Stock GEN WJ86X23363 View Details $48.01

View on Model

45

WJ68X23364 GE Air Conditioner Support Cabinet Out of Stock GEN WJ68X23364 View Details $4.86

View on Model

46

WJ82X23361 GE Air Conditioner Top Guide Out of Stock GEN WJ82X23361 View Details $18.72

View on Model

47

SUPPORT TRIANCLE LEFT Out of Stock GEN WJ65X30606 View Details $10.03

View on Model

48

SUPPORT TRIANCLE RIGHT Out of Stock GEN WJ65X30605 View Details $10.96

View on Model

49

HARDWARE KIT Out of Stock GEN WJ01X10415 View Details $4.86

View on Model
