Model Whirlpool AHFH0820 AIR CONDITIONER – Common Parts & Diagrams
04 - AIR FLOW AND CONTROL
02 - CABINET

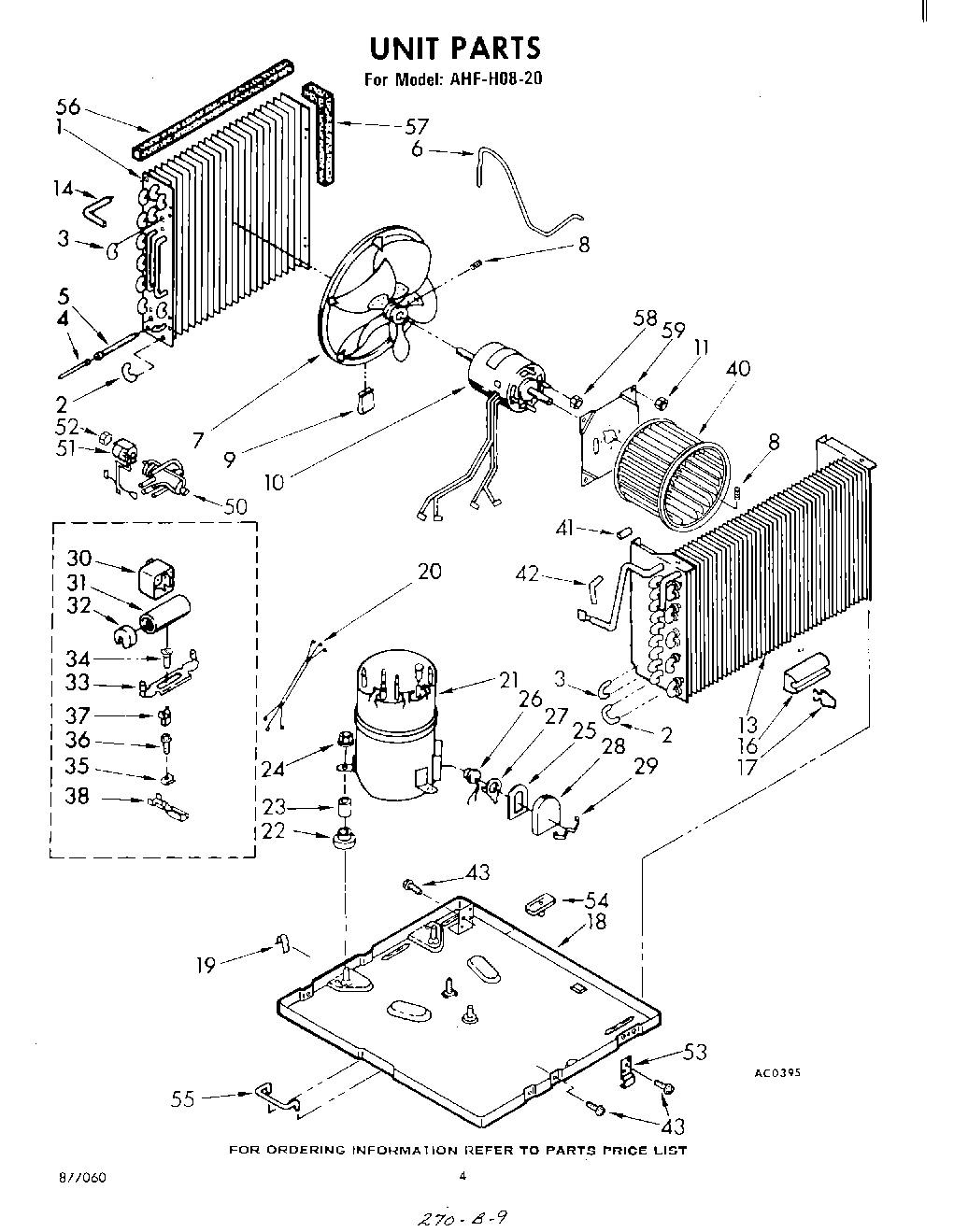

03 - UNIT , LIT/OPTIONAL

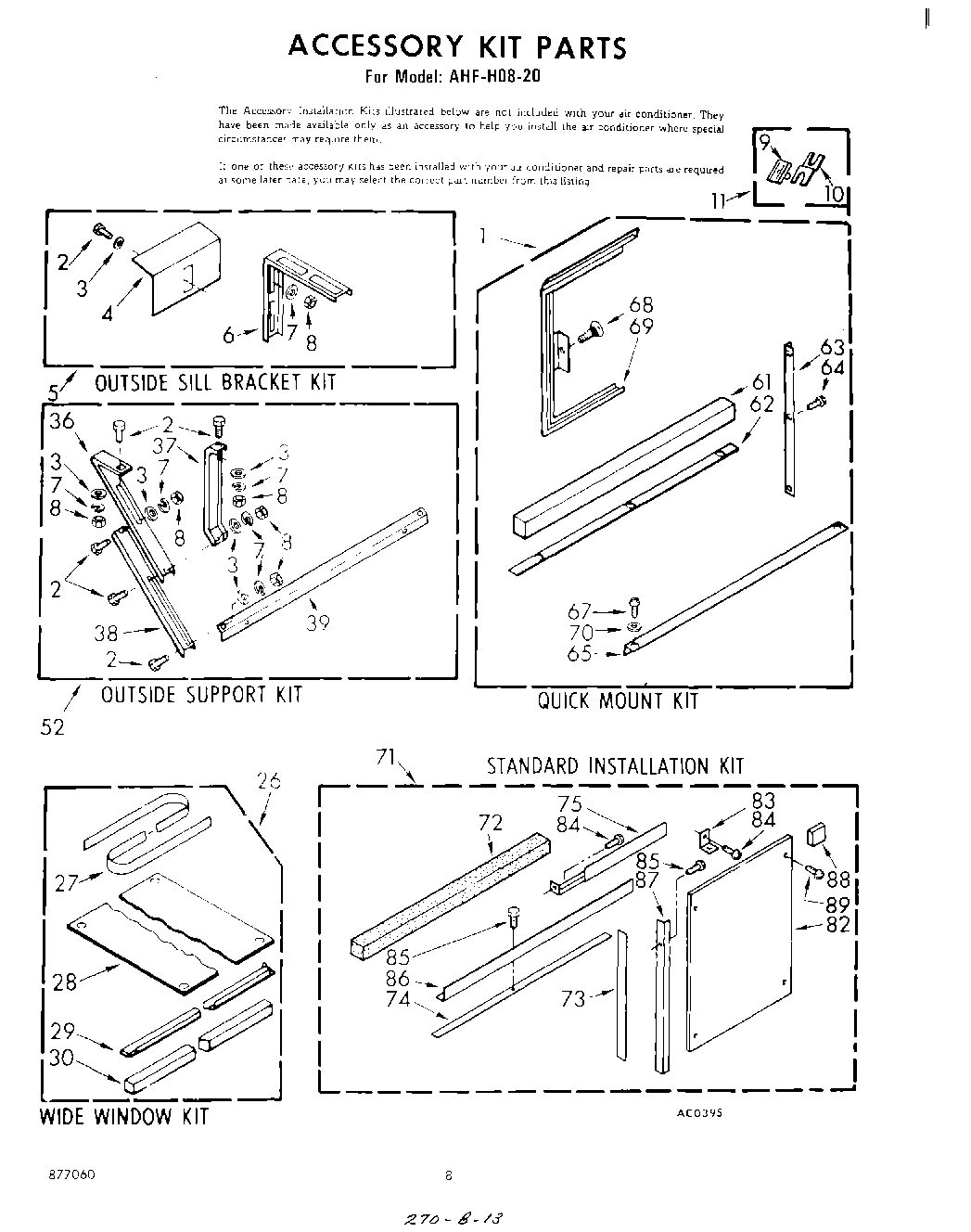

05 - ACCESSORY KIT
Common parts from model Whirlpool AHFH0820 AIR CONDITIONER
1
Condenser WPL 998353 Contact Us For Availability
1
Kit, Quick Mount WPL 485675 Contact Us For Availability
2
Cabinet WPL 858828 Contact Us For Availability
2
Bend, Return (4) Condenser (10) Evaporator WPL 854624 Contact Us For Availability
2
bolt, 1/4 x 3/4 WPL 488750 Contact Us For Availability
3
Front, Complete WPL 947685 Contact Us For Availability
3
Bend, Return (18) Condenser (5) Evaporator WPL 855199 Contact Us For Availability
4
Wire, Ground WPL 857017 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Bracket, Sill Mounting (2) WPL 645515 Contact Us For Availability
5
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
5
Tube & Strainer WPL 484230 Contact Us For Availability
5
Kit, Outside Sill Bracket WPL 485678 Contact Us For Availability
6
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
6
Tube, Restrictor WPL 997410 Contact Us For Availability
6
Bracket, Rail Support (2) WPL 485466 Contact Us For Availability
7
Lockwasher WPL 486009 Contact Us For Availability
7
Blade, Fan WPL 859496 Contact Us For Availability
8
Escutcheon, Plate WPL 947684 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Nut, Hex WPL 486035 Contact Us For Availability
9
Spacer, Escutcheon Plate (3) WPL 470036 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
10
Motor, Fan WPL 998368 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
11
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
11
Nut, Hex (4) WPL 858122 Contact Us For Availability
11
Kit, Condensate Cup WPL 978929 Contact Us For Availability
12
Tube, Condensate WPL 49181 Contact Us For Availability
13
Grommet WPL 647865 Contact Us For Availability
13
Evaporator WPL 998354 Contact Us For Availability
14
Seal WPL 647914 Contact Us For Availability
14
Tube Inlet WPL 475635 Contact Us For Availability
15
Cable, Appliance WPL 648535 Contact Us For Availability
16
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
16
Anticipator, Temperature WPL 475573 Contact Us For Availability
17
Cover, Evaporator WPL 856957 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Capacitor, Compressor WPL 998239 Contact Us For Availability
18
Seal WPL 649198 Contact Us For Availability
18
Base WPL 858803 Contact Us For Availability
19
Bracket (Upper) WPL 475844 Contact Us For Availability
19
Bracket (Lower) WPL 852992 Contact Us For Availability
19
Clip (2) WPL 649966 Contact Us For Availability
19
Clamp WPL 471088 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
21
Compressor WPL 484285 Contact Us For Availability
22
Clamp WPL 43996 Contact Us For Availability
22
Grommet, Compressor (3) WPL 469581 Contact Us For Availability
23
Bracket WPL 947321 Contact Us For Availability
23
Sleeve, Compressor (3) WPL 858148 Contact Us For Availability
24
Capacitor, Fan Motor Running WPL 996503 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Switch, Pushbutton WPL 947238 Contact Us For Availability
26
Overload WPL 646781 Contact Us For Availability
26
Kit, Wide Window WPL 485676 Contact Us For Availability
27
Control, Temperature WPL 853275 Contact Us For Availability
27
Seal WPL 647854 Contact Us For Availability
27
Spring, Overload WPL 644362 Contact Us For Availability
27
Strip, Seal WPL 855265 Contact Us For Availability
28
Bracket, Fan Motor Capacitor WPL 998009 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
28
Board, Filler WPL 485484 Contact Us For Availability
29
Strap, Terminal Cover WPL 475062 Contact Us For Availability
29
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
29
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
30
Wire, Ground WPL 857634 Contact Us For Availability
30
Relay (Component Of Start Kit) WPL 484177 Contact Us For Availability
30
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
31
Channel, Wiring WPL 852317 Contact Us For Availability
31
capacitor (component of start kit) WPL 48616 Contact Us For Availability
32
cap, capacitor (component of start kit) WPL 465280 Contact Us For Availability
33
Guard, Evaporator Impeller WPL 997949 Contact Us For Availability
33
Bracket, Capacitor (Component Of Start Kit) WPL 35564 Contact Us For Availability
34
Screw, 6 x .175 WPL 488734 Contact Us For Availability
34
Screw, 10 x 5/8 (Component Of Start Kit) WPL 487880 Contact Us For Availability
35
Box, Control WPL 993644 Contact Us For Availability
35
Front, Cabinet WPL 947686 Contact Us For Availability
36
Ground Wire WPL 998010 Contact Us For Availability
36
Support (2) WPL 644283 Contact Us For Availability
37
Support, Unit WPL 852318 Contact Us For Availability
37
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
37
Support, Retainer (2) WPL 644285 Contact Us For Availability
38
Clip, Terminal (Component Of Start Kit) WPL 45571 Contact Us For Availability
38
Extension, Support (2) WPL 644284 Contact Us For Availability
39
Retainer, Filter WPL 476707 Contact Us For Availability
39
Bracket, Support (2) WPL 644281 Contact Us For Availability
40
Wheel, Blower WPL 859495 Contact Us For Availability
41
Strainer WPL 474013 Contact Us For Availability
42
Bend, 90~ WPL 647949 Contact Us For Availability
43
Screw, Repair WPL 488481 Contact Us For Availability
46
Dividing Wall Assembly, L.S. WPL 852994 Contact Us For Availability
46
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
47
Clip, Speed WPL 649620 Contact Us For Availability
48
Insulation, Sleeve WPL 475841 Contact Us For Availability
49
Thermostat De-Icer WPL 471487 Contact Us For Availability
50
Knob, Control WPL 947264 Contact Us For Availability
50
Reversing Valve (Use W/852978) WPL 467396 Contact Us For Availability
50
Reversing Valve (Use W/996215) WPL 996213 Contact Us For Availability
51
Clip, Shroud (3) WPL 647873 Contact Us For Availability
51
Solenoid Coil (Use W/467396) WPL 852978 Contact Us For Availability
51
Solenoid, Coil (Use W/996213) WPL 996215 Contact Us For Availability
52
Kit, Outside Support WPL 485679 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
53
Louver, Vertical WPL 647798 Contact Us For Availability
53
WPL 647824 WPL 647824 Contact Us For Availability
54
Screw, 6-20 x .362 WPL 488735 Contact Us For Availability
54
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
55
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
55
WPL 647971 WPL 647971 Contact Us For Availability
56
Detent Spring (2) WPL 641484 Contact Us For Availability
56
WPL 649609 WPL 649609 Contact Us For Availability
57
WPL 649610 WPL 649610 Contact Us For Availability
58
Filter WPL 648008 Contact Us For Availability
59
WPL 978029 WPL 978029 Contact Us For Availability
59
WPL 484069 WPL 484069 Contact Us For Availability
59
WPL 505168 WPL 505168 Contact Us For Availability
59
WPL 10943 WPL 10943 Contact Us For Availability
59
WPL 47261 WPL 47261 Contact Us For Availability
59
WPL 47262 WPL 47262 Contact Us For Availability
59
WPL 47263 WPL 47263 Contact Us For Availability
59
WPL 484220 WPL 484220 Contact Us For Availability
59
WPL 484310 WPL 484310 Contact Us For Availability
59
WPL 485426 WPL 485426 Contact Us For Availability
59
WPL 485608 WPL 485608 Contact Us For Availability
59
WPL 647846 WPL 647846 Contact Us For Availability
59
WPL 647847 WPL 647847 Contact Us For Availability
59
WPL 647848 WPL 647848 Contact Us For Availability
59
WPL 649939 WPL 649939 Contact Us For Availability
59
WPL 799351 WPL 799351 Contact Us For Availability
59
WPL 877060 WPL 877060 Contact Us For Availability
59
WPL 947599 WPL 947599 Contact Us For Availability
59
WPL 978028 WPL 978028 Contact Us For Availability
59
WPL 998024 WPL 998024 Contact Us For Availability
60
Clamp, Cable WPL 947072 Contact Us For Availability
62
Strip, Seal WPL 477597 Contact Us For Availability
63
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
64
Screw, 8 x 7/16 WPL 488730 Contact Us For Availability
65
Channel, Bottom WPL 644387 Contact Us For Availability
68
Thumbscrew (2) WPL 475581 Contact Us For Availability
69
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
69
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
70
Washer (2) WPL 488520 Contact Us For Availability
71
Kit, Standard Installation WPL 485674 Contact Us For Availability
72
Seal WPL 469877 Contact Us For Availability
73
Strip, Seal WPL 856979 Contact Us For Availability
74
Strip, Seal WPL 856986 Contact Us For Availability
75
Bracket, R.S. WPL 645562 Contact Us For Availability
75
Bracket, L.S. WPL 645563 Contact Us For Availability
82
Bracket, R.S. WPL 647835 Contact Us For Availability
83
Bracket WPL 644228 Contact Us For Availability
84
Wood Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
86
Angle, Top WPL 644380 Contact Us For Availability
87
Angle (2) WPL 645564 Contact Us For Availability
88
Spacer, Block WPL 995274 Contact Us For Availability
89
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
89
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
89
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
89
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
89
Instructions, Installation (Kit, Standard Ins WPL 648435 Contact Us For Availability
× ![]()
