Model Whirlpool AHFE1440 AIR CONDITIONER – Common Parts & Diagrams
02 - SECTION
03 - SECTION
04 - SECTION
01 - SECTION

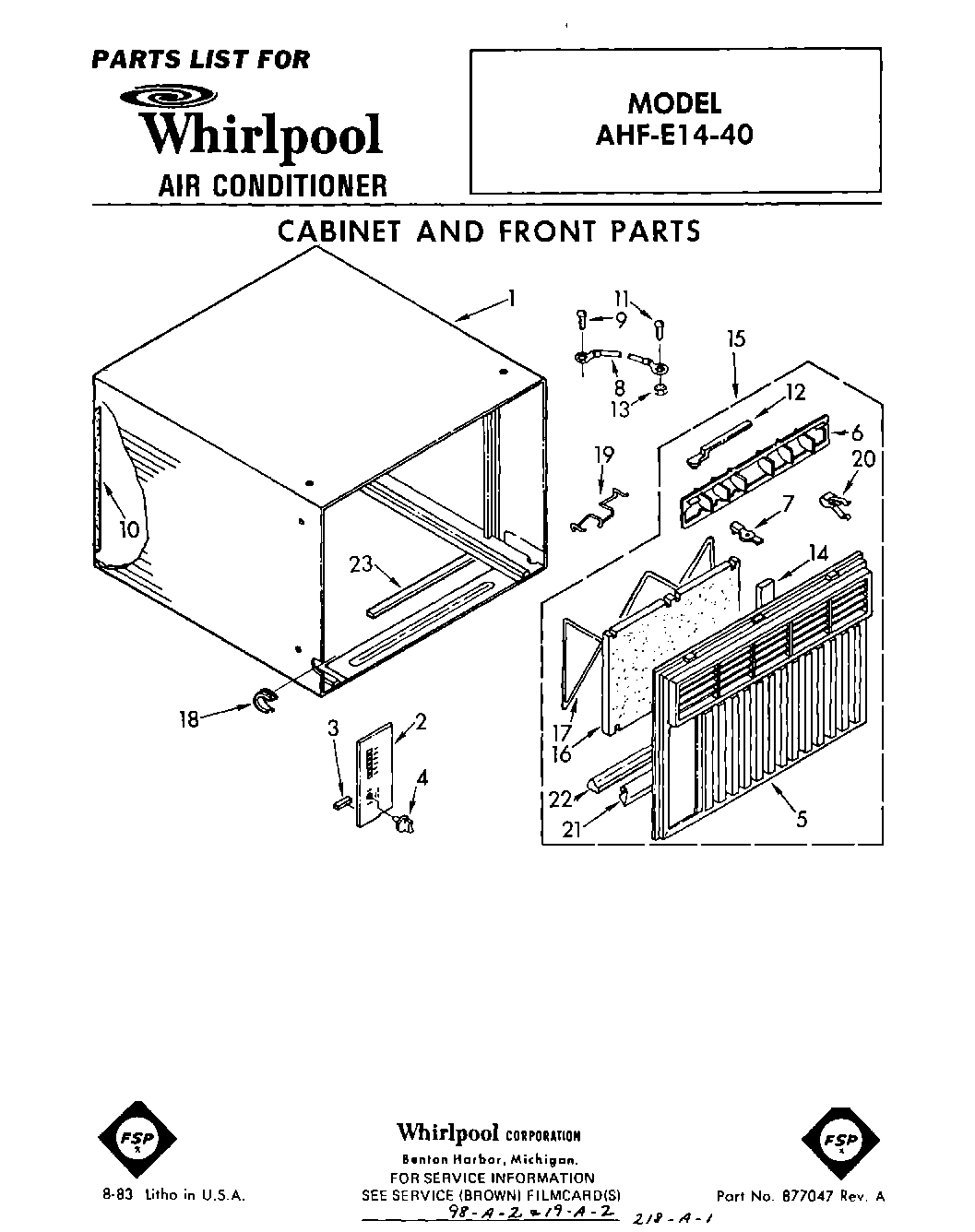

Common parts from model Whirlpool AHFE1440 AIR CONDITIONER
1
Shroud, Condenser WPL 647862 Contact Us For Availability
1
Kit, Quick Mount WPL 485675 Contact Us For Availability
1
Cabinet WPL 858828 Contact Us For Availability
2
Housing, Blower Wheel WPL 852875 Contact Us For Availability
2
bolt, 1/4 x 3/4 WPL 488750 Contact Us For Availability
2
Escutcheon WPL 947684 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
3
Spacer, Escutcheon (3) WPL 470036 Contact Us For Availability
4
Pan, Condensate WPL 859238 Contact Us For Availability
4
Bracket, Sill Mounting (2) WPL 645515 Contact Us For Availability
4
Knob, Control WPL 947264 Contact Us For Availability
5
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
5
Kit, Outside Sill Bracket WPL 485678 Contact Us For Availability
5
Front, Cabinet WPL 947686 Contact Us For Availability
6
Bracket, Rail Support (2) WPL 485466 Contact Us For Availability
6
Louver, Vertical WPL 647798 Contact Us For Availability
7
Lockwasher WPL 486009 Contact Us For Availability
7
Fastener, snap (2) WPL 487808 Contact Us For Availability
7
Handle, Louver (2) WPL 644165 Contact Us For Availability
8
Clamp, Cable WPL 641054 Contact Us For Availability
8
Nut, Hex WPL 486035 Contact Us For Availability
8
Ground, Wire WPL 857017 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
9
Wall, Dividing WPL 998442 Contact Us For Availability
9
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
10
Clamp, Capacitor Ground WPL 855929 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
11
Nut, Hex WPL 858122 Contact Us For Availability
11
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
11
Kit, Condensate Cup WPL 978929 Contact Us For Availability
11
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
12
Cover, Tube Opening WPL 994400 Contact Us For Availability
12
Tube, Condensate WPL 49181 Contact Us For Availability
12
Link, Louver (2) WPL 647799 Contact Us For Availability
13
Evaporator WPL 949606 Contact Us For Availability
13
Grommet WPL 647865 Contact Us For Availability
14
Tube Inlet WPL 475635 Contact Us For Availability
14
Seal WPL 649198 Contact Us For Availability
15
Return Bend (3-Way) WPL 476078 Contact Us For Availability
15
Cable, Appliance WPL 649125 Contact Us For Availability
15
Front, Complete WPL 947685 Contact Us For Availability
16
Anticipator, Temperature WPL 484238 Contact Us For Availability
16
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
16
Filter WPL 648008 Contact Us For Availability
17
Clip, Anticipator WPL 642080 Contact Us For Availability
17
Cover, Evaporator WPL 856957 Contact Us For Availability
17
Retainer, Filter WPL 476707 Contact Us For Availability
18
Base WPL 858803 Contact Us For Availability
18
Capacitor, Compressor WPL 948173 Contact Us For Availability
18
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
19
Clamp WPL 642684 Contact Us For Availability
19
Bracket (Upper) WPL 475844 Contact Us For Availability
19
Bracket (Lower) WPL 852992 Contact Us For Availability
19
Clip, Front (2) WPL 949634 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Insulator, Terminal WPL 642360 Contact Us For Availability
20
Spring (2) WPL 641484 Contact Us For Availability
21
Compressor WPL 484296 Contact Us For Availability
21
Switch, Limit WPL 995674 Contact Us For Availability
22
Grommet (3) WPL 469581 Contact Us For Availability
22
Seal WPL 647914 Contact Us For Availability
23
Sleeve (3) WPL 858148 Contact Us For Availability
23
Deflector, Heater WPL 857224 Contact Us For Availability
23
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Capacitor, Fan Motor Running WPL 997996 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
25
Wire, Ground WPL 948285 Contact Us For Availability
26
Dampener WPL 858836 Contact Us For Availability
26
Switch, Pushbutton WPL 947238 Contact Us For Availability
26
Kit, Wide Window WPL 485676 Contact Us For Availability
27
Washer, Shim WPL 470280 Contact Us For Availability
27
Control, Temperature WPL 994200 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
28
Bracket, Fan Motor Capacitor WPL 998009 Contact Us For Availability
28
Board, Filler WPL 485484 Contact Us For Availability
29
Strap, Terminal Cover WPL 475062 Contact Us For Availability
29
Thermistor WPL 949177 Contact Us For Availability
29
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
29
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
30
xRelay WPL 484177 Contact Us For Availability
30
Wire, Ground WPL 857634 Contact Us For Availability
30
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
31
xCapacitor WPL 484358 Contact Us For Availability
31
Channel, Wiring WPL 852317 Contact Us For Availability
32
xCap, Capacitor WPL 465280 Contact Us For Availability
33
xBracket, capacitor WPL 35564 Contact Us For Availability
33
Guard, Evaporator Impeller WPL 997949 Contact Us For Availability
34
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
34
Screw, 6 x .175 WPL 488734 Contact Us For Availability
35
Box, Control WPL 994159 Contact Us For Availability
36
Wire, Ground WPL 998010 Contact Us For Availability
36
Support (2) WPL 644283 Contact Us For Availability
37
Multiplier, Terminal WPL 90654 Contact Us For Availability
37
Support, Unit WPL 852318 Contact Us For Availability
37
Support, Retainer (2) WPL 644285 Contact Us For Availability
38
xClip, terminal WPL 45571 Contact Us For Availability
38
Clamp, Mounting WPL 949176 Contact Us For Availability
38
Extension, Support (2) WPL 644284 Contact Us For Availability
39
Screw, 6-20 x .362 WPL 488735 Contact Us For Availability
39
Bracket, Support (2) WPL 644281 Contact Us For Availability
40
Wheel, Blower WPL 852067 Contact Us For Availability
40
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
41
Heater, Air WPL 995675 Contact Us For Availability
43
Cover, Wire WPL 857203 Contact Us For Availability
44
Contactor WPL 858771 Contact Us For Availability
45
Return Bend (3-Way) WPL 49493 Contact Us For Availability
45
Fuse, Heater WPL 643899 Contact Us For Availability
46
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
47
Clip, Speed WPL 649620 Contact Us For Availability
49
Return Bend WPL 855644 Contact Us For Availability
51
Clip, Shroud (3) WPL 647873 Contact Us For Availability
52
Kit, Outside Support WPL 485679 Contact Us For Availability
53
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
53
Clamp, Cable WPL 648791 Contact Us For Availability
55
Handle, Base WPL 647971 Contact Us For Availability
56
Seal WPL 649609 Contact Us For Availability
57
Seal WPL 649610 Contact Us For Availability
59
Plate, Mounting WPL 998024 Contact Us For Availability
59
Cover, Dividing Wall WPL 994399 Contact Us For Availability
60
WPL 978029 WPL 978029 Contact Us For Availability
60
Cover, Winter WPL 484069 Contact Us For Availability
60
No Drip Tape (For Sweating WPL 505168 Contact Us For Availability
60
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
60
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
60
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
60
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
60
Kit, Start Assist WPL 484220 Contact Us For Availability
60
Kit, Compressor Start WPL 484359 Contact Us For Availability
60
Lacquer, Starlight Grey (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
60
WPL 647846 WPL 647846 Contact Us For Availability
60
WPL 647847 WPL 647847 Contact Us For Availability
60
WPL 647848 WPL 647848 Contact Us For Availability
60
WPL 649939 WPL 649939 Contact Us For Availability
60
WPL 799351 WPL 799351 Contact Us For Availability
60
WPL 877047 WPL 877047 Contact Us For Availability
60
WPL 947599 WPL 947599 Contact Us For Availability
60
WPL 948439 WPL 948439 Contact Us For Availability
60
WPL 978028 WPL 978028 Contact Us For Availability
60
WPL 998459 WPL 998459 Contact Us For Availability
61
Seal, Meeting Rail WPL 855841 Contact Us For Availability
62
Strip, Seal WPL 477597 Contact Us For Availability
63
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
64
Screw, 8 x 7/16 WPL 488730 Contact Us For Availability
65
Channel, Bottom WPL 644387 Contact Us For Availability
68
Thumbscrew (2) WPL 475581 Contact Us For Availability
69
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
69
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
70
Washer (2) WPL 487656 Contact Us For Availability
71
Kit, Standard Installation WPL 485674 Contact Us For Availability
72
Seal WPL 469877 Contact Us For Availability
73
Strip, Seal WPL 856979 Contact Us For Availability
74
Seal, Strip WPL 855265 Contact Us For Availability
75
Bracket, R.S. WPL 645562 Contact Us For Availability
75
Bracket, L.S. WPL 645563 Contact Us For Availability
82
Board, Filler WPL 647835 Contact Us For Availability
83
Bracket WPL 644228 Contact Us For Availability
84
Wood Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
86
Angle, Top WPL 644380 Contact Us For Availability
87
Angle (2) WPL 645564 Contact Us For Availability
88
Spacer, Block WPL 995274 Contact Us For Availability
89
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
89
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
89
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
89
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
89
Instructions, Installation (Kit, Standard Ins WPL 648435 Contact Us For Availability
× ![]()
