Model Whirlpool AHFC6321 AIR CONDITIONER – Common Parts & Diagrams
02 - SECTION
01 - SECTION

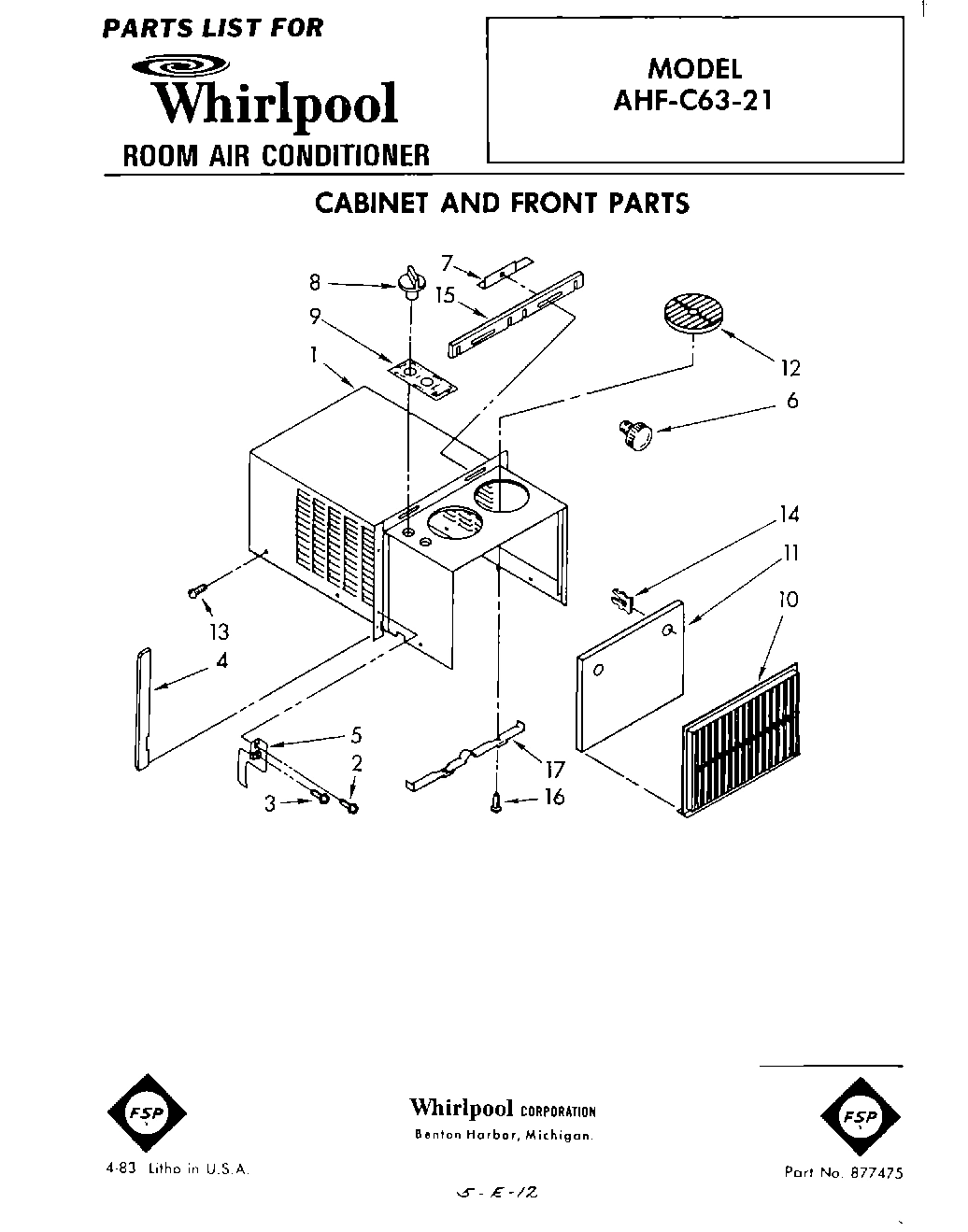

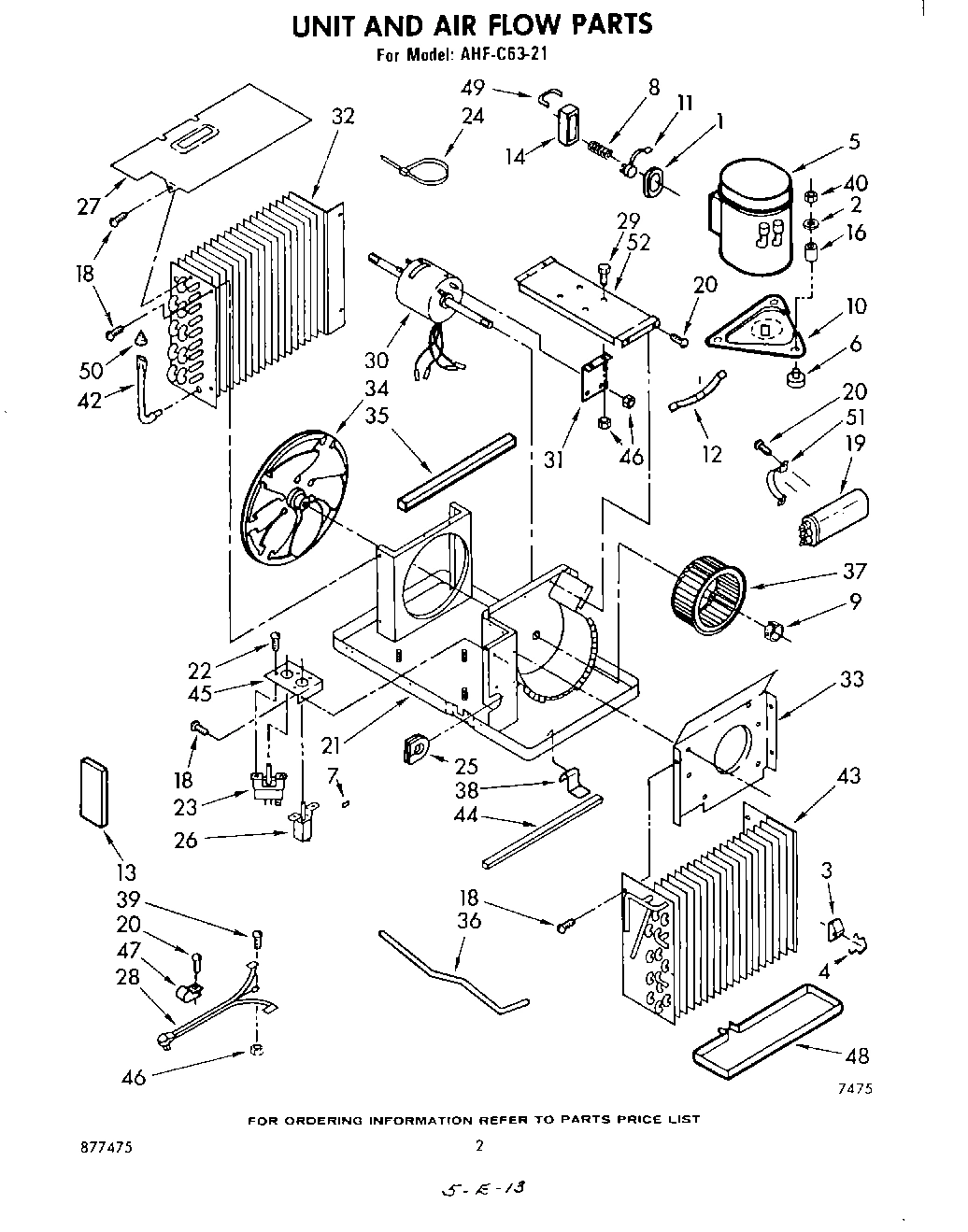

Common parts from model Whirlpool AHFC6321 AIR CONDITIONER
1
Cabinet WPL 980714 Contact Us For Availability
2
Screw, No.10 x 3/8 (2) WPL 487470 Contact Us For Availability
3
Screw, No.10 x 3/8 (2) WPL 487336 Contact Us For Availability
4
Seal, R.H. Cabinet WPL 798341 Contact Us For Availability
4
Seal, L.H. Cabinet WPL 798342 Contact Us For Availability
5
Clip, Window R.H. WPL 798347 Contact Us For Availability
5
clip, window l.h. WPL 798348 Contact Us For Availability
6
Grommet (3) WPL 798392 Contact Us For Availability
6
Knob, Top Slide Adjustable (2) WPL 832105 Contact Us For Availability
7
Pad, Protector WPL 977636 Contact Us For Availability
7
Slide, Top L.H. WPL 798349 Contact Us For Availability
7
Slide, Top R.H. WPL 798350 Contact Us For Availability
8
Spring, Overload WPL 798469 Contact Us For Availability
8
Knob, Control (2) WPL 977949 Contact Us For Availability
9
Clip, Locking WPL 977874 Contact Us For Availability
9
Escutcheon, Control WPL 977947 Contact Us For Availability
10
Base, Mounting WPL 832161 Contact Us For Availability
10
Frame, Front WPL 977948 Contact Us For Availability
11
Overload WPL 977502 Contact Us For Availability
11
Filter WPL 977866 Contact Us For Availability
12
Spring, Mounting WPL 977440 Contact Us For Availability
12
Wheel, Air Deflection (2) WPL 832104 Contact Us For Availability
13
Seal, Strip WPL 977692 Contact Us For Availability
14
Cover, Terminal WPL 798470 Contact Us For Availability
14
Clip, Filter (2) WPL 977850 Contact Us For Availability
15
Seal, Top Cabinet WPL 798344 Contact Us For Availability
16
Sleeve (3) WPL 798393 Contact Us For Availability
16
Screw, 6-20 x 3/8 (2) WPL 488331 Contact Us For Availability
17
Retainer, Deflector WPL 798315 Contact Us For Availability
19
Capacitor WPL 977941 Contact Us For Availability
21
Base Assembly WPL 977967 Contact Us For Availability
22
Screw, Mach 6-32 x 1/4 (4) WPL 977838 Contact Us For Availability
23
Switch, Rotary WPL 977944 Contact Us For Availability
25
Grommet, Tube WPL 465055 Contact Us For Availability
26
Control, Temperature WPL 977945 Contact Us For Availability
27
Cover, Shroud Condenser WPL 977942 Contact Us For Availability
28
Cord, Power WPL 980713 Contact Us For Availability
30
Motor, Fan WPL 980710 Contact Us For Availability
31
Bracket, Motor WPL 977939 Contact Us For Availability
32
Condenser WPL 977937 Contact Us For Availability
33
Cover, Housing WPL 977377 Contact Us For Availability
34
Fan, Slinger WPL 832083 Contact Us For Availability
35
Seal, Strip WPL 977943 Contact Us For Availability
36
Tube, Restrictor WPL 977862 Contact Us For Availability
37
Wheel, Blower WPL 977861 Contact Us For Availability
38
Clip, Front Mtg (2) WPL 798307 Contact Us For Availability
40
Nut, 5/16-18 (3) WPL 977793 Contact Us For Availability
42
Tube & Strainer (Includes Illus. 50) WPL 977847 Contact Us For Availability
43
Evaporator WPL 977936 Contact Us For Availability
44
Seal, Cabinet Bottom WPL 798339 Contact Us For Availability
45
Plate, Switch WPL 977966 Contact Us For Availability
47
Clamp, Cord WPL 977378 Contact Us For Availability
48
Pan, Condensate WPL 798386 Contact Us For Availability
49
Retainer, Cover WPL 832008 Contact Us For Availability
50
Strainer WPL 977848 Contact Us For Availability
51
Bracket, Capacitor WPL 977643 Contact Us For Availability
52
WPL 978029 WPL 978029 Contact Us For Availability
52
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
52
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
52
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
52
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
52
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
52
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
52
WPL 799351 WPL 799351 Contact Us For Availability
52
WPL 877475 WPL 877475 Contact Us For Availability
52
WPL 977913 WPL 977913 Contact Us For Availability
52
WPL 977914 WPL 977914 Contact Us For Availability
52
WPL 977916 WPL 977916 Contact Us For Availability
52
WPL 977938 WPL 977938 Contact Us For Availability
52
WPL 977989 WPL 977989 Contact Us For Availability
52
WPL 978028 WPL 978028 Contact Us For Availability
52
WPL 980715 WPL 980715 Contact Us For Availability
× ![]()
