Model Whirlpool AHF13522 AIR CONDITIONER – Common Parts & Diagrams
04 - AIR FLOW AND CONTROL
05 - ACCESSORY , LIT/OPTIONAL

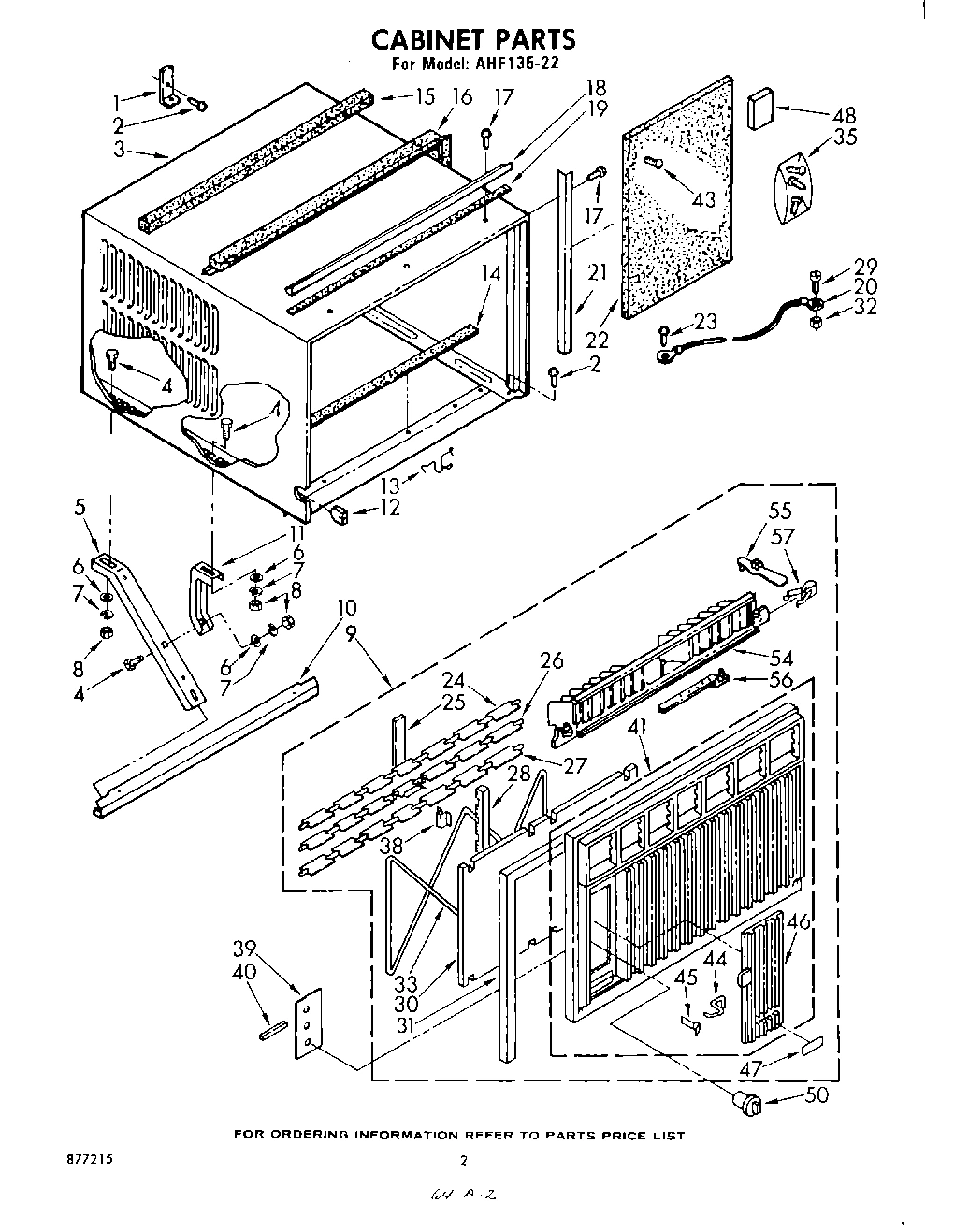

02 - CABINET

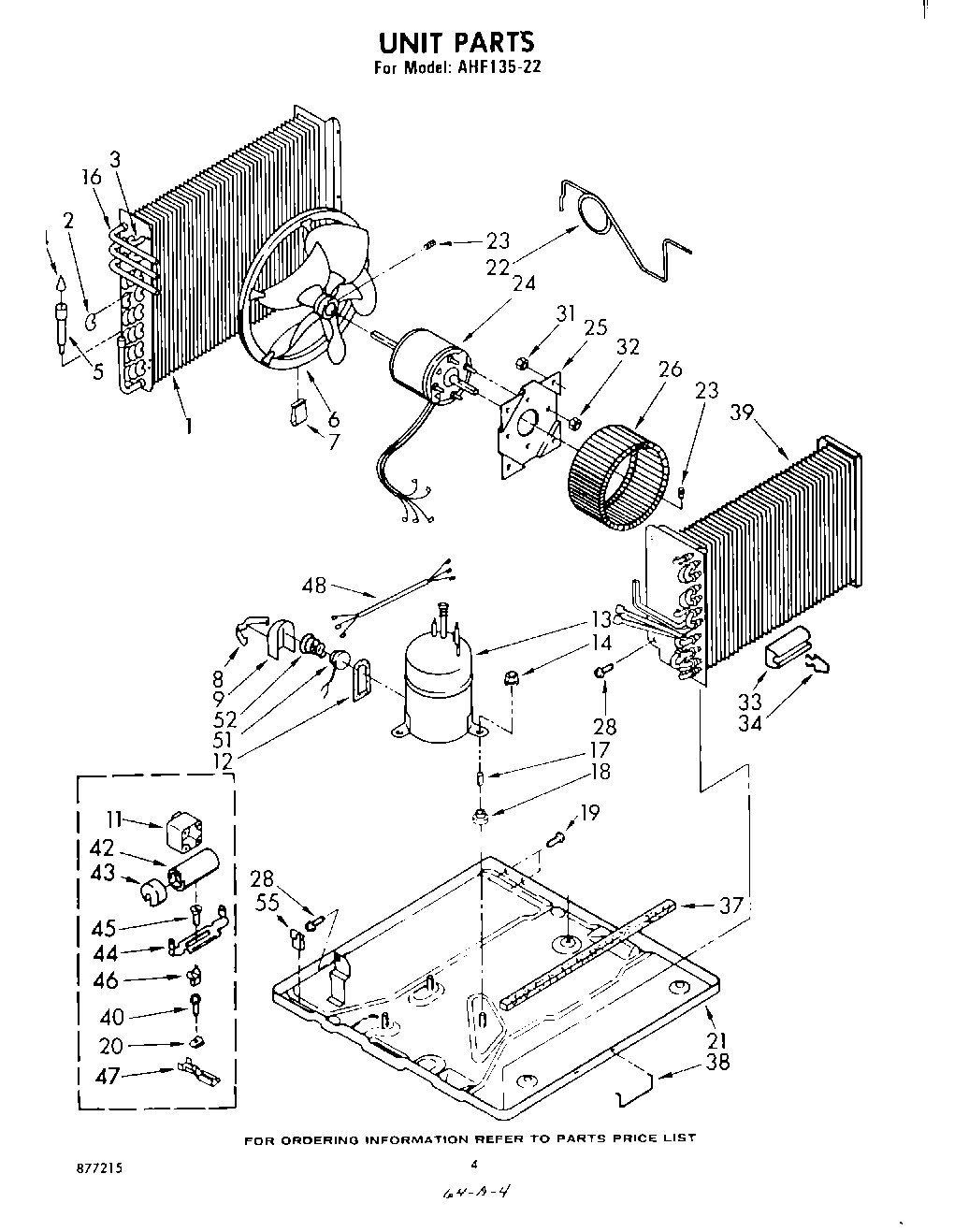

03 - UNIT
Common parts from model Whirlpool AHF13522 AIR CONDITIONER
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Bracket WPL 644228 Contact Us For Availability
1
Condenser WPL 948532 Contact Us For Availability
2
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
2
Bend, Return (21) Condenser WPL 855199 Contact Us For Availability
3
Cabinet WPL 997280 Contact Us For Availability
4
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Support (2) WPL 649945 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Blade, Fan WPL 853699 Contact Us For Availability
7
Clip, Balancing WPL 485334 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Nut, Hex (1/4) (6) WPL 486035 Contact Us For Availability
8
Retainer, Cover WPL 475062 Contact Us For Availability
9
Front Complete WPL 947404 Contact Us For Availability
9
Cover WPL 855762 Contact Us For Availability
10
Bracket WPL 649947 Contact Us For Availability
11
Retainer, Support (2) WPL 649946 Contact Us For Availability
11
Relay (Component Of Start Kit) WPL 484177 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
12
Gasket, Cover WPL 643296 Contact Us For Availability
13
Clip, Cabinet Front (3) WPL 852272 Contact Us For Availability
13
Compressor WPL 484353 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 856506 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Locknut (3) WPL 858121 Contact Us For Availability
15
Seal, Meeting Rail WPL 469877 Contact Us For Availability
16
Bushing WPL 647879 Contact Us For Availability
16
Gasket, Sash WPL 644288 Contact Us For Availability
16
Tube, 90~ Bend WPL 649811 Contact Us For Availability
17
Shaft, Control WPL 852669 Contact Us For Availability
17
Sleeve (3) WPL 858116 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Angle, Top WPL 644271 Contact Us For Availability
18
Grommet (3) WPL 475041 Contact Us For Availability
19
Strip, Seal WPL 855265 Contact Us For Availability
20
Kit, Wide Window WPL 485856 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Angle (2) WPL 644272 Contact Us For Availability
21
Strip, Seal WPL 856979 Contact Us For Availability
21
Base WPL 997294 Contact Us For Availability
22
Switch, Rotary WPL 948306 Contact Us For Availability
22
Board, Filler WPL 644303 Contact Us For Availability
22
Seal, Meeting Rail WPL 470800 Contact Us For Availability
22
Tube, Restrictor (2) WPL 998109 Contact Us For Availability
23
Control, Temperature WPL 852658 Contact Us For Availability
23
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
23
Instructions, Installation (Wide Window Stand WPL 852908 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Screw, 5/16 x 1/4 (2) WPL 595085 Contact Us For Availability
24
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
24
Motor, Fan WPL 947186 Contact Us For Availability
25
Cover, Control Access WPL 997278 Contact Us For Availability
25
Spring, Louver Retainer (4) WPL 855998 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
26
Louver, Horizontal (Handle) WPL 947267 Contact Us For Availability
26
Wheel, Blower WPL 855608 Contact Us For Availability
27
Door Assembly, Fresh Air WPL 997222 Contact Us For Availability
27
Louver, Horizontal (Relieved) WPL 947268 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
29
Spring WPL 998178 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
30
Sealer, Tube WPL 948519 Contact Us For Availability
30
Filter WPL 649958 Contact Us For Availability
31
Screw, 6 x .175 WPL 488734 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
32
Capacitor WPL 947576 Contact Us For Availability
33
Ground Wire WPL 998177 Contact Us For Availability
33
Retainer, Filter WPL 476707 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
34
Wall WPL 997208 Contact Us For Availability
34
Clip (2) WPL 997677 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Bag, Accessory WPL 993848 Contact Us For Availability
36
Wire, Control Exhaust WPL 647883 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 859370 Contact Us For Availability
37
Spring WPL 859369 Contact Us For Availability
37
Seal WPL 853170 Contact Us For Availability
38
Bracket, Capacitor Shield WPL 997218 Contact Us For Availability
38
Clip, Retainer (4) WPL 855999 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
39
Bracket, Running Capacitor WPL 997215 Contact Us For Availability
39
Plate, Escutcheon WPL 947403 Contact Us For Availability
39
Evaporator WPL 949160 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
41
Cover WPL 997269 Contact Us For Availability
41
Frame, Front (Includes Illus. 44, 45 & 46) WPL 947405 Contact Us For Availability
42
Insulation WPL 997237 Contact Us For Availability
42
capacitor (component of start kit) WPL 48616 Contact Us For Availability
43
Pan, Evaporator WPL 997238 Contact Us For Availability
43
cap, capacitor (component of start kit) WPL 465280 Contact Us For Availability
44
Pin, Hinge WPL 649943 Contact Us For Availability
44
Bracket, Capacitor (Component Of Start Kit) WPL 35564 Contact Us For Availability
45
Seal, Condenser Cover (Front) WPL 948600 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
45
Spring, Catch WPL 649949 Contact Us For Availability
45
Screw, 10 x 5/8 (2) (Component Of Start Kit) WPL 487880 Contact Us For Availability
46
Door, Control WPL 947407 Contact Us For Availability
46
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
47
Nameplate WPL 947408 Contact Us For Availability
47
Clip, Terminal (8) (Component Of Start Kit) WPL 45571 Contact Us For Availability
48
Spacer, Block (4) WPL 995274 Contact Us For Availability
48
Harness, Wiring WPL 484136 Contact Us For Availability
50
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
50
Knob, Control (3) WPL 947264 Contact Us For Availability
51
Overload WPL 852521 Contact Us For Availability
52
Spring, Overload WPL 644362 Contact Us For Availability
54
Louver, Vertical WPL 649957 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 852010 Contact Us For Availability
55
Clamp, Tube (2) WPL 471088 Contact Us For Availability
55
Start Assist Kit WPL 484220 Contact Us For Availability
55
Hard Start Kit WPL 485608 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
56
Housing, Blower Wheel WPL 997220 Contact Us For Availability
56
Link, Vertical Louver (2) WPL 852209 Contact Us For Availability
57
Clamp, Cable WPL 947072 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
58
Adapter, Evaporator Header Plate WPL 997239 Contact Us For Availability
59
Extension Assembly WPL 997342 Contact Us For Availability
60
Cover, Winter WPL 484069 Contact Us For Availability
60
WPL 505168 WPL 505168 Contact Us For Availability
60
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
60
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
60
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
60
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
60
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
60
Kit, Evaporator Repair WPL 484310 Contact Us For Availability
60
WPL 485426 WPL 485426 Contact Us For Availability
60
WPL 649939 WPL 649939 Contact Us For Availability
60
WPL 799351 WPL 799351 Contact Us For Availability
60
WPL 855438 WPL 855438 Contact Us For Availability
60
WPL 877215 WPL 877215 Contact Us For Availability
60
WPL 947598 WPL 947598 Contact Us For Availability
60
WPL 948437 WPL 948437 Contact Us For Availability
60
WPL 997236 WPL 997236 Contact Us For Availability
60
WPL 997388 WPL 997388 Contact Us For Availability
60
WPL 998179 WPL 998179 Contact Us For Availability
× ![]()
