Model Whirlpool AHF12021 AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

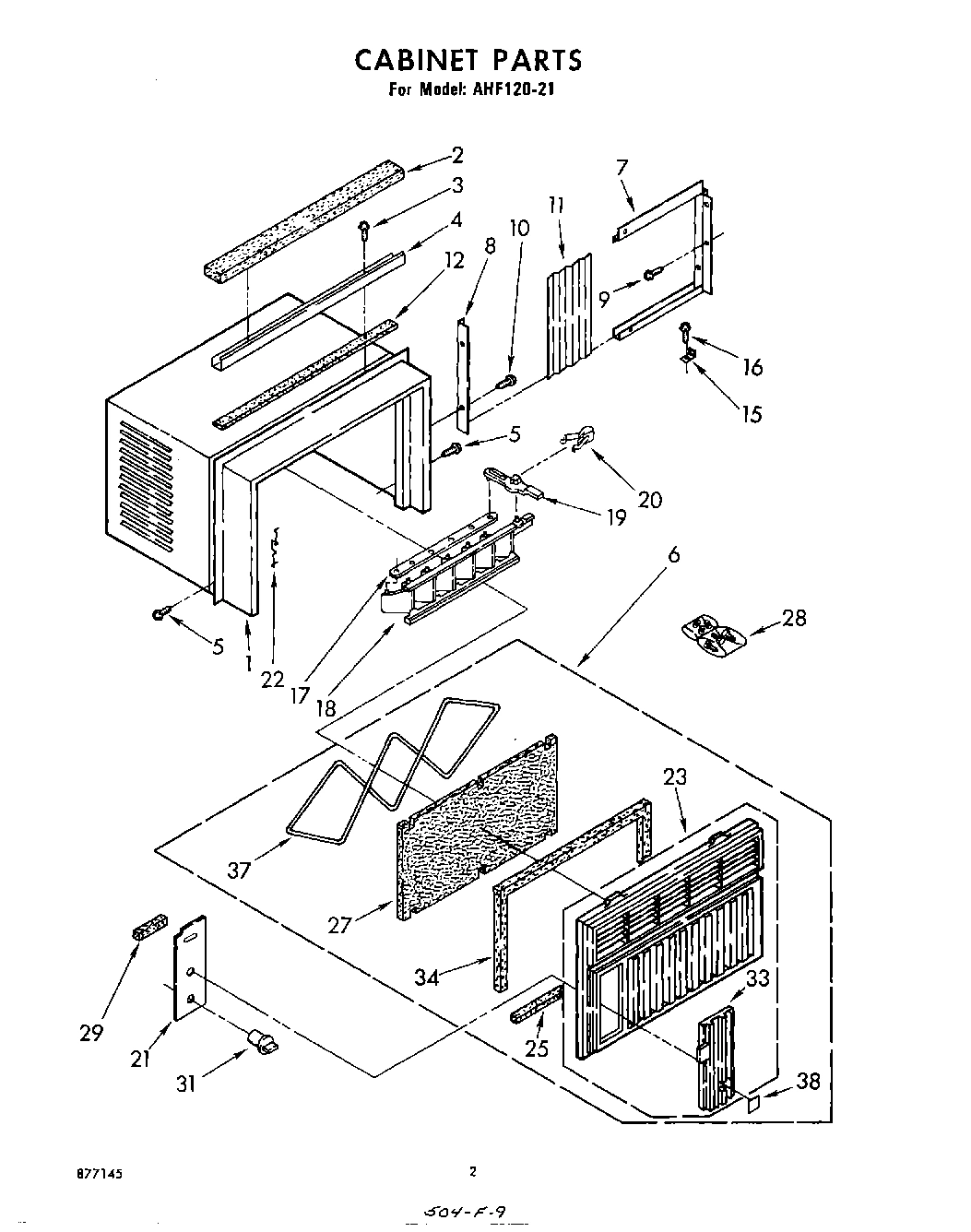

02 - SECTION
04 - SECTION
Common parts from model Whirlpool AHF12021 AIR CONDITIONER
1
Cabinet WPL 856686 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
4
Channel, Top WPL 993786 Contact Us For Availability
4
Shroud, Condenser WPL 856037 Contact Us For Availability
5
support, unit (2) WPL 858663 Contact Us For Availability
6
Cabinet Assembly, Front WPL 947638 Contact Us For Availability
6
Capacitor, Running WPL 948645 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
7
bracket, capacitor (2) WPL 475844 Contact Us For Availability
8
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
8
Wire, Ground WPL 857568 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
10
Motor, Fan WPL 947852 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Clip, Retainer WPL 644401 Contact Us For Availability
11
Curtain (2) WPL 947160 Contact Us For Availability
11
Extension, Dividing Wall (Requires Insulation WPL 994560 Contact Us For Availability
12
Strip, Seal WPL 856989 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
13
Evaporator WPL 947717 Contact Us For Availability
13
Dividing Wall (Requires Insulation Part No. 4 WPL 947867 Contact Us For Availability
14
90~ Bend (3) WPL 947612 Contact Us For Availability
14
Door, Exhaust WPL 644206 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
cord, service WPL 646306 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (1) WPL 641482 Contact Us For Availability
18
Base WPL 859405 Contact Us For Availability
18
Louver, Vertical WPL 641481 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Clamp WPL 852451 Contact Us For Availability
19
Handle, Louver WPL 645887 Contact Us For Availability
19
Arm, Exhaust Door WPL 856042 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 856039 Contact Us For Availability
21
Compressor WPL 484202 Contact Us For Availability
21
Plate, Escutcheon WPL 947636 Contact Us For Availability
21
Fastener, snap WPL 487808 Contact Us For Availability
22
Grommet (3) WPL 469581 Contact Us For Availability
22
Clip, Front (2) WPL 649966 Contact Us For Availability
23
Sleeve (3) WPL 858148 Contact Us For Availability
23
Front Frame (Includes Item 33) WPL 947372 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
25
Seal, Front WPL 852923 Contact Us For Availability
26
Overload WPL 852521 Contact Us For Availability
27
Spring, Overload WPL 644362 Contact Us For Availability
27
Filter WPL 855246 Contact Us For Availability
27
Switch, Rotary WPL 948315 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Control, Temperature WPL 852543 Contact Us For Availability
29
Strap, Terminal Cover WPL 475062 Contact Us For Availability
29
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
29
Panel, Control WPL 996966 Contact Us For Availability
30
Relay (Component Of Start Kit) WPL 484177 Contact Us For Availability
30
Screw, 6 x .175 WPL 488734 Contact Us For Availability
31
capacitor (component of start kit) WPL 48616 Contact Us For Availability
31
Knob, Control (2) WPL 947264 Contact Us For Availability
32
cap, capacitor (component of start kit) WPL 465280 Contact Us For Availability
33
Bracket, Capacitor (Component Of Start Kit) WPL 35564 Contact Us For Availability
33
Door, Control WPL 947168 Contact Us For Availability
34
Screw, 10 x 5/8 (Component Of Start Kit) WPL 487880 Contact Us For Availability
34
Seal, Top & Sides WPL 645883 Contact Us For Availability
34
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
35
WPL 978029 WPL 978029 Contact Us For Availability
35
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
35
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
35
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
35
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
35
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
35
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
35
Start Assist Kit WPL 484220 Contact Us For Availability
35
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
35
Start Kit WPL 485608 Contact Us For Availability
35
Insulation, Fiberglass (Cabinet Only) WPL 649939 Contact Us For Availability
35
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
35
Spring, Retainer WPL 858765 Contact Us For Availability
35
List, Parts WPL 877145 Contact Us For Availability
35
Guide, Use & Care WPL 947596 Contact Us For Availability
35
Guide, WPL 948435 Contact Us For Availability
35
WPL 978028 WPL 978028 Contact Us For Availability
37
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
37
Retainer, Filter WPL 646963 Contact Us For Availability
38
Clip, Terminal (Component Of Start Kit) WPL 45571 Contact Us For Availability
38
Nameplate WPL 947479 Contact Us For Availability
40
Blade, Fan (Evaporator) WPL 947533 Contact Us For Availability
41
Clamp WPL 855930 Contact Us For Availability
47
Split Dampener WPL 857548 Contact Us For Availability
× ![]()
