Model Whirlpool AHF10120 AIR CONDITIONER – Common Parts & Diagrams
03 - SECTION
02 - SECTION
01 - SECTION

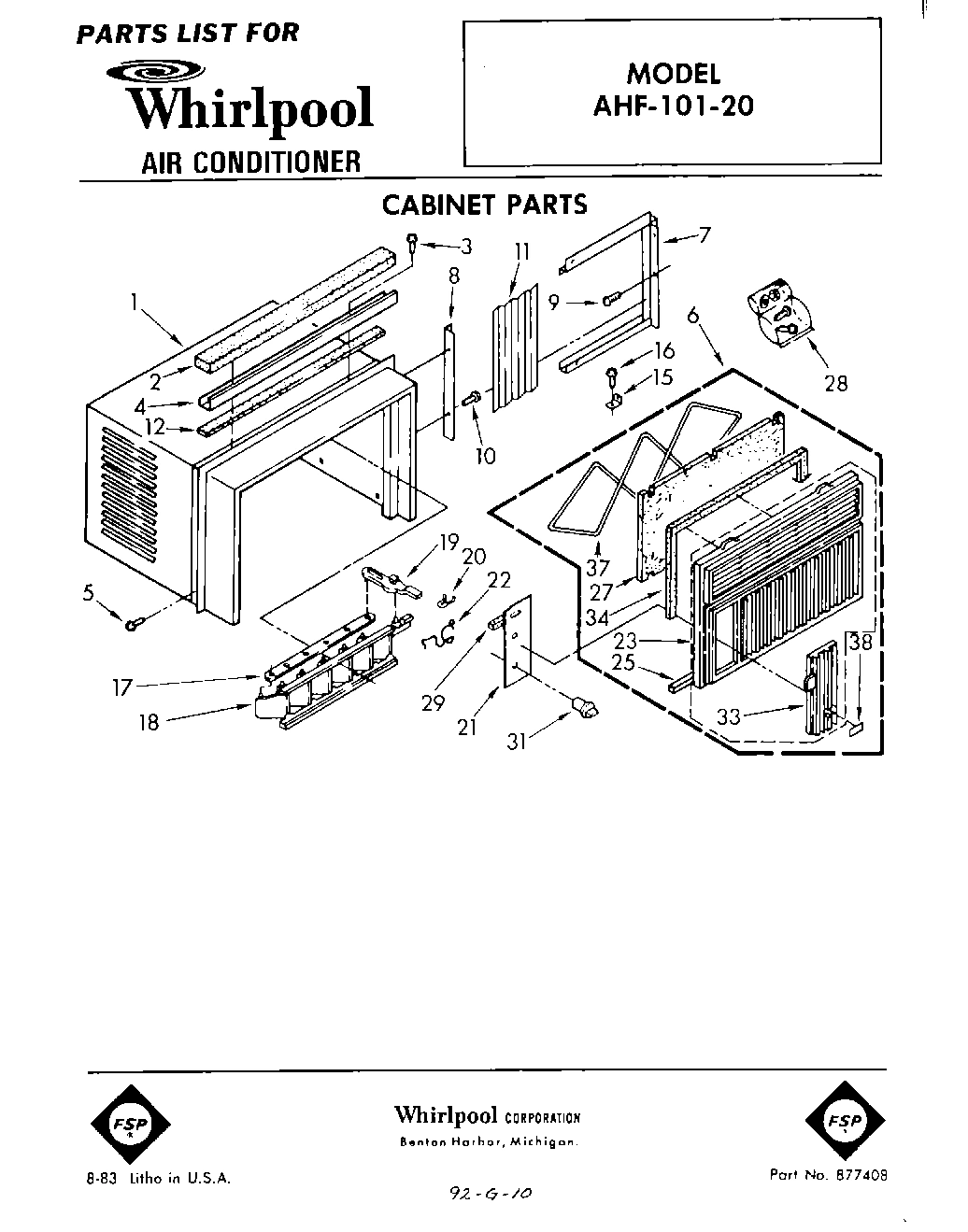

Common parts from model Whirlpool AHF10120 AIR CONDITIONER
1
Condenser WPL 949834 Contact Us For Availability
1
Cabinet WPL 856686 Contact Us For Availability
2
Bend, Return (7) Condenser WPL 854624 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Bend, Return (15) Condenser WPL 855199 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993786 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Tube, Restrictor WPL 997903 Contact Us For Availability
6
Cabinet Assembly, Front WPL 947638 Contact Us For Availability
7
Wire, Ground WPL 857568 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Extension, Dividing Wall (Requires Insulation WPL 994560 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
8
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
10
Motor, Fan WPL 995303 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
11
Cord, Appliance WPL 646306 Contact Us For Availability
11
Curtain (2) WPL 947160 Contact Us For Availability
12
support, unit (2) WPL 858663 Contact Us For Availability
12
Strip, Seal WPL 856989 Contact Us For Availability
13
Capacitor, Running WPL 949092 Contact Us For Availability
13
Evaporator WPL 948367 Contact Us For Availability
14
Bracket, Capacitor WPL 475844 Contact Us For Availability
14
Tube, 90~ Connect (2) WPL 947612 Contact Us For Availability
15
Screen, Exhaust Door WPL 856929 Contact Us For Availability
15
Tube, Outlet Or Inlet (2) WPL 994541 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Thermistor WPL 949177 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Clamp WPL 949176 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (1) WPL 641482 Contact Us For Availability
18
Base WPL 859405 Contact Us For Availability
18
Louver, Vertical WPL 641481 Contact Us For Availability
19
Actuator, Exhaust Door WPL 947468 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Handle, Louver (1) WPL 645887 Contact Us For Availability
20
Spring, Detent WPL 858765 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Switch, Rotary WPL 948315 Contact Us For Availability
21
Compressor WPL 484081 Contact Us For Availability
21
Plate, Escutcheon WPL 947636 Contact Us For Availability
22
Control, Tempetature WPL 949431 Contact Us For Availability
22
Grommet (3) WPL 469581 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
23
Sleeve (3) WPL 858148 Contact Us For Availability
23
Front Frame (Includes Item 33) WPL 947372 Contact Us For Availability
24
Dividing Wall (Requires Insulation Part No. 4 WPL 947867 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
25
Seal, Front WPL 852923 Contact Us For Availability
26
Fastener, snap WPL 487808 Contact Us For Availability
26
Overload WPL 852521 Contact Us For Availability
27
Spring, Overload WPL 644362 Contact Us For Availability
27
Filter WPL 855246 Contact Us For Availability
28
Shroud, Evaporator (Includes Item 23) WPL 948219 Contact Us For Availability
28
Cover, Terminal WPL 855762 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
29
Retainer, Terminal Cover WPL 475062 Contact Us For Availability
29
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 998090 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
31
Knob, Control (2) WPL 947264 Contact Us For Availability
33
Screw, 6-32 x .175 (4) WPL 488734 Contact Us For Availability
33
Split Dampener WPL 857548 Contact Us For Availability
33
Door, Control WPL 947168 Contact Us For Availability
34
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
34
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
34
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
34
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
34
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
34
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
34
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
34
List, Repair Parts WPL 877408 Contact Us For Availability
34
Guide, Use & Care WPL 947596 Contact Us For Availability
34
Tech Sheet (Ser WPL 949221 Contact Us For Availability
34
WPL 949787 WPL 949787 Contact Us For Availability
34
WPL 949846 WPL 949846 Contact Us For Availability
34
WPL 996966 WPL 996966 Contact Us For Availability
34
Seal, Top & Sides WPL 645883 Contact Us For Availability
37
Retainer, Filter WPL 646963 Contact Us For Availability
38
Nameplate WPL 947479 Contact Us For Availability
40
xRelay WPL 484177 Contact Us For Availability
41
xCapacitor WPL 48616 Contact Us For Availability
42
xCap, Capacitor WPL 465280 Contact Us For Availability
43
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
44
xBracket, capacitor WPL 35564 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
cover, winter WPL 484184 Contact Us For Availability
48
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
48
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
48
xClip, terminal WPL 45571 Contact Us For Availability
48
Start Assist Kit WPL 484220 Contact Us For Availability
48
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
48
Start Kit WPL 485608 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
