Model Whirlpool AHA04021 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION

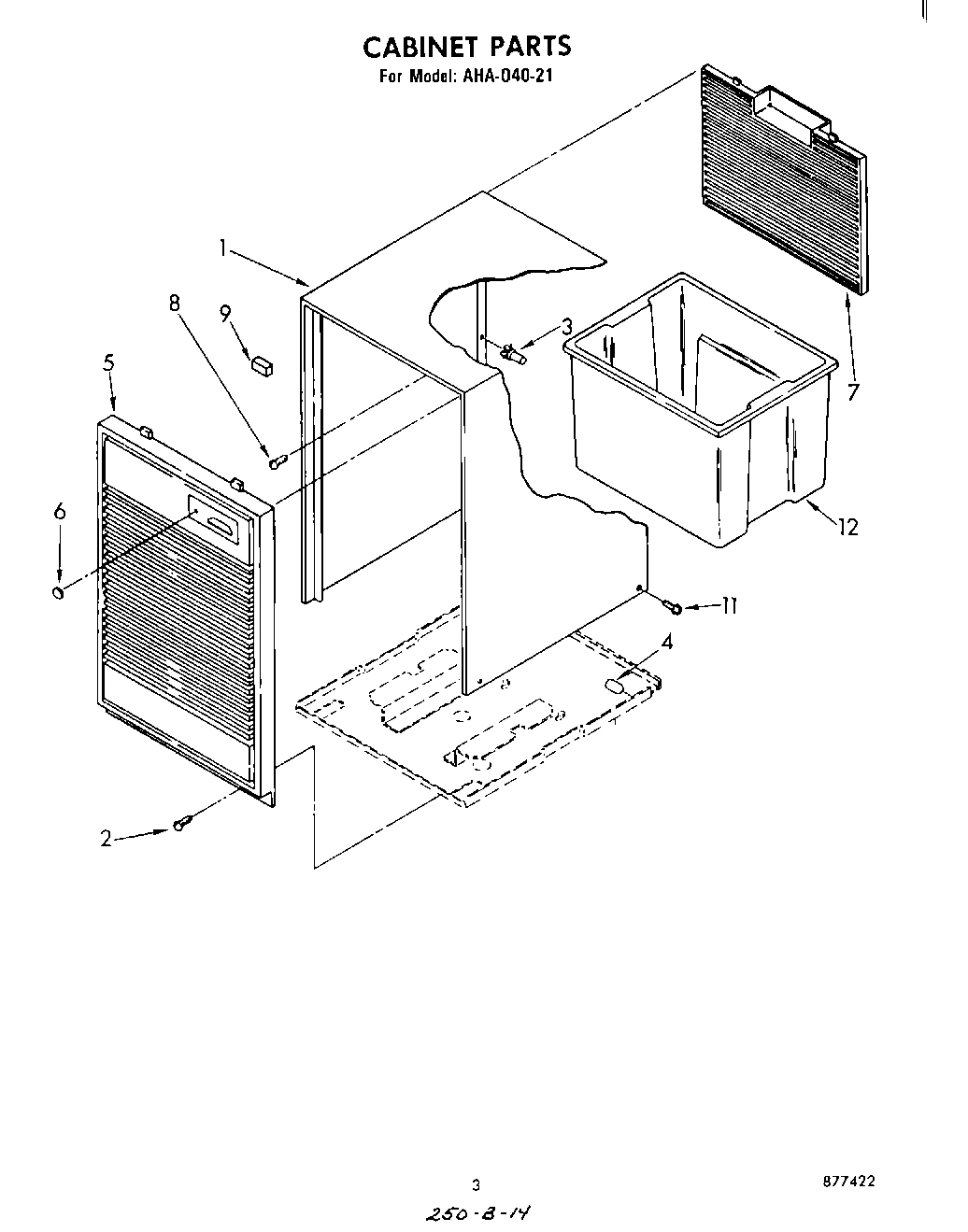

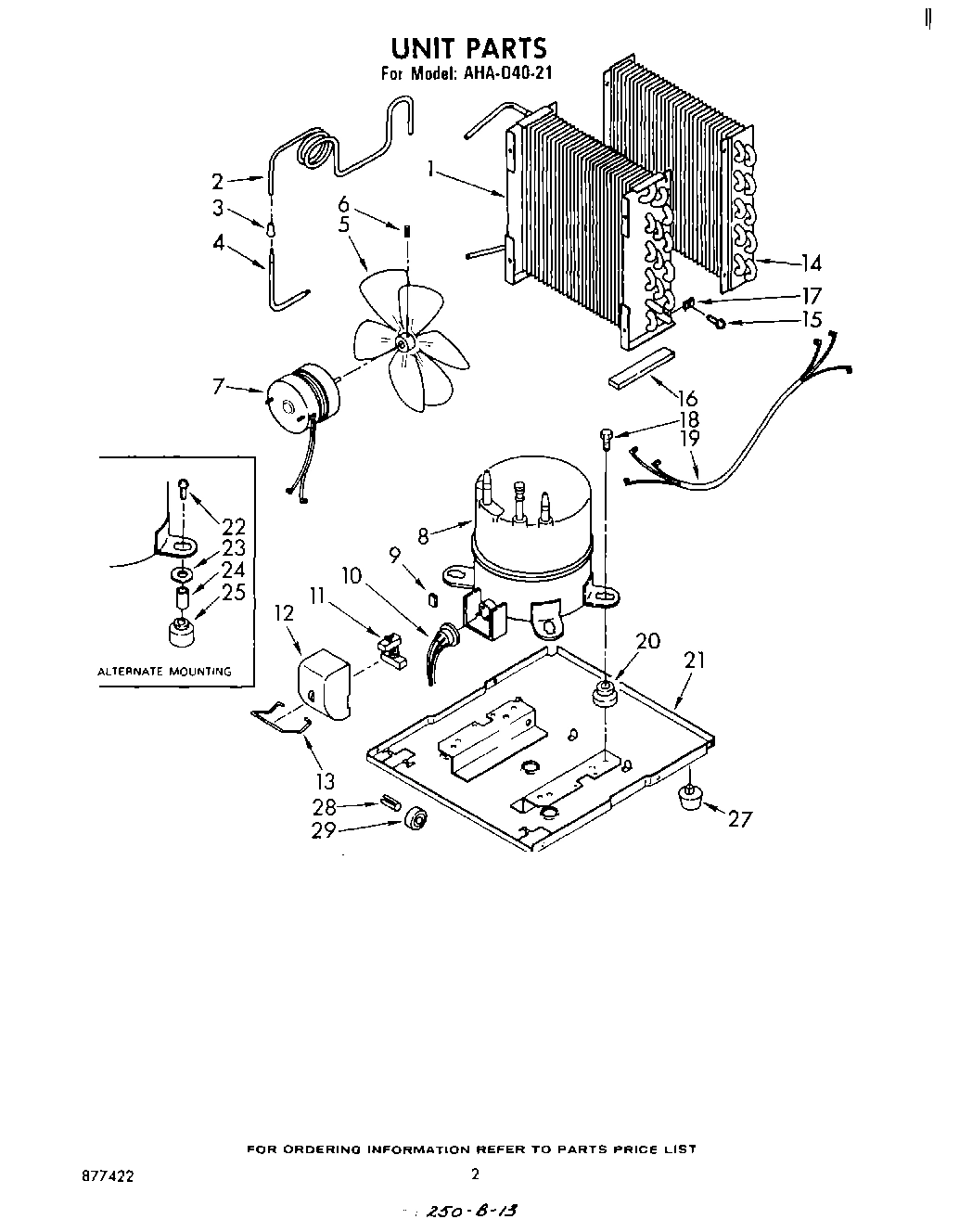

Common parts from model Whirlpool AHA04021 DEHUMIDIFIER
1
Cabinet WPL 998821 Contact Us For Availability
1
Light Assembly WPL 998782 Contact Us For Availability
2
Humidistat Assembly WPL 998840 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Bracket, Humidistat & Light Assembly WPL 998809 Contact Us For Availability
4
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
5
Screw WPL 488624 Contact Us For Availability
5
Grille, Front WPL 998844 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
8
Compressor WPL 484301 Contact Us For Availability
9
Bumper, Relay WPL 547272 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload WPL 998788 Contact Us For Availability
10
Board, Terminal WPL 855635 Contact Us For Availability
11
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
11
screw, 6 x 3/8 WPL 488966 Contact Us For Availability
12
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
12
Tape, No Drip WPL 505168 Contact Us For Availability
12
Case, Relay WPL 549945 Contact Us For Availability
12
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cup, Condensate Pan WPL 646753 Contact Us For Availability
12
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
12
List, Repair Parts WPL 877422 Contact Us For Availability
12
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
12
Pan, Condensate WPL 998801 Contact Us For Availability
12
Sheet, Service Tech WPL 998826 Contact Us For Availability
12
Guide, Consumer Buy WPL 998856 Contact Us For Availability
12
Guide, Use & Care WPL 998866 Contact Us For Availability
13
Spring, Relay Case WPL 531318 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Cord, Appliance WPL 998798 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 949408 Contact Us For Availability
20
Grommet (4) WPL 531082 Contact Us For Availability
21
Base WPL 998720 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
xScrew, 1/4-28 x 1-1/4 WPL 489027 Contact Us For Availability
23
xWasher, Cup WPL 489030 Contact Us For Availability
23
Support WPL 998729 Contact Us For Availability
24
xSleeve WPL 858424 Contact Us For Availability
25
xGrommet WPL 469581 Contact Us For Availability
27
Glide (2) WPL 998725 Contact Us For Availability
28
Roll Pin (2) WPL 489015 Contact Us For Availability
29
Roller (2) WPL 998726 Contact Us For Availability
× ![]()
