Model Electrolux AH11EP2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

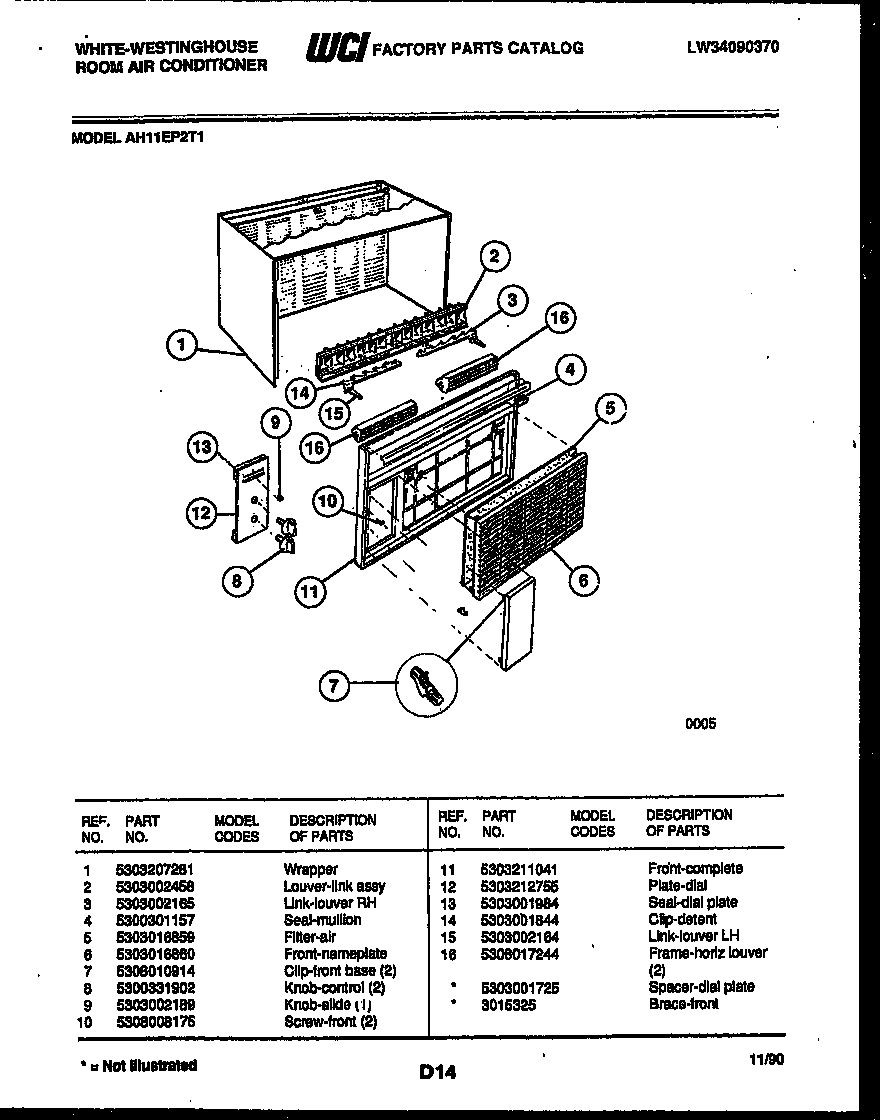

02 - CABINET PARTS

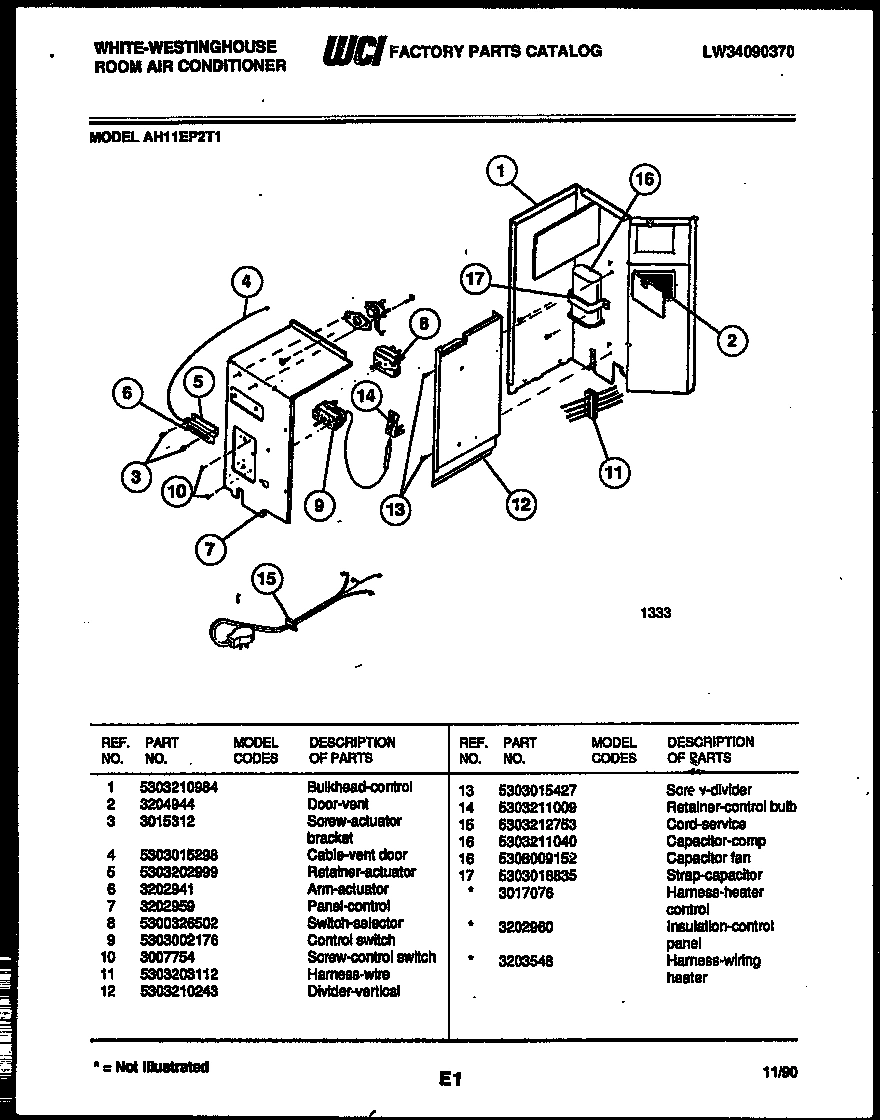

03 - ELECTRICAL PARTS

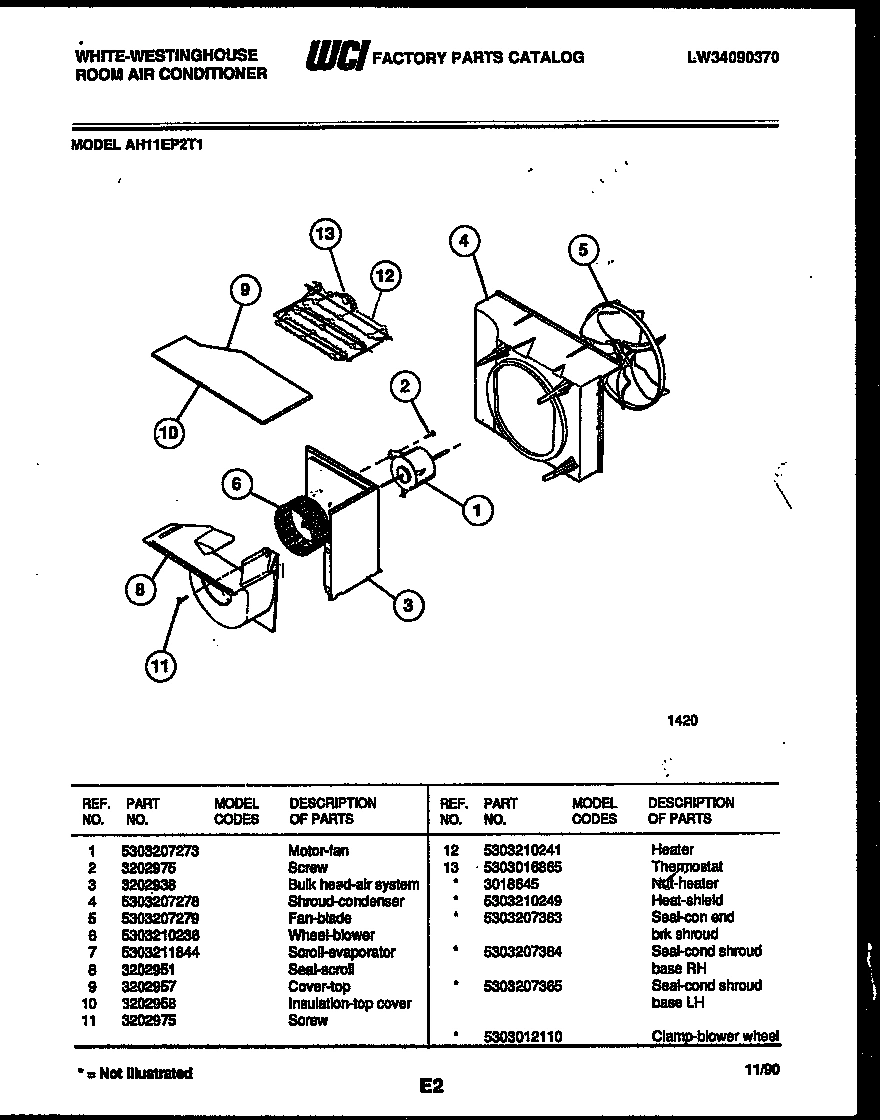

04 - AIR HANDLING PARTS

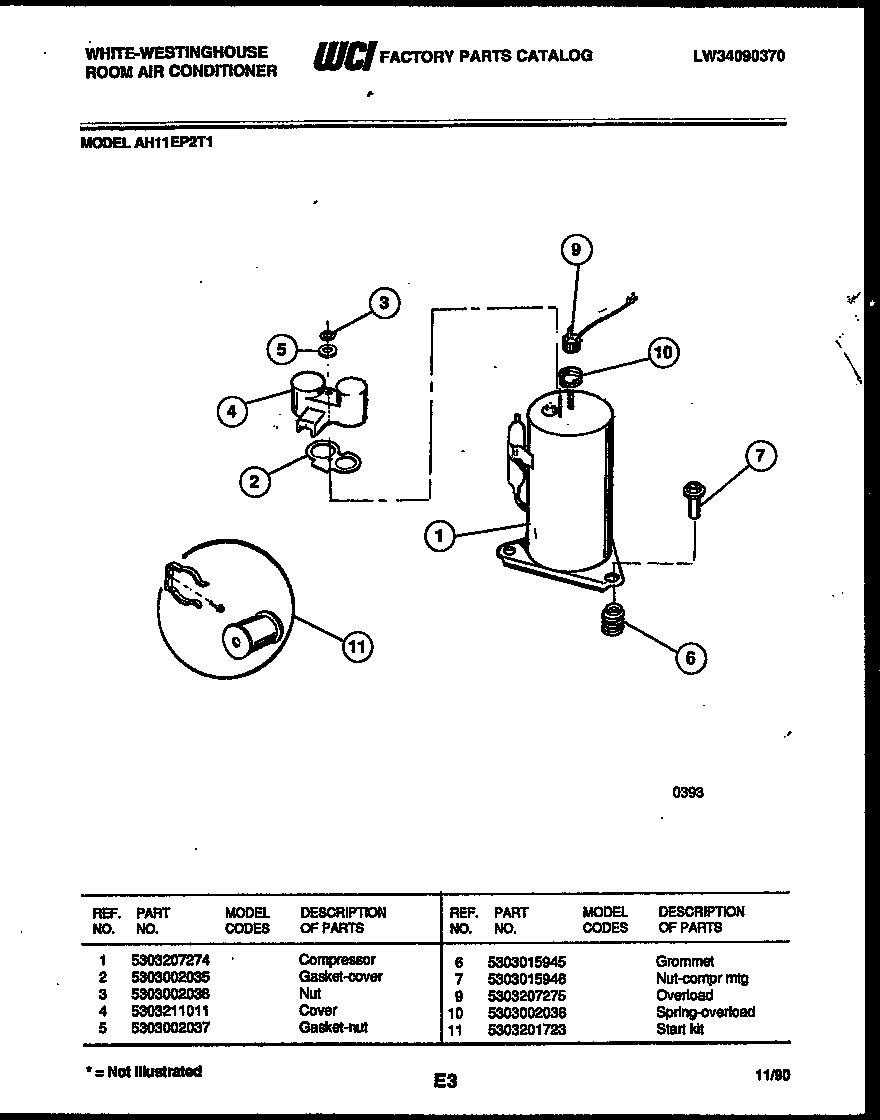

05 - COMPRESSOR PARTS

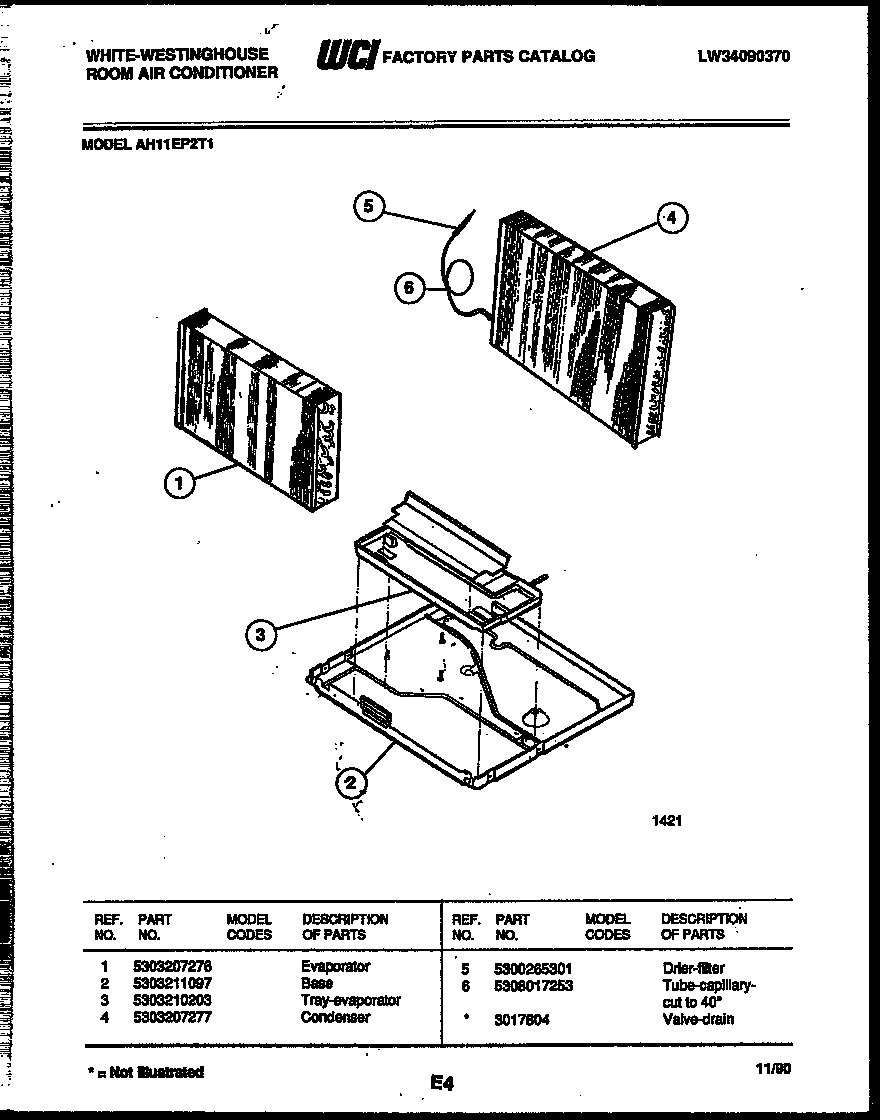

06 - UNIT PARTS
Common parts from model Electrolux AH11EP2T1 ROOM AIR CONDITIONER
*39688
WCI 5303001725 WCI 5303001725 Contact Us For Availability
*39691
HARNESS-HEATER CONTROL WCI 3017076 Contact Us For Availability
*39692
INSULATION - CONTROL PANEL WCI 3202960 Contact Us For Availability
*39692
HARNESS-WIRING-HEATER WCI 3203548 Contact Us For Availability
*39693
SEAL-CON END BRK SHROUD WCI 5303207363 Contact Us For Availability
*39693
SEAL-COND SHROUD BASE (RH) WCI 5303207364 Contact Us For Availability
*39693
WCI 5303210249 WCI 5303210249 Contact Us For Availability
*39694
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*39694
SEAL-COND SHROUD BASE (LH) WCI 5303207365 Contact Us For Availability
*39696
WCI 3017804 WCI 3017804 Contact Us For Availability
1
WCI 5303207281 WCI 5303207281 Contact Us For Availability
1
WCI 5303210984 WCI 5303210984 Contact Us For Availability
1
WCI 5303207273 WCI 5303207273 Contact Us For Availability
1
WCI 5303207274 WCI 5303207274 Contact Us For Availability
1
WCI 5303207276 WCI 5303207276 Contact Us For Availability
2
LOUVER-LINK ASSY WCI 5303002458 Contact Us For Availability
2
WCI 3204944 WCI 3204944 Contact Us For Availability
2
WCI 5303002035 WCI 5303002035 Contact Us For Availability
2
WCI 5303211097 WCI 5303211097 Contact Us For Availability
3
LINK-LOUVER RH WCI 5303002165 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
NUT WCI 5303002038 Contact Us For Availability
3
WCI 5303210203 WCI 5303210203 Contact Us For Availability
4
WCI 5300301157 WCI 5300301157 Contact Us For Availability
4
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
4
WCI 5303207278 WCI 5303207278 Contact Us For Availability
4
WCI 5303211011 WCI 5303211011 Contact Us For Availability
4
WCI 5303207277 WCI 5303207277 Contact Us For Availability
5
WCI 5303016859 WCI 5303016859 Contact Us For Availability
5
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
5
FAN - BLADE WCI 5303207279 Contact Us For Availability
5
WCI 5303002037 WCI 5303002037 Contact Us For Availability
6
WCI 5303016860 WCI 5303016860 Contact Us For Availability
6
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
6
WCI 5303210236 WCI 5303210236 Contact Us For Availability
6
GROMMET WCI 5303015945 Contact Us For Availability
6
TUBE - CAPILLARY (CUT TO 40``) WCI 5308017253 Contact Us For Availability
7
CLIP-FRONT BASE (2) WCI 5308010914 Contact Us For Availability
7
WCI 3202959 WCI 3202959 Contact Us For Availability
7
WCI 5303211844 WCI 5303211844 Contact Us For Availability
7
NUT-COMPR MTG WCI 5303015946 Contact Us For Availability
8
KNOB-CONTROL (2) WCI 5300331902 Contact Us For Availability
8
WCI 5300326502 WCI 5300326502 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
9
KNOB SLIDE (1) WCI 5303002189 Contact Us For Availability
9
CONTROL SWITCH WCI 5303002176 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 5303207275 WCI 5303207275 Contact Us For Availability
10
SCREW-FRONT (2) WCI 5308008175 Contact Us For Availability
10
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
10
WCI 3202958 WCI 3202958 Contact Us For Availability
10
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
11
FRONT-COMPLETE WCI 5303211041 Contact Us For Availability
11
WCI 5303203112 WCI 5303203112 Contact Us For Availability
11
WCI 5303201723 WCI 5303201723 Contact Us For Availability
12
WCI 5303212755 WCI 5303212755 Contact Us For Availability
12
WCI 5303210243 WCI 5303210243 Contact Us For Availability
12
WCI 5303210241 WCI 5303210241 Contact Us For Availability
13
WCI 5303016865 WCI 5303016865 Contact Us For Availability
13
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
14
CLIP-DETENT WCI 5303001844 Contact Us For Availability
14
RETAINER-CONTROL BULB WCI 5303211009 Contact Us For Availability
15
LINK-LOUVER LH WCI 5303002164 Contact Us For Availability
15
WCI 5303212753 WCI 5303212753 Contact Us For Availability
16
WCI 5308017244 WCI 5308017244 Contact Us For Availability
16
WCI 5303211040 WCI 5303211040 Contact Us For Availability
16
WCI 5308009152 WCI 5308009152 Contact Us For Availability
17
STRAP-CAPACITOR WCI 5303016835 Contact Us For Availability
× ![]()
