Model Maytag AGR5630BDW2 RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams

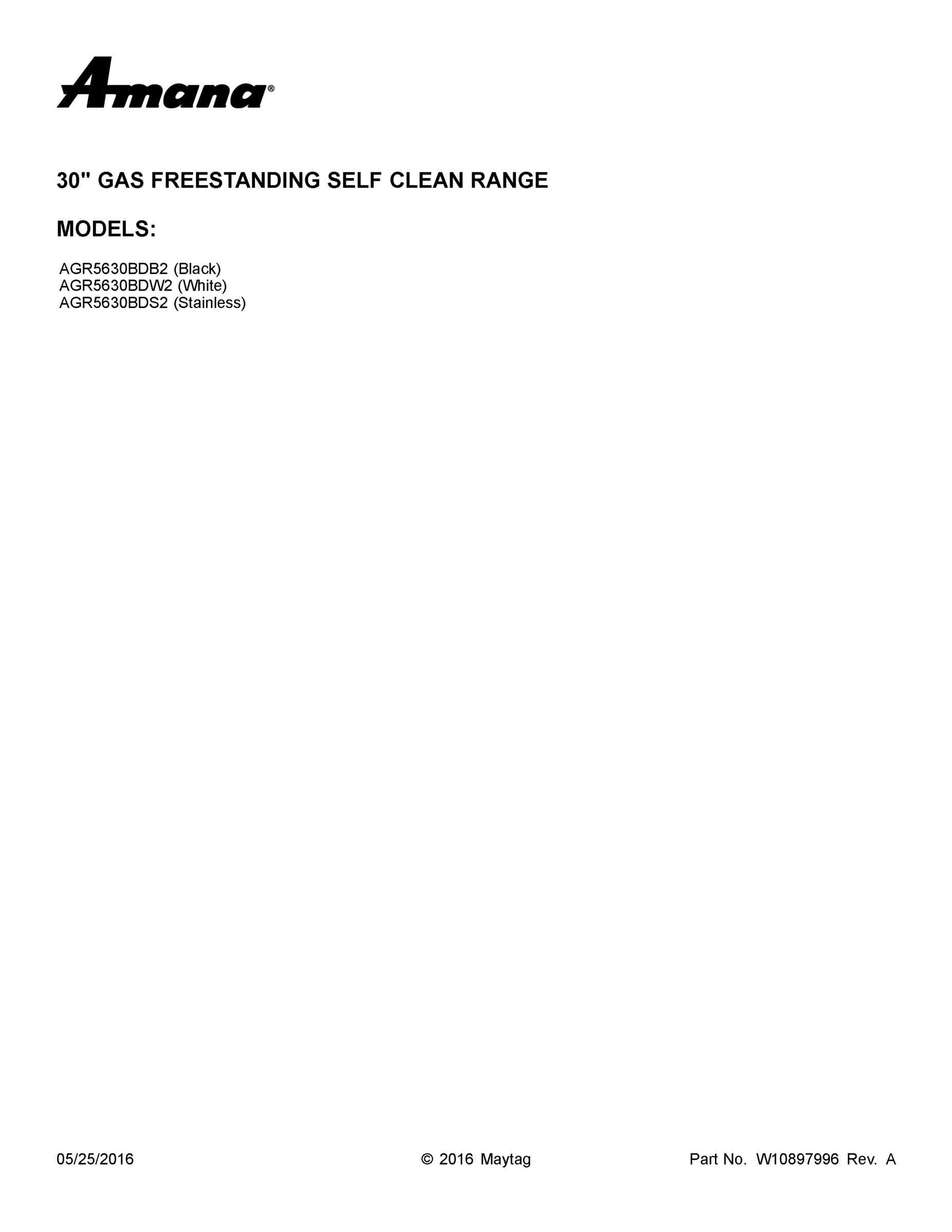

01 - COVER SHEET

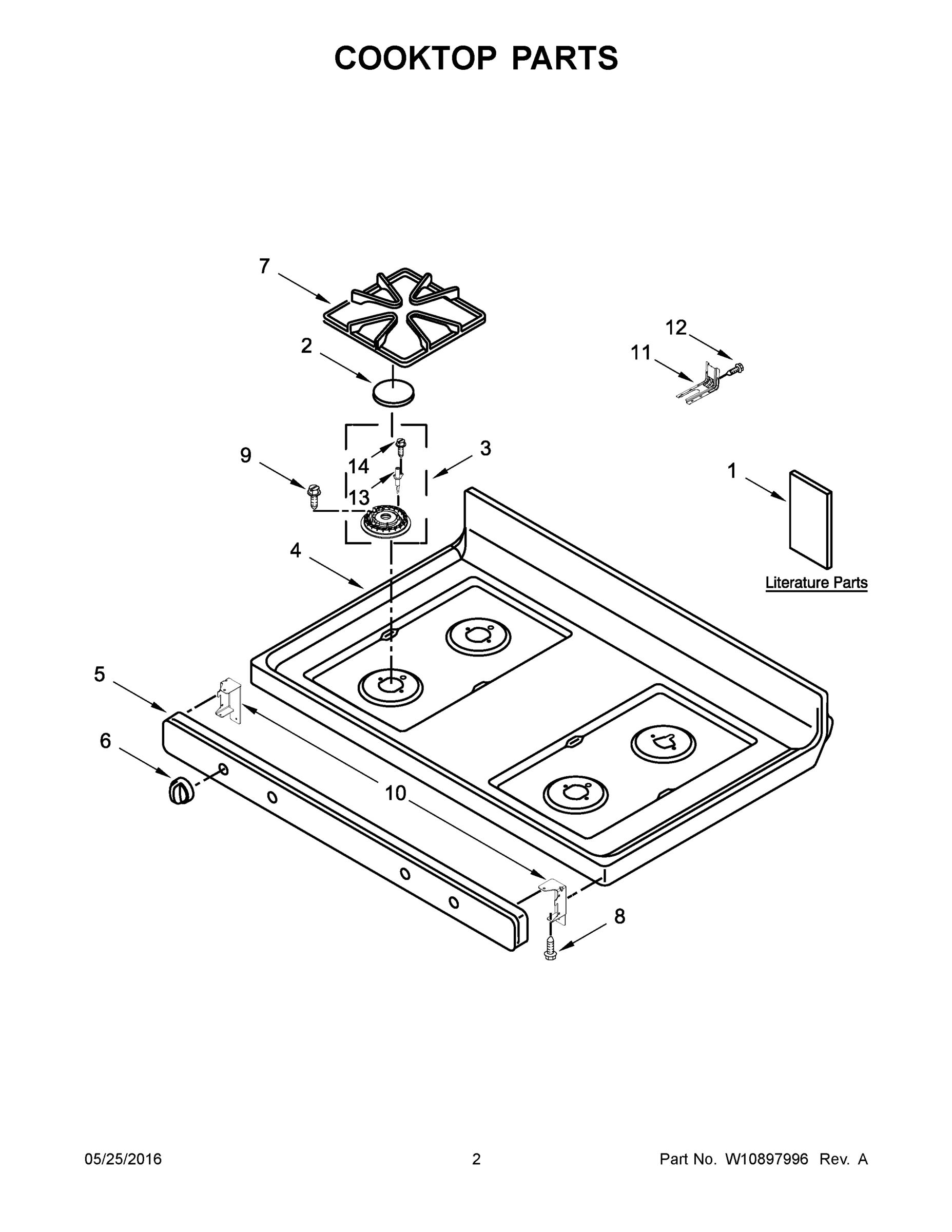

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - DRAWER AND BROILER PARTS
07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR5630BDW2 RANGE/OVEN, GAS, FREESTANDING
1
INSTRUCTIONS, INSTALLATION MAY W10545337 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
MAY W10153186 MAY W10153186 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP VENT (BLACK) MAY W10310922 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10572542 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1A
TRIM, TOP VENT (WHITE) MAY W10310920 Contact Us For Availability
1B
MAY W10538793 MAY W10538793 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1C
MAY W10538794 MAY W10538794 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
1D
MAY 9762761 MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10170554 MAY W10170554 Contact Us For Availability
2
SHIELD, HEAT MAY 8053505 Contact Us For Availability
2
MAY W10295996 MAY W10295996 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY W10688022 MAY W10688022 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
2A
MAY W10165809 MAY W10165809 Contact Us For Availability
3
MAY W10515452 MAY W10515452 Contact Us For Availability
3
MAY W10572581 MAY W10572581 Contact Us For Availability
3
MAY W10474154 MAY W10474154 Contact Us For Availability
3
MAY 8273036 MAY 8273036 Contact Us For Availability
3
MAY W10462911 MAY W10462911 Contact Us For Availability
3
MAY W10323589 MAY W10323589 Contact Us For Availability
3A
ASSEMBLY, BURNER (9.5K) (RIGHT FRONT AND LEFT MAY W10515454 Contact Us For Availability
3A
MAY W10572579 MAY W10572579 Contact Us For Availability
3A
MAY W10473929 MAY W10473929 Contact Us For Availability
3A
MAY W10462909 MAY W10462909 Contact Us For Availability
3A
MAY W10323588 MAY W10323588 Contact Us For Availability
3B
MAY W10515453 MAY W10515453 Contact Us For Availability
3B
MAY W10572583 MAY W10572583 Contact Us For Availability
3B
MAY W10474169 MAY W10474169 Contact Us For Availability
3B
MAY W10144883 MAY W10144883 Contact Us For Availability
3C
MAY W10474163 MAY W10474163 Contact Us For Availability
4
MAY 8272253 MAY 8272253 Contact Us For Availability
4
MAY W10511278 MAY W10511278 Contact Us For Availability
4
MAY W10215439 MAY W10215439 Contact Us For Availability
4
MAY W10162245 MAY W10162245 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4A
MAY 8272251 MAY 8272251 Contact Us For Availability
4A
MAY W10575396 MAY W10575396 Contact Us For Availability
4A
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8523855 MAY 8523855 Contact Us For Availability
5
MAY W10516123 MAY W10516123 Contact Us For Availability
5
MAY 3196178 MAY 3196178 Contact Us For Availability
5
MAY W10812380 MAY W10812380 Contact Us For Availability
5
PANEL, DRAWER FRONT (BLACK) MAY 8053338 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5A
MAY 8523854 MAY 8523854 Contact Us For Availability
5A
PANEL, DRAWER FRONT (WHITE) MAY 8053336 Contact Us For Availability
6
KNOB, CONTROL (BLACK) MAY 8273103 Contact Us For Availability
6
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
6
MAY 8523412 MAY 8523412 Contact Us For Availability
6
MAY W10224921 MAY W10224921 Contact Us For Availability
6
MAY W10674708 MAY W10674708 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6A
KNOB, CONTROL (WHITE) MAY 8273104 Contact Us For Availability
7
KIT, GRATE (BLACK) MAY 8053580 Contact Us For Availability
7
MAY W10198745 MAY W10198745 Contact Us For Availability
7
MAY W10812381 MAY W10812381 Contact Us For Availability
7
MAY W10341186 MAY W10341186 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
7A
MAY W10683630 MAY W10683630 Contact Us For Availability
8
MAY 3400701 MAY 3400701 Contact Us For Availability
8
MAY W10192841 MAY W10192841 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT, RIGHT FRONT & LEFT RE MAY W10279614 Contact Us For Availability
8
MAY W10058460 MAY W10058460 Contact Us For Availability
8
PANEL, DRAWER FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
8A
VALVE, GAS (RIGHT REAR) MAY W10247744 Contact Us For Availability
9
MAY 3196557 MAY 3196557 Contact Us For Availability
9
MAY W10184370 MAY W10184370 Contact Us For Availability
9
SCREW MAY 3196176 Contact Us For Availability
9
MAY 3195097 MAY 3195097 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 8523249 MAY 8523249 Contact Us For Availability
10
MAY 3196169 MAY 3196169 Contact Us For Availability
10
MAY 3196265 MAY 3196265 Contact Us For Availability
10
SENSOR, OVEN MAY W10586204 Contact Us For Availability
10
MAY W10299227 MAY W10299227 Contact Us For Availability
10A
MAY W10299224 MAY W10299224 Contact Us For Availability
11
MAY W10306542 MAY W10306542 Contact Us For Availability
11
MAY W10833996 MAY W10833996 Contact Us For Availability
11
MAY 3196385 MAY 3196385 Contact Us For Availability
11
MAY 8053967 MAY 8053967 Contact Us For Availability
11
MAY W10118455 MAY W10118455 Contact Us For Availability
11A
MAY W10833995 MAY W10833995 Contact Us For Availability
11A
MAY W10118454 MAY W10118454 Contact Us For Availability
11B
MAY W10144884 MAY W10144884 Contact Us For Availability
12
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY 8053969 MAY 8053969 Contact Us For Availability
12
TRIM, DOOR SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
12A
TRIM, DOOR SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
12B
MAY 8523172 MAY 8523172 Contact Us For Availability
12C
MAY 8523166 MAY 8523166 Contact Us For Availability
13
MAY W10515459 MAY W10515459 Contact Us For Availability
13
MAY W10516463 MAY W10516463 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
MAY 8053968 MAY 8053968 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 8273062 MAY 8273062 Contact Us For Availability
14
MAY 8273564 MAY 8273564 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14
MAY 3196165 MAY 3196165 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
MAY W10695491 MAY W10695491 Contact Us For Availability
15
MAY W10602001 MAY W10602001 Contact Us For Availability
15
SCREW MAY 3196177 Contact Us For Availability
15
MAY W10544179 MAY W10544179 Contact Us For Availability
16
MAY W10110488 MAY W10110488 Contact Us For Availability
16
MAY 8054129 MAY 8054129 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
16A
MAY 9758079 MAY 9758079 Contact Us For Availability
17
MAY W10420040 MAY W10420040 Contact Us For Availability
17
MAY W10224919 MAY W10224919 Contact Us For Availability
17
MAY 8523177 MAY 8523177 Contact Us For Availability
17A
MAY 8523175 MAY 8523175 Contact Us For Availability
18
MAY W10592836 MAY W10592836 Contact Us For Availability
18
MAY W10658354 MAY W10658354 Contact Us For Availability
19
MAY 3400016 MAY 3400016 Contact Us For Availability
19
MAY W10435470 MAY W10435470 Contact Us For Availability
20
ORIFICE (9.5K) (RIGHT FRONT AND LEFT REAR) MAY W10170508 Contact Us For Availability
20
MAY 9761449 MAY 9761449 Contact Us For Availability
20A
ORIFICE (12K) (LEFT FRONT) MAY W10178934 Contact Us For Availability
20A
MAY 9761448 MAY 9761448 Contact Us For Availability
20B
ORIFICE (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
21
MAY W10137062 MAY W10137062 Contact Us For Availability
21
MAY W10137382 MAY W10137382 Contact Us For Availability
22
MAY W10624590 MAY W10624590 Contact Us For Availability
23
MAY W10289077 MAY W10289077 Contact Us For Availability
24
MAY W10627802 MAY W10627802 Contact Us For Availability
25
MAY W10454648 MAY W10454648 Contact Us For Availability
26
MAY 311255 MAY 311255 Contact Us For Availability
27
MAY 9761013 MAY 9761013 Contact Us For Availability
28
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
29
MAY W10107820 MAY W10107820 Contact Us For Availability
30
MAY W10379120 MAY W10379120 Contact Us For Availability
31
MAY 9757239 MAY 9757239 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
33
MAY W10674705 MAY W10674705 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
SCREW MAY 3196173 Contact Us For Availability
NI
SCREW MAY 3196174 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
MAY 3196896 MAY 3196896 Contact Us For Availability
NI
TIE, CABLE MAY W10182767 Contact Us For Availability
NI
MAY W10334923 MAY W10334923 Contact Us For Availability
NI
HARNESS, DSI GROUND MAY W10519920 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, MAIN MAY W10797422 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10809927 Contact Us For Availability
NI
MAY W10170531 MAY W10170531 Contact Us For Availability
NI
MAY W10566537 MAY W10566537 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
