Model Maytag AGR5330BAS1 RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams

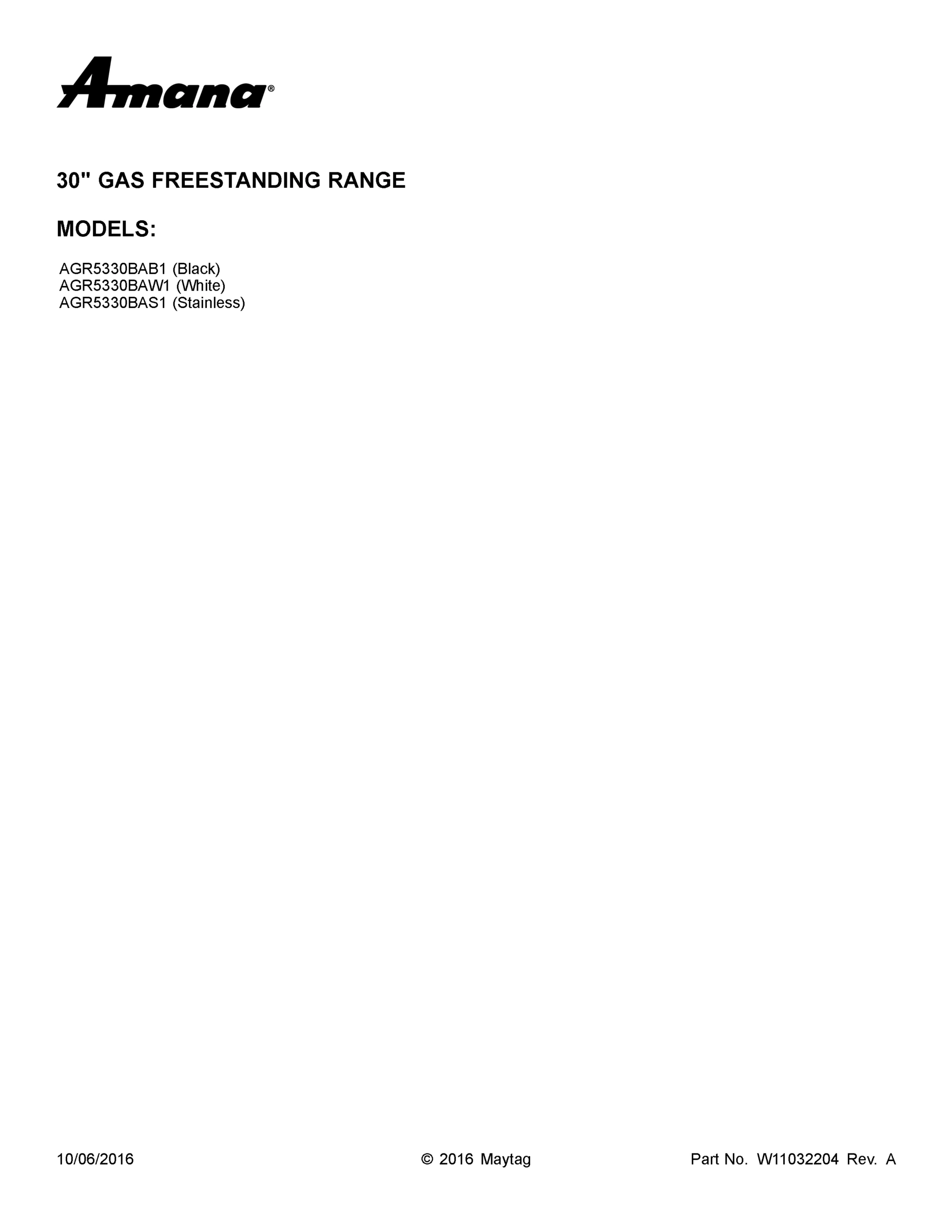

01 - COVER SHEET

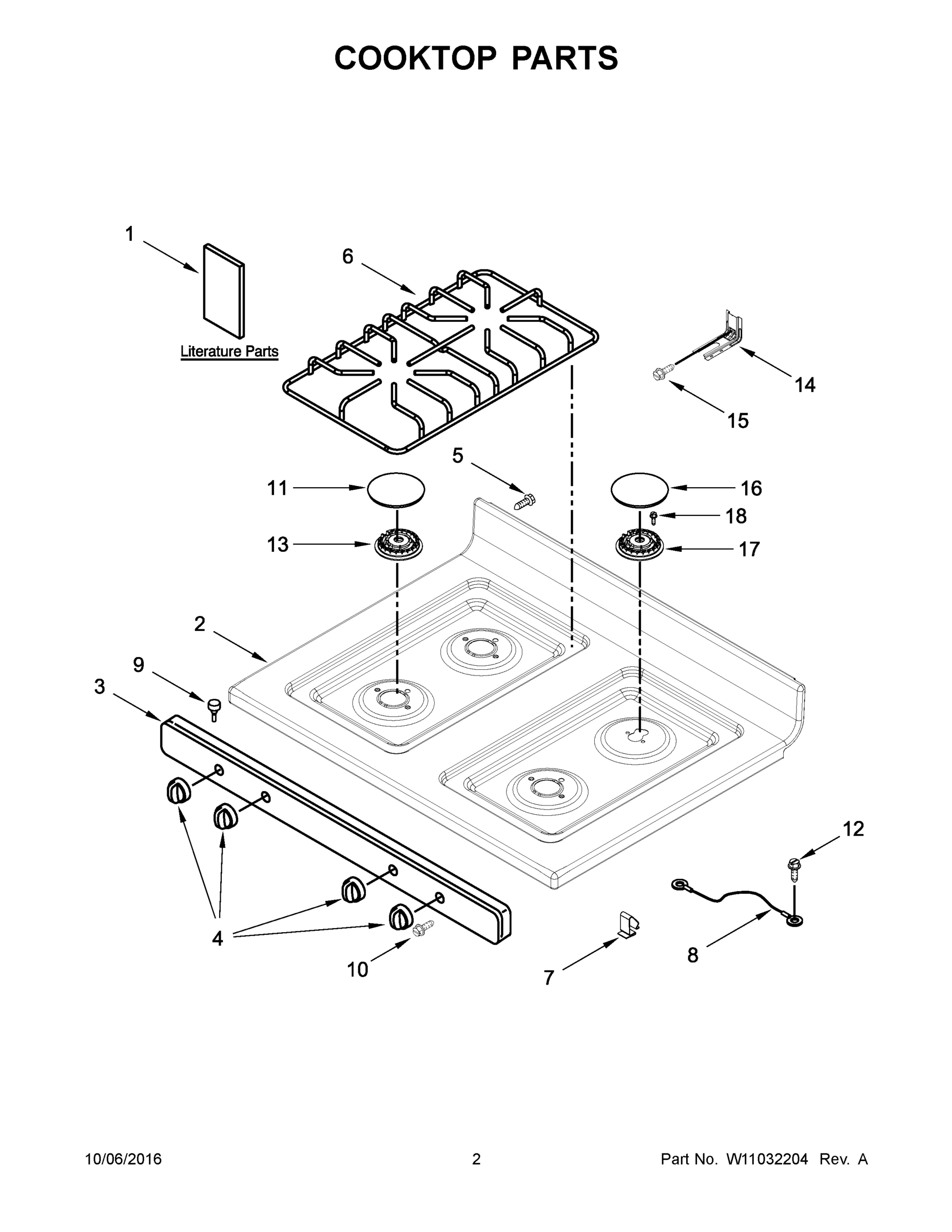

02 - COOKTOP PARTS
03 - BACKGUARD PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - BROILER PARTS
07 - DOOR PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag AGR5330BAS1 RANGE/OVEN, GAS, FREESTANDING
1
MAY W10860789 MAY W10860789 Contact Us For Availability
1
SCREW (BLACK) MAY 98006726 Contact Us For Availability
1
MAY W10662115 MAY W10662115 Contact Us For Availability
1
MAY W10610297 MAY W10610297 Contact Us For Availability
1
MAY W10675411 MAY W10675411 Contact Us For Availability
1
MAY W10680059 MAY W10680059 Contact Us For Availability
1A
MAY W10620405 MAY W10620405 Contact Us For Availability
1A
MAY W10662110 MAY W10662110 Contact Us For Availability
1B
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1B
MAY W10661916 MAY W10661916 Contact Us For Availability
1C
SHEET, TECH MAY W10142327 Contact Us For Availability
1C
MAY W10661915 MAY W10661915 Contact Us For Availability
2
MAY W10818512 MAY W10818512 Contact Us For Availability
2
MAY W10588614 MAY W10588614 Contact Us For Availability
2
MAY W10620002 MAY W10620002 Contact Us For Availability
2
MAY W10554269 MAY W10554269 Contact Us For Availability
2
MAY W10119413 MAY W10119413 Contact Us For Availability
2
MAY W10292266 MAY W10292266 Contact Us For Availability
2A
MAY W10818513 MAY W10818513 Contact Us For Availability
2A
MAY W10512770 MAY W10512770 Contact Us For Availability
2B
MAY W10512771 MAY W10512771 Contact Us For Availability
2C
MAY W10514424 MAY W10514424 Contact Us For Availability
3
MAY W10620546 MAY W10620546 Contact Us For Availability
3
BRACKET, SURFACE BURNER MAY W10122103 Contact Us For Availability
3
MAY W10636342 MAY W10636342 Contact Us For Availability
3
SCREW (BLACK) MAY 98008545 Contact Us For Availability
3
MAY W10544145 MAY W10544145 Contact Us For Availability
3A
MAY W10620545 MAY W10620545 Contact Us For Availability
4
MAY W10614598 MAY W10614598 Contact Us For Availability
4
MAY W10620556 MAY W10620556 Contact Us For Availability
4
MAY W10622750 MAY W10622750 Contact Us For Availability
4
MAY W10666212 MAY W10666212 Contact Us For Availability
4
MAY W10155121 MAY W10155121 Contact Us For Availability
4
MAY W10445015 MAY W10445015 Contact Us For Availability
4A
MAY W10614597 MAY W10614597 Contact Us For Availability
4A
MAY W10620555 MAY W10620555 Contact Us For Availability
4A
MAY W10666211 MAY W10666211 Contact Us For Availability
4A
MAY W10445013 MAY W10445013 Contact Us For Availability
4B
MAY W10585645 MAY W10585645 Contact Us For Availability
4B
MAY W10666176 MAY W10666176 Contact Us For Availability
4C
MAY W10666141 MAY W10666141 Contact Us For Availability
5
MAY W10556708 MAY W10556708 Contact Us For Availability
5
MODULE, SPARK MAY 6610341 Contact Us For Availability
5
MAY W10146346 MAY W10146346 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
MAY W10624273 MAY W10624273 Contact Us For Availability
5A
MAY W10556707 MAY W10556707 Contact Us For Availability
5A
MAY W10624275 MAY W10624275 Contact Us For Availability
6
MAY 98007225 MAY 98007225 Contact Us For Availability
6
MAY W10578251 MAY W10578251 Contact Us For Availability
6
MAY W10535746 MAY W10535746 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY W10647966 MAY W10647966 Contact Us For Availability
6
HINGE, OVEN DOOR (BLACK & WHITE MODELS) MAY W10535788 Contact Us For Availability
6A
MAY W10420753 MAY W10420753 Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
SCREW MAY 98005000 Contact Us For Availability
7
MAY W10619922 MAY W10619922 Contact Us For Availability
7
MAY 98015363 MAY 98015363 Contact Us For Availability
7
PANEL, SIDE MAY W10605426 Contact Us For Availability
7
MAY W10535776 MAY W10535776 Contact Us For Availability
7A
MAY W10535777 MAY W10535777 Contact Us For Availability
7B
MAY W10535793 MAY W10535793 Contact Us For Availability
8
MAY 98014544 MAY 98014544 Contact Us For Availability
8
MAY W10695491 MAY W10695491 Contact Us For Availability
8
MAY 98005659 MAY 98005659 Contact Us For Availability
8
MAY W10387343 MAY W10387343 Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
MAY W10535815 MAY W10535815 Contact Us For Availability
9
MAY 98013634 MAY 98013634 Contact Us For Availability
9
MAY W10519868 MAY W10519868 Contact Us For Availability
9
MAY W10446851 MAY W10446851 Contact Us For Availability
9
MAY W10535767 MAY W10535767 Contact Us For Availability
10
MAY W10650358 MAY W10650358 Contact Us For Availability
10
FOOT, LEVELING (REAR) MAY W10058460 Contact Us For Availability
10
MAY W10682676 MAY W10682676 Contact Us For Availability
10
MAY W10535747 MAY W10535747 Contact Us For Availability
10A
MAY W10535787 MAY W10535787 Contact Us For Availability
11
CAP, BURNER (BLACK (LEFT FRONT, LEFT REAR, & MAY 98017461 Contact Us For Availability
11
SCREW MAY 98006633 Contact Us For Availability
11
ASSEMBLY, OVEN BOTTOM MAY W10620410 Contact Us For Availability
11
MAY W10216478 MAY W10216478 Contact Us For Availability
11
MAY 98008699 MAY 98008699 Contact Us For Availability
12
MAY 8534079 MAY 8534079 Contact Us For Availability
12
MAY W10548355 MAY W10548355 Contact Us For Availability
12
MAY W10577312 MAY W10577312 Contact Us For Availability
12
MAY W10493726 MAY W10493726 Contact Us For Availability
12
MAY W10393899 MAY W10393899 Contact Us For Availability
12A
MAY W10483323 MAY W10483323 Contact Us For Availability
12B
MAY W10482110 MAY W10482110 Contact Us For Availability
13
BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RI MAY W10636224 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY W10670197 MAY W10670197 Contact Us For Availability
13
MAY W10535809 MAY W10535809 Contact Us For Availability
13
MAY W10811550 MAY W10811550 Contact Us For Availability
13A
MAY W10498563 MAY W10498563 Contact Us For Availability
13A
MAY W10823829 MAY W10823829 Contact Us For Availability
13B
MAY W10495568 MAY W10495568 Contact Us For Availability
14
MAY W10613666 MAY W10613666 Contact Us For Availability
14
MAY W10278150 MAY W10278150 Contact Us For Availability
14
MAY W10520269 MAY W10520269 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
MAY W10141711 MAY W10141711 Contact Us For Availability
15
MAY W10545322 MAY W10545322 Contact Us For Availability
15A
VALVE, SADDLE (LEFT REAR & RIGHT FRONT) MAY W10141709 Contact Us For Availability
15B
MAY W10823037 MAY W10823037 Contact Us For Availability
16
BURNER CAP, AUXILIARY (BLACK (RIGHT REAR)) MAY W10169985 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
MAY W10535682 MAY W10535682 Contact Us For Availability
17
BURNER, AUXILIARY (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
17
MAY W10820758 MAY W10820758 Contact Us For Availability
17
MAY W10549293 MAY W10549293 Contact Us For Availability
18
MAY 3400701 MAY 3400701 Contact Us For Availability
18
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
18
MAY W10550642 MAY W10550642 Contact Us For Availability
18A
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
19
MAY W10633327 MAY W10633327 Contact Us For Availability
19
MAY W10181986 MAY W10181986 Contact Us For Availability
20
ORIFICE, NATURAL (11.5K) (LEFT FRONT) MAY 98017349 Contact Us For Availability
20
MAY W10554678 MAY W10554678 Contact Us For Availability
20A
ORIFICE, NATURAL (9.5K) (LEFT REAR & RIGHT FR MAY 98017348 Contact Us For Availability
20B
ORIFICE, NATURAL (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
21
IGNITER, HOT SURFACE MAY 98005652 Contact Us For Availability
21
MAY W10535778 MAY W10535778 Contact Us For Availability
22
MAY W10574737 MAY W10574737 Contact Us For Availability
23
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
23
MAY W10512963 MAY W10512963 Contact Us For Availability
24
MAY W10562043 MAY W10562043 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
25
MAY 98005026 MAY 98005026 Contact Us For Availability
26
MAY W10538845 MAY W10538845 Contact Us For Availability
27
MAY W10788320 MAY W10788320 Contact Us For Availability
29
MAY W10640762 MAY W10640762 Contact Us For Availability
30
MAY W10327222 MAY W10327222 Contact Us For Availability
31
SPACER MAY 98007193 Contact Us For Availability
32
MAY W10670196 MAY W10670196 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
MAY 3391018 MAY 3391018 Contact Us For Availability
NI
MAY 98005894 MAY 98005894 Contact Us For Availability
NI
MAY 98005896 MAY 98005896 Contact Us For Availability
NI
BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
HARNESS, MAIN MAY W10544364 Contact Us For Availability
NI
MAY W10821006 MAY W10821006 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
MAY W10537475 MAY W10537475 Contact Us For Availability
NI
MAY W10609560 MAY W10609560 Contact Us For Availability
NI
MAY W10613818 MAY W10613818 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
× ![]()
