Model Maytag AGR4230BAW3 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

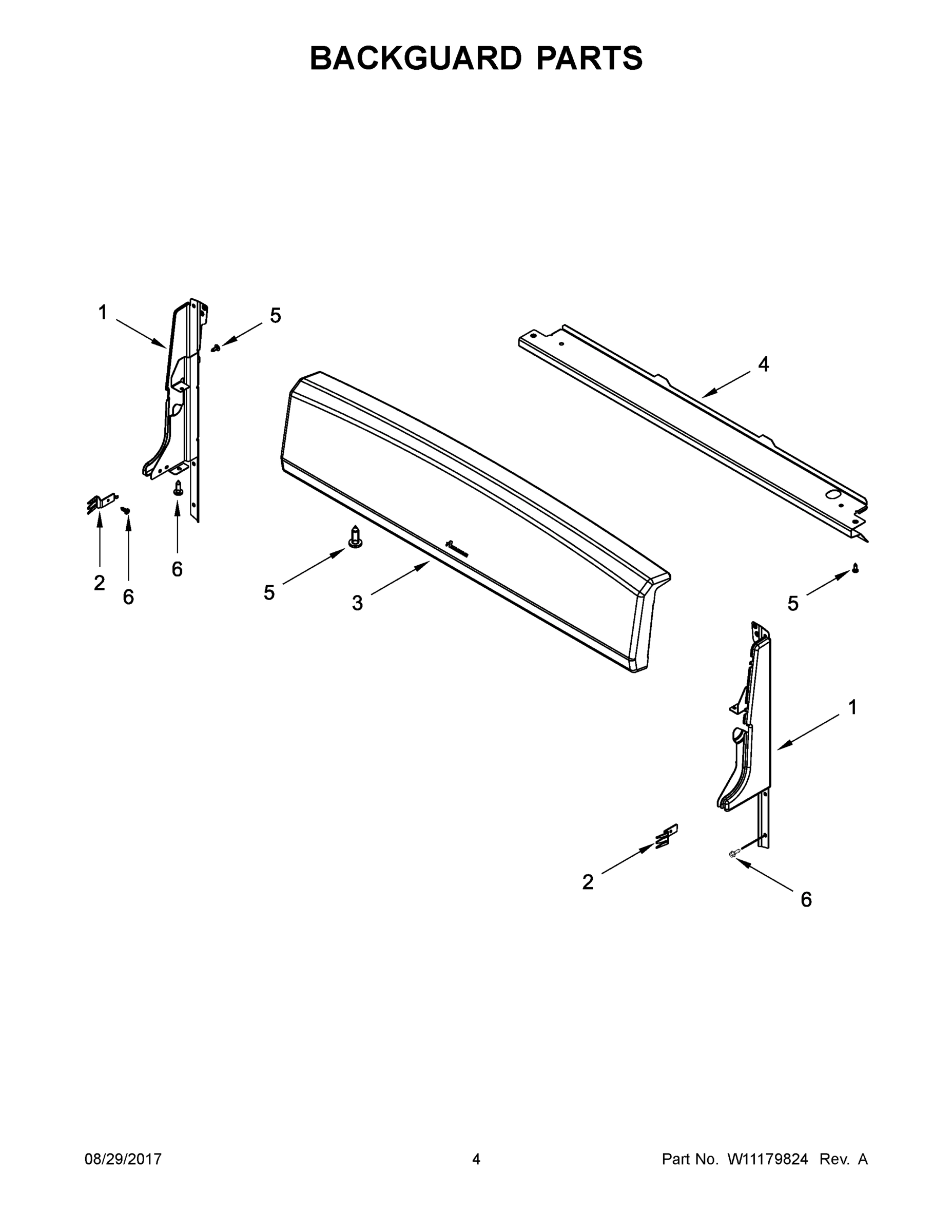

02 - COOKTOP PARTS
03 - BACKGUARD PARTS

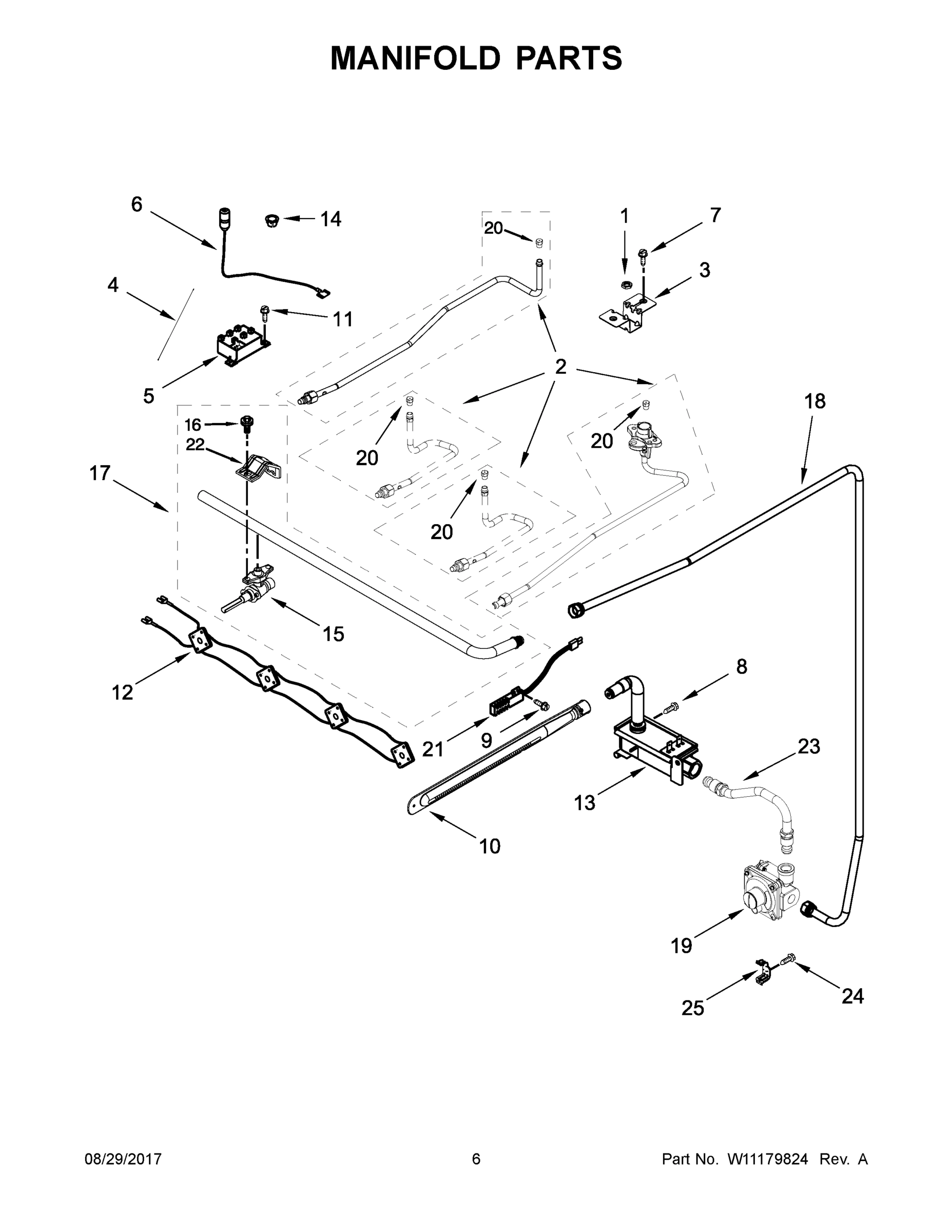

04 - MANIFOLD PARTS

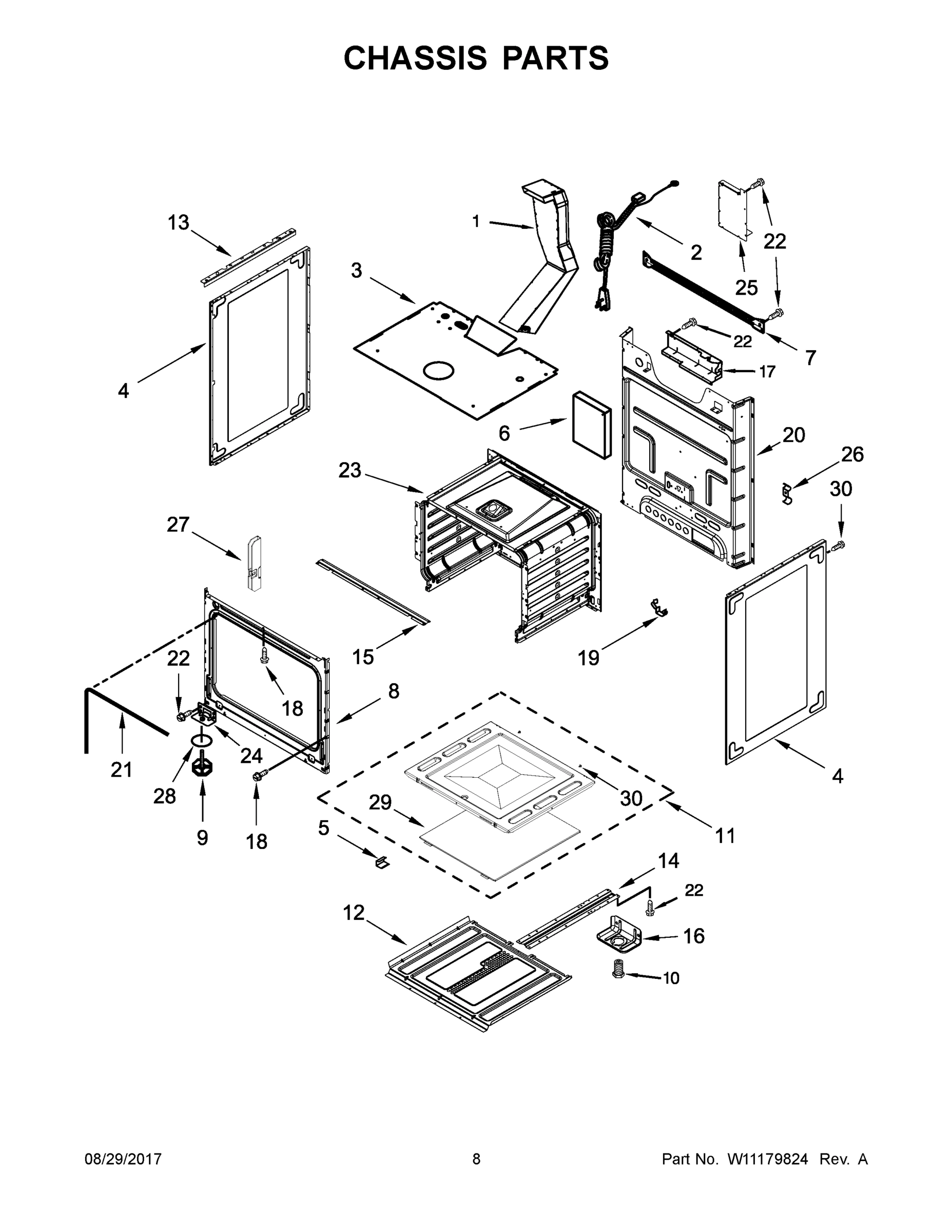

05 - CHASSIS PARTS

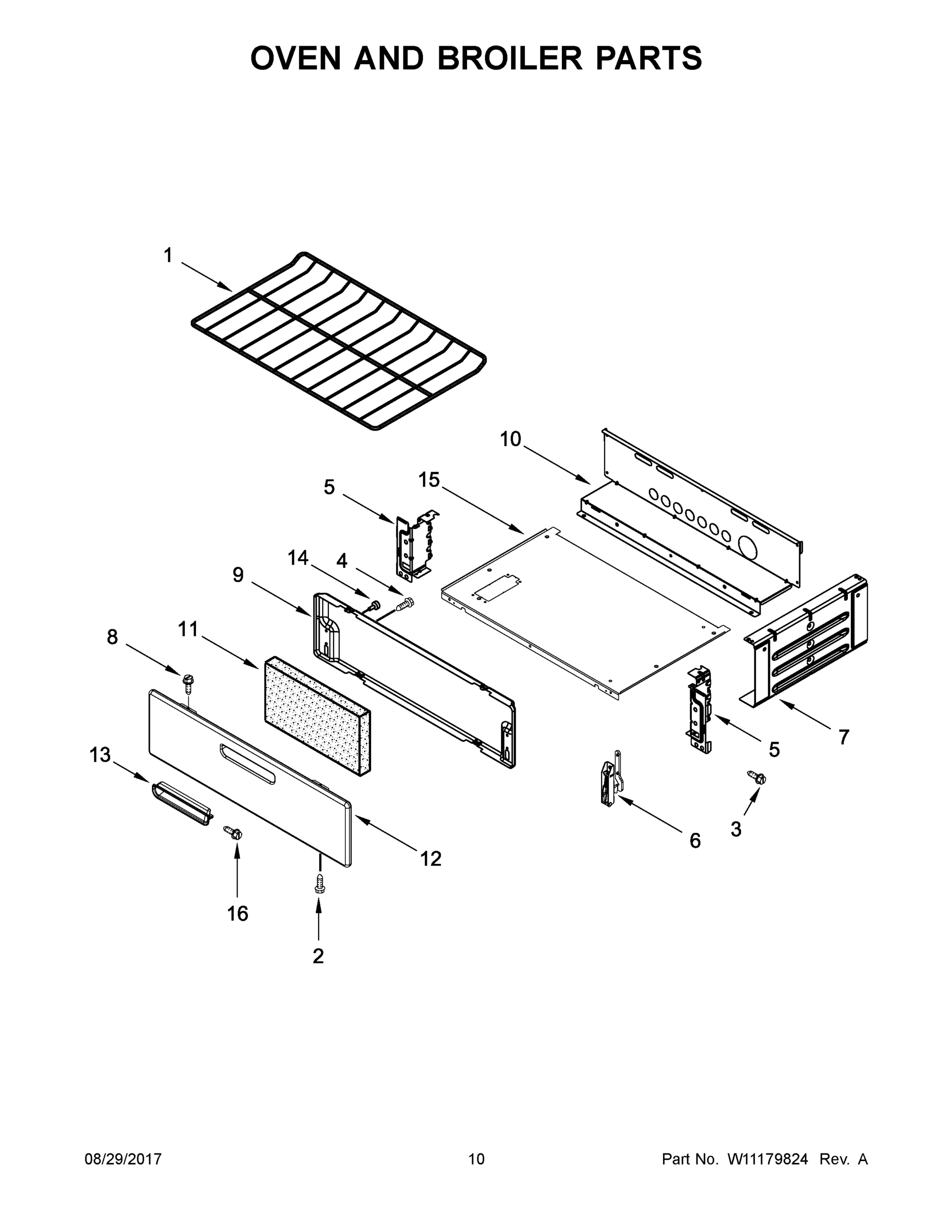

06 - OVEN AND BROILER PARTS

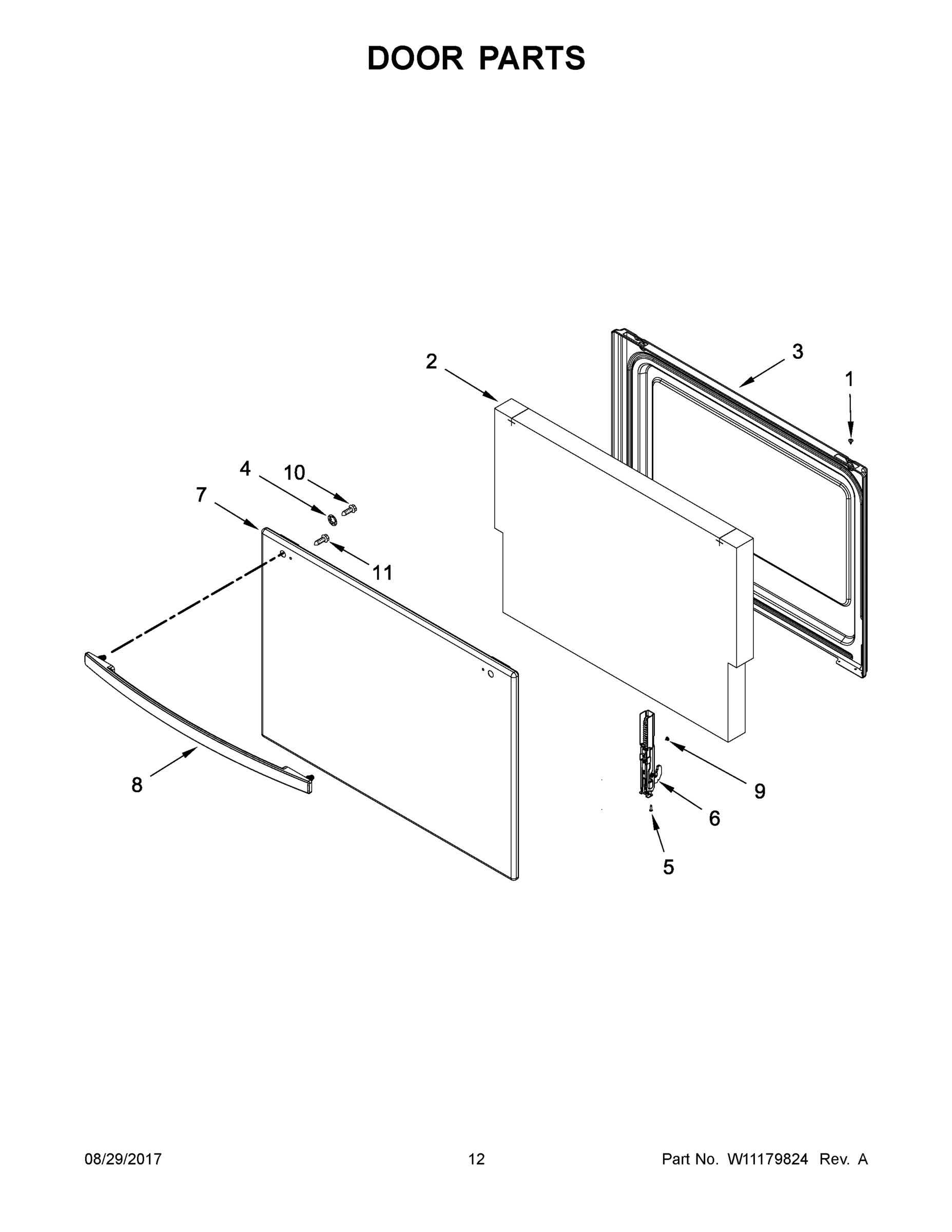

07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR4230BAW3 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10821262 Contact Us For Availability
1
SCREW (BLACK) MAY 98006726 Contact Us For Availability
1
ENDCAP (LEFT HAND) (BLACK) MAY W10873109 Contact Us For Availability
1
NUT MAY W10610297 Contact Us For Availability
1
BOX, FLUE MAY W10675411 Contact Us For Availability
1
RACK, OVEN MAY W10550642 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10620422 Contact Us For Availability
1A
ENDCAP (LEFT HAND) (WHITE) MAY W10662110 Contact Us For Availability
1A
SCREW (WHITE) MAY 98006727 Contact Us For Availability
1B
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1B
ENDCAP (RIGHT HAND) (BLACK) MAY W10873107 Contact Us For Availability
1C
SHEET, TECH MAY 98007032 Contact Us For Availability
1C
ENDCAP (RIGHT HAND) (WHITE) MAY W10661915 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10818512 Contact Us For Availability
2
BRACKET, REAR MAY W10535815 Contact Us For Availability
2
ASSEMBLY, TUBING (LEFT FRONT) MAY W10543959 Contact Us For Availability
2
CORD, POWER MAY W10640762 Contact Us For Availability
2
SCREW MAY W10119413 Contact Us For Availability
2
INSULATION MAY W10535750 Contact Us For Availability
2A
COOKTOP (WHITE) MAY W10818513 Contact Us For Availability
2A
ASSEMBLY, TUBING (LEFT REAR) MAY W10512770 Contact Us For Availability
2B
ASSEMBLY, TUBING (RIGHT FRONT) MAY W10512771 Contact Us For Availability
2C
ASSEMBLY, TUBING (RIGHT REAR) MAY W10514424 Contact Us For Availability
3
PANEL, MANIFOLD (BLACK) MAY W10620544 Contact Us For Availability
3
BACKGUARD (BLACK) MAY W10874771 Contact Us For Availability
3
SCREW (BLACK) MAY 98008545 Contact Us For Availability
3
BRACKET, SURFACE BURNER (LEFT FRONT, LEFT REA MAY W10122103 Contact Us For Availability
3
SHIELD, INSULATION MAY W10164110 Contact Us For Availability
3
LINER, DOOR MAY W10535761 Contact Us For Availability
3A
PANEL, MANIFOLD (WHITE) MAY W10620542 Contact Us For Availability
3A
BACKGUARD (WHITE) MAY W10874731 Contact Us For Availability
4
KNOB, BURNER (BLACK) MAY W10614598 Contact Us For Availability
4
BRACKET, CONSOLE MOUNT MAY W10535746 Contact Us For Availability
4
CABLE, SPARK (BLACK) MAY W10622750 Contact Us For Availability
4
PANEL, SIDE (BLACK (LEFT)) MAY W10666212 Contact Us For Availability
4
SCREW MAY W10155121 Contact Us For Availability
4
NUT, PUSH MAY 98004650 Contact Us For Availability
4A
KNOB, BURNER (WHITE) MAY W10614597 Contact Us For Availability
4A
PANEL, SIDE (BLACK (RIGHT)) MAY W10666211 Contact Us For Availability
4B
PANEL, SIDE (WHITE (LEFT)) MAY W10666176 Contact Us For Availability
4C
PANEL, SIDE (WHITE (RIGHT)) MAY W10666141 Contact Us For Availability
5
KNOB, OVEN (BLACK) MAY W10615601 Contact Us For Availability
5
MODULE, SPARK MAY 6610341 Contact Us For Availability
5
SCREW MAY W10146346 Contact Us For Availability
5
CLIP, OVEN BOTTON MAY 98005502 Contact Us For Availability
5
COVER, BROILER LEFT MAY W10624273 Contact Us For Availability
5A
KNOB, OVEN (WHITE) MAY W10615600 Contact Us For Availability
5A
SCREW (WHITE) MAY 98008544 Contact Us For Availability
5A
COVER, BROILER RIGHT MAY W10624275 Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10578251 Contact Us For Availability
6
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
6
COUNTERWEIGHT MAY W10902689 Contact Us For Availability
6
HINGE MAY W10647966 Contact Us For Availability
6
HINGE, OVEN DOOR MAY W10535789 Contact Us For Availability
6A
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
7
CLIP, COOKTOP MAY 98004722 Contact Us For Availability
7
SUPPORT, REAR MAY 98015363 Contact Us For Availability
7
PANEL, SIDE MAY W10605426 Contact Us For Availability
7
PANEL, DOOR (BLACK) MAY W10535784 Contact Us For Availability
7A
PANEL, DOOR (WHITE) MAY W10535785 Contact Us For Availability
8
WIRE, GROUND MAY 98014544 Contact Us For Availability
8
SCREW MAY 98013634 Contact Us For Availability
8
HANDLE, OVEN DOOR (BLACK) MAY W10535762 Contact Us For Availability
8A
HANDLE, OVEN DOOR (WHITE) MAY W10535774 Contact Us For Availability
9
BUMPER, COOKTOP MAY 98013389 Contact Us For Availability
9
SCREW MAY 98005659 Contact Us For Availability
9
FOOT, LEVELING (FRONT) MAY W10519868 Contact Us For Availability
9
LINER, BROILER DRAWER MAY W10446851 Contact Us For Availability
9
SCREW MAY 98008699 Contact Us For Availability
10
BURNER, OVEN MAY W10650358 Contact Us For Availability
10
FOOT, LEVELING (REAR) MAY W10058460 Contact Us For Availability
10
BACK COVER, BROILER MAY W10682676 Contact Us For Availability
10
SCREW MAY 8533842 Contact Us For Availability
10A
SCREW (STAINLESS) MAY 98005658 Contact Us For Availability
11
CAP, BURNER (BLACK (LEFT FRONT, LEFT REAR, & MAY 98017461 Contact Us For Availability
11
ASSEMBLY, OVEN BOTTOM MAY W10620410 Contact Us For Availability
11
INSULATION, BROILER DOOR MAY W10216478 Contact Us For Availability
11
SCREW MAY 8533841 Contact Us For Availability
12
SCREW, GROUND MAY 8534079 Contact Us For Availability
12
HARNESS, SWITCH MAY W10548355 Contact Us For Availability
12
DEFLECTOR, OVEN MAY W10670197 Contact Us For Availability
12
PANEL, BROILER DOOR (BLACK) MAY W10874825 Contact Us For Availability
12A
PANEL, BROILER DOOR (WHITE) MAY W10874828 Contact Us For Availability
13
BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RI MAY W10636224 Contact Us For Availability
13
VALVE, OVEN MAY 98014893 Contact Us For Availability
13
SUPPORT, SIDE PANEL MAY W10577312 Contact Us For Availability
13
HANDLE, BROILER DOOR (BLACK) MAY W10535809 Contact Us For Availability
13A
HANDLE, BROILER DOOR (WHITE) MAY W10498563 Contact Us For Availability
14
CLIP, IGNITOR MAY W10278150 Contact Us For Availability
14
RAIL, BASE MAY W10520269 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
15
BRACKET, ANTI-TIP MAY W10613666 Contact Us For Availability
15
VALVE, SADDLE (LEFT FRONT, LEFT REAR, & RIGHT MAY W10141709 Contact Us For Availability
15
BRACKET, MANIFOLD MAY W10545322 Contact Us For Availability
15
BAFFLE, BASE MAY W10680059 Contact Us For Availability
15A
VALVE, SADDLE (RIGHT REAR) MAY W10823037 Contact Us For Availability
16
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
BRACKET, FOOT MAY W10535682 Contact Us For Availability
16
SCREW MAY 98004993 Contact Us For Availability
17
SCREW MAY 98005663 Contact Us For Availability
17
ASSEMBLY, MANIFOLD MAY W10819261 Contact Us For Availability
17
COVER, VALVE MAY W10549293 Contact Us For Availability
18
THERMOSTAT MAY W10636339 Contact Us For Availability
18
TUBING, MANIFOLD TO REGULATOR MAY W10619922 Contact Us For Availability
19
BURNER CAP, AUXILIARY (BLACK (RIGHT REAR)) MAY W10169985 Contact Us For Availability
19
REGULATOR MAY W10633327 Contact Us For Availability
19
CLIP, THERM BULB MAY 98005642 Contact Us For Availability
20
BURNER, AUXILIARY (6K) (RIGHT REAR) MAY W10515453 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) (LEFT FRONT, LEFT REA MAY 98017348 Contact Us For Availability
20
BACK, MAIN MAY W10554678 Contact Us For Availability
20A
ORIFICE, NATURAL (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
21
SCREW MAY 3400701 Contact Us For Availability
21
IGNITER, HOT SURFACE MAY W10914411 Contact Us For Availability
21
SEAL, OVEN MAY W10535778 Contact Us For Availability
22
SCREW MAY 98006633 Contact Us For Availability
22
SCREW MAY W10493726 Contact Us For Availability
22
BRACKET, VALVE MAY W10574737 Contact Us For Availability
23
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
23
TUBING (REGULATOR TO OVEN VALVE) MAY W10512963 Contact Us For Availability
24
SCREW MAY 98007225 Contact Us For Availability
24
BASE, FOOT MAY W10562043 Contact Us For Availability
25
BRACKET, REGULATOR MAY 98007410 Contact Us For Availability
25
COVER MAY W10538845 Contact Us For Availability
26
CLIP, TUBING MAY 98005026 Contact Us For Availability
27
HINGE, COUNTER SUPPORT MAY W10327222 Contact Us For Availability
28
SPACER MAY 98007193 Contact Us For Availability
29
SPREAD, FLAME (BAKE) MAY W10670196 Contact Us For Availability
NI
TIE, CABLE MAY 3391018 Contact Us For Availability
NI
CLIP, WIRE MAY 98005896 Contact Us For Availability
NI
BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
HARNESS, MAIN MAY W10914402 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10820987 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
INSULATION, WRAP MAY W10609560 Contact Us For Availability
NI
INSULATION, UPPER MAY W10613818 Contact Us For Availability
NI
INSULATION, BACK MAY W11048974 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
× ![]()
