Model Maytag AGG222VDW2 RANGE/OVEN, GAS, FREESTANDING, 20 INCH – Common Parts & Diagrams

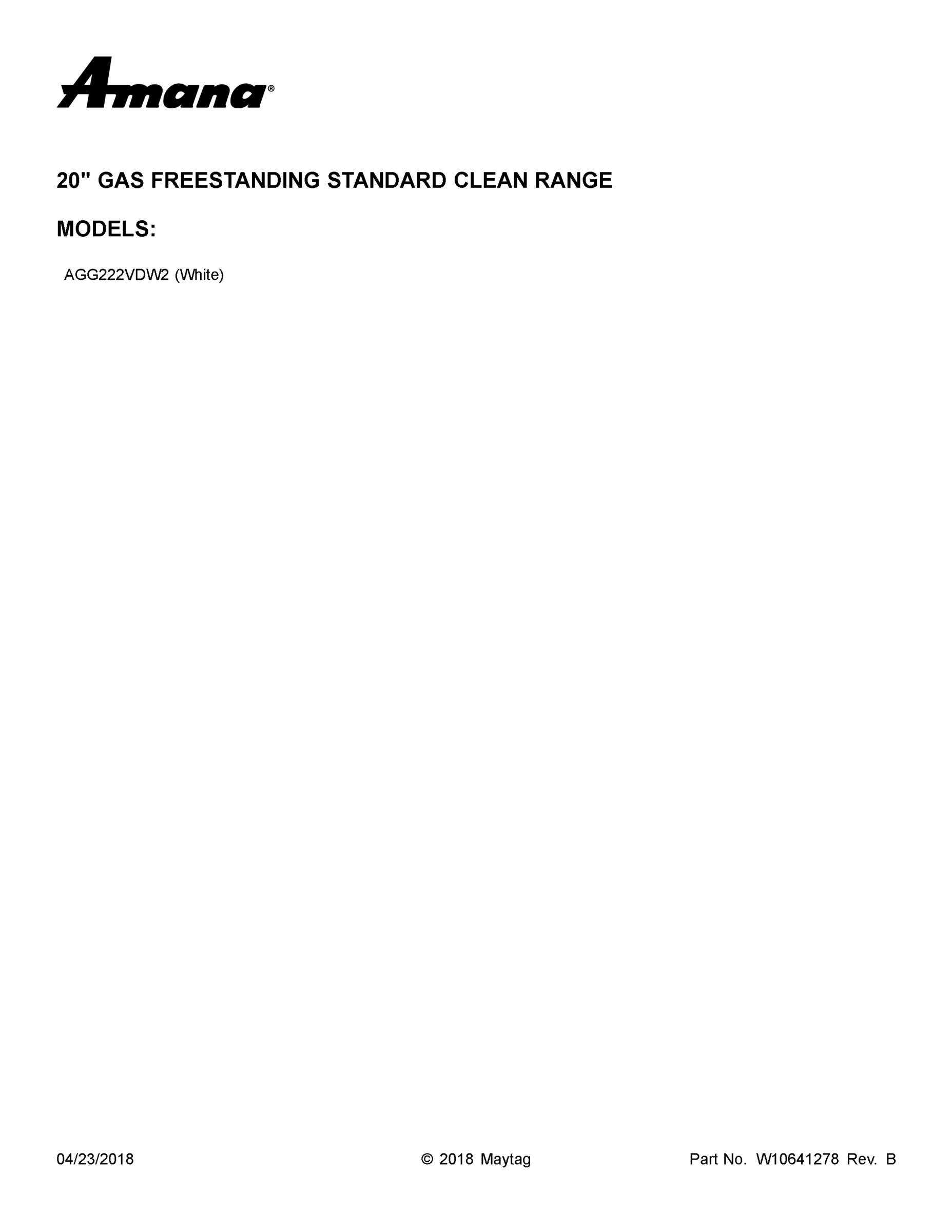

01 - COVER SHEET

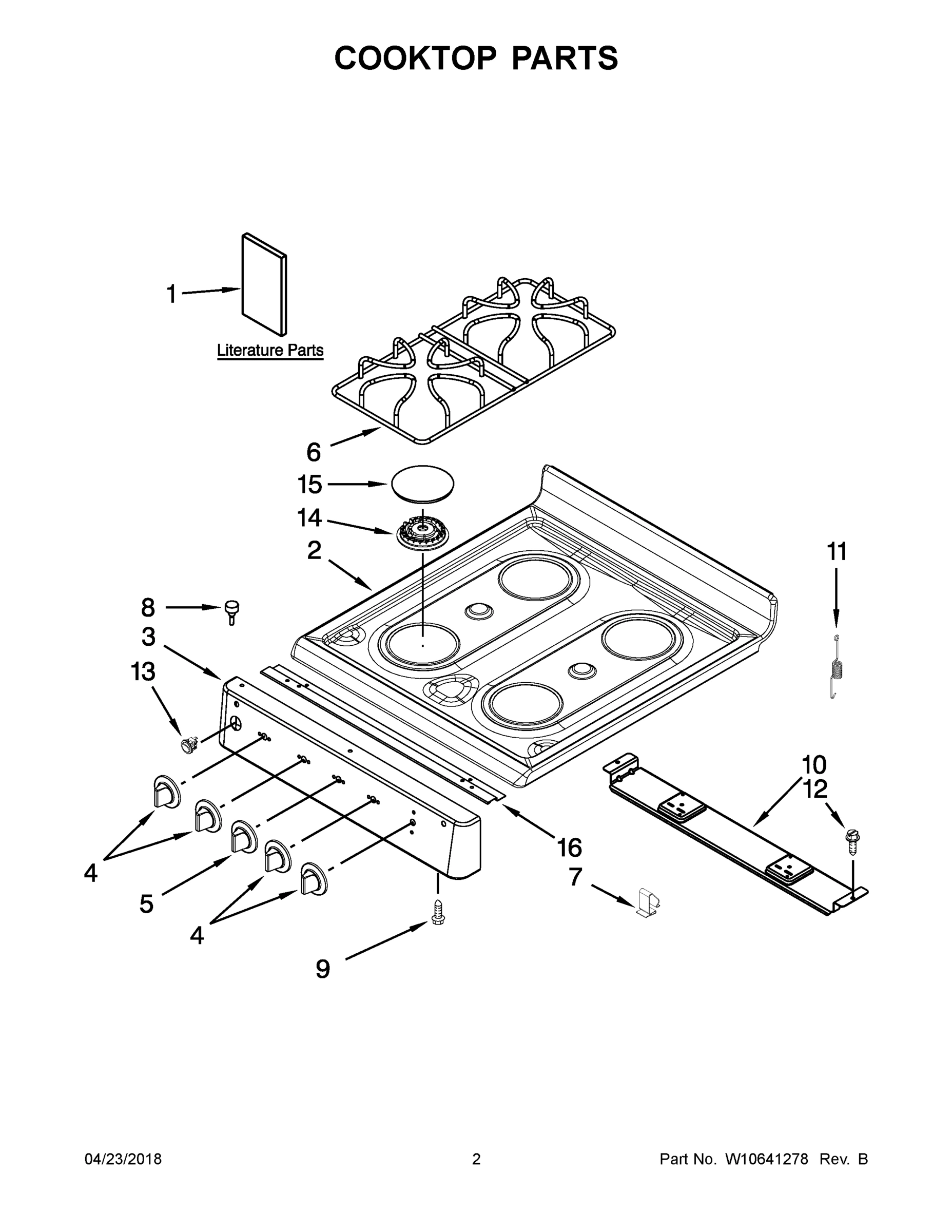

02 - COOKTOP PARTS
03 - BACKGUARD PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - OVEN AND BROILER PARTS
07 - OVEN DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGG222VDW2 RANGE/OVEN, GAS, FREESTANDING, 20 INCH
1
INSTALLATION INSTRUCTIONS MAY W10459123 Contact Us For Availability
1
ENDCAP (WHITE LEFT HAND) MAY W10144828 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
BOX, FLUE MAY W10116396 Contact Us For Availability
1
RACK, OVEN MAY 98016942 Contact Us For Availability
1
LINER, DOOR MAY W10222941 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10452012 Contact Us For Availability
1A
ENDCAP (WHITE RIGHT HAND) MAY W10144829 Contact Us For Availability
1B
SHEET, TECH MAY 98007032 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
2
COOKTOP (WHITE) MAY W10179560 Contact Us For Availability
2
PANEL, BACKGUARD (WHITE) MAY W10208451 Contact Us For Availability
2
TUBING, GAS (LEFT FRONT) MAY 98017582 Contact Us For Availability
2
SPRING, TORSION (FLUE BOX) MAY 98013690 Contact Us For Availability
2
GRILL, BROILER MAY 98003480 Contact Us For Availability
2
RETAINER, UPPER INSULATION MAY W10544386 Contact Us For Availability
3
PANEL, MANIFOLD (WHITE) MAY W10225327 Contact Us For Availability
3
BRACKET, SURFACE BURNER MAY W10122103 Contact Us For Availability
3
BOX, BURNER MAY W10168214 Contact Us For Availability
3
PAN, BROILER MAY 98016005 Contact Us For Availability
3
PANEL, OVEN DOOR (WHITE) MAY W10223098 Contact Us For Availability
4
KNOB, BURNER (WHITE) MAY W10483313 Contact Us For Availability
4
SCREW MAY 98015526 Contact Us For Availability
4
TUBING, GAS (RIGHT REAR) MAY 98017359 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010061 Contact Us For Availability
4
RACK, BROILER MAY 98016570 Contact Us For Availability
4
SEAL, OVEN MAY W10212528 Contact Us For Availability
5
KNOB, THERMOSTAT (WHITE) MAY W10483330 Contact Us For Availability
5
SUPPORT, BACKGUARD MAY W10145101 Contact Us For Availability
5
MODULE, SPARK MAY 6610341 Contact Us For Availability
5
CLIP, OVEN BOTTON MAY 98005502 Contact Us For Availability
5
WASHER MAY W10216805 Contact Us For Availability
5
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
5A
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10180089 Contact Us For Availability
6
REGULATOR MAY W10177394 Contact Us For Availability
6
COUNTERWEIGHT MAY W10185442 Contact Us For Availability
6
GUIDE, RACK MAY 98004715 Contact Us For Availability
6
SCREW MAY 98004993 Contact Us For Availability
7
COVER, MODULE MAY 98010823 Contact Us For Availability
7
COVER, MAIN REAR MAY W10165402 Contact Us For Availability
7
INSULATION, DOOR MAY W10212696 Contact Us For Availability
8
BUMPER, COOKTOP MAY W10207167 Contact Us For Availability
8
SPREADER, FLAME MAY W10212101 Contact Us For Availability
8
FRAME, FRONT MAY W10212614 Contact Us For Availability
8
SCREW (WHITE) MAY 98008544 Contact Us For Availability
8
SCREW MAY 98008699 Contact Us For Availability
9
SCREW MAY 98005000 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
SCREW MAY 98004219 Contact Us For Availability
9
LINER, DOOR MAY 98004700 Contact Us For Availability
10
BURNER, OVEN MAY 98012138 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
SUPPORT, HINGE MAY 98003791 Contact Us For Availability
10
SCREW MAY 8533842 Contact Us For Availability
11
CLIP, COOKTOP MAY 98004722 Contact Us For Availability
11
BOTTOM, OVEN MAY 98004450 Contact Us For Availability
11
INSULATION, DOOR MAY W10137224 Contact Us For Availability
11
SCREW (WHITE) MAY 98006727 Contact Us For Availability
12
HARNESS, SWITCH MAY W10361496 Contact Us For Availability
12
PANEL, DOOR (WHITE) MAY 98017156W Contact Us For Availability
12
NUT, PUSH MAY 98004650 Contact Us For Availability
13
SWITCH, ROCKER (WHITE) MAY 98011571 Contact Us For Availability
13
VALVE, OVEN MAY W10205816 Contact Us For Availability
13
BAFFLE, BASE MAY 98003945 Contact Us For Availability
13
HANDLE, BROILER DOOR (WHITE) MAY 98008486 Contact Us For Availability
13
HANDLE, OVEN DOOR (WHITE) MAY 98004947 Contact Us For Availability
13A
HANDLE, OVEN DOOR MAY 98004946 Contact Us For Availability
14
BURNER, STANDARD MAY W10243396 Contact Us For Availability
14
RAIL, BASE MAY 98003830 Contact Us For Availability
14
PIN, HINGE MAY 98004053 Contact Us For Availability
14
HINGE, OVEN DOOR (YELLOW) MAY 98017873 Contact Us For Availability
15
SUPPORT, OVEN BURNER MAY 98012912 Contact Us For Availability
15
CAP, BURNER (BLACK) MAY 98017461 Contact Us For Availability
15
SCREW MAY 98005659 Contact Us For Availability
15
HANGER, BRLR DOOR MAY 98003790 Contact Us For Availability
15
GLASS, INNER MAY W10201296 Contact Us For Availability
16
Z BRACKET, MANIFOLD MAY W10222744 Contact Us For Availability
16
CLIP, THERM BULB MAY 98005642 Contact Us For Availability
16
COVER, GUIDE MAY 98008341 Contact Us For Availability
16
GLASS, OUTER MAY W10168624 Contact Us For Availability
17
SCREW MAY 98006633 Contact Us For Availability
17
MANIFOLD ASSEMBLY MAY W10592524 Contact Us For Availability
17
SHIELD, CHANNEL MAY 98006715 Contact Us For Availability
17
INSULATION MAY W10212526 Contact Us For Availability
18
U-NUT MAY 98009179 Contact Us For Availability
18
SPRING, BROILER (RIGHT HAND) MAY 98009248 Contact Us For Availability
18
BUMPER MAY 98004979 Contact Us For Availability
18A
SPRING, BROILER (LEFT HAND) MAY 98009249 Contact Us For Availability
19
THERMOSTAT, OVEN MAY W10565875 Contact Us For Availability
19
BAFFLE, SIDE MAY W10121634 Contact Us For Availability
19
RETAINER, INSULATION (BOTTOM) MAY 98012903 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) (LEFT FRONT AND RIGHT MAY 98017348 Contact Us For Availability
20
BACK, MAIN MAY 98003944 Contact Us For Availability
20
RETAINER, INSULATION (TOP) MAY 98004981 Contact Us For Availability
20A
ORIFICE, NATURAL (7.5K) (RIGHT FRONT AND LEFT MAY 98017587 Contact Us For Availability
21
IGNITER, HOT SURFACE MAY 98005652 Contact Us For Availability
21
SEAL, OVEN DOOR MAY W10219461 Contact Us For Availability
21
CLIP, GLASS (LEFT HAND) MAY 98004952 Contact Us For Availability
21A
CLIP, GLASS (RIGHT HAND) MAY 98004953 Contact Us For Availability
22
BRACKET, VALVE MAY W10180267 Contact Us For Availability
22
INSULATION, DOOR MAY W10212525 Contact Us For Availability
23
TUBING (REGULATOR TO OVEN VALVE) MAY W10177392 Contact Us For Availability
23
SEAL, DOOR MAY W10209302 Contact Us For Availability
23
INSULATION, DOOR MAY W10222964 Contact Us For Availability
24
LOCATOR, BURNER MAY 98013314 Contact Us For Availability
24
BASE, FOOT MAY 98007126 Contact Us For Availability
24
BRACKET, RETAINER MAY W10221498 Contact Us For Availability
25
SCREW MAY 98006632 Contact Us For Availability
25
BRACKET, REGULATOR MAY 98007410 Contact Us For Availability
26
FITTING (3/8" TO 9/16") MAY 98007431 Contact Us For Availability
26
SOCKET, LIGHT BULB MAY W10114530 Contact Us For Availability
27
SCREW MAY 98013634 Contact Us For Availability
27
SHIELD, HEAT (LOWER) MAY 98007191 Contact Us For Availability
28
CLIP, IGNITOR MAY W10278150 Contact Us For Availability
28
BULB, LIGHT MAY 98004498 Contact Us For Availability
29
SCREW MAY 98005663 Contact Us For Availability
29
SCREW (BLACK) MAY 98008545 Contact Us For Availability
30
TUBING (MANIFOLD TO REGULATOR) MAY 98017171 Contact Us For Availability
30
SEAL, BROILER DOOR MAY W10555328 Contact Us For Availability
31
ALUMINUM FOIL MAY W10368736 Contact Us For Availability
32
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
32
SCREW MAY 98006634 Contact Us For Availability
32A
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
33
TUBING, GAS (LEFT REAR) MAY W10110342 Contact Us For Availability
33
TOP, OVEN MAY 98004448 Contact Us For Availability
34
TUBING, GAS (RIGHT FRONT) MAY W10110343 Contact Us For Availability
34
SIDE, OVEN (RIGHT HAND) MAY 98004452 Contact Us For Availability
34A
SIDE, OVEN (LEFT HAND) MAY 98004451 Contact Us For Availability
35
VALVE, SADDLE MAY W10141709 Contact Us For Availability
35
BACK, OVEN MAY W10180590 Contact Us For Availability
36
SUPPORT, REAR MAY 98010054 Contact Us For Availability
37
POWER CORD MAY W10196633 Contact Us For Availability
38
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
39
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
40
SPACER MAY 98007193 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRE, GROUND MAY 6610473 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, MAIN MAY W10173886 Contact Us For Availability
NI
LP SPUD KIT (FOR USE WITH LP) MAY W10207842 Contact Us For Availability
NI
INSULATION, BACK MAY W10137234 Contact Us For Availability
NI
INSULATION, WRAP MAY W10206735 Contact Us For Availability
NI
INSULATION, TOP MAY W10207891 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
× ![]()
