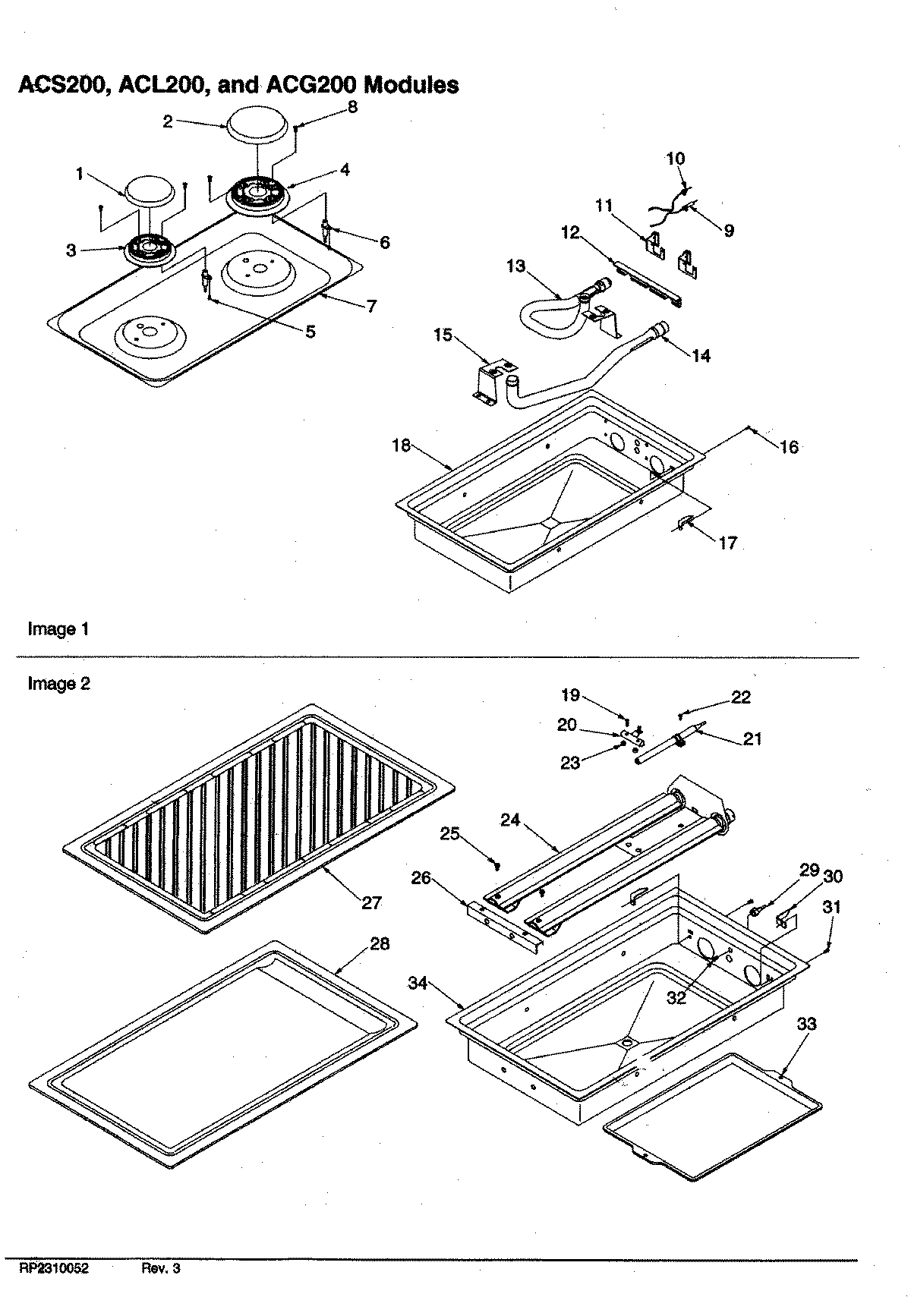

Model Maytag AGDS902X AGDS902x (BOM: P1133382N E) – Common Parts & Diagrams

2
CAP, BURNER 12/13K (MATTE BLK)
CAP, BURNER 12/13K (MATTE BLK) MAY 31782701MB Contact Us For Availability
View on Model
2
CAP, BURNER 12/13K (SPKLE GRY)
CAP, BURNER 12/13K (SPKLE GRY) MAY 31782702SY Contact Us For Availability
View on Model
3
TOP BURNER (MEDIUM 9K)
TOP BURNER (MEDIUM 9K) MAY Y0315768 Contact Us For Availability
View on Model
4
TOP BURNER (LARGE 12/13K)
TOP BURNER (LARGE 12/13K) MAY Y0315767 Contact Us For Availability
View on Model
5
SCREW, ELECTRODE
SCREW, ELECTRODE MAY Y0316775 Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER (SS)
TOP, MODULE-SEALED BURNER (SS) MAY Y0316364 Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER(BLK)
TOP, MODULE-SEALED BURNER(BLK) MAY 315754B Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER(WHT)
TOP, MODULE-SEALED BURNER(WHT) MAY 315754W Contact Us For Availability
View on Model
9
ELECTRODE, BURNER IGN. 21``WIRE
ELECTRODE, BURNER IGN. 21``WIRE MAY Y0316389 Contact Us For Availability
View on Model
10
ELECTRODE, BURNER IGN. 1O``WIRE
ELECTRODE, BURNER IGN. 1O``WIRE MAY Y0315751 Contact Us For Availability
View on Model
12
BRKT, VENTURI CLAMPING
BRKT, VENTURI CLAMPING MAY 31813601 Contact Us For Availability
View on Model
13
VENTURI, REAR BURNER-HW
VENTURI, REAR BURNER-HW MAY 31909401 Contact Us For Availability
View on Model
14
VENTURI, FRONT BURNER-HW
VENTURI, FRONT BURNER-HW MAY 31909301 Contact Us For Availability
View on Model
15
BRKT, BURNER MTG.
BRKT, BURNER MTG. MAY Y0315755 Contact Us For Availability
View on Model
18
MODULE PAN,GAS SEALED BRNR(BLA
MODULE PAN,GAS SEALED BRNR(BLA MAY 315757B Contact Us For Availability
View on Model
18
WASHER, LOCK 5/32 X 9/32 O.D.
WASHER, LOCK 5/32 X 9/32 O.D. MAY 31750007 Contact Us For Availability
View on Model
18
SCREW, No.8-18 X 1/4 P TRS HD
SCREW, No.8-18 X 1/4 P TRS HD MAY 31750422 Contact Us For Availability
View on Model
19
SCREW 4-40X15/16``
SCREW 4-40X15/16`` MAY Y0041821 Contact Us For Availability
View on Model
20
FLASH TUBE KGT591
FLASH TUBE KGT591 MAY Y0040841 Contact Us For Availability
View on Model
21
GRILLE, ELECTRODE
GRILLE, ELECTRODE MAY Y0042217 Contact Us For Availability
View on Model
22
SCREW, No.8-32 X 5/16 PPH (BLK)
SCREW, No.8-32 X 5/16 PPH (BLK) MAY 31750402 Contact Us For Availability
View on Model
23
NUT, KEPS No.4-40
NUT, KEPS No.4-40 MAY 31750112 Contact Us For Availability
View on Model
24
ASSY, GRILLE BURNER (GAS)
ASSY, GRILLE BURNER (GAS) MAY 31891801B Contact Us For Availability
View on Model
26
GRILLE BURNER REAR SUPPORT
GRILLE BURNER REAR SUPPORT MAY Y041041B Contact Us For Availability
View on Model
27
GRILLE , LOW SMOKE (BLK)
GRILLE , LOW SMOKE (BLK) MAY 31902101B Contact Us For Availability
View on Model
28
GRIDDLE, CAST (GAS)
GRIDDLE, CAST (GAS) MAY 31902001B Contact Us For Availability
View on Model
29
GROUND PIN XST311 KGT591
GROUND PIN XST311 KGT591 MAY Y0041898 Contact Us For Availability
View on Model
30
STRIKE, GRILLE PAN
STRIKE, GRILLE PAN MAY Y0315593 Contact Us For Availability
View on Model
31
SCREW, No.6-32 X .312 PANHD(BLK)
SCREW, No.6-32 X .312 PANHD(BLK) MAY 31750310 Contact Us For Availability
View on Model
32
SCREW, No.8-32 X 3/16 PPH
SCREW, No.8-32 X 3/16 PPH MAY 31750401 Contact Us For Availability
View on Model
33
PAN, GREASE KGT591
PAN, GREASE KGT591 MAY Y0042724 Contact Us For Availability
View on Model
34
MODU
MODU MAY 315746CG Contact Us For Availability
View on Model
34
MAY 31750006
MAY 31750006 MAY 31750006 Contact Us For Availability
View on Model
NI
MAY 316175MB
MAY 316175MB MAY 316175MB Contact Us For Availability
View on Model
