Model Maytag AGC6356KFB02 COOKTOP, GAS, 36 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

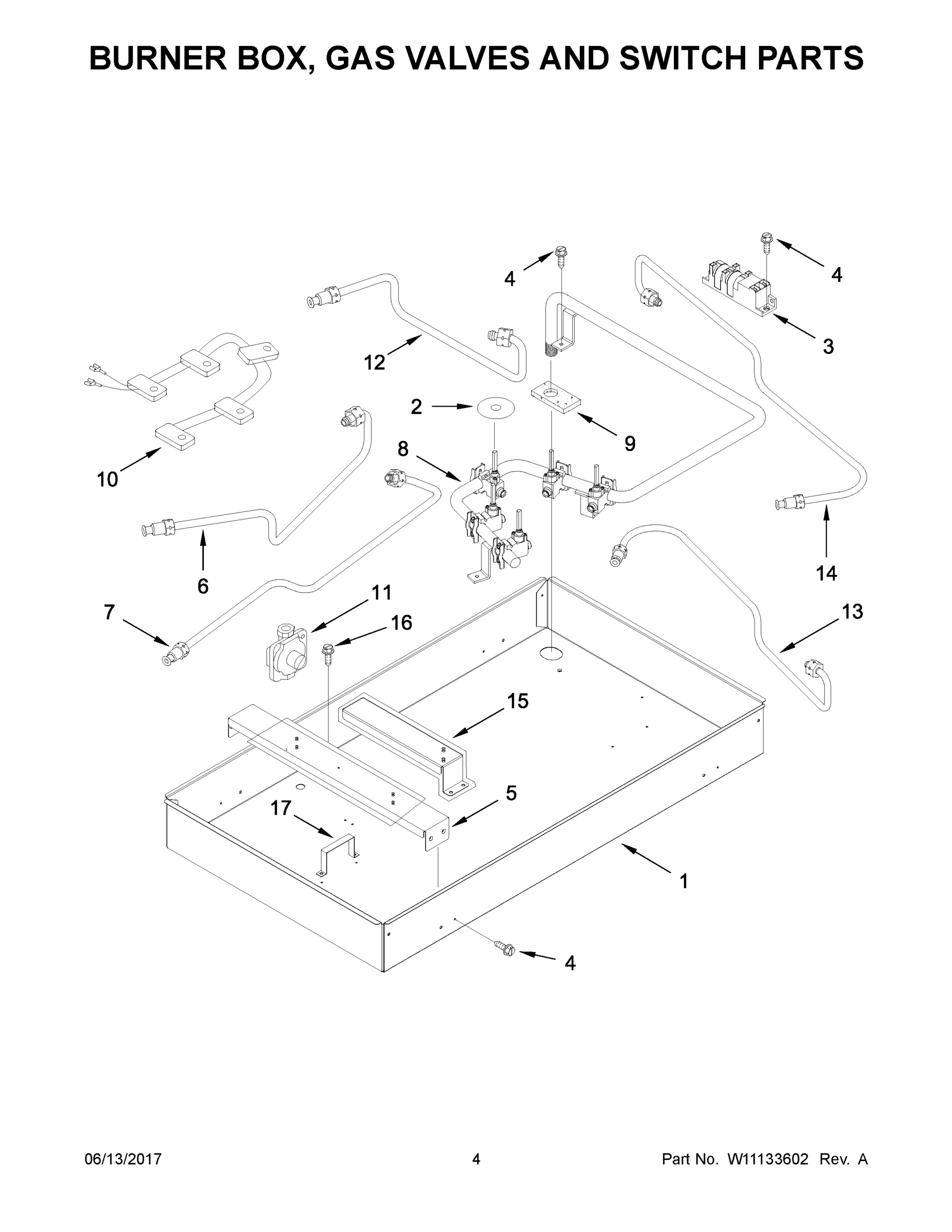

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Maytag AGC6356KFB02 COOKTOP, GAS, 36 INCH
1
MAY W11100536 MAY W11100536 Contact Us For Availability
1
BOX, BURNER MAY W10181017 Contact Us For Availability
1A
MAY W11100531 MAY W11100531 Contact Us For Availability
1B
DIAGRAM, WIRING MAY W10204418 Contact Us For Availability
1C
DIAGRAM, WIRING (FRENCH) MAY W10205174 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10828608 Contact Us For Availability
2
GROMMET MAY 8008P065-60 Contact Us For Availability
2A
COOKTOP (WHITE) MAY W10828613 Contact Us For Availability
3
KIT, BURNER CAP (BLACK) MAY W10218219 Contact Us For Availability
3
MODULE, SPARK MAY W10110489 Contact Us For Availability
3A
KIT, BURNER CAP (GRAY) MAY W10237938 Contact Us For Availability
4
GRATE, BURNER (BLACK) MAY 7518P464-60 Contact Us For Availability
4
SCREW MAY 7101P426-60 Contact Us For Availability
4A
GRATE, BURNER (GRAY) MAY 7518P465-60 Contact Us For Availability
5
SEAL, FOAM MAY 8270P107-60 Contact Us For Availability
5
BRACKET, ORIFICE HOLDER MAY 3801F755-51 Contact Us For Availability
6
KNOB, CONTROL (BLACK) MAY W10828610 Contact Us For Availability
6
TUBING, GAS (LEFT FRONT) MAY 7506P362-60 Contact Us For Availability
6A
KNOB, CONTROL (WHITE) MAY W10828611 Contact Us For Availability
7
MAY W10779144 MAY W10779144 Contact Us For Availability
7
TUBING, GAS (LEFT REAR) MAY 7506P363-60 Contact Us For Availability
7A
MAY W10779145 MAY W10779145 Contact Us For Availability
7B
MAY W10779148 MAY W10779148 Contact Us For Availability
7C
MAY W10779147 MAY W10779147 Contact Us For Availability
7D
MAY W10779146 MAY W10779146 Contact Us For Availability
8
HEAD, BURNER (12.5K) MAY W10406797 Contact Us For Availability
8
ASSEMBLY, MANIFOLD MAY 7513P522-60 Contact Us For Availability
9
SEAL, MANIFOLD PIPE INLET MAY 7208P024-60 Contact Us For Availability
10
GRATE, CENTER (BLACK) MAY 7518P467-60 Contact Us For Availability
10
HARNESS & SWITCHES MAY W10184468 Contact Us For Availability
10A
GRATE, CENTER (GRAY) MAY 7518P468-60 Contact Us For Availability
11
MAY W10639155 MAY W10639155 Contact Us For Availability
11
REGULATOR, PRESSURE MAY W10449143 Contact Us For Availability
11A
MAY W10639156 MAY W10639156 Contact Us For Availability
11B
ORIFICE (RIGHT FRONT) MAY 9753929 Contact Us For Availability
12
SCREW MAY 8273062 Contact Us For Availability
12
TUBING, GAS (CENTER) MAY 7506P364-60 Contact Us For Availability
13
MAY W10779128 MAY W10779128 Contact Us For Availability
13
TUBING, GAS (RIGHT FRONT) MAY 7506P365-60 Contact Us For Availability
13A
MAY W10779130 MAY W10779130 Contact Us For Availability
13B
MAY W10779129 MAY W10779129 Contact Us For Availability
14
TUBING, GAS (RIGHT REAR) MAY 7506P366-60 Contact Us For Availability
15
BRACKET, CENTER ORIFICE HOLDER MAY 3801F878-51 Contact Us For Availability
16
SCREW MAY 7101P460-60 Contact Us For Availability
17
BRACKET, SUPPORT MAY 3801F933-51 Contact Us For Availability
NI
BRACKET, TIE DOWN MAY 3801F935-51 Contact Us For Availability
NI
CORD, POWER MAY 7402P087-60 Contact Us For Availability
NI
WIRE, GROUND JUMPER MAY 8285402 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SPARK COOKTOP MAY W10173479 Contact Us For Availability
NI
MAY W11106597 MAY W11106597 Contact Us For Availability
× ![]()
