Model GE AFNE9BSP303AW01 General Electric Model AFNE9BSP303AW01 – Common Parts & Diagrams
Control Cabinet Line Filter
Control Cabinet, Top and Controls (Drawing 1 of 2) (Front Control Models)

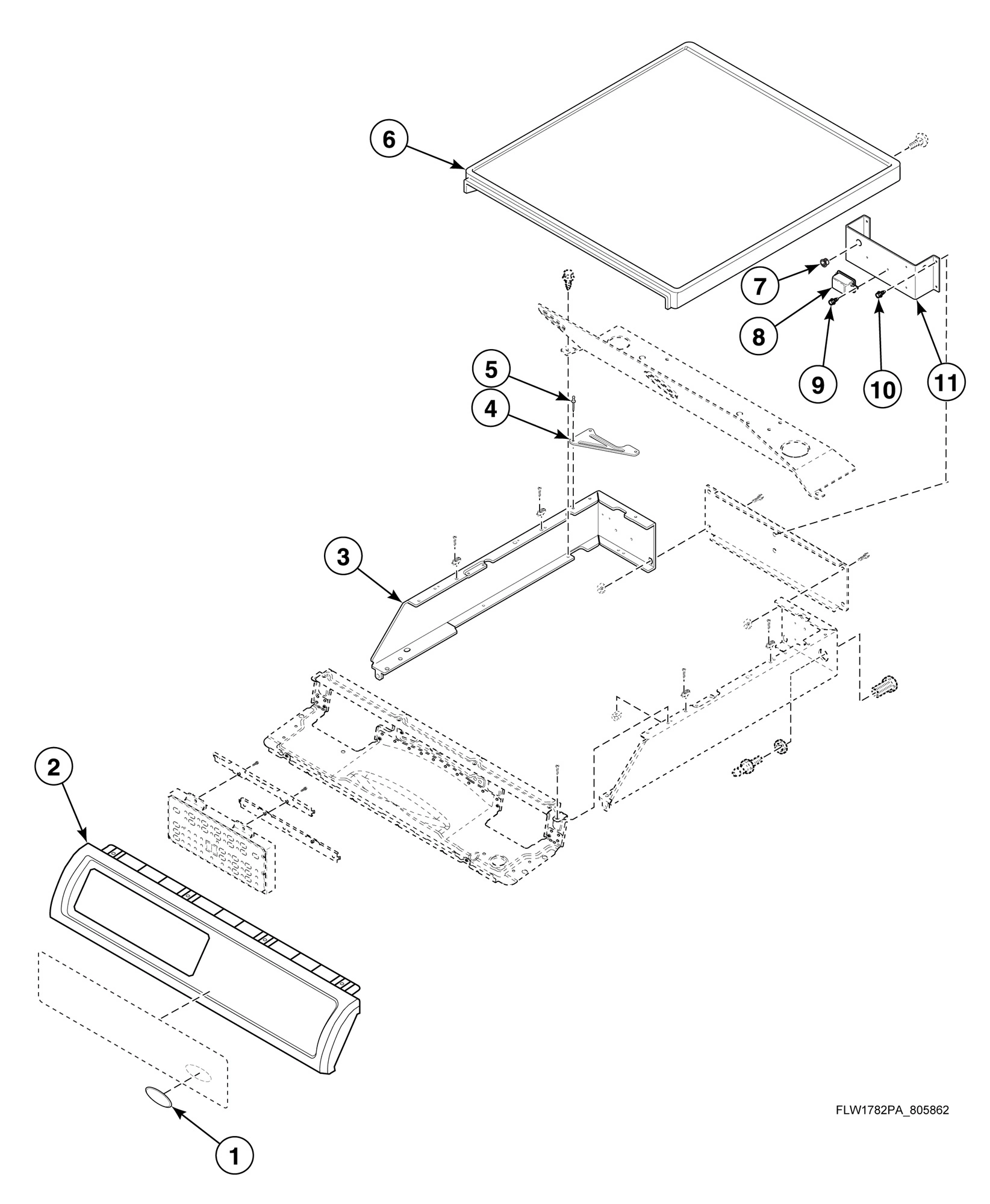

Control Cabinet, Top and Controls (Drawing 2 of 2) (Front Control Models)

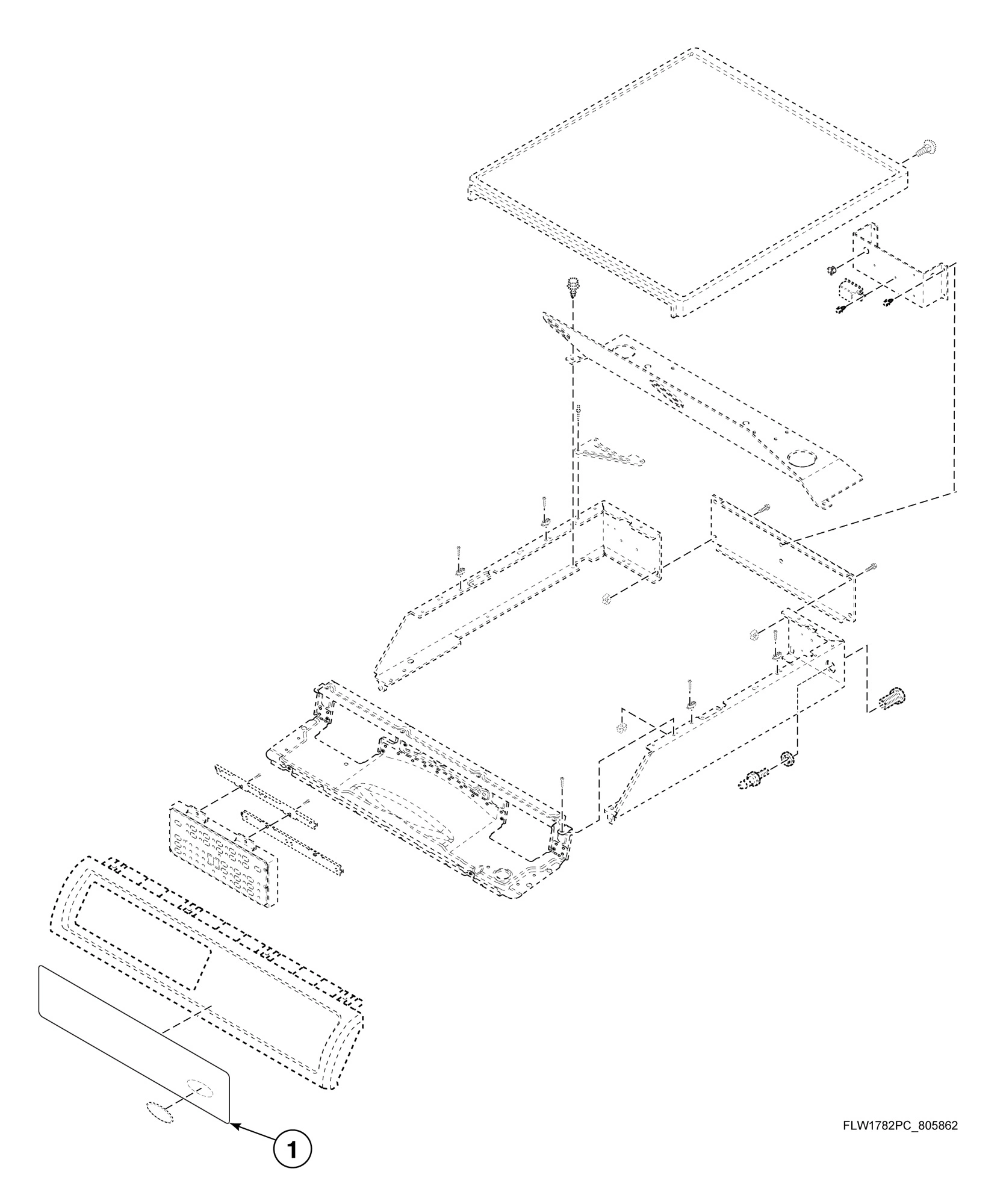

Control Overlay (Front Control Models)

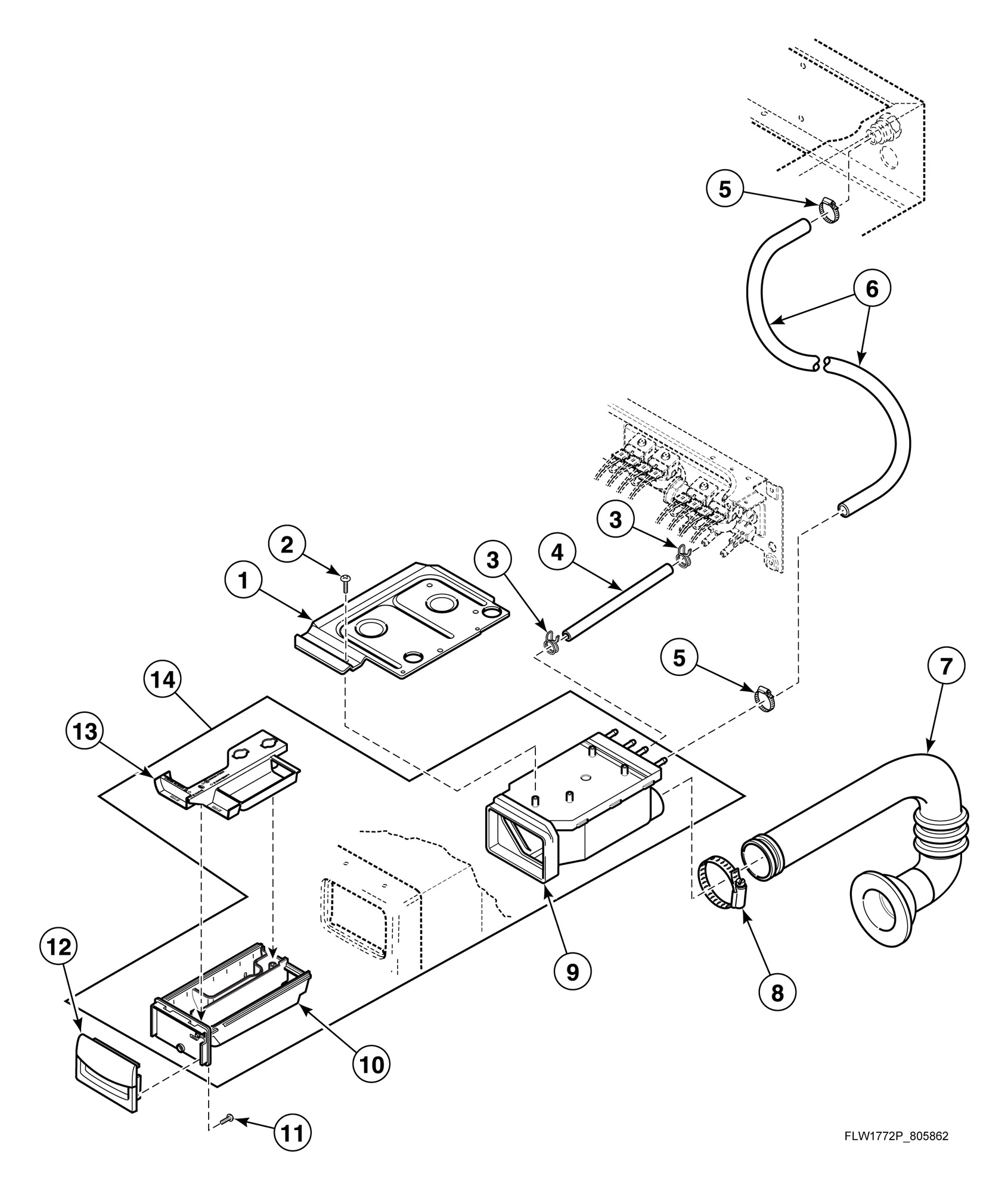

Dispenser Assembly

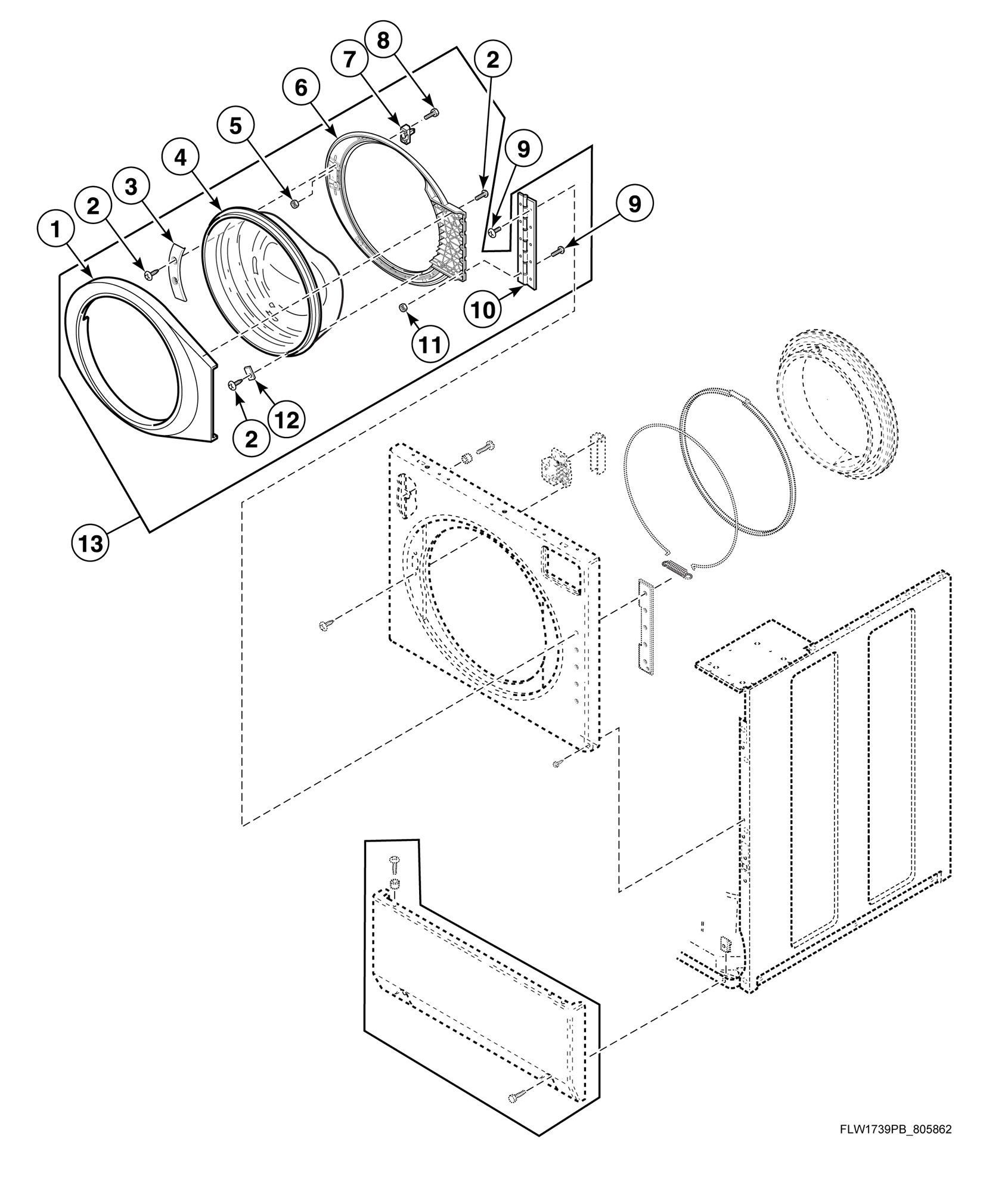

Door Assembly

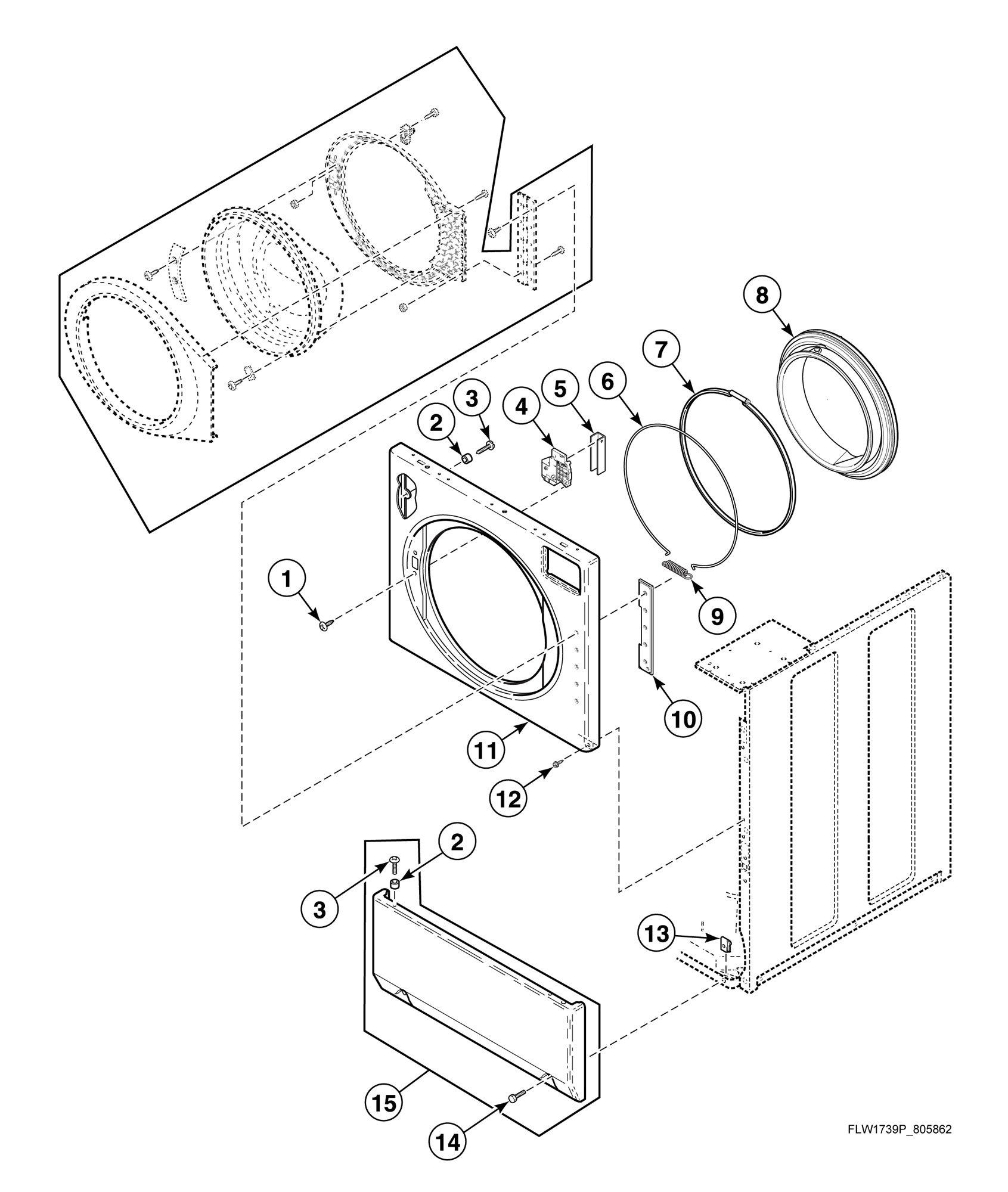

Front Panel and Door Seal

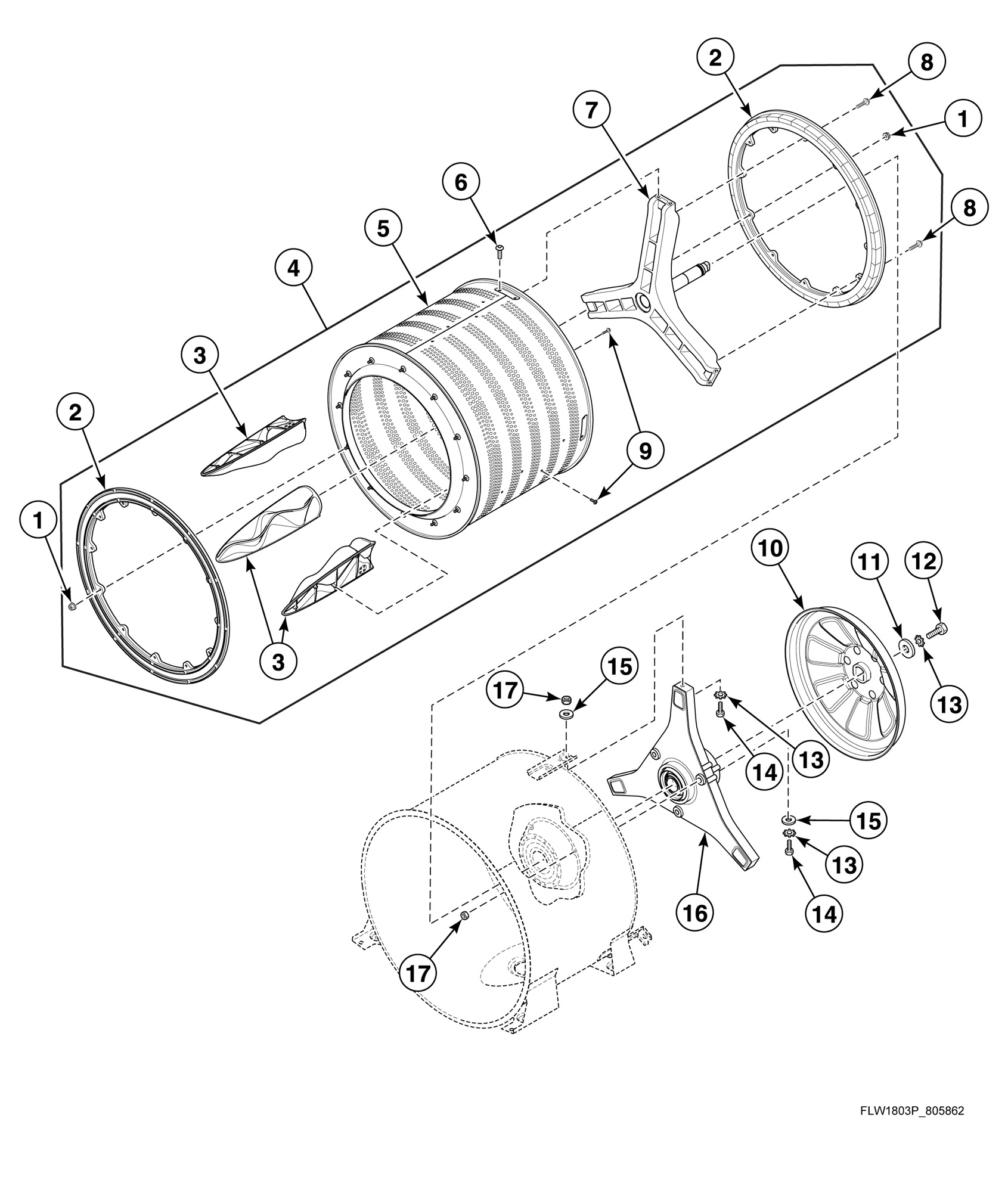

Inner Basket, Trunnion, Bearing Housing and Pulley

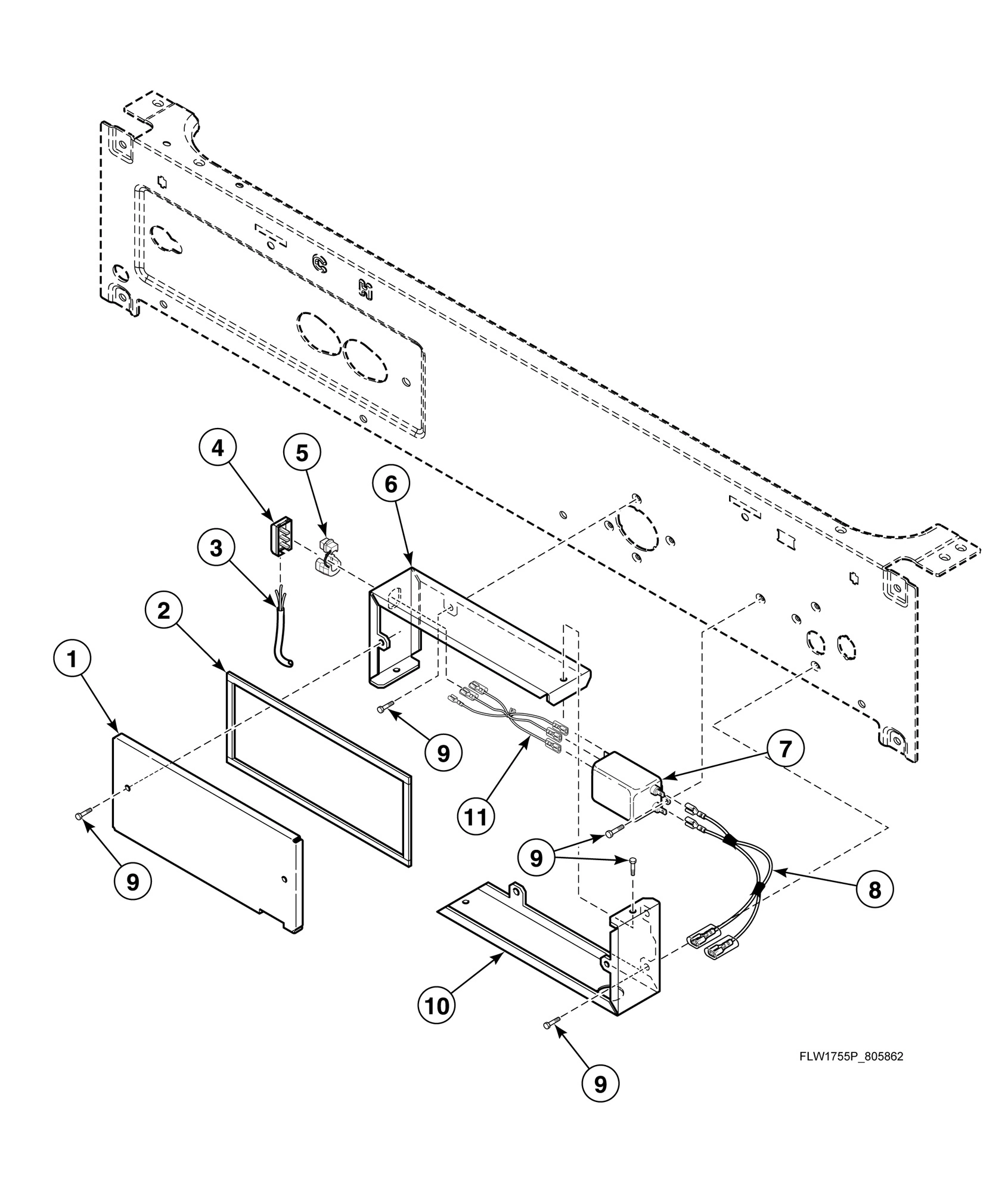

Junction Box and Power Cord

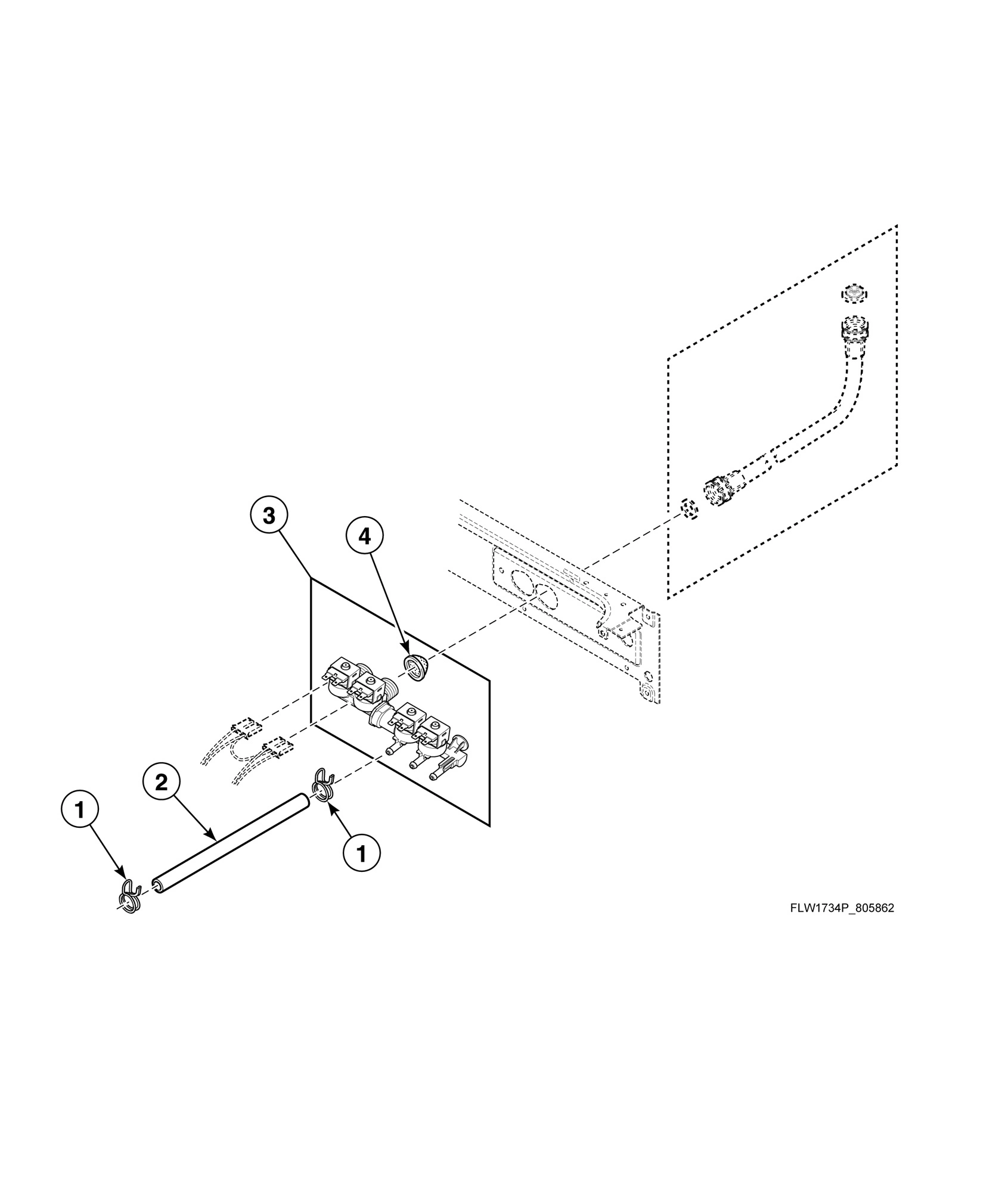

Mixing Valve and Valve-to-Dispenser Hose

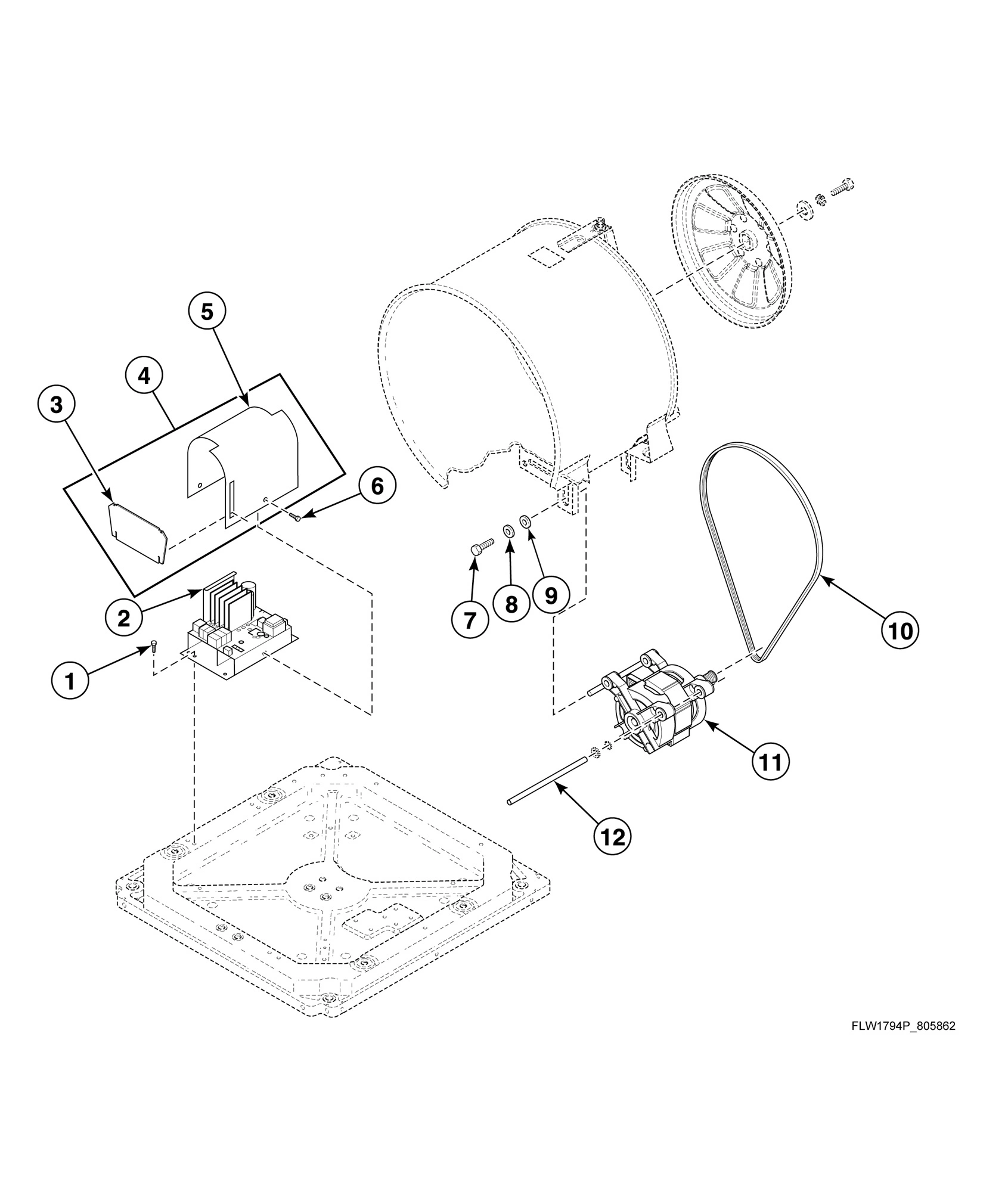

Motor and Belt

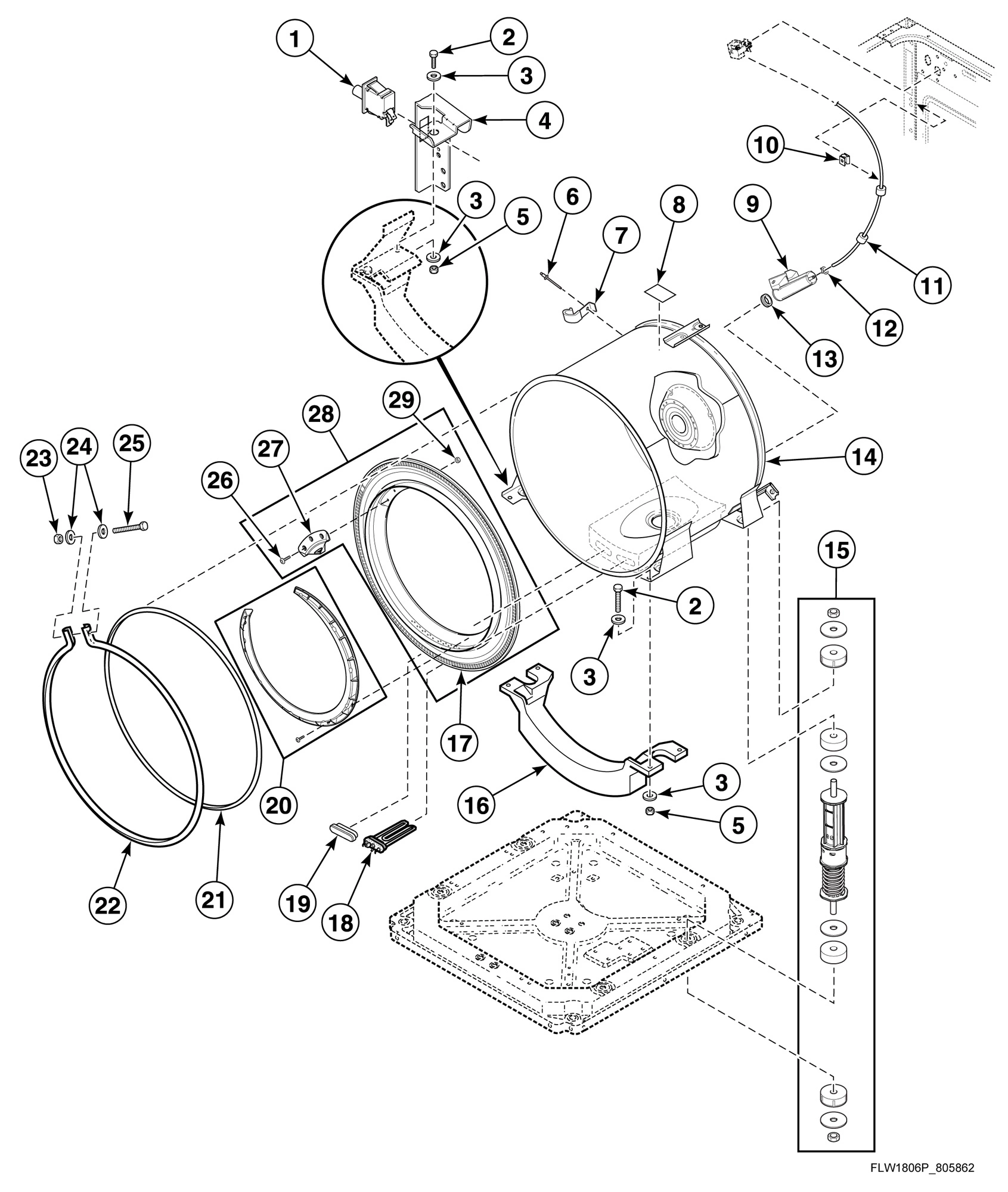

Outer Tub, Front and Clamp Ring

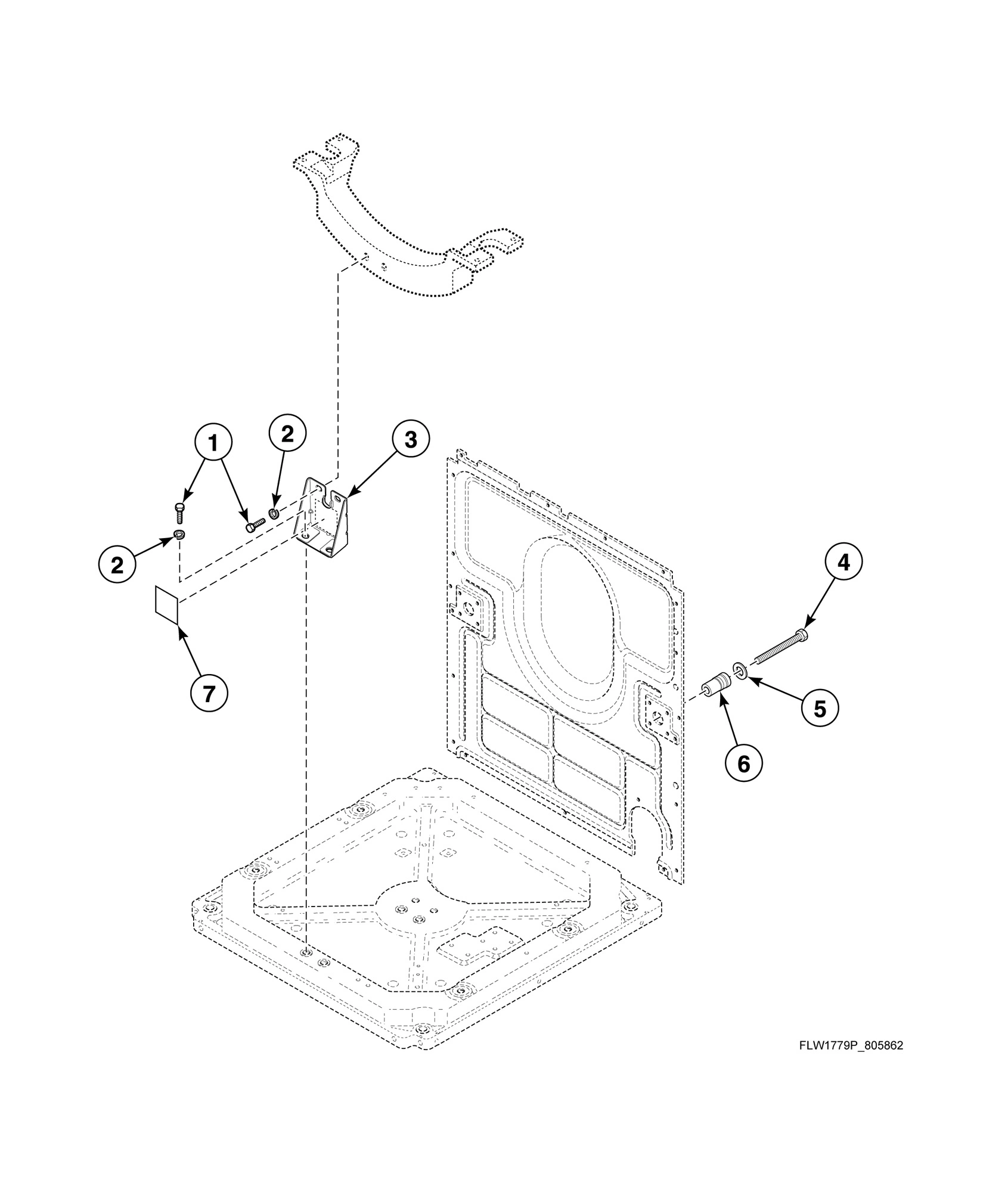

Shipping Materials

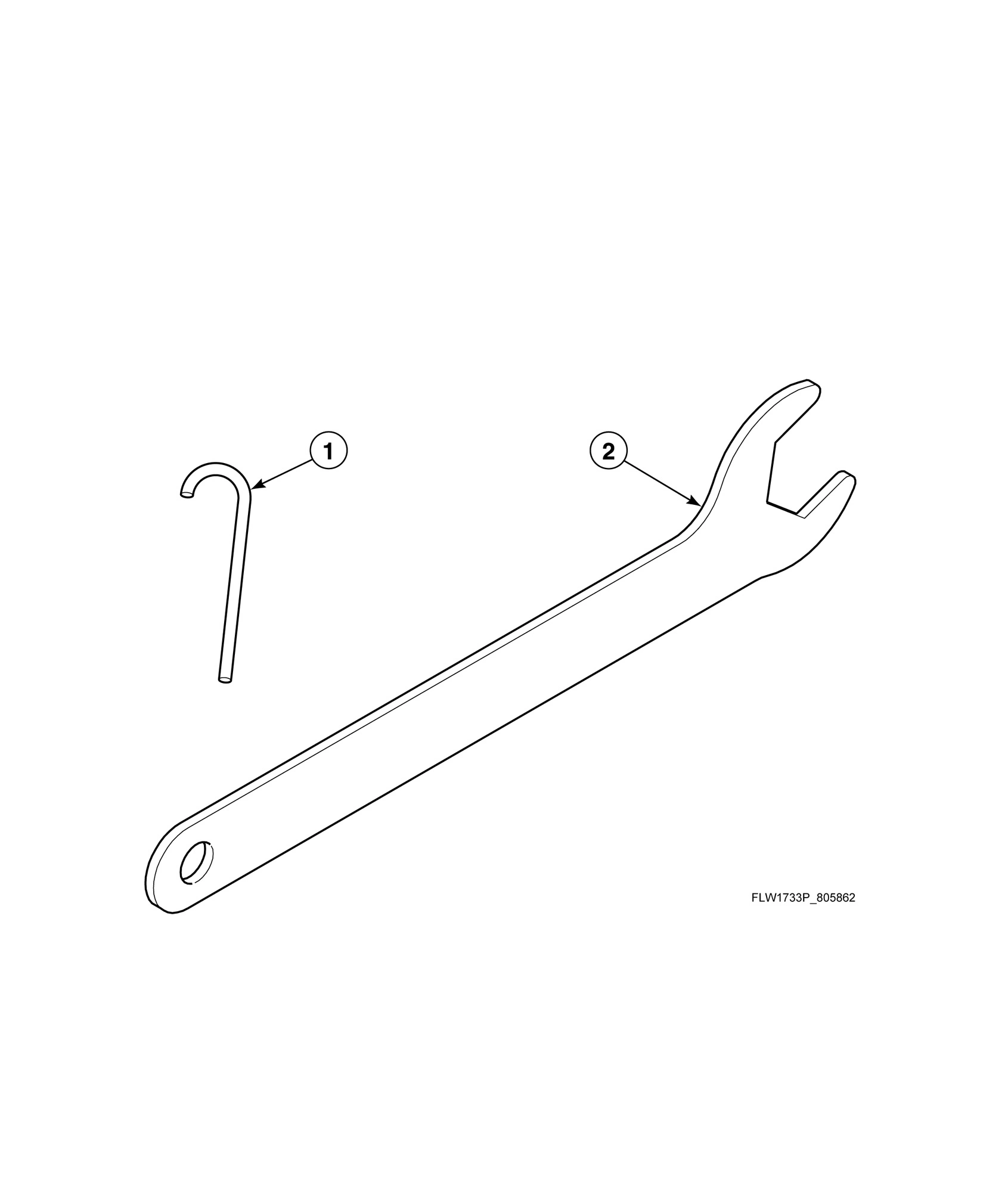

Special Tools

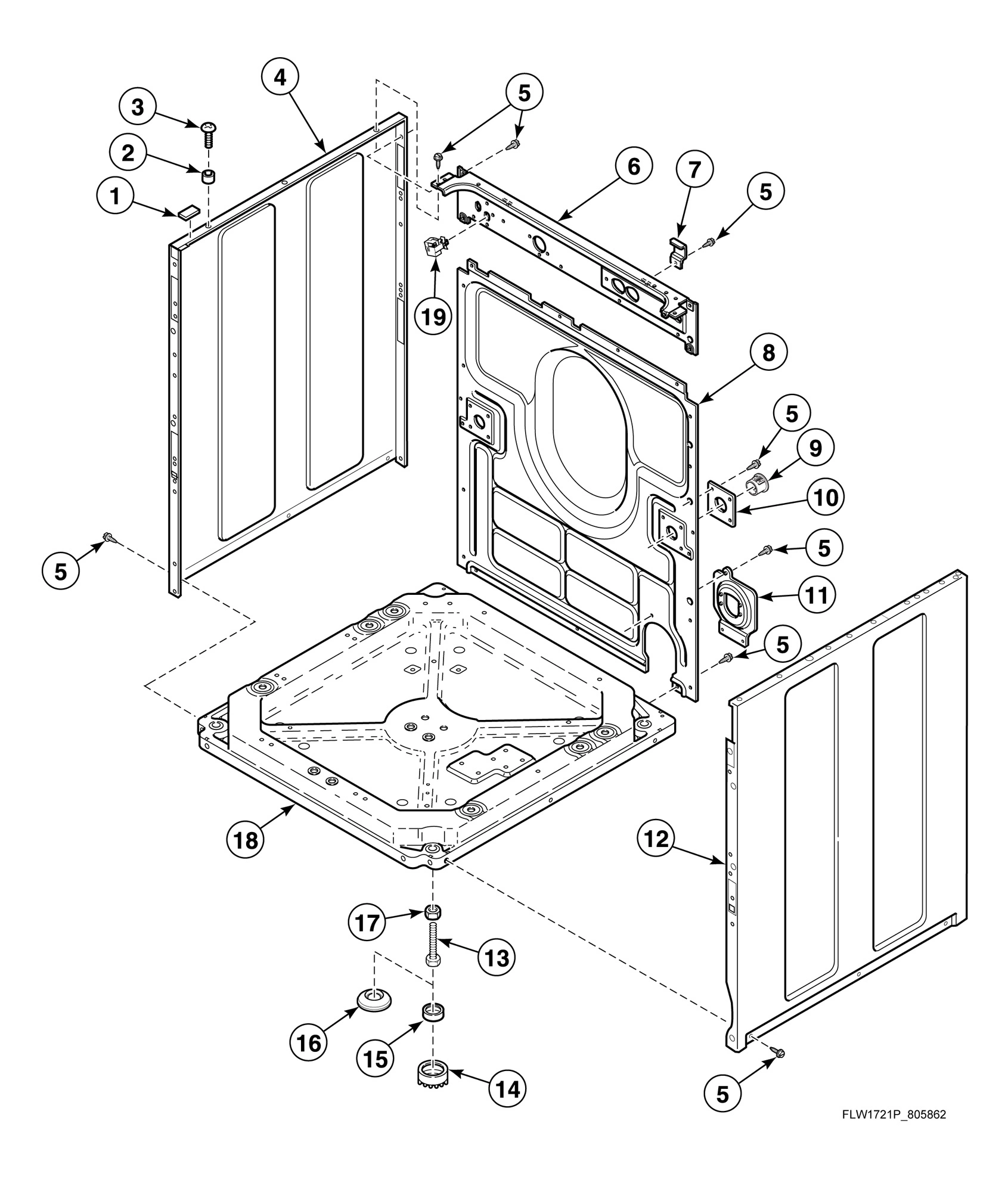

Washer Base, Side Panels and Rear Panel

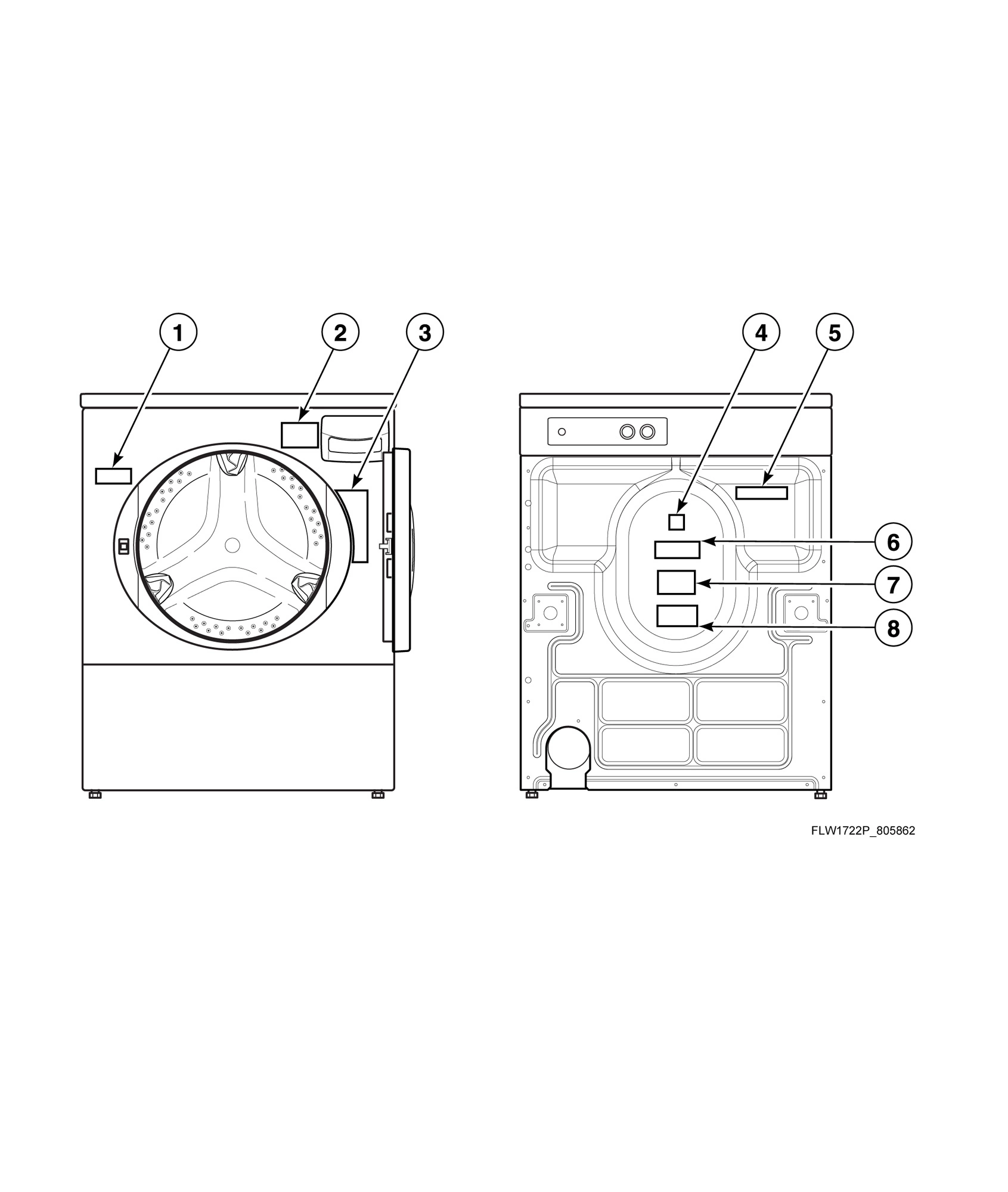

Washer Labels

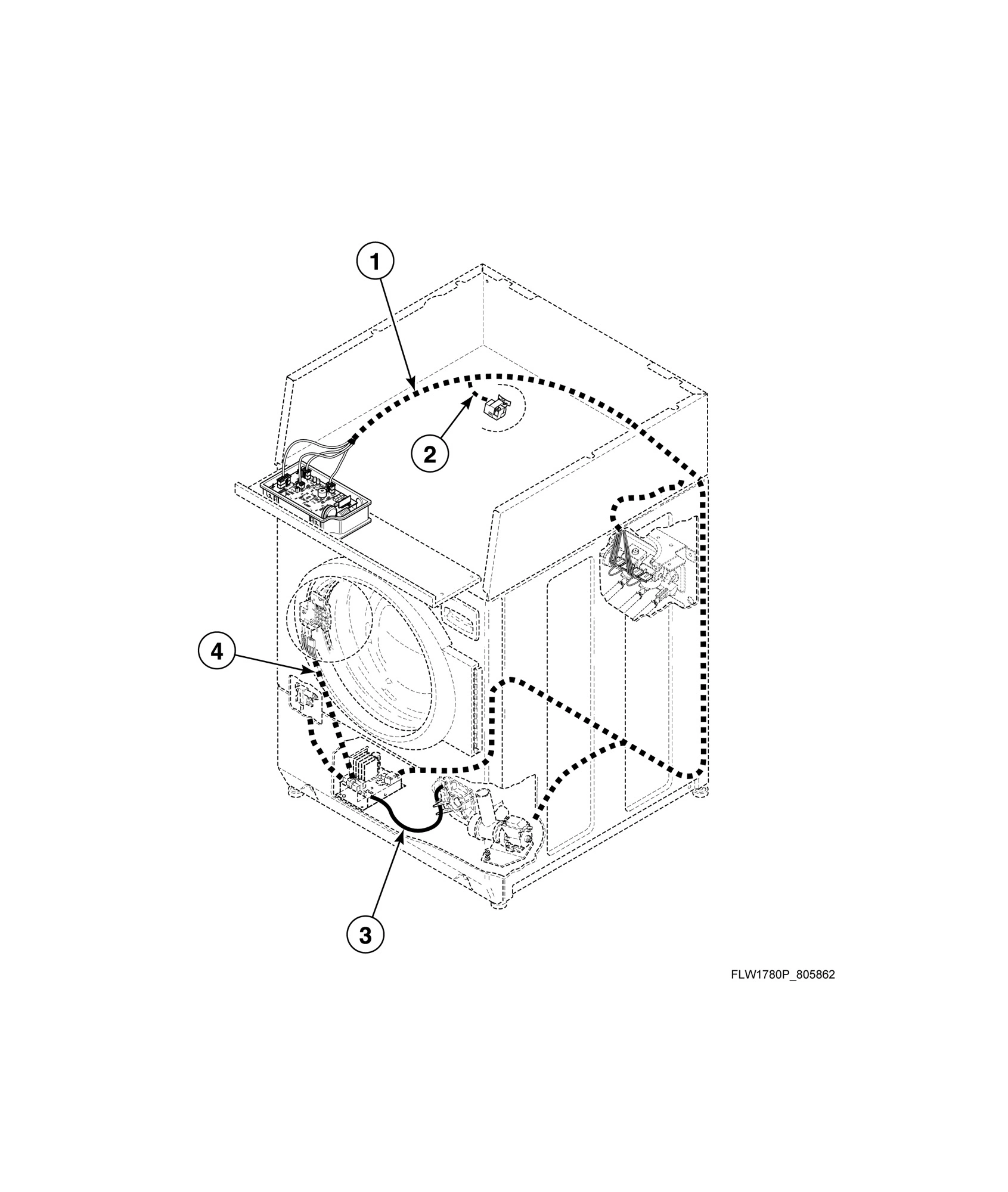

Wire Harnesses and Wires

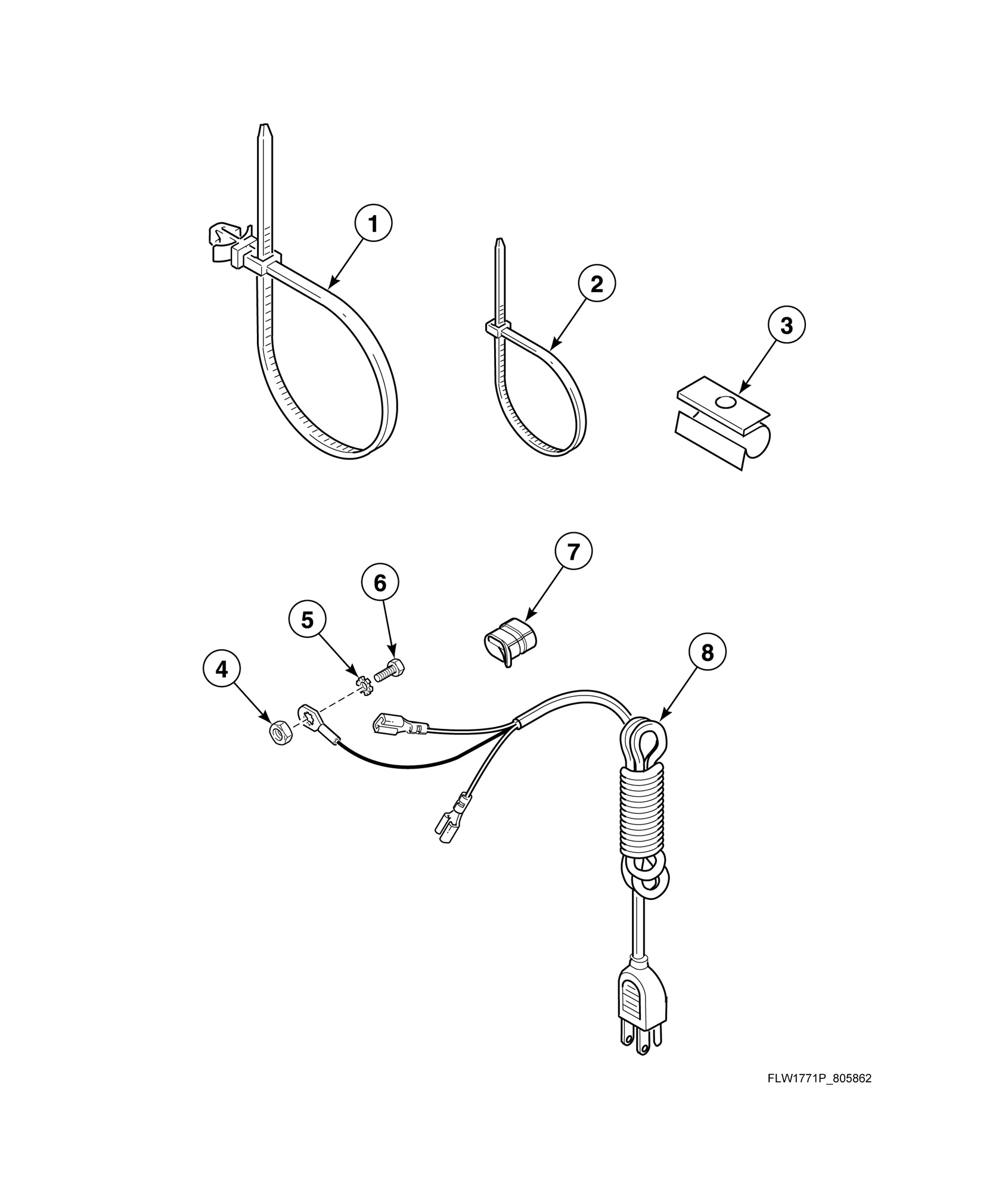

Wire Ties, Clips and Lead-In Cord
Common parts from model GE AFNE9BSP303AW01 General Electric Model AFNE9BSP303AW01
1
Terminal Block Panel GEN 804609 Contact Us For Availability
1
Bolt GEN 29651 Contact Us For Availability
1
Control Overlay GEN 804490 Contact Us For Availability
1
Dispenser Plate GEN 803843 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) GEN 804173 Contact Us For Availability
1
Outer Door Bezel (Comment: White) GEN 803710WP Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Screw (Comment: 4 required) GEN M400043 Contact Us For Availability
1
Junction Box Cover GEN 803820 Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Snap Bushing GEN M400770 Contact Us For Availability
2
Control Shield GEN 804363 Contact Us For Availability
2
Control Panel Assembly (Comment: White) GEN 804659W Contact Us For Availability
2
Control Panel Assembly (Comment: Gray) GEN 805005 Contact Us For Availability
2
Screw GEN 801001 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Junction Box Seal GEN 803832 Contact Us For Availability
2
Inverter Control Assembly GEN 803949P Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Washer (Comment: 4 required) GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Screw GEN D503688 Contact Us For Availability
3
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
3
Control Wrapper (Comment: Left, Black) GEN 804627B Contact Us For Availability
3
Control Wrapper (Comment: Left, Gray) GEN 804627DG Contact Us For Availability
3
Control Wrapper (Comment: Left, White) GEN 804627W Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806086 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Power Cord Assembly GEN 39931 Contact Us For Availability
3
Mixing Valve (Comment: 240 Volt, GHT thread, GEN 803838P Contact Us For Availability
3
Mixing Valve (Comment: 220-240 Volt, BSPP thr GEN 806612 Contact Us For Availability
3
End Shield GEN 806258 Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Shipping Brace GEN 804454 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806276 Contact Us For Availability
3
Warning Label (Comment: English, Reduce fire GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Brazilian Portuguese, GEN 804500 Contact Us For Availability
3
Warning Label (Comment: Arabic, Reduce fire r GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Japanese, Reduce fire GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Chinese, Reduce fire GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Korean, Reduce fire r GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Thai, Reduce fire ris GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Vietnamese, Reduce fi GEN 806550 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
4
Screw GEN D501086 Contact Us For Availability
4
Rear Access Panel GEN 804614 Contact Us For Availability
4
Rear Wrapper Brace GEN 805345 Contact Us For Availability
4
Door Latch Assembly GEN 803920 Contact Us For Availability
4
Inner Basket Assembly Kit GEN 804376P Contact Us For Availability
4
Cable Connection Box GEN 39922 Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Motor Control Shield (Comment: Includes items GEN 806498 Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Screw (Comment: 2 required) GEN 800462 Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Gray) GEN 800004DG Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Notice Label GEN D516073 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Screw GEN D503661 Contact Us For Availability
5
Door Lock Drip Shield GEN 804784 Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Motor Control Shield GEN 804878 Contact Us For Availability
5
Washer (Comment: 2 required) GEN 800624 Contact Us For Availability
5
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
5
Warning Label (Comment: Brazilian Portuguese, GEN 804582 Contact Us For Availability
5
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
5
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Pop Rivet GEN 685847 Contact Us For Availability
6
Top Panel (Comment: Stainless steel) GEN 804684 Contact Us For Availability
6
Top Panel (Comment: Gray) GEN 804685DG Contact Us For Availability
6
Top Panel (Comment: White) GEN 804685WP Contact Us For Availability
6
Wire Clamp Ring GEN 802283 Contact Us For Availability
6
Screw GEN 804699 Contact Us For Availability
6
Junction Box (Comment: Upper) GEN 803818 Contact Us For Availability
6
Screw GEN D501524 Contact Us For Availability
6
Shipping Spacer (Comment: 2 required) GEN 803858 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
6
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
Line Filter (Comment: models starting Serial GEN 805633 Contact Us For Availability
7
Control Wrapper (Comment: Right, Black) GEN 804630B Contact Us For Availability
7
Control Wrapper (Comment: Right, White) GEN 804630W Contact Us For Availability
7
Detergent Hose GEN 804717 Contact Us For Availability
7
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar GEN 804405P Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
7
Screw GEN M400057 Contact Us For Availability
7
Hose Clip GEN 800553 Contact Us For Availability
7
Label (Comment: Shipping brace) GEN 804488 Contact Us For Availability
7
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
7
Electrical Shock Label GEN F8211201 Contact Us For Availability
8
NOT ON YOUR MODEL GEN - Contact Us For Availability
8
Expansion Clip GEN 70030501 Contact Us For Availability
8
Hose Clamp GEN 685725 Contact Us For Availability
8
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
8
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Filter Harness (Comment: Filter to main harne GEN 804797 Contact Us For Availability
8
Washer GEN 02834 Contact Us For Availability
8
GEN D500049 GEN D500049 Contact Us For Availability
8
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
8
GEN D500314 GEN D500314 Contact Us For Availability
8
GEN F8211301 GEN F8211301 Contact Us For Availability
9
Dispenser Assembly GEN 803698 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Extension Spring GEN 802285 Contact Us For Availability
9
Washer GEN M400080 Contact Us For Availability
9
Pressure Bulb GEN 803837 Contact Us For Availability
9
Shipping Plug GEN 803859 Contact Us For Availability
10
Top Panel Guide GEN 803761 Contact Us For Availability
10
Dispenser Drawer GEN 803667 Contact Us For Availability
10
Door Hinge GEN 802934 Contact Us For Availability
10
Pulley Assembly GEN 803974 Contact Us For Availability
10
Junction Box (Comment: Lower) GEN 803819 Contact Us For Availability
10
Drive Belt GEN 804985 Contact Us For Availability
10
Shipping Plate GEN 803851 Contact Us For Availability
11
Washer GEN 800464 Contact Us For Availability
11
Filter Jumper Harness (Comment: Filter to ter GEN 801420 Contact Us For Availability
11
Filter Jumper Harness (Comment: Filter to ter GEN 804805 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
11
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
11
Drain Hose Bracket GEN 803828 Contact Us For Availability
12
Top Panel Brace Assembly GEN 804613 Contact Us For Availability
12
Dispenser Handle (Comment: Black) GEN 804227B Contact Us For Availability
12
Dispenser Handle (Comment: White) GEN 804227WP Contact Us For Availability
12
Dispenser Handle (Comment: Gray) GEN 804228 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Motor Rod GEN 803861 Contact Us For Availability
12
Hose Clamp GEN 803891 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Gray) GEN 800005DG Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Stainless GEN 802526P Contact Us For Availability
12
Side Panel Kit (Comment: Right, White) GEN 806492 Contact Us For Availability
13
Control Bracket GEN 804611 Contact Us For Availability
13
Compartment Cover GEN 803669 Contact Us For Availability
13
Nut GEN 36020 Contact Us For Availability
13
Washer (Comment: Used on models through Seria GEN M403958 Contact Us For Availability
13
Grommet GEN 29175 Contact Us For Availability
13
Leveling Leg GEN 34319 Contact Us For Availability
14
Control Assembly GEN 805236P Contact Us For Availability
14
Dispenser Assembly (Comment: Includes items 9 GEN 805494P Contact Us For Availability
14
Screw GEN 801045 Contact Us For Availability
14
Outer Tub Assembly GEN 803864 Contact Us For Availability
14
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
15
Access Panel Assembly (Comment: Gray) GEN 804617DGP Contact Us For Availability
15
Access Panel Assembly (Comment: White) GEN 804617W Contact Us For Availability
15
Access Panel Assembly (Comment: Stainless ste GEN 804618 Contact Us For Availability
15
Shock Assembly (Comment: Must replace all fou GEN 803777 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
16
Counterweight GEN 803810 Contact Us For Availability
16
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
16
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
17
Tub Front GEN 803770 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
18
Base Assembly GEN 803876 Contact Us For Availability
19
Pressure Sensor GEN 202470 Contact Us For Availability
20
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
20
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
20
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
21
Tub Front Seal GEN 803801 Contact Us For Availability
22
Clamp Ring GEN 803802 Contact Us For Availability
23
Nut GEN F430218 Contact Us For Availability
24
Washer GEN M400081 Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Clothes Guard Deflector GEN 804467 Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
28
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
29
Nut GEN 802343 Contact Us For Availability
NA
Foam Pad GEN 804875 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805938 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805939 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Bearing Kit GEN 805730 Contact Us For Availability
NA
Mixing Valve Shield GEN 804783 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: W GEN 122P4P Contact Us For Availability
NA
GEN 806436P GEN 806436P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
