Model GE AFNE9BSP115TW13 General Electric Model AFNE9BSP115TW13 – Common Parts & Diagrams
Base, Side and Rear Panels
Cabinet Top, Control Panel and Controls

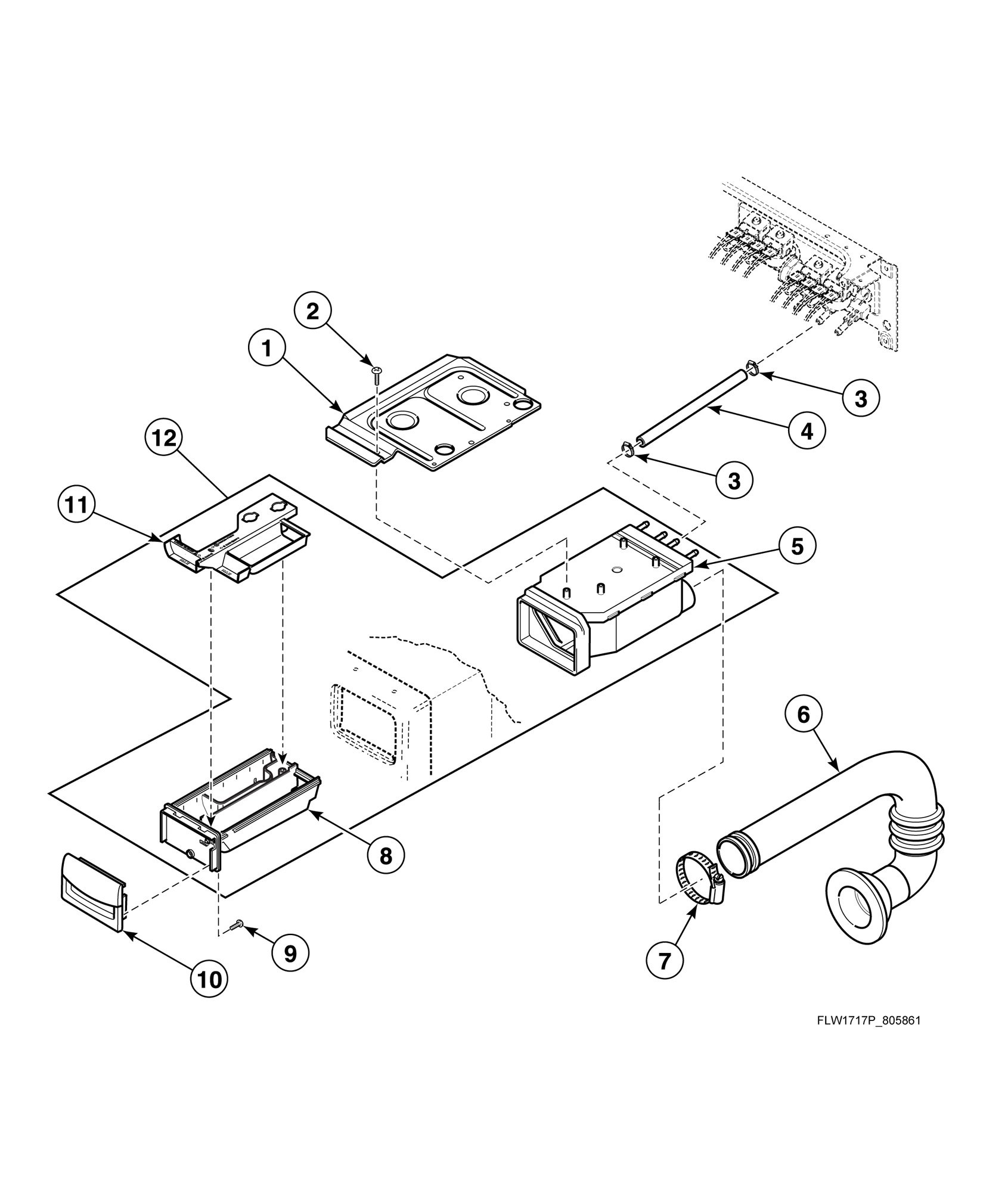

Dispenser Assembly

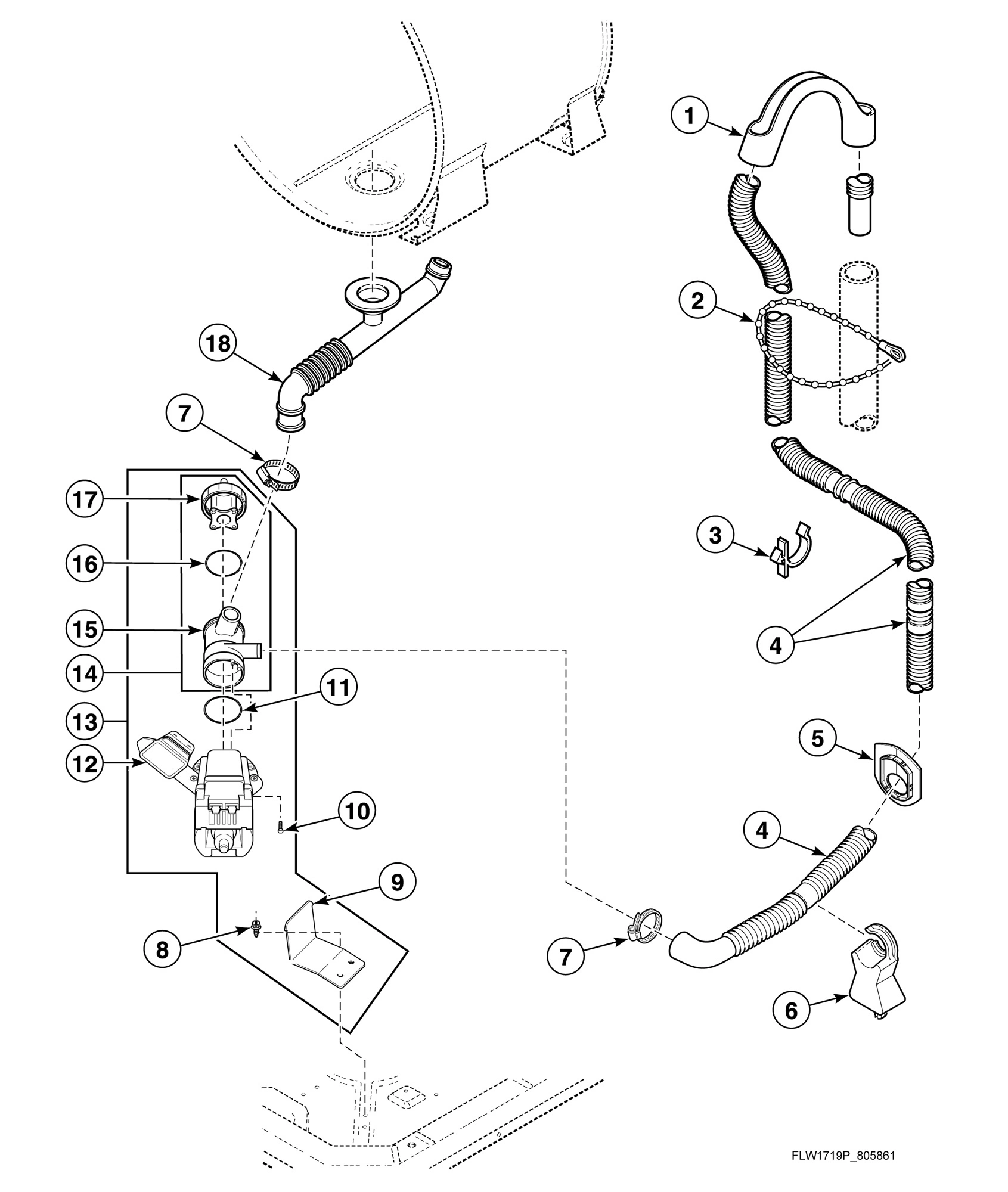

Drain Hose and Pump
Front Panel, Door Assembly and Door Seal

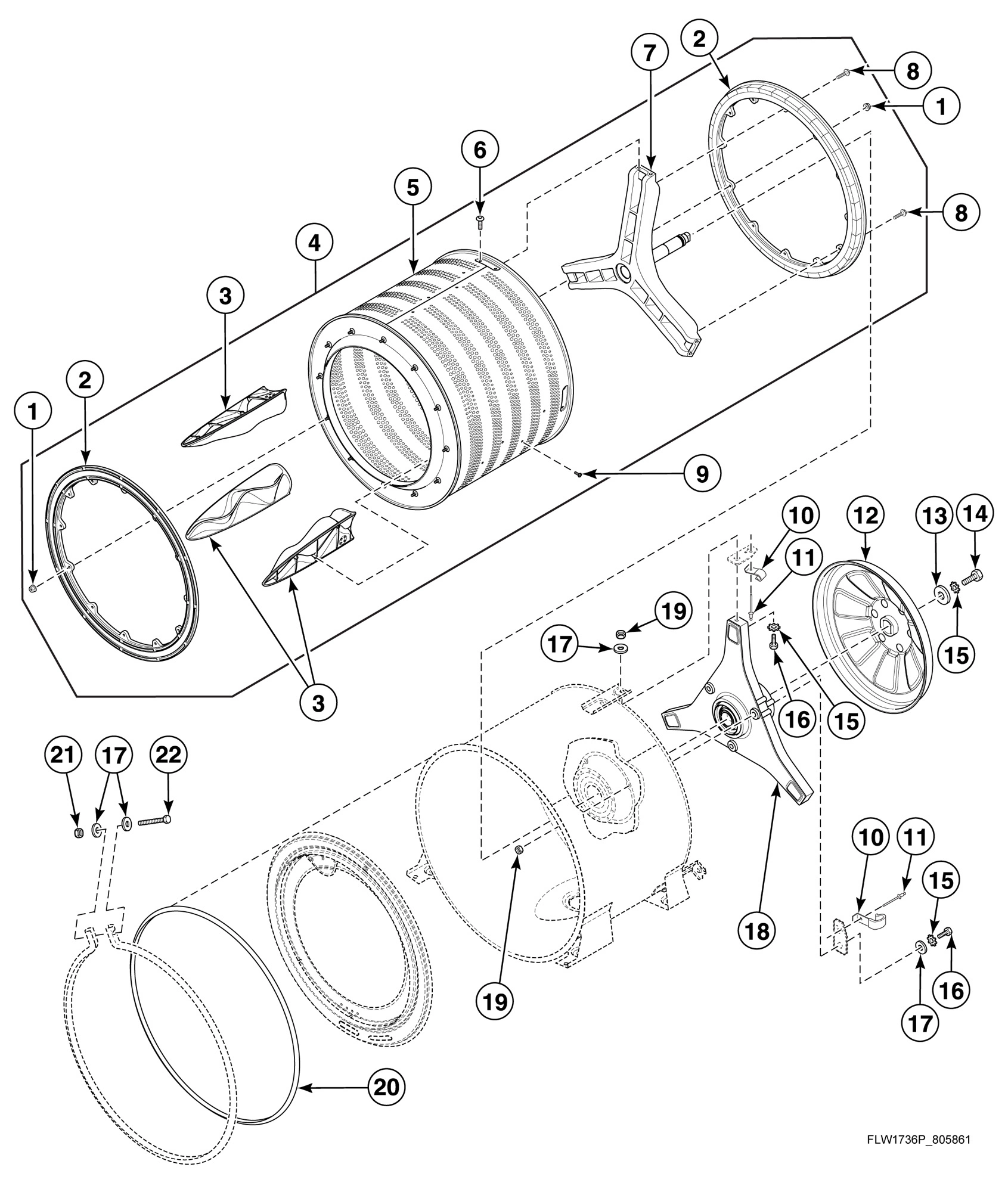

Inner Basket, Trunnion, Bearing Housing and Pulley

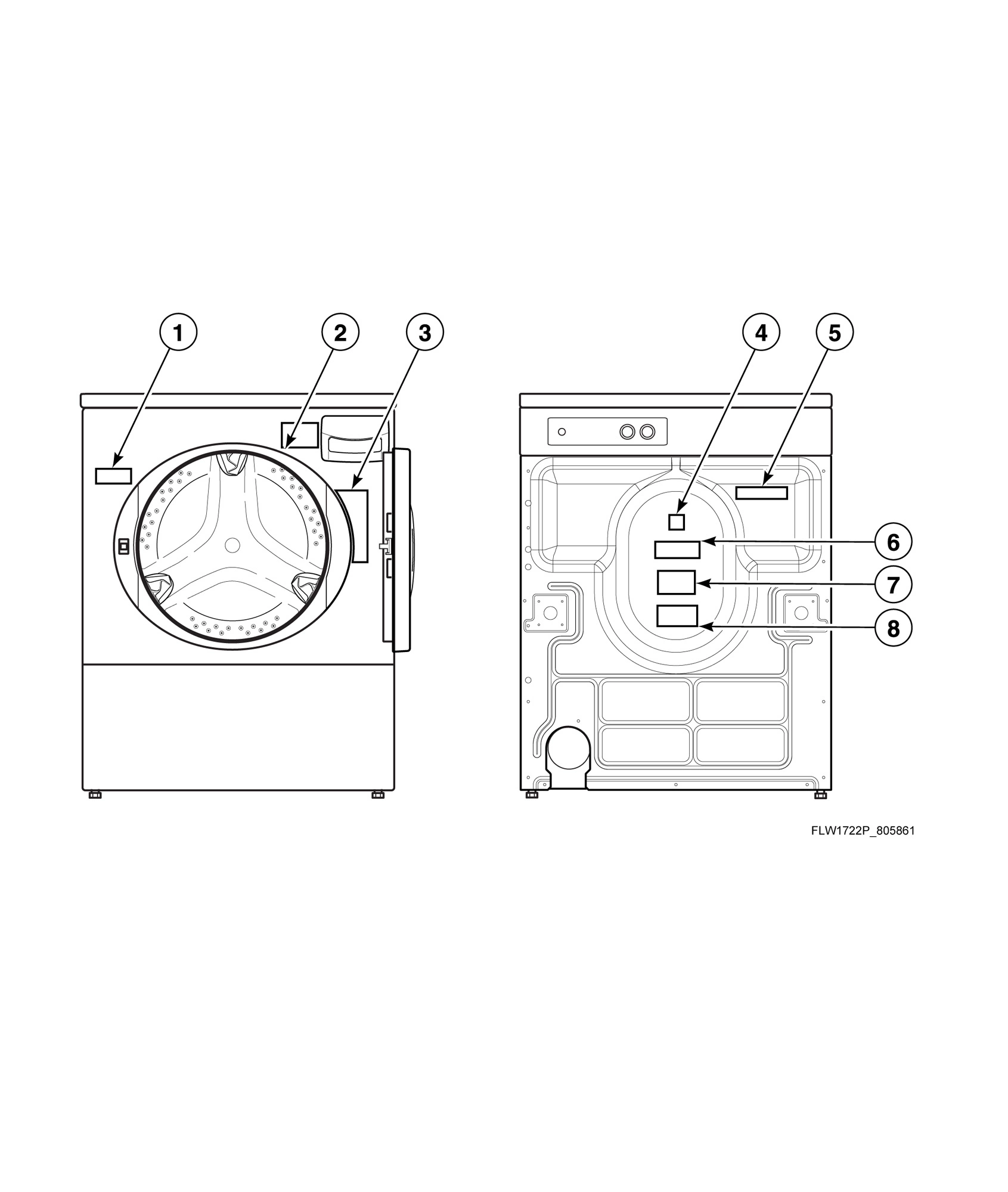

Labels

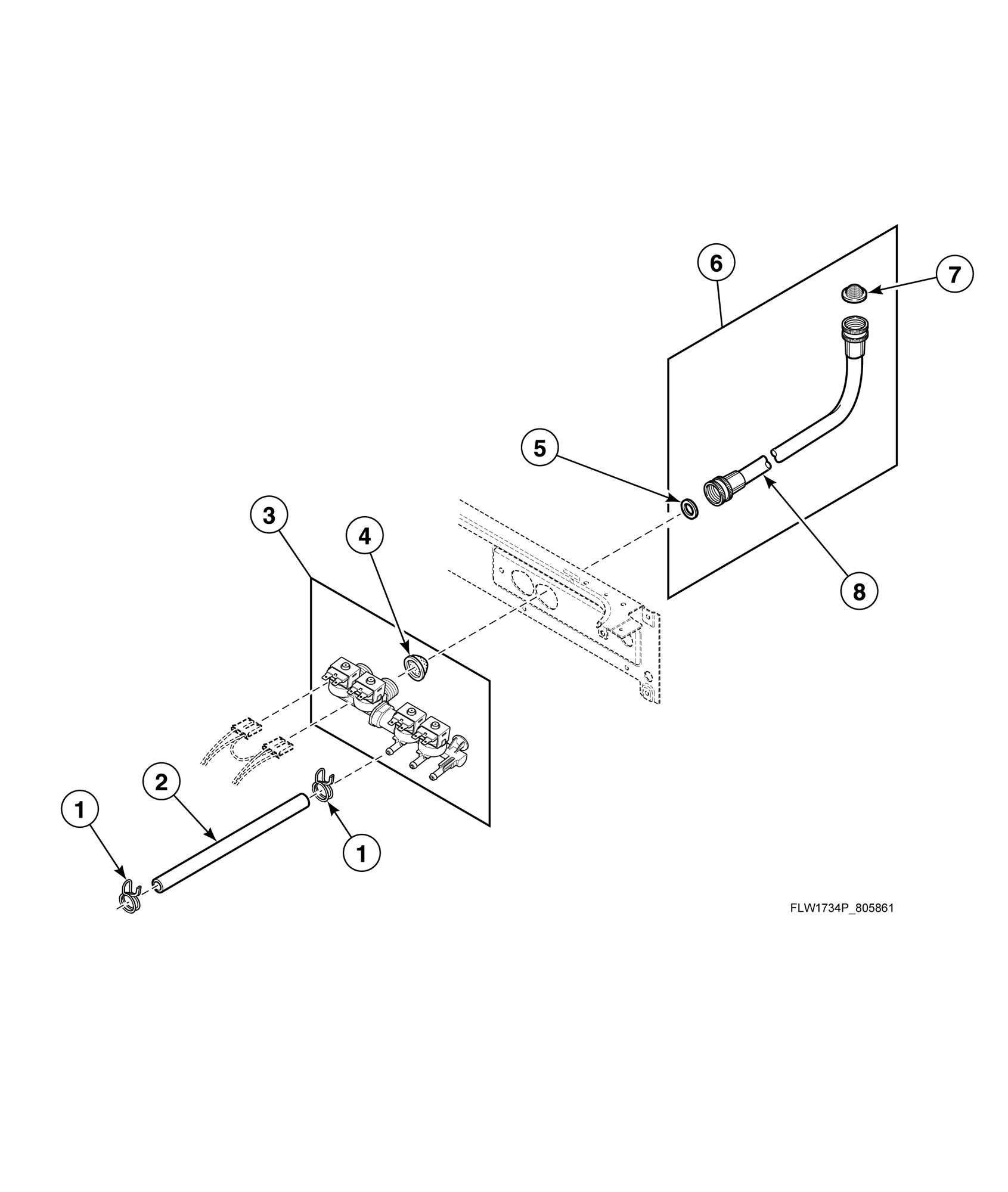

Mixing Valve and Dispenser Hose

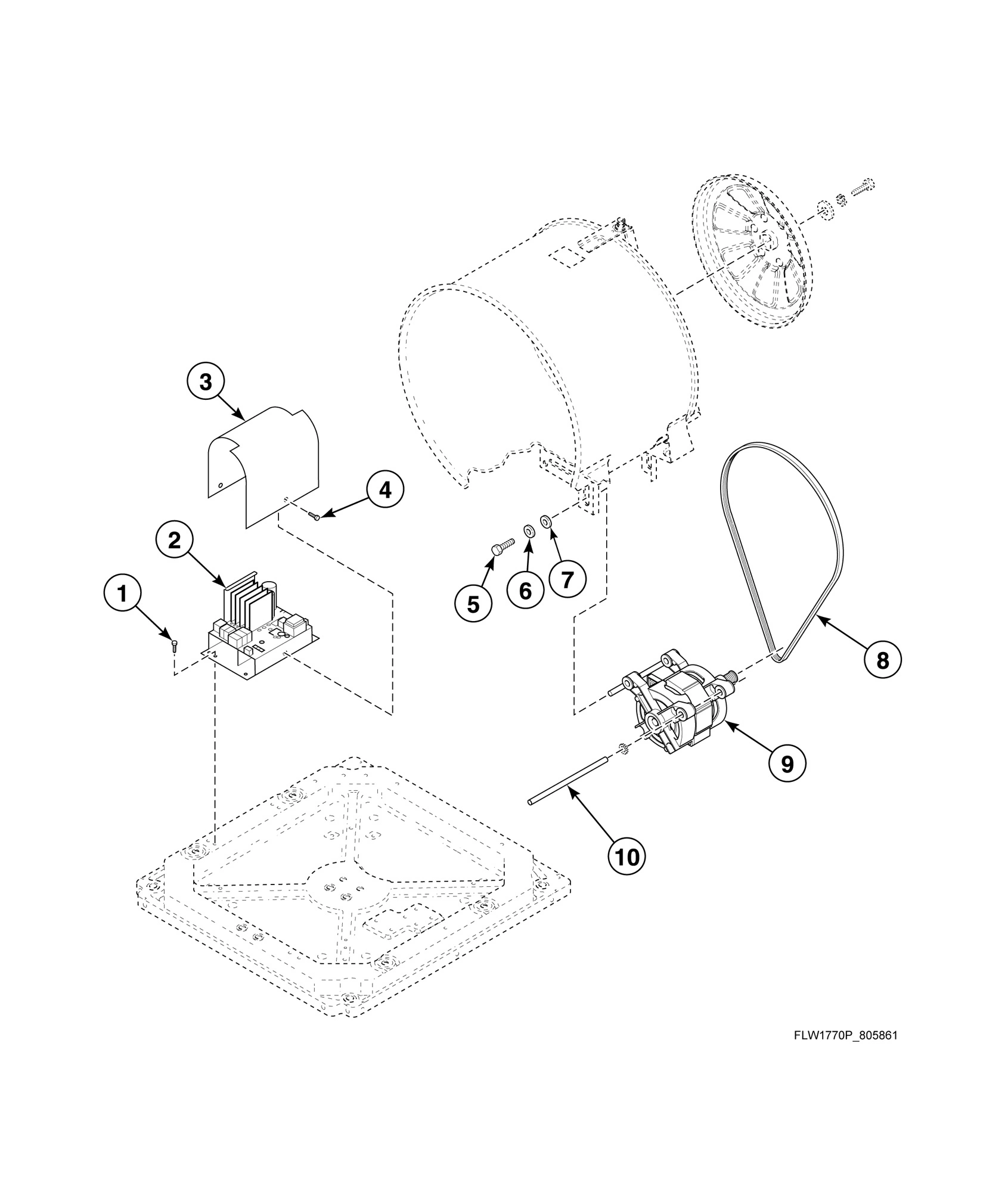

Motor and Belt

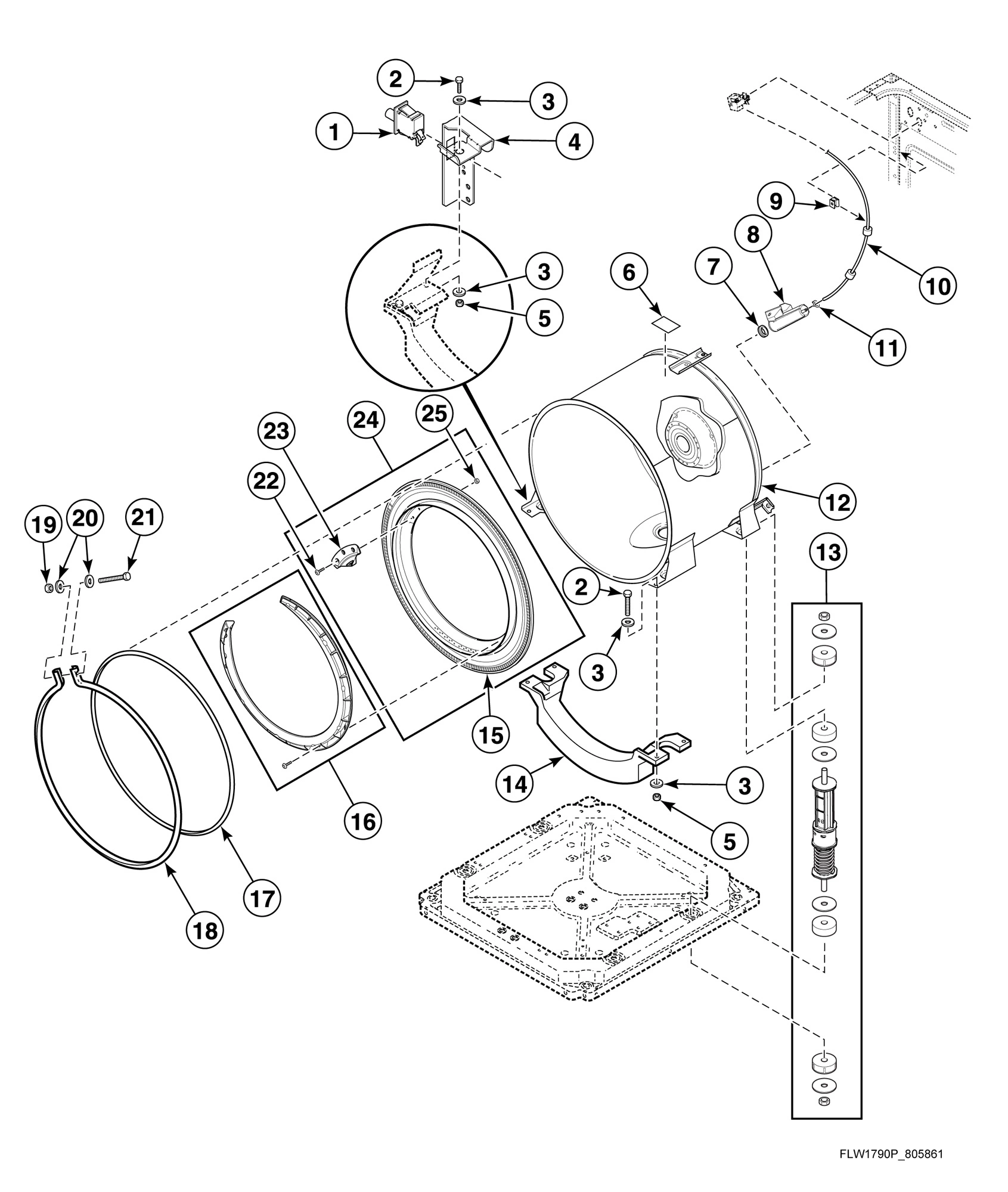

Outer Tub, Front and Clamp Ring

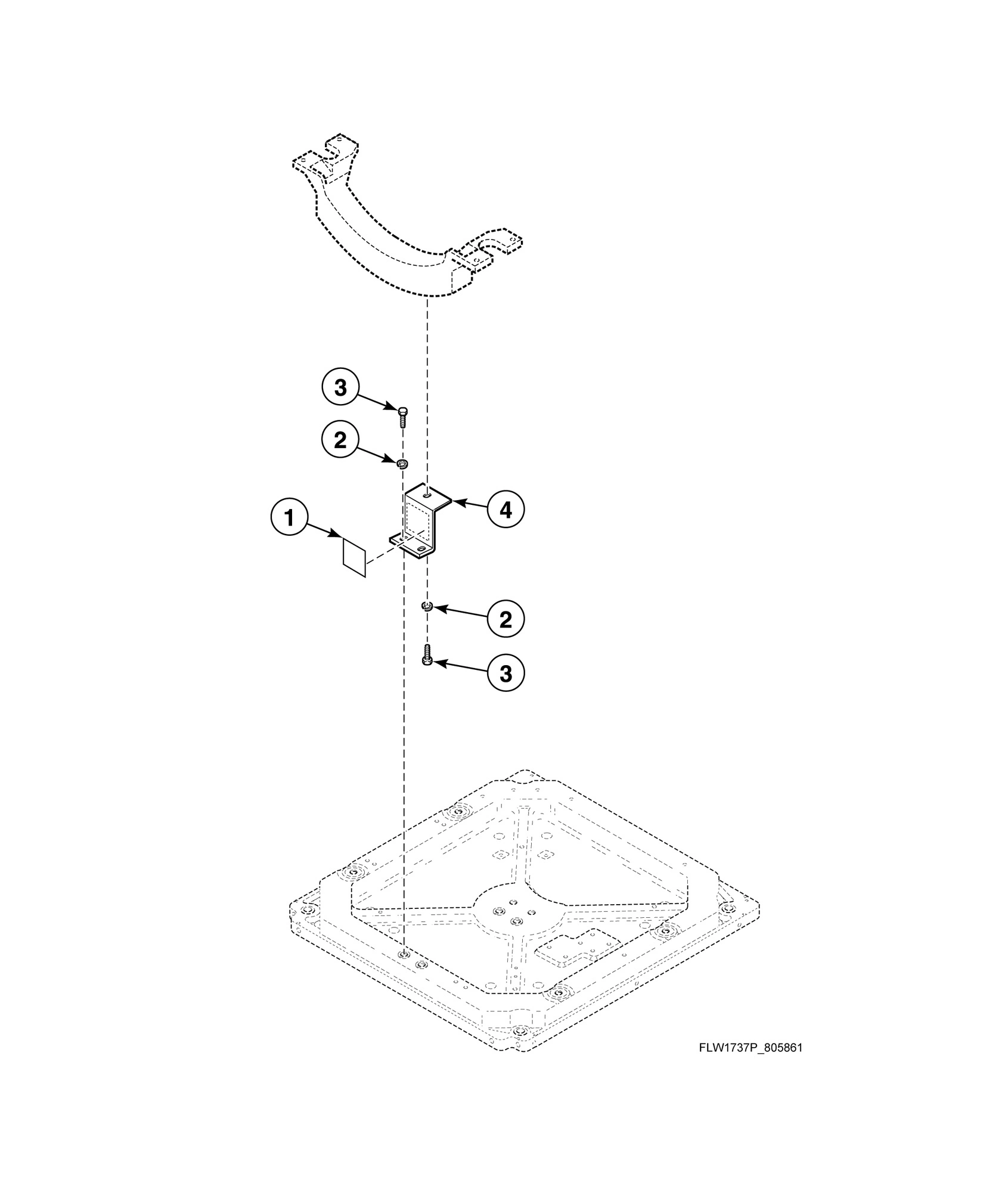

Shipping Materials

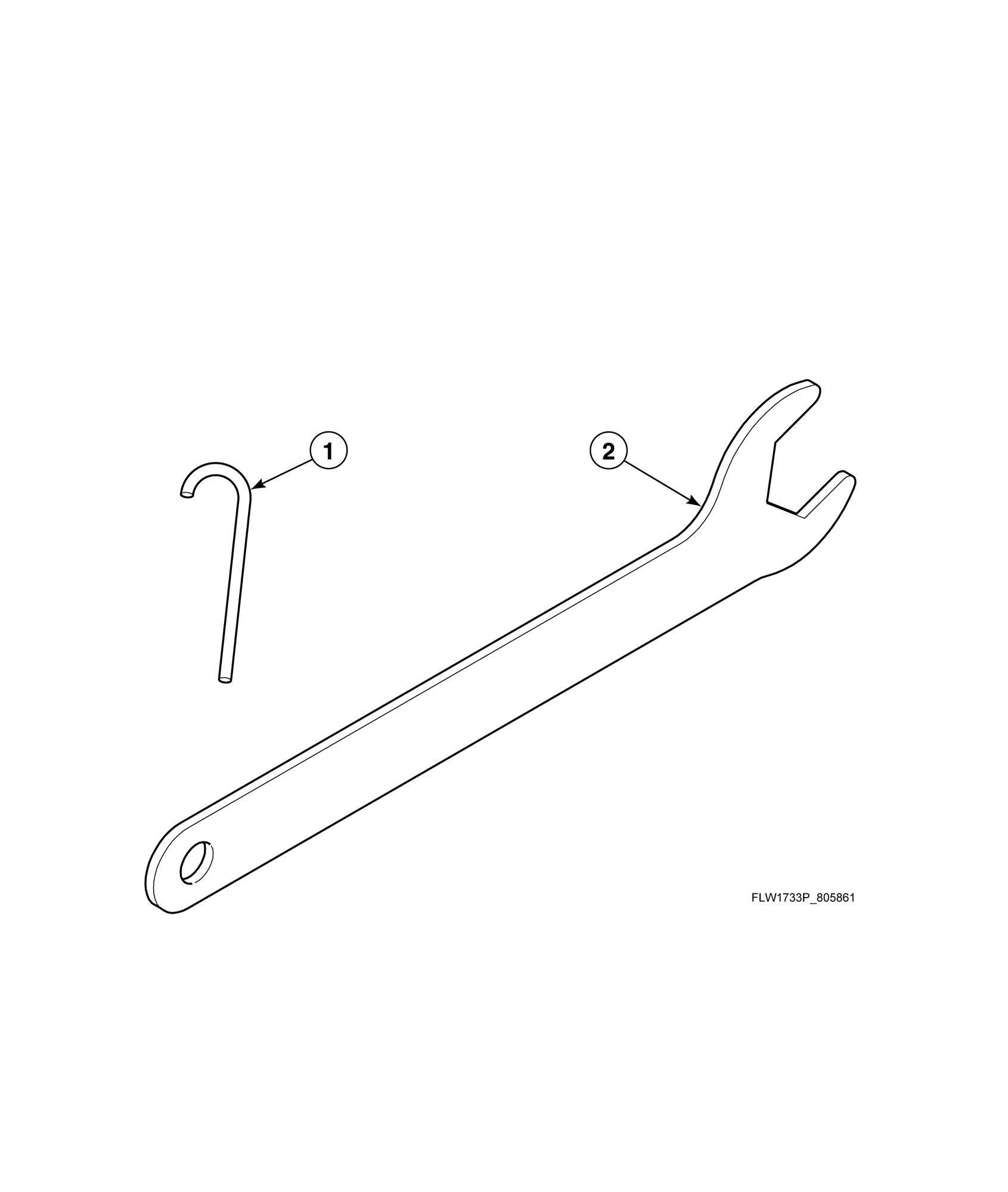

Special Tools

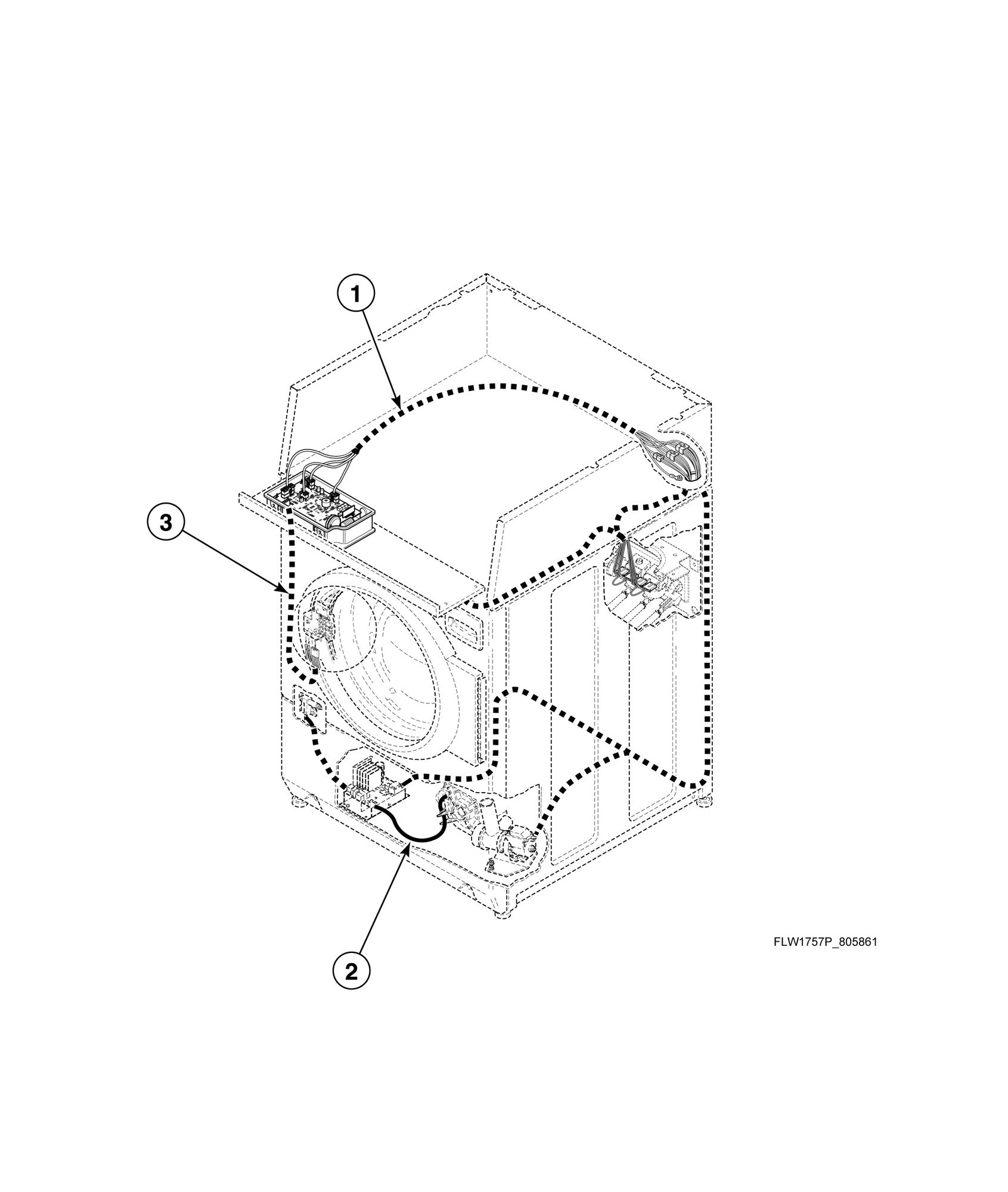

Wire Harnesses and Wires

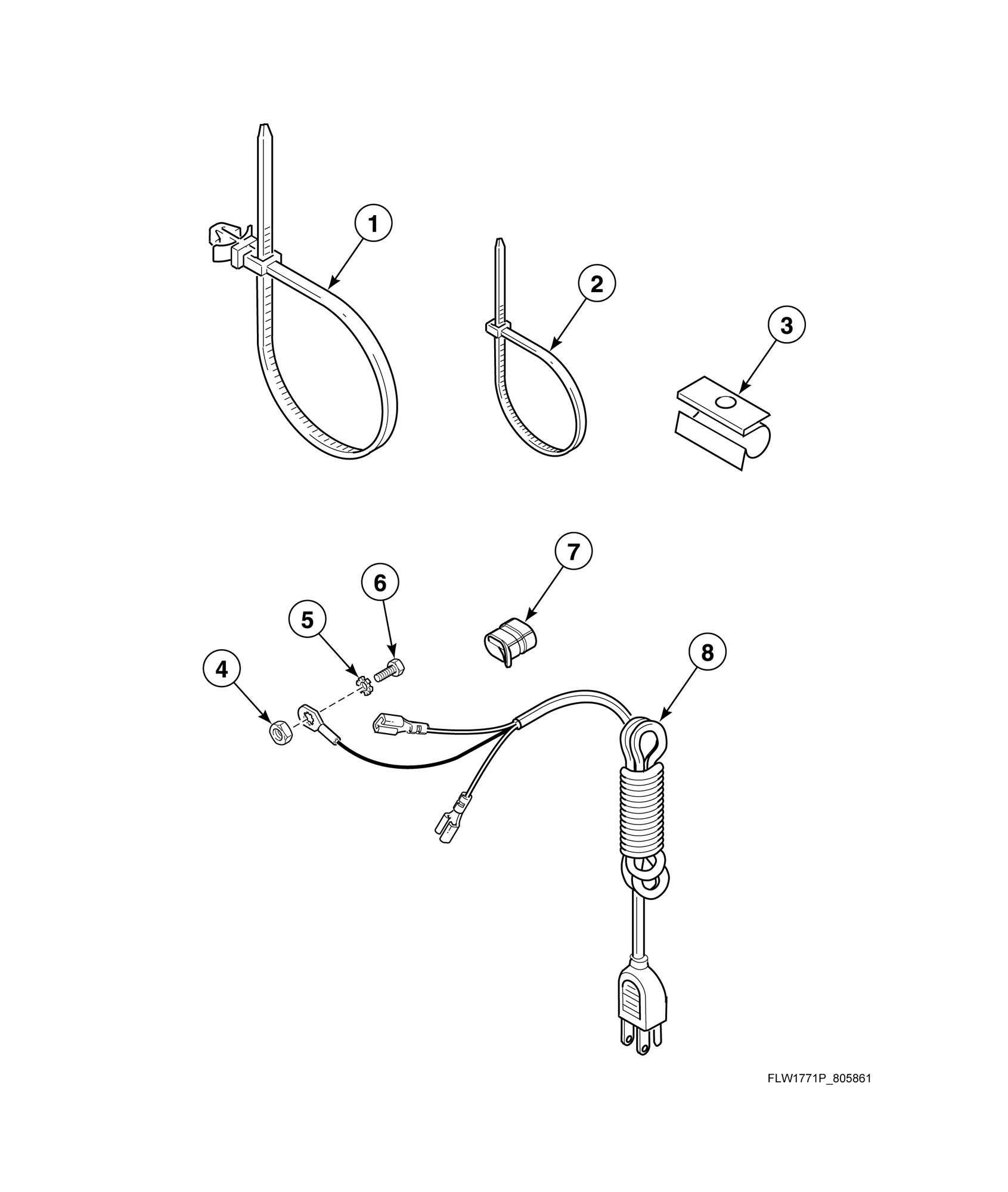

Wire Ties, Harness Clips and Lead-In Cord
Common parts from model GE AFNE9BSP115TW13 General Electric Model AFNE9BSP115TW13
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Top Panel GEN 804685WP Contact Us For Availability
1
Dispenser Plate GEN 803843 Contact Us For Availability
1
Hose Clamp GEN 804173 Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Outer Door Bezel GEN 803710WP Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Bolt GEN 29651 Contact Us For Availability
2
Screw GEN 801001 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Inverter Control Assembly GEN 803949P Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Washer (Comment: 4 required) GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Motor Harness GEN 806029 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Control Shield GEN 804363 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Door Glass Mounting Plate GEN 804239 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Screw (Comment: 4 required) GEN M400043 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806714 Contact Us For Availability
3
Mixing Valve (Comment: Through Serial No. 181 GEN 803809 Contact Us For Availability
3
Mixing Valve (Comment: Starting Serial No. 18 GEN 806509 Contact Us For Availability
3
Motor Control Shield GEN 804878 Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Door Lock Harness Assembly GEN 806513 Contact Us For Availability
4
Cabinet Panel Kit (Comment: White, Left, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Stainless steel, GEN 802525P Contact Us For Availability
4
Screw GEN D503688 Contact Us For Availability
4
Drain Hose GEN 803976 Contact Us For Availability
4
Door Glass GEN 802695P Contact Us For Availability
4
Inner Basket Assembly Kit GEN 804376P Contact Us For Availability
4
Read Instructions Label GEN D513371 Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Shipping Brace GEN 804454 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Rear Access Panel GEN 804614 Contact Us For Availability
5
Dispenser Assembly GEN 803698 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Nut GEN 685846 Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
5
Washer GEN 20290 Contact Us For Availability
5
Screw GEN M400057 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Control Wrapper (Comment: Right) GEN 804630W Contact Us For Availability
6
Detergent Hose GEN 804717 Contact Us For Availability
6
Hose Stand GEN 38732 Contact Us For Availability
6
Inner Door Bezel Kit GEN 802307P Contact Us For Availability
6
Inner Door Bezel (Comment: Glass filled polyp GEN 804562P Contact Us For Availability
6
Screw GEN 804398 Contact Us For Availability
6
Left Hand Thread Label (Comment: Left hand th GEN 685928 Contact Us For Availability
6
Water Hose (Comment: 5 feet, Includes items 5 GEN F200116 Contact Us For Availability
6
Washer GEN 02834 Contact Us For Availability
6
Warning Label GEN D500049 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
NOT ON YOUR MODEL GEN - Contact Us For Availability
7
Expansion Clip GEN 70030501 Contact Us For Availability
7
Hose Clamp GEN 685725 Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Door Catch Assembly GEN 802803 Contact Us For Availability
7
Trunnion Assembly GEN 804405 Contact Us For Availability
7
Warning Label (Comment: Disconnect power) GEN 803260 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Washer GEN M400080 Contact Us For Availability
7
Grommet GEN 29175 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
8
Dispenser Drawer GEN 803667 Contact Us For Availability
8
Screw GEN 801993 Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Warning Label GEN D500314 Contact Us For Availability
8
Fill Hose (Comment: 8 feet) GEN 20617 Contact Us For Availability
8
Fill Hose (Comment: 10 feet) GEN 20618 Contact Us For Availability
8
Drive Belt GEN 804985 Contact Us For Availability
8
Pressure Bulb GEN 803837 Contact Us For Availability
8
Lead-In Cord GEN 202777 Contact Us For Availability
9
Top Panel Guide GEN 803761 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Drain Base Bracket GEN 803814 Contact Us For Availability
9
Screw GEN 801019 Contact Us For Availability
9
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
10
Shipping Plate GEN 803851 Contact Us For Availability
10
Top Panel Brace Assembly GEN 804613 Contact Us For Availability
10
Dispenser Handle GEN 804227WP Contact Us For Availability
10
Screw GEN 802431 Contact Us For Availability
10
Door Hinge GEN 802934 Contact Us For Availability
10
Hose Clip GEN 800553 Contact Us For Availability
10
Motor Rod GEN 803861 Contact Us For Availability
10
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
11
Drain Hose Bracket GEN 803828 Contact Us For Availability
11
Control Bracket GEN 804611 Contact Us For Availability
11
Pop Rivet GEN 685847 Contact Us For Availability
11
Compartment Cover GEN 803669 Contact Us For Availability
11
O-Ring GEN 802429P Contact Us For Availability
11
Nut GEN 23951 Contact Us For Availability
11
Hose Clamp GEN 803891 Contact Us For Availability
12
Cabinet Side Panel (Comment: Stainless steel, GEN 802526P Contact Us For Availability
12
Side Panel Kit (Comment: White,Right) GEN 806492 Contact Us For Availability
12
Control Assembly GEN 805219P Contact Us For Availability
12
Dispenser Assembly (Comment: Includes items 5 GEN 805494P Contact Us For Availability
12
Drain Pump Isolator GEN 803815 Contact Us For Availability
12
Glass Mounting Clip (Comment: 7 required) GEN 802700 Contact Us For Availability
12
Pulley Assembly GEN 803974 Contact Us For Availability
12
Outer Tub Assembly GEN 803864 Contact Us For Availability
13
Panel Locator GEN 56079 Contact Us For Availability
13
Leveling Leg GEN 34319 Contact Us For Availability
13
Control Panel Assembly GEN 804659W Contact Us For Availability
13
Drain Pump Assembly (Comment: Includes items GEN 805724P Contact Us For Availability
13
Washer GEN 800464 Contact Us For Availability
13
Shock Assembly (Comment: Must replace all fou GEN 803777 Contact Us For Availability
14
Screw GEN 39733 Contact Us For Availability
14
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
14
Control Overlay GEN 806169 Contact Us For Availability
14
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
14
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
14
Counterweight GEN 803810 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
15
Control Wrapper (Comment: Left) GEN 804627W Contact Us For Availability
15
Pump Housing GEN 802428 Contact Us For Availability
15
Door Latch Assembly GEN 803920 Contact Us For Availability
15
Washer GEN M403958 Contact Us For Availability
15
Tub Front GEN 803770 Contact Us For Availability
16
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
16
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
16
Rear Wrapper Brace GEN 805345 Contact Us For Availability
16
Gasket GEN 802427 Contact Us For Availability
16
Door Lock Shield GEN 806713 Contact Us For Availability
16
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
16
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
16
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
17
Wire Clamp Ring GEN 802283 Contact Us For Availability
17
Tub Front Seal GEN 803801 Contact Us For Availability
18
Base Assembly GEN 803876 Contact Us For Availability
18
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
18
Tub-to-Pump Hose GEN 803829 Contact Us For Availability
18
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
18
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
18
Clamp Ring GEN 803802 Contact Us For Availability
19
Pressure Sensor GEN 202470 Contact Us For Availability
19
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
19
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
19
Nut GEN F430218 Contact Us For Availability
20
Extension Spring GEN 802285 Contact Us For Availability
20
Washer GEN M400081 Contact Us For Availability
21
Hinge Plate GEN 802206 Contact Us For Availability
22
Nut GEN 36020 Contact Us For Availability
22
Screw GEN 802596 Contact Us For Availability
23
Clothes Guard Deflector GEN 804467 Contact Us For Availability
23
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
24
Screw GEN 801045 Contact Us For Availability
24
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
25
Access Panel Assembly GEN 804617W Contact Us For Availability
25
Nut GEN 802343 Contact Us For Availability
26
Front Panel GEN 802278W Contact Us For Availability
27
Door Assembly (Comment: White Includes items GEN 804083WP Contact Us For Availability
NA
Shipping Plug (Comment: 2 required) GEN 803859 Contact Us For Availability
NA
Foam Pad GEN 804875 Contact Us For Availability
NA
Screw (Comment: 2 required) GEN 800462 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Washer (Comment: 2 required) GEN 800624 Contact Us For Availability
NA
Shipping Spacer (Comment: 2 required) GEN 803858 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Pressure Sensor Harness GEN 804433 Contact Us For Availability
× ![]()
