Model GE AFN51FSP541RN01 General Electric Model AFN51FSP541RN01 – Common Parts & Diagrams
Base, Side Panels and Rear Panel
Control Cabinet, Top and Controls (Drawing 2 of 2)

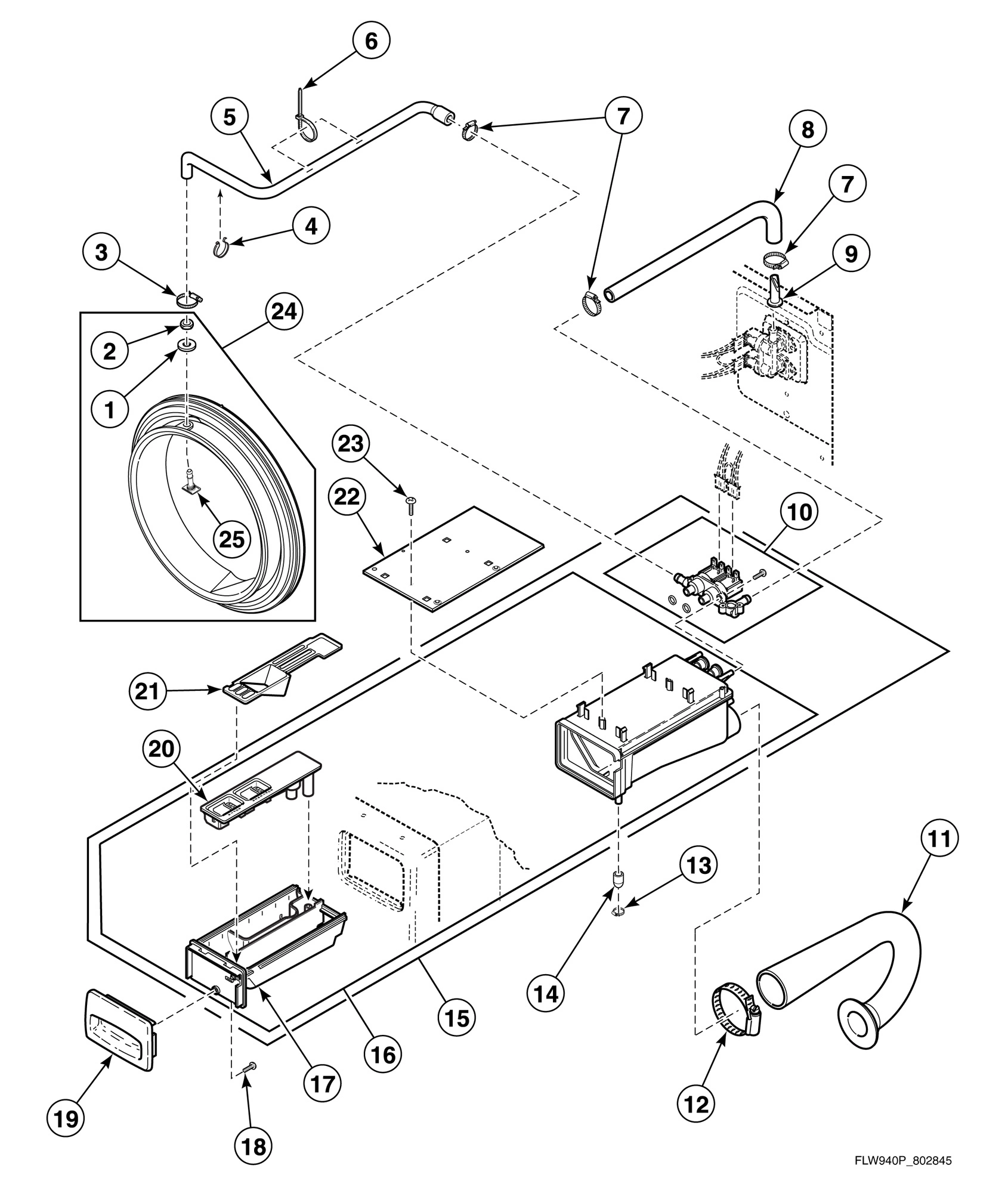

Dispenser Assembly

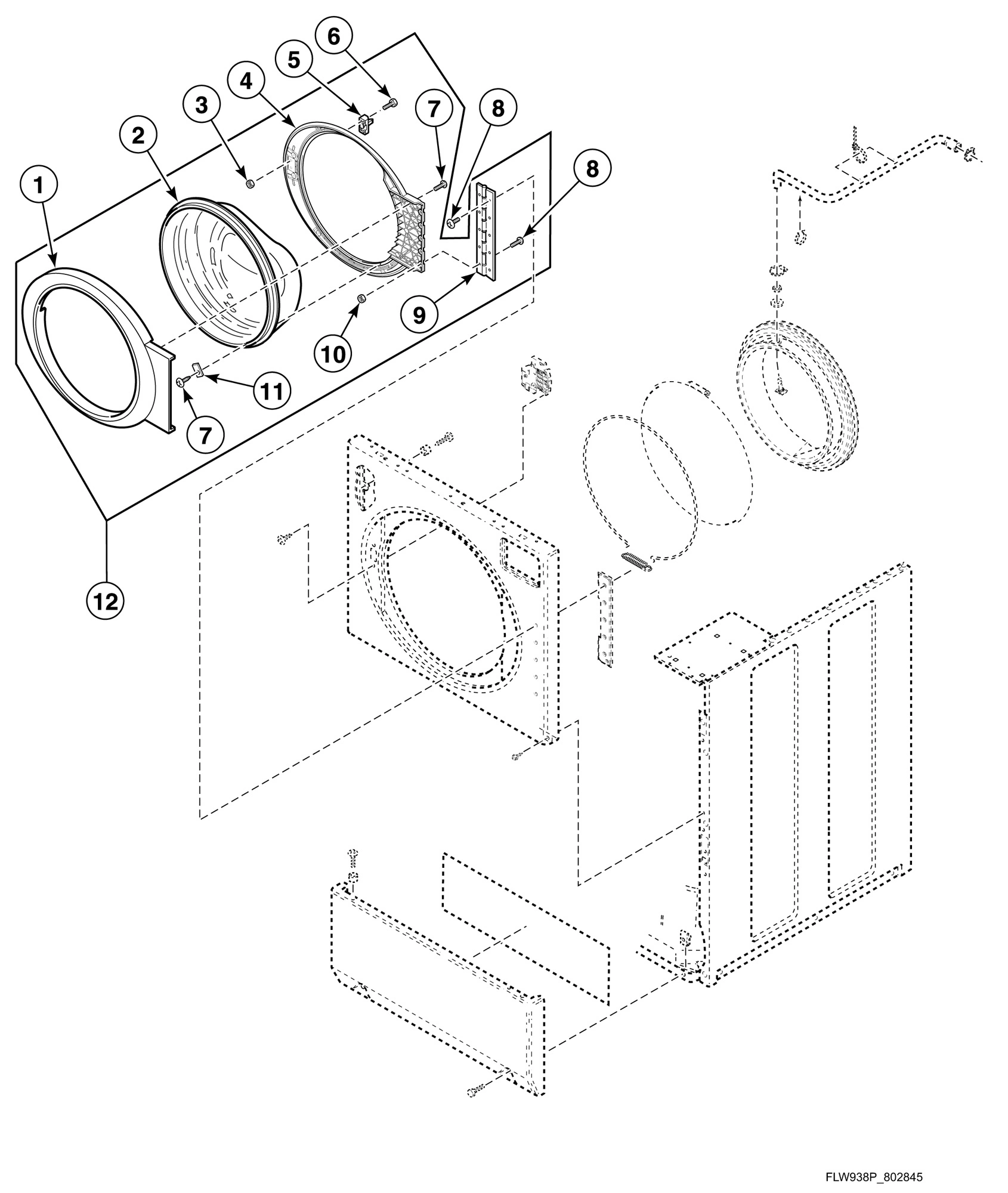

Door Assembly

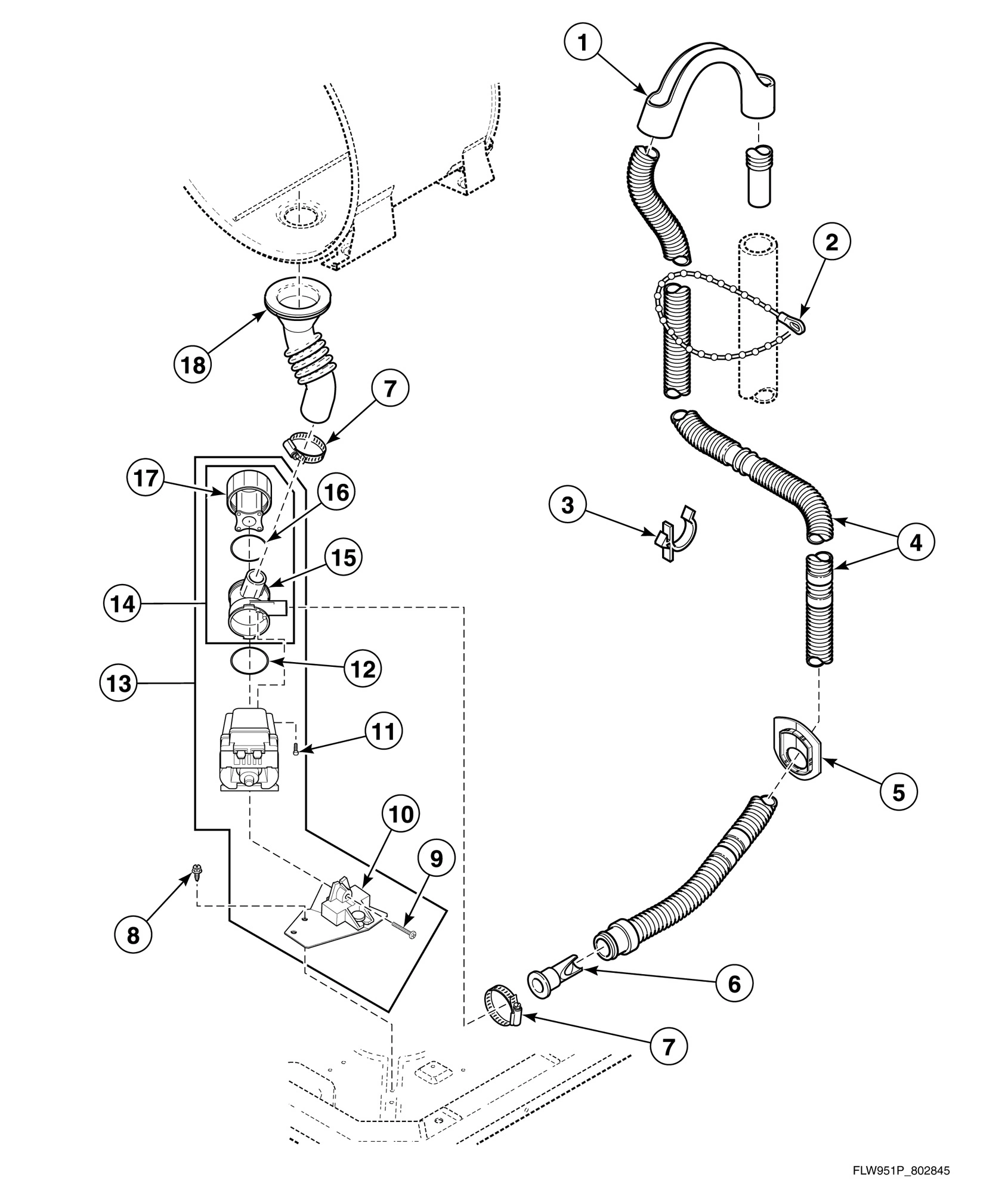

Drain Hose and Pump

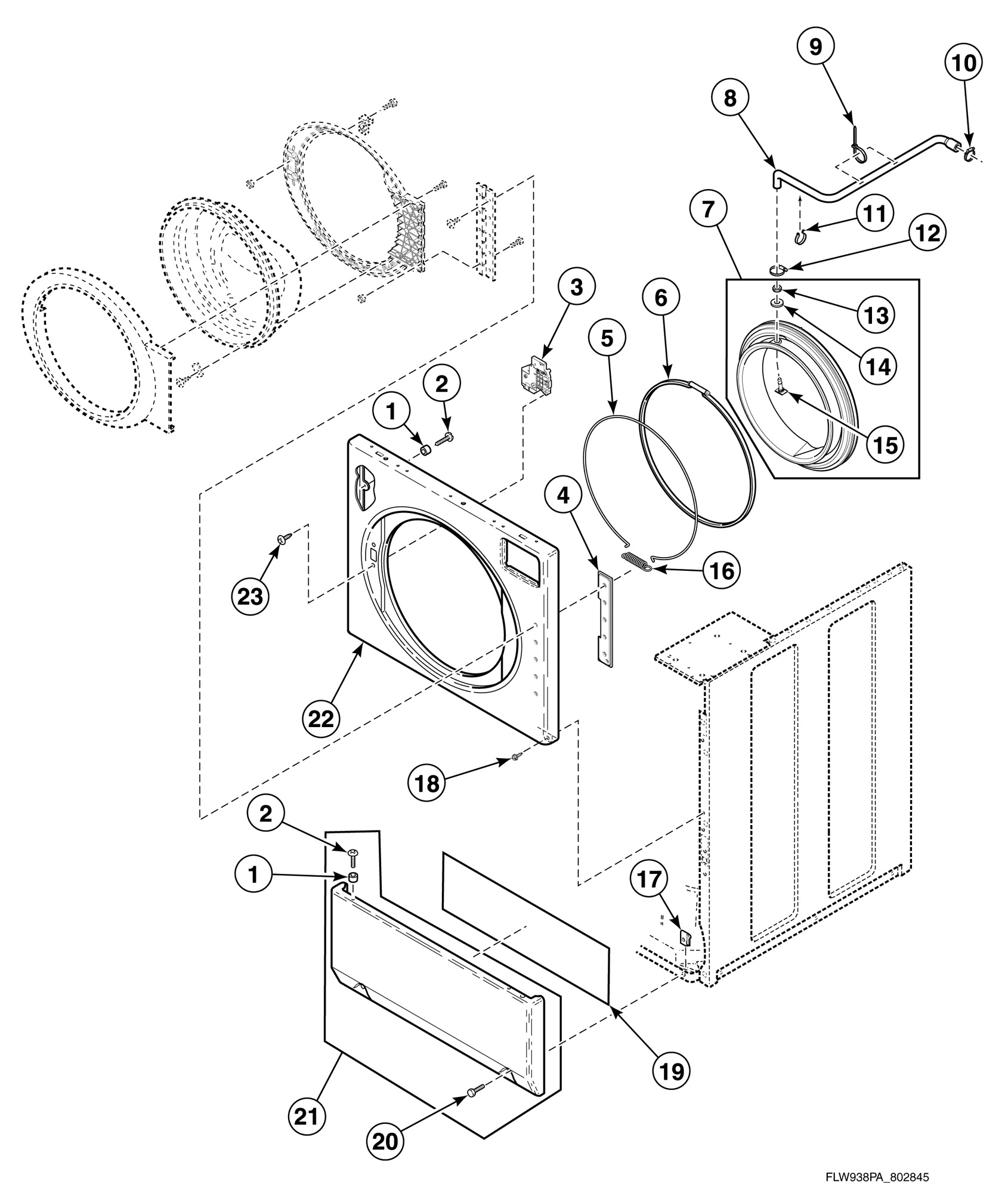

Front Panel and Door Seal

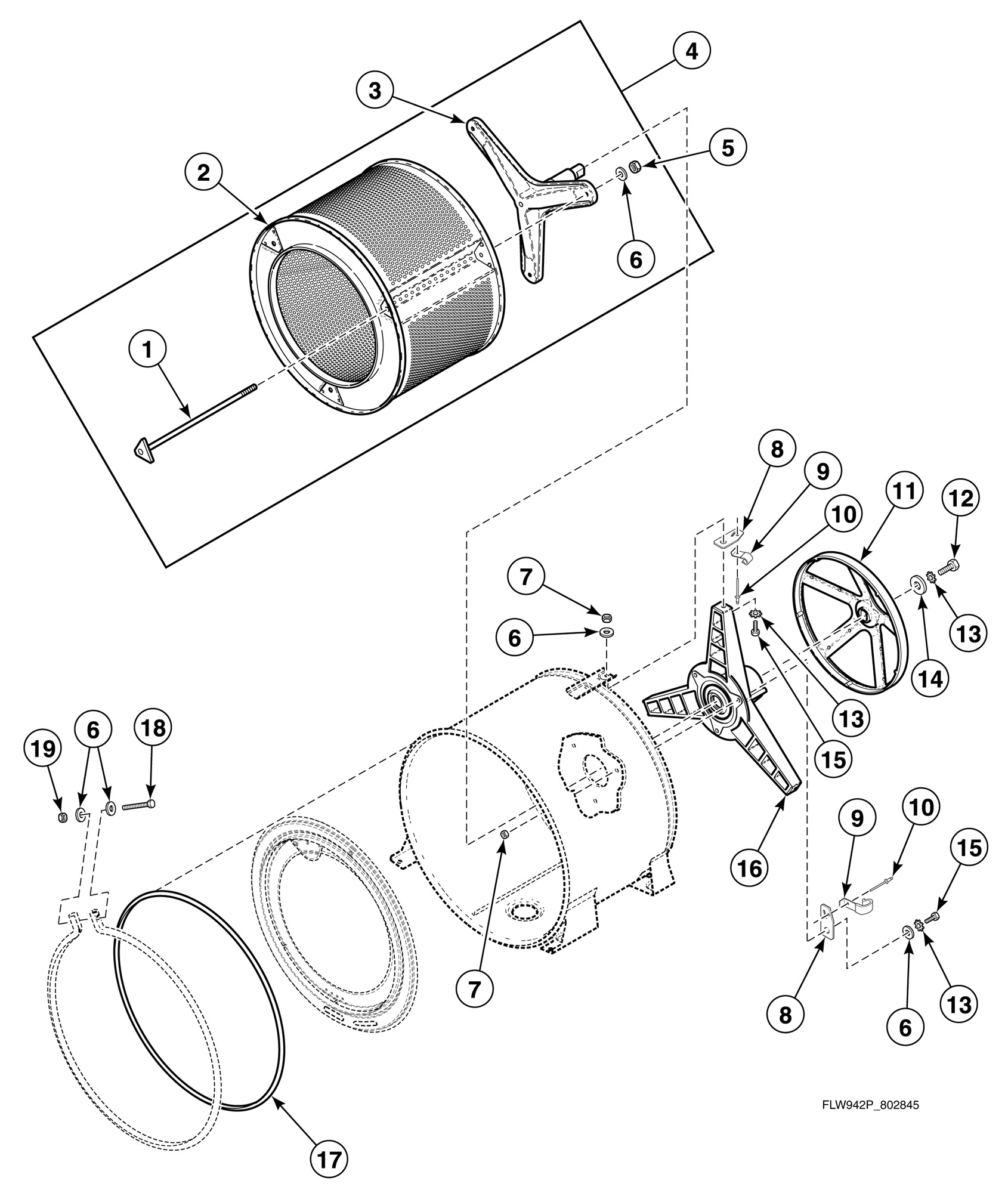

Inner Basket, Trunnion, Bearing Housing and Pulley

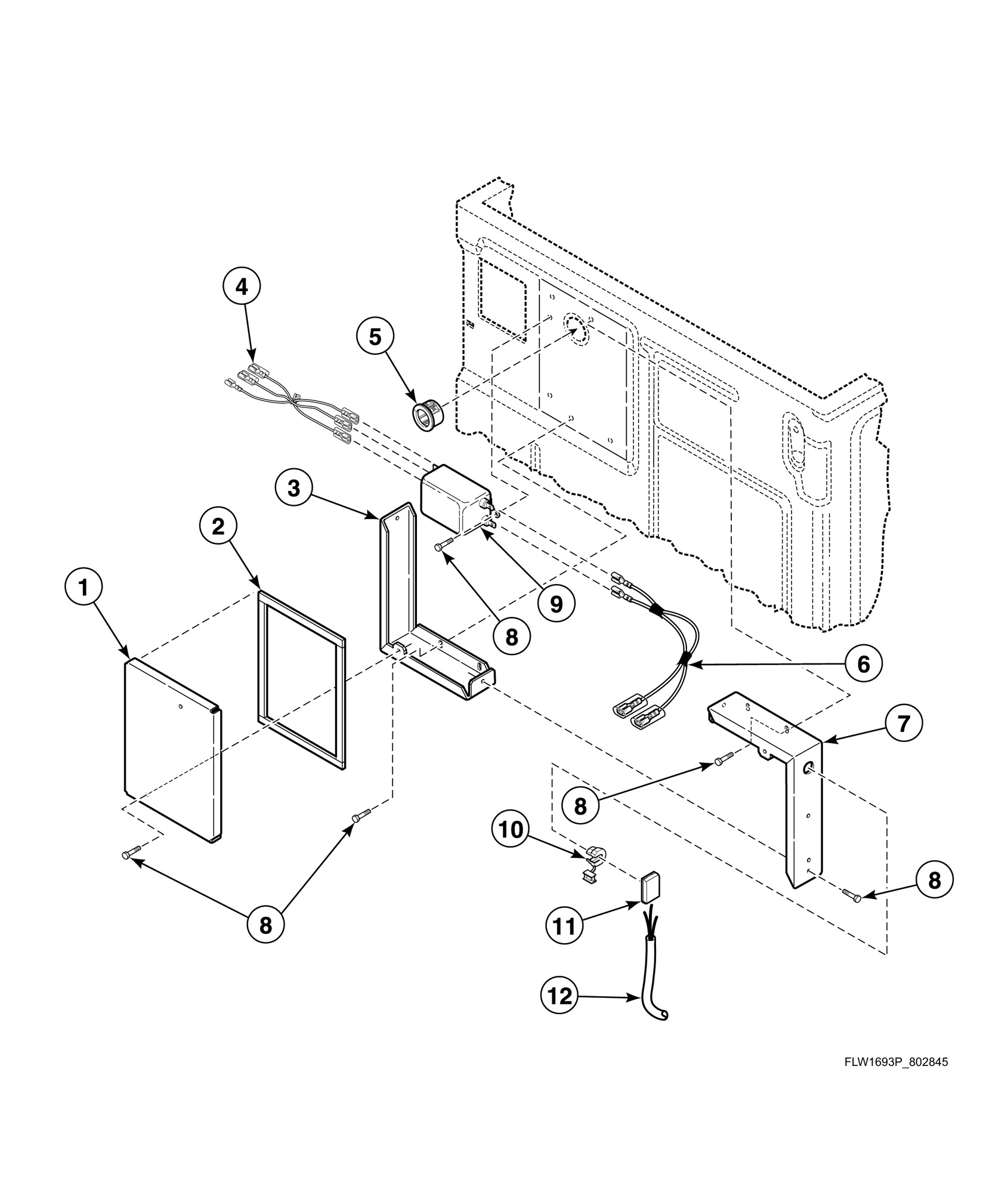

Junction Box and Power Cord

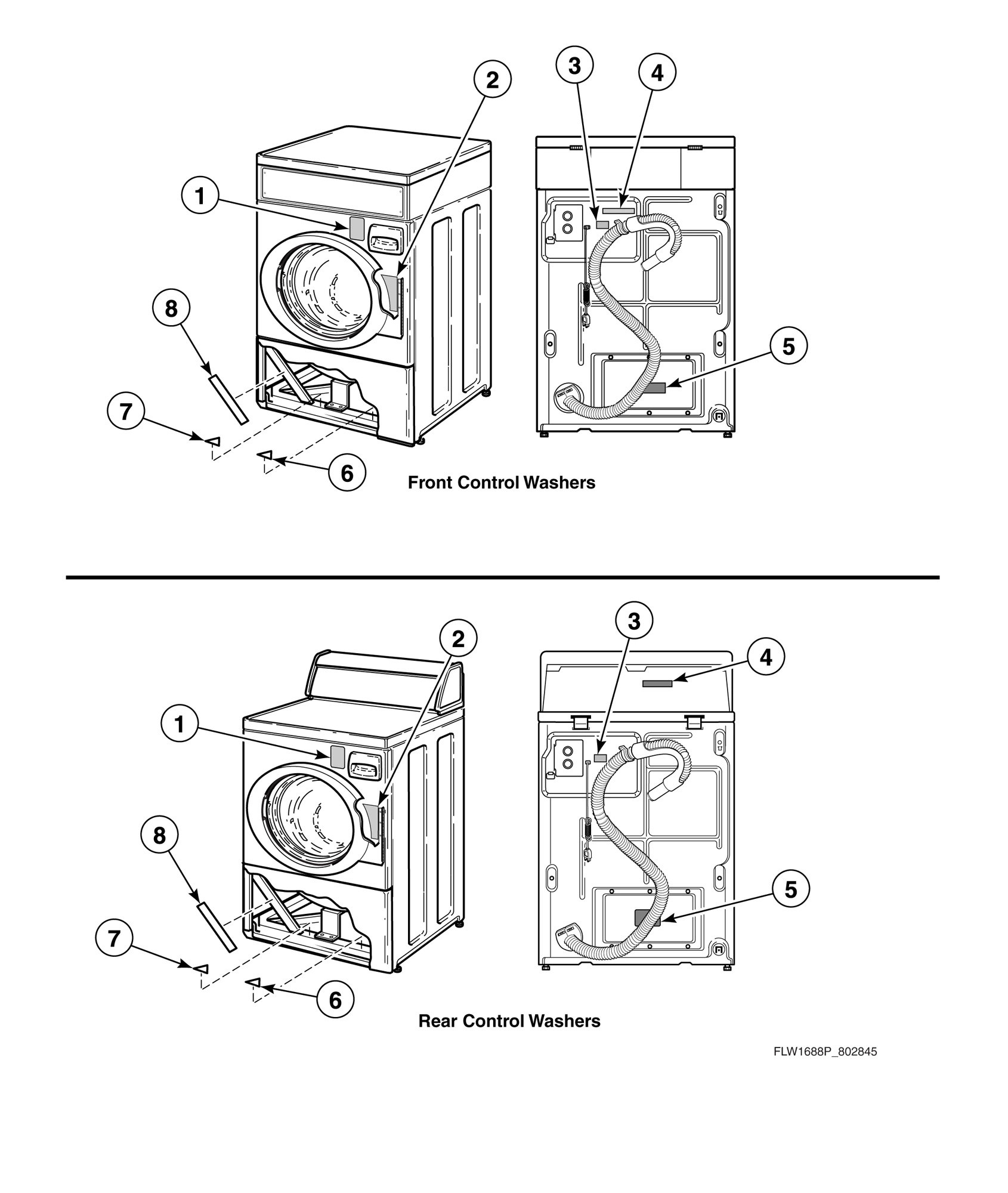

Labels

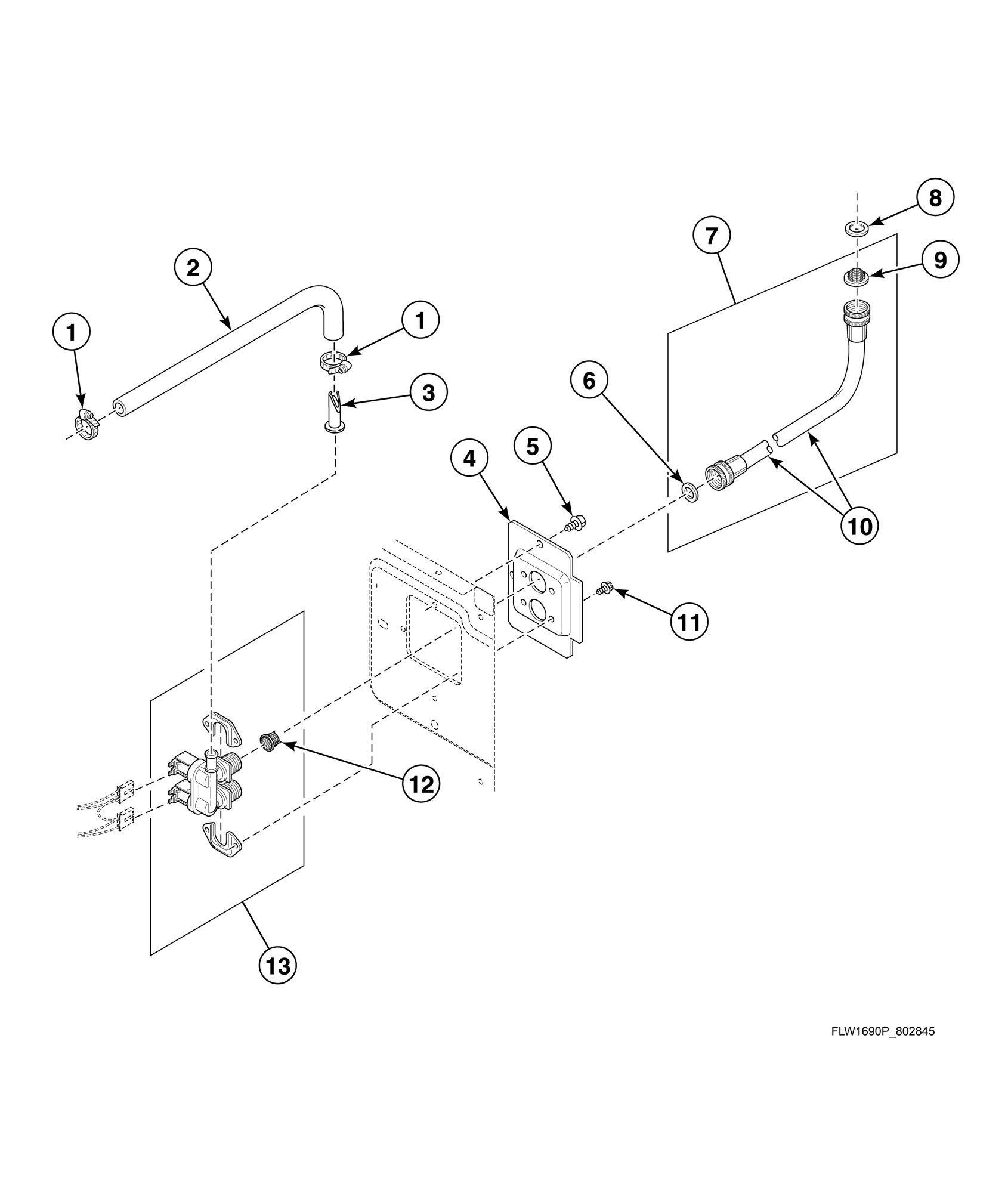

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

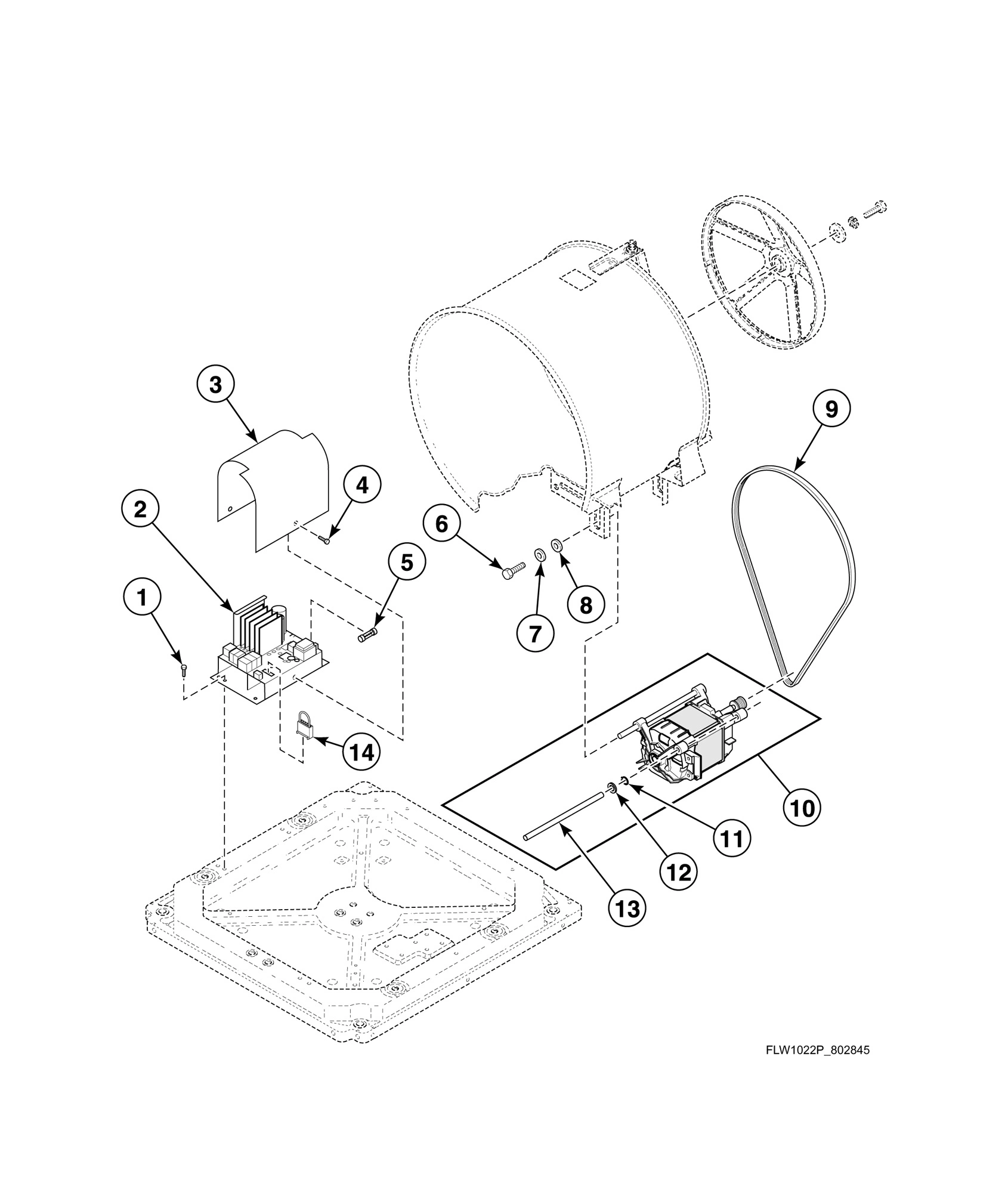

Motor and Belt

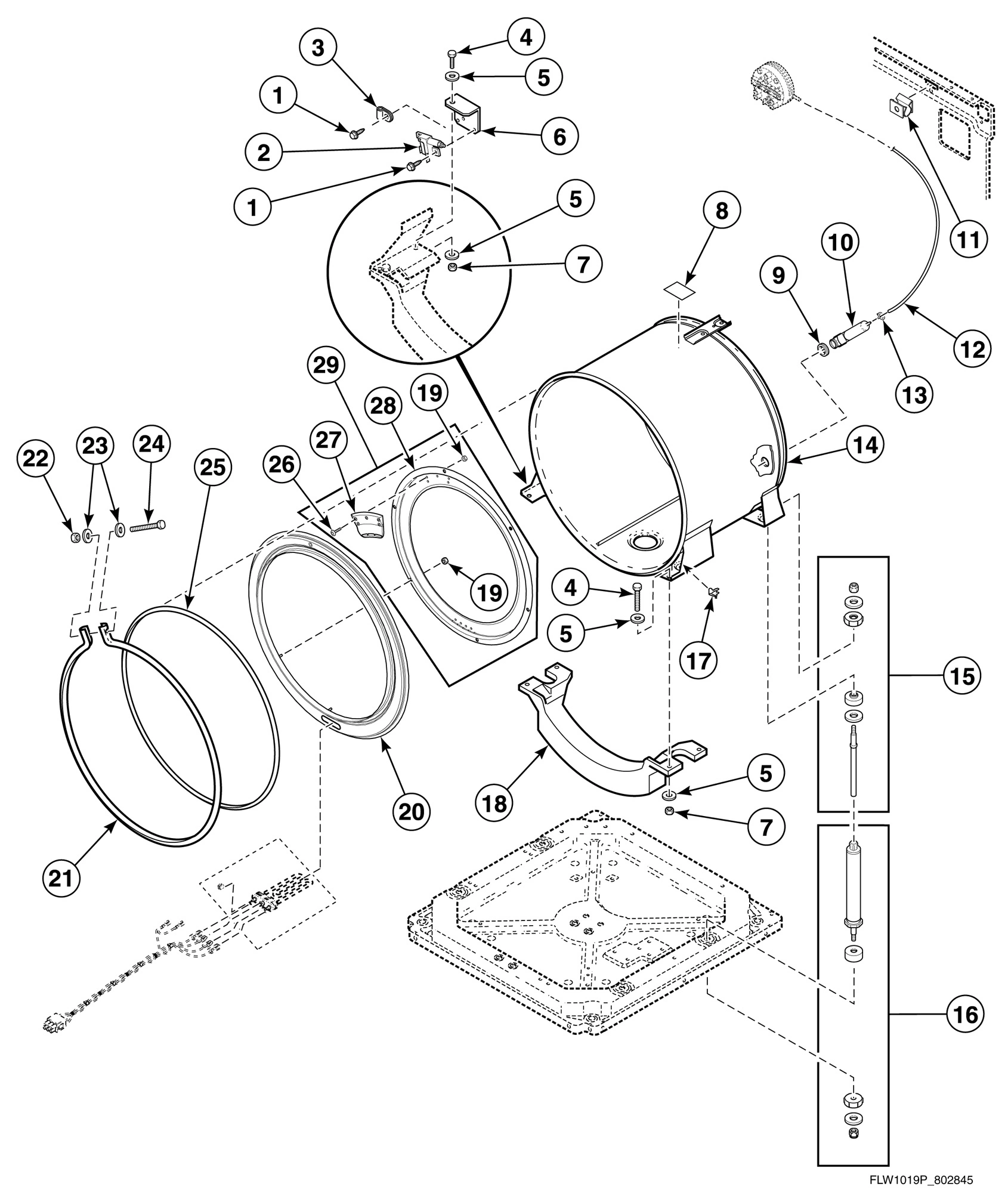

Outer Tub, Front and Clamp Ring
Common parts from model GE AFN51FSP541RN01 General Electric Model AFN51FSP541RN01
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Panel Locator GEN 56079 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Top Kit (Comment: Includes items 2-6, 13 and GEN 803144P Contact Us For Availability
1
Hose Clamp GEN 802164 Contact Us For Availability
1
Outer Bezel Assembly GEN 803219 Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Junction Box Cover GEN 801404 Contact Us For Availability
1
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
1
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
1
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
2
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel pane GEN D512921 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Door Glass GEN 802695P Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Inner Basket Assembly GEN 803008P Contact Us For Availability
2
Junction Box Seal (Comment: 4 required) GEN 801425P Contact Us For Availability
2
Warning Label GEN 802367 Contact Us For Availability
2
Inverter Control Assembly (Comment: 240 Volt) GEN 803255P Contact Us For Availability
2
Out-of-Balance Switch Assembly (Comment: Mode GEN 803415 Contact Us For Availability
2
Out-of-Balance Switch Assembly Kit (Comment: GEN 806512 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Nut GEN 685846 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Door Latch/Switch Assembly GEN 802317P Contact Us For Availability
3
Trunnion Shaft and Hardware Kit (Comment: Inc GEN 800749P Contact Us For Availability
3
Lower Junction Box GEN 801433 Contact Us For Availability
3
Warning Label GEN 803260 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Wire Clamp GEN 800811 Contact Us For Availability
4
Side Panel (Comment: Left, Gray) GEN 800004G Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Hinge GEN D511036 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Inner Door Bezel Kit GEN 802331P Contact Us For Availability
4
Drain Hose GEN 685730 Contact Us For Availability
4
Hinge Plate GEN 802206 Contact Us For Availability
4
Inner Basket Assembly GEN 802365P Contact Us For Availability
4
Filter Jumper Harness (Comment: Line filter t GEN 801420 Contact Us For Availability
4
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Screw GEN 800461 Contact Us For Availability
5
Bolt GEN 29651 Contact Us For Availability
5
Snap Bushing GEN M402542 Contact Us For Availability
5
Door Catch Assembly GEN 802803 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Wire Clamp Ring GEN 802283 Contact Us For Availability
5
Nut GEN 803017 Contact Us For Availability
5
Warning Label (Comment: English) GEN D500049 Contact Us For Availability
5
Warning Label (Comment: Quebec French) GEN D500314 Contact Us For Availability
5
Fuse GEN 801755 Contact Us For Availability
5
Washer GEN M400081 Contact Us For Availability
6
Rear Panel GEN 800010P Contact Us For Availability
6
Top Mounting Bracket GEN D504228 Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Backflow Preventer GEN 800310 Contact Us For Availability
6
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
6
Wire Harness Assembly (Comment: Line filter t GEN 801421 Contact Us For Availability
6
Pinched Fingers Label GEN F8211301 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models thro GEN 800663 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models star GEN 803388 Contact Us For Availability
7
Left Hand Thread Label GEN 685928 Contact Us For Availability
7
Pressure Switch GEN 802299P Contact Us For Availability
7
Door Seal Kit (Comment: Gray, Optional, Inclu GEN 802830P Contact Us For Availability
7
Door Seal Assembly (Comment: Black, Units are GEN 802866P Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Nut GEN 800452 Contact Us For Availability
7
Junction Box GEN 801403 Contact Us For Availability
7
Electrical Shock Label GEN F8211201 Contact Us For Availability
7
Fill Hose Kit (Comment: 5 feet, Hose is equip GEN 38349P Contact Us For Availability
7
Water Hose (Comment: 5 feet, Hose is equipped GEN F200116 Contact Us For Availability
7
Washer GEN 02834 Contact Us For Availability
8
Dispenser-to-Door Seal Hose GEN 802256 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
8
Washer GEN M400080 Contact Us For Availability
9
Control Assembly GEN 802523P Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Screw GEN 802430 Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Line Filter GEN 201058 Contact Us For Availability
9
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
9
Drive Belt GEN 800319P Contact Us For Availability
10
Screw GEN 430497 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Valve Kit GEN 801836P Contact Us For Availability
10
Nut GEN 23951 Contact Us For Availability
10
Pump Mount Bracket GEN 802626 Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 20617 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 20618 Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 37380 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 37381 Contact Us For Availability
10
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
10
Pressure Bulb GEN 30907 Contact Us For Availability
11
NOT ON YOUR MODEL GEN - Contact Us For Availability
11
Rear Access Panel GEN 800011 Contact Us For Availability
11
Rear Control Cabinet GEN 801058 Contact Us For Availability
11
Screw GEN D501086 Contact Us For Availability
11
Wire Clip GEN 687500 Contact Us For Availability
11
Dispenser-to-Tub Hose GEN 800331 Contact Us For Availability
11
Glass Mounting Clip GEN 802700 Contact Us For Availability
11
Screw GEN 802431 Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Cable Connection Box GEN 39922 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
12
Motor Access Hole Edging GEN 801702 Contact Us For Availability
12
Screw GEN 70240301 Contact Us For Availability
12
Hose Clamp GEN 802698 Contact Us For Availability
12
Hose Clamp GEN 685725 Contact Us For Availability
12
Door Assembly GEN 803218P Contact Us For Availability
12
O-Ring GEN 802429P Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Power Cord Assembly GEN 801450 Contact Us For Availability
12
Mixing Valve Screen GEN 802926 Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
12
Tubing GEN 800648P Contact Us For Availability
13
Side Panel (Comment: Right, Gray) GEN 800005G Contact Us For Availability
13
Cabinet Side Panel (Comment: Right, Stainless GEN 802526P Contact Us For Availability
13
Nut GEN 44087201 Contact Us For Availability
13
Nut GEN 802292 Contact Us For Availability
13
Hose Clamp GEN F200206 Contact Us For Availability
13
Drain Pump GEN 802625P Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Mixing Valve GEN 802222P Contact Us For Availability
13
Motor Mount Rod GEN 801062 Contact Us For Availability
13
Hose Clamp GEN 39282 Contact Us For Availability
14
Screw GEN 31645 Contact Us For Availability
14
Expansion Clip GEN 70030501 Contact Us For Availability
14
Washer GEN 802293 Contact Us For Availability
14
Cap GEN 801746 Contact Us For Availability
14
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Jumper Harness (Comment: Use to limit spin RP GEN D513316 Contact Us For Availability
14
Outer Tub Assembly GEN 801081P Contact Us For Availability
15
Cabinet Brace (Comment: Right) GEN 801492 Contact Us For Availability
15
Control Cabinet (Comment: Right, Stainless st GEN 803141 Contact Us For Availability
15
Control Cabinet (Comment: Right, Gray) GEN D513701DG Contact Us For Availability
15
Dispenser (Comment: Includes items 10, 16 and GEN 801090P Contact Us For Availability
15
Boot Nozzle GEN 802291 Contact Us For Availability
15
Pump Housing GEN 802428 Contact Us For Availability
15
Screw GEN M400043 Contact Us For Availability
15
Tub Shock Absorber Kit GEN 800622P Contact Us For Availability
16
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
16
Screw GEN 23008 Contact Us For Availability
16
Dispenser Assembly (Comment: Includes items 1 GEN 801476P Contact Us For Availability
16
Gasket GEN 802427 Contact Us For Availability
16
Extension Spring GEN 802285 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Base Shock Absorber Kit (Comment: Must replac GEN 802881P Contact Us For Availability
17
Rubber Foot GEN 34318 Contact Us For Availability
17
Nut GEN 36020 Contact Us For Availability
17
Dispenser Drawer GEN 685757P Contact Us For Availability
17
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
17
Grounding Clip GEN 00161 Contact Us For Availability
18
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
18
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
18
Cycle Switch GEN 801240 Contact Us For Availability
18
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
18
Tub-to-Pump Hose GEN 800317 Contact Us For Availability
18
Drain Kit (Comment: Includes 803344 Tub-to-Pu GEN 985P3 Contact Us For Availability
18
Ballast Weight GEN 800205 Contact Us For Availability
19
Leveling Leg GEN 34319 Contact Us For Availability
19
Screw GEN F430956 Contact Us For Availability
19
Dispenser Handle GEN 803204P Contact Us For Availability
19
Front Panel Pad (Comment: 1 inch by 26 inches GEN 36204 Contact Us For Availability
19
Nut GEN 802343 Contact Us For Availability
20
Nut GEN 21899 Contact Us For Availability
20
Timer Knob Assembly GEN 803098P Contact Us For Availability
20
Insert GEN 685716 Contact Us For Availability
20
Screw GEN 801045 Contact Us For Availability
20
Tub Front Assembly GEN 802258 Contact Us For Availability
21
Base Assembly GEN 803876 Contact Us For Availability
21
Lens GEN 803294 Contact Us For Availability
21
Detergent Cover GEN 800899 Contact Us For Availability
21
Access Panel Assembly GEN D514251 Contact Us For Availability
21
Clamp Ring GEN 800312 Contact Us For Availability
22
Cabinet Brace (Comment: Left) GEN 801491 Contact Us For Availability
22
Control Knob Assembly GEN 803099P Contact Us For Availability
22
Dispenser Plate GEN 801024 Contact Us For Availability
22
Front Panel GEN 802288P Contact Us For Availability
22
Nut GEN F430218 Contact Us For Availability
23
Hole Plug GEN M412154 Contact Us For Availability
23
Panel GEN 803067 Contact Us For Availability
23
Screw GEN 800548 Contact Us For Availability
23
Screw GEN 801001 Contact Us For Availability
23
Washer GEN 800457 Contact Us For Availability
24
Brace Kit (Comment: Includes items 13, 14 and GEN 918P3 Contact Us For Availability
24
Control Panel Assembly GEN 803214 Contact Us For Availability
24
Screw GEN 800462 Contact Us For Availability
25
Temperature Switch GEN 687542 Contact Us For Availability
25
Tub Front Seal GEN 800432P Contact Us For Availability
26
Selector Switch GEN 803568 Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Light GEN 801431 Contact Us For Availability
27
Clothes Guard Deflector GEN 804174P Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 804482 Contact Us For Availability
28
Twist-to-Start Switch GEN 803569 Contact Us For Availability
28
Clothes Guard GEN 803537 Contact Us For Availability
29
Control Cabinet (Comment: Left, Stainless ste GEN 803142 Contact Us For Availability
29
Control Cabinet (Comment: Left, Gray) GEN D513702DG Contact Us For Availability
29
Clothes Guard and Deflector Kit (Comment: Inc GEN 804560P Contact Us For Availability
30
Control Cabinet Bottom GEN 801777 Contact Us For Availability
31
Screw (Comment: Use with stainless steel cabi GEN M405188 Contact Us For Availability
32
Screw GEN D503688 Contact Us For Availability
33
Resistor GEN 210100 Contact Us For Availability
35
Badge GEN 803013 Contact Us For Availability
36
Transformer GEN 803527P Contact Us For Availability
37
Jumper Configuration Assembly GEN M413507 Contact Us For Availability
38
Hose Clip GEN 36985 Contact Us For Availability
39
Control Shield GEN 801371 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Bisque) GEN 370P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
Bearing Kit GEN RB160001 Contact Us For Availability
× ![]()
