Model GE AFN51FSP301NN22 General Electric Model AFN51FSP301NN22 – Common Parts & Diagrams
Inner Basket, Trunnion, Bearing Housing and Pulley
Junction Box and Power Cord

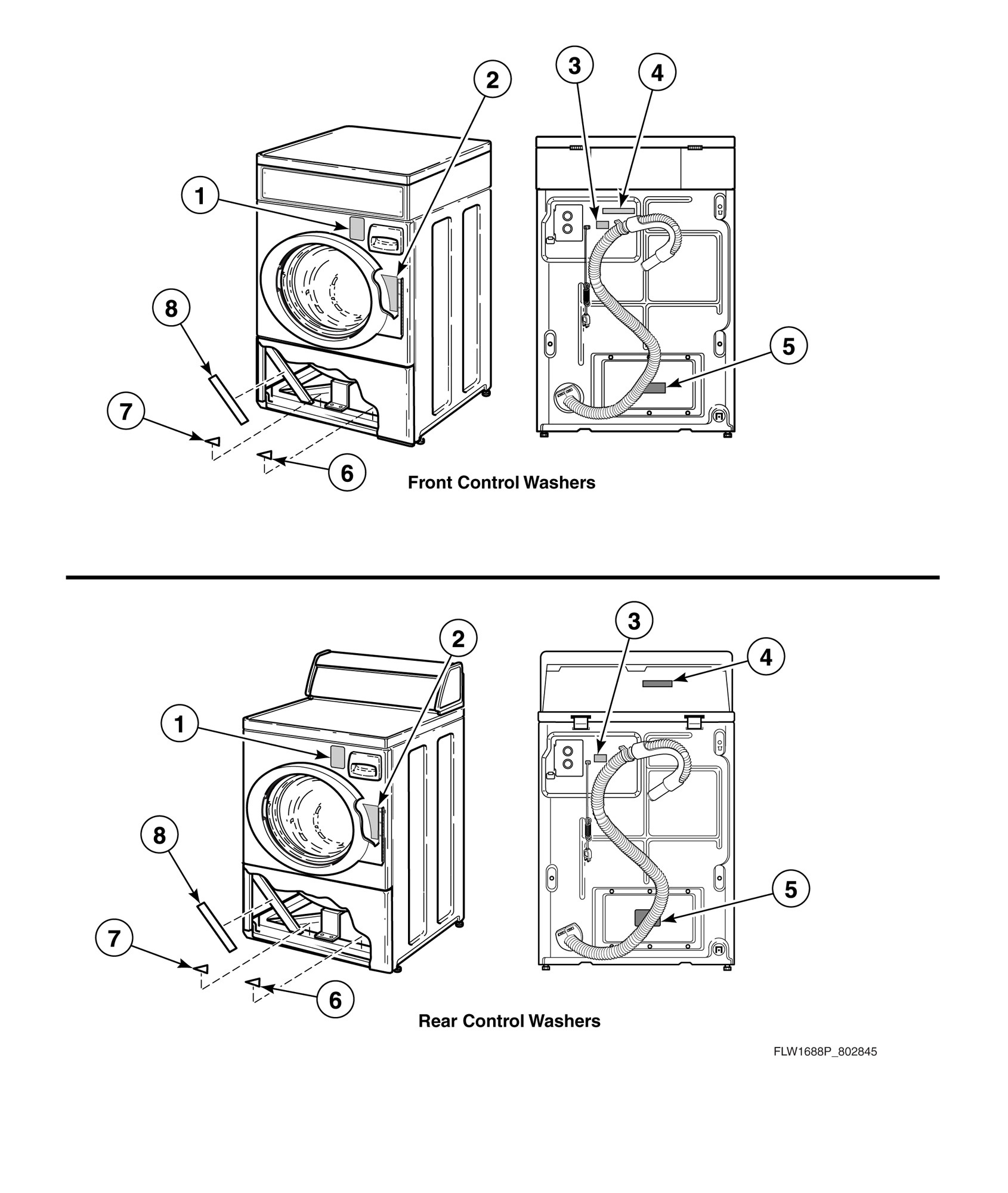

Labels

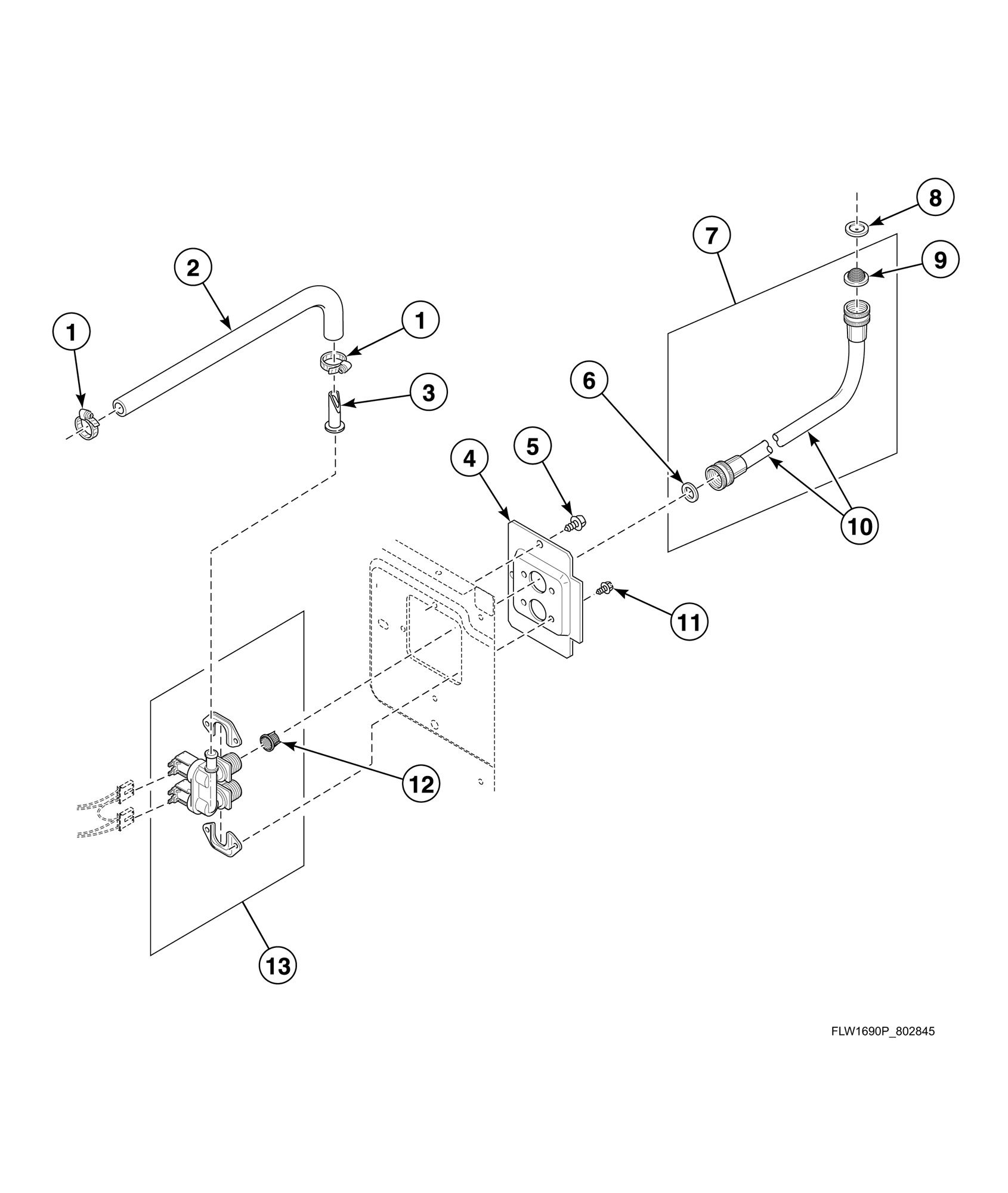

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

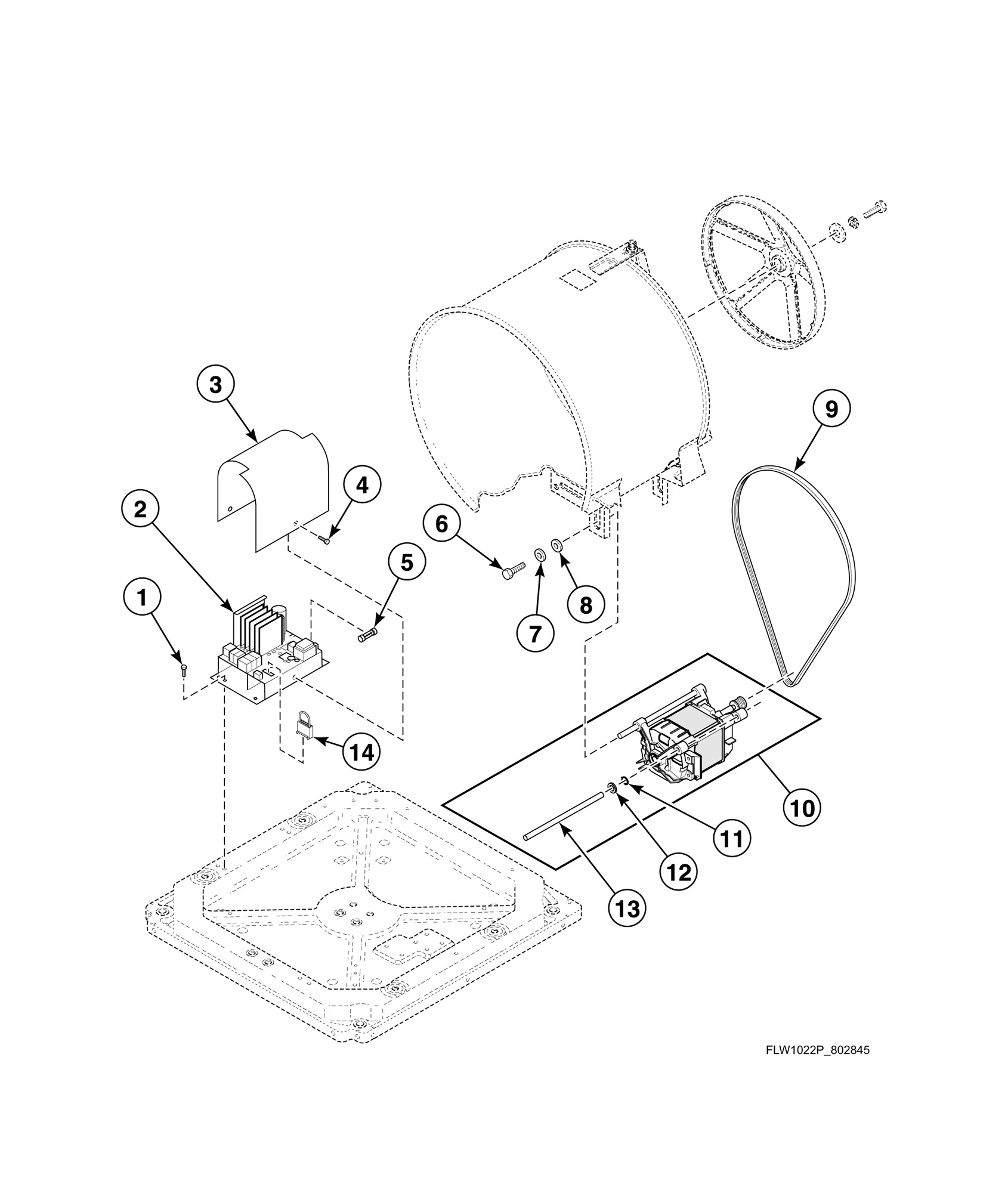

Motor and Belt

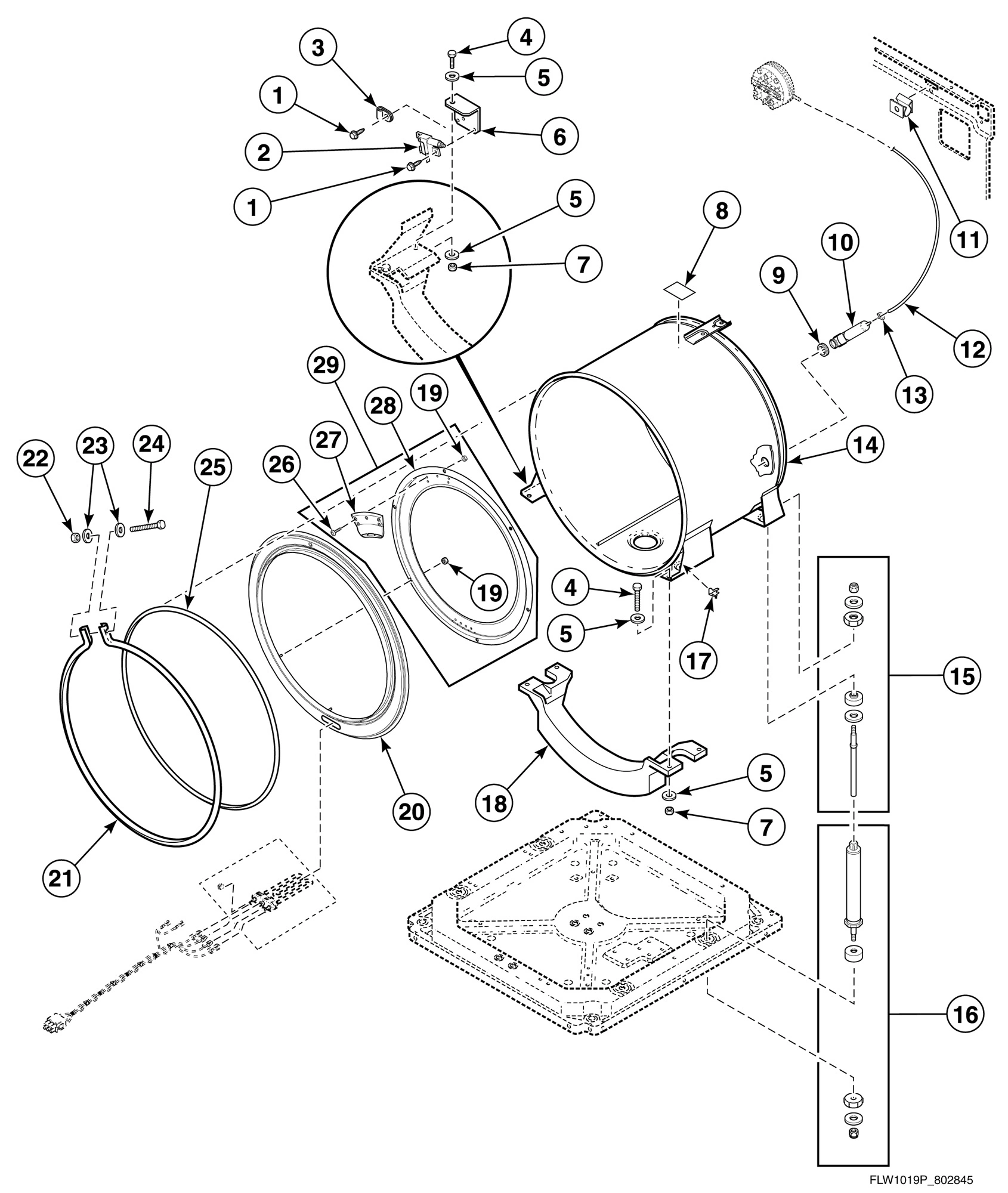

Outer Tub, Front and Clamp Ring

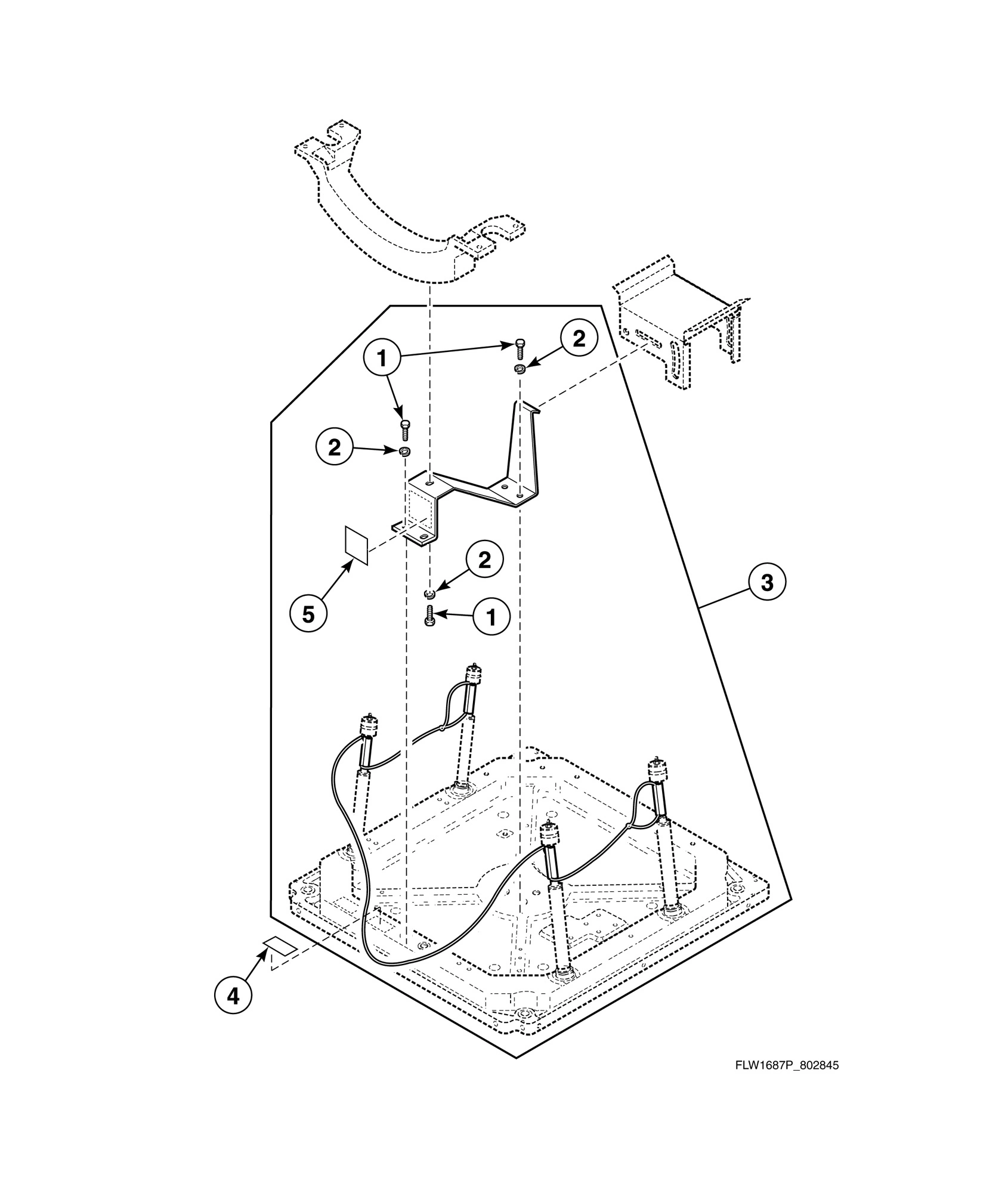

Shipping Materials

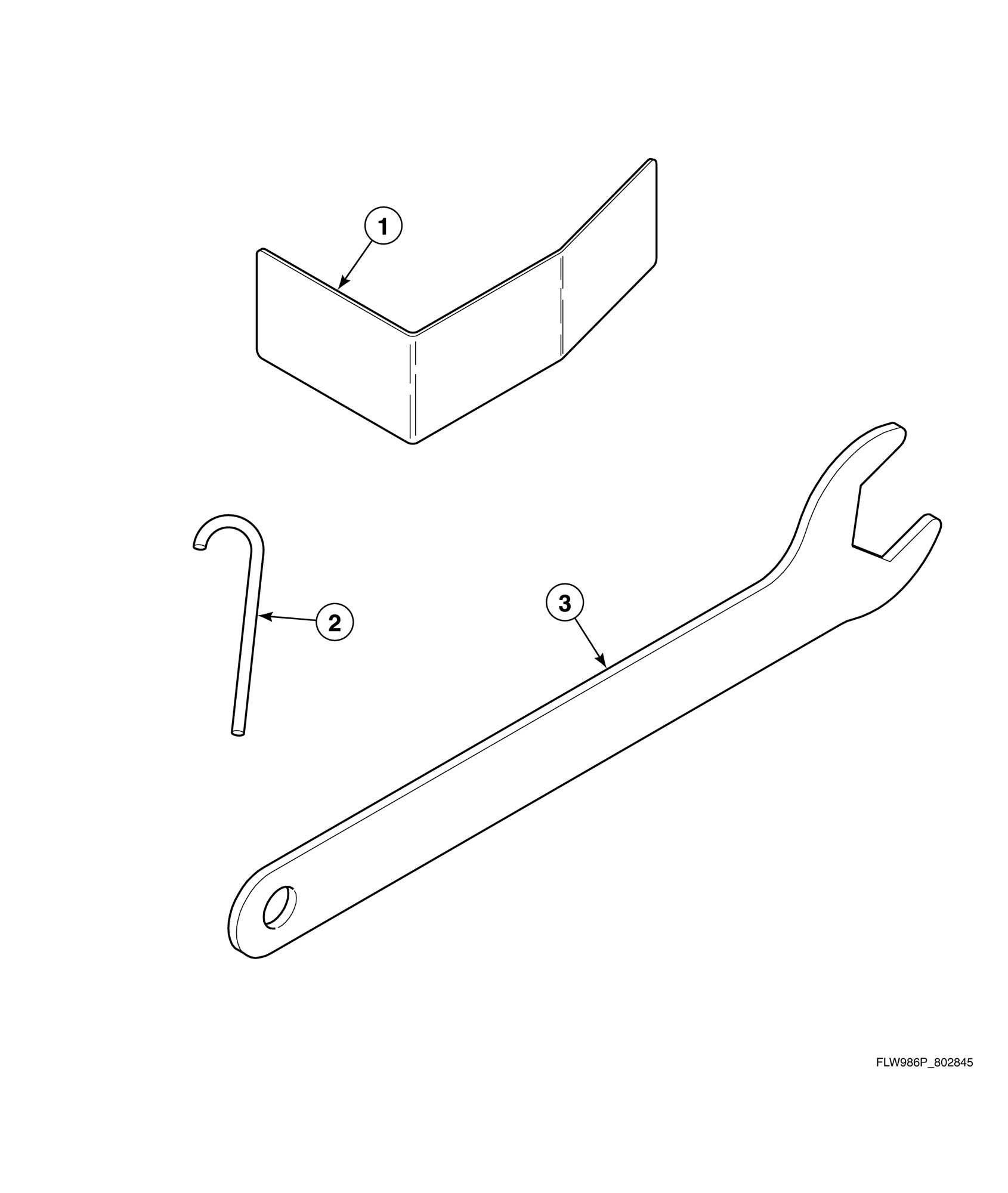

Special Tools

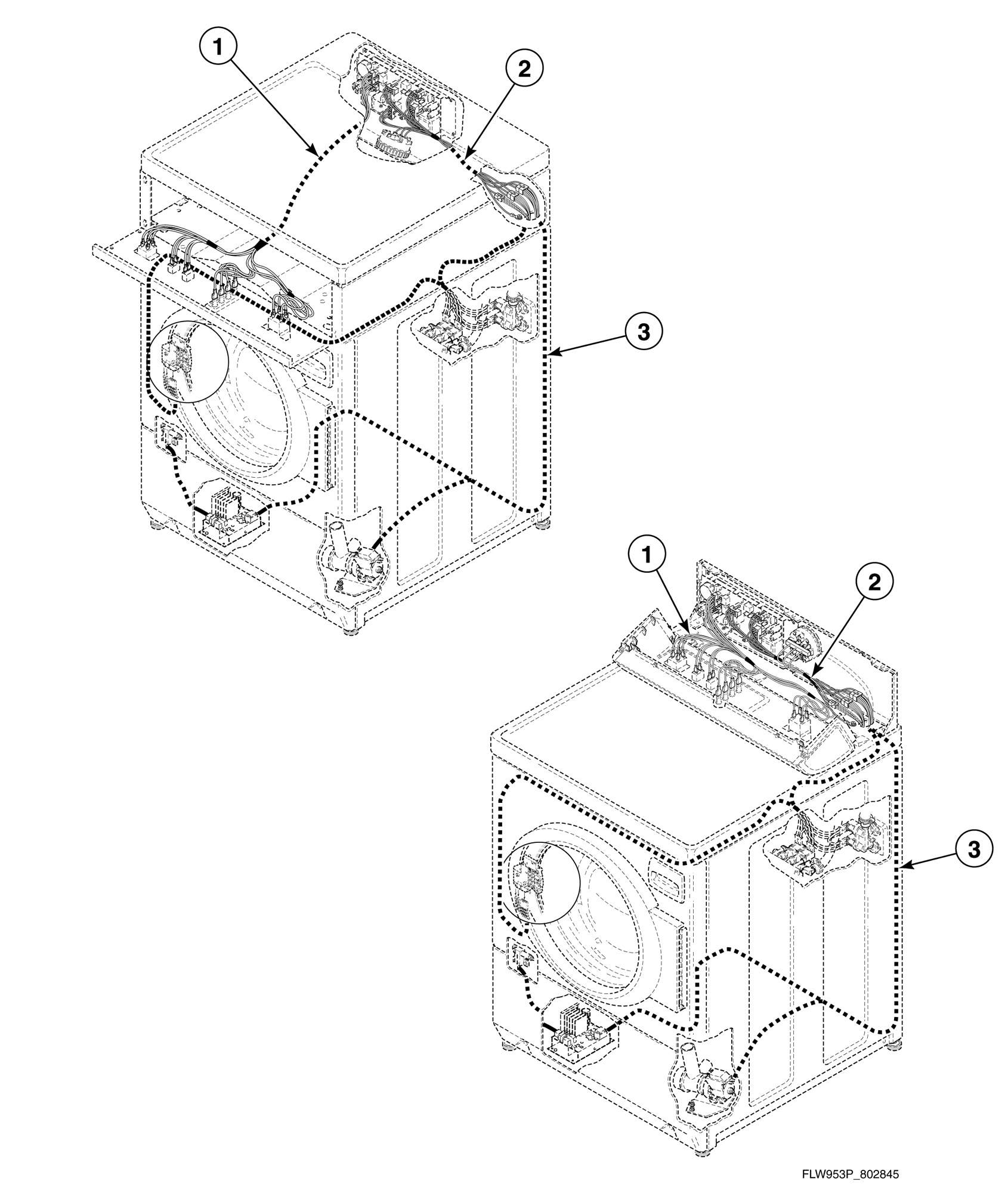

Wire Harnesses and Wires (Drawing 1 of 2)

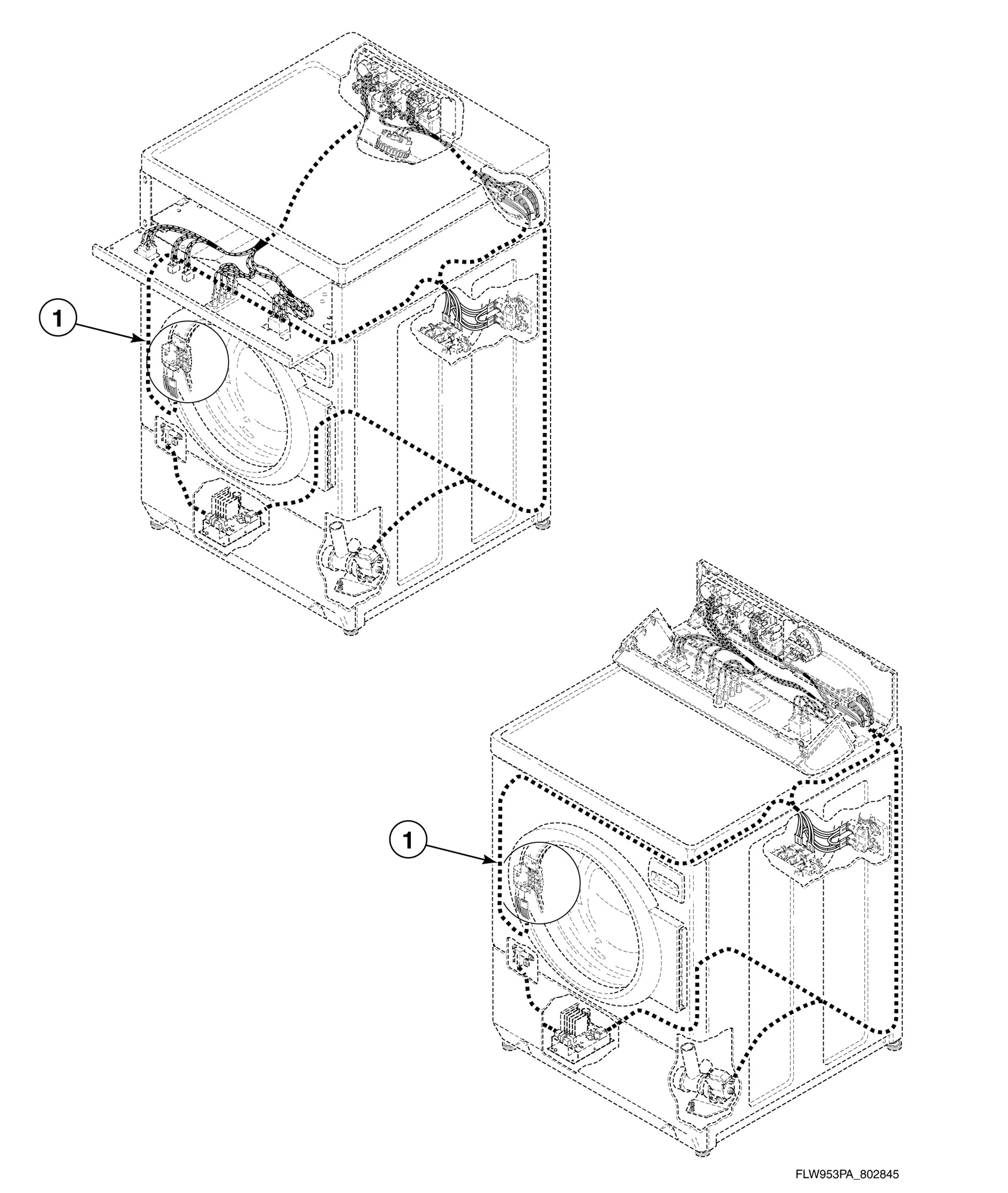

Wire Harnesses and Wires (Drawing 2 of 2)

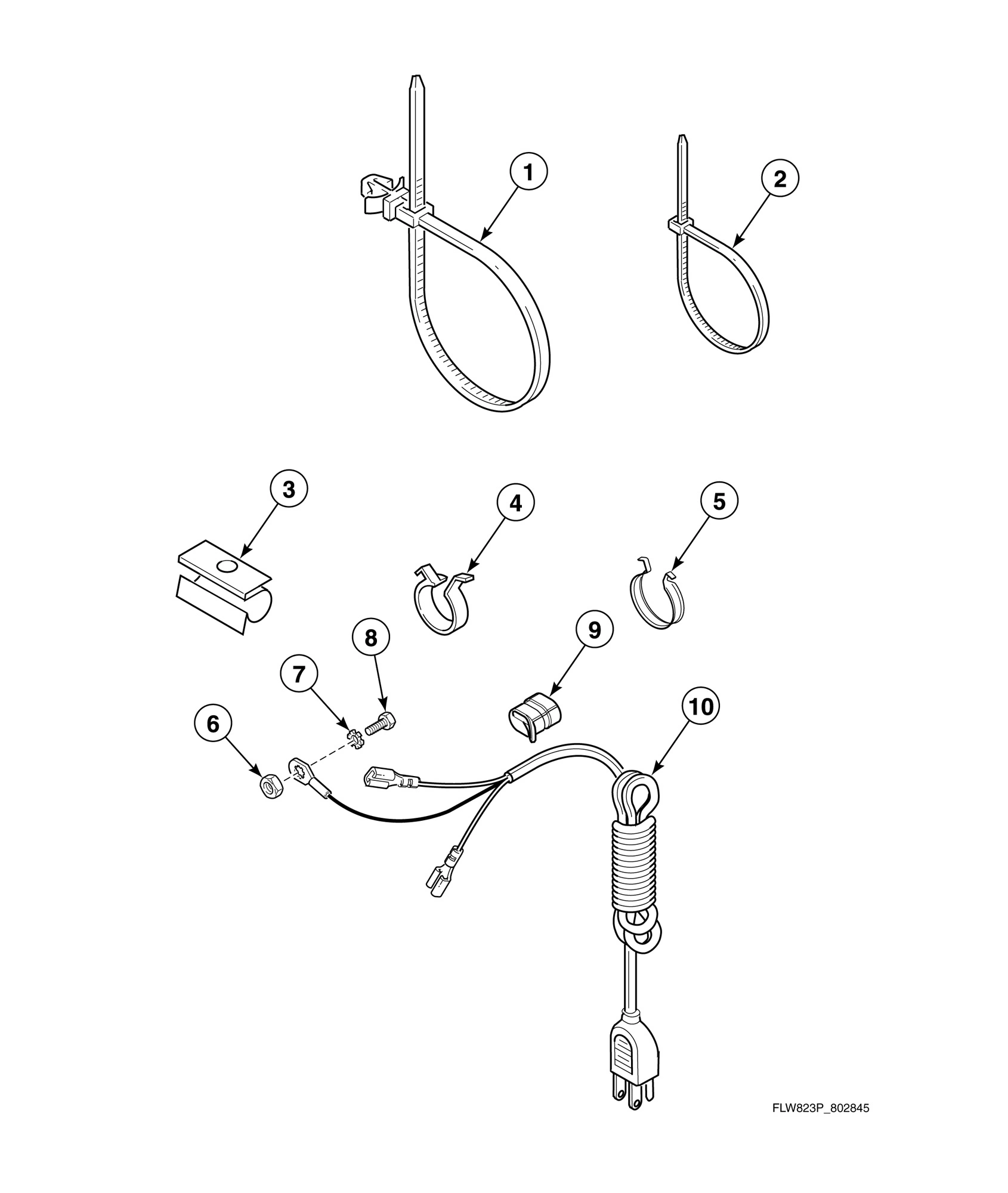

Wire Ties, Clips and Lead-In Cord
Common parts from model GE AFN51FSP301NN22 General Electric Model AFN51FSP301NN22
1
Junction Box Cover GEN 801404 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
1
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
1
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
1
Hose Clamp GEN 802164 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Control Harness Assembly GEN 803242P Contact Us For Availability
1
Base Harness Assembly GEN 802833P Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Junction Box Seal (Comment: 4 required) GEN 801425P Contact Us For Availability
2
Warning Label GEN 802367 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Inverter Control Assembly (Comment: 240 Volt) GEN 803255P Contact Us For Availability
2
Out-of-Balance Switch Assembly (Comment: Mode GEN 803415 Contact Us For Availability
2
Out-of-Balance Switch Assembly Kit (Comment: GEN 806512 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
2
Control Harness Assembly GEN 801346P Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Lower Junction Box GEN 801433 Contact Us For Availability
3
Warning Label GEN 803260 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Wire Clamp GEN 800811 Contact Us For Availability
3
Shipping Materials Kit (Comment: Includes ite GEN 930P3 Contact Us For Availability
3
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
3
Motor Harness Assembly (Comment: Models throu GEN 802274P Contact Us For Availability
3
Motor Harness Assembly (Comment: Models start GEN 803581 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
4
Filter Jumper Harness (Comment: Line filter t GEN 801420 Contact Us For Availability
4
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Screw GEN 800461 Contact Us For Availability
4
Warning Label (Comment: Non-grounded) GEN 800632 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
5
Snap Bushing GEN M402542 Contact Us For Availability
5
Electrical Shock Label (Comment: Icon) GEN F8211201 Contact Us For Availability
5
Warning Label (Comment: Quebec French) GEN D500314 Contact Us For Availability
5
Fuse GEN 801755 Contact Us For Availability
5
Washer GEN M400081 Contact Us For Availability
5
Shipping Bracket Label GEN 686901 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
6
Wire Harness Assembly (Comment: Line filter t GEN 801421 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models thro GEN 800663 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models star GEN 803388 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Junction Box GEN 801403 Contact Us For Availability
7
Fill Hose Kit (Comment: 5 feet, Hose is equip GEN 38349P Contact Us For Availability
7
Water Hose (Comment: 5 feet, Hose is equipped GEN F200116 Contact Us For Availability
7
Washer GEN 02834 Contact Us For Availability
7
Nut GEN 800452 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Warning Label GEN D500049 Contact Us For Availability
8
Warning Label GEN 803522 Contact Us For Availability
8
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
8
Washer GEN M400080 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Line Filter GEN 201058 Contact Us For Availability
9
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
9
Drive Belt GEN 800319P Contact Us For Availability
9
Grommet GEN 29175 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
NOT ON YOUR MODEL GEN - Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 20617 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 20618 Contact Us For Availability
10
Fill Hose (Comment: 8 feet, Hose is equipped GEN 37380 Contact Us For Availability
10
Fill Hose (Comment: 10 feet, Hose is equipped GEN 37381 Contact Us For Availability
10
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
10
Pressure Bulb GEN 30907 Contact Us For Availability
11
Cable Connection Box GEN 39922 Contact Us For Availability
11
Screw GEN D501086 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
12
Power Cord Assembly GEN 801450 Contact Us For Availability
12
Mixing Valve Screen GEN 802926 Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
12
Tubing GEN 800648P Contact Us For Availability
13
Mixing Valve GEN 802222P Contact Us For Availability
13
Motor Mount Rod GEN 801062 Contact Us For Availability
13
Hose Clamp GEN 39282 Contact Us For Availability
14
Jumper Harness (Comment: Use to limit spin RP GEN D513316 Contact Us For Availability
14
Outer Tub Assembly GEN 801081P Contact Us For Availability
15
Tub Shock Absorber Kit GEN 800622P Contact Us For Availability
16
Base Shock Absorber Kit (Comment: Must replac GEN 802881P Contact Us For Availability
17
Grounding Clip GEN 00161 Contact Us For Availability
18
Ballast Weight GEN 800205 Contact Us For Availability
19
Nut GEN 802343 Contact Us For Availability
20
Tub Front Assembly GEN 802258 Contact Us For Availability
21
Clamp Ring GEN 800312 Contact Us For Availability
22
Nut GEN F430218 Contact Us For Availability
23
Washer GEN 800457 Contact Us For Availability
24
Screw GEN 800462 Contact Us For Availability
25
Tub Front Seal GEN 800432P Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Clothes Guard Deflector GEN 804174P Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 804482 Contact Us For Availability
28
Clothes Guard GEN 803537 Contact Us For Availability
29
Clothes Guard and Deflector Kit (Comment: Inc GEN 804560P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
Bearing Kit GEN RB160001 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
