Model Maytag AFB2234WES0 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

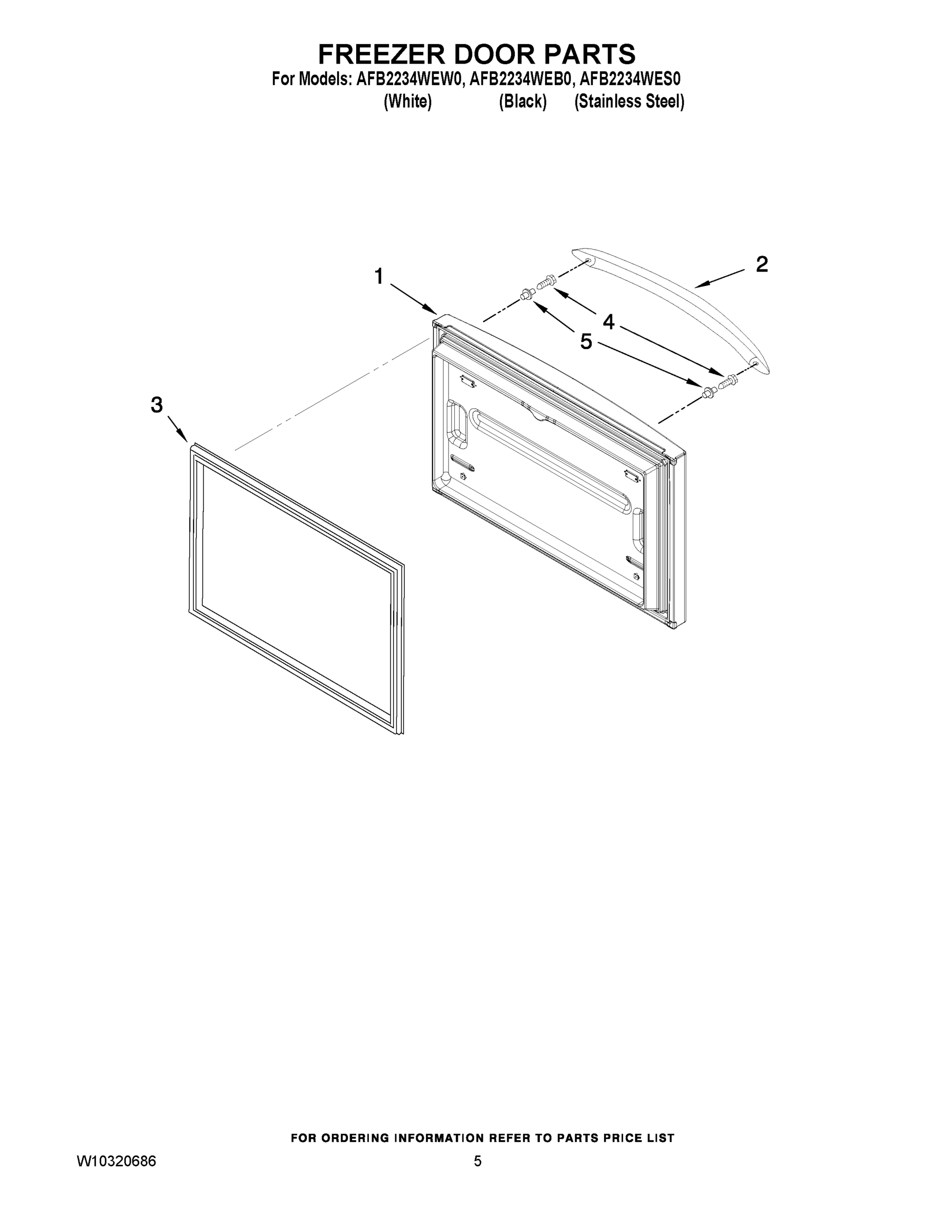

03 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS

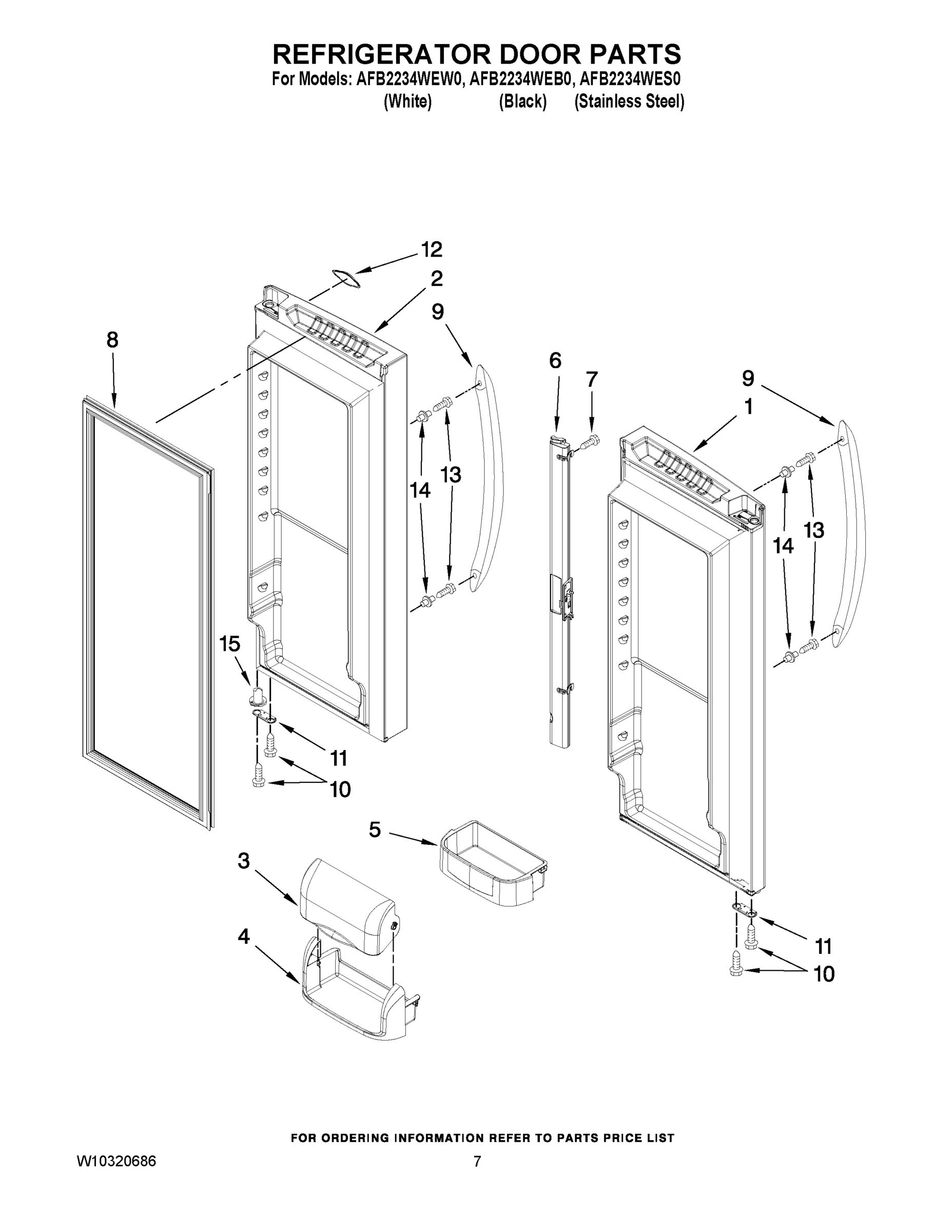

05 - REFRIGERATOR DOOR PARTS

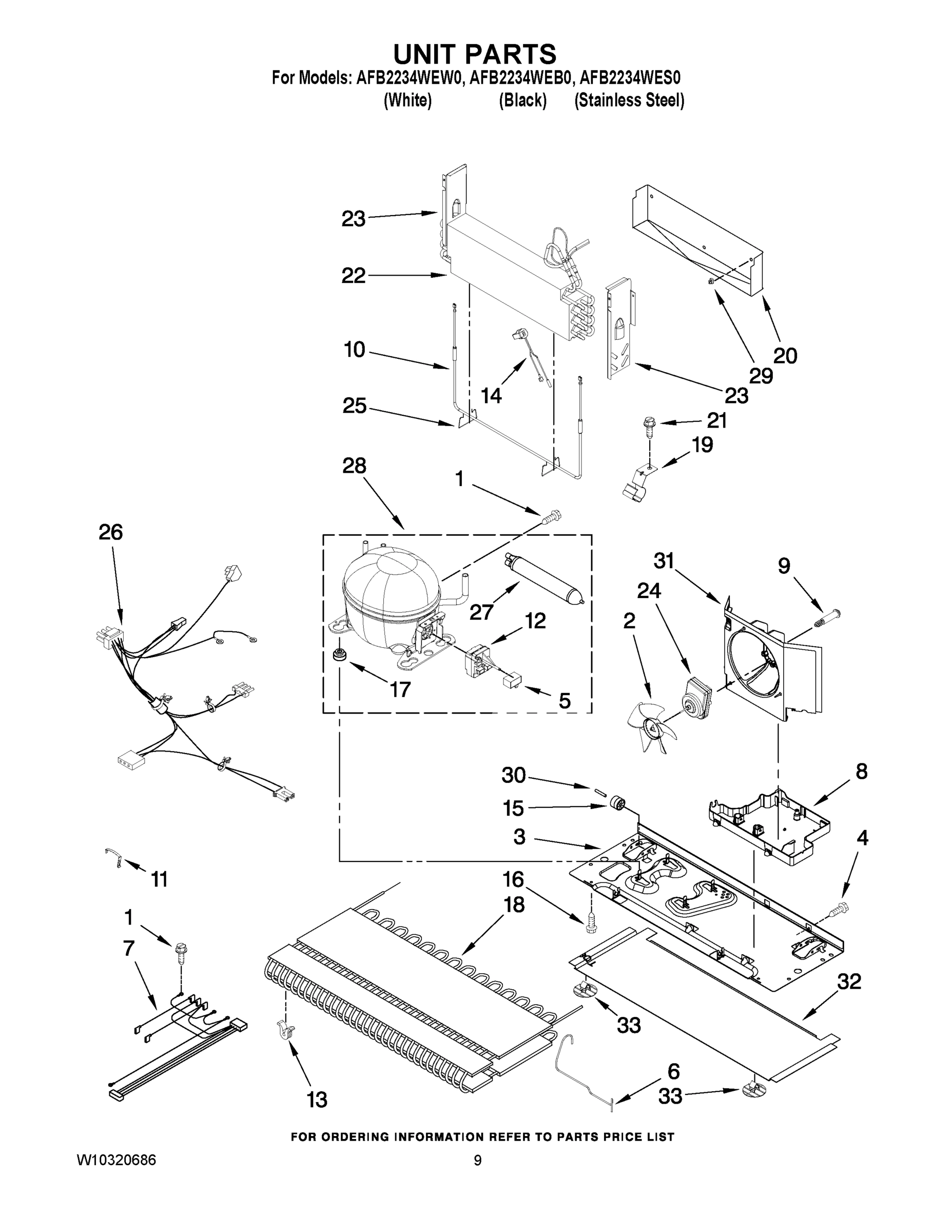

06 - UNIT PARTS

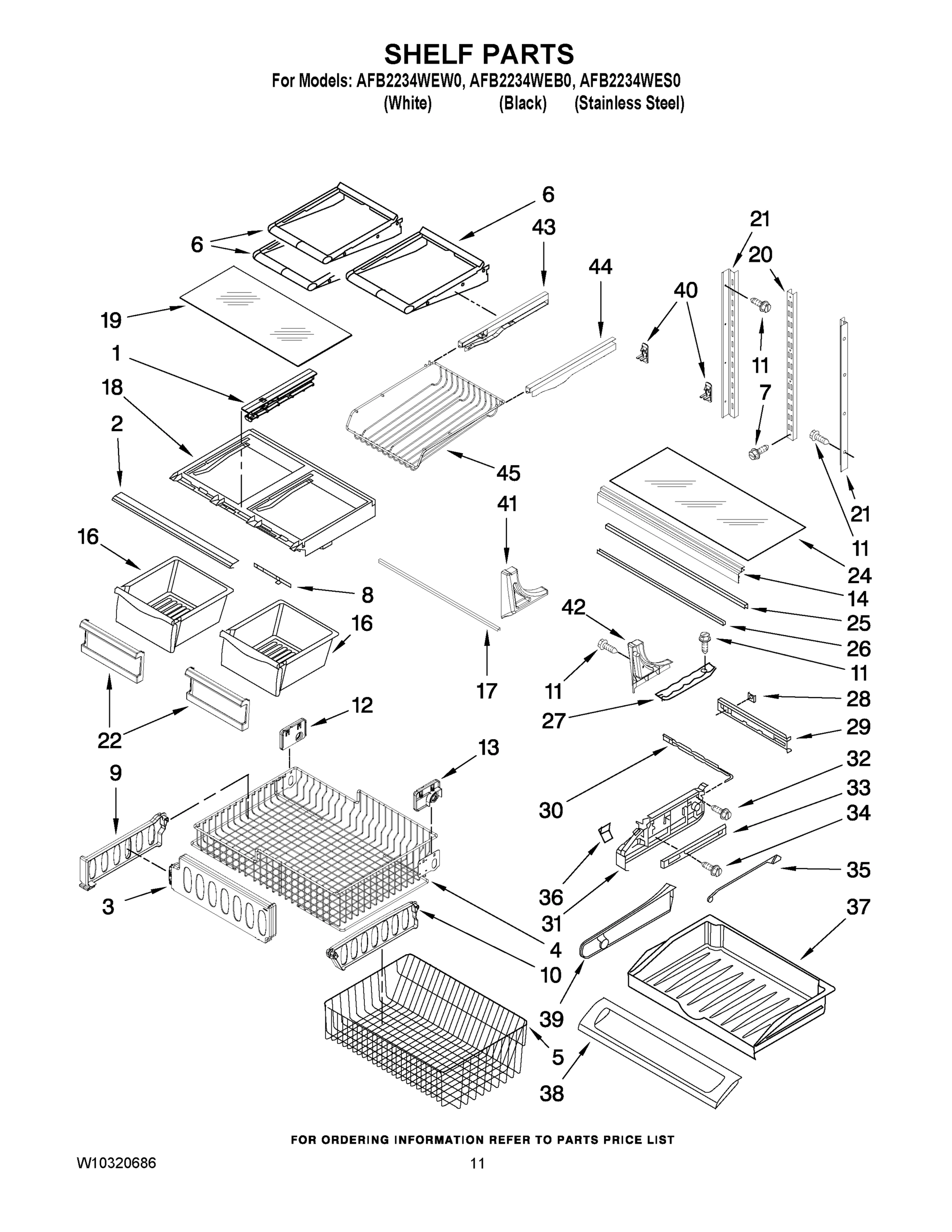

07 - SHELF PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag AFB2234WES0 REFRIGERATOR
1
MAY W10279337 MAY W10279337 Contact Us For Availability
1
MAY 12977821BQ MAY 12977821BQ Contact Us For Availability
1
MAY 12977821WQ MAY 12977821WQ Contact Us For Availability
1
MAY 12977824SQ MAY 12977824SQ Contact Us For Availability
1
MAY 12978044BQ MAY 12978044BQ Contact Us For Availability
1
MAY 12978044WQ MAY 12978044WQ Contact Us For Availability
1
MAY 12978048SQ MAY 12978048SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10123790 MAY W10123790 Contact Us For Availability
2
MAY W10274998 MAY W10274998 Contact Us For Availability
2
MAY W10274999 MAY W10274999 Contact Us For Availability
2
MAY 12806303 MAY 12806303 Contact Us For Availability
2
MAY 12978043BQ MAY 12978043BQ Contact Us For Availability
2
MAY 12978043WQ MAY 12978043WQ Contact Us For Availability
2
MAY 12978047SQ MAY 12978047SQ Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
3
COVER, LEFT HINGE (BLACK) MAY W10217489 Contact Us For Availability
3
Cover, Left Hinge (White) MAY W10217491 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10164036 MAY W10164036 Contact Us For Availability
3
MAY W10164037 MAY W10164037 Contact Us For Availability
3
MAY 12816511 MAY 12816511 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
Divider, Basket (Upper) MAY W10171570 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12806407 MAY 12806407 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10169950 MAY W10169950 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
Board, Control (Incl Instr Sheet) MAY 12868513 Contact Us For Availability
5
BUCKET, DOOR (SMALL (2)) MAY 12557211V Contact Us For Availability
5
BUCKET, DOOR (MEDIUM (1)) MAY 12557212V Contact Us For Availability
5
MAY 12918204K MAY 12918204K Contact Us For Availability
5
MAY 12918504V MAY 12918504V Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY W10150038 MAY W10150038 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY 12722803B MAY 12722803B Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10217748 MAY W10217748 Contact Us For Availability
6
Shelf (3) MAY 12463509 Contact Us For Availability
7
Hinge, Left Top MAY 12963204ED Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10280423 Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10163894N MAY W10163894N Contact Us For Availability
8
Gasket, Door (Black - RH) MAY W10163895 Contact Us For Availability
8
Gasket, Door (White - LH) MAY W10218678 Contact Us For Availability
8
Gasket, Door (Black - LH) MAY W10218679 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL (2) MAY 12530805SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
MAY 13004801B MAY 13004801B Contact Us For Availability
9
MAY 13004801W MAY 13004801W Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
10
Cover, Right Hinge (Black) MAY 12962302B Contact Us For Availability
10
Cover, Right Hinge (White) MAY 12962302W Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10205416 MAY W10205416 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12226111 MAY 12226111 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12968202B MAY 12968202B Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
12
Block, Pivot MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY 12528501 MAY 12528501 Contact Us For Availability
12
MAY W10197428 MAY W10197428 Contact Us For Availability
12
Mount, LH Gear MAY W10233898 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
SCREW, HANDLE MAY W10290759 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Mount, RH Gear MAY W10233899 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
MAY 13001201 MAY 13001201 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
14
EXTR-GLASS SUPPORT MAY 13048801 Contact Us For Availability
15
Hinge, Center (LT) (White) MAY 13000001WD Contact Us For Availability
15
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
Control, Damper (Includes Harness) MAY W10196393 Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
Hinge, Right Top MAY 12963205ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
PAN, CRISPER MAY 12530505SP Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12861601 MAY 12861601 Contact Us For Availability
17
Grommet (4) (Service) MAY 1100826 Contact Us For Availability
17
Brace, Crisper MAY 12227303WD Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
Glass, Crisper Cover MAY 12204822 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY 12225402WD MAY 12225402WD Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
Grille, Toe (White) MAY W10236195 Contact Us For Availability
22
Grille, Toe (Black) MAY W10236196 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
EVAPORATOR KIT (INCL. EVAPORATOR No.67003719, MAY 12726402 Contact Us For Availability
22
FRONT-CRSPR. PAN MAY 12802302SP Contact Us For Availability
23
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
25
MAY 12655903 MAY 12655903 Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
Harness, Unit with Power Cord MAY W10234024 Contact Us For Availability
26
Brace, Pantry (2) MAY 12227301WD Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
TRACK, PANTRY MAY 12531901 Contact Us For Availability
28
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
28
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 5, 12, 17, & 27) ( MAY W10134623 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
Screw, Block MAY 12990303 Contact Us For Availability
29
MAY W10261203 MAY W10261203 Contact Us For Availability
29
MAY W10261204 MAY W10261204 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
30
Hinge, Center (RT) (White) MAY 13000002WD Contact Us For Availability
30
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
Slide, Control MAY 13048401 Contact Us For Availability
31
Shaft MAY 12812905WD Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
Endcap, Pantry (Right) MAY 13047701 Contact Us For Availability
31
Endcap, Pantry (Left) MAY 13047801 Contact Us For Availability
32
Gear (Right) MAY W10146446 Contact Us For Availability
32
Gear (Left) MAY W10158749 Contact Us For Availability
32
Screw (4) MAY 12990504 Contact Us For Availability
32
MAY W10206337 MAY W10206337 Contact Us For Availability
33
RACK-SIDE (LEFT) MAY W10284694 Contact Us For Availability
33
RACK-SIDE (RIGHT) MAY W10284695 Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
33
GLIDE, PANTRY (2) MAY 13058101V Contact Us For Availability
34
Screw (4) MAY 12990512 Contact Us For Availability
35
Bar, Temp Cont. MAY 13048201 Contact Us For Availability
36
KNOB, CONTROL MAY 12655204V Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656820 MAY 12656820 Contact Us For Availability
39
Divider, Pantry MAY 13048601SP Contact Us For Availability
40
LADDER-HOOK-2 MAY 12531802 Contact Us For Availability
41
SUPPORT-CRISPER-L MAY 12531001 Contact Us For Availability
42
SUPPORT-CRISPER-R MAY 12531002 Contact Us For Availability
43
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
44
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
45
RACK-CAN MAY 12503808SP Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
Harness, Controls (Refrigerator) MAY W10216622 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
