Model Maytag AFB2234WEB2 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

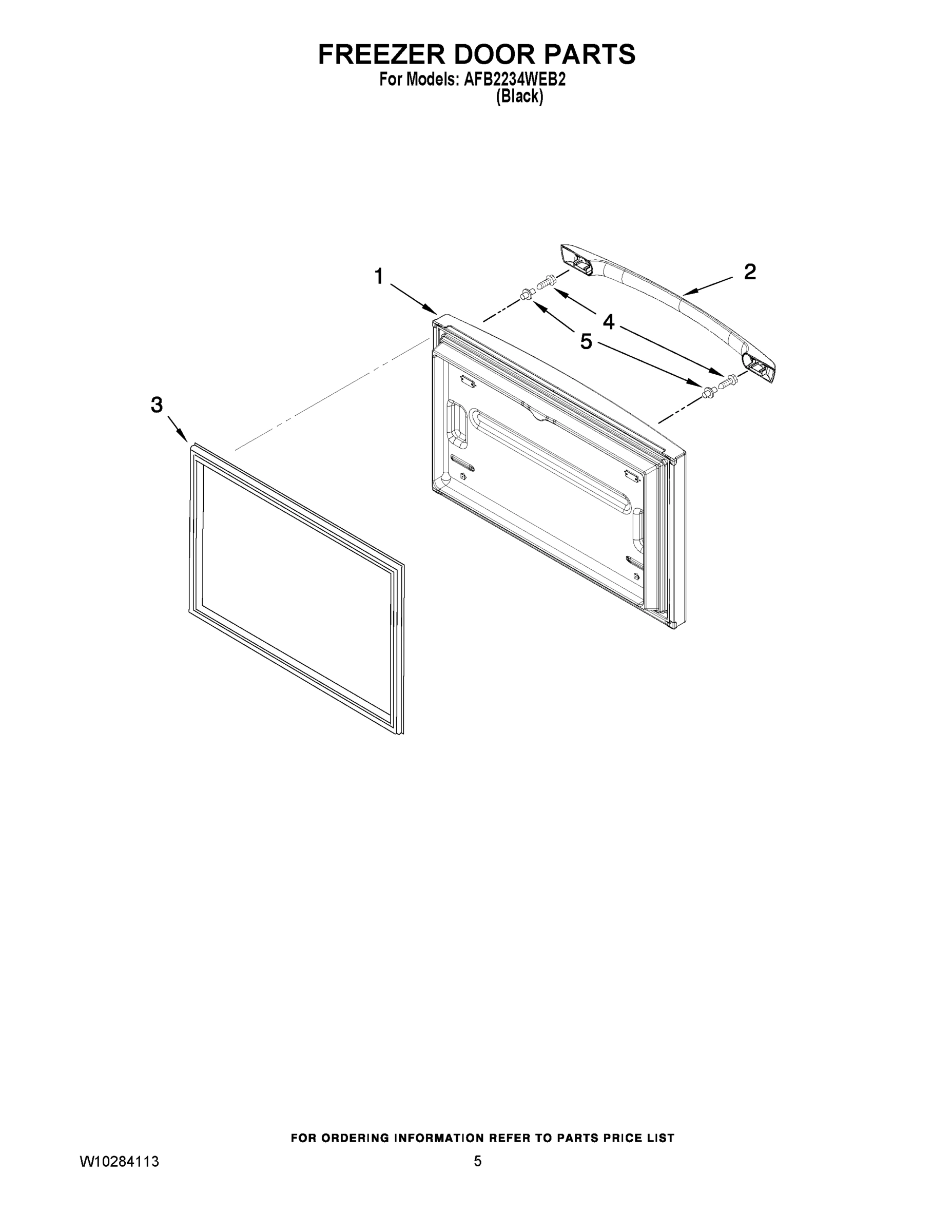

03 - FREEZER DOOR PARTS

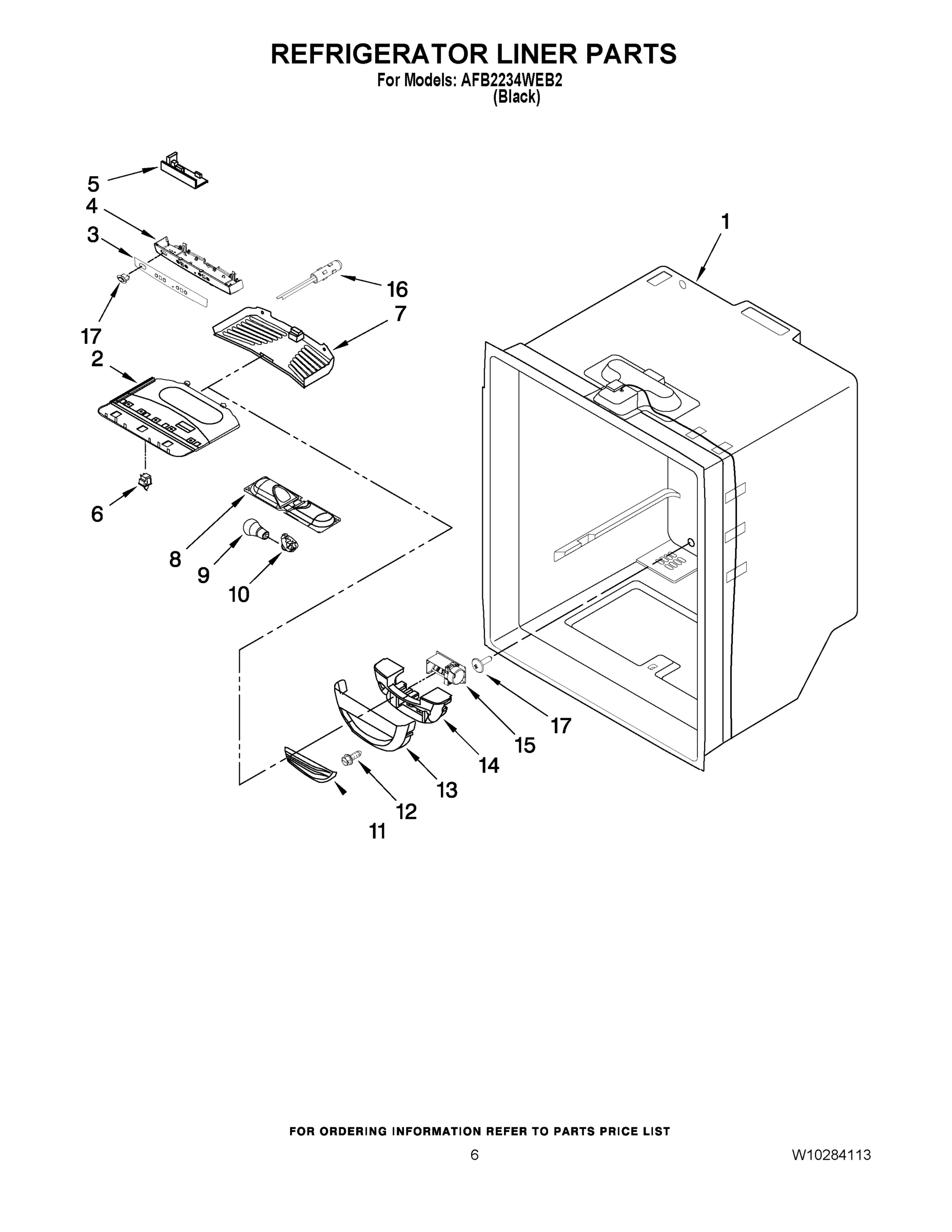

04 - REFRIGERATOR LINER PARTS

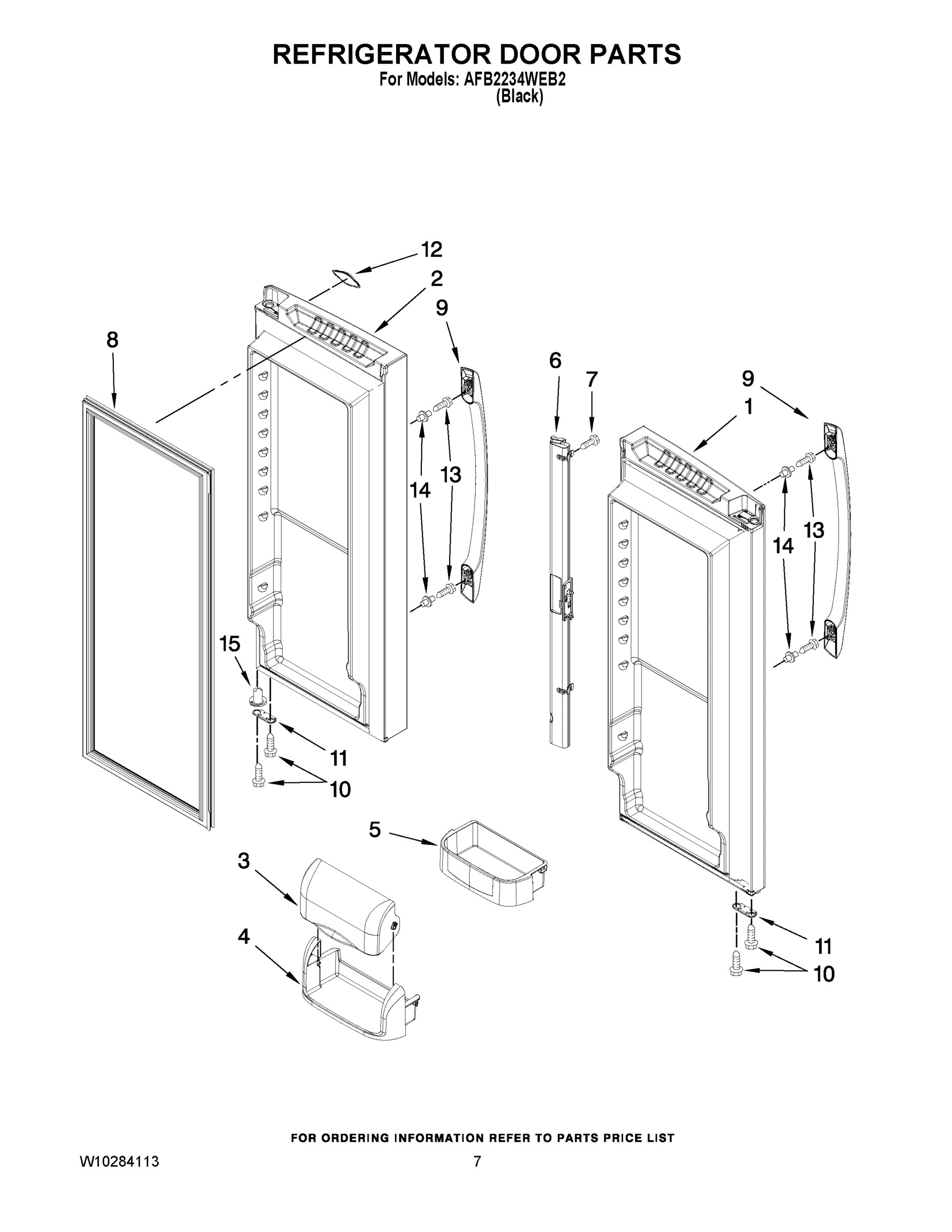

05 - REFRIGERATOR DOOR PARTS

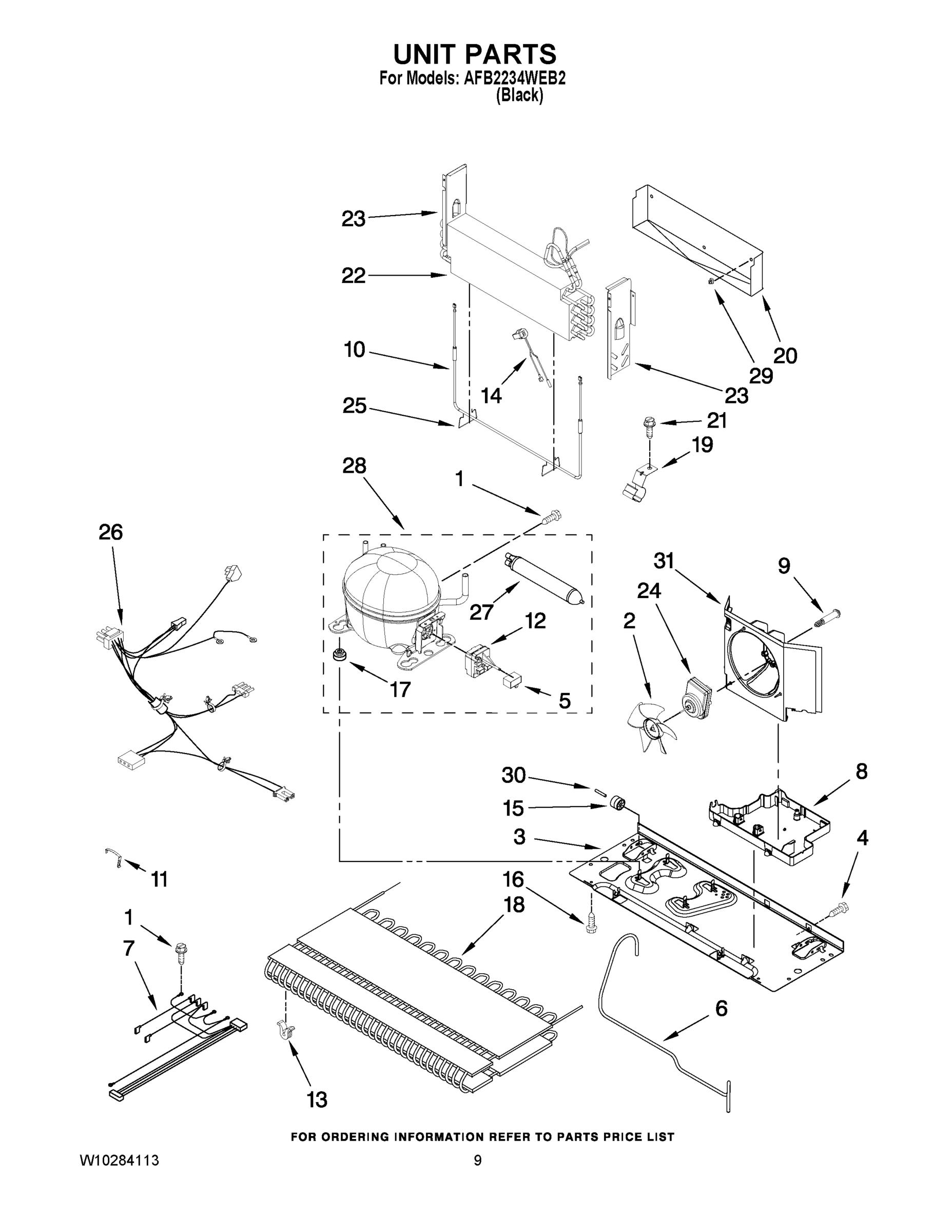

06 - UNIT PARTS

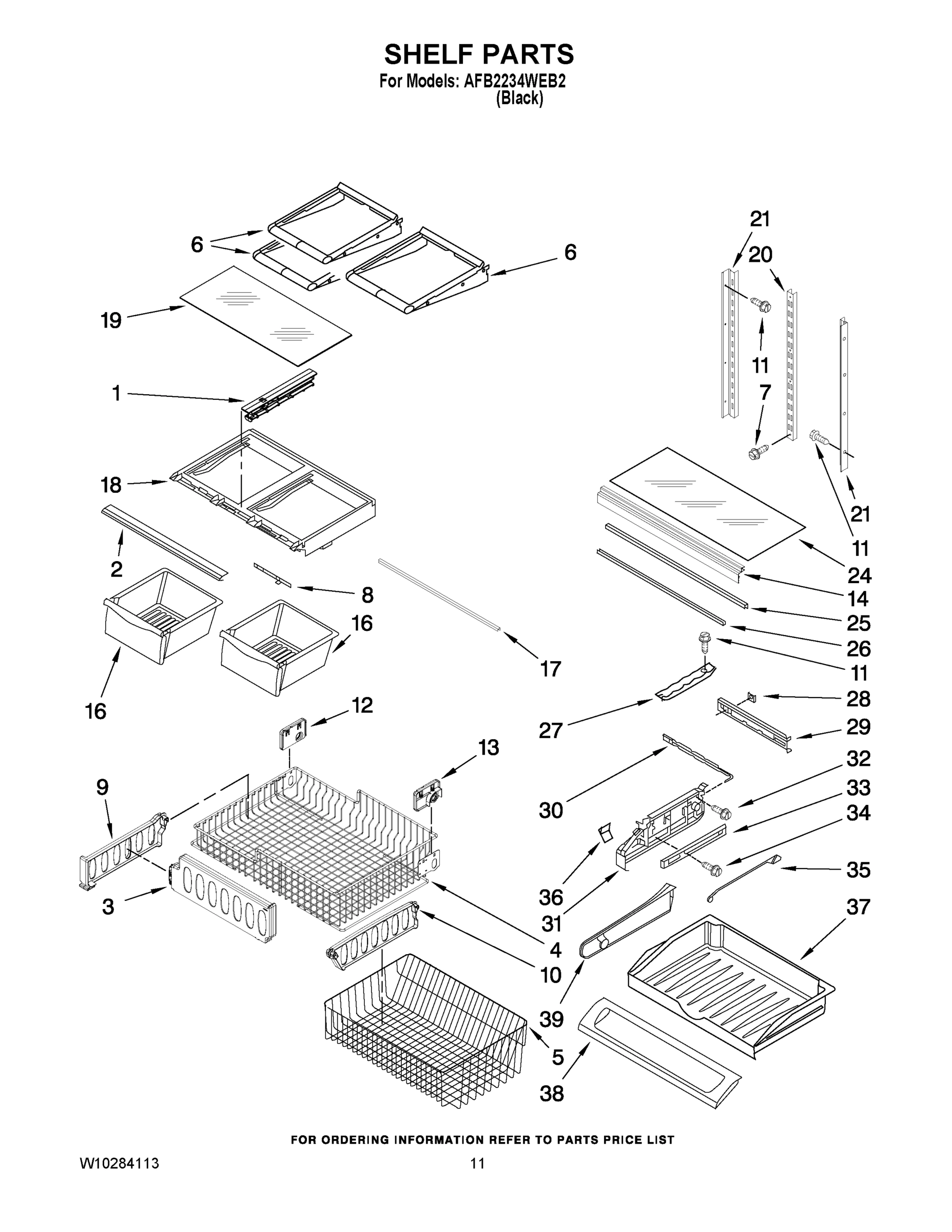

07 - SHELF PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag AFB2234WEB2 REFRIGERATOR
1
MAY 12977837BQ MAY 12977837BQ Contact Us For Availability
1
MAY 12978073BQ MAY 12978073BQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10274999 MAY W10274999 Contact Us For Availability
2
MAY 12806303SP MAY 12806303SP Contact Us For Availability
2
MAY 12978076BQ MAY 12978076BQ Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10164037 MAY W10164037 Contact Us For Availability
3
MAY 12816511 MAY 12816511 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
Divider, Basket (Upper) MAY W10171570 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MAY 12806407 MAY 12806407 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10169950 MAY W10169950 Contact Us For Availability
5
Roller Assy. (2) MAY 12580304 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
Board, Control (Incl Instr Sheet) MAY 12868513 Contact Us For Availability
5
BUCKET, DOOR (SMALL (2)) MAY 12557211V Contact Us For Availability
5
BUCKET, DOOR (MEDIUM (1)) MAY 12557214K Contact Us For Availability
5
BUCKET, GALLON (13 INCH WIDE) MAY 12918204K Contact Us For Availability
5
BUCKET, GALLON (10 INCH WIDE) MAY 12918504V Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY W10150038 MAY W10150038 Contact Us For Availability
6
Foot, Brake MAY 10354002 Contact Us For Availability
6
MAY 12722803B MAY 12722803B Contact Us For Availability
6
MAY W10217748 MAY W10217748 Contact Us For Availability
6
Shelf (3) MAY 12463509 Contact Us For Availability
7
Hinge, Left Top MAY 12963204ED Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
MAY W10224241 MAY W10224241 Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
8
Bolt, Adjusting (Front Roller) MAY 12606103 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (Black - RH) MAY W10163895 Contact Us For Availability
8
Gasket, Door (Black - LH) MAY W10218679 Contact Us For Availability
8
MAY W10189185 MAY W10189185 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL (2) MAY 12530805SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
MAY 13004801B MAY 13004801B Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
10
Cover, Right Hinge (Black) MAY 12962302B Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10205416 MAY W10205416 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12226111 MAY 12226111 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12968202B MAY 12968202B Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
12
Block, Pivot MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY 12528501 MAY 12528501 Contact Us For Availability
12
MAY W10197428 MAY W10197428 Contact Us For Availability
12
Mount, LH Gear MAY W10233898 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12991703 MAY 12991703 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Mount, RH Gear MAY W10233899 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MAY 12805001 MAY 12805001 Contact Us For Availability
14
MAY 13001201 MAY 13001201 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
14
EXTR-GLASS SUPPORT MAY 13048801 Contact Us For Availability
15
Hinge, Center (LT) (Black) MAY 13000001ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
Control, Damper (Includes Harness) MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
Hinge, Right Top MAY 12963205ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12530505 MAY 12530505 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
MAY 12991603V MAY 12991603V Contact Us For Availability
17
MAY 12861601 MAY 12861601 Contact Us For Availability
17
Grommet (4) (Service) MAY 1100826 Contact Us For Availability
17
Brace, Crisper MAY 12227303WD Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
MAY 12802302 MAY 12802302 Contact Us For Availability
19
Bracket, Foot (2) MAY 12906303WD Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
Glass, Crisper Cover MAY 12204822 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
MAY A3189395 MAY A3189395 Contact Us For Availability
20
MAY 12225402WD MAY 12225402WD Contact Us For Availability
20
MAY 12435807 MAY 12435807 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12710602 MAY 12710602 Contact Us For Availability
22
Grille, Toe (Black) MAY W10236196 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
25
MAY 12655903 MAY 12655903 Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
Harness, Unit with Power Cord MAY W10234024 Contact Us For Availability
26
Brace, Pantry (2) MAY 12227301WD Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
MAY 12812303 MAY 12812303 Contact Us For Availability
27
MAY 12812304 MAY 12812304 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
TRACK, PANTRY MAY 12531901 Contact Us For Availability
28
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
28
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 5, 12, 17, & 27) ( MAY W10134623 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
Screw, Block MAY 12990303 Contact Us For Availability
29
MAY W10149390 MAY W10149390 Contact Us For Availability
29
MAY W10149391 MAY W10149391 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
30
Hinge, Center (RT) (Black) MAY 13000002ED Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
Slide, Control MAY 13048401 Contact Us For Availability
31
Shaft MAY 12812905WD Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
Endcap, Pantry (Right) MAY 13047701 Contact Us For Availability
31
Endcap, Pantry (Left) MAY 13047801 Contact Us For Availability
32
Gear (Right) MAY W10146446 Contact Us For Availability
32
Gear (Left) MAY W10158749 Contact Us For Availability
32
Screw (4) MAY 12990504 Contact Us For Availability
33
Rack, Side (Left) MAY W10216619 Contact Us For Availability
33
Rack, Side (Right) MAY W10216620 Contact Us For Availability
33
GLIDE, PANTRY (2) MAY 13058101V Contact Us For Availability
34
Screw (4) MAY 12990512 Contact Us For Availability
35
Bar, Temp Cont. MAY 13048201 Contact Us For Availability
36
KNOB, CONTROL MAY 12655204V Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656820 MAY 12656820 Contact Us For Availability
39
Divider, Pantry MAY 13048601SP Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
Harness, Controls (Refrigerator) MAY W10216622 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
