Model Whirlpool AF122 FREEZER – Common Parts & Diagrams

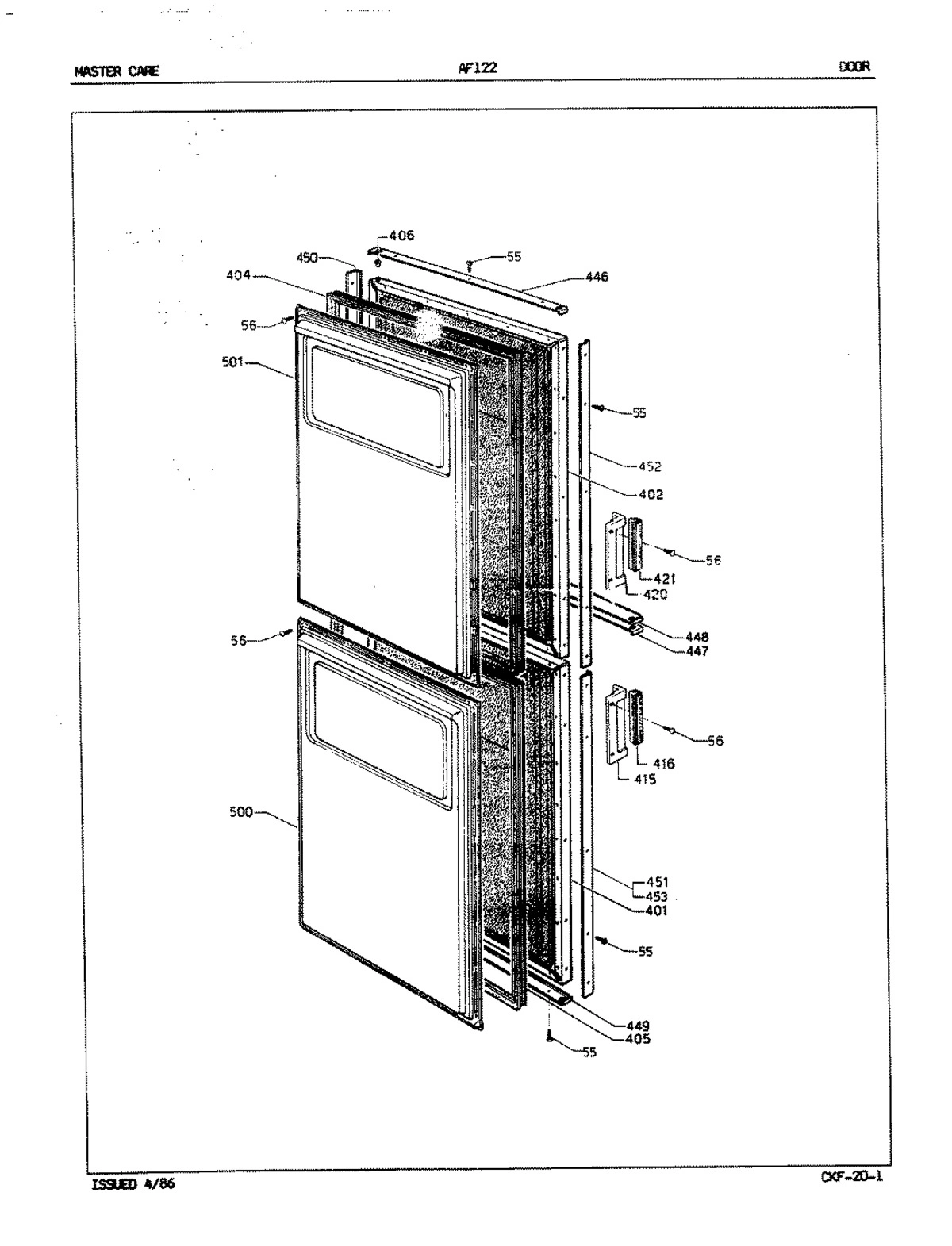

01 - DOOR

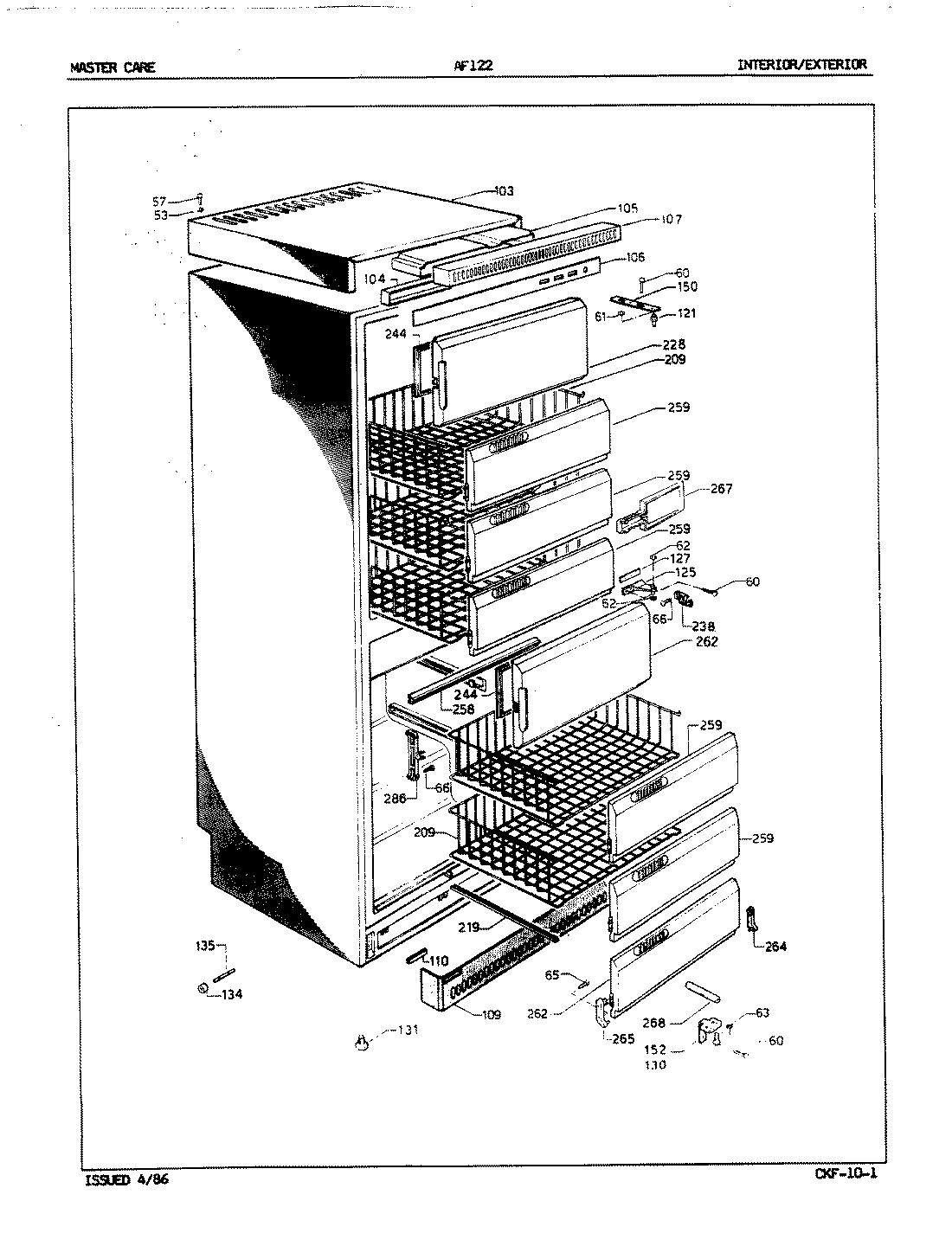

02 - INTERIOR/EXTERIOR

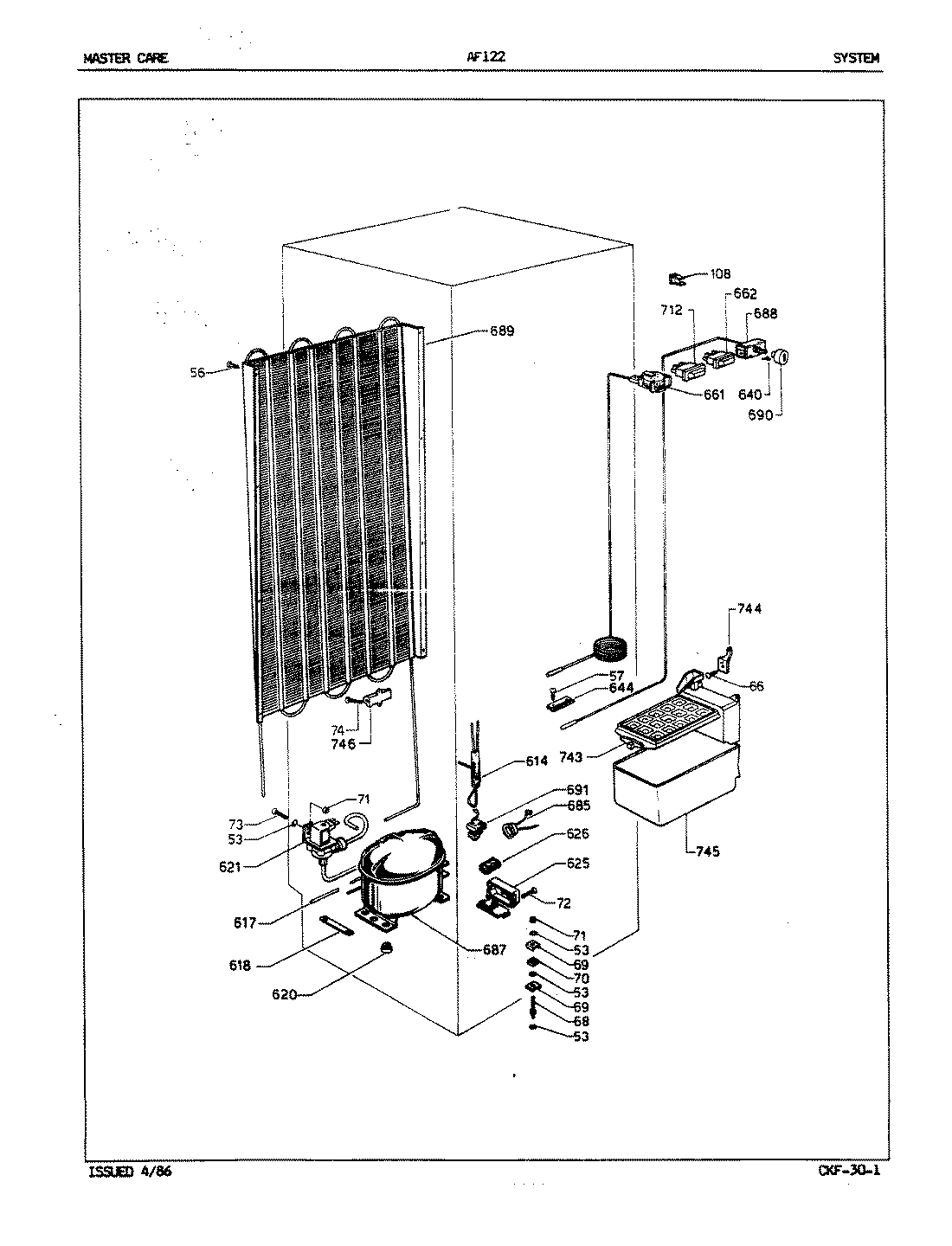

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool AF122 FREEZER
53
SCREW WPL 043745 Contact Us For Availability
53
LOCKWASHER WPL 042712 Contact Us For Availability
60
SCREW WPL 116979 Contact Us For Availability
61
WASHER WPL 042713 Contact Us For Availability
62
WASHER WPL 086454 Contact Us For Availability
63
WASHER WPL 042393 Contact Us For Availability
65
SCREW WPL 043689 Contact Us For Availability
66
SCREW WPL 043691 Contact Us For Availability
68
SCREW WPL 042048 Contact Us For Availability
69
NUT WPL 044199 Contact Us For Availability
70
NUT WPL 042235 Contact Us For Availability
71
NUT WPL 044020 Contact Us For Availability
72
SCREW WPL 042241 Contact Us For Availability
73
SCREW WPL 042402 Contact Us For Availability
74
SCREW WPL 043652 Contact Us For Availability
103
CABINET TOP WPL 059599 Contact Us For Availability
104
CNTRL MTG PANEL WPL 116336 Contact Us For Availability
105
CONTROL SHIELD WPL 114302 Contact Us For Availability
106
CONTROL PANEL WPL 116283 Contact Us For Availability
107
GRILLE WPL 116296 Contact Us For Availability
108
GRILLE CATCH WPL 111522 Contact Us For Availability
109
KICKPLATE WPL 059776 Contact Us For Availability
110
BASE CAP WPL 059554 Contact Us For Availability
121
HINGE PIN WPL 114277 Contact Us For Availability
125
HINGE WPL 112273 Contact Us For Availability
127
HINGE GASKET WPL 112710 Contact Us For Availability
130
HINGE PIN WPL 058304 Contact Us For Availability
131
LEVELER WPL 067370 Contact Us For Availability
134
CABINET WHEEL WPL 059558 Contact Us For Availability
135
WHEEL PIN WPL 059542 Contact Us For Availability
150
RH TOP HINGE WPL 116100 Contact Us For Availability
152
HINGE WPL 059536 Contact Us For Availability
209
REMOVABL BASKET WPL 113791 Contact Us For Availability
219
BASKET TRIM WPL 085712 Contact Us For Availability
228
EVAP DOOR WPL 116247 Contact Us For Availability
238
EVAP DOOR HINGE WPL 115104 Contact Us For Availability
244
EVAP DOOR LINER WPL 115019 Contact Us For Availability
258
FRZR COMP TRIM WPL 111762 Contact Us For Availability
259
DRAWER PANEL WPL 114642 Contact Us For Availability
262
BOTTOM DOOR WPL 116311 Contact Us For Availability
264
RH DOOR HINGE WPL 115858 Contact Us For Availability
265
LH DOOR HINGE WPL 115856 Contact Us For Availability
267
SCRAPER WPL 112178 Contact Us For Availability
268
DRAIN HOSE WPL 086644 Contact Us For Availability
286
DOOR CATCH WPL 115009 Contact Us For Availability
401
OUTER PANEL WPL 059608 Contact Us For Availability
402
OUTER PANEL WPL 111767 Contact Us For Availability
405
DOOR GASKET WPL 059584 Contact Us For Availability
406
HINGE BUSHING WPL 083110 Contact Us For Availability
420
DOOR HANDLE WPL 111968 Contact Us For Availability
421
HANDLE INSERT WPL 116244 Contact Us For Availability
453
TRIM WPL 117172 Contact Us For Availability
477
TRIM WPL 117173 Contact Us For Availability
500
INNER PANEL WPL 059756 Contact Us For Availability
501
INNER PANEL WPL 111987 Contact Us For Availability
614
DRIER WPL Y083356 Contact Us For Availability
617
FILL PIPE WPL 082124 Contact Us For Availability
618
COMPR MTG PLATE WPL 083854 Contact Us For Availability
620
COMP MTG GROMMT WPL 083543 Contact Us For Availability
621
VALVE, WATER WPL 601841 Contact Us For Availability
625
COVER & BASE WPL 087636 Contact Us For Availability
626
JUNCTION BOX WPL 084445 Contact Us For Availability
640
KNOB SPRING WPL 082792 Contact Us For Availability
644
BULB CLAMP WPL 110818 Contact Us For Availability
661
THERMOMETER WPL 116505 Contact Us For Availability
662
SWITCH WPL 116306 Contact Us For Availability
685
PROTECTOR WPL 059462 Contact Us For Availability
687
COMPRESSOR WPL 059632 Contact Us For Availability
688
TEMP CONTROL WPL 059587 Contact Us For Availability
689
CONDENSER WPL 111763 Contact Us For Availability
690
TEMP CONTROL KNOB WPL 114404 Contact Us For Availability
691
RELAY WPL 059463 Contact Us For Availability
712
PILOT LAMP ASM WPL 116304 Contact Us For Availability
712
ICEMAKER MECH WPL RA437149 Contact Us For Availability
743
Z TUBE,ICEMAKER WPL 023320 Contact Us For Availability
743
SENSOR ARM WPL 523071 Contact Us For Availability
743
SPOUT, FILL WPL 537481 Contact Us For Availability
743
RING, RETAINER WPL 587061 Contact Us For Availability
743
TRAY, ICE WPL 596881 Contact Us For Availability
743
SPACER WPL 653171 Contact Us For Availability
743
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
743
SHAFT, DRIVE WPL 653191 Contact Us For Availability
744
SPACER WPL 116288 Contact Us For Availability
745
ICEMAKER BIN WPL 116293 Contact Us For Availability
746
IM SOCKET WPL 116303 Contact Us For Availability
× ![]()
