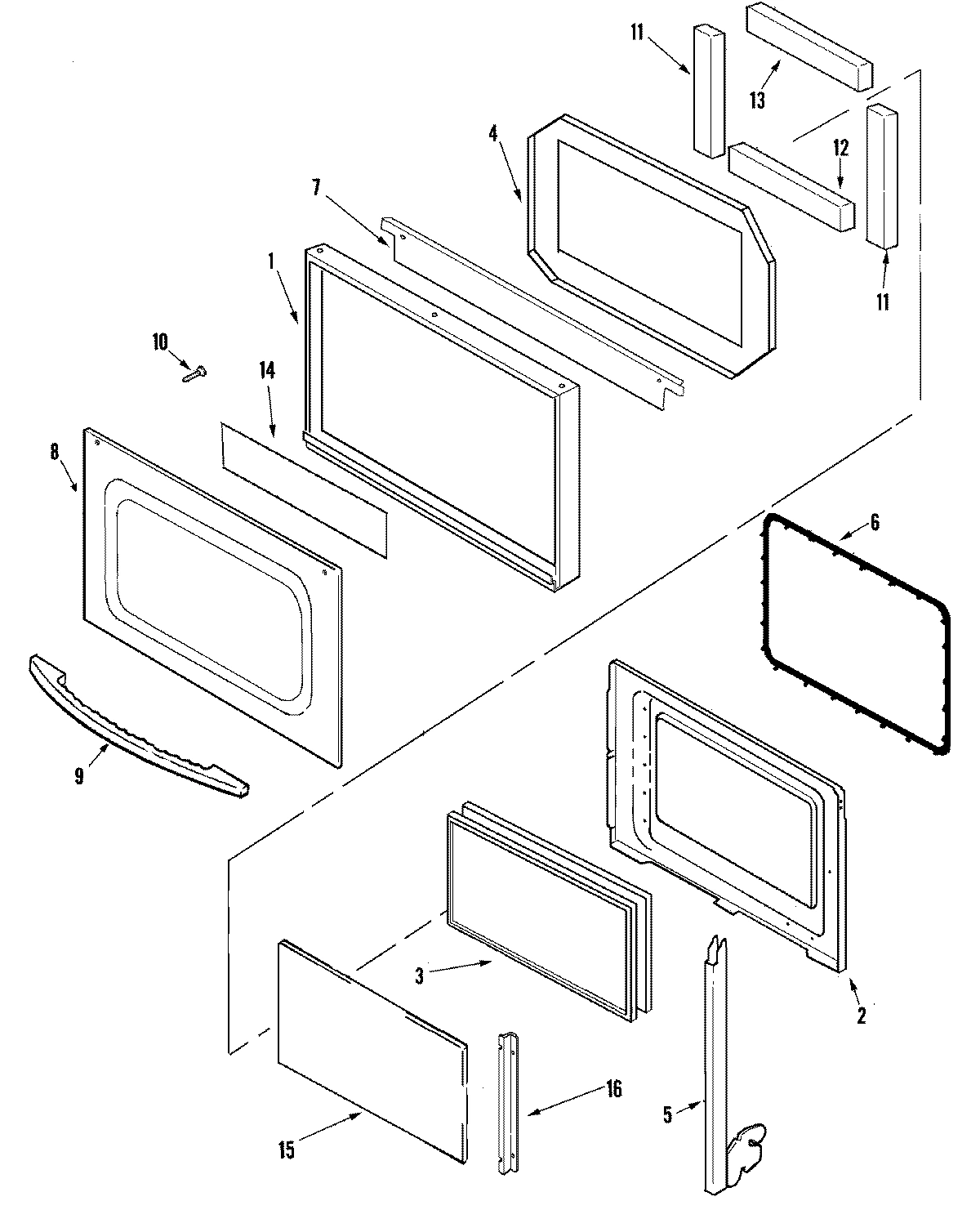

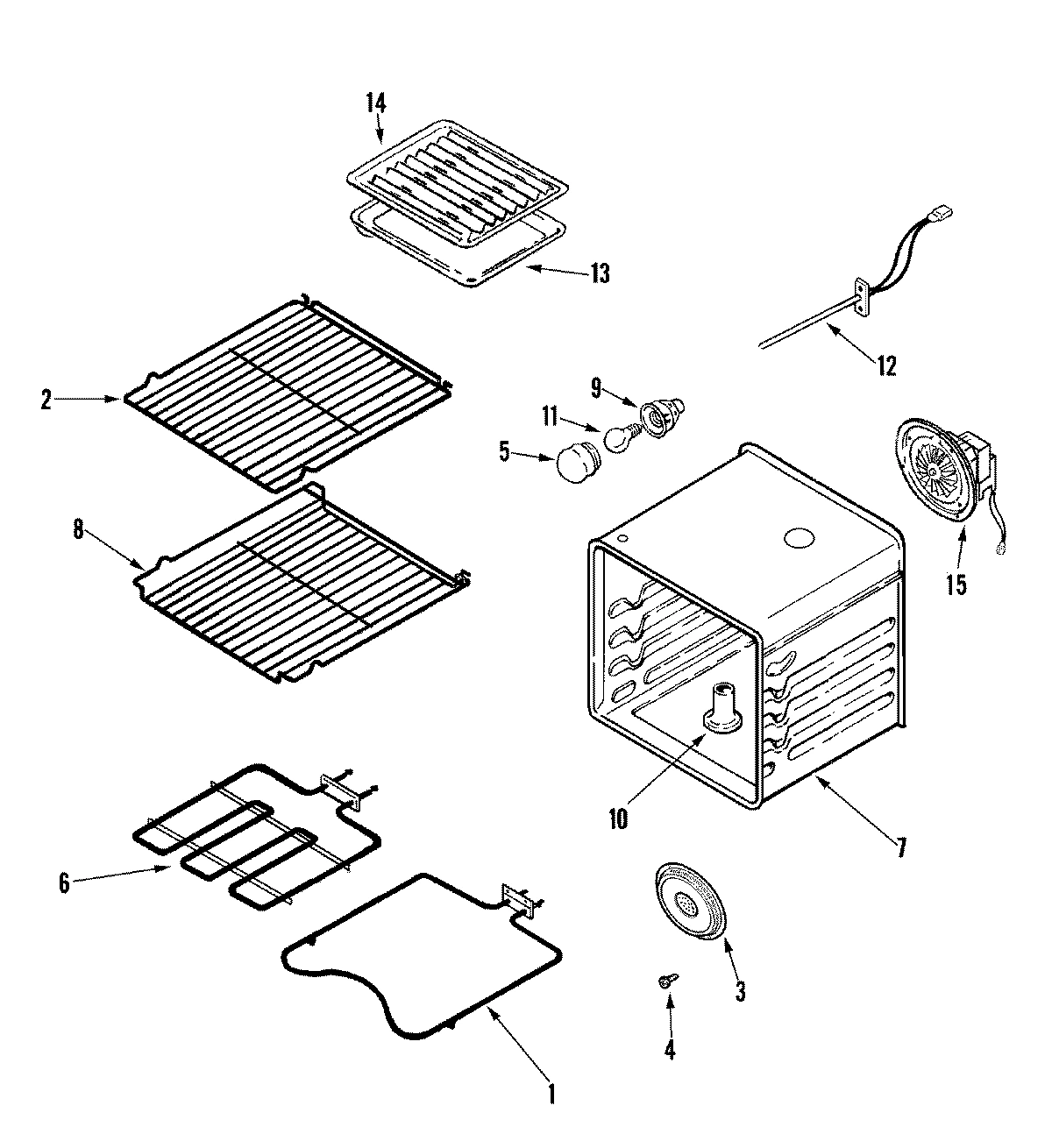

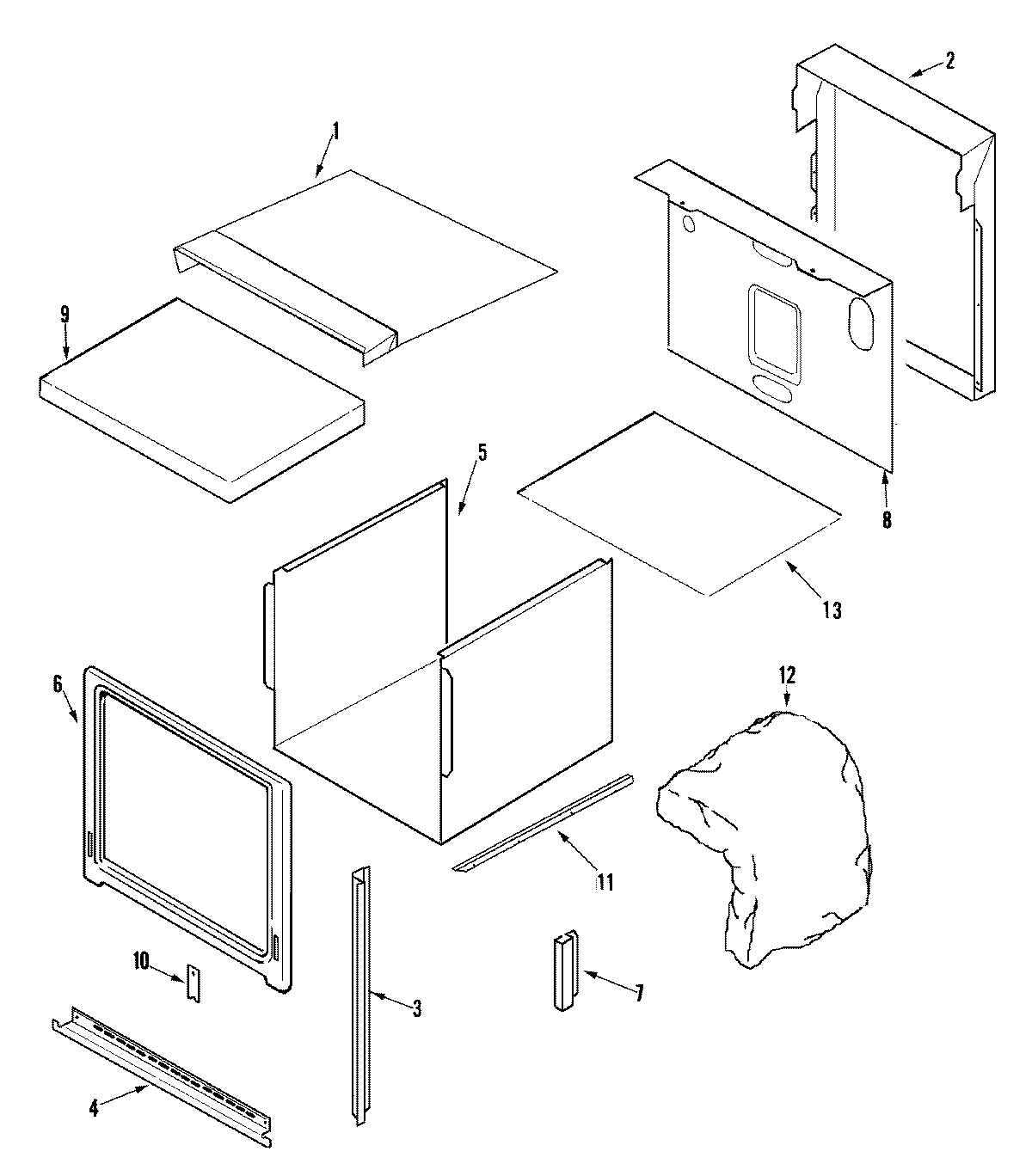

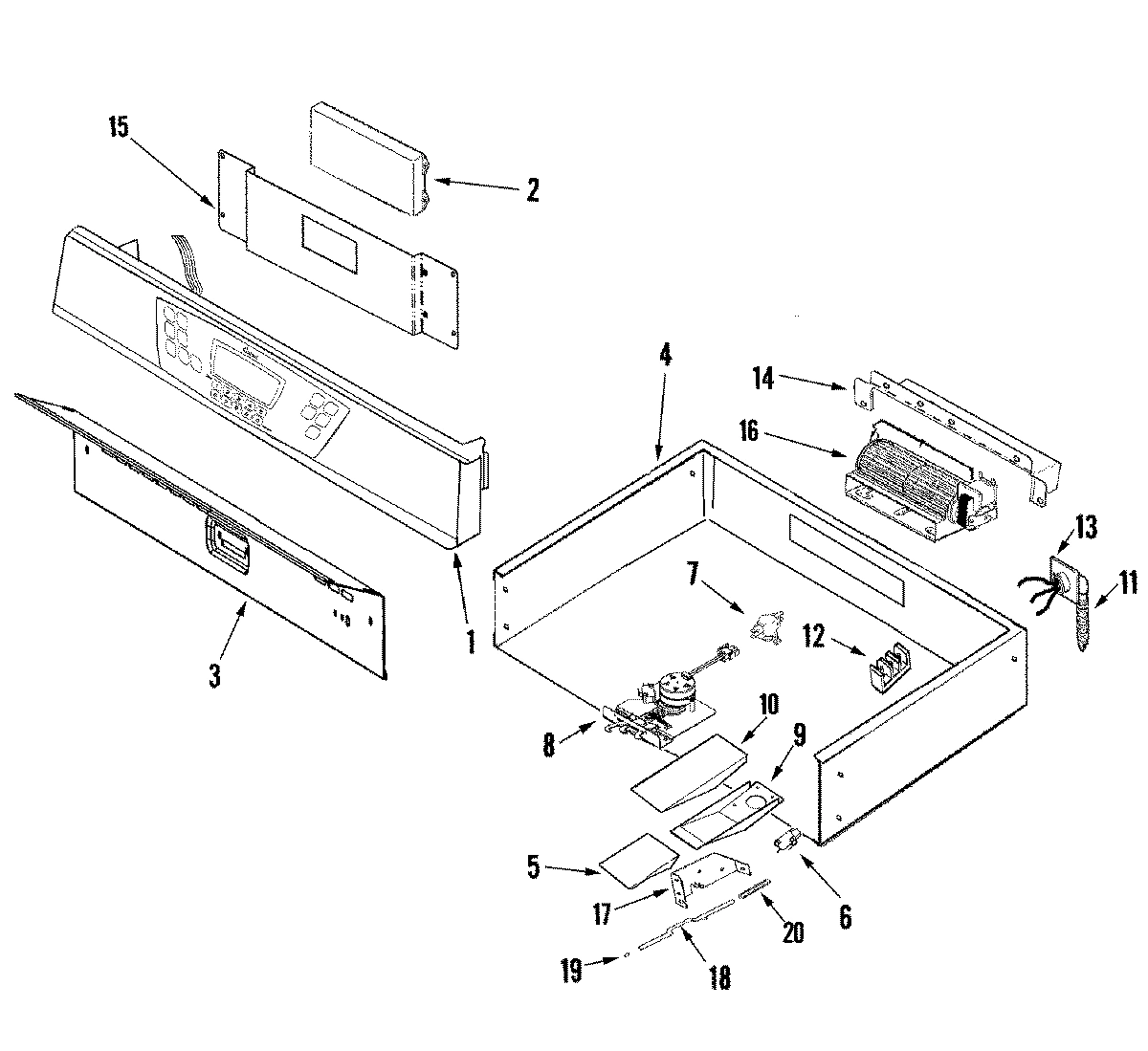

Model Whirlpool AEW4530DDW ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

HARNESS, H1 LOCK & SENSOR WPL 74008295 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74008258 Contact Us For Availability

1

TOP (OUTER) WPL 74008271 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $78.34

2

HARNESS, MAIN WIRE W/FILTER WPL 74008316 Contact Us For Availability

2

INSULATION WPL 74008268 Contact Us For Availability

2

CONTROL, H1 (CLOCK-CONVECT) WPL 74008313 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

3

MANUAL, USE & CARE WPL 74008314 Contact Us For Availability

3

MANUAL, USE & CARE WPL 8112P32360 Contact Us For Availability

3

MANUAL, USE & CARE WPL W10169638 Contact Us For Availability

3

TRIM, CONTROL PANEL WPL 74008261 Contact Us For Availability

3

COVER, CONVECT FAN WPL 74008315 Contact Us For Availability

3

TRIM, SIDE (WHT) WPL 74008310 Contact Us For Availability

4

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

4

PANEL, TOP (INR) WPL 74008262 Contact Us For Availability

4

SCREW WPL 71001827 Contact Us For Availability

4

TRIM, OVEN (LWR-WHT) WPL 74005644 Contact Us For Availability

5

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $45.28

5

EXTENSION, VENT WPL 71001843 Contact Us For Availability

5

PANEL, SIDE WPL 74008275 Contact Us For Availability

6

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.14

6

INSULATOR WPL 74008264 Contact Us For Availability

6

SCREW WPL 71001395 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

BUMPER, RUBBER WPL 74009646 Contact Us For Availability

7

74008265 Whirlpool Oven High Limit Thermostat Backorder WPL 74008265 $85.09

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $154.88

7

BRACKET, HANDLE WPL 74008284 Contact Us For Availability

7

CLIP, OVEN WPL 71001170 Contact Us For Availability

7

OVEN WELD ASSY. WPL 74008329 Contact Us For Availability

8

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $206.50

8

GLASS, OUTER DOOR (WHT) WPL 74008325 Contact Us For Availability

8

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

8

PANEL, BACK INSULATION RETAIN WPL 74008276 Contact Us For Availability

9

HANDLE, DOOR (WHT) WPL 74008322 Contact Us For Availability

9

SPACER, HANDLE WPL 8010P07360 Contact Us For Availability

9

VENT (BTM) WPL 74008294 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

INSULATION (BACK/TOP) WPL 74008279 Contact Us For Availability

74008302 Whirlpool Oven Washer Backorder WPL 74008302 $4.79

WP74005233 Whirlpool Screw Backorder WPL WP74005233 $2.60

VENT (TOP) WPL 71001847 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

5700P829-60 Whirlpool Wire Harness Backorder WPL 5700P829-60 $240.86

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

INSULATION, DOOR (SIDE) WPL 74008285 Contact Us For Availability

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

BOTTOM, BRACE WPL 74008280 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

74008286 Whirlpool Oven Door Insulation (Bott Backorder WPL 74008286 $6.46

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $3.80

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability

INSULATION (WRAP) WPL 74008278 Contact Us For Availability

74008287 Whirlpool Oven Door Top Insulation Backorder WPL 74008287 $6.23

BRACKET, CABLE WPL 74004712 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

INSULATION (BTM) WPL 71003614 Contact Us For Availability

HEAT SHIELD, DOOR WPL 74008288 Contact Us For Availability

BRACKET, COOLING FAN MOUNTING WPL 74008330 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

3801F834-51 Whirlpool Bracket Backorder WPL 3801F834-51 $5.93

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

GLASS, INNER W/TAPE WPL 74008336 Contact Us For Availability

FAN ASSEMBLY, CONVECTION WPL 74008317 Contact Us For Availability

FAN MOTOR ASSY. WPL 74008269 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

FAN MOTOR ASSY. WPL 74009596 Contact Us For Availability

CLAMP, RESISTOR WPL 74009597 Contact Us For Availability

RESISTOR ASSY. WPL 74009598 Contact Us For Availability

17

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

18

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $64.11

18

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

19

COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability

20

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

NI

W10759523 Whirlpool Screw Backorder WPL W10759523 $2.47

NI

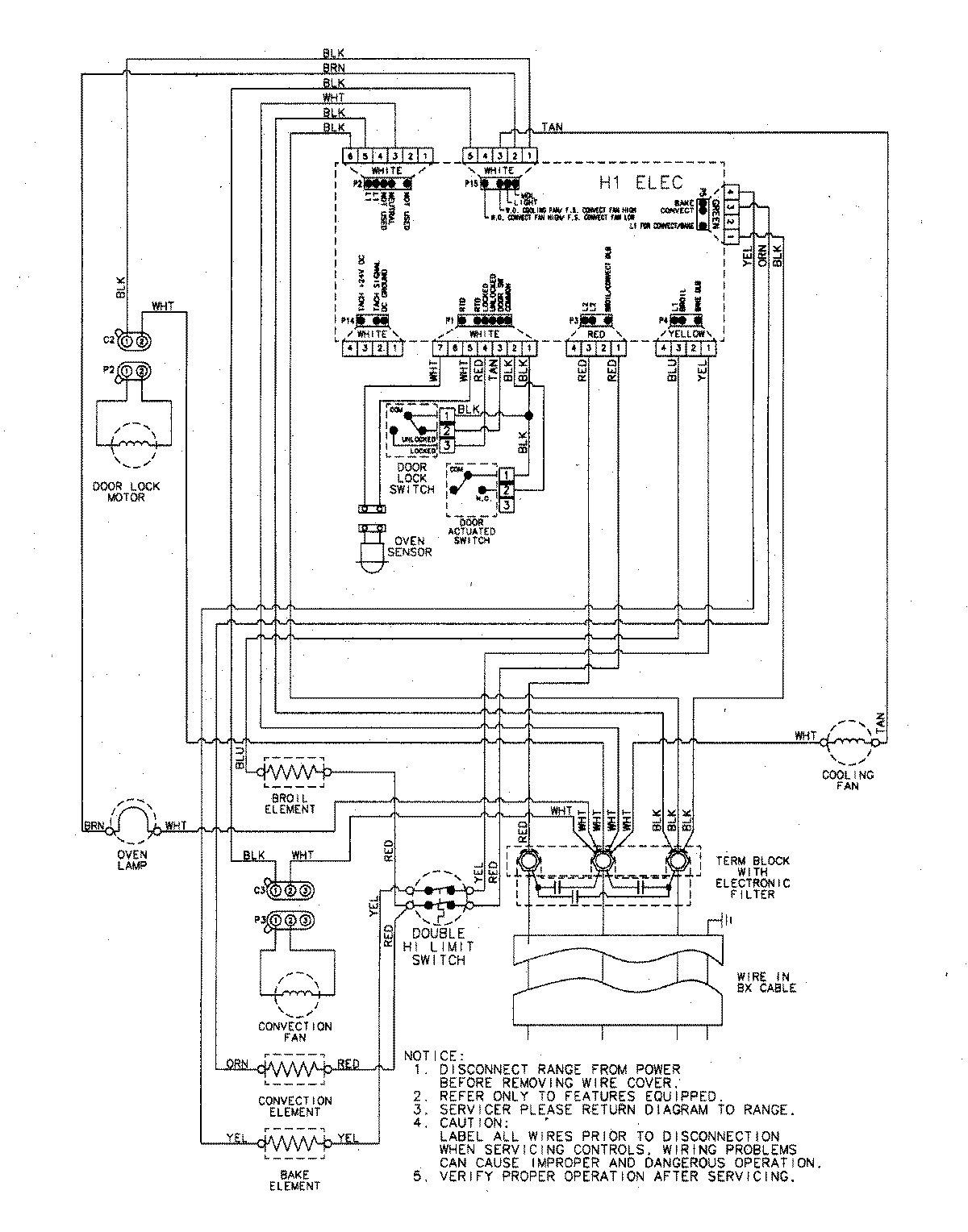

WIRING INFORMATION WPL 15003252 Contact Us For Availability

NI

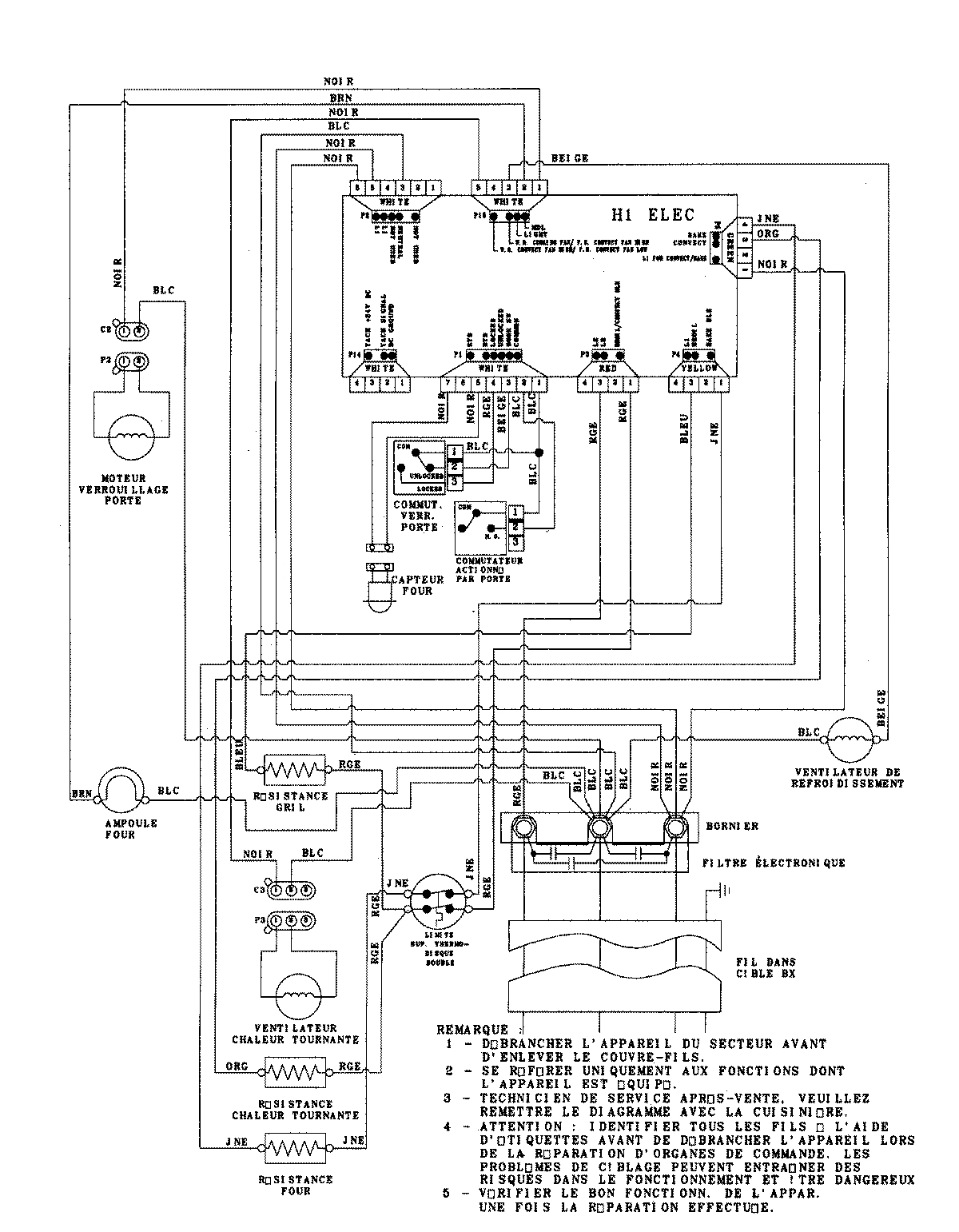

WIRING INFORMATION (FRC) WPL 15003253 Contact Us For Availability
