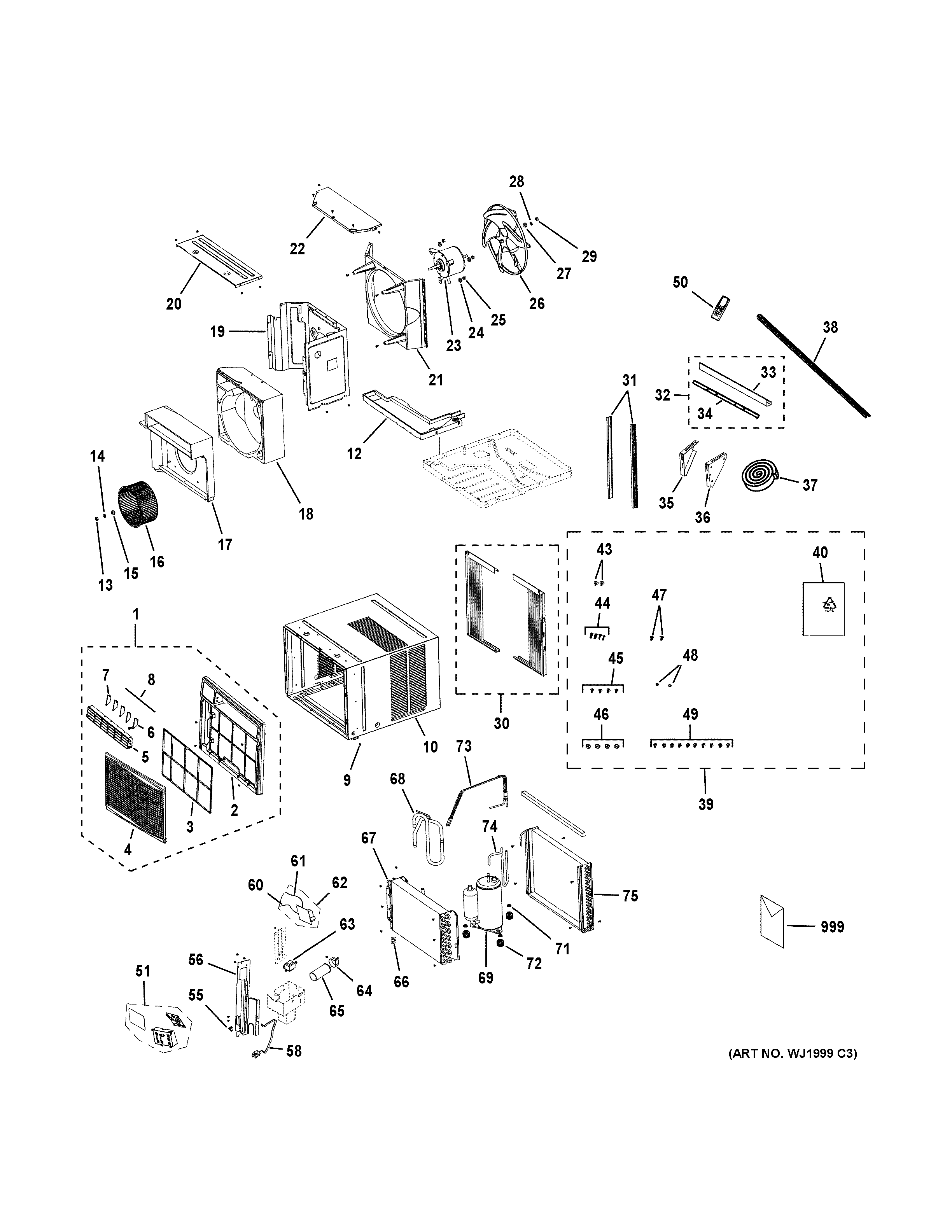

Model GE AEW18DNH1 – Common Parts & Diagrams
ROOM AIR CONDITIONER
Common parts from model GE AEW18DNH1
3
FILTER SUB-ASSY GEN WJ71X10668 Contact Us For Availability
8
LINK VERTICAL LOUVER GEN WJ71X10669 Contact Us For Availability
9
SELF-TAPPING SCREW GEN WJ01X10352 Contact Us For Availability
10
CABINET ASSY GEN WJ90X10126 Contact Us For Availability
12
FOAM (WATER TRAY) GEN WJ05X10054 Contact Us For Availability
13
NUT - WASHER GEN WJ01X10265 Contact Us For Availability
14
WASHER GEN WJ01X10266 Contact Us For Availability
15
GASKET (DIA 10MM) GEN WJ43X10075 Contact Us For Availability
16
CENTRIFUGAL FAN GEN WJ73X10204 Contact Us For Availability
17
FOAM (AIR OUTLET) GEN WJ76X10307 Contact Us For Availability
18
PROPELLER HOUSING GEN WJ76X10308 Contact Us For Availability
19
MOTOR SUPPORTING GEN WJ82X10061 Contact Us For Availability
20
TOP COVER GEN WJ79X10215 Contact Us For Availability
21
CONDENSER COVER GEN WJ79X10216 Contact Us For Availability
22
TOP COVER (REAR) GEN WJ79X10217 Contact Us For Availability
23
FAN MOTOR GEN WJ95X10027 Contact Us For Availability
24
SPRING WASHER(DIA 6MM) GEN WJ01X10373 Contact Us For Availability
25
NUT GEN WJ01X10329 Contact Us For Availability
26
AXIAL FLOW FAN GEN WJ73X10190 Contact Us For Availability
27
GASKET (DIA 8MM) GEN WJ43X10076 Contact Us For Availability
28
GASKET (DIA 8MM) GEN WJ43X10077 Contact Us For Availability
29
NUT (M8)(LEVO) GEN WJ01X10374 Contact Us For Availability
30
CURTAIN ASM GEN WJ69X10018 Contact Us For Availability
31
SUPPORT TO CABINET GEN WJ68X10065 Contact Us For Availability
32
TOP GUIDE SUB-ASSY GEN WJ14X10087 Contact Us For Availability
34
FORM GASKET GEN WJ43X10078 Contact Us For Availability
36
BRKT, CASE MOUNT RH GEN WJ67X10003 Contact Us For Availability
37
FORM GASKET 1 GEN WJ43X10079 Contact Us For Availability
38
FORM GASKET 2 GEN WJ43X10080 Contact Us For Availability
39
HARDWARE ASM, INSTALL GEN WJ01X10376 Contact Us For Availability
40
PLASTIC BAG GEN WJ01X10350 Contact Us For Availability
43
BOLT M6X19 GEN WJ05X10056 Contact Us For Availability
44
SCREW GEN WJ01X10351 Contact Us For Availability
45
BOLT M5X13 GEN WJ05X10057 Contact Us For Availability
46
NUT M5X5 GEN WJ01X10377 Contact Us For Availability
47
SCREW GEN WJ01X10414 Contact Us For Availability
48
NUT M6X6 GEN WJ01X10378 Contact Us For Availability
49
SCREW M4.8X8 GEN WJ01X10379 Contact Us For Availability
51
PCB BOX SUB-ASM GEN WJ27X10136 Contact Us For Availability
55
CABLE CLAMP GEN WJ03X10077 Contact Us For Availability
56
ELEC BOX SUPPORTING GEN WJ05X10058 Contact Us For Availability
58
POWER CORD GEN WJ35X10165 Contact Us For Availability
60
THERMOSTAT GEN WJ27X10122 Contact Us For Availability
61
TUBE SENSOR GEN WJ27X10135 Contact Us For Availability
62
MAIN BOARD GEN WJ26X10347 Contact Us For Availability
63
TRANSFORMER GEN WJ27X10072 Contact Us For Availability
64
CAPACITOR CLAMP GEN WJ02X10034 Contact Us For Availability
65
CAPACITOR GEN WJ20X10186 Contact Us For Availability
66
SENSOR SUPPRT GEN WJ02X10036 Contact Us For Availability
67
EVAPORATOR ASM GEN WJ88X10241 Contact Us For Availability
68
SUCTION PIPE GEN WJ57X10032 Contact Us For Availability
69
COMPRESSOR AND FITTINGS GEN WJ98X10297 Contact Us For Availability
71
NUT WITH WASHER M8 GEN WJ01X10335 Contact Us For Availability
72
RUBBER GROMMET GEN WJ01X10421 Contact Us For Availability
73
CAPILLARY SUB-ASM GEN WJ53X10233 Contact Us For Availability
74
DISCHARGE TUBE GEN WJ49X10031 Contact Us For Availability
75
CONDENSER ASSY GEN WJ88X10223 Contact Us For Availability
999
MINI MANUAL GEN 3161609 Contact Us For Availability
999
PM OWNERS MANUAL GEN 497646 Contact Us For Availability
× ![]()
