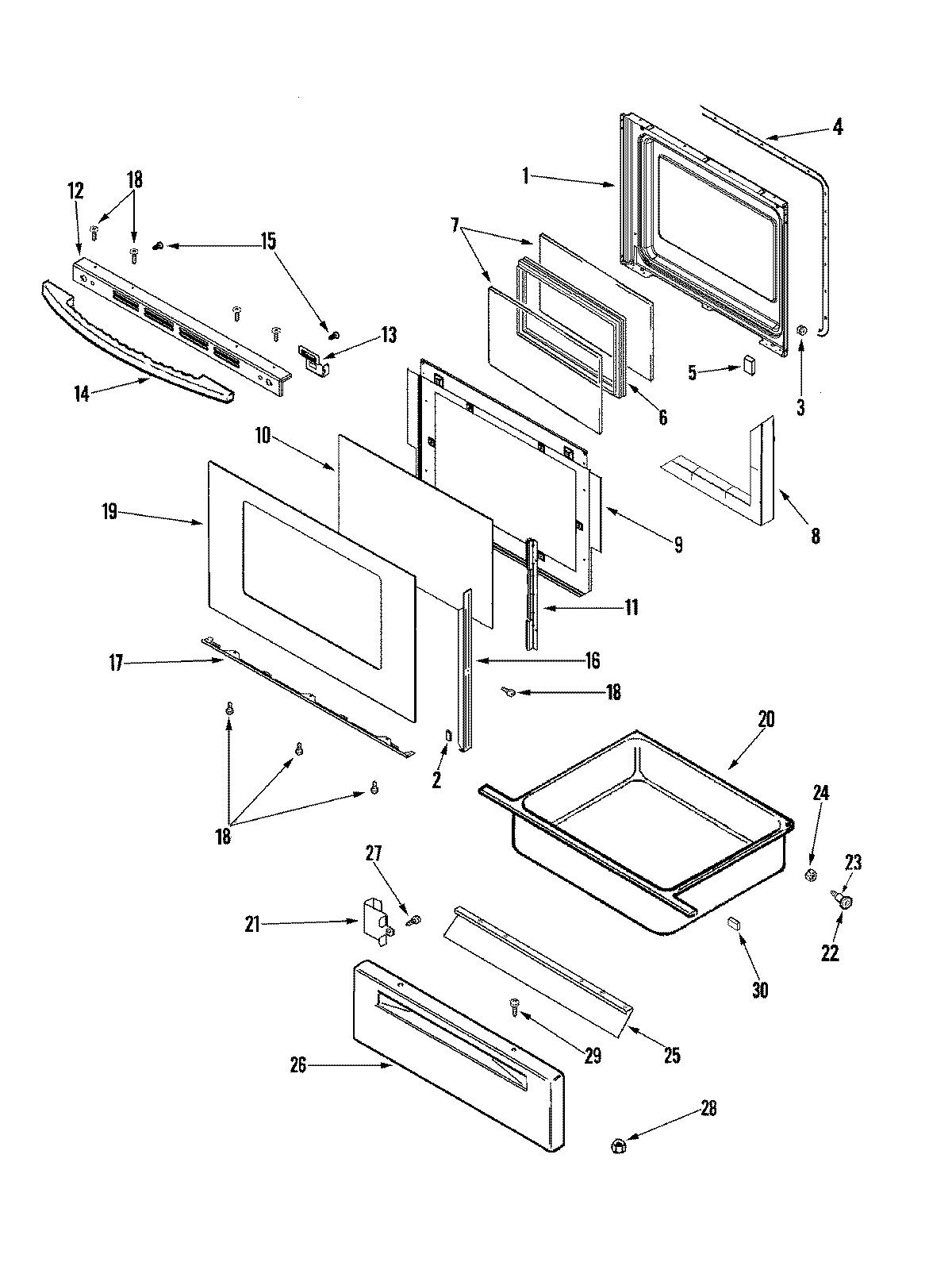

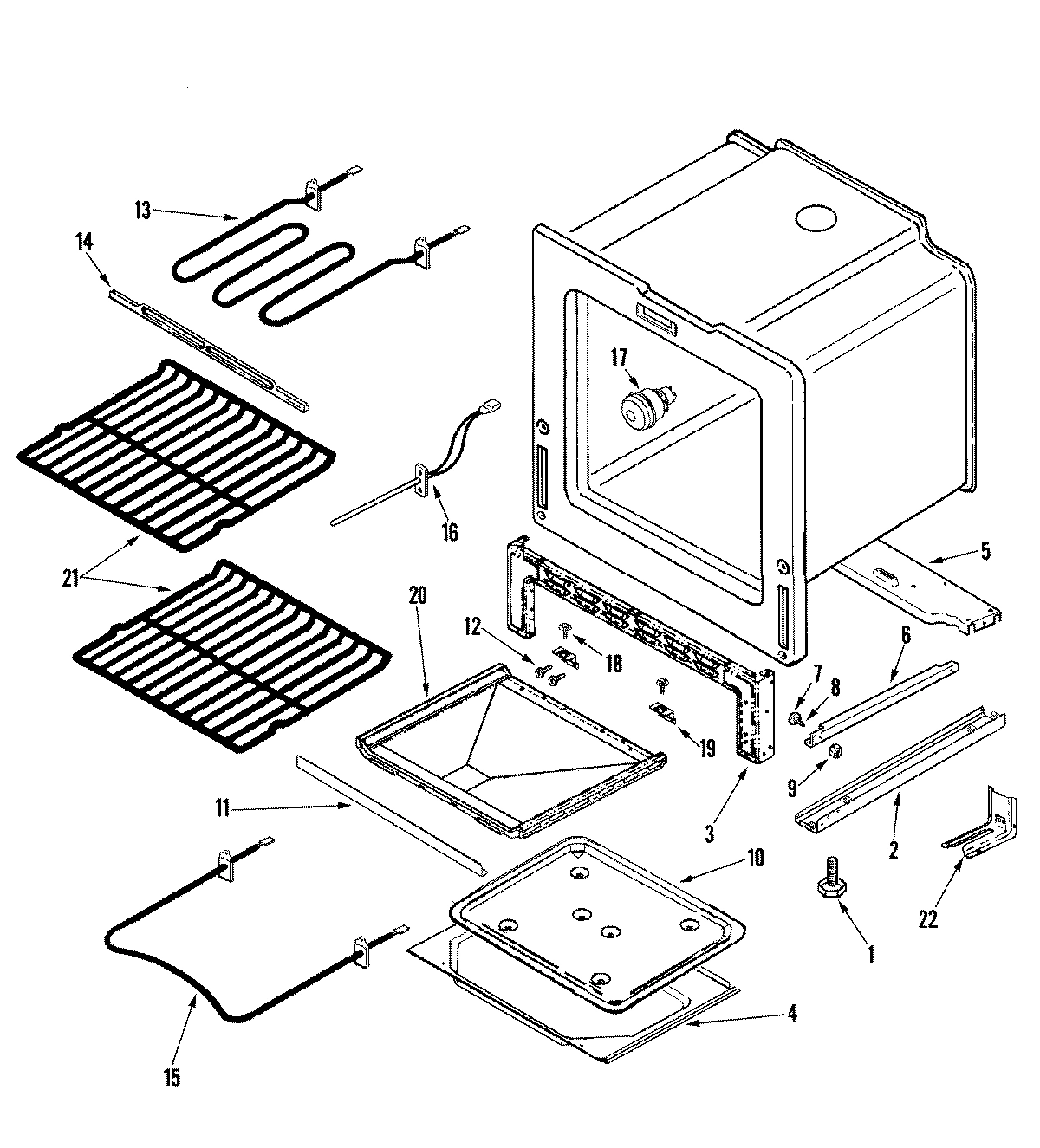

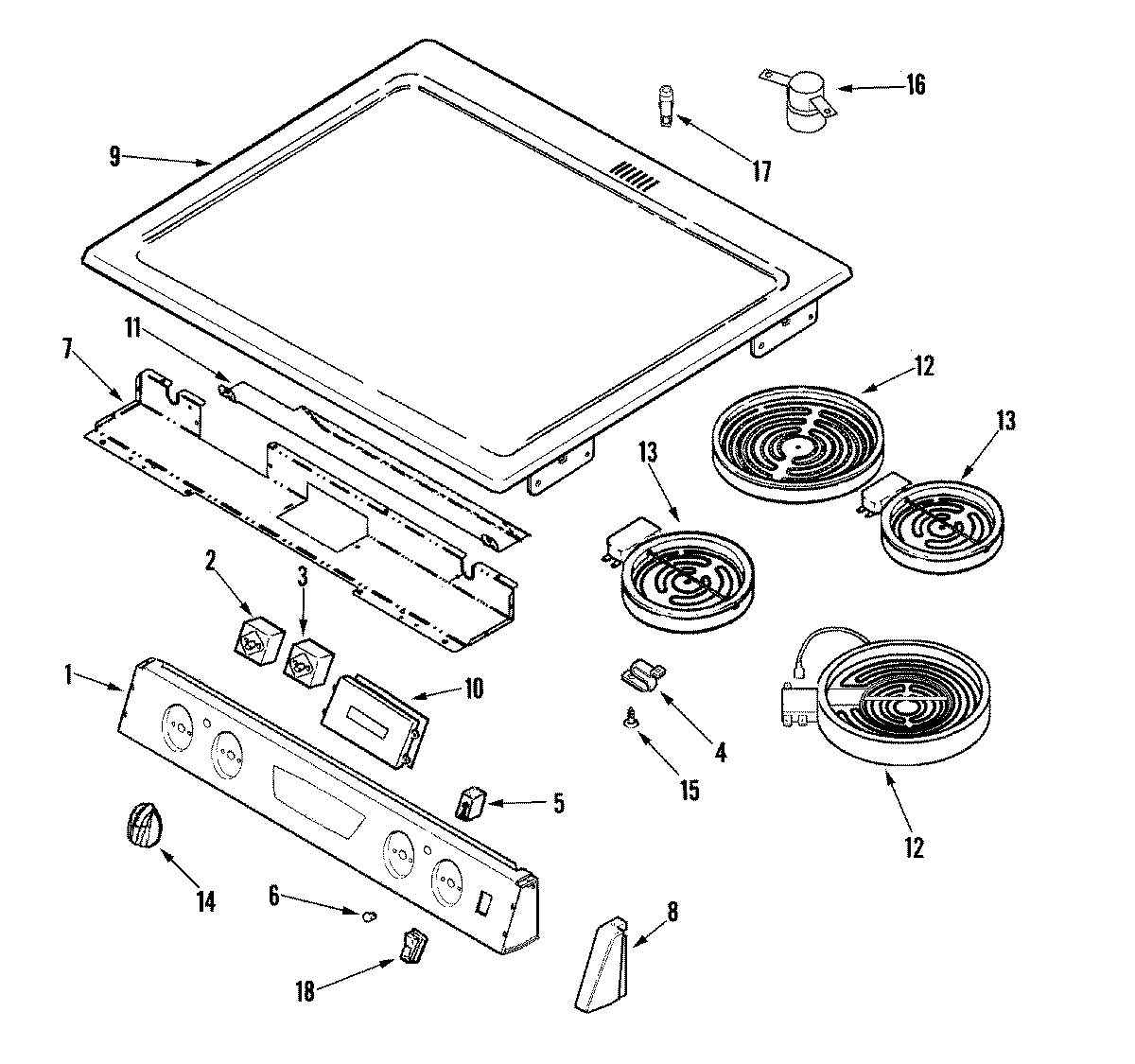

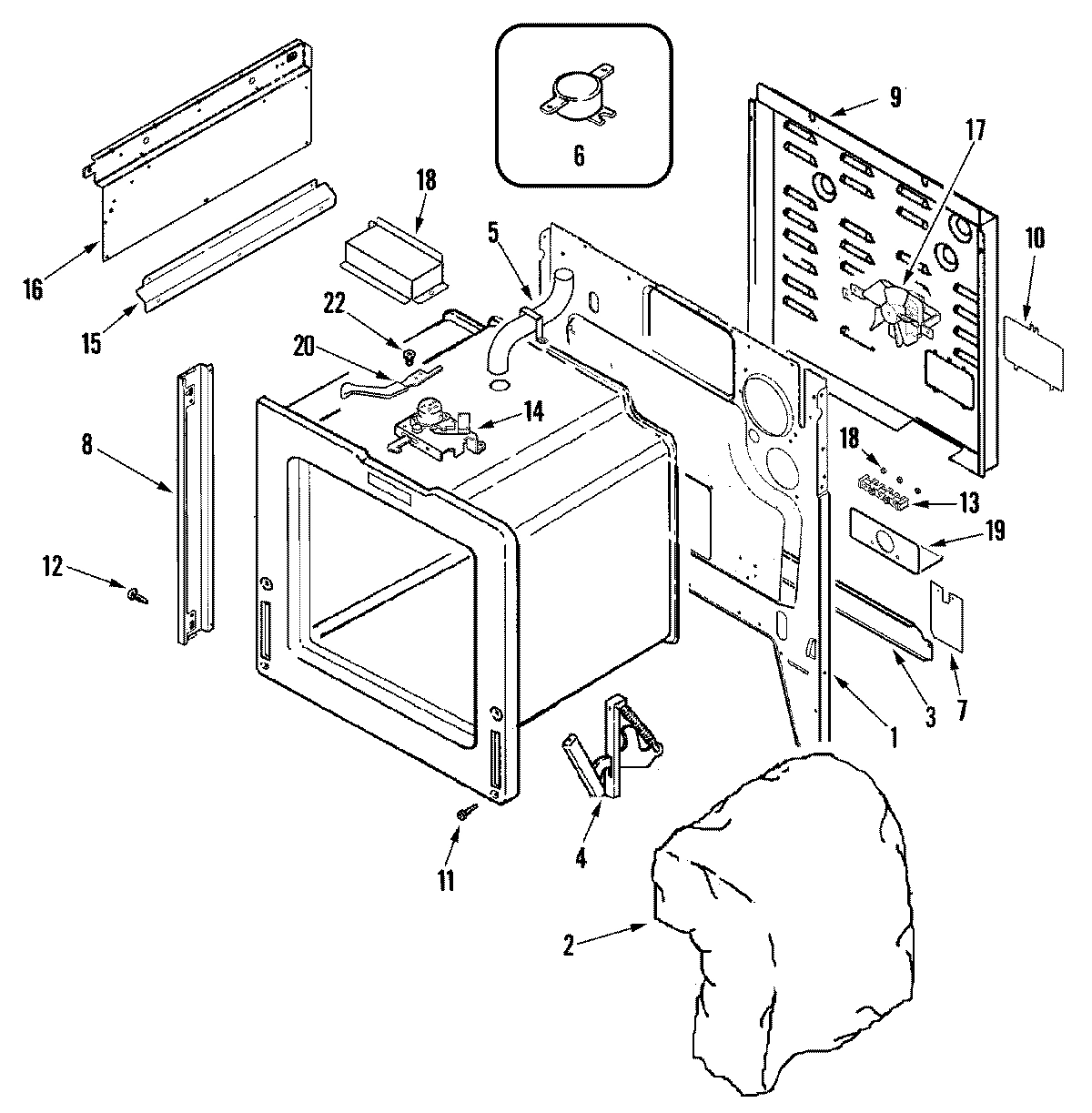

Model Whirlpool AES3760BAB ELECTRIC RANGE – Common Parts & Diagrams

1
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8113P50360 Contact Us For Availability
View on Model
1
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8113P55060 Contact Us For Availability
View on Model
1
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8113P76960 Contact Us For Availability
View on Model
1
PANEL, CONTROL (BLK)
PANEL, CONTROL (BLK) WPL 74011231 Contact Us For Availability
View on Model
1
BACK, MAIN
BACK, MAIN WPL 74010949 Contact Us For Availability
View on Model
1
LINING, DOOR
LINING, DOOR WPL 74003642 Contact Us For Availability
View on Model
2
HARNESS, MAIN
HARNESS, MAIN WPL 74011229 Contact Us For Availability
View on Model
2
SWITCH, INFINITE (SML ELEMENT)
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
View on Model
2
INSULATION, WRAPPER
INSULATION, WRAPPER WPL 74010813 Contact Us For Availability
View on Model
2
TAPE, SINGLE SIDED (WHT)
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 7101P30960 Contact Us For Availability
View on Model
3
SWITCH, INFINITE (LRG ELEMENT)
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
View on Model
3
EXTENSION, MAIN BACK
EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability
View on Model
4
HARNESS, SWITCH (LT)
HARNESS, SWITCH (LT) WPL 74011091 Contact Us For Availability
View on Model
4
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability
View on Model
4
GASKET, DOOR
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
View on Model
5
HARNESS, TOP
HARNESS, TOP WPL 74011230 Contact Us For Availability
View on Model
5
TUBE, VENT
TUBE, VENT WPL 74010816 Contact Us For Availability
View on Model
5
HOLDER, VENT TUBE
HOLDER, VENT TUBE WPL 74010817 Contact Us For Availability
View on Model
6
KIT, EXTRUSION FILLER (BLK)
KIT, EXTRUSION FILLER (BLK) WPL K71FILLB Contact Us For Availability
View on Model
6
LENS, INDICATOR LIGHT
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
View on Model
6
FRAME, GLASS
FRAME, GLASS WPL 74003644 Contact Us For Availability
View on Model
7
KIT, SIDE PANEL (BLK)
KIT, SIDE PANEL (BLK) WPL UXA1100AAB Contact Us For Availability
View on Model
7
SUPPORT, MANIFOLD PANEL
SUPPORT, MANIFOLD PANEL WPL 74004785 Contact Us For Availability
View on Model
7
INSULATOR, POWER CORD
INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability
View on Model
8
NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE
NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE WPL W10124350 Contact Us For Availability
View on Model
8
PLUG, SIDE TRIM (BLK)
PLUG, SIDE TRIM (BLK) WPL 74011434 Contact Us For Availability
View on Model
8
CAP, END (BLK-RT)
CAP, END (BLK-RT) WPL 74010834 Contact Us For Availability
View on Model
8
CAP, END (BLK-LT)
CAP, END (BLK-LT) WPL 74010835 Contact Us For Availability
View on Model
8
INSULATION, OVEN DOOR
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
View on Model
9
NUT, LOCK (8-32)
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
View on Model
9
TOP ASSEMBLY (BLK)
TOP ASSEMBLY (BLK) WPL 74010657 Contact Us For Availability
View on Model
9
BAFFLE, OVEN DOOR
BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability
View on Model
10
GLASS W/TAPE ASSY
GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability
View on Model
10
PAN, BAKE
PAN, BAKE WPL 74010806 Contact Us For Availability
View on Model
10
CLOCK/OVERLAY (BLK)
CLOCK/OVERLAY (BLK) WPL 74010691 Contact Us For Availability
View on Model
10
COVER, TERMINAL BLOCK
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
View on Model
11
COVER, FRONT
COVER, FRONT WPL 74010807 Contact Us For Availability
View on Model
11
SHIELD, CONTROL
SHIELD, CONTROL WPL 74010846 Contact Us For Availability
View on Model
11
SCREW
SCREW WPL 7101P11260 Contact Us For Availability
View on Model
11
RETAINER, GLASS
RETAINER, GLASS WPL 74003650 Contact Us For Availability
View on Model
12
SCREW W/WASHER
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
View on Model
12
TRIM, DOOR TOP (BLK)
TRIM, DOOR TOP (BLK) WPL 74009689 Contact Us For Availability
View on Model
13
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
View on Model
14
LATCH ASSEMBLY
LATCH ASSEMBLY WPL 74010897 Contact Us For Availability
View on Model
14
SUPPORT, BROIL ELEMENT
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
View on Model
14
HANDLE, DOOR (BLK)
HANDLE, DOOR (BLK) WPL 74008318 Contact Us For Availability
View on Model
15
EXTENSION, HEAT SHEILD
EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability
View on Model
16
TUBE, VENT (UPR)
TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability
View on Model
16
PANEL, SHIELD (LT)
PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability
View on Model
16
KIT, DOOR TRIM (BLK)
KIT, DOOR TRIM (BLK) WPL 12002359 Contact Us For Availability
View on Model
17
BULB-OVEN
BULB-OVEN WPL 7407P10360 Contact Us For Availability
View on Model
17
SUPPORT, GLASS (BLK)
SUPPORT, GLASS (BLK) WPL 74009686 Contact Us For Availability
View on Model
18
SWITCH, ROCKER (BLK)
SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability
View on Model
18
COVER, DOOR LATCH
COVER, DOOR LATCH WPL 74010845 Contact Us For Availability
View on Model
19
SUPPORT, OVEN BOTTOM
SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability
View on Model
19
KIT, DOOR GLASS (BLK)
KIT, DOOR GLASS (BLK) WPL 12002395 Contact Us For Availability
View on Model
20
LEVER, LATCH (BLK)
LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability
View on Model
20
DRAWER, STORAGE
DRAWER, STORAGE WPL 74008333 Contact Us For Availability
View on Model
21
NUT, TERMINAL BLOCK
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
View on Model
21
BRACKET, DRAWER
BRACKET, DRAWER WPL 74010896 Contact Us For Availability
View on Model
22
SCREW
SCREW WPL 7101P35260 Contact Us For Availability
View on Model
23
SHAFT, STORAGE DRAWER ROLLER
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
View on Model
24
NUT
NUT WPL 7103P08260 Contact Us For Availability
View on Model
25
LINING, DRAWER PANEL
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
View on Model
26
PANEL, DRAWER (BLK)
PANEL, DRAWER (BLK) WPL 74003701 Contact Us For Availability
View on Model
