Model GE AES17AWF General Electric Model AES17AWF – Common Parts & Diagrams
Access Panel, Front Panel and Seal

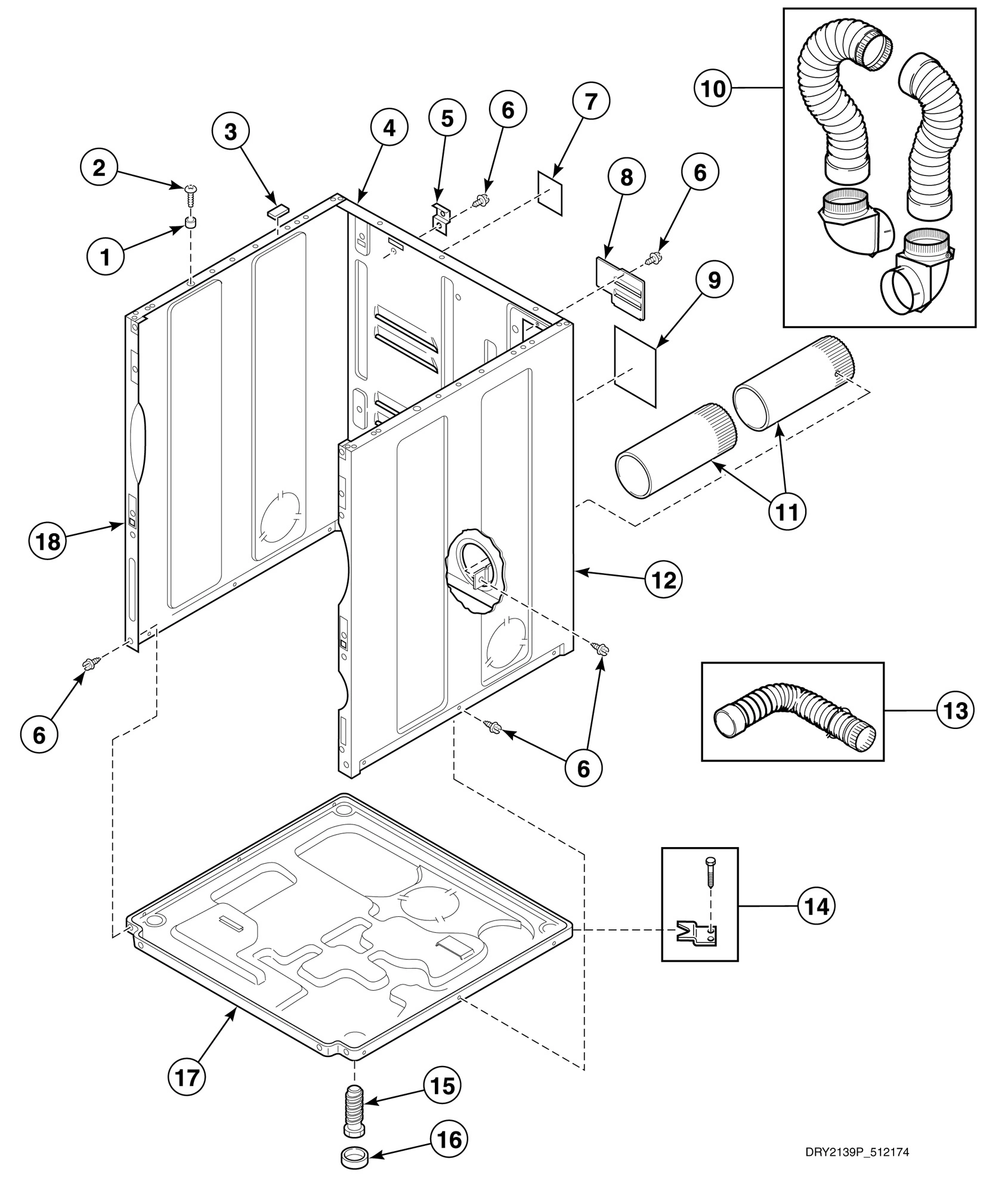

Cabinet, Exhaust Duct and Base - Single Dryers
Control Panel and Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal and Cylinder without Light
Loading Door - Without Window (Drawing 2 of 2)
Motor, Exhaust Fan and Belt
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Rear Control Models Through Serial No. 1207
Common parts from model GE AES17AWF General Electric Model AES17AWF
1
Panel Locator GEN 56079 Contact Us For Availability
1
Screw GEN D501086 Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Includes it GEN D510266P Contact Us For Availability
1
Front Bulkhead Assembly (Comment: White, Incl GEN D511033WP Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Insulated Female Spade Terminal GEN 00360 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Wire Harness Assembly (Comment: Main harness) GEN D510424P Contact Us For Availability
2
Screw (Comment: Use with painted side panels) GEN 39733 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Top Cover GEN D505808W Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
2
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) 12 ga GEN 00255 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Fabric Selector Switch GEN D513505 Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Wire Assembly (Comment: Fabric selector switc GEN D510540 Contact Us For Availability
4
Cylinder Assembly (Comment: White, Includes i GEN D510159WP Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
6
Front Panel GEN D510066WP Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Timer and Harness Kit GEN D505797P Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
7
Resistor Assembly GEN D511277 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Includes it GEN D510103WP Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch, (2) GEN N/A Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Harness Strap GEN 55881 Contact Us For Availability
8
Screw GEN 33562 Contact Us For Availability
8
Access Panel Plate GEN D510903 Contact Us For Availability
8
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
8
Door Handle Wedge GEN D510129 Contact Us For Availability
8
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Access Panel Assembly GEN D514250WP Contact Us For Availability
9
Electric Clearance Label GEN D511005 Contact Us For Availability
9
Hood Back Panel GEN D510099 Contact Us For Availability
9
Dryer Door GEN D510013WP Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Female Tab Terminal (Comment: 1/4 inch) GEN 00344 Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Flexible Venting Kit GEN 521P3 Contact Us For Availability
10
Top Panel Kit GEN D510029WP Contact Us For Availability
10
Lint Filter GEN D503980W Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
11
Control Support Panel GEN D503901 Contact Us For Availability
11
Lint Filter Cover GEN D510502W Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Warning/Caution Label GEN D500281 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right) GEN D510002WP Contact Us For Availability
12
Graphic Panel GEN D512179W Contact Us For Availability
12
Screw GEN 52864 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
13
Timer Knob Assembly GEN D512117W Contact Us For Availability
13
Glide Kit (Comment: Includes 2 of items 14 an GEN RB170003 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
14
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 of items 9-13 GEN RB170002 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Knob Assembly GEN 36701W Contact Us For Availability
15
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
End Panel (Comment: Left) GEN D504009WP Contact Us For Availability
16
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
17
Dryer Base GEN D513901 Contact Us For Availability
17
Screw GEN D514461 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
18
Cabinet Side Panel (Comment: Left) GEN D510001WP Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
Thermostat (Comment: Green) GEN D504515 Contact Us For Availability
24
Screw GEN D502535 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
