Model Maytag AER6011VAW0 ELECTRIC RANGE – Common Parts & Diagrams

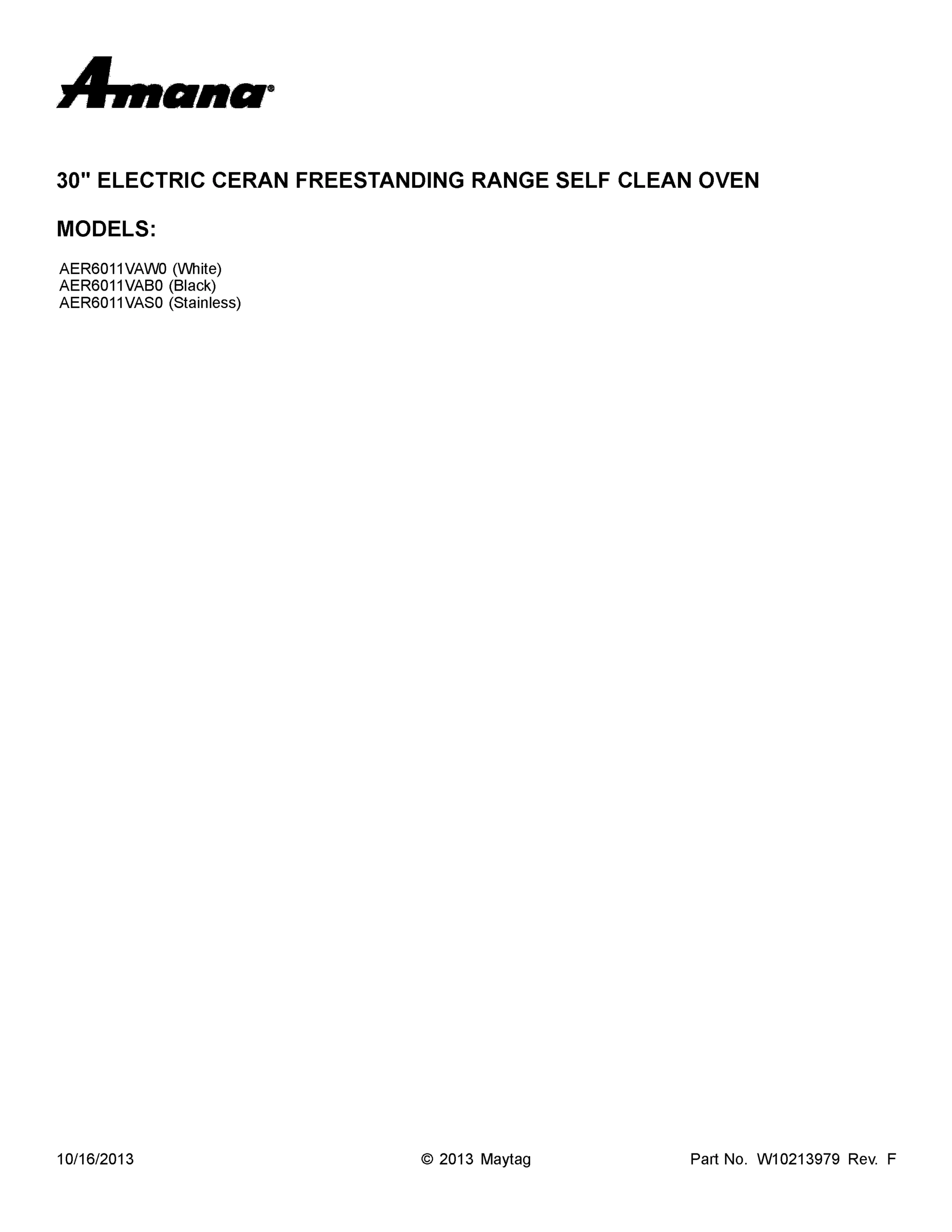

01 - COVER SHEET

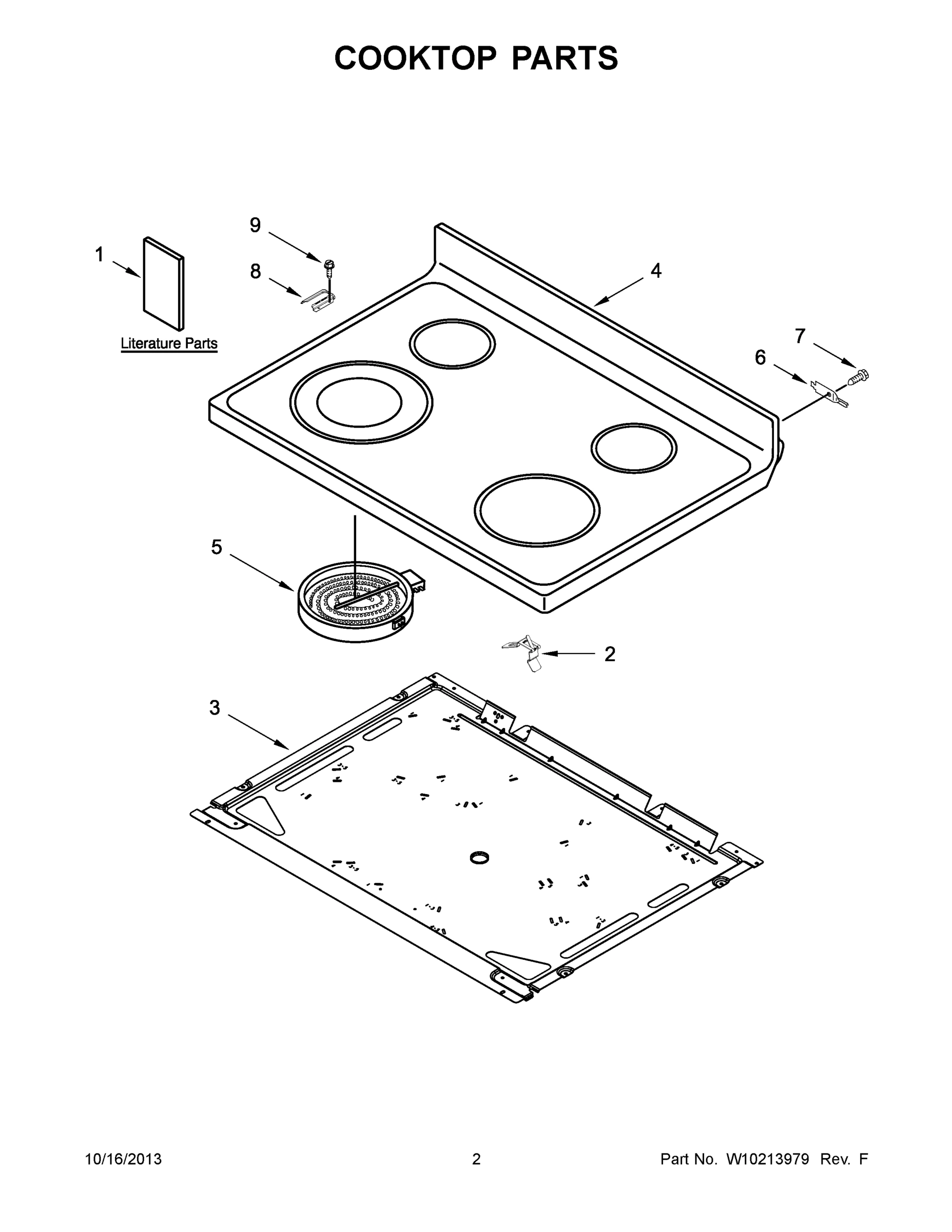

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
05 - DRAWER AND BROILER PARTS
06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AER6011VAW0 ELECTRIC RANGE
1
MAY W10196164 MAY W10196164 Contact Us For Availability
1
MAY W10252706 MAY W10252706 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10289077 MAY W10289077 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY 8273564 MAY 8273564 Contact Us For Availability
2
MAY 4449809 MAY 4449809 Contact Us For Availability
2
MAY W10031780 MAY W10031780 Contact Us For Availability
2
DRAWER MAY W10296838 Contact Us For Availability
3
PAN, RADIANT ELEMENT MAY W10170526 Contact Us For Availability
3
MAY W10170019 MAY W10170019 Contact Us For Availability
3
MAY W10170020 MAY W10170020 Contact Us For Availability
3
MAY W10170021 MAY W10170021 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, MOUNTING (SS MODEL) MAY 9758200 Contact Us For Availability
3
BRACKET, MOUNTING (WHITE) MAY W10174396 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
MAY W10144890 MAY W10144890 Contact Us For Availability
4
MAY W10134279 MAY W10134279 Contact Us For Availability
4
MAY W10134280 MAY W10134280 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10149355 Contact Us For Availability
4
MAY W10295573 MAY W10295573 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT REAR AND LEFT REAR) MAY W10295576 Contact Us For Availability
4
MAY 9761013 MAY 9761013 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
ELEMENT (2500W) (LEFT FRONT) MAY 8273992 Contact Us For Availability
5
ELEMENT (1200W) (RIGHT REAR AND LEFT REAR) MAY 8523698 Contact Us For Availability
5
ELEMENT (2500/1200W) (RIGHT FRONT) MAY W10275049 Contact Us For Availability
5
MAY 8523265 MAY 8523265 Contact Us For Availability
5
MAY W10078380 MAY W10078380 Contact Us For Availability
5
Drawer Front (White) MAY 8053339 Contact Us For Availability
5
Drawer Front (Black) MAY 8053341 Contact Us For Availability
6
MAY 3195060 MAY 3195060 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
LATCH ASSEMBLY, REAR MAY W10107830 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY 3196169 MAY 3196169 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10119705 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY W10119706 Contact Us For Availability
7
Screw (Black) MAY 3196168 Contact Us For Availability
7
MAY W10067840 MAY W10067840 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY 3192830 MAY 3192830 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10308476 MAY W10308476 Contact Us For Availability
8
PANEL, DRAWER (SS MODEL) MAY W10237657 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
MAY 3148604 MAY 3148604 Contact Us For Availability
9
Screw (White) MAY 3196166 Contact Us For Availability
9
ELEMENT, BAKE (HIDDEN) MAY W10308474 Contact Us For Availability
9
MAY 7101P364-60 MAY 7101P364-60 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY 8522416 MAY 8522416 Contact Us For Availability
10
HINGE, ACTIVE MAY W10299224 Contact Us For Availability
11
BRACKET CONSOLE MOUNTING MAY W10182322 Contact Us For Availability
11
ROD, INSULATION RETAINER MAY W10196451 Contact Us For Availability
11
MAY W10118454 MAY W10118454 Contact Us For Availability
11
MAY W10118455 MAY W10118455 Contact Us For Availability
12
MAY W10271721 MAY W10271721 Contact Us For Availability
12
MAY W10271722 MAY W10271722 Contact Us For Availability
12
MAY 3196560 MAY 3196560 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
Glide, Drawer MAY W10114344 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
14
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
14
MAY W10341186 MAY W10341186 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
BRACKET, MOUNTING, EOC MAY W10138683 Contact Us For Availability
15
MAY 3400968 MAY 3400968 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
MAY W10134121 MAY W10134121 Contact Us For Availability
16
STRAP, DOOR MAY W10113759 Contact Us For Availability
17
MAY 3196200 MAY 3196200 Contact Us For Availability
17
CLIP, GLASS MAY W10137382 Contact Us For Availability
18
MAY 9761367 MAY 9761367 Contact Us For Availability
18
MAY 9761368 MAY 9761368 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
MAY W10058460 MAY W10058460 Contact Us For Availability
19
HINGE, PASSIVE MAY W10299227 Contact Us For Availability
20
MAY W10134125 MAY W10134125 Contact Us For Availability
20
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
20
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
21
MAY W10183541 MAY W10183541 Contact Us For Availability
22
RETAINER, INSULATION MAY 9758238 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
24
MAY W10134126 MAY W10134126 Contact Us For Availability
25
MAY W10134124 MAY W10134124 Contact Us For Availability
26
MAY 3196548 MAY 3196548 Contact Us For Availability
27
MAY 3196172 MAY 3196172 Contact Us For Availability
28
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
29
MAY 3186034 MAY 3186034 Contact Us For Availability
30
MAY W10245259 MAY W10245259 Contact Us For Availability
31
MAY W10273169 MAY W10273169 Contact Us For Availability
33
MAY W10134285 MAY W10134285 Contact Us For Availability
34
SOCKET, LIGHT MAY 3196701 Contact Us For Availability
35
MAY 311255 MAY 311255 Contact Us For Availability
36
MAY W10326122 MAY W10326122 Contact Us For Availability
39
MAY 3196178 MAY 3196178 Contact Us For Availability
40
MAY 3196174 MAY 3196174 Contact Us For Availability
41
MAY W10183712 MAY W10183712 Contact Us For Availability
43
MAY 3400016 MAY 3400016 Contact Us For Availability
44
MAY 9759689 MAY 9759689 Contact Us For Availability
45
Switch, Door MAY 9757238 Contact Us For Availability
46
MAY 9757239 MAY 9757239 Contact Us For Availability
47
MAY 9761301 MAY 9761301 Contact Us For Availability
48
FAN, CONVECTION MAY W10167917 Contact Us For Availability
49
MAY W10116351 MAY W10116351 Contact Us For Availability
50
MAY W10213748 MAY W10213748 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (127 OZ. PRIMER (WHI MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (127 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY 3196154 Contact Us For Availability
NI
MAY 3196173 MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (127 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, HIDDEN BAKE MAY 9757339 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10174428 Contact Us For Availability
NI
MAY W10256891 MAY W10256891 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP RIGHT MAY W10322356 Contact Us For Availability
NI
MAY W10322364 MAY W10322364 Contact Us For Availability
× ![]()
