Model Whirlpool AER5845QAF17 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS

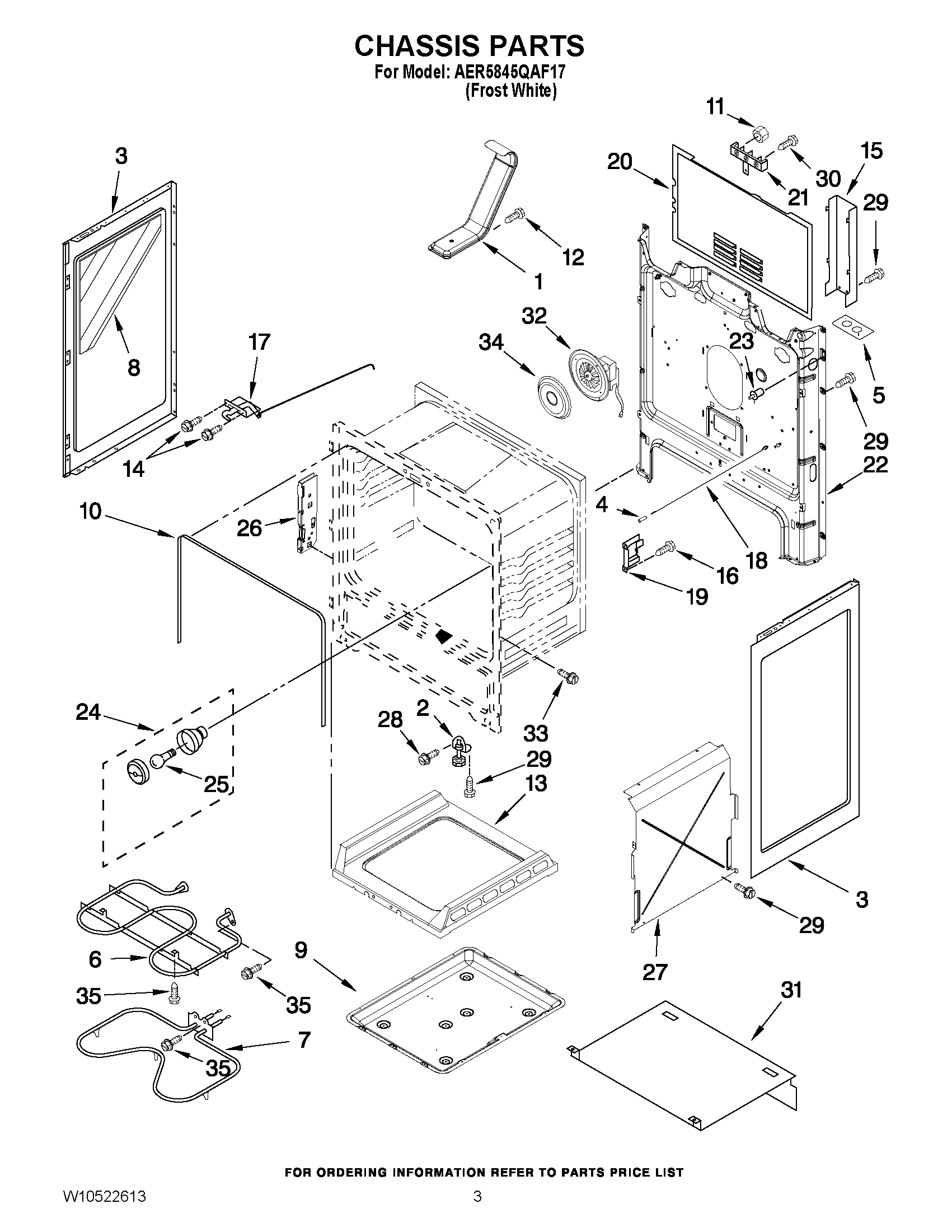

03 - CHASSIS PARTS

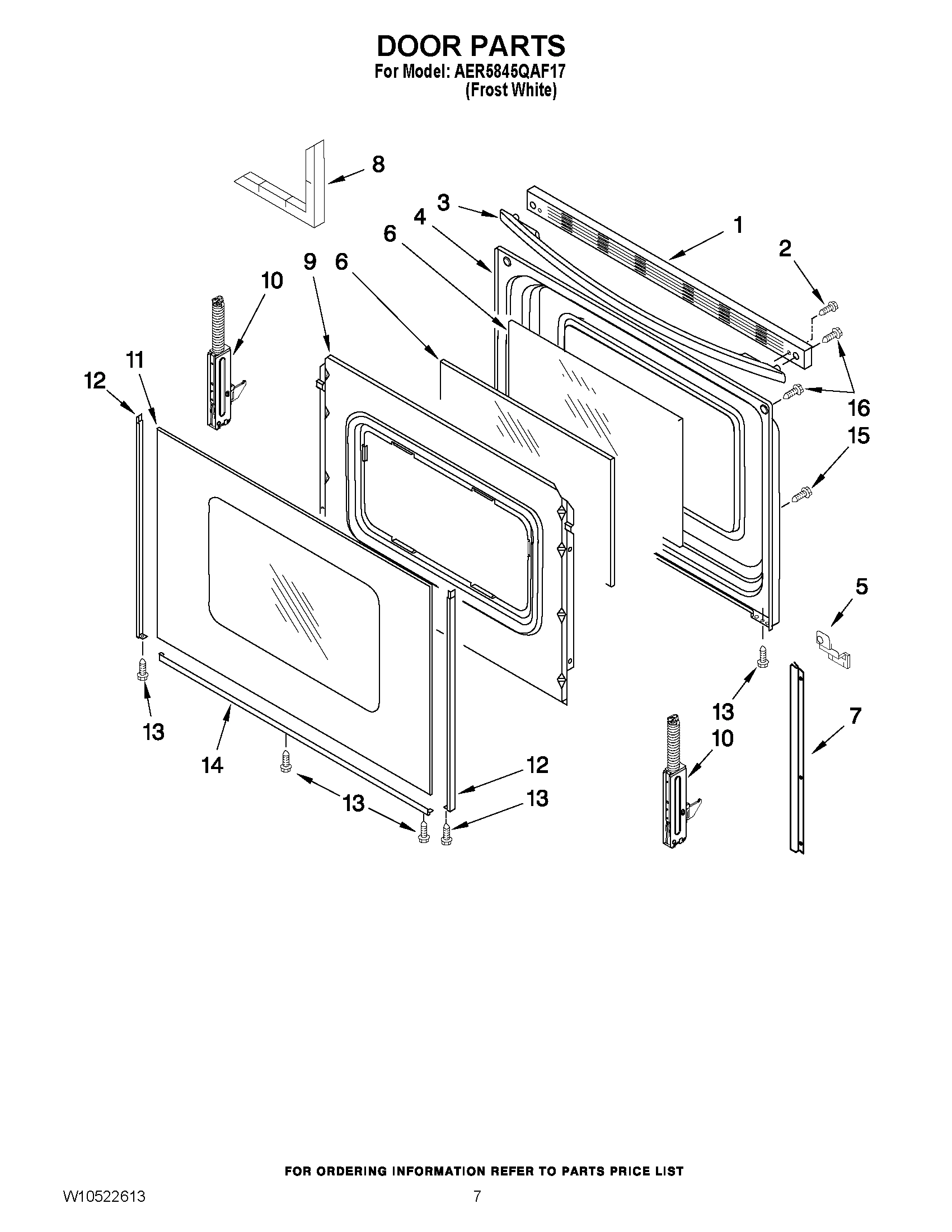

05 - DOOR PARTS
06 - OPTIONAL PARTS
02 - CONTROL PANEL PARTS

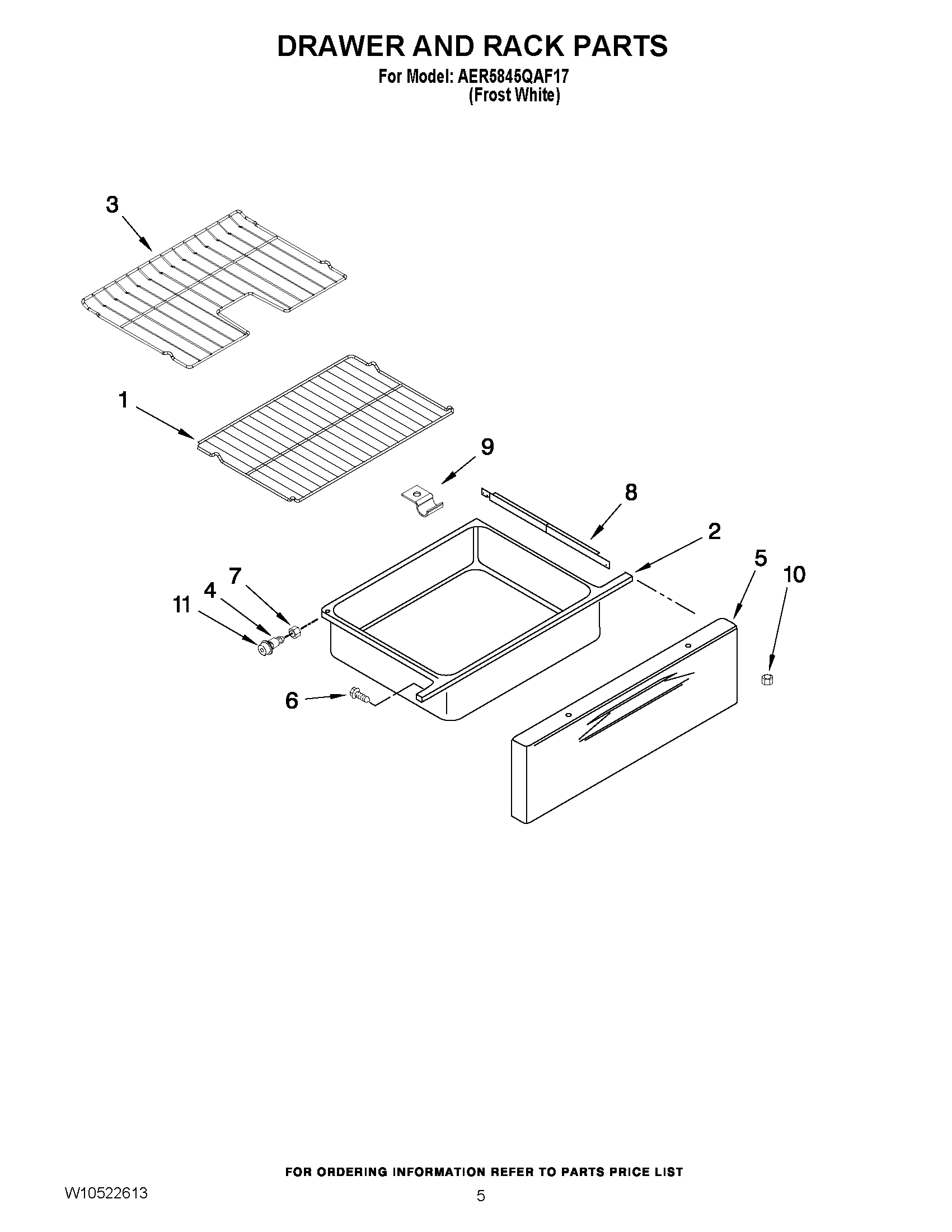

04 - DRAWER AND RACK PARTS
Common parts from model Whirlpool AER5845QAF17 ELECTRIC RANGE
1
TRIM, TOP WPL 3608F13971 Contact Us For Availability
1
ENDCAP (RIGHT HAND) WPL 3807F70271 Contact Us For Availability
1
ENDCAP (LEFT HAND) WPL 3807F70371 Contact Us For Availability
1
RACK, OVEN WPL 7801P16960 Contact Us For Availability
2
SCREW WPL 7101P54460 Contact Us For Availability
2
BRACKET, CONSOLE WPL 3801F85051 Contact Us For Availability
2
DRAWER, STORAGE WPL 3405W03561 Contact Us For Availability
3
HANDLE, DOOR WPL 7701P46360 Contact Us For Availability
3
PANEL, CONTROL WPL 2602D04281 Contact Us For Availability
3
RACK, EASY WPL 7801P13160 Contact Us For Availability
4
Liner, Door WPL 2402W29719 Contact Us For Availability
4
SWITCH, INFINITE (SMALL ELEMENT) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINITE (DUAL) WPL 7450P01760 Contact Us For Availability
4
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
5
BRACKET, HANDLE (RIGHT HAND) WPL 3801P85745 Contact Us For Availability
5
BRACKET, HANDLE (LEFT HAND) WPL 3801P85845 Contact Us For Availability
5
Light, Indicator WPL 7407P13660 Contact Us For Availability
5
PANEL, DRAWER FRNT WPL 2416F08371 Contact Us For Availability
6
Glass, Inner WPL 7902P43660 Contact Us For Availability
6
LENS, LIGHT WPL 7730P01160 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
7
Bracket, Glass WPL 3801F88651 Contact Us For Availability
7
KNOB, INFINITE WPL 7737P24460 Contact Us For Availability
7
Nut WPL 7103P17660 Contact Us For Availability
8
Insulation, Side WPL W10182346 Contact Us For Availability
8
SHIELD, HEAT WPL 3604F39645 Contact Us For Availability
8
Insulation, Door WPL 7002P24660 Contact Us For Availability
8
RUNNER, DRAWER WPL 8016P02460 Contact Us For Availability
9
PAN, BAKE WPL 3401F08445 Contact Us For Availability
9
RETAINER, INSUL. WPL 3601F38051 Contact Us For Availability
9
KNOB WPL 7737P24160 Contact Us For Availability
9
CLIP, WARMER ELMT WPL 7112P15360 Contact Us For Availability
10
SEAL, OVEN WPL 7201P12460 Contact Us For Availability
10
Hinge, Door WPL 7106P12460 Contact Us For Availability
10
COVER, REAR WPL 4005F77251 Contact Us For Availability
10
LOCK, NUT WPL 7103P13960 Contact Us For Availability
11
Nut WPL 7103P02760 Contact Us For Availability
11
GLASS, OUTER WPL 7902P78160 Contact Us For Availability
11
CONTROL, RANGE WPL 8507P29360 Contact Us For Availability
11
Shaft, Roller WPL 7118P03260 Contact Us For Availability
12
TRIM, SIDE WPL 3608F12671 Contact Us For Availability
13
Bottom, Oven WPL 2205F05319 Contact Us For Availability
13
Screw WPL 7101P63360 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
14
TRIM, LOWER WPL 3608F09271 Contact Us For Availability
14
SWITCH, MEMBRANE WPL 7450P04260 Contact Us For Availability
15
COVER, BOX WPL 4005F70351 Contact Us For Availability
16
SCREW WPL 7101P37660 Contact Us For Availability
17
LATCH, DOOR WPL 8002P08560 Contact Us For Availability
18
ROD - DR SWITCH WPL 7809P04360 Contact Us For Availability
19
SUPPORT, OVEN WPL 3801P79851 Contact Us For Availability
20
Cover, Main Wire WPL 4005F75451 Contact Us For Availability
21
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
22
BACK, MAIN WPL 4002F34351 Contact Us For Availability
23
SWITCH, DOOR WPL 7403P91060 Contact Us For Availability
24
LIGHT SOCKET ASSY WPL 7407P18160 Contact Us For Availability
26
BRKT - MOUNTING WPL 7106P12560 Contact Us For Availability
27
Retainer, Side WPL 3804F31151 Contact Us For Availability
28
Screw WPL 3196179 Contact Us For Availability
32
ASSY, FAN CONVECT WPL 7427P09960 Contact Us For Availability
34
Plate, Convection WPL 3605F30519 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (FOIL, ALUMINUM (18`` X 2 WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P45760 Contact Us For Availability
NI
Clip, Ground Wire WPL 313660 Contact Us For Availability
NI
HARNESS, WIRE (COOKTP LEFT) WPL 5171P21360 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) WPL 5171P21860 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 5171P29060 Contact Us For Availability
× ![]()
