Model Maytag AER5830VAS1 ELECTRIC RANGE – Common Parts & Diagrams

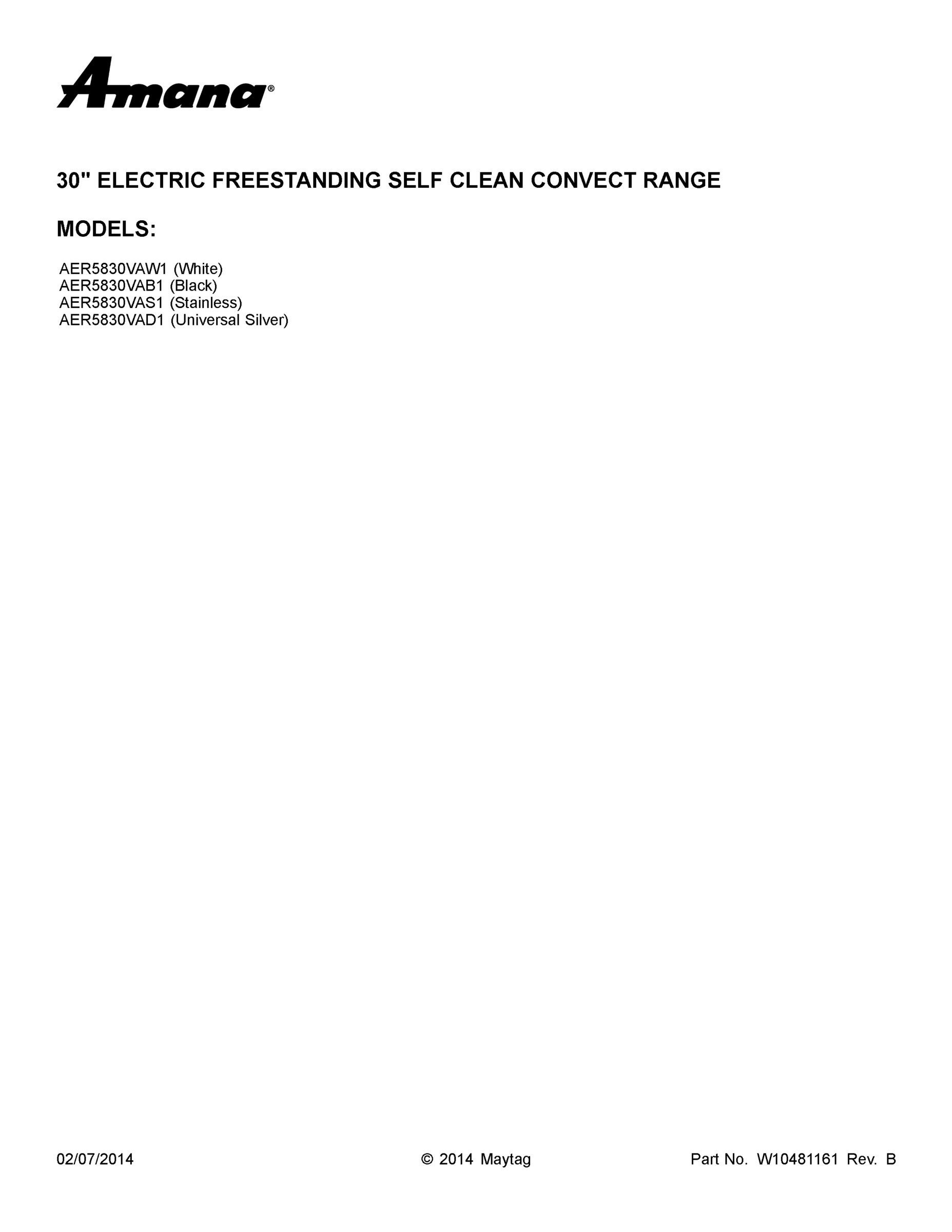

01 - COVER SHEET

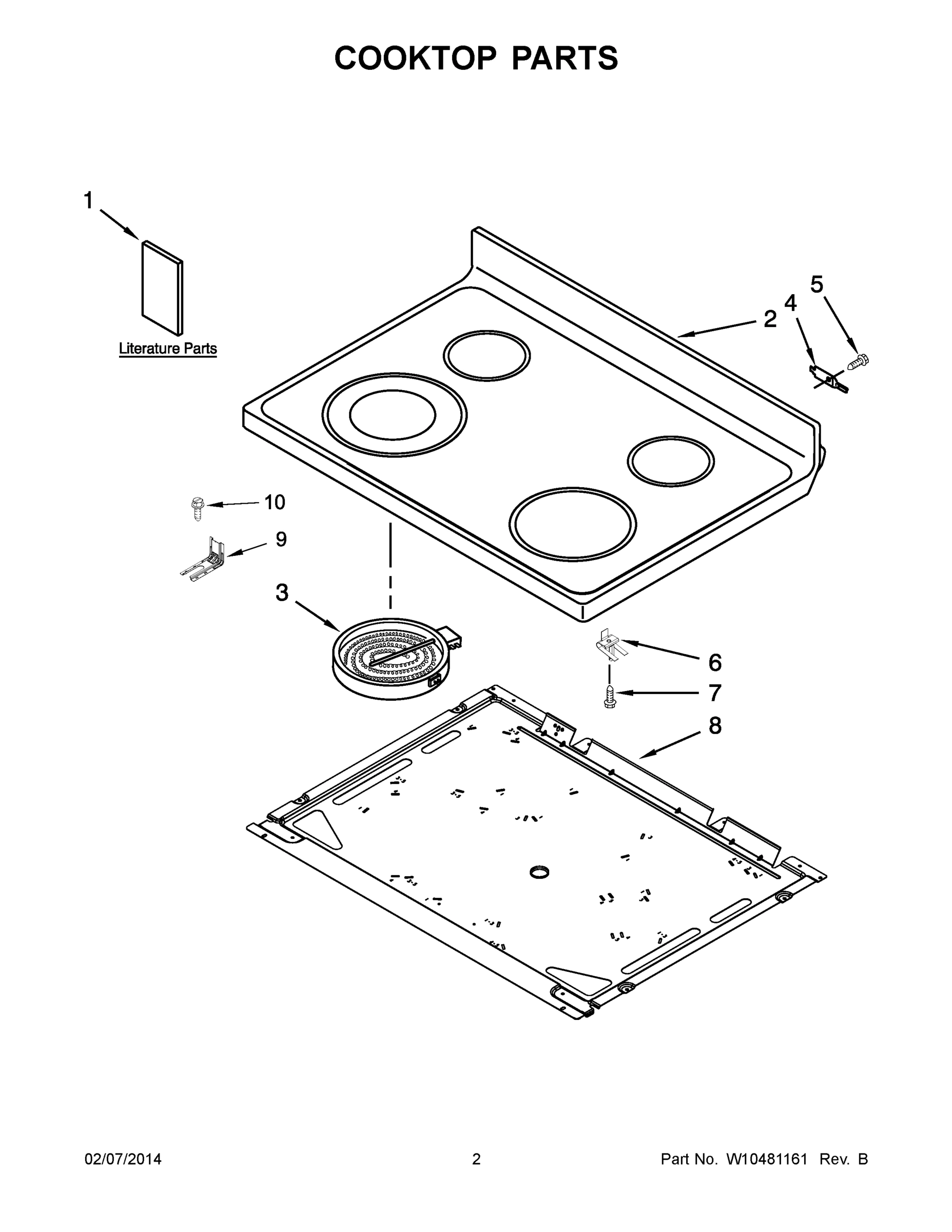

02 - COOKTOP PARTS

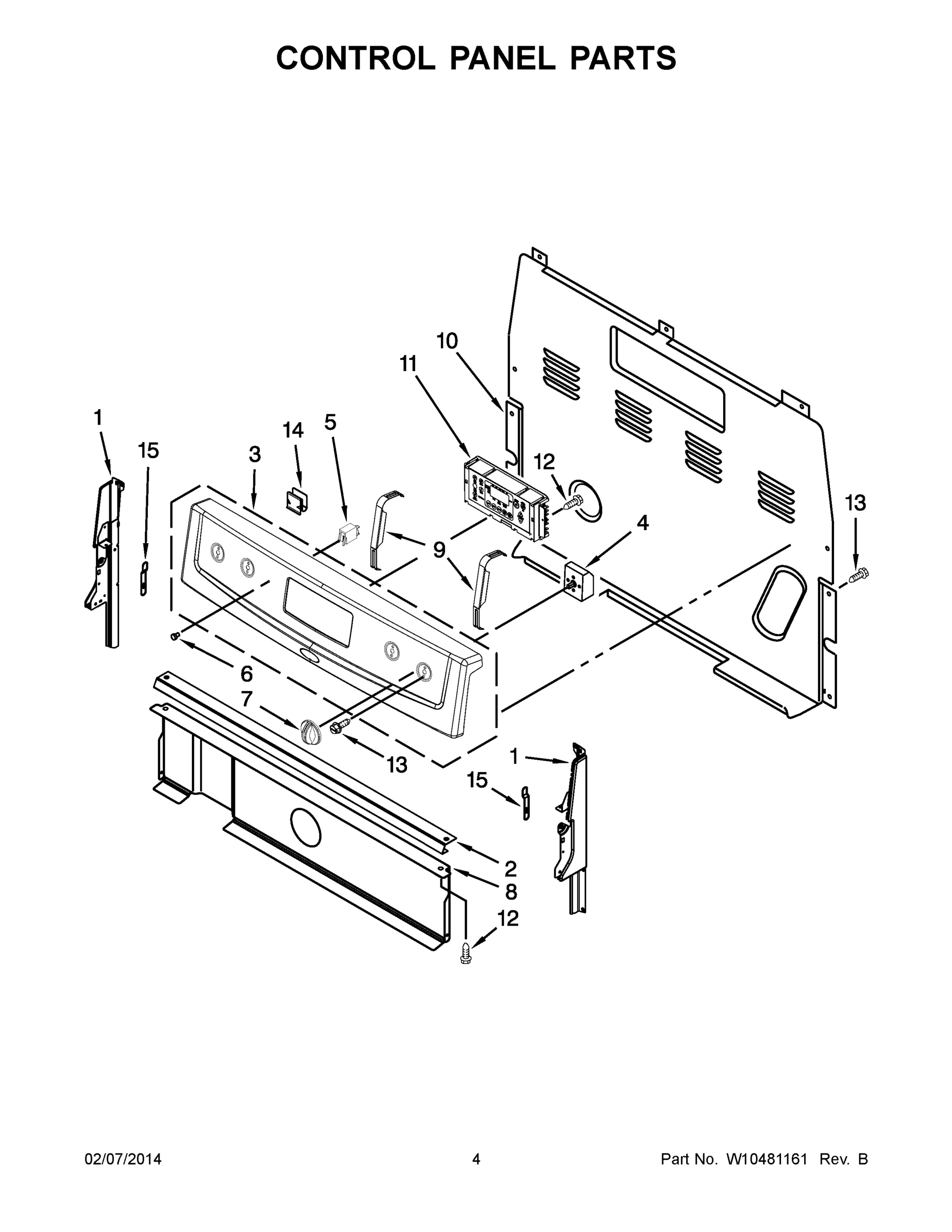

03 - CONTROL PANEL PARTS

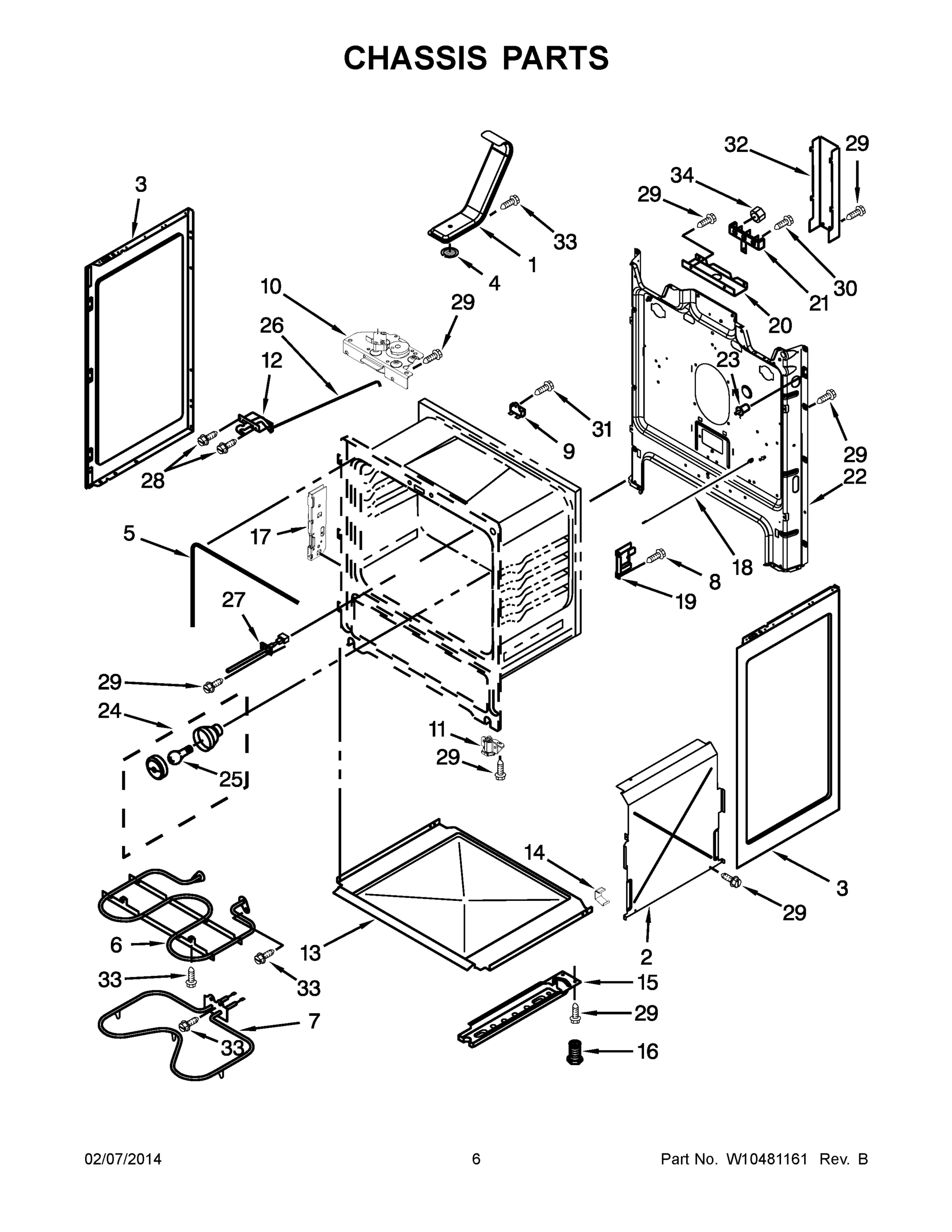

04 - CHASSIS PARTS

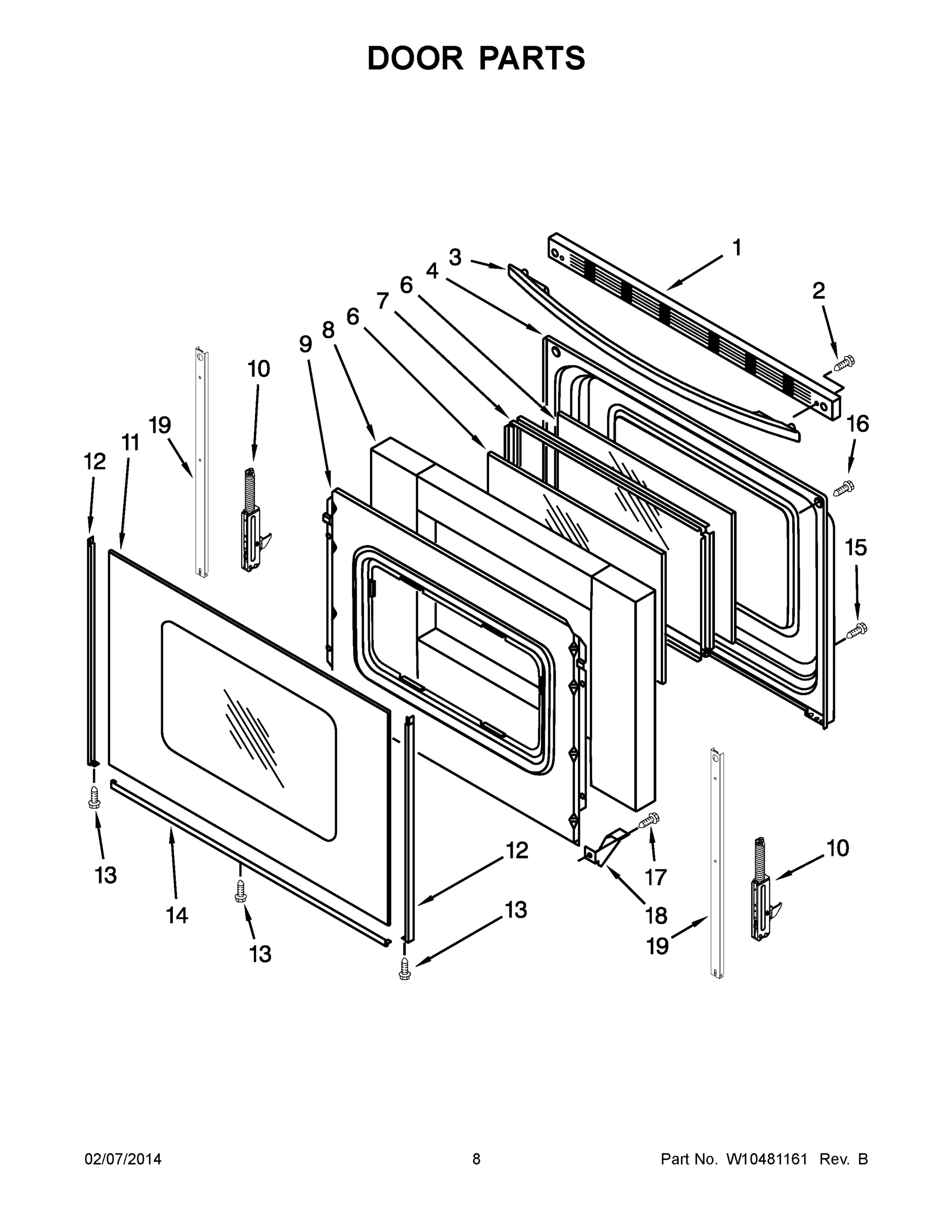

05 - DOOR PARTS

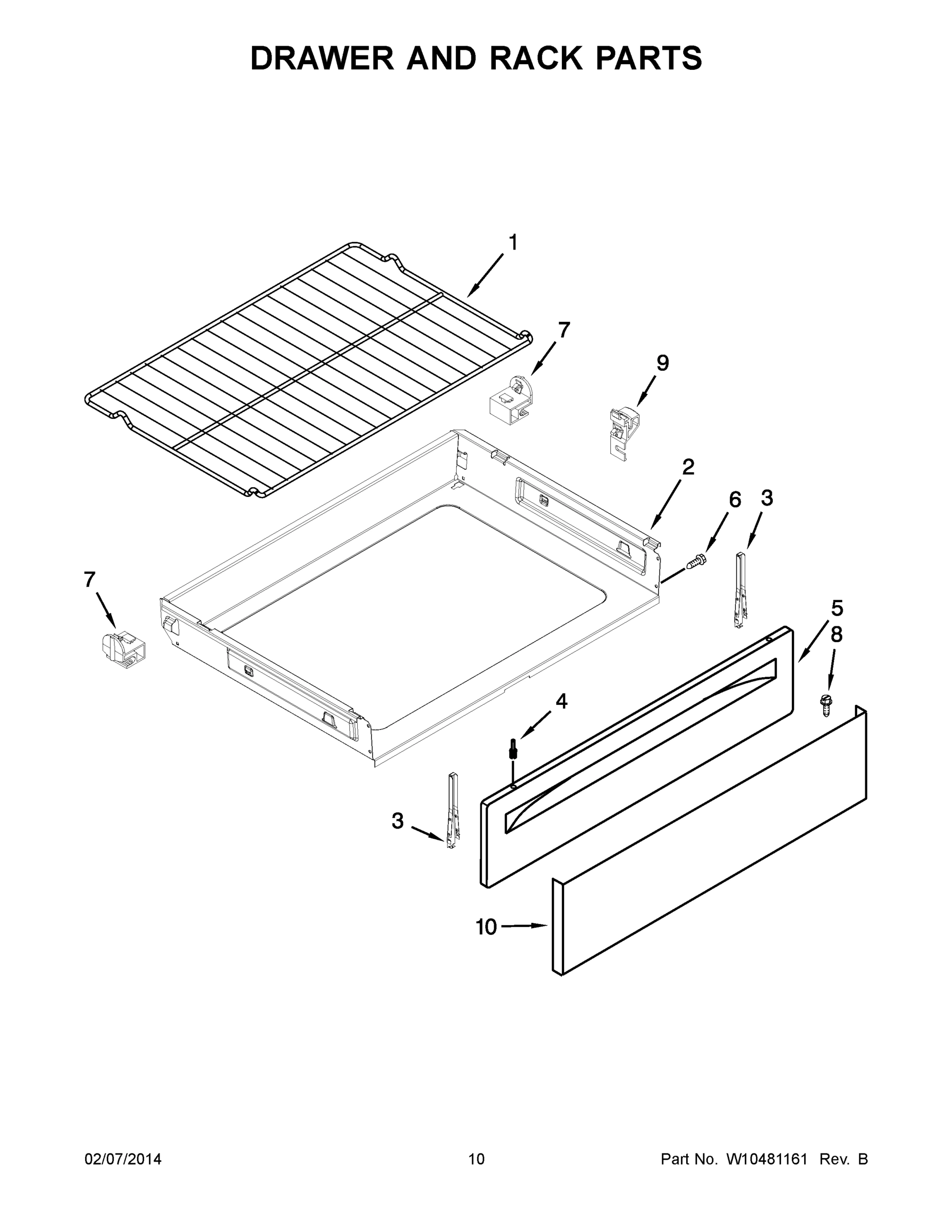

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AER5830VAS1 ELECTRIC RANGE
1
TECH SHEET (ENGLISH) MAY W10384447 Contact Us For Availability
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
MAY W10419394 MAY W10419394 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10134285 MAY W10134285 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
2
MAY W10172293 MAY W10172293 Contact Us For Availability
2
MAY W10172294 MAY W10172294 Contact Us For Availability
2
BRACKET CONSOLE MOUNTING MAY W10182322 Contact Us For Availability
2
RETAINER, INSULATION MAY 9758238 Contact Us For Availability
2
MAY W10178143 MAY W10178143 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
3
ELEMENT (2500W) (LEFT FRONT & RIGHT FRONT) MAY 8273992 Contact Us For Availability
3
MAY 8273994 MAY 8273994 Contact Us For Availability
3
Panel, Control (White) MAY W10170011 Contact Us For Availability
3
Panel, Control (Black) MAY W10170012 Contact Us For Availability
3
PANEL, CONTROL (SILVER) MAY W10170013 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W10170014 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
MAY W10144890 MAY W10144890 Contact Us For Availability
3
MAY W10462912 MAY W10462912 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT) MAY 3148954 Contact Us For Availability
4
MAY 9761301 MAY 9761301 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8523265 MAY 8523265 Contact Us For Availability
5
MAY 8522416 MAY 8522416 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
MAY 8053341 MAY 8053341 Contact Us For Availability
5
PANEL, DRAWER FRONT (SILVER) MAY 9761694 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY 9761962 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY 9761964 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
7
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
8
MAY 3196169 MAY 3196169 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10106409 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
8
MAY W10031790 MAY W10031790 Contact Us For Availability
9
MAY W10306542 MAY W10306542 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
9
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
10
MAY 3148604 MAY 3148604 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10107820 MAY W10107820 Contact Us For Availability
10
MAY W10299224 MAY W10299224 Contact Us For Availability
10
MAY W10299227 MAY W10299227 Contact Us For Availability
10
PANEL, DRAWER (SS MODEL) MAY W10237657 Contact Us For Availability
11
MAY W10271723 MAY W10271723 Contact Us For Availability
11
MAY W10271724 MAY W10271724 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
Glass, Outer (White) MAY W10118454 Contact Us For Availability
11
Glass, Outer (Black) MAY W10118455 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10144884 Contact Us For Availability
11
GLASS, OUTER (GLASS, OUTER DOOR) MAY W10144949 Contact Us For Availability
12
MAY 9761013 MAY 9761013 Contact Us For Availability
12
TRIM, SIDE (BLACK (RIGHT)) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK (LEFT)) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12
TRIM, SIDE (SILVER (LEFT)) MAY 9762249 Contact Us For Availability
12
TRIM, SIDE (SILVER (RIGHT)) MAY 9762250 Contact Us For Availability
13
MAY 3400882 MAY 3400882 Contact Us For Availability
13
MAY 8054068 MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 8273564 MAY 8273564 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
MAY 3196200 MAY 3196200 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
MAY W10289077 MAY W10289077 Contact Us For Availability
18
MAY W10137382 MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
19
MAY W10544179 MAY W10544179 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY W10078380 MAY W10078380 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 3196560 MAY 3196560 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
32
MAY W10326122 MAY W10326122 Contact Us For Availability
33
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
PAINT, BULK (1 QT. ALUMINUM FOIL) MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, GROUND WIRE MAY 313660 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Cleaner, Glass) MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 8212473 MAY 8212473 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, GROUND MAY 8523279 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10084660 Contact Us For Availability
NI
MAY W10251769 MAY W10251769 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP MAY W10261085 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP MAY W10273585 Contact Us For Availability
NI
WIRING HARNESS PARTS, KIT, BARE WIRE ADAPTER MAY W10281322 Contact Us For Availability
× ![]()
