Model Maytag AER5830VAS0 ELECTRIC RANGE – Common Parts & Diagrams

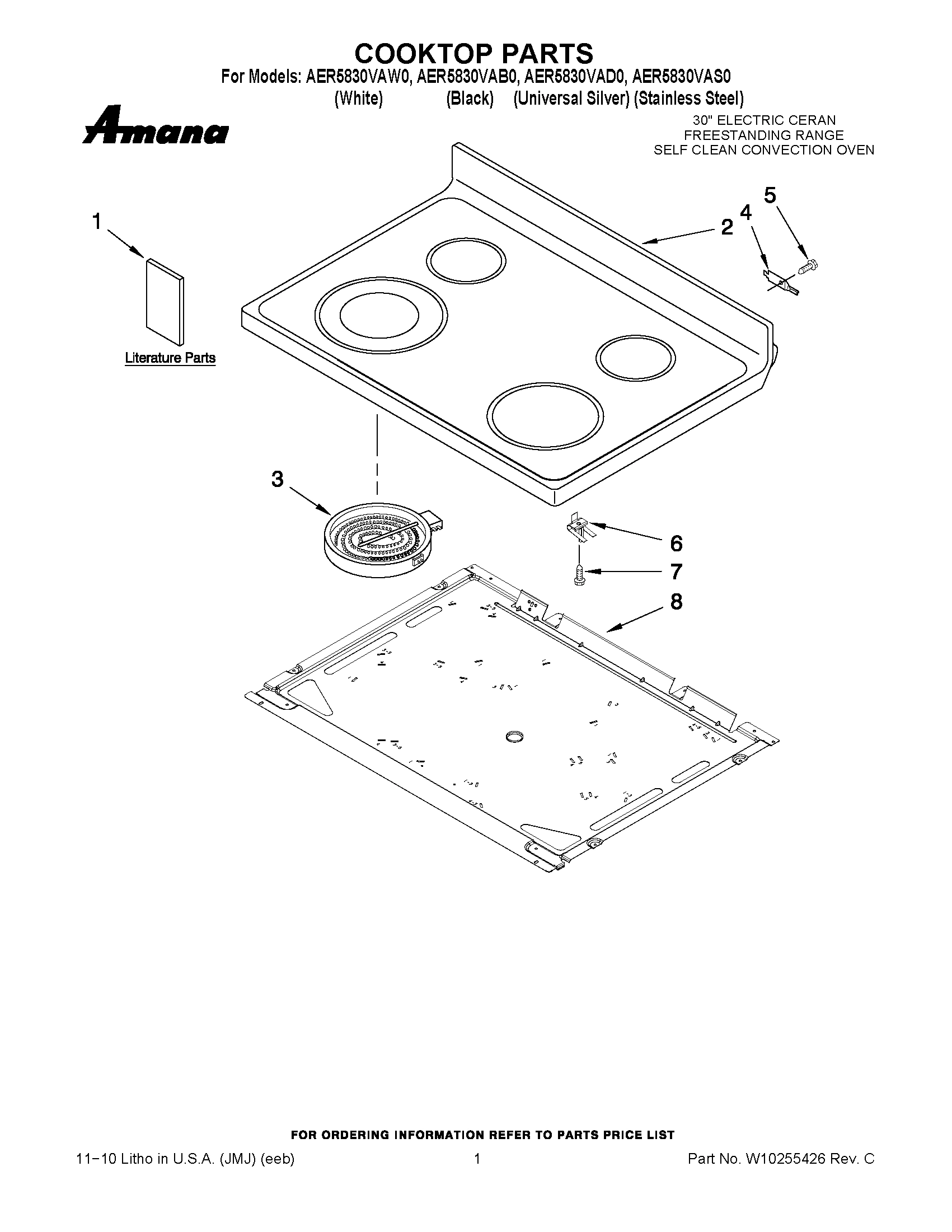

01 - COOKTOP PARTS

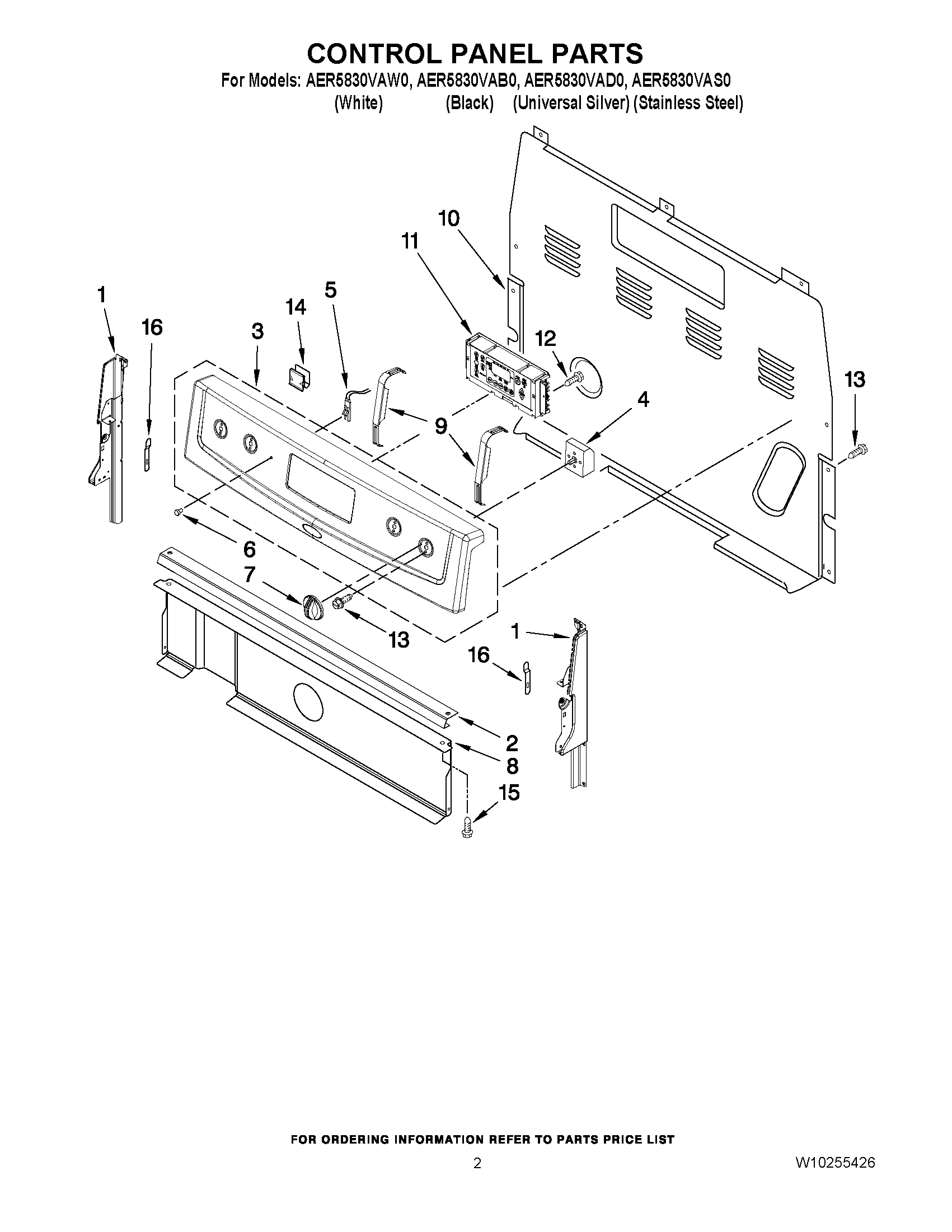

02 - CONTROL PANEL PARTS

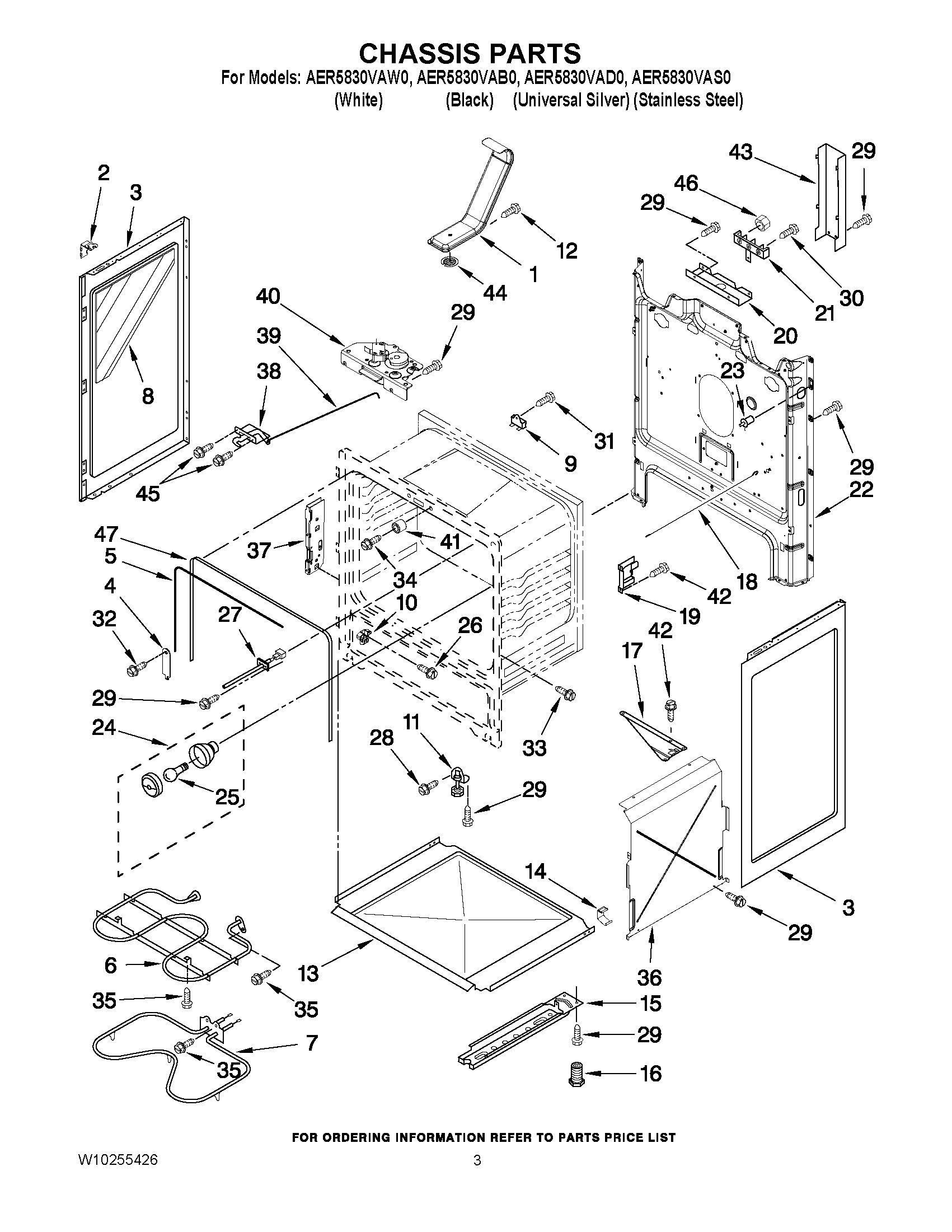

03 - CHASSIS PARTS

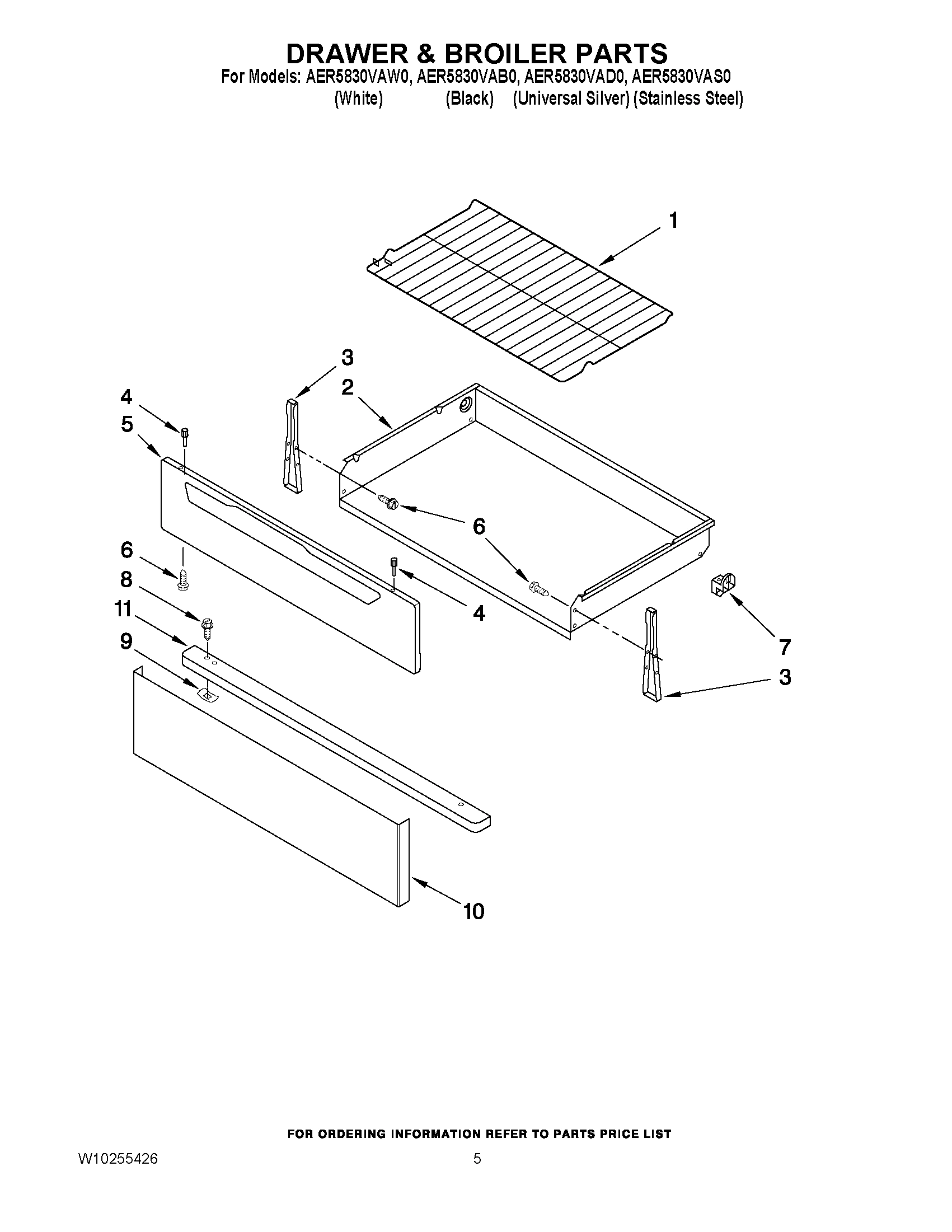

04 - DRAWER & BROILER PARTS

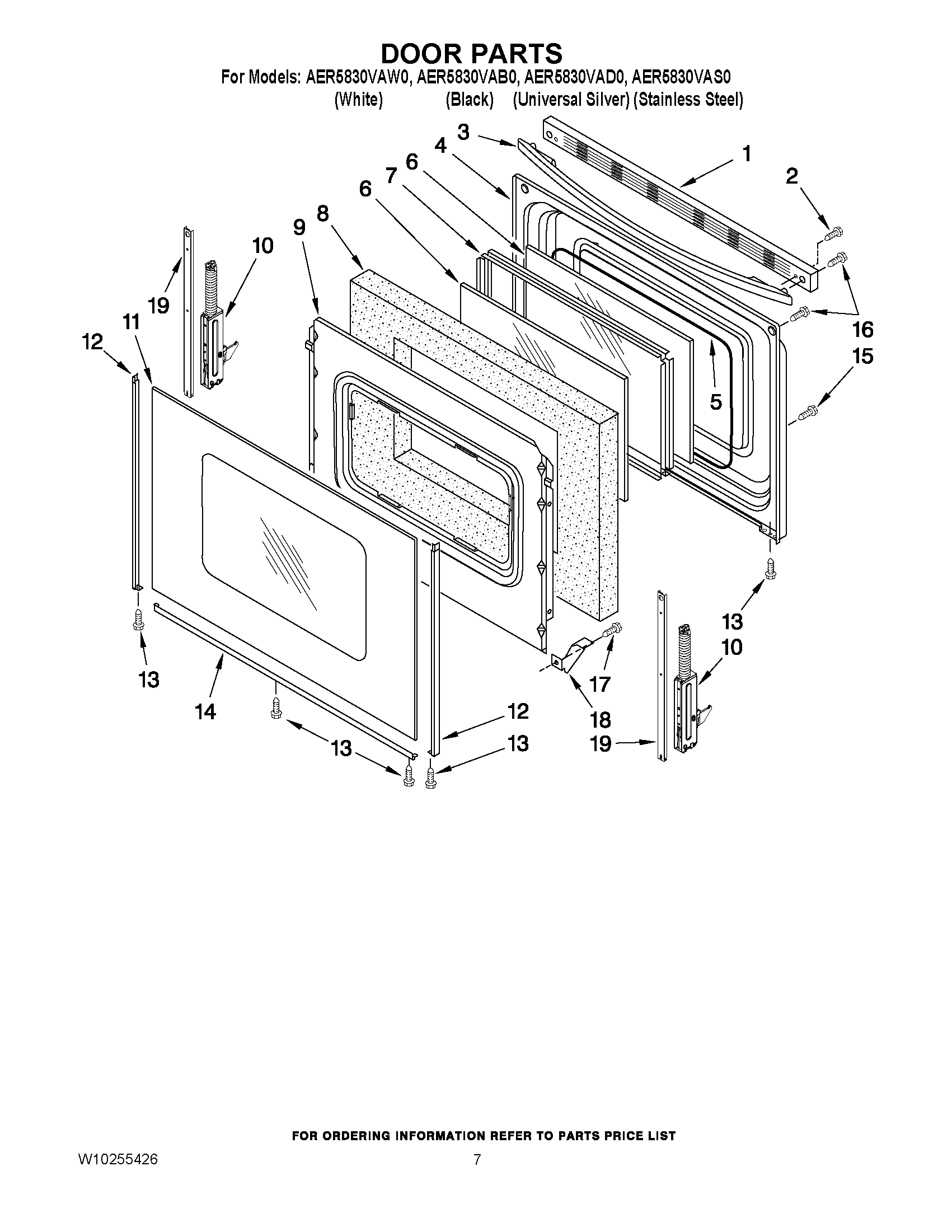

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag AER5830VAS0 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING MAY 9762761 Contact Us For Availability
1
Installation Instructions MAY W10196158 Contact Us For Availability
1
MAY W10196163 MAY W10196163 Contact Us For Availability
1
MAY W10246520 MAY W10246520 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube Asmbly MAY W10134285 Contact Us For Availability
1
MAY W10179196 MAY W10179196 Contact Us For Availability
1
MAY W10144869 MAY W10144869 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
2
MAY W10172293 MAY W10172293 Contact Us For Availability
2
MAY W10172294 MAY W10172294 Contact Us For Availability
2
Bracket, Console MAY W10182322 Contact Us For Availability
2
Clip, Mounting MAY 9761512 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
Screw MAY 3196164 Contact Us For Availability
3
Element, Surface (2500 W - RF & LF) MAY 8273992 Contact Us For Availability
3
Element, Surface (1200 W - LR & RR) MAY 8273994 Contact Us For Availability
3
Panel, Control (White) MAY W10170011 Contact Us For Availability
3
Panel, Control (Black) MAY W10170012 Contact Us For Availability
3
MAY W10170013 MAY W10170013 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS STEEL) MAY W10170014 Contact Us For Availability
3
Panel, Side (2) (White) MAY 8053830 Contact Us For Availability
3
MAY 8053832 MAY 8053832 Contact Us For Availability
3
Brkt-Mntg, Drawer MAY W10174396 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Steel) MAY W10144890 Contact Us For Availability
4
Hinge, Cooktop (2) MAY 3195060 Contact Us For Availability
4
Switch, Infinite (Left Rear) MAY 3148951 Contact Us For Availability
4
Switch, Infinite (Right Front) MAY 3148954 Contact Us For Availability
4
Clip,Door Mntg(2) MAY 9761517 Contact Us For Availability
4
Rivet, Push (2) (Black) MAY 3196813 Contact Us For Availability
4
Rivet, Push (2) (White) MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
Panel, Drawer Frnt (Universal Silver) MAY 9761694 Contact Us For Availability
5
MAY W10238912 MAY W10238912 Contact Us For Availability
6
MAY W10162042 MAY W10162042 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
Glass, Inner (2) MAY 9758162 Contact Us For Availability
7
Screw MAY 3196170 Contact Us For Availability
7
MAY 9761962 MAY 9761962 Contact Us For Availability
7
MAY 9761964 MAY 9761964 Contact Us For Availability
7
Element, Bake (Hidden) MAY 9758541 Contact Us For Availability
7
MAY 8053334 MAY 8053334 Contact Us For Availability
7
MAY 3186289 MAY 3186289 Contact Us For Availability
8
Pan, Radiant MAY W10170526 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
Insulation, Side MAY W10182346 Contact Us For Availability
8
MAY 8272618 MAY 8272618 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
CLIP(STLS.MODEL) MAY 9781235 Contact Us For Availability
9
Retainer, Insul. MAY W10196451 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
Glide, Drwr Top MAY W10114344 Contact Us For Availability
10
Panel(Stls. Model) MAY W10133363 Contact Us For Availability
10
Hinge, Door (2) (White, Black, Universal Silv MAY 9761493 Contact Us For Availability
10
Hinge, Door (2) (Stainless Model) MAY 9761496 Contact Us For Availability
11
MAY W10173500 MAY W10173500 Contact Us For Availability
11
MAY W10173501 MAY W10173501 Contact Us For Availability
11
MAY 3196037 MAY 3196037 Contact Us For Availability
11
Handle(Stls.Model) MAY 9757237 Contact Us For Availability
11
Glass, Outer (White) MAY W10118454 Contact Us For Availability
11
Glass, Outer (Black) MAY W10118455 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10144884 Contact Us For Availability
11
GLASS, OUTER (UNIVERSAL SILVER) MAY W10144949 Contact Us For Availability
12
MAY 3196566 MAY 3196566 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
12
TRIM SIDE (STAINLESS RH) MAY W10113925 Contact Us For Availability
12
TRIM SIDE (STAINLESS LH) MAY W10113926 Contact Us For Availability
13
MAY 3400882 MAY 3400882 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
Clip, Cover MAY 8273564 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
Screw (White) MAY 3196166 Contact Us For Availability
15
MAY 9760314 MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
Clip, Spring (2) MAY 3196200 Contact Us For Availability
16
Foot, Rear (2) MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
Guard, Wire MAY 3195987 Contact Us For Availability
17
MAY 3196165 MAY 3196165 Contact Us For Availability
18
Clip, Panel (2) MAY W10137382 Contact Us For Availability
18
Rod - Dr Switch MAY 9757239 Contact Us For Availability
19
MAY 3186116 MAY 3186116 Contact Us For Availability
19
STRAP, DOOR MAY W10113759 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
Block, Terminal MAY 9761958 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
Screw MAY 3196179 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
MAY 9758238 MAY 9758238 Contact Us For Availability
37
BRKT - MOUNTING MAY 9760407 Contact Us For Availability
38
Latch, Door MAY 9761013 Contact Us For Availability
39
MAY W10078380 MAY W10078380 Contact Us For Availability
40
Latch Asy, Rear MAY W10107820 Contact Us For Availability
41
Spacer, Door MAY 9758701 Contact Us For Availability
42
MAY 3196169 MAY 3196169 Contact Us For Availability
43
MAY 9758283 MAY 9758283 Contact Us For Availability
44
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
45
Screw (2) MAY 3196560 Contact Us For Availability
47
SEAL, OVEN MAY W10010350 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY 8272613 MAY 8272613 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Foil, Aluminum Oven (18` MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Ground Wire MAY 313660 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Cleaner, Glass) MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY 8212473 MAY 8212473 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
Tie, Wire MAY W10144763 Contact Us For Availability
NI
MAY W10174422 MAY W10174422 Contact Us For Availability
NI
Harness, Wire (Cooktp Lft Dual) MAY W10174424 Contact Us For Availability
NI
MAY W10174453 MAY W10174453 Contact Us For Availability
× ![]()
