Model Whirlpool AER5715RCW ELECTRIC RANGE – Common Parts & Diagrams

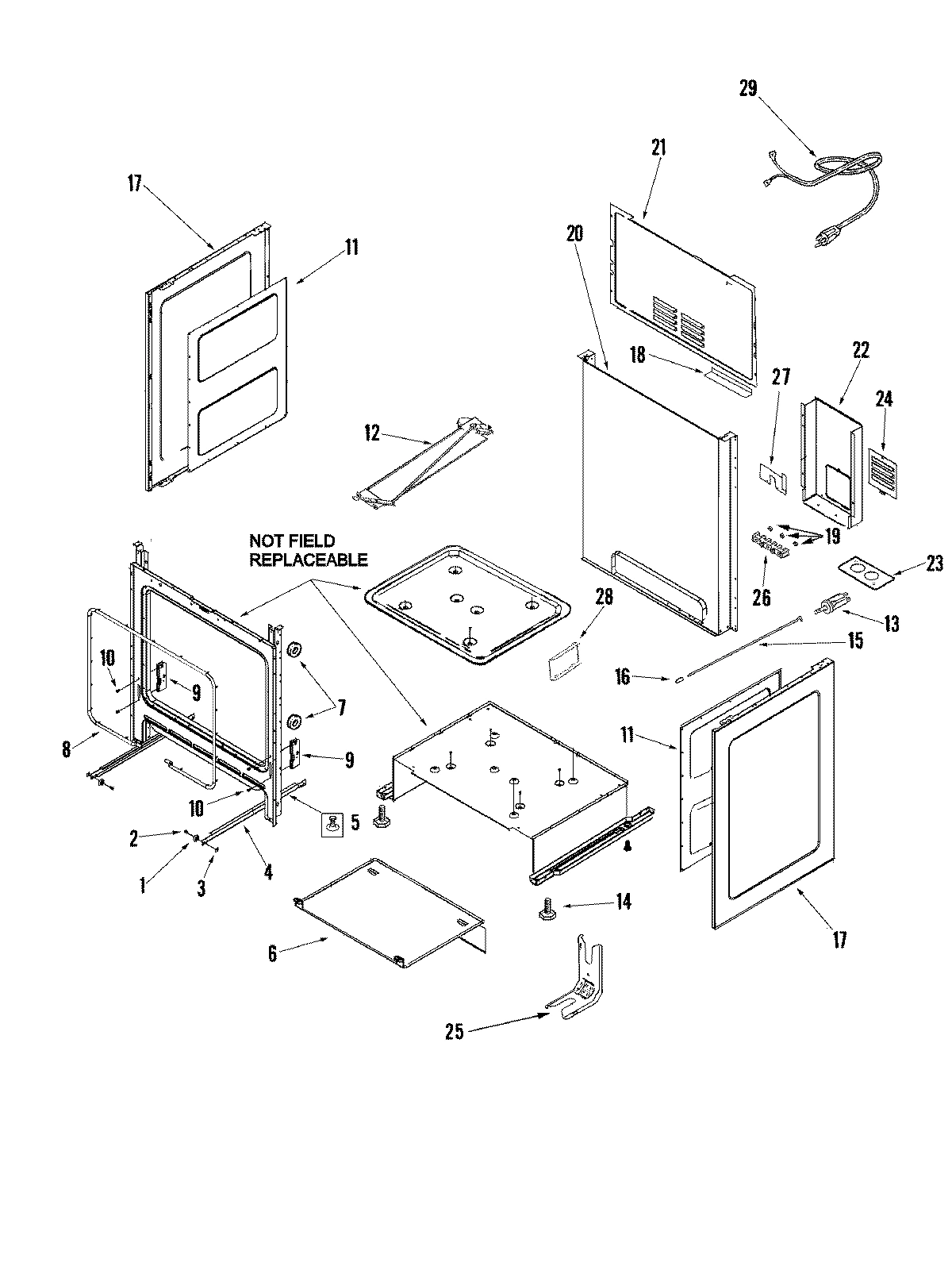

01 - CABINET
05 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION (FRC)

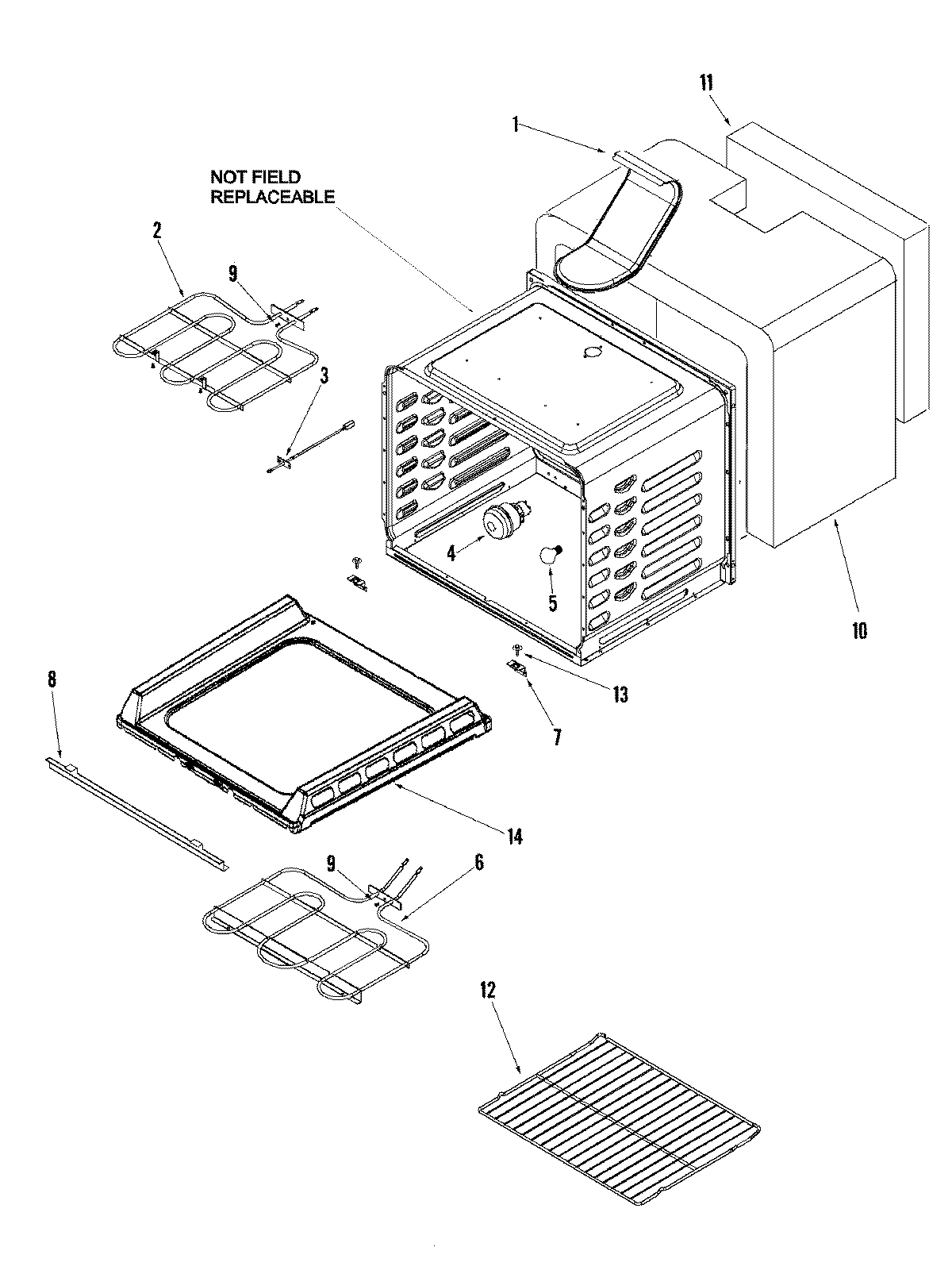

02 - CAVITY

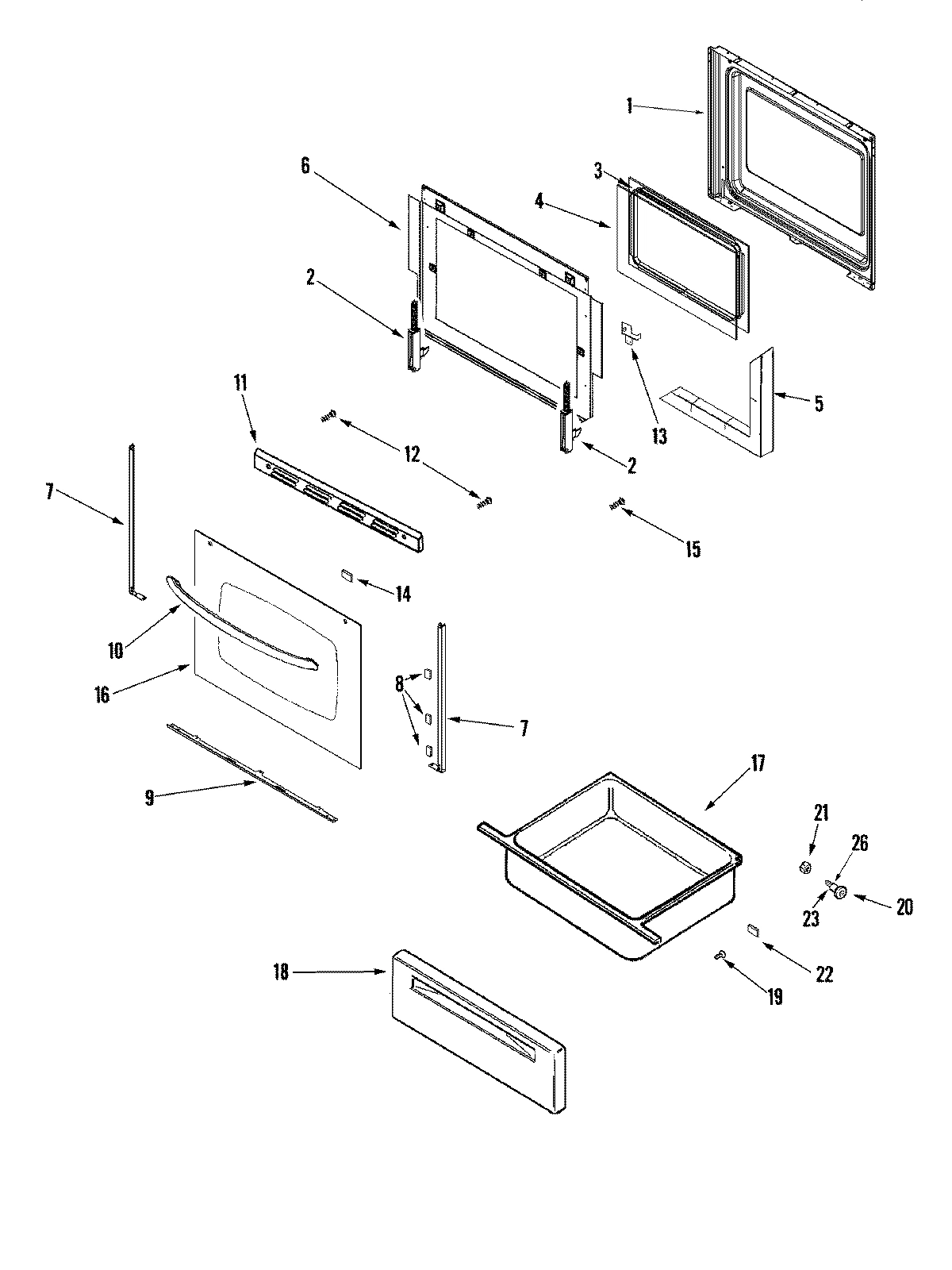

04 - DOOR/DRAWER

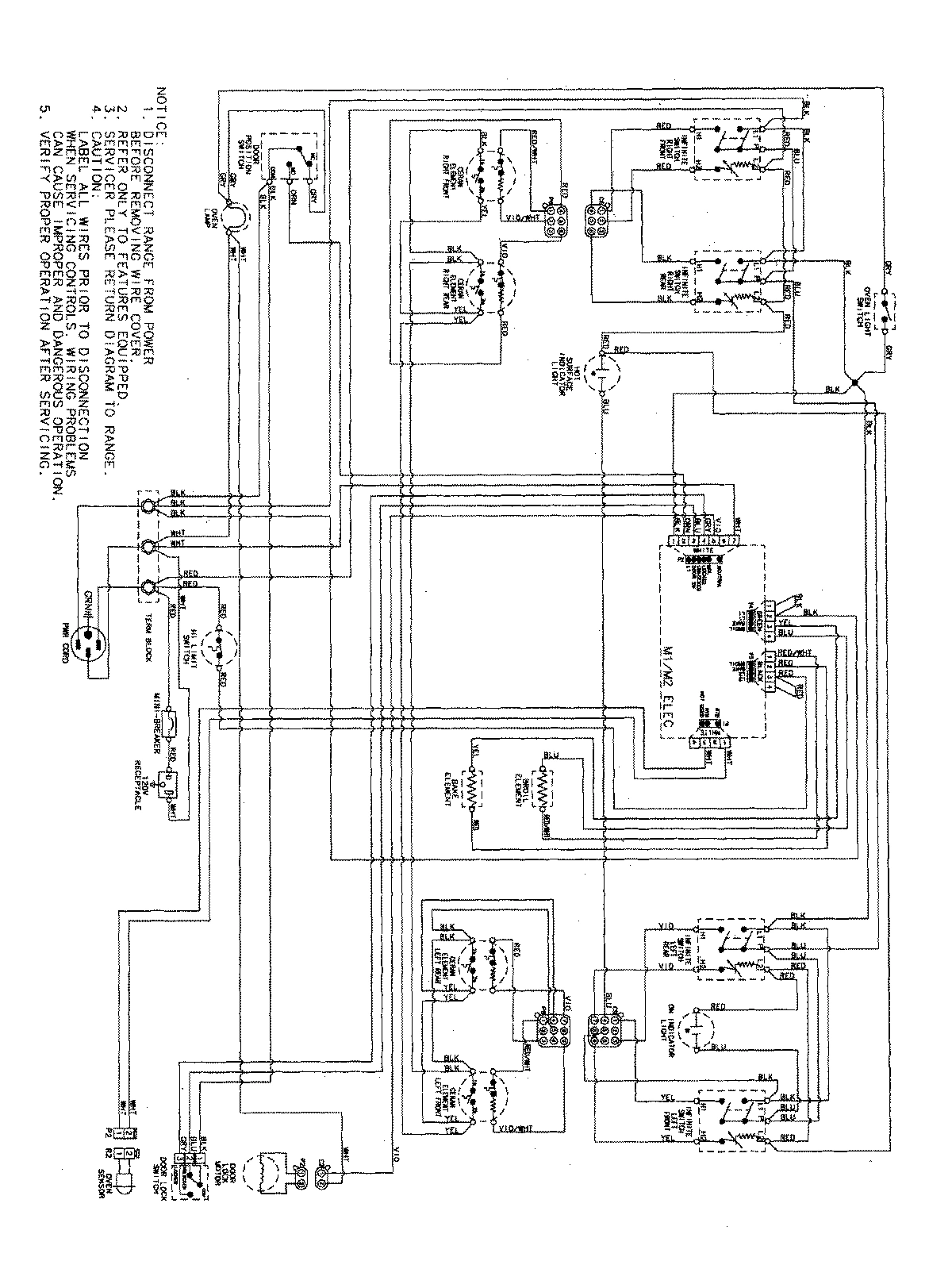

06 - WIRING INFORMATION

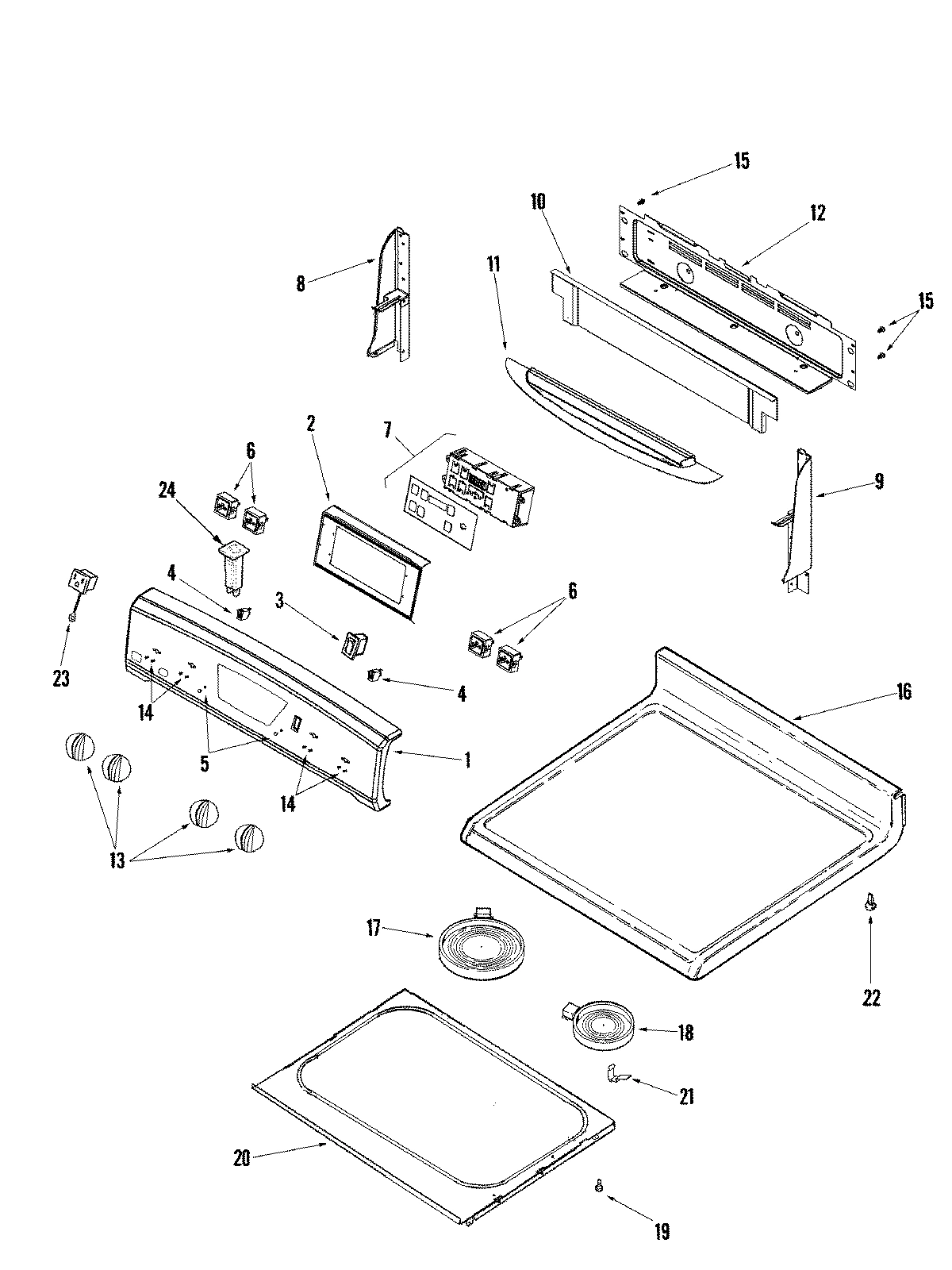

03 - CONTROL PANEL/TOP ASSEMBLY
Common parts from model Whirlpool AER5715RCW ELECTRIC RANGE
1
MANUAL, USE & CARE WPL 8113P48760 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P59160 Contact Us For Availability
1
MANUAL, USE & CARE (ENG) WPL 8113P70160 Contact Us For Availability
1
MANUAL, USE & CARE (FRN) WPL 8113P70260 Contact Us For Availability
1
VENT, OVEN WPL 74008691 Contact Us For Availability
1
LINING, DOOR WPL 74008926 Contact Us For Availability
1
PANEL, BACKGUARD (WHT) WPL 74009325 Contact Us For Availability
2
HARNESS, MAIN WPL 5171P88060 Contact Us For Availability
2
HARNESS, MAIN WPL 74011444 Contact Us For Availability
2
BRACKET, CLOCK WPL 74008716 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
HARNESS, INF.SW. (LT) WPL 5171P87460 Contact Us For Availability
3
HARNESS, INF.SW.TO ELEM.(LT) WPL 74009327 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
4
HARNESS, INF.SW. (RT) WPL 5171P87560 Contact Us For Availability
4
HARNESS, INF.SW TO ELEM.(RT) WPL 74009328 Contact Us For Availability
4
LENS, LIGHT BULB WPL 74011299 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74009329 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
INSULATION, DOOR WPL 74010564 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
7
TRIM, SIDE (WHT) WPL 74010561 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
8
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
8
END CAP (RT-WHT) WPL 74009077 Contact Us For Availability
9
END CAP (LT-WHT) WPL 74009079 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 74008322 Contact Us For Availability
10
SHIELD, VENT WPL 74009444 Contact Us For Availability
11
RETAINER, SIDE WPL 3804F31651 Contact Us For Availability
11
INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
TRIM, TOP (WHT) WPL 74008747 Contact Us For Availability
11
SHIELD, HEAT VISOR (WHT) WPL 74009203 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74011896 Contact Us For Availability
12
Latch Assembly WPL 8002P10460 Contact Us For Availability
12
INSULATION, BOTTOM (FIBERGLASS) WPL 7002P36160 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
13
KNOB (WHT) WPL 74008733 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
14
SCREW WPL 7101P30960 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
GLASS, DOOR (WHT) WPL 74008853 Contact Us For Availability
16
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
16
TOP ASSEMBLY (WHT) WPL 74008530 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (WHT) WPL 74008709 Contact Us For Availability
17
DRAWER, SERVICE WPL 3405F03780 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL W10163040 Contact Us For Availability
18
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
18
BRACKET, MOUNTING WPL 3605P33751 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 74008755 Contact Us For Availability
19
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
19
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
20
BACK, MAIN (ELEC) WPL 74009675 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
23
RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
BREAKER, CIRCUIT (WHT) WPL 74009322 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability
28
BRACKET, OVEN SUPPORT WPL 74011187 Contact Us For Availability
29
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
WIRING INFORMATION (FRC) WPL 15003868 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003867 Contact Us For Availability
× ![]()
