Model Maytag AER5522VCS1 ELECTRIC RANGE – Common Parts & Diagrams

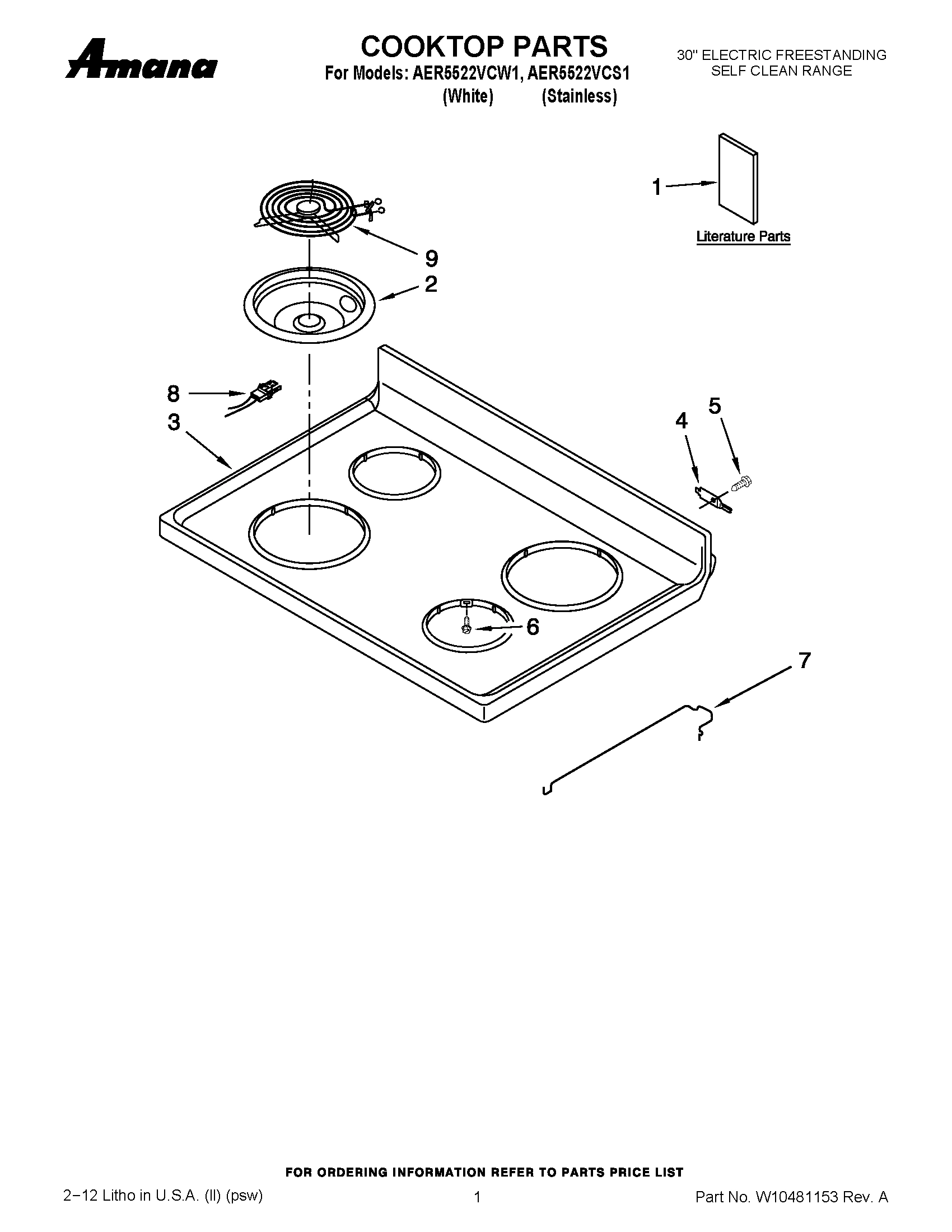

01 - COOKTOP PARTS

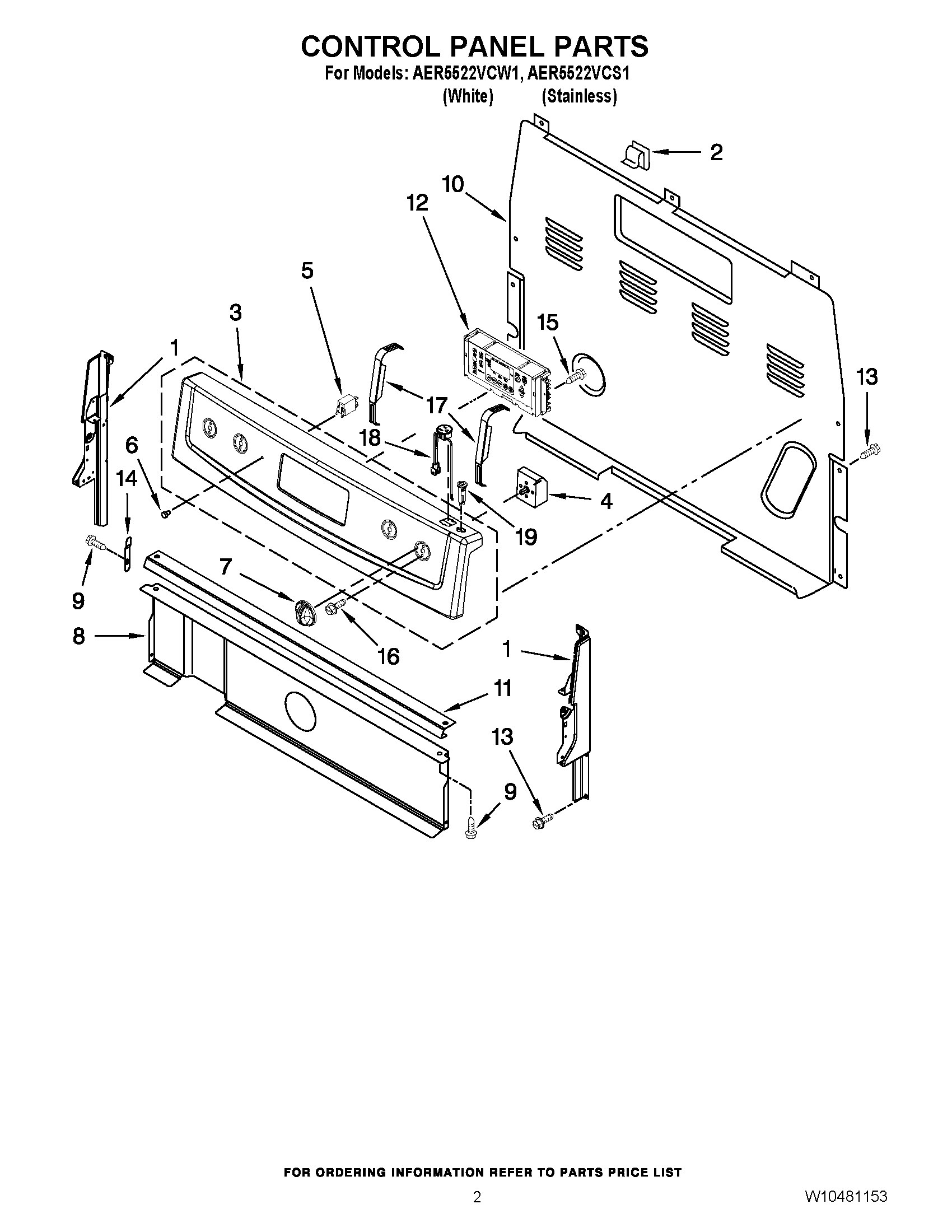

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AER5522VCS1 ELECTRIC RANGE
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10361708 MAY W10361708 Contact Us For Availability
1
MAY W10361709 MAY W10361709 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) MAY W10403812 Contact Us For Availability
1
MAY W10419380 MAY W10419380 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube MAY 9755804 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
Bowl, Drip (8`` Chrome) MAY W10196405 Contact Us For Availability
2
Bowl, Drip (6`` Chrome) MAY W10196406 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10178143 MAY W10178143 Contact Us For Availability
3
MAY 3186231 MAY 3186231 Contact Us For Availability
3
MAY 3186233 MAY 3186233 Contact Us For Availability
3
MAY W10170029 MAY W10170029 Contact Us For Availability
3
MAY W10182890 MAY W10182890 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, DRAWER MAY W10462912 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
Handle, Door (Stainless Steel) MAY W10144890 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
MAY 3148952 MAY 3148952 Contact Us For Availability
4
MAY 3148954 MAY 3148954 Contact Us For Availability
4
MAY 3196560 MAY 3196560 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Light, Indicator MAY 8523265 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
MAY W10137382 MAY W10137382 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
ELEMENT, BROIL (3400W) MAY W10308476 Contact Us For Availability
6
GLIDE, DRAWER MAY W10317899 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
ROD, SUPPORT MAY 3195812 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10119705 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY W10119706 Contact Us For Availability
7
ELEMENT, BAKE (2400W) MAY W10308477 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
RECEPTACLE, ELMNT MAY 3195210 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
ELEMENT, SURFACE (8``) MAY W10259865 Contact Us For Availability
9
ELEMENT, SURFACE (6``) MAY W10259868 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
PANEL(SS MODEL) MAY W10237657 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Guard, Wire MAY 9780585 Contact Us For Availability
10
GLIDE, FRONT MAY W10317898 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10182322 MAY W10182322 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
Glass, Outer (White) MAY W10118454 Contact Us For Availability
11
GLASS, OUTER (BLACK) MAY W10144884 Contact Us For Availability
12
MAY W10271729 MAY W10271729 Contact Us For Availability
12
MAY W10271730 MAY W10271730 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
TRIM, SIDE (STAINLESS RH) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (STAINLESS LH) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3196200 MAY 3196200 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
15
RAIL, BASE (LEFT) MAY W10390007 Contact Us For Availability
15
RAIL, BASE (RIGHT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
17
BRACKET, HINGE MAY W10289077 Contact Us For Availability
17
STRAP, DOOR MAY W10113759 Contact Us For Availability
18
MAY 3196169 MAY 3196169 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
18
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
18
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
19
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
19
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
LIGHT SOCKET ASSY MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
29
LATCH, REAR ASM MAY W10107820 Contact Us For Availability
30
MAY 3196178 MAY 3196178 Contact Us For Availability
31
MAY 3400016 MAY 3400016 Contact Us For Availability
32
COVER, BOX MAY W10326122 Contact Us For Availability
33
MAY 3196172 MAY 3196172 Contact Us For Availability
35
MAY 3196567 MAY 3196567 Contact Us For Availability
36
MAY W10078380 MAY W10078380 Contact Us For Availability
37
Screw MAY 3196174 Contact Us For Availability
38
RETAINER, SIDE MAY 9758238 Contact Us For Availability
39
Latch, Door MAY 9761013 Contact Us For Availability
40
MAY W10196451 MAY W10196451 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 311227 MAY 311227 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
Broiler Pan Assy MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 9756779 MAY 9756779 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire Door Switch/Sensor MAY W10084660 Contact Us For Availability
NI
POWER CORD MAY W10244925 Contact Us For Availability
NI
MAY W10251768 MAY W10251768 Contact Us For Availability
NI
HARNESS, WIRE (SURFACE UNIT) MAY W10295595 Contact Us For Availability
× ![]()
