Model Maytag AER5522VAS0 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

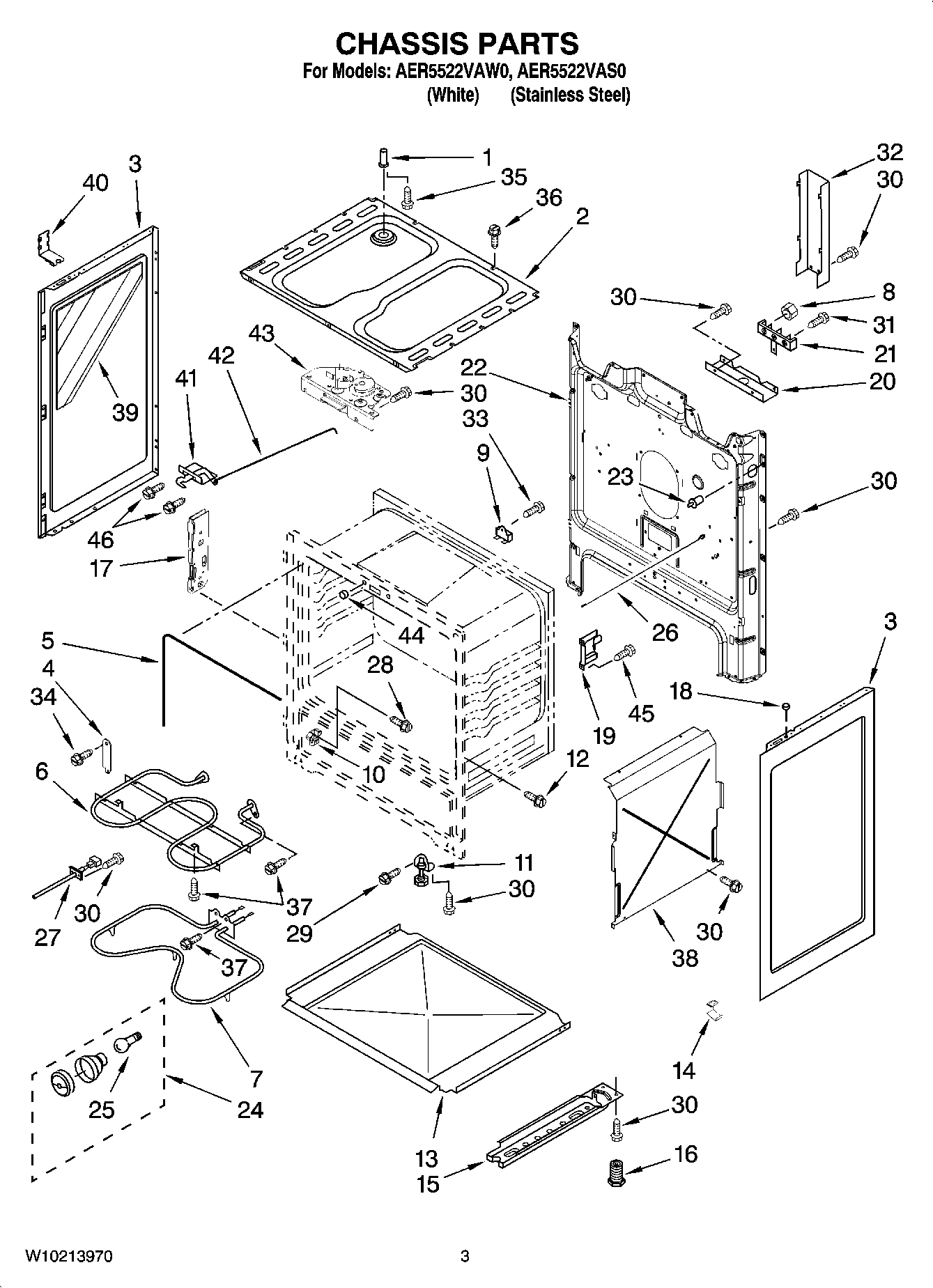

03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS

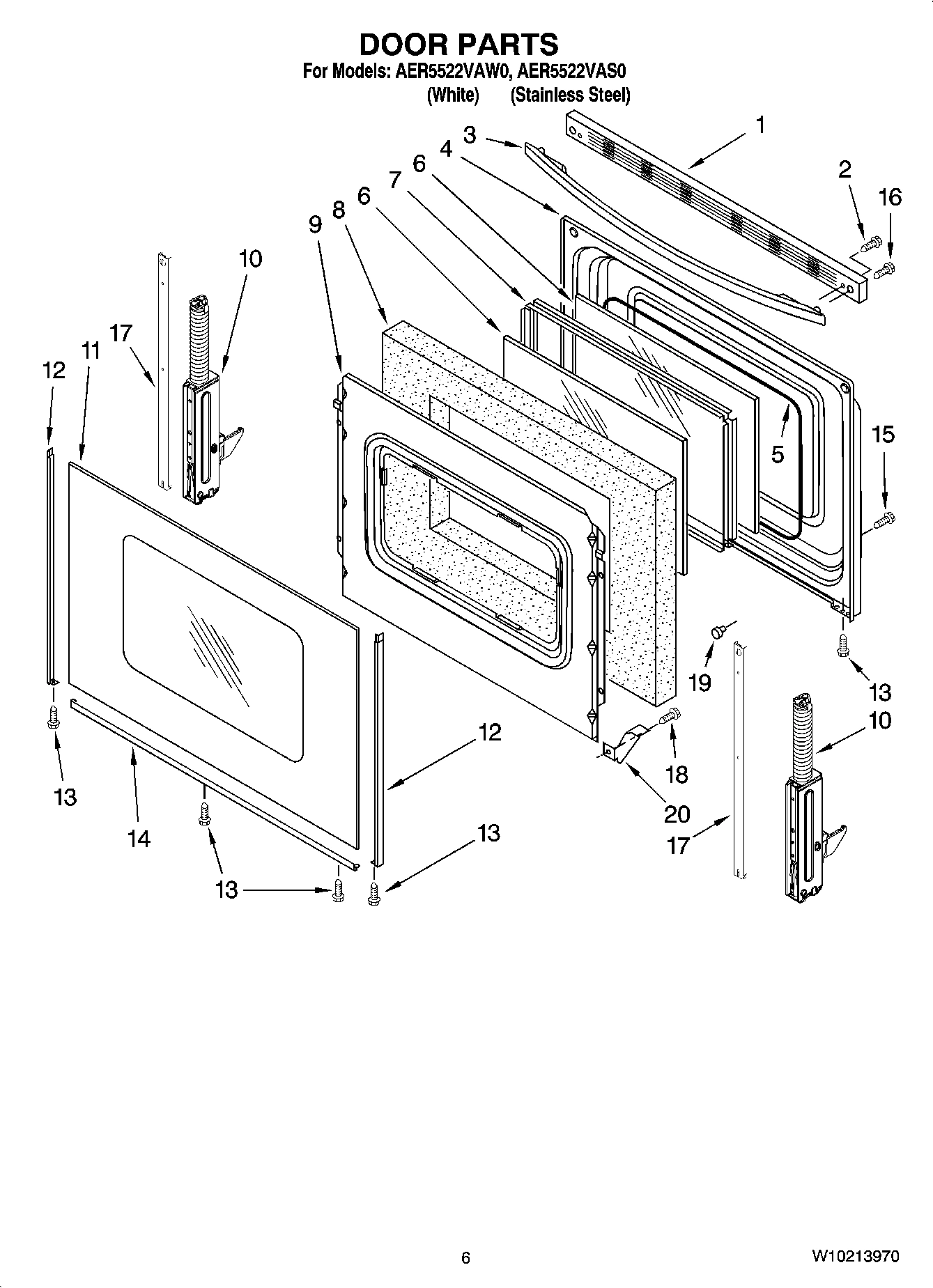

05 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AER5522VAS0 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10196158 MAY W10196158 Contact Us For Availability
1
MAY W10196163 MAY W10196163 Contact Us For Availability
1
MAY W10198623 MAY W10198623 Contact Us For Availability
1
MAY W10009040 MAY W10009040 Contact Us For Availability
1
MAY W10009050 MAY W10009050 Contact Us For Availability
1
MAY W10009080 MAY W10009080 Contact Us For Availability
1
MAY W10009090 MAY W10009090 Contact Us For Availability
1
Vent Tube MAY 9755804 Contact Us For Availability
1
MAY W10138079 MAY W10138079 Contact Us For Availability
1
MAY W10144869 MAY W10144869 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
2
Bowl, Drip (8`` Chrome) MAY W10196405 Contact Us For Availability
2
Bowl, Drip (6`` Chrome) MAY W10196406 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY 3186144 MAY 3186144 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
Screw MAY 3196164 Contact Us For Availability
3
MAY 3186231 MAY 3186231 Contact Us For Availability
3
MAY 3186233 MAY 3186233 Contact Us For Availability
3
MAY W10170009 MAY W10170009 Contact Us For Availability
3
MAY W10170010 MAY W10170010 Contact Us For Availability
3
MAY 8053830 MAY 8053830 Contact Us For Availability
3
MAY 8053832 MAY 8053832 Contact Us For Availability
3
Bracket, Drawer(2) MAY W10174396 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
4
Hinge, Cooktop (2) MAY 3195060 Contact Us For Availability
4
MAY 3148952 MAY 3148952 Contact Us For Availability
4
MAY 3148954 MAY 3148954 Contact Us For Availability
4
Clip,Door Mntg(2) MAY 9761517 Contact Us For Availability
4
Rivet, Push (2) (Black) MAY 3196813 Contact Us For Availability
4
Rivet, Push (2) (White) MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Light, Indicator MAY 8523265 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY 8522414 MAY 8522414 Contact Us For Availability
6
Strain Relief MAY 308605 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
MAY 8053334 MAY 8053334 Contact Us For Availability
6
Glass, Inner (2) MAY 9758162 Contact Us For Availability
7
MAY 3195812 MAY 3195812 Contact Us For Availability
7
MAY W10119705 MAY W10119705 Contact Us For Availability
7
MAY W10119706 MAY W10119706 Contact Us For Availability
7
MAY 9758541 MAY 9758541 Contact Us For Availability
7
Screw MAY 3196168 Contact Us For Availability
7
MAY 3186289 MAY 3186289 Contact Us For Availability
8
MAY 814399 MAY 814399 Contact Us For Availability
8
MAY 8053912 MAY 8053912 Contact Us For Availability
8
MAY W10013790 MAY W10013790 Contact Us For Availability
8
MAY 8272618 MAY 8272618 Contact Us For Availability
9
MAY 3196166 MAY 3196166 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
Panel (Stls. Model) MAY 9755798 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
MAY 9761345 MAY 9761345 Contact Us For Availability
10
MAY 9761347 MAY 9761347 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Glide, Drawer Frnt MAY W10114344 Contact Us For Availability
10
Handle (Stls. Mdl) MAY 9757219 Contact Us For Availability
10
Hinge, Door (2) MAY 9761493 Contact Us For Availability
11
MAY W10182322 MAY W10182322 Contact Us For Availability
11
MAY 3196037 MAY 3196037 Contact Us For Availability
11
CLIP(STLS.MODEL) MAY 9781235 Contact Us For Availability
11
Glass, Outer (White) MAY W10118454 Contact Us For Availability
11
Glass, Outer (Black) MAY W10118455 Contact Us For Availability
12
MAY W10173506 MAY W10173506 Contact Us For Availability
12
MAY W10173507 MAY W10173507 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
Trim, Side (White Left Hand) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
Trim, Side (White Right Hand) MAY 8523172 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3196200 MAY 3196200 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
MAY 9760314 MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
Foot, Rear (2) MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
17
Brkt-Mntg,Dr Hinge MAY 9760407 Contact Us For Availability
17
STRAP, DOOR MAY W10113759 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
Bumper, Door (2) MAY 3195809 Contact Us For Availability
19
MAY 3186116 MAY 3186116 Contact Us For Availability
20
Clip, Panel (2) MAY W10137382 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
Block, Terminal MAY 9761958 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
29
Screw MAY 3196179 Contact Us For Availability
30
MAY 3196178 MAY 3196178 Contact Us For Availability
31
MAY 3400016 MAY 3400016 Contact Us For Availability
32
MAY 9758283 MAY 9758283 Contact Us For Availability
33
MAY 3196172 MAY 3196172 Contact Us For Availability
35
MAY 3196567 MAY 3196567 Contact Us For Availability
37
Screw MAY 3196174 Contact Us For Availability
38
MAY 9758238 MAY 9758238 Contact Us For Availability
39
Insulation, Side MAY W10182346 Contact Us For Availability
40
Clip, Mounting MAY 9761512 Contact Us For Availability
41
Latch, Door MAY 9761013 Contact Us For Availability
42
MAY W10078380 MAY W10078380 Contact Us For Availability
43
Latch Asy, Rear MAY W10107820 Contact Us For Availability
44
Spacer, Door MAY 9758701 Contact Us For Availability
45
MAY 3196169 MAY 3196169 Contact Us For Availability
46
Screw (2) MAY 3196560 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY 8272616 MAY 8272616 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
NI
Wire, Blue 14 Ga. 150 c MAY 242821 Contact Us For Availability
NI
Wire, Brown 14 Ga. 150 c MAY 242822 Contact Us For Availability
NI
Wire, Green 14 Ga. 150 c MAY 242823 Contact Us For Availability
NI
Wire, Orange 14 Ga. 150 c MAY 242824 Contact Us For Availability
NI
Wire, Red 14 Ga. 150 c MAY 242825 Contact Us For Availability
NI
Wire, Yellow 14 Ga. 150 c MAY 242827 Contact Us For Availability
NI
Wire, Black 12 Ga. 150 c MAY 242828 Contact Us For Availability
NI
Wire, Brown 14 Ga. 200 c MAY 242830 Contact Us For Availability
NI
Wire, Red 14 Ga. 200 c MAY 242831 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 261582 MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 311227 MAY 311227 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
Broiler Pan Assy MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire Door Switch/Sensor MAY W10084660 Contact Us For Availability
NI
MAY W10114335 MAY W10114335 Contact Us For Availability
NI
Harness, Wire (Surface Unit) MAY W10196280 Contact Us For Availability
× ![]()
