Model Maytag AER5330BAS0 ELECTRIC RANGE – Common Parts & Diagrams

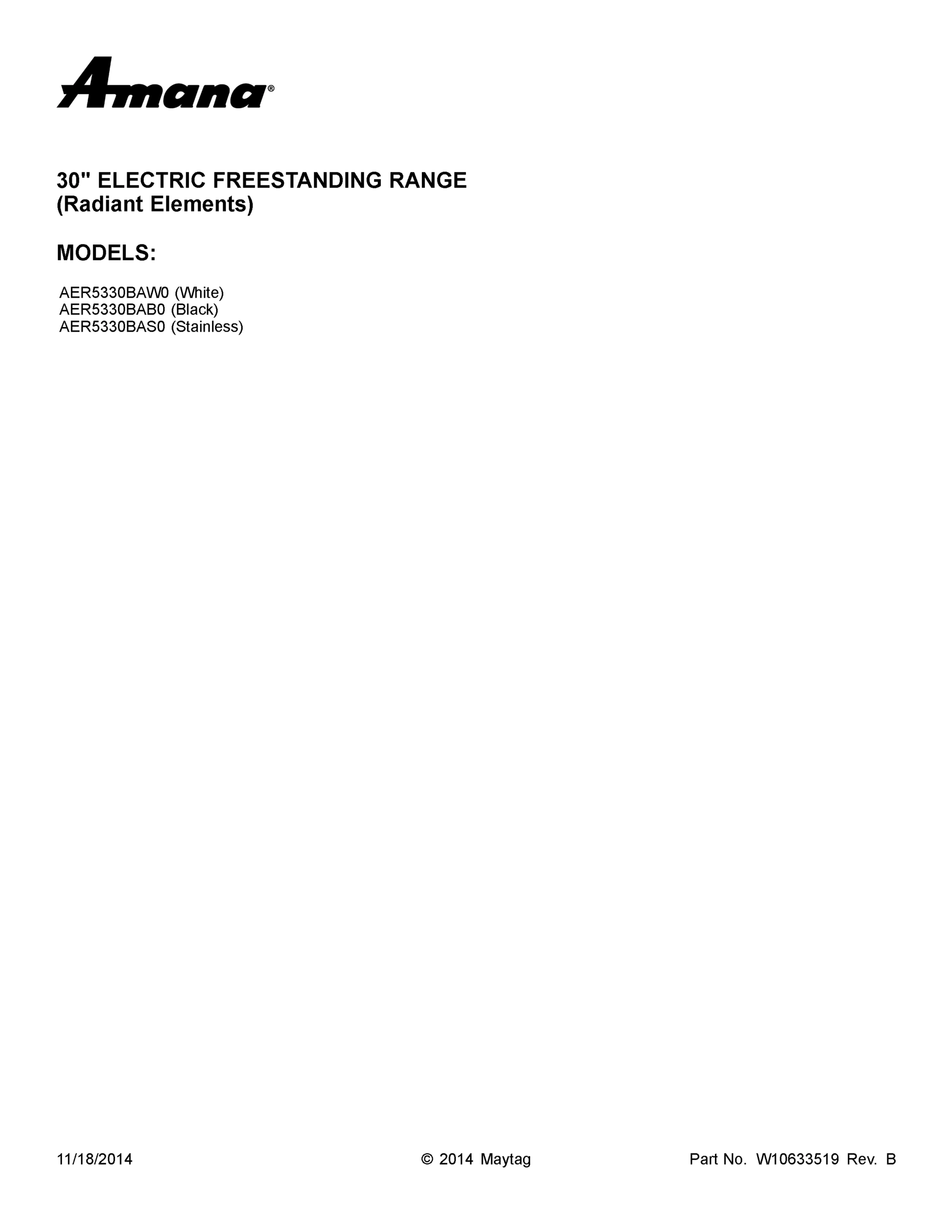

01 - COVER SHEET

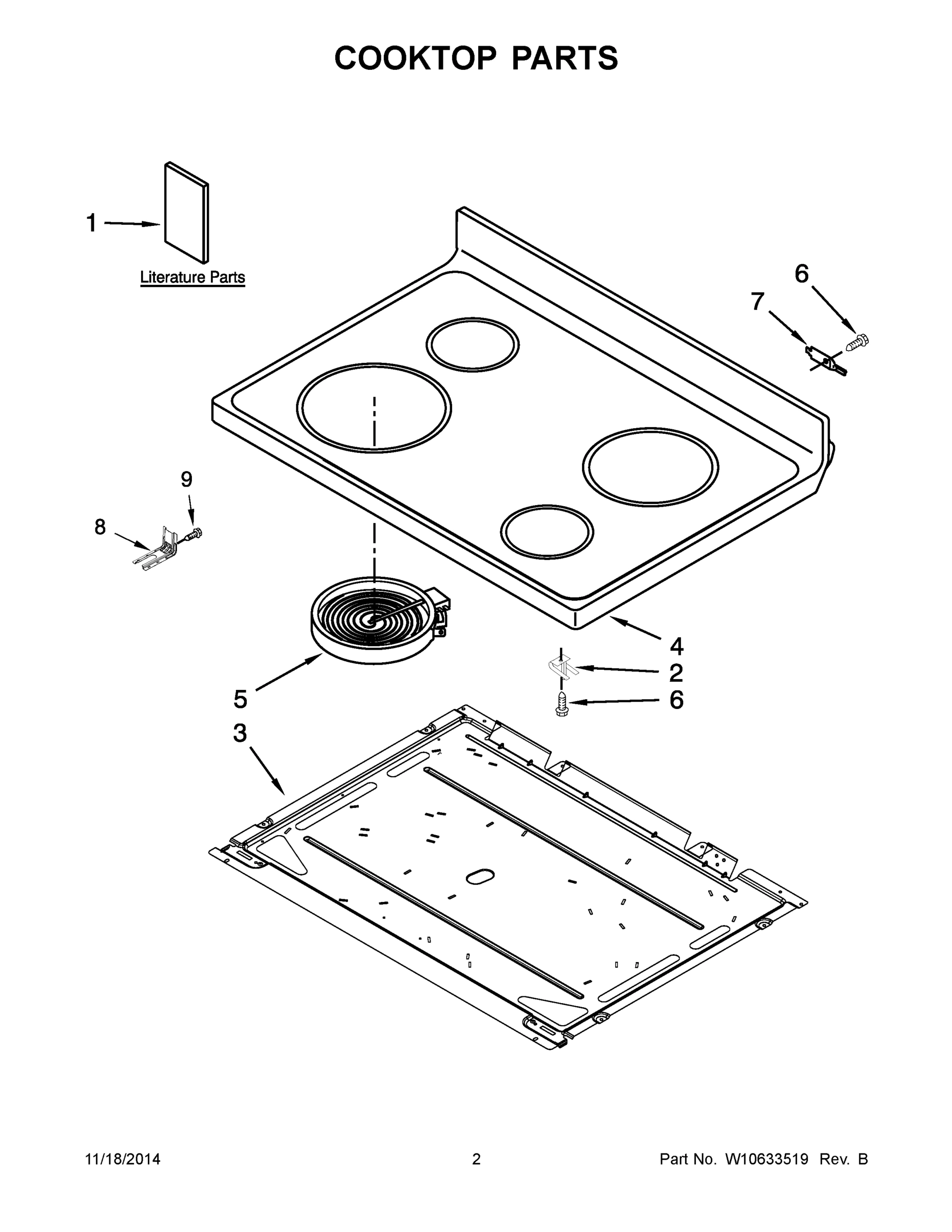

02 - COOKTOP PARTS

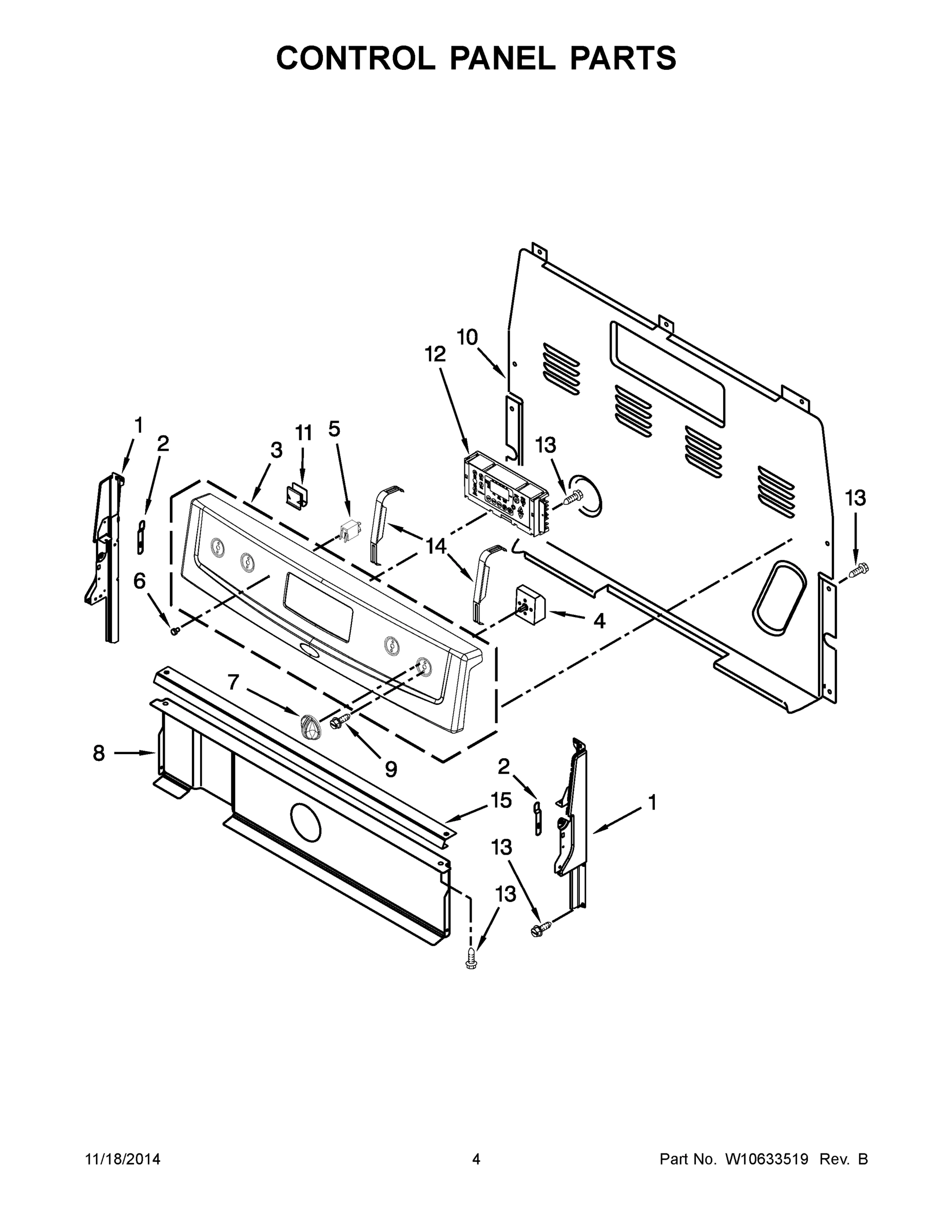

03 - CONTROL PANEL PARTS

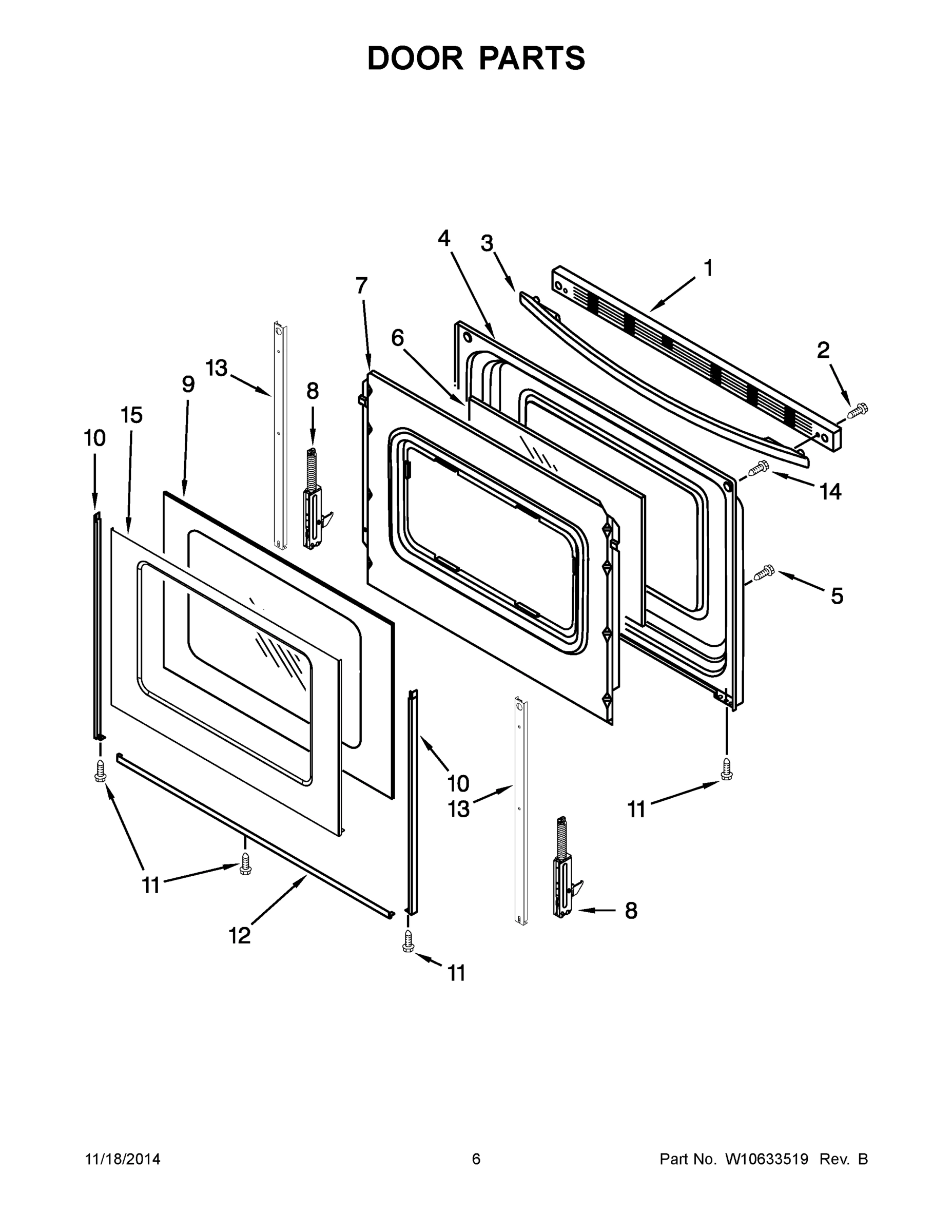

04 - DOOR PARTS

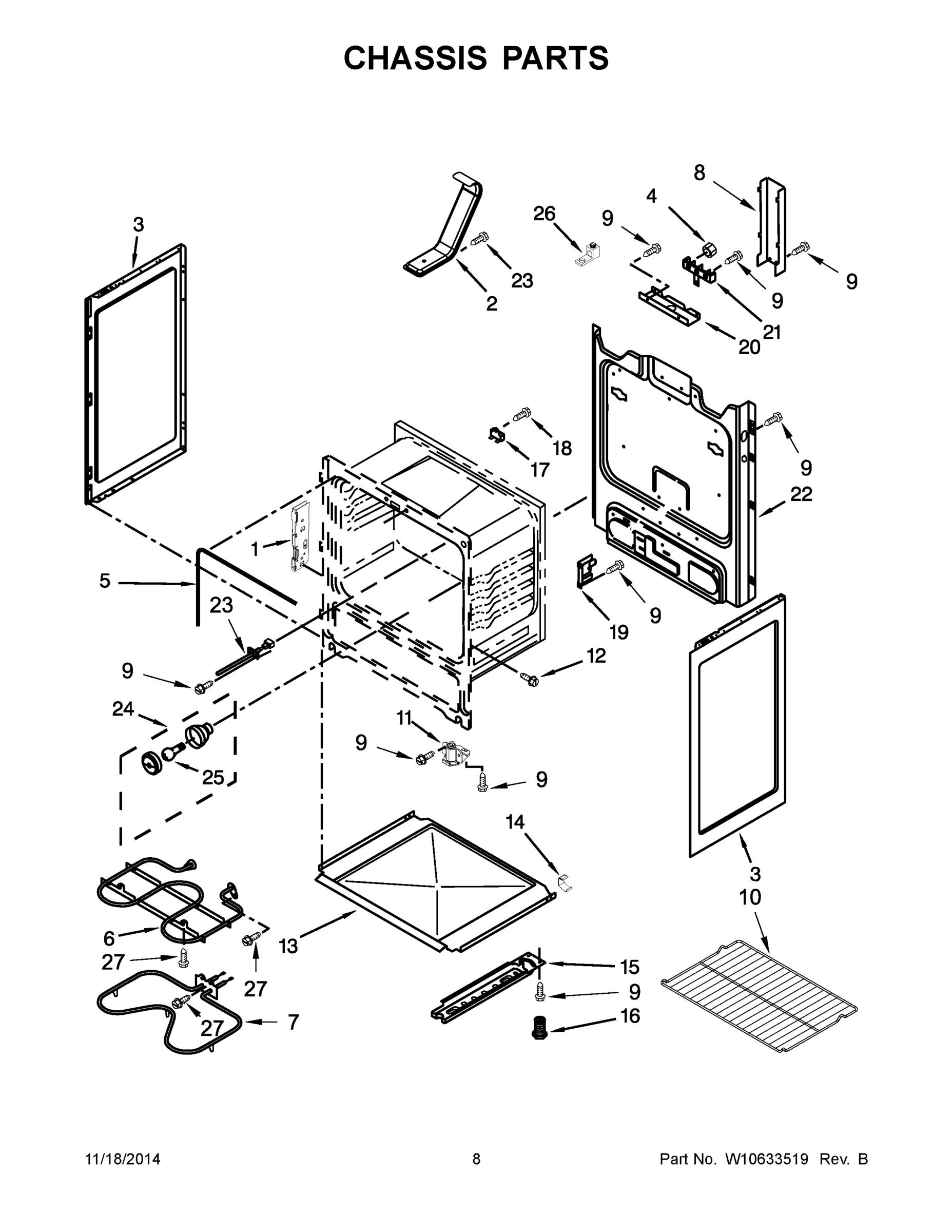

05 - CHASSIS PARTS

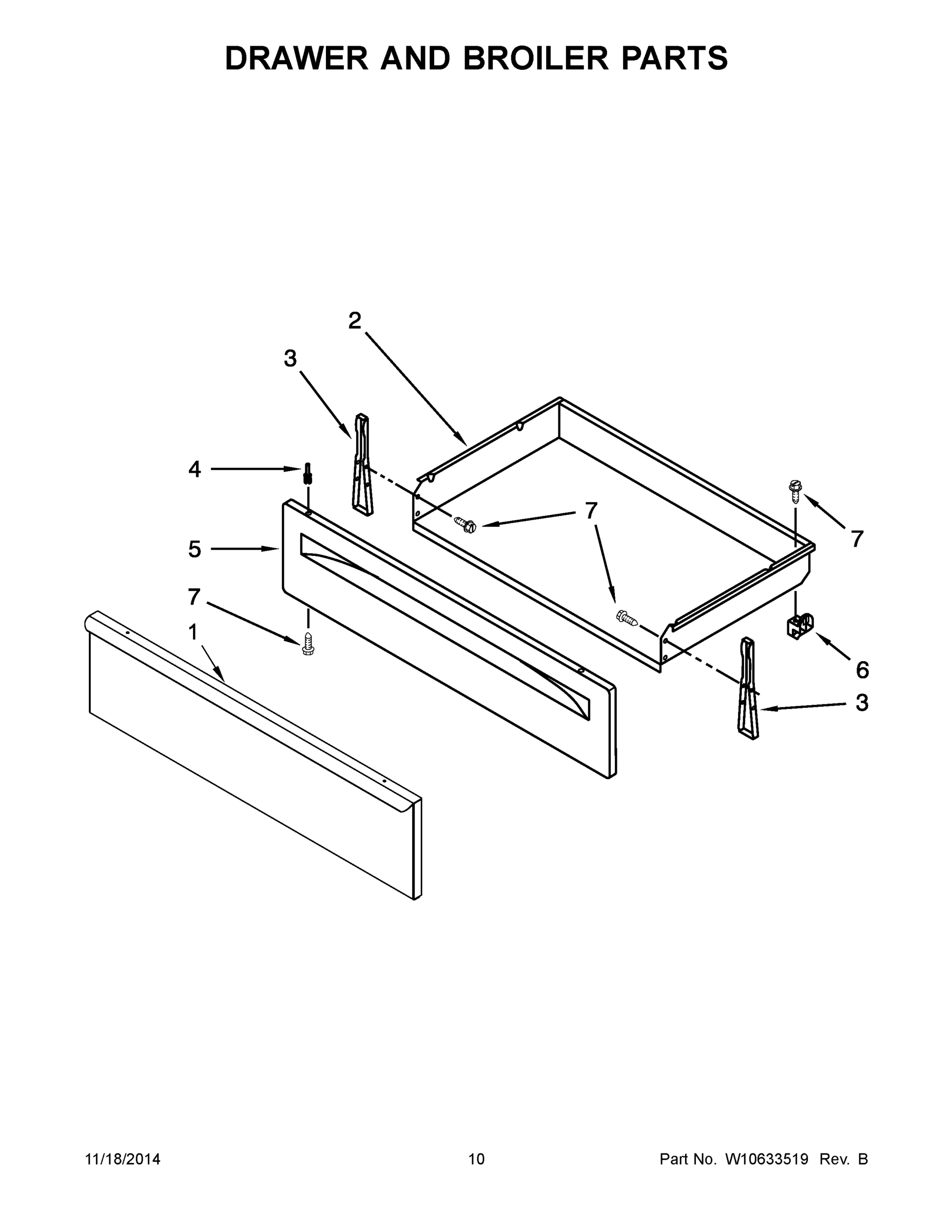

06 - DRAWER AND BROILER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AER5330BAS0 ELECTRIC RANGE
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10289077 MAY W10289077 Contact Us For Availability
1
MAY W10330070 MAY W10330070 Contact Us For Availability
1A
MAY W10572534 MAY W10572534 Contact Us For Availability
1A
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1A
MAY W10310922 MAY W10310922 Contact Us For Availability
1B
MAY 9762761 MAY 9762761 Contact Us For Availability
1B
MAY W10184434 MAY W10184434 Contact Us For Availability
1C
TECH SHEET (ENGLISH) MAY W10384447 Contact Us For Availability
1C
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY 3196200 MAY 3196200 Contact Us For Availability
2
MAY W10134285 MAY W10134285 Contact Us For Availability
2
MAY W10688022 MAY W10688022 Contact Us For Availability
3
MAY W10691223 MAY W10691223 Contact Us For Availability
3
MAY W10572565 MAY W10572565 Contact Us For Availability
3
MAY W10323588 MAY W10323588 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
BRACKET, DRAWER (WHITE) MAY W10462912 Contact Us For Availability
3A
MAY W10572567 MAY W10572567 Contact Us For Availability
3A
MAY W10323589 MAY W10323589 Contact Us For Availability
3A
MAY W10322770 MAY W10322770 Contact Us For Availability
3A
BRACKET, DRAWER (STAINLESS) MAY W10462910 Contact Us For Availability
3B
MAY W10572569 MAY W10572569 Contact Us For Availability
3B
MAY W10144883 MAY W10144883 Contact Us For Availability
4
COOKTOP (WHITE) MAY W10202165 Contact Us For Availability
4
SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LE MAY 3148952 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3400029 MAY 3400029 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4A
MAY W10202162 MAY W10202162 Contact Us For Availability
4A
MAY 3148953 MAY 3148953 Contact Us For Availability
4A
MAY 3196813 MAY 3196813 Contact Us For Availability
5
ELEMENT (2000W) (LEFT FRONT AND RIGHT REAR) MAY 8523695 Contact Us For Availability
5
MAY 8523265 MAY 8523265 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
MAY W10129032 MAY W10129032 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5A
ELEMENT (1500W) (RIGHT FRONT AND LEFT REAR) MAY 8523697 Contact Us For Availability
5A
MAY 8053341 MAY 8053341 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY W10620754 MAY W10620754 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
MAY W10674708 MAY W10674708 Contact Us For Availability
6A
MAY W10674705 MAY W10674705 Contact Us For Availability
7
MAY 3195060 MAY 3195060 Contact Us For Availability
7
KNOBS (WHITE) MAY 9761962 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
RETAINER, INSULATION MAY 9761501 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7A
KNOBS (BLACK) MAY 9761964 Contact Us For Availability
8
MAY W10306542 MAY W10306542 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10299225 MAY W10299225 Contact Us For Availability
8
MAY W10326122 MAY W10326122 Contact Us For Availability
8A
MAY W10299227 MAY W10299227 Contact Us For Availability
9
MAY 3196169 MAY 3196169 Contact Us For Availability
9
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
9
MAY 3400882 MAY 3400882 Contact Us For Availability
9
GLASS, OUTER (WHITE) MAY W10118454 Contact Us For Availability
9A
GLASS, OUTER (BLACK) MAY W10118455 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
10
MAY W10268578 MAY W10268578 Contact Us For Availability
10A
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
10B
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
10C
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
11
MAY 8273564 MAY 8273564 Contact Us For Availability
11
MAY W10327235 MAY W10327235 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
12
MAY W10626963 MAY W10626963 Contact Us For Availability
12
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12A
MAY W10626964 MAY W10626964 Contact Us For Availability
12A
TRIM, LOWER (BLACK) MAY 8523177 Contact Us For Availability
13
MAY 3196178 MAY 3196178 Contact Us For Availability
13
MAY W10544179 MAY W10544179 Contact Us For Availability
13
MAY 8054068 MAY 8054068 Contact Us For Availability
14
MAY W10695491 MAY W10695491 Contact Us For Availability
14
MAY W10200660 MAY W10200660 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
15
MAY W10525121 MAY W10525121 Contact Us For Availability
15
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10144884 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
17
MAY 3196548 MAY 3196548 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
MAY W10404688 MAY W10404688 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
27
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
CLIP, GROUND WIRE MAY 313660 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
TIE, CABLE MAY W10144763 Contact Us For Availability
NI
HARNESS, DOOR SWITCH SENSOR MAY W10174459 Contact Us For Availability
NI
MAY W10251766 MAY W10251766 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10273584 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273585 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. UNIVERSAL SILVER) MAY 8212473 Contact Us For Availability
× ![]()
