Model Maytag AER3311WAW1 ELECTRIC RANGE – Common Parts & Diagrams

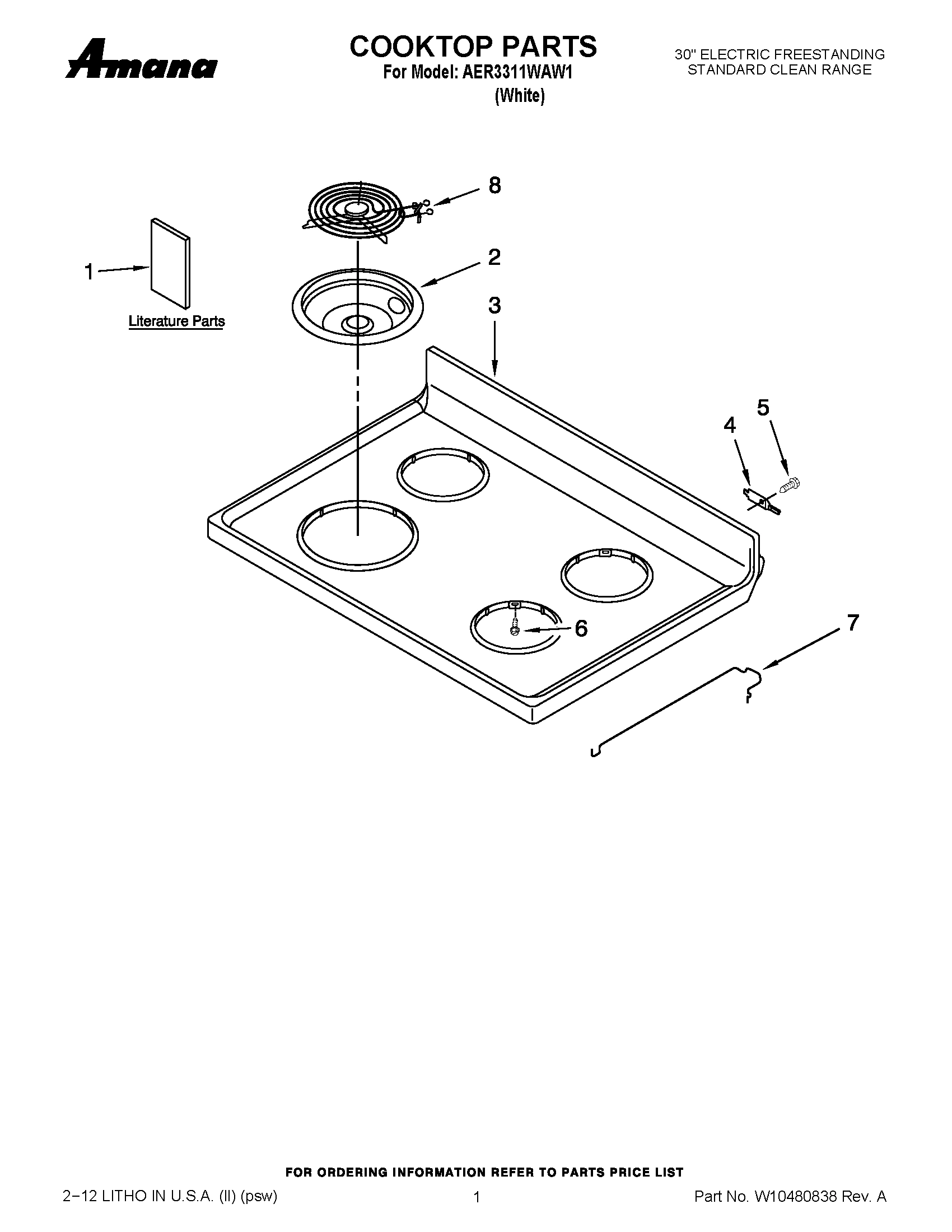

01 - COOKTOP PARTS

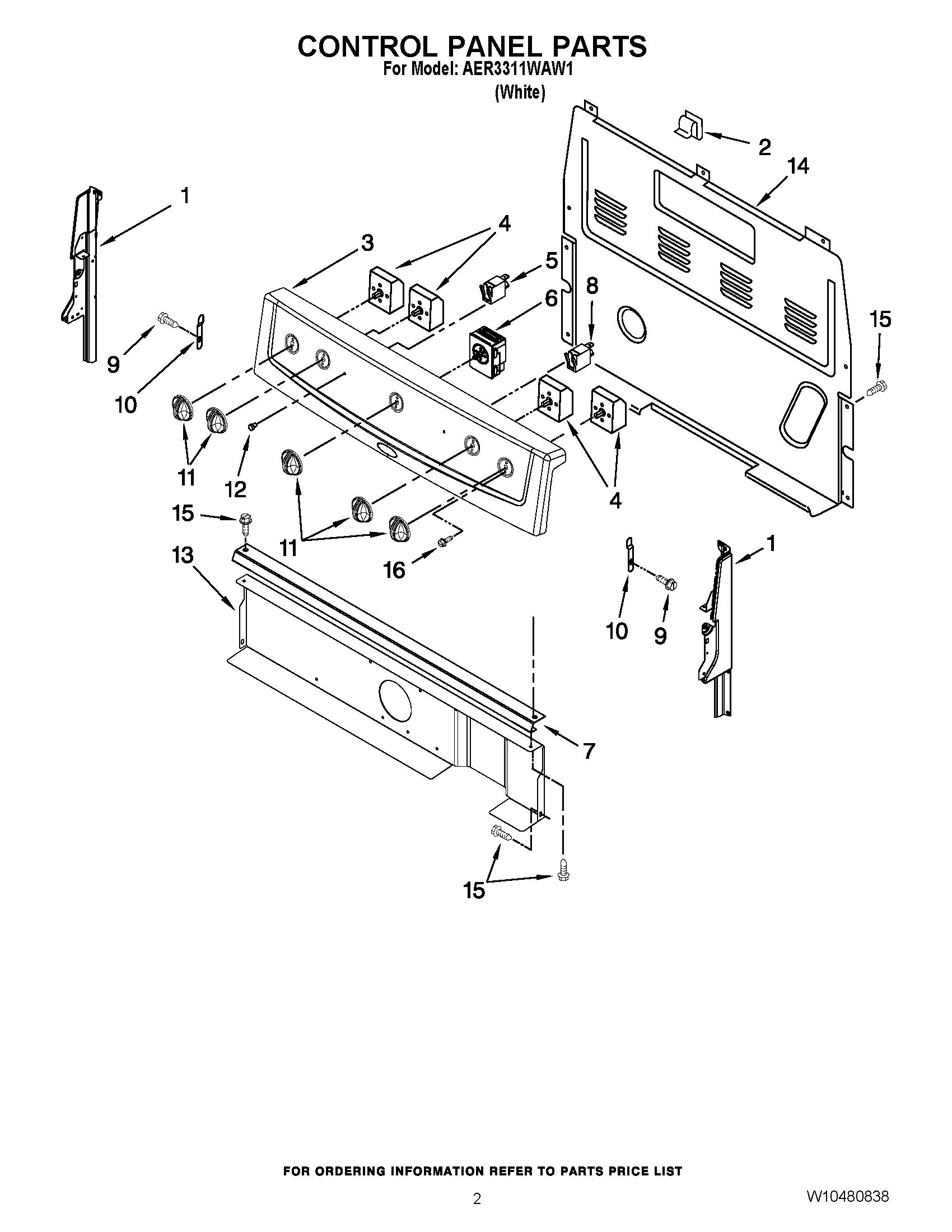

02 - CONTROL PANEL PARTS

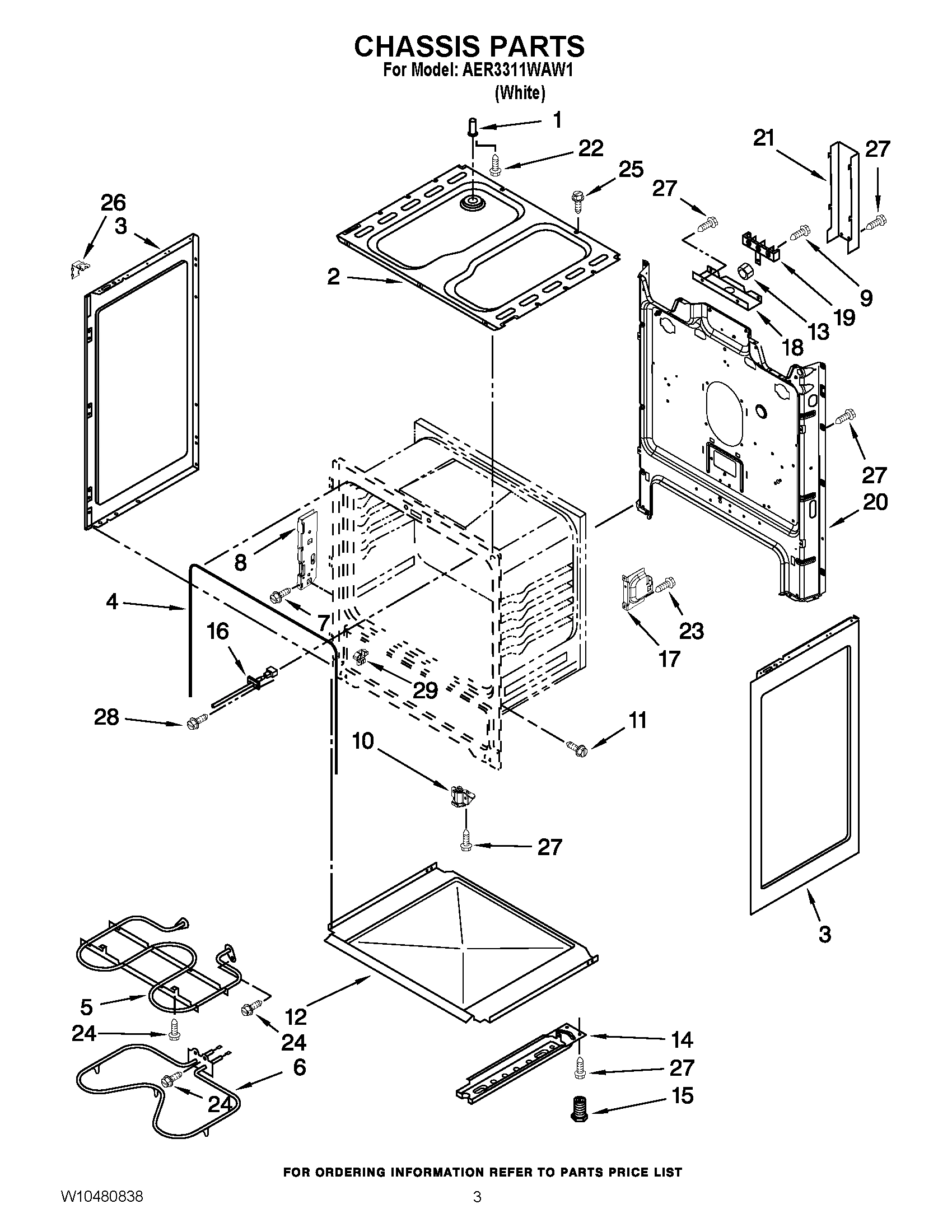

03 - CHASSIS PARTS

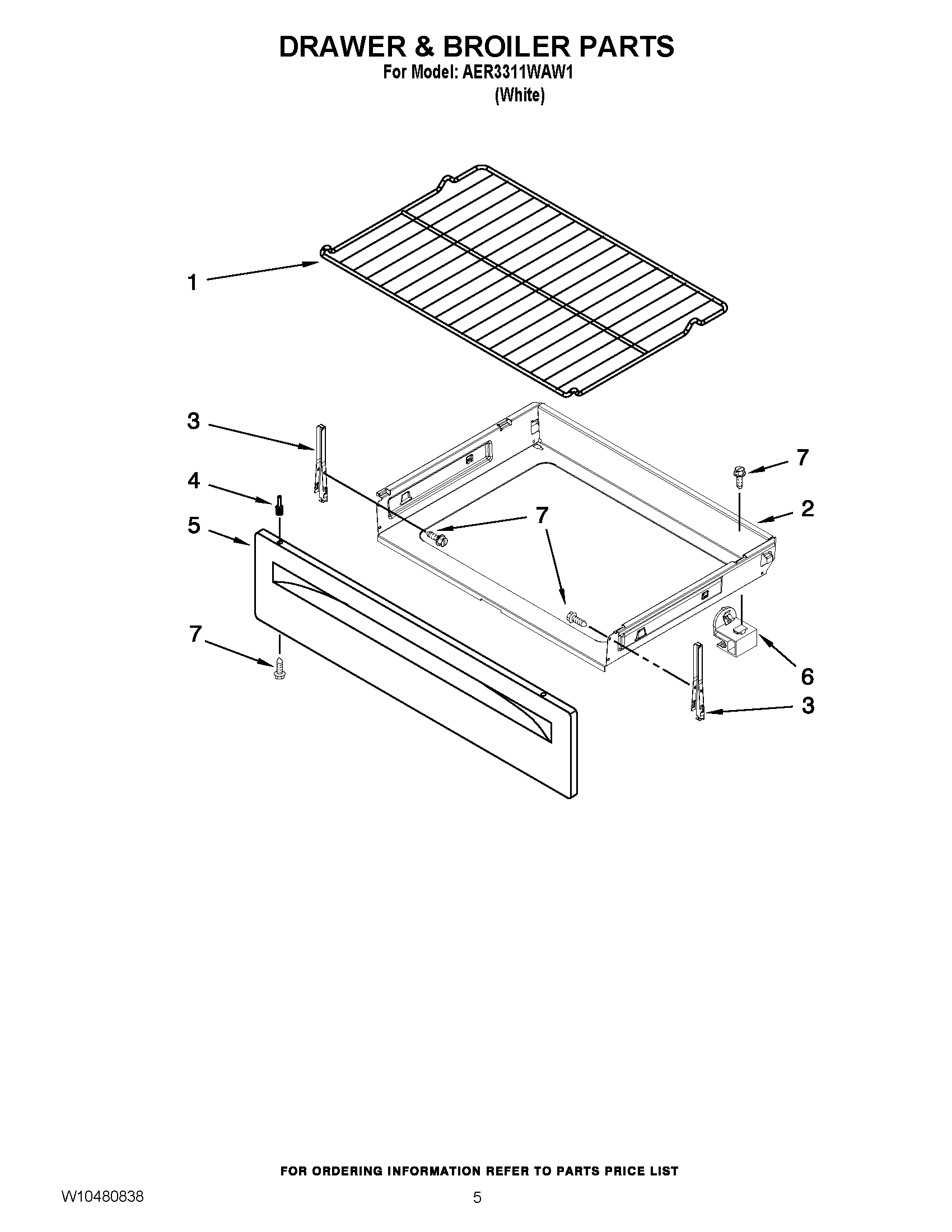

04 - DRAWER & BROILER PARTS

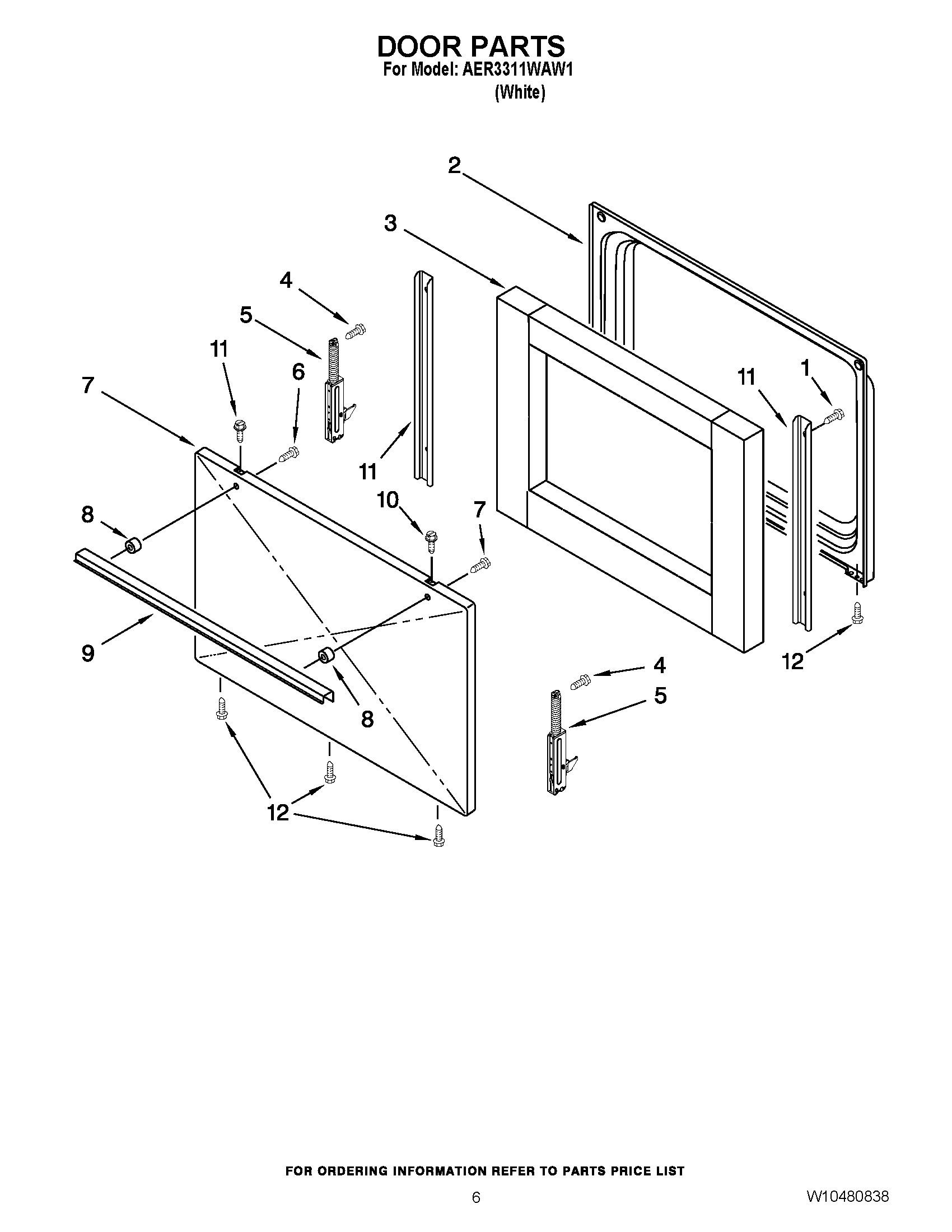

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag AER3311WAW1 ELECTRIC RANGE
1
TECH SHEET MAY W10204430 Contact Us For Availability
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
MAY W10419392 MAY W10419392 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
VENT TUBE MAY 3169143 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
MAY W10031790 MAY W10031790 Contact Us For Availability
2
Bowl, Drip (8`` Chrome) MAY W10196405 Contact Us For Availability
2
Bowl, Drip (6`` Chrome) MAY W10196406 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY 9761342 MAY 9761342 Contact Us For Availability
3
COOKTOP (WHITE) MAY 3186235 Contact Us For Availability
3
PANEL, BACKGUARD (WHITE) MAY W10259290 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
BRACKET, DRAWER MAY W10462912 Contact Us For Availability
3
INSULATION, DOOR MAY W10278991 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (USE W/ 6`` ELEMENT) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (USE W/ 8`` ELEMENT) MAY 3148953 Contact Us For Availability
4
Seal, Oven Door MAY W10129032 Contact Us For Availability
4
MAY W10031780 MAY W10031780 Contact Us For Availability
4
RIVET, PUSH MAY 3196814 Contact Us For Availability
5
INDICATOR, LIGHT (125V) MAY 8523265 Contact Us For Availability
5
ELEMENT, BROIL (3400W) MAY W10308476 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
5
HINGE, DOOR (ACTIVE) MAY W10358157 Contact Us For Availability
6
ELECTRIC CONTROL MAY 9762215 Contact Us For Availability
6
ELEMENT, BAKE (2400W) MAY W10308477 Contact Us For Availability
6
GLIDE, DRAWER MAY W10317899 Contact Us For Availability
6
SCREW MAY 3196163 Contact Us For Availability
7
ROD, SUPPORT MAY 3195812 Contact Us For Availability
7
BRACKET CONSOLE MOUNTING MAY W10182322 Contact Us For Availability
7
MAY 3195560 MAY 3195560 Contact Us For Availability
8
ELEMENT, SURFACE (8``) MAY W10259867 Contact Us For Availability
8
ELEMENT, SURFACE (6``) MAY W10259870 Contact Us For Availability
8
MAY 8523266 MAY 8523266 Contact Us For Availability
8
BRACKET, HINGE MAY W10289077 Contact Us For Availability
8
MAY 3196143 MAY 3196143 Contact Us For Availability
9
MAY 3400016 MAY 3400016 Contact Us For Availability
9
MAY 3195263 MAY 3195263 Contact Us For Availability
10
MAY 3196200 MAY 3196200 Contact Us For Availability
10
FOOT, FRONT MAY W10341186 Contact Us For Availability
10
SCREW, TOP (WHITE) MAY 3196558 Contact Us For Availability
11
KNOB (WHITE) MAY 9761962 Contact Us For Availability
11
MAY W10067840 MAY W10067840 Contact Us For Availability
11
BRACKET, DOOR MAY 9761504 Contact Us For Availability
12
MAY 3196165 MAY 3196165 Contact Us For Availability
12
MAY 3196068 MAY 3196068 Contact Us For Availability
12
Tray, Insulation MAY 8054068 Contact Us For Availability
13
MAY W10134247 MAY W10134247 Contact Us For Availability
14
MAY 8272473 MAY 8272473 Contact Us For Availability
14
RAIL, BASE (RIGHT) MAY W10390007 Contact Us For Availability
14
RAIL, BASE (LEFT) MAY W10390008 Contact Us For Availability
15
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
SENSOR MAY W10181986 Contact Us For Availability
17
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
18
MAY 3186034 MAY 3186034 Contact Us For Availability
19
MAY W10245259 MAY W10245259 Contact Us For Availability
20
MAY W10289149 MAY W10289149 Contact Us For Availability
21
COVER, BOX MAY W10326122 Contact Us For Availability
22
MAY 3196567 MAY 3196567 Contact Us For Availability
23
MAY 3196169 MAY 3196169 Contact Us For Availability
24
MAY 3196154 MAY 3196154 Contact Us For Availability
26
MAY W10137382 MAY W10137382 Contact Us For Availability
27
MAY 3196178 MAY 3196178 Contact Us For Availability
28
MAY 3196172 MAY 3196172 Contact Us For Availability
29
GLIDE, DRAWER MAY W10317898 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP) MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 311227 MAY 311227 Contact Us For Availability
NI
Clip, Ground Wire MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
MAY W10251754 MAY W10251754 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10279107 Contact Us For Availability
× ![]()
