Model Maytag AEP222VAW2 RANGE/OVEN, ELECTRIC, FREESTANDING, 20 INCH – Common Parts & Diagrams

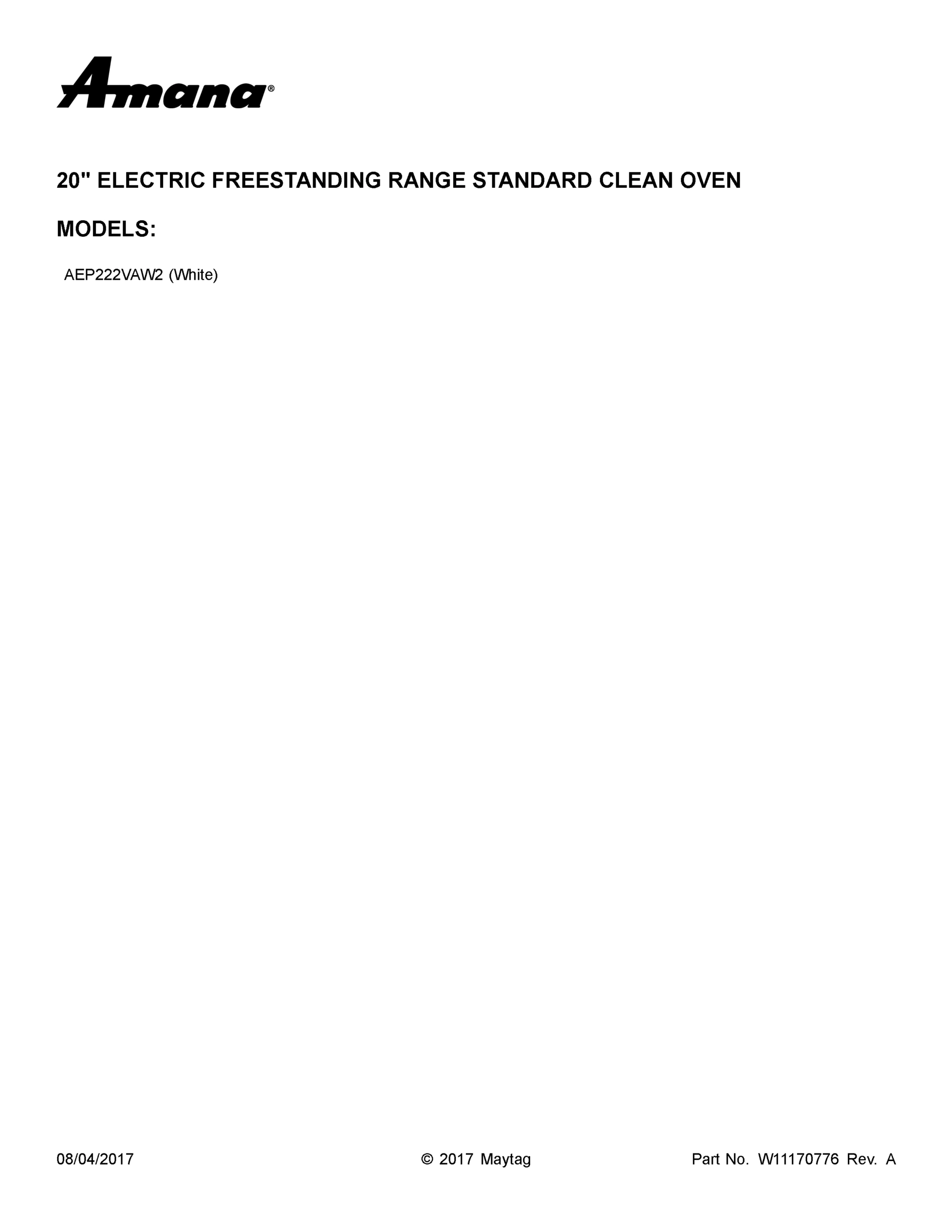

01 - COVER SHEET

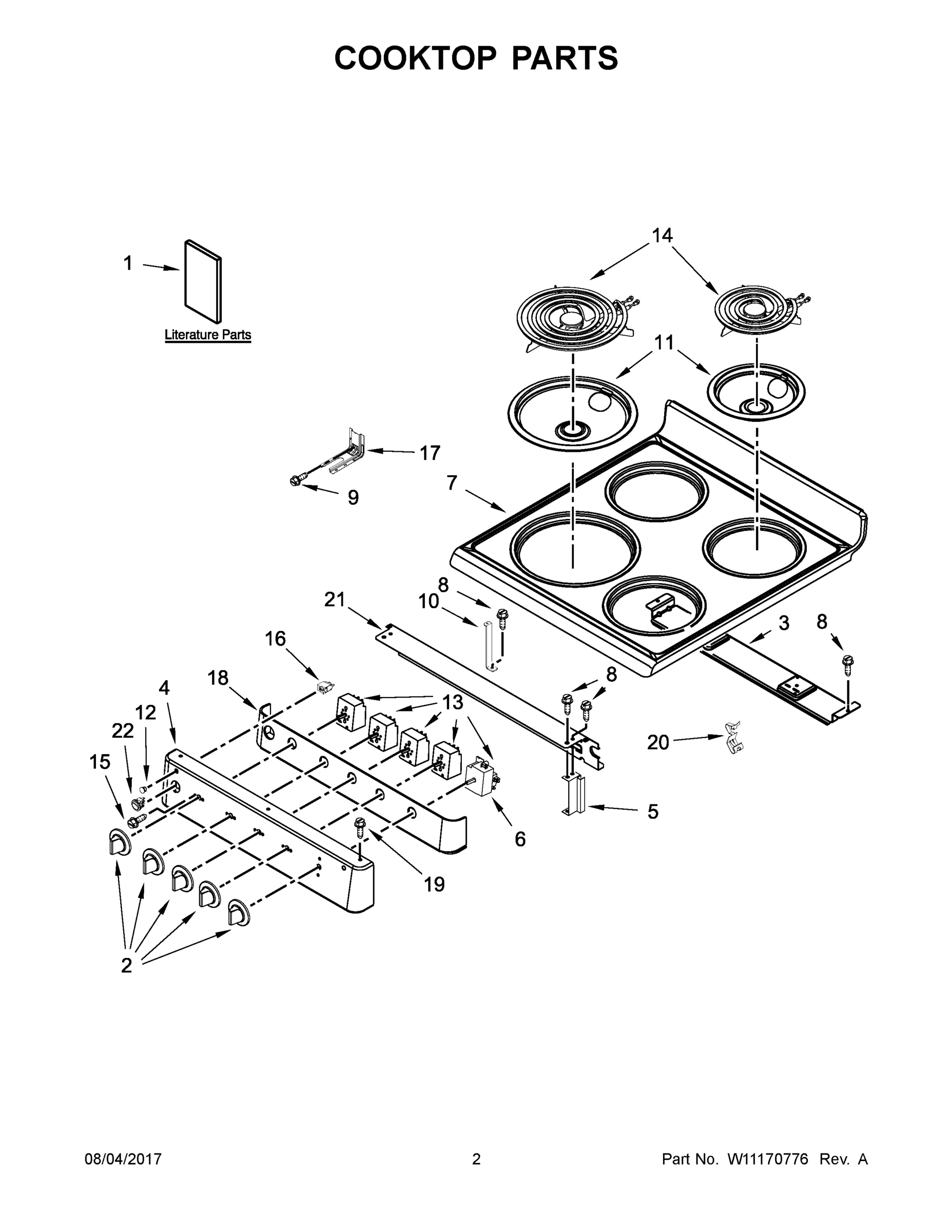

02 - COOKTOP PARTS
03 - CHASSIS PARTS
04 - DOOR AND DRAWER PARTS
05 - BACKGUARD PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AEP222VAW2 RANGE/OVEN, ELECTRIC, FREESTANDING, 20 INCH
1
USE & CARE GUIDE MAY W10452008 Contact Us For Availability
1
COVER, FLUE BOX MAY W10176276 Contact Us For Availability
1
LINER, DOOR MAY W10222941 Contact Us For Availability
1
BACKGUARD, SHORT MAY 98009821 Contact Us For Availability
1A
INSALLATION INSTRUCTIONS MAY W10459122 Contact Us For Availability
1B
TECH SHEET MAY W10181003 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
2
KNOB, CONTROL MAY W10183393 Contact Us For Availability
2
COUNTERWEIGHT MAY W10185442 Contact Us For Availability
2
RETAINER, UPPER INSULATION MAY W10544386 Contact Us For Availability
2
ENDCAP (WHITE LEFT HAND) MAY W10144828 Contact Us For Availability
2A
ENDCAP (WHITE RIGHT HAND) MAY W10144829 Contact Us For Availability
3
SUPPORT, BURNER MAY W10168363 Contact Us For Availability
3
SCREW MAY 98015526 Contact Us For Availability
3
PANEL, OUTER DOOR (WHITE) MAY W10223098 Contact Us For Availability
4
PANEL, CONTROL (WHITE) MAY W10240782 Contact Us For Availability
4
SUPPORT, OVEN BURNER MAY 98012912 Contact Us For Availability
4
SEAL, OVEN DOOR MAY W10219461 Contact Us For Availability
4
SUPPORT, BACKGUARD MAY W10145101 Contact Us For Availability
5
BRACKET, SUPPORT LEFT MAY W10239596 Contact Us For Availability
5
SIDE, OVEN (RIGHT HAND) MAY 98004452 Contact Us For Availability
5
U-NUT MAY 98009179 Contact Us For Availability
5
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
5A
BRACKET, SUPPORT RIGHT MAY W10239597 Contact Us For Availability
5A
SIDE, OVEN (LEFT HAND) MAY 98004451 Contact Us For Availability
5A
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
6
THERMOSTAT MAY W10179656 Contact Us For Availability
6
SCREW MAY W10493726 Contact Us For Availability
6
TOP, OVEN MAY 98004448 Contact Us For Availability
6
SCREW MAY 98004993 Contact Us For Availability
7
COOKTOP (WHITE) MAY W10175582 Contact Us For Availability
7
CLIP, OVEN BOTTON MAY 98005502 Contact Us For Availability
7
INSULATION, DOOR MAY W10212696 Contact Us For Availability
8
SCREW MAY 98008699 Contact Us For Availability
9
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
9
PANEL, SIDE (WHITE) MAY 98010061 Contact Us For Availability
9
SCREW MAY 98004219 Contact Us For Availability
10
BRACKET, COOKTOP MAY W10226319 Contact Us For Availability
10
BACK, MAIN MAY W10166296 Contact Us For Availability
10
SCREW MAY 8533842 Contact Us For Availability
11
BOWL, CHROME (8" (LEFT FRONT)) MAY W10179653 Contact Us For Availability
11
SPREAD, FLAME (BAKE) MAY 98015099 Contact Us For Availability
11
SCREW (WHITE) MAY 98006727 Contact Us For Availability
11A
BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGH MAY W10179650 Contact Us For Availability
12
LENS, INDICATOR MAY W10179657 Contact Us For Availability
12
BUMPER, COOKTOP MAY W10207167 Contact Us For Availability
12
DOOR, BROIL MAY 98009307 Contact Us For Availability
13
SWITCH, INFINITE (LEFT FRONT) MAY W10179654 Contact Us For Availability
13
SHIELD, HEAT (LOWER) MAY 98007191 Contact Us For Availability
13
BRACKET, PANEL MAY W10208117 Contact Us For Availability
13A
SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGH MAY W10179655 Contact Us For Availability
14
ELEMENT, COIL 8" (LEFT FRONT) MAY W10335286 Contact Us For Availability
14
FOOT, FRONT MAY W10153610 Contact Us For Availability
14
NUT, PUSH MAY 98004650 Contact Us For Availability
14A
ELEMENT COIL 6" (LEFT REAR, RIGHT REAR, RIGHT MAY W10335285 Contact Us For Availability
14A
FOOT, LEVELING MAY W10058460 Contact Us For Availability
15
SCREW MAY 98005663 Contact Us For Availability
15
BOX, FLUE MAY W10116396 Contact Us For Availability
15
CLIP, DOOR MAY 6610364 Contact Us For Availability
16
INDICATOR, LIGHT MAY W10185551 Contact Us For Availability
16
SPRING, TORSION (FLUE BOX) MAY 98013690 Contact Us For Availability
16
SCREW MAY 98006633 Contact Us For Availability
17
BRACKET, ANTI-TIP MAY W10613666 Contact Us For Availability
17
PLATE, CONDUIT MAY W10180177 Contact Us For Availability
17
WASHER MAY W10216805 Contact Us For Availability
18
FOIL, PANEL MAY W10237433 Contact Us For Availability
18
BOX, BURNER MAY W10208539 Contact Us For Availability
18
HANDLE, DOOR (WHITE) MAY 98004947 Contact Us For Availability
19
FRAME, FRONT MAY W10212614 Contact Us For Availability
19
HINGE, OVEN DOOR (YELLOW) MAY 98017873 Contact Us For Availability
20
CLIP, THERM BULB MAY 98005642 Contact Us For Availability
20
RACK, OVEN MAY 98016942 Contact Us For Availability
20
GLASS, INNER MAY W10201296 Contact Us For Availability
21
Z BRACKET, MANIFOLD MAY W10222744 Contact Us For Availability
21
BOTTOM, OVEN MAY W10192836 Contact Us For Availability
21
GLASS, OUTER MAY W10168624 Contact Us For Availability
22
SWITCH, ROCKER (WHITE) MAY 98011571 Contact Us For Availability
22
ELEMENT, BROIL MAY W10170571 Contact Us For Availability
22
INSULATION MAY W10212526 Contact Us For Availability
23
ELEMENT, BAKE MAY W10163272 Contact Us For Availability
23
BUMPER MAY 98004979 Contact Us For Availability
24
RETAINER, INSULATION (BOTTOM) MAY 98012903 Contact Us For Availability
25
BAFFLE, BASE MAY 98003945 Contact Us For Availability
25
RETAINER, INSULATION (TOP) MAY 98004981 Contact Us For Availability
26
RAIL, BASE MAY 98003830 Contact Us For Availability
26
CLIP, GLASS (RIGHT HAND) MAY 98004953 Contact Us For Availability
26A
CLIP, GLASS (LEFT HAND) MAY 98004952 Contact Us For Availability
27
BASE, FOOT MAY 98007126 Contact Us For Availability
27
INSULATION, DOOR MAY W10212525 Contact Us For Availability
28
CLIP, COOKTOP MAY 98004722 Contact Us For Availability
28
INSULATION, DOOR MAY W10222964 Contact Us For Availability
29
SUPPORT, REAR MAY 98010054 Contact Us For Availability
29
BRACKET, RETAINER MAY W10221498 Contact Us For Availability
30
COUNTERWEIGHT MAY 98006710 Contact Us For Availability
32
SCREW (BLACK) MAY 98008545 Contact Us For Availability
33
SCREW MAY 98006632 Contact Us For Availability
34
MAY W11040327 MAY W11040327 Contact Us For Availability
36
BAFFLE, SIDE MAY 98017387 Contact Us For Availability
37
SUPPORT, ELEMENT MAY 98004973 Contact Us For Availability
38
BLOCK, TERMINAL BARE WIRE MAY W10181453 Contact Us For Availability
39
SCREW MAY W10179708 Contact Us For Availability
40
NUT, TERMINAL BLOCK MAY W10204883 Contact Us For Availability
41
COVER, TERMINAL BLOCK MAY W10209692 Contact Us For Availability
42
COVER, MAIN REAR MAY W10159819 Contact Us For Availability
43
BLOCK, ADAPTER MAY W10206594 Contact Us For Availability
44
SEAL, OVEN MAY W10212528 Contact Us For Availability
45
SEAL, DOOR MAY W10209302 Contact Us For Availability
46
SOCKET, LIGHT BULB MAY W10554269 Contact Us For Availability
47
BULB, LIGHT MAY 98004498 Contact Us For Availability
48
PROTECTOR, LAMP MAY W10224805 Contact Us For Availability
49
MAY W10902689 MAY W10902689 Contact Us For Availability
50
MAY W11036713 MAY W11036713 Contact Us For Availability
51
CLIP, TUBING MAY 98005026 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, TIE, CABLE MAY 3391018 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (GROUND) MAY N/P Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, TSTAT (4) TO TSTA MAY W10177719 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, T MAY W10177722 Contact Us For Availability
NI
MAY W10177729 MAY W10177729 Contact Us For Availability
NI
MAY W11036986 MAY W11036986 Contact Us For Availability
NI
MAY W11036993 MAY W11036993 Contact Us For Availability
NI
MAY W11036998 MAY W11036998 Contact Us For Availability
NI
MAY W11037258 MAY W11037258 Contact Us For Availability
NI
MAY W11037260 MAY W11037260 Contact Us For Availability
NI
MAY W11037271 MAY W11037271 Contact Us For Availability
NI
MAY W11037273 MAY W11037273 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
INSULATION, BACK MAY W10137234 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10177346 Contact Us For Availability
NI
INSULATION, WRAP MAY W10206735 Contact Us For Availability
NI
INSULATION, TOP MAY W10207891 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 8534079 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO TERM MAY W10177713 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO TERM MAY W10177714 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, TERM BLOCK TO THE MAY W10177715 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, THERMOSTAT TO BAK MAY W10177716 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, THERMOSTAT BR BAK MAY W10177718 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO INDIC MAY W10177720 Contact Us For Availability
NI
MAY W10177724 MAY W10177724 Contact Us For Availability
NI
MAY W10177726 MAY W10177726 Contact Us For Availability
NI
MAY W10177728 MAY W10177728 Contact Us For Availability
NI
MAY W10180175 MAY W10180175 Contact Us For Availability
× ![]()
