Model Maytag AEP222VAW1 ELECTRIC RANGE – Common Parts & Diagrams

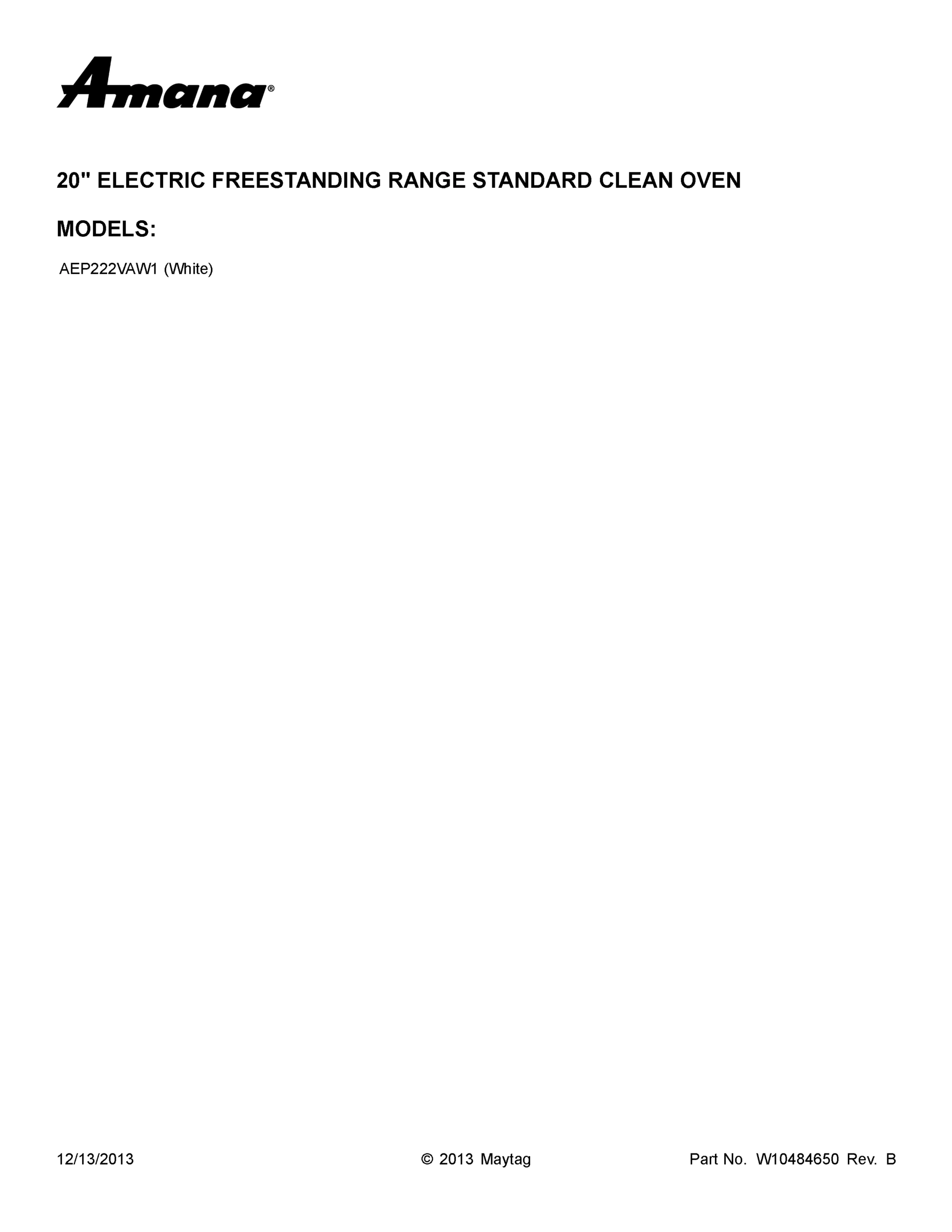

01 - COVER SHEET

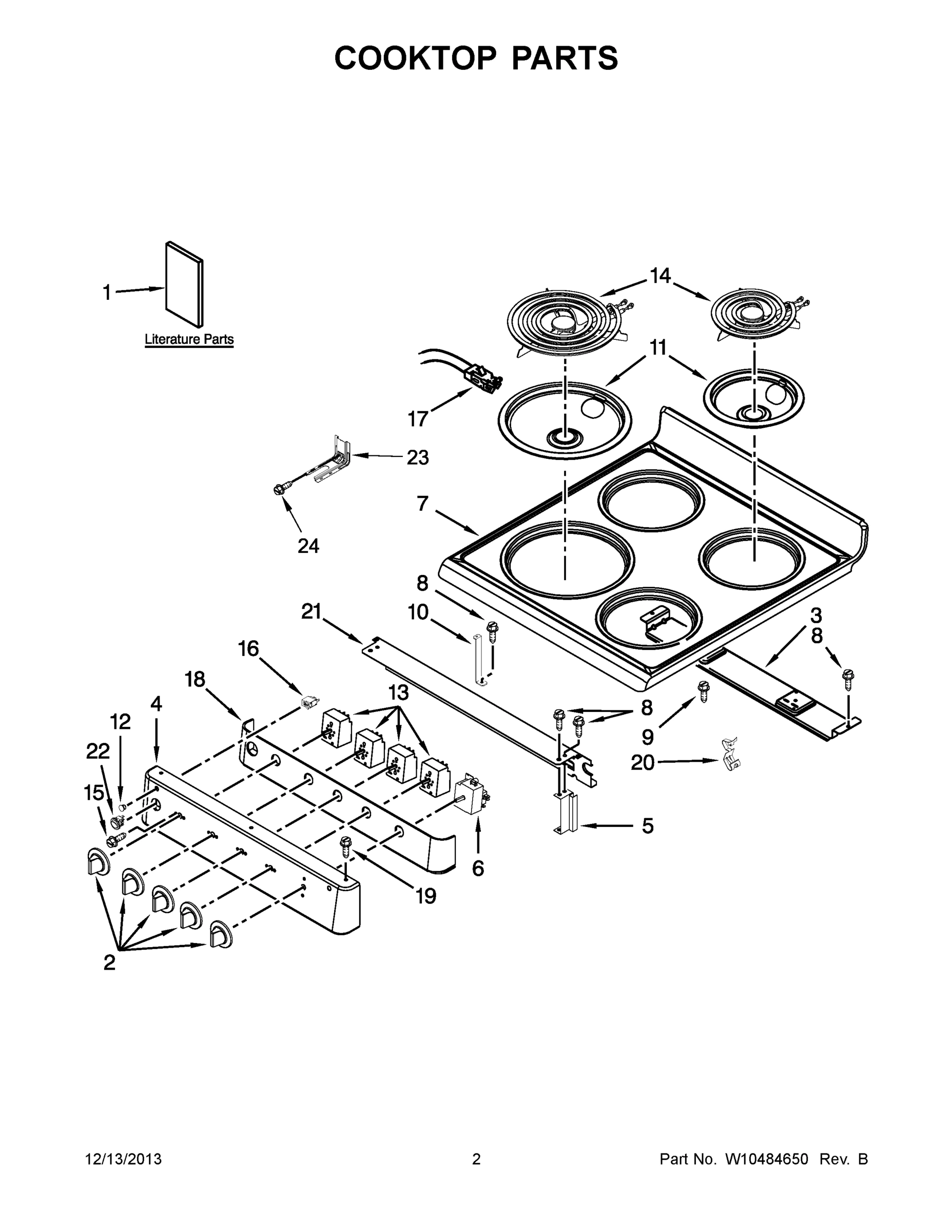

02 - COOKTOP PARTS

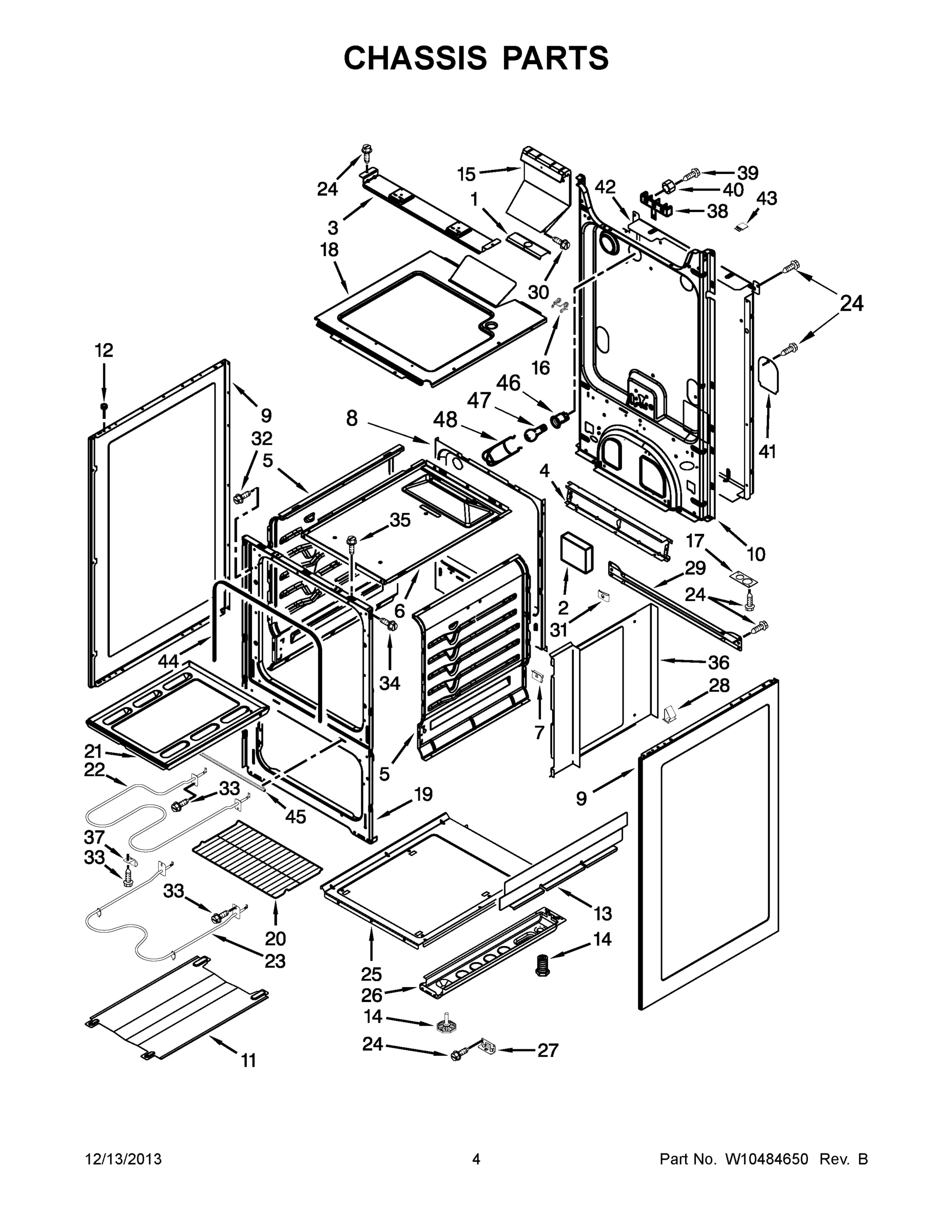

03 - CHASSIS PARTS

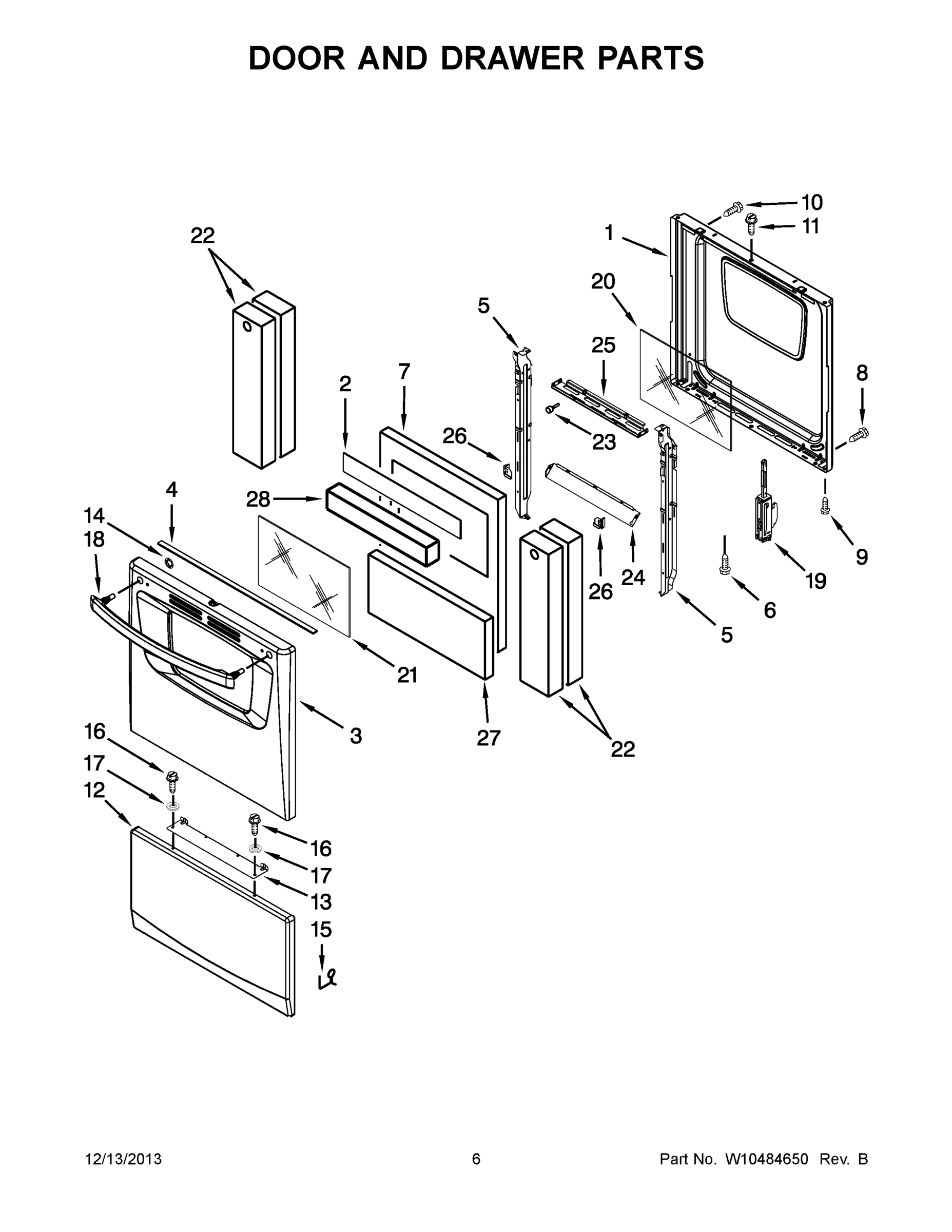

04 - DOOR AND DRAWER PARTS

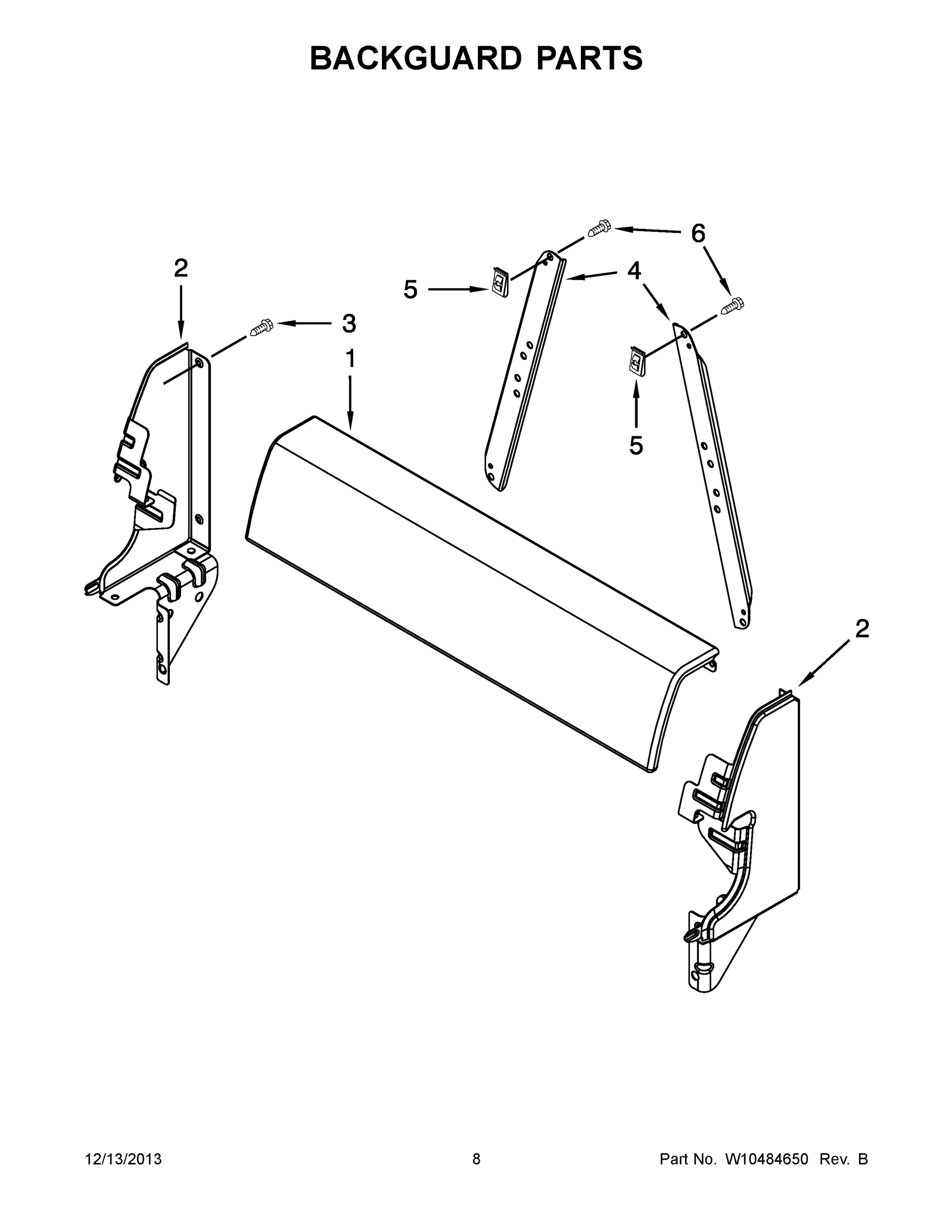

05 - BACKGUARD PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AEP222VAW1 ELECTRIC RANGE
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
MAY W10181003 MAY W10181003 Contact Us For Availability
1
MAY W10452008 MAY W10452008 Contact Us For Availability
1
MAY W10459122 MAY W10459122 Contact Us For Availability
1
MAY W10176276 MAY W10176276 Contact Us For Availability
1
MAY W10222941 MAY W10222941 Contact Us For Availability
1
BACKGUARD, SHORT MAY 98009821 Contact Us For Availability
2
KNOB, CONTROL MAY W10183393 Contact Us For Availability
2
COUNTER WEIGHT MAY W10185442 Contact Us For Availability
2
MAY W10544386 MAY W10544386 Contact Us For Availability
2
ENDCAP (WHITE LEFT HAND) MAY W10144828 Contact Us For Availability
2
ENDCAP (WHITE RIGHT HAND) MAY W10144829 Contact Us For Availability
3
MAY W10168363 MAY W10168363 Contact Us For Availability
3
Screw MAY 98015526 Contact Us For Availability
3
PANEL, OUTER DOOR (WHITE) MAY W10223098 Contact Us For Availability
4
MAY W10240782 MAY W10240782 Contact Us For Availability
4
SUPPORT, OVEN BURNER MAY 98012912 Contact Us For Availability
4
MAY W10219461 MAY W10219461 Contact Us For Availability
4
MAY W10145101 MAY W10145101 Contact Us For Availability
5
MAY W10239596 MAY W10239596 Contact Us For Availability
5
MAY W10239597 MAY W10239597 Contact Us For Availability
5
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
5
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
5
U-Nut MAY 98009179 Contact Us For Availability
5
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
5
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
6
MAY W10179656 MAY W10179656 Contact Us For Availability
6
Screw MAY 98006633 Contact Us For Availability
6
MAY 98004448 MAY 98004448 Contact Us For Availability
6
MAY 98004993 MAY 98004993 Contact Us For Availability
7
COOKTOP (WHITE) MAY W10175582 Contact Us For Availability
7
MAY W10243103 MAY W10243103 Contact Us For Availability
7
MAY W10212696 MAY W10212696 Contact Us For Availability
8
MAY 98008699 MAY 98008699 Contact Us For Availability
9
SCREW MAY 98005578 Contact Us For Availability
9
PANEL, SIDE (WHITE) MAY 98010061 Contact Us For Availability
9
MAY 98004219 MAY 98004219 Contact Us For Availability
10
MAY W10226319 MAY W10226319 Contact Us For Availability
10
MAY W10166296 MAY W10166296 Contact Us For Availability
10
MAY 8533842 MAY 8533842 Contact Us For Availability
11
BOWL, CHROME 6`` (LEFT REAR, RIGHT REAR, RIGH MAY W10179650 Contact Us For Availability
11
BOWL, CHROME 8`` (LEFT FRONT) MAY W10179653 Contact Us For Availability
11
SPREAD, FLAME (BAKE) MAY 98015099 Contact Us For Availability
11
Screw (White) MAY 98006727 Contact Us For Availability
12
LENS, INDICATOR MAY W10179657 Contact Us For Availability
12
MAY W10207167 MAY W10207167 Contact Us For Availability
12
MAY 98009307 MAY 98009307 Contact Us For Availability
13
MAY W10179654 MAY W10179654 Contact Us For Availability
13
SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGH MAY W10179655 Contact Us For Availability
13
MAY 98007191 MAY 98007191 Contact Us For Availability
13
MAY W10208117 MAY W10208117 Contact Us For Availability
14
ELEMENT COIL 6`` (LEFT REAR, RIGHT REAR, RIGH MAY W10335285 Contact Us For Availability
14
ELEMENT, COIL 8`` (LEFT FRONT) MAY W10335286 Contact Us For Availability
14
LEG, LEVELER (FOOT, LEVELING) MAY W10058460 Contact Us For Availability
14
LEG, LEVELER (FOOT, FRONT) MAY W10153610 Contact Us For Availability
14
MAY 98004650 MAY 98004650 Contact Us For Availability
15
SCREW MAY 98005663 Contact Us For Availability
15
BOX, FLUE MAY W10116396 Contact Us For Availability
15
MAY 6610364 MAY 6610364 Contact Us For Availability
16
MAY W10185551 MAY W10185551 Contact Us For Availability
16
MAY 98013690 MAY 98013690 Contact Us For Availability
17
RECEPTACLE, ELEMENT MAY 814399 Contact Us For Availability
17
MAY W10180177 MAY W10180177 Contact Us For Availability
17
WASHER MAY W10216805 Contact Us For Availability
18
MAY W10237433 MAY W10237433 Contact Us For Availability
18
MAY W10208539 MAY W10208539 Contact Us For Availability
18
WHITE MAY 98004947 Contact Us For Availability
19
SCREW MAY 98005000 Contact Us For Availability
19
MAY W10212614 MAY W10212614 Contact Us For Availability
19
HINGE, OVEN DOOR (YELLOW) MAY 98017873 Contact Us For Availability
20
MAY 98005642 MAY 98005642 Contact Us For Availability
20
MAY 98016942 MAY 98016942 Contact Us For Availability
20
MAY W10201296 MAY W10201296 Contact Us For Availability
21
MAY W10266787 MAY W10266787 Contact Us For Availability
21
MAY W10192836 MAY W10192836 Contact Us For Availability
21
MAY W10168624 MAY W10168624 Contact Us For Availability
22
ROCKER SWITCH (WHITE) MAY 98011571 Contact Us For Availability
22
MAY W10170571 MAY W10170571 Contact Us For Availability
22
INSULATION MAY W10212526 Contact Us For Availability
23
MAY W10306542 MAY W10306542 Contact Us For Availability
23
MAY W10163272 MAY W10163272 Contact Us For Availability
23
MAY 98004979 MAY 98004979 Contact Us For Availability
24
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
24
RETAINER, INSULATION (BOTTOM) MAY 98012903 Contact Us For Availability
25
MAY 98003945 MAY 98003945 Contact Us For Availability
25
RETAINER, INSULATION (TOP) MAY 98004981 Contact Us For Availability
26
MAY 98003830 MAY 98003830 Contact Us For Availability
26
CLIP, GLASS (LEFT HAND) MAY 98004952 Contact Us For Availability
26
CLIP, GLASS (RIGHT HAND) MAY 98004953 Contact Us For Availability
27
Base, Foot MAY 98007126 Contact Us For Availability
27
MAY W10212525 MAY W10212525 Contact Us For Availability
28
MAY 98004722 MAY 98004722 Contact Us For Availability
28
MAY W10222964 MAY W10222964 Contact Us For Availability
29
MAY 98010054 MAY 98010054 Contact Us For Availability
29
BRACKET, RETAINER MAY W10221498 Contact Us For Availability
30
Screw MAY 98006634 Contact Us For Availability
32
SCREW, TRIM MAY 98008545 Contact Us For Availability
33
MAY 98006632 MAY 98006632 Contact Us For Availability
36
MAY 98017387 MAY 98017387 Contact Us For Availability
37
MAY 98004973 MAY 98004973 Contact Us For Availability
38
BLOCK, TERMINAL BARE WIRE MAY W10181453 Contact Us For Availability
39
MAY W10179708 MAY W10179708 Contact Us For Availability
40
MAY W10204883 MAY W10204883 Contact Us For Availability
41
MAY W10209692 MAY W10209692 Contact Us For Availability
42
MAY W10159819 MAY W10159819 Contact Us For Availability
43
MAY W10206594 MAY W10206594 Contact Us For Availability
44
MAY W10212528 MAY W10212528 Contact Us For Availability
45
MAY W10209302 MAY W10209302 Contact Us For Availability
46
SOCKET, LIGHT BULB MAY W10114530 Contact Us For Availability
47
MAY 98004498 MAY 98004498 Contact Us For Availability
48
MAY W10224805 MAY W10224805 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
MAY W10137234 MAY W10137234 Contact Us For Availability
NI
MAY W10177346 MAY W10177346 Contact Us For Availability
NI
MAY W10206735 MAY W10206735 Contact Us For Availability
NI
MAY W10207891 MAY W10207891 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, TIE, CABLE MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 8534079 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO TERM MAY W10177713 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO TERM MAY W10177714 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, TERM BLOCK TO THE MAY W10177715 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, THERMOSTAT TO BAK MAY W10177716 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, THERMOSTAT BR BAK MAY W10177718 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, TSTAT (4) TO TSTA MAY W10177719 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE TO INDIC MAY W10177720 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, TSTAT (H) TO OVEN MAY W10177722 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, INFINITE(L2) TO S MAY W10177724 Contact Us For Availability
NI
MAY W10177726 MAY W10177726 Contact Us For Availability
NI
MAY W10177728 MAY W10177728 Contact Us For Availability
NI
MAY W10177729 MAY W10177729 Contact Us For Availability
NI
MAY W10180175 MAY W10180175 Contact Us For Availability
× ![]()
