Model GE AEM08LQQ2 Room Air Conditioner Built In – Common Parts & Diagrams

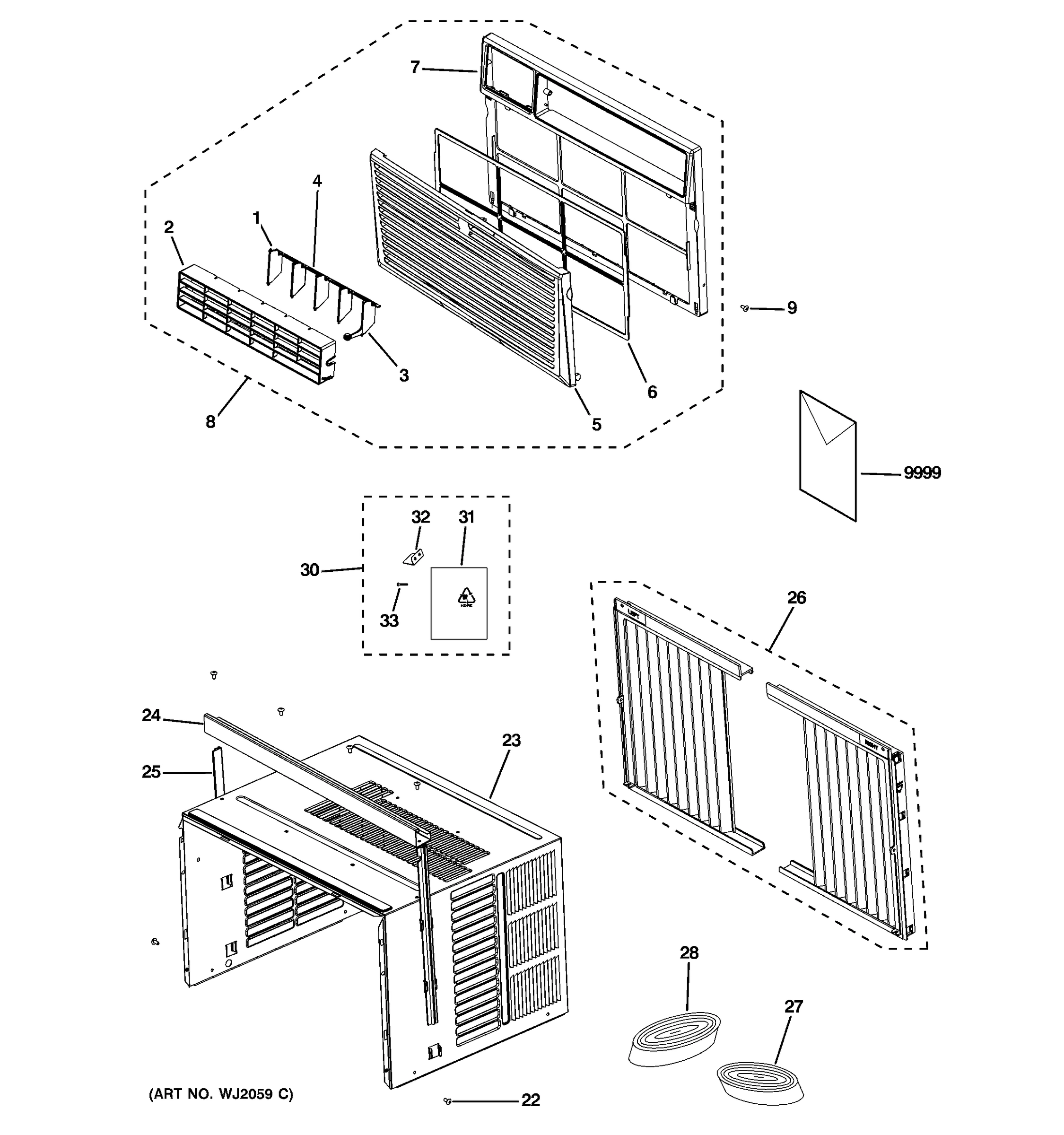

GRILLE & CHASSIS PARTS

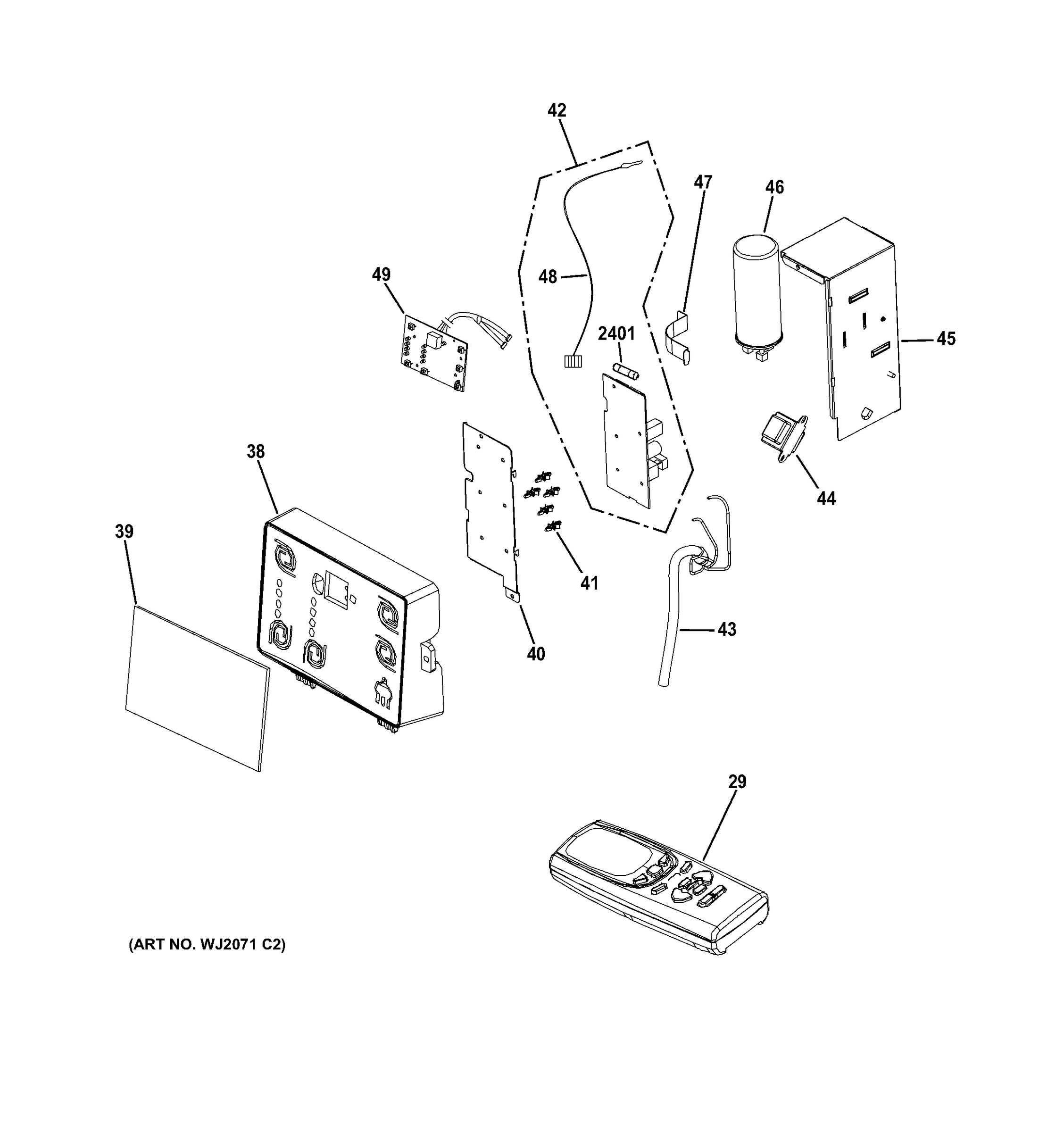

CONTROL PARTS

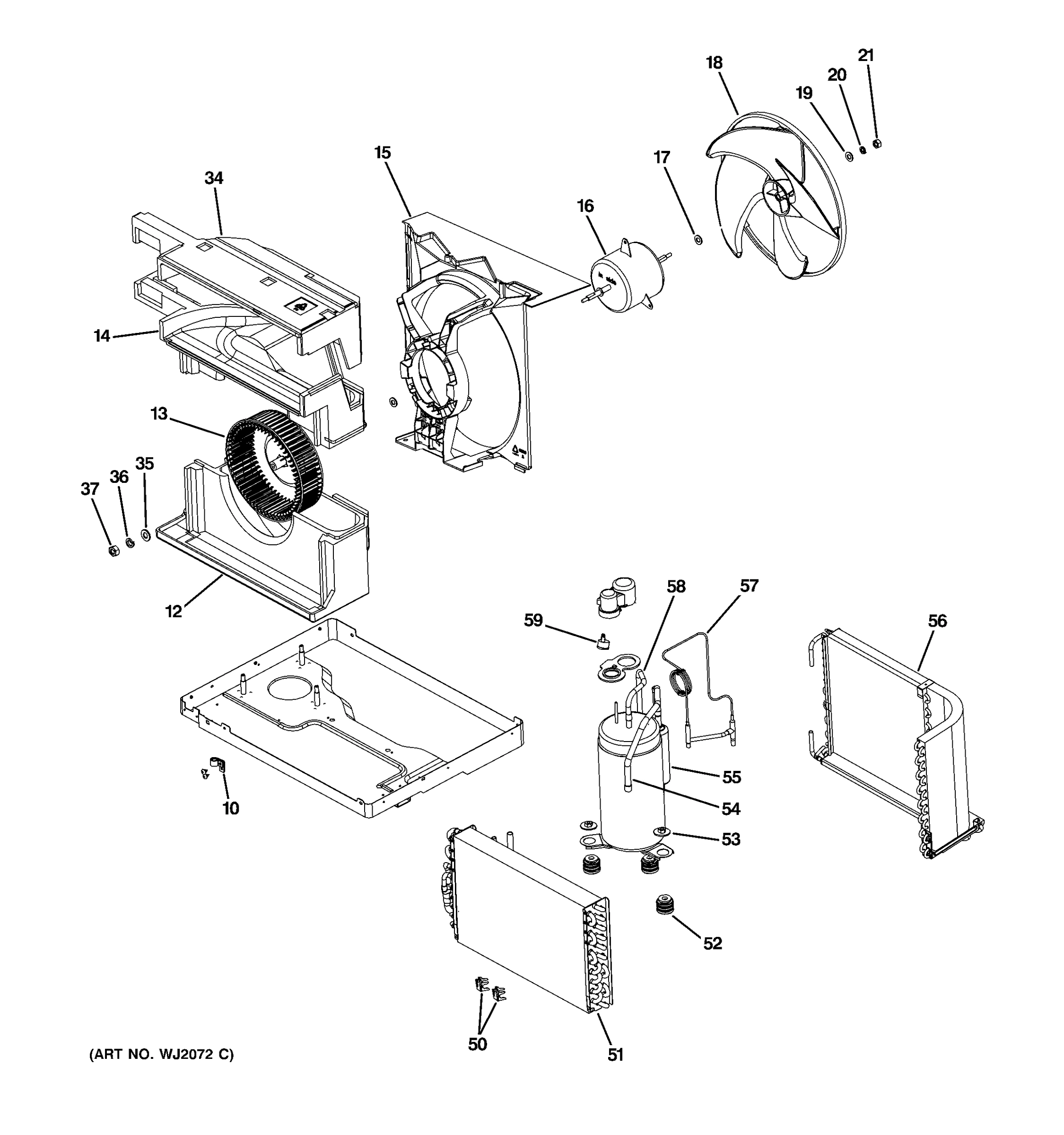

BASE PAN & UNIT PARTS
Common parts from model GE AEM08LQQ2 Room Air Conditioner Built In
6
FILTER SUB-ASSY GEN WJ71X10657 Contact Us For Availability
7
FRONT CASE GEN WJ71X10656 Contact Us For Availability
8
PANEL ASM, FRONT GEN WJ82X10084 Contact Us For Availability
9
SCREW GEN WJ01X10430 Contact Us For Availability
10
CLAMP, CABLE GEN WJ03X10091 Contact Us For Availability
12
HOUSING,PROPELLER LOWER GEN WJ76X10314 Contact Us For Availability
13
CENTRIFUGAL FAN GEN WJ73X10186 Contact Us For Availability
14
HOUSING, PROPELLER GEN WJ76X10315 Contact Us For Availability
15
MOTOR SUPPORTING GEN WJ01X10346 Contact Us For Availability
16
MOTOR, FAN GEN WJ94X10336 Contact Us For Availability
17
GASKET (DIA 8MM) GEN WJ43X10072 Contact Us For Availability
18
AXIAL FLOW FAN GEN WJ73X10218 Contact Us For Availability
19
WASHER(DIA 6MM) GEN WJ01X10347 Contact Us For Availability
20
WASHER GEN WJ01X10313 Contact Us For Availability
21
NUT WITH WASHER GEN WJ01X10314 Contact Us For Availability
22
SELF-TAPPING SCREW GEN WJ01X10352 Contact Us For Availability
23
CABINET ASM GEN WJ90X10123 Contact Us For Availability
25
CONNECTION BAR TO CABINE GEN WJ66X10084 Contact Us For Availability
26
CURTAIN ASM GEN WJ01X10353 Contact Us For Availability
27
GASKET SEAL 1 GEN WJ43X10073 Contact Us For Availability
28
GASKET SEAL 2 GEN WJ43X10074 Contact Us For Availability
30
HARDWARE ASM, INSTALL GEN WJ01X10349 Contact Us For Availability
31
PLASTIC BAG GEN WJ01X10350 Contact Us For Availability
32
WINDOW LOCKING BRACKET GEN WJ66X10098 Contact Us For Availability
33
SCREW GEN WJ01X10351 Contact Us For Availability
34
COVER, TOP GEN WJ79X10252 Contact Us For Availability
35
NUT (M5) GEN WJ01X10345 Contact Us For Availability
36
SPRING WASHER (DIA 5MM) GEN WJ03X10074 Contact Us For Availability
37
NUT (M5) GEN WJ01X10344 Contact Us For Availability
38
ELECTRIC CONTROLLER BOX GEN WJ26X10324 Contact Us For Availability
39
ESCUTCHEON GEN WJ07X10247 Contact Us For Availability
40
ELECTRIC BOX 2 GEN WJ26X10322 Contact Us For Availability
41
PCB SUPPORT GEN WJ01X10354 Contact Us For Availability
42
MAIN BOARD GEN WJ29X10038 Contact Us For Availability
44
TRANSFORMER GEN WJ27X10073 Contact Us For Availability
45
ELECTRIC BOX 1 GEN WJ26X10323 Contact Us For Availability
46
CAPACITOR GEN WJ20X10187 Contact Us For Availability
47
CAPACITOR CLAMP GEN WJ02X10032 Contact Us For Availability
49
DISPLAY BOARD GEN WJ26X10325 Contact Us For Availability
50
SENSOR HOLDER GEN WJ03X10067 Contact Us For Availability
51
EVAPORATOR ASM GEN WJ88X10251 Contact Us For Availability
52
RUBBER GROMMET GEN WJ01X10386 Contact Us For Availability
53
NUT GEN WJ01X10325 Contact Us For Availability
54
TUBE, SUCTION GEN WJ57X10045 Contact Us For Availability
55
COMPRESSOR ASM GEN WJ98X10338 Contact Us For Availability
56
CONDENSER ASM GEN WJ87X10278 Contact Us For Availability
57
CAPILLARY TUBES GEN WJ53X10281 Contact Us For Availability
58
TUBE, DISCHARGE GEN WJ49X10043 Contact Us For Availability
59
COMPRESSOR OVERLOAD GEN WJ23X10175 Contact Us For Availability
2401
FUSE, PCB GEN WJ23X10172 Contact Us For Availability
9999
MINI MANUAL GEN 3161677 Contact Us For Availability
9999
PM OWNERS MANUAL/INSTALL GEN 497656 Contact Us For Availability
× ![]()
