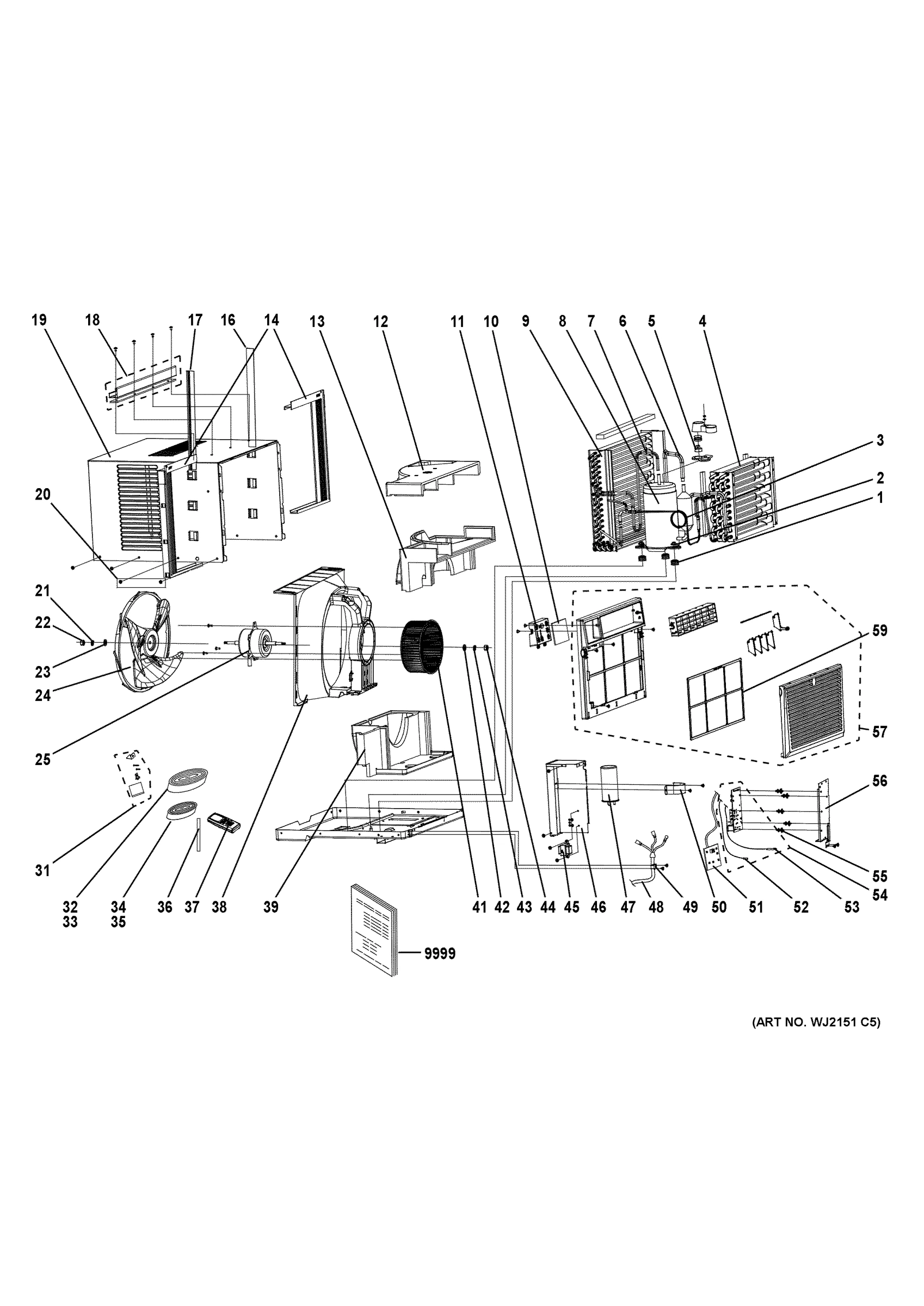

Model GE AEL12AVH2 Room Air Conditioner Portable – Common Parts & Diagrams
ROOM AIR CONDITIONER
Common parts from model GE AEL12AVH2 Room Air Conditioner Portable
8
COMPRESSOR AND FITTINGS GEN WJ98X21823 Contact Us For Availability
9
CONDENSER ASSY GEN WJ88X21223 Contact Us For Availability
10
ESCUTCHEON GEN WJ07X20239 Contact Us For Availability
11
LCD COVER GEN WJ05X20235 Contact Us For Availability
12
INDOOR FAN SHROUD UPPER GEN WJ76X21806 Contact Us For Availability
13
INDOOR FAN SHROUD CENTER GEN WJ76X21808 Contact Us For Availability
14
CURTAIN ASM GEN WJ86X21887 Contact Us For Availability
16
SIDE PANEL RAIL LEFT GEN WJ65X21892 Contact Us For Availability
17
SIDE PANEL RAIL RIGHT GEN WJ65X21893 Contact Us For Availability
18
TOP RAIL GEN WJ65X21824 Contact Us For Availability
19
CABINET ASSY GEN WJ90X21226 Contact Us For Availability
20
SCREW ST4.2X9.5 TC GEN WJ01X20240 Contact Us For Availability
21
WASHER GEN WJ01X10313 Contact Us For Availability
22
NUT WITH WASHER GEN WJ01X10314 Contact Us For Availability
23
WASHER GEN WJ01X10312 Contact Us For Availability
24
OUTDOOR FAN GEN WJ73X21228 Contact Us For Availability
25
FAN MOTOR GEN WJ94X21809 Contact Us For Availability
31
INSTALL HARDWARE GEN WJ01X21231 Contact Us For Availability
32
GASKET SEAL 1 GEN WJ01X10425 Contact Us For Availability
33
GASKET SEAL 2 GEN WJ01X10426 Contact Us For Availability
34
ACCORDIAN PANEL SEAL GEN WJ43X21200 Contact Us For Availability
35
CURTAIN SEAL GEN WJ43X21888 Contact Us For Availability
36
CURTAIN SEAL TOP RAIL GEN WJ43X21889 Contact Us For Availability
37
REMOTE CONTROL GEN WJ26X20522 Contact Us For Availability
38
OUTDOOR FAN SHROUD GEN WJ76X21810 Contact Us For Availability
39
INDOOR FAN SHROUD LOWER GEN WJ76X21807 Contact Us For Availability
41
CENTRIFUGAL FAN GEN WJ94X21804 Contact Us For Availability
42
WASHER(DIA 6MM) GEN WJ01X10347 Contact Us For Availability
43
SPRING WASHER(DIA 6MM) GEN WJ01X10373 Contact Us For Availability
44
NUT GEN WJ01X10329 Contact Us For Availability
45
TRANSFORMER GEN WJ27X20238 Contact Us For Availability
46
ELECTRIC BOX GEN WJ05X20228 Contact Us For Availability
47
CAPACITOR GEN WJ20X21825 Contact Us For Availability
48
POWER CORD GEN WJ35X10169 Contact Us For Availability
49
CABLE CLAMP GEN WJ03X10077 Contact Us For Availability
50
CAPACITOR CLAMP GEN WJ03X20231 Contact Us For Availability
51
DISPLAY BOARD GEN WJ26X21846 Contact Us For Availability
52
TUBE SENSOR GEN WJ53X21895 Contact Us For Availability
53
THERMOSTAT GEN WJ27X10122 Contact Us For Availability
54
MAIN BOARD GEN WJ26X21894 Contact Us For Availability
55
PCB SUPPORT GEN WJ65X20236 Contact Us For Availability
56
ELECTRIC BOX COVER GEN WJ05X20229 Contact Us For Availability
57
FRONT PANEL ASSY GEN WJ71X21259 Contact Us For Availability
59
FILTER GEN WJ85X21215 Contact Us For Availability
9999
PM OWNERS & INSTALL GEN 4977121 Contact Us For Availability
× ![]()
