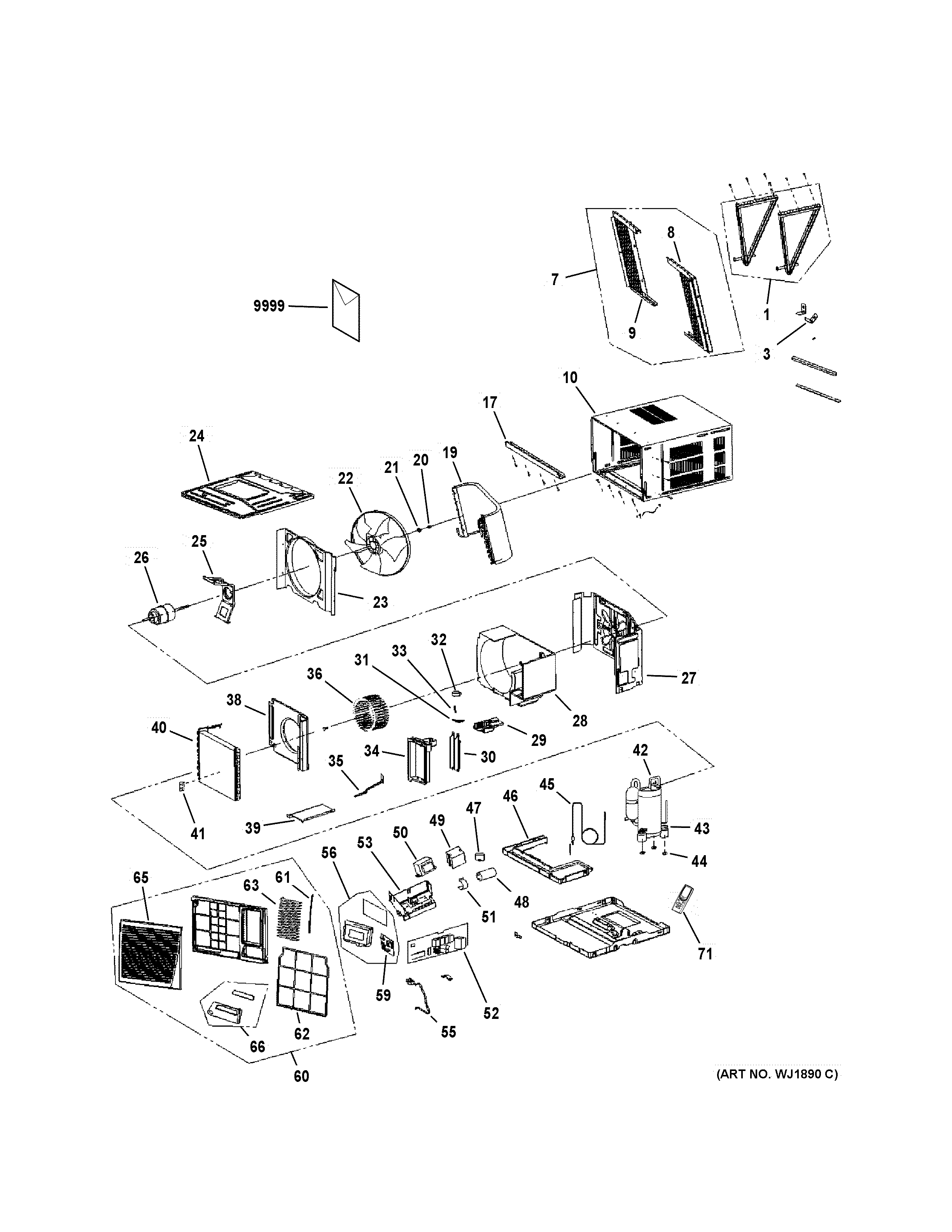

Model GE AEH24DJH1 Room Air Conditioner Built In – Common Parts & Diagrams
ROOM AIR CONDITIONER
Common parts from model GE AEH24DJH1 Room Air Conditioner Built In
9
CURTAIN SUPPORT ASM LT GEN WJ01X10264 Contact Us For Availability
10
CABINET ASM GEN WJ90X10090 Contact Us For Availability
17
TOP RAIL GEN WJ66X10067 Contact Us For Availability
19
CONDENSER ASM GEN WJ88X10149 Contact Us For Availability
22
FAN BLADE O.D. GEN WJ73X10144 Contact Us For Availability
23
CASE - COND GEN WJ76X10209 Contact Us For Availability
24
TOP CONNETING PLATE GEN WJ11X10022 Contact Us For Availability
25
MOUNT MOTOR GEN WJ95X10012 Contact Us For Availability
26
MOTOR GEN WJ94X10239 Contact Us For Availability
27
FRONT CLAPBOARD GEN WJ71X10471 Contact Us For Availability
28
CASE EVAP GEN WJ76X10210 Contact Us For Availability
29
AIR OUTLET FOAM GEN WJ44X10014 Contact Us For Availability
30
SWING LOUVER GEN WJ71X10472 Contact Us For Availability
31
SWING LINKAGE GEN WJ01X10267 Contact Us For Availability
32
FAN MOTOR GEN WJ94X10213 Contact Us For Availability
33
INFLECTIONAL AXIS GEN WJ01X10268 Contact Us For Availability
34
SWING SUPPORT GEN WJ71X10473 Contact Us For Availability
35
AIR GUIDE GEN WJ70X10048 Contact Us For Availability
36
BLOWER GEN WJ73X10145 Contact Us For Availability
38
PLATE CASING GEN WJ76X10211 Contact Us For Availability
39
BASE PLATE GEN WJ89X10055 Contact Us For Availability
40
EVAPORATOR ASM GEN WJ87X10171 Contact Us For Availability
42
COMPRESSOR GEN WJ98X10189 Contact Us For Availability
43
COMPRESSOR GASKET GEN WJ43X10059 Contact Us For Availability
44
NUT - WASHER GEN WJ01X10269 Contact Us For Availability
45
CAPILLARY ASM GEN WJ53X10127 Contact Us For Availability
46
DRAIN TRAY GEN WJ89X10056 Contact Us For Availability
47
CAPACITOR GEN WJ20X10128 Contact Us For Availability
49
RELAY GEN WJ24X10004 Contact Us For Availability
51
CAPACITOR CLAMP GEN WJ03X10066 Contact Us For Availability
52
MAIN PCB GEN WJ26X10241 Contact Us For Availability
53
ELECTRIC CONTROL BOX GEN WJ26X10219 Contact Us For Availability
55
POWER CORD GEN WJ35X10104 Contact Us For Availability
56
CONTROL PANEL ASM GEN WJ07X10210 Contact Us For Availability
59
DISPLAY BOARD GEN WJ26X10243 Contact Us For Availability
60
FRONT PANEL ASM GEN WJ71X10512 Contact Us For Availability
61
GUIDE LOUVER LINKAGE GEN WJ65X10089 Contact Us For Availability
62
FILTER GEN WJ71X10509 Contact Us For Availability
63
GUIDE LOUVER GEN WJ71X10513 Contact Us For Availability
65
FRONT PANEL DOOR GEN WJ71X10514 Contact Us For Availability
66
CONTROL DOOR ASM GEN WJ43X10064 Contact Us For Availability
9999
MINI MANUAL GEN 3161311 Contact Us For Availability
9999
49-7516-1 GEN 497516 Contact Us For Availability
× ![]()
