Model GE AEG18DZL1 – Common Parts & Diagrams

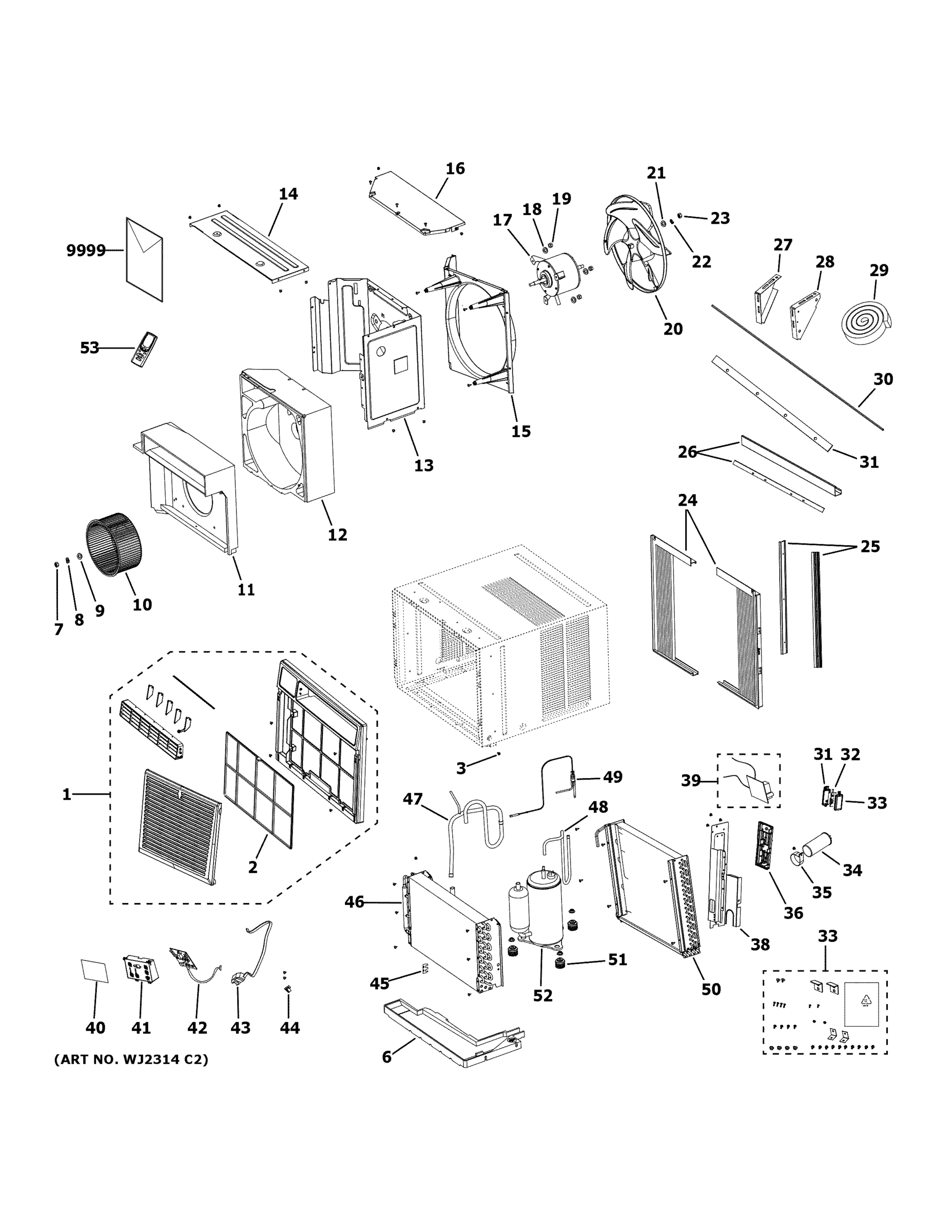

ROOM AIR CONDITIONER
Common parts from model GE AEG18DZL1
2
FILTER GEN WJ85X25180 Contact Us For Availability
3
SCREW ST4.2X9.5 TC GEN WJ01X25815 Contact Us For Availability
6
FOAM (WATER TRAY) GEN WJ05X20192 Contact Us For Availability
7
WASHER(DIA 6MM) GEN WJ01X10347 Contact Us For Availability
10
CENTRIFUGAL FAN GEN WJ73X25853 Contact Us For Availability
11
FOAM (AIR OUTLET) GEN WJ76X10307 Contact Us For Availability
12
PROPELLER HOUSING GEN WJ76X10308 Contact Us For Availability
13
SUPPORT BRACKET, MOTOR GEN WJ66X10104 Contact Us For Availability
14
TOP COVER GEN WJ79X10274 Contact Us For Availability
15
CONDENSER COVER GEN WJ79X10216 Contact Us For Availability
16
TOP COVER (REAR) GEN WJ79X10217 Contact Us For Availability
17
MOTOR, FAN GEN WJ94X10331 Contact Us For Availability
18
SPRING WASHER(DIA 6MM) GEN WJ01X10373 Contact Us For Availability
21
GASKET (DIA 8MM) GEN WJ43X10076 Contact Us For Availability
22
GASKET (DIA 8MM) GEN WJ43X10077 Contact Us For Availability
23
NUT (M8)(LEVO) GEN WJ01X10374 Contact Us For Availability
24
FIXING FRAME SUB ASSY GEN WJ65X30609 Contact Us For Availability
25
CURTAIN QUICKSET GEN WJ69X30610 Contact Us For Availability
26
TOP GUIDE GEN WJ65X30604 Contact Us For Availability
27
SUPPORT TRIANCLE LEFT GEN WJ65X30606 Contact Us For Availability
28
SUPPORT TRIANCLE RIGHT GEN WJ65X30605 Contact Us For Availability
29
FORM GASKET 1 GEN WJ43X10079 Contact Us For Availability
30
HARDWARE ASM, INSTALL GEN WJ01X10376 Contact Us For Availability
31
WIFI BOX GEN WJ26X21302 Contact Us For Availability
32
WiFi MODULE GEN WJ26X25774 Contact Us For Availability
33
WIFI BOX COVER GEN WJ76X21303 Contact Us For Availability
34
CAPACITOR CLAMP GEN WJ02X10034 Contact Us For Availability
35
CAPACITOR GEN WJ20X10207 Contact Us For Availability
36
BOARD MOUNT GEN WJ26X24833 Contact Us For Availability
38
FRONT CLAPBOARD 2 GEN WJ05X20553 Contact Us For Availability
39

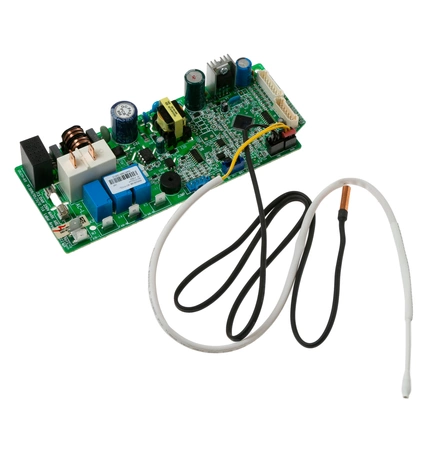

MAIN BOARD GEN WJ26X25855 Contact Us For Availability
40
MEMBRANE GEN WJ01X25834 Contact Us For Availability
41

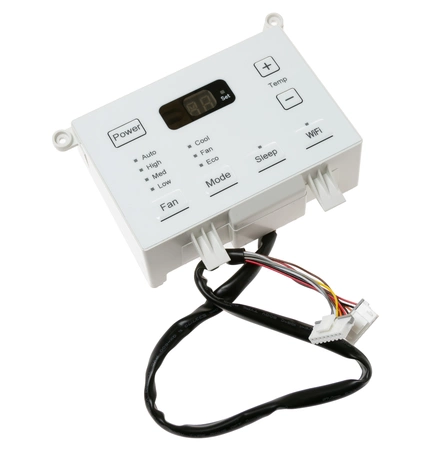

ELECTRIC CONTROLLER BOX GEN WJ26X25854 Contact Us For Availability
42
DISPLAY BOARD GEN WJ26X25776 Contact Us For Availability
44
CABLE CLAMP GEN WJ01X25833 Contact Us For Availability
45
SENSOR INSERT GEN WJ01X10330 Contact Us For Availability
46
EVAPORATOR ASSY GEN WJ88X20554 Contact Us For Availability
47
SUCTION TUBE SUB-ASSY GEN WJ57X20556 Contact Us For Availability
48
DISCHARGE TUBE GEN WJ49X20551 Contact Us For Availability
49
CAPILLARY SUB-ASSY GEN WJ53X20552 Contact Us For Availability
51
RUBBER GROMMET GEN WJ01X10380 Contact Us For Availability
52
COMPRESSOR AND FITTINGS GEN WJ98X20555 Contact Us For Availability
53
REMOTE CONTROL GEN WJ26X24768 Contact Us For Availability
9999
PM MINI MANUAL AND WIRING GEN 315000456 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 495000434 Contact Us For Availability
× ![]()
