Model GE AEE18DPM1 Room Air Conditioner Built In – Common Parts & Diagrams

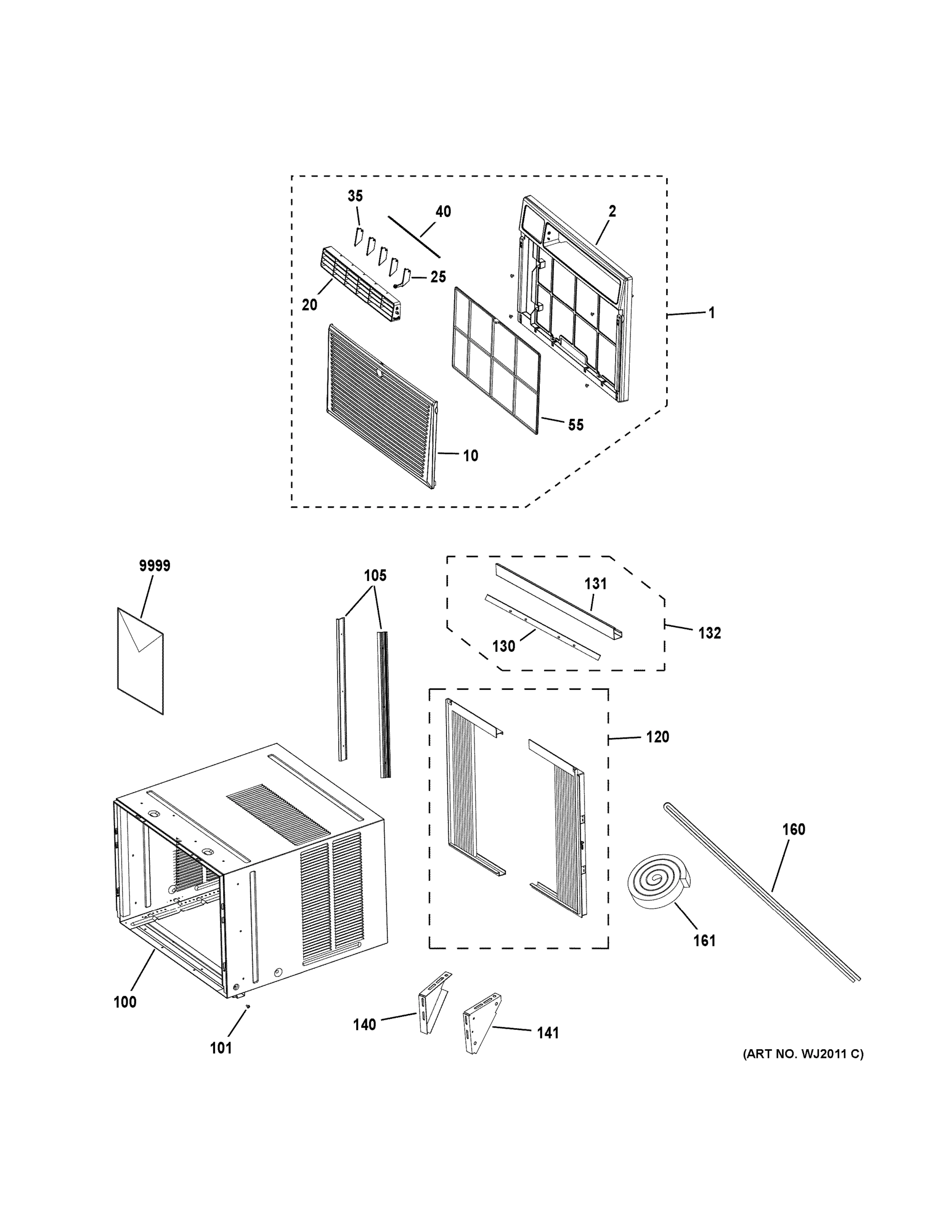

GRILLE & CHASSIS PARTS

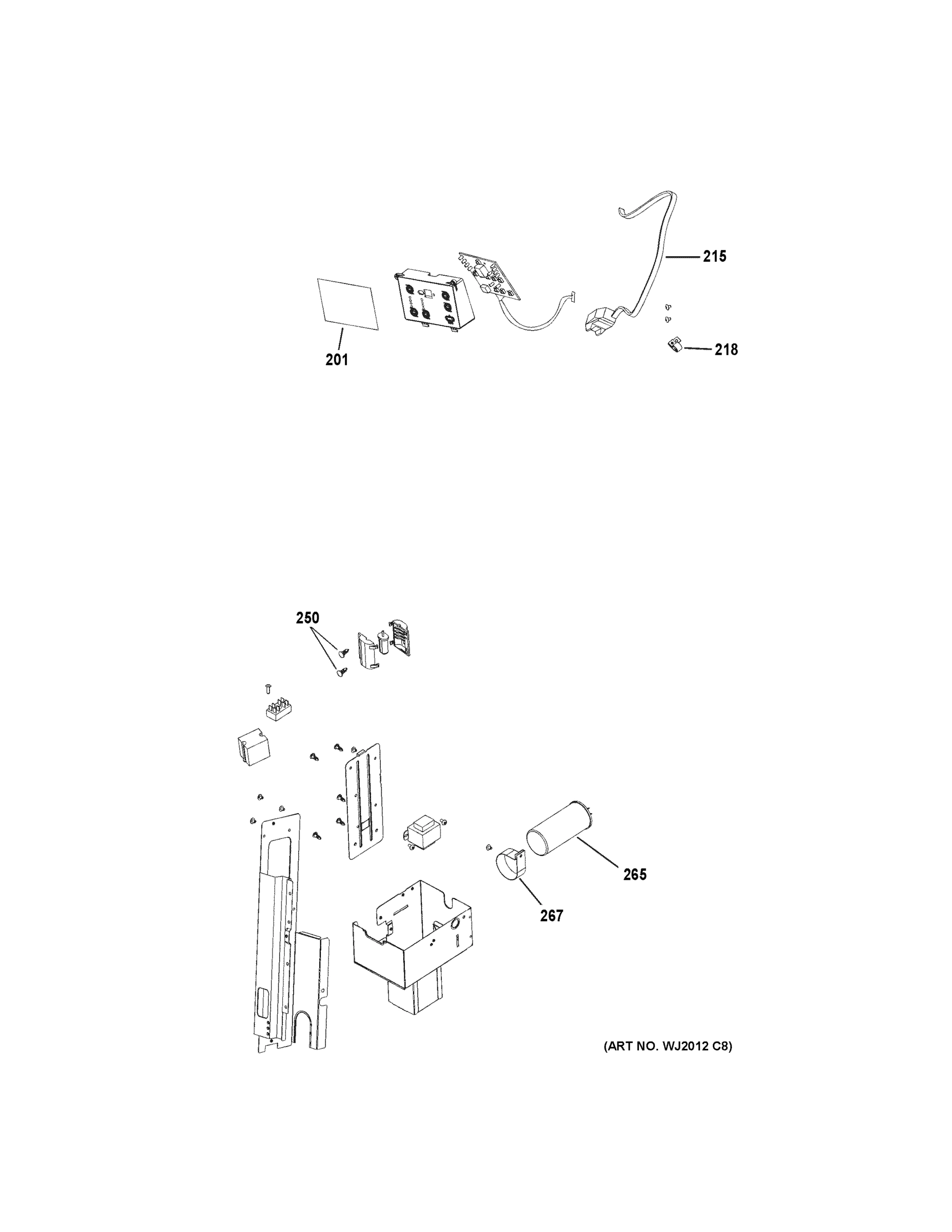

CONTROL PARTS
BASE PAN PARTS
UNIT PARTS
Common parts from model GE AEE18DPM1 Room Air Conditioner Built In
20
AIR GUIDE FRAME GEN WJ14X10086 Contact Us For Availability
25
SWING LOUVER 1 GEN WJ71X10573 Contact Us For Availability
35
SWING LOUVER 2 GEN WJ71X10574 Contact Us For Availability
40
LINK VERTICAL LOUVER GEN WJ71X10669 Contact Us For Availability
101
SELF-TAPPING SCREW GEN WJ01X10352 Contact Us For Availability
105
CONNECTION BAR TO CABINE GEN WJ66X10085 Contact Us For Availability
120
CURTAIN ASM GEN WJ01X10375 Contact Us For Availability
201
ESCUTCHEON GEN WJ07X10250 Contact Us For Availability
218
CABLE CLAMP GEN WJ03X10077 Contact Us For Availability
265
CAPACITOR CBB65 GEN WJ20X10170 Contact Us For Availability
318
PROPELLER HOUSING SUB-AS GEN WJ90X10127 Contact Us For Availability
320
MOTOR SUPPORTING GEN WJ82X10061 Contact Us For Availability
325
TOP COVER GEN WJ79X10215 Contact Us For Availability
326
ELECTRIC HEATER GEN WJ27X10118 Contact Us For Availability
327
TCO GEN WJ26X10331 Contact Us For Availability
328
ELEC HEATER COVER GEN WJ79X10214 Contact Us For Availability
329
DRAIN VALVE GEN WJ58X10042 Contact Us For Availability
345
MOTOR, FAN GEN WJ94X10331 Contact Us For Availability
401
EVAPORATOR ASSY GEN WJ88X10222 Contact Us For Availability
403
SENSOR SUPPRT GEN WJ26X10330 Contact Us For Availability
410
COMPRESSOR AND FITTINGS GEN WJ98X10275 Contact Us For Availability
418
GASKET, COMPRESSOR GEN WJ01X10440 Contact Us For Availability
420
CONDENSER ASSY GEN WJ88X10223 Contact Us For Availability
450
SUCTION PIPE GEN WJ57X10015 Contact Us For Availability
453
CAPILLARY SUB-ASSY GEN WJ53X10213 Contact Us For Availability
455
DISCHARGE TUBE GEN WJ62X10013 Contact Us For Availability
9999
MINI MANUAL GEN 3161638 Contact Us For Availability
9999
PM OWNERS MANUAL/INSTALL GEN 497666 Contact Us For Availability
× ![]()
