Model Maytag AED4516HW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

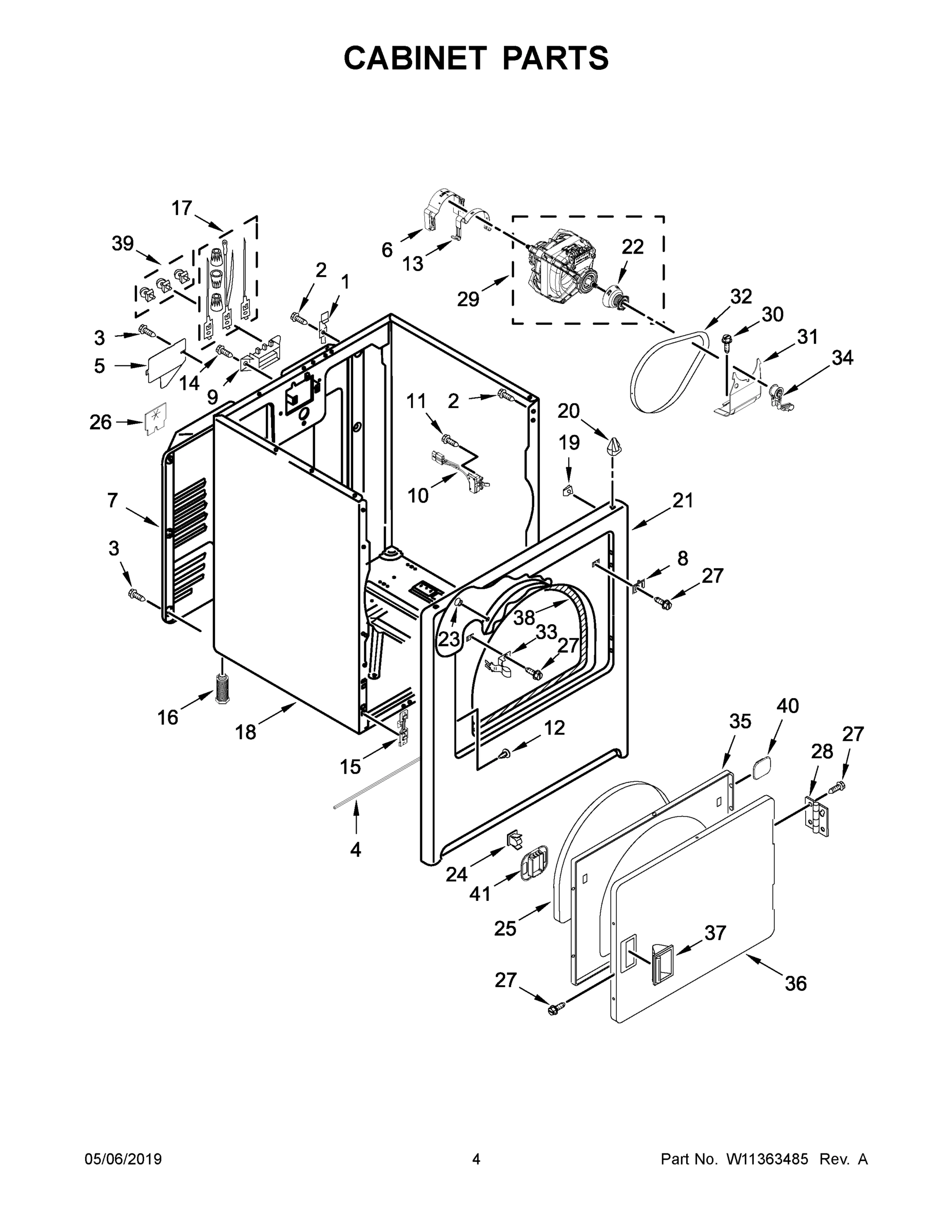

03 - CABINET PARTS

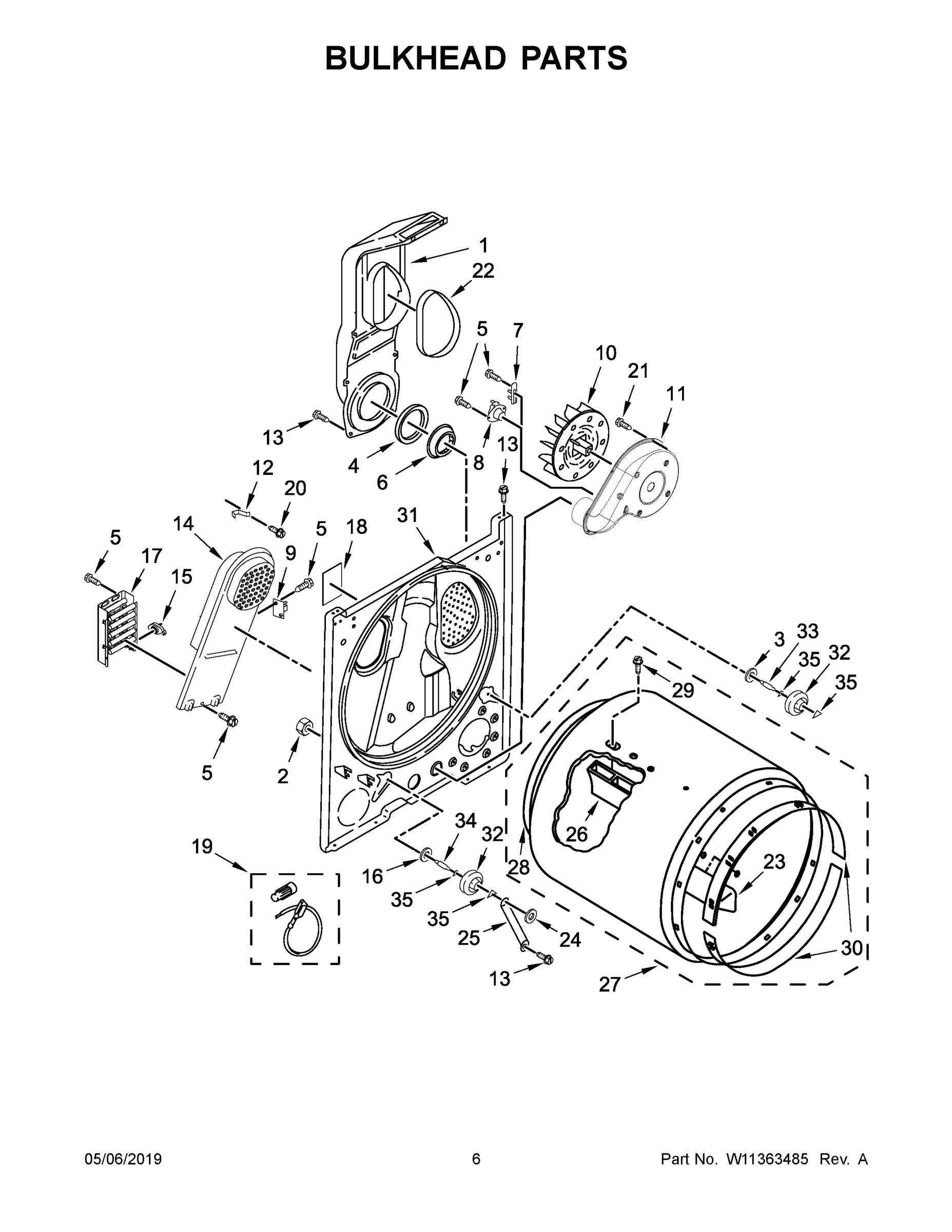

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AED4516HW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
USE AND CARE GUIDE MAY W10096991 Contact Us For Availability
1
HINGE, TOP MAY 8066217 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY W10798023 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10514172 Contact Us For Availability
1B
WIRING DIAGRAM MAY W10185989 Contact Us For Availability
2
NUT, HEX MAY W10298789 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
4
PANEL, REAR CONSOLE MAY W10416486 Contact Us For Availability
4
SEAL, SPILL GUARD MAY W10841728 Contact Us For Availability
4
SEAL, LINT CHUTE MAY 347139 Contact Us For Availability
5
LINT SCREEN (WHITE) MAY W10717210 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
MAY W11219688 MAY W11219688 Contact Us For Availability
6
CLIP, SPRING MAY 8536939 Contact Us For Availability
6
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
6
SHIELD, EXHAUST MAY W10389567 Contact Us For Availability
7
PANEL, REAR MAY W10571724 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
8
SCREW MAY 688983 Contact Us For Availability
8
PLUG, STRIKE MAY W10567345 Contact Us For Availability
8
THERMOSTAT MAY 3387134 Contact Us For Availability
9
TOP (WHITE) MAY 8559800 Contact Us For Availability
9
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
9
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY W10900067 Contact Us For Availability
10
KNOB, PUSH TO START (WHITE) MAY W10453948 Contact Us For Availability
10
SWITCH, DOOR MAY W10237959 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
11
TIMER MAY W10745655 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
HOUSING, BLOWER MAY 8577230 Contact Us For Availability
12
MAY W11307653 MAY W11307653 Contact Us For Availability
12
PLUG, HOLE (WHITE) MAY 3404413 Contact Us For Availability
12
CLIP, HEATER BOX MAY 3398161 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (WHITE) MAY W10711289 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
13
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
14
SWITCH, PUSH TO START MAY W10420741 Contact Us For Availability
14
SCREW MAY 3390631 Contact Us For Availability
14
BOX, HEATER MAY 8541818 Contact Us For Availability
15
SPACER, TOE PANEL MAY 3389682 Contact Us For Availability
15
CLIP, FRONT PANEL MAY W10775448 Contact Us For Availability
15
THERMOSTAT, 221 F (105 C) MAY 3977767 Contact Us For Availability
16
HARNESS, WIRING MAY W10450286 Contact Us For Availability
16
FOOT, DRYER MAY 3392100 Contact Us For Availability
16
WASHER MAY 348197 Contact Us For Availability
17
NUT, "U" MAY W10298336 Contact Us For Availability
17
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
17
ELEMENT, HEATER MAY W10724237 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
PAD, FOAM MAY W10653662 Contact Us For Availability
19
CLIP, GROUND MAY 98234 Contact Us For Availability
19
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
20
LOCK, FRONT TOP MAY 8066092 Contact Us For Availability
20
SCREW MAY 489463 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10664697 Contact Us For Availability
21
SCREW MAY 3390647 Contact Us For Availability
22
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
22
SEAL MAY 339956 Contact Us For Availability
23
CLIP, FELT PAD MAY 685203 Contact Us For Availability
23
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
24
NUT, PUSH ON MAY 90296 Contact Us For Availability
25
SEAL, DOOR MAY W10730752 Contact Us For Availability
25
BRACKET, SUPPORT MAY W11032820 Contact Us For Availability
26
PAD, POWER CORD MAY W11198597 Contact Us For Availability
26
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
27
SCREW MAY 342055 Contact Us For Availability
27
ASSEMBLY, DRUM (COMPLETE) MAY W10757750 Contact Us For Availability
28
ASSEMBLY, HINGE AND PIN MAY W10362431 Contact Us For Availability
28
SEAL, REAR DRUM MAY W10856781 Contact Us For Availability
29
ASSEMBLY, MOTOR MAY W10396029 Contact Us For Availability
29
SCREW MAY W10219342 Contact Us For Availability
30
BOLT MAY 3400500 Contact Us For Availability
30
BEARING, RING MAY 692526 Contact Us For Availability
31
BASE, MOTOR MAY 348780 Contact Us For Availability
31
BULKHEAD MAY W10714475 Contact Us For Availability
32
BELT, DRIVE MAY W10131364 Contact Us For Availability
32
ROLLER, SUPPORT MAY W10756057 Contact Us For Availability
33
STRIKE, DOOR MAY 3403431 Contact Us For Availability
33
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359269 Contact Us For Availability
34
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
34
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359270 Contact Us For Availability
35
DOOR, INNER MAY W10463967 Contact Us For Availability
35
WASHER, TRI RING MAY W10512946 Contact Us For Availability
36
DOOR, FRONT (WHITE) MAY W10714510 Contact Us For Availability
37
HANDLE, DOOR (WHITE) MAY W10714516 Contact Us For Availability
38
ASSEMBLY, SEAL AND BEARING MAY W10803476 Contact Us For Availability
39
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
40
COVER, DOOR CATCH MAY W10529198 Contact Us For Availability
41
BEZEL, DOOR CATCH MAY W10529197 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
