Model GE ADGE9RGS115CW14 General Electric Model ADGE9RGS115CW14 – Common Parts & Diagrams
Burner Orifice Spuds - For Higher Elevations (Gas Models)
Cabinet, Exhaust Duct and Base

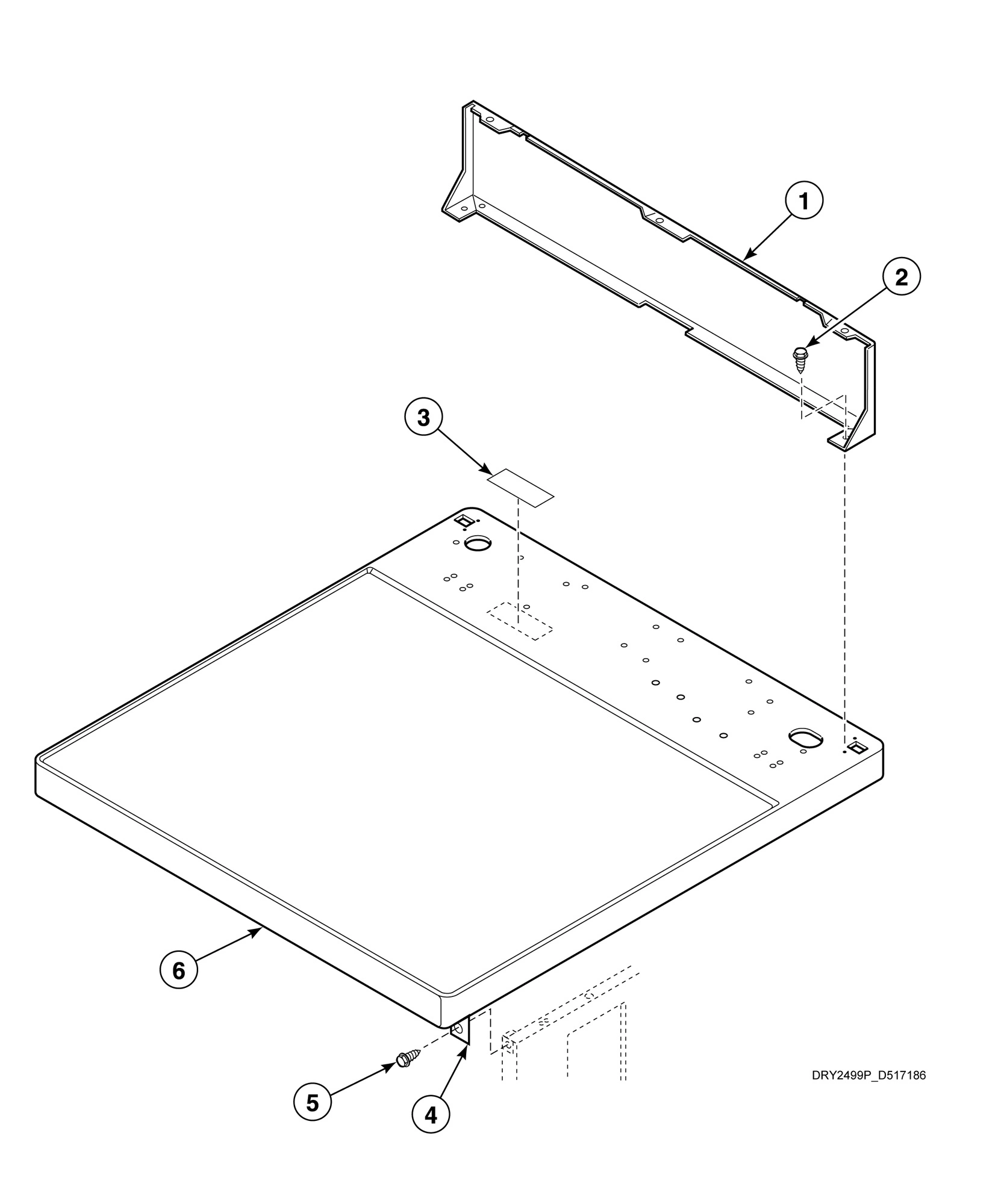

Cabinet Top and Control Hood Back Panel

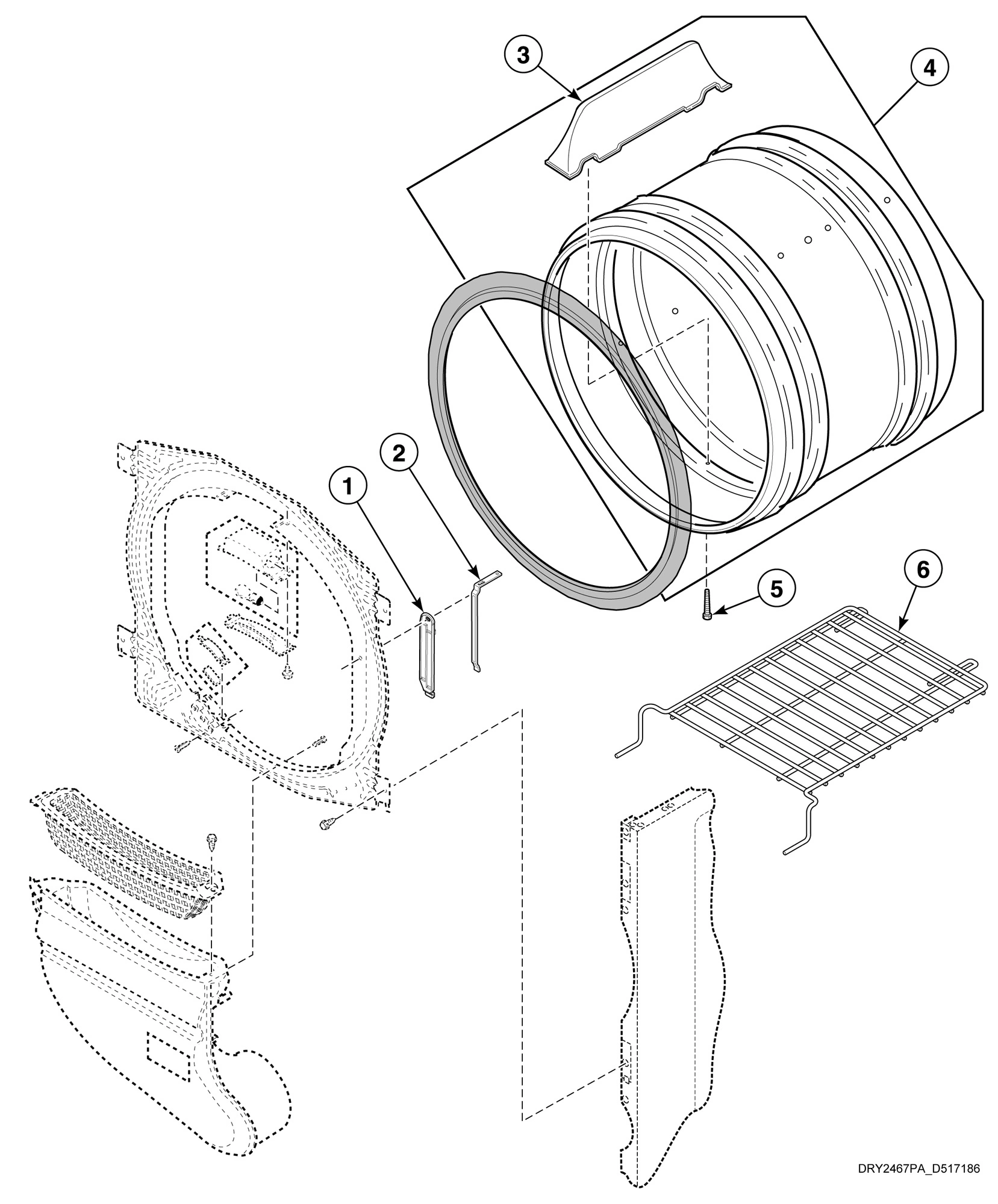

Cylinder

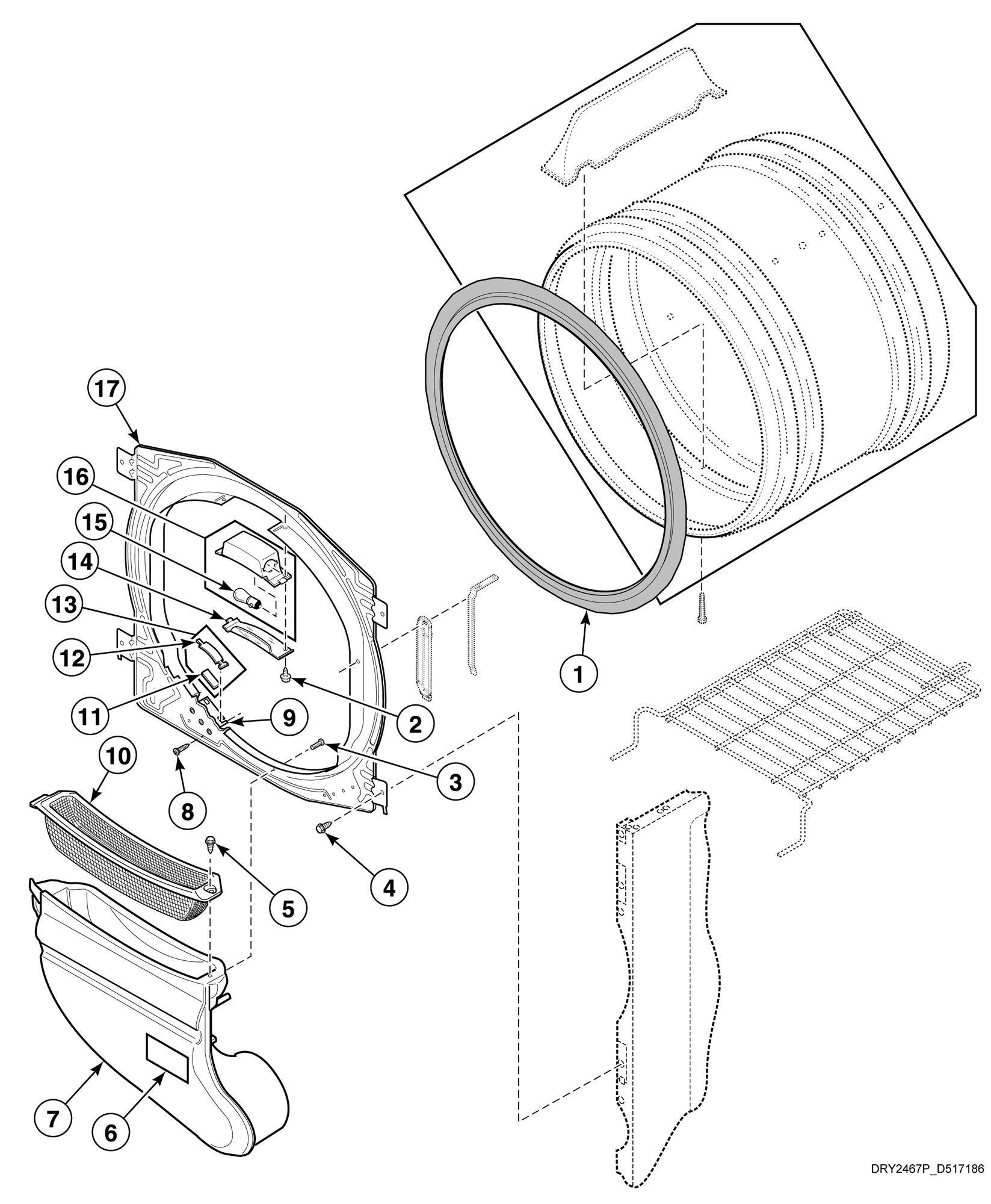

Front Bulkhead, Air Duct and Felt Seal

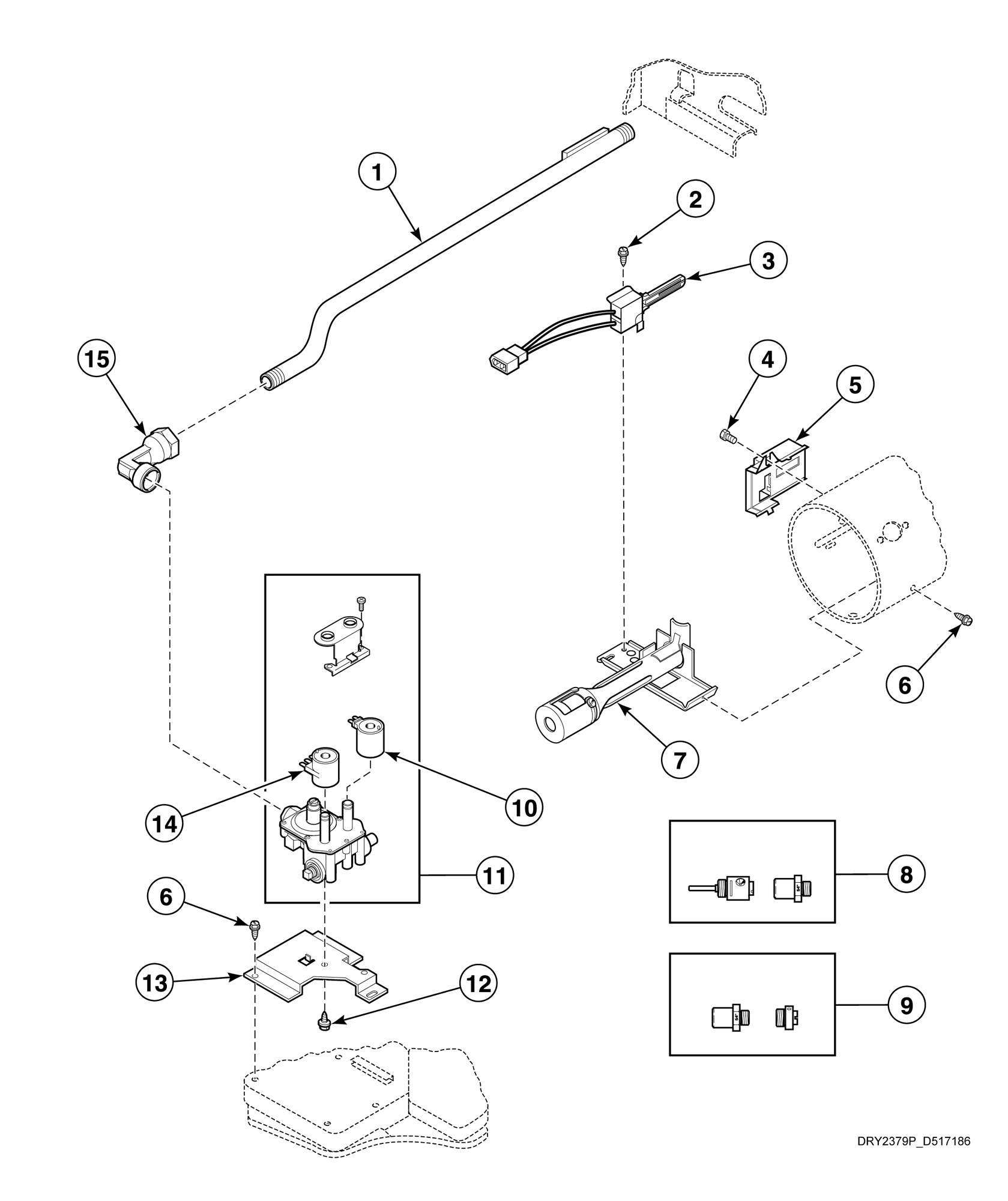

Gas Valve, Igniter and Gas Conversion Kits (Gas Models)

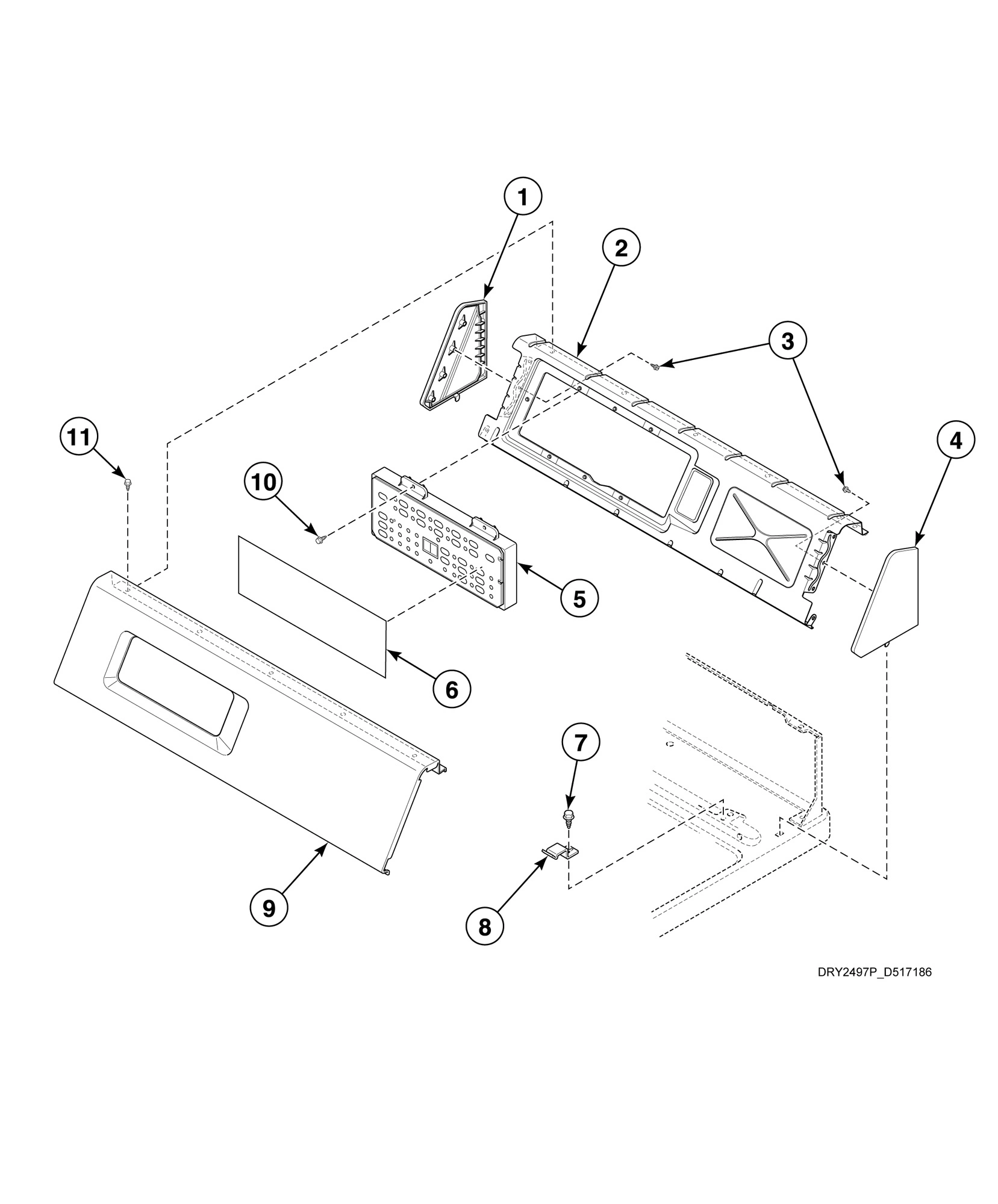

Graphic Panel, Control Support Panel and Controls - Rear Control (Drawing 2 of 2)

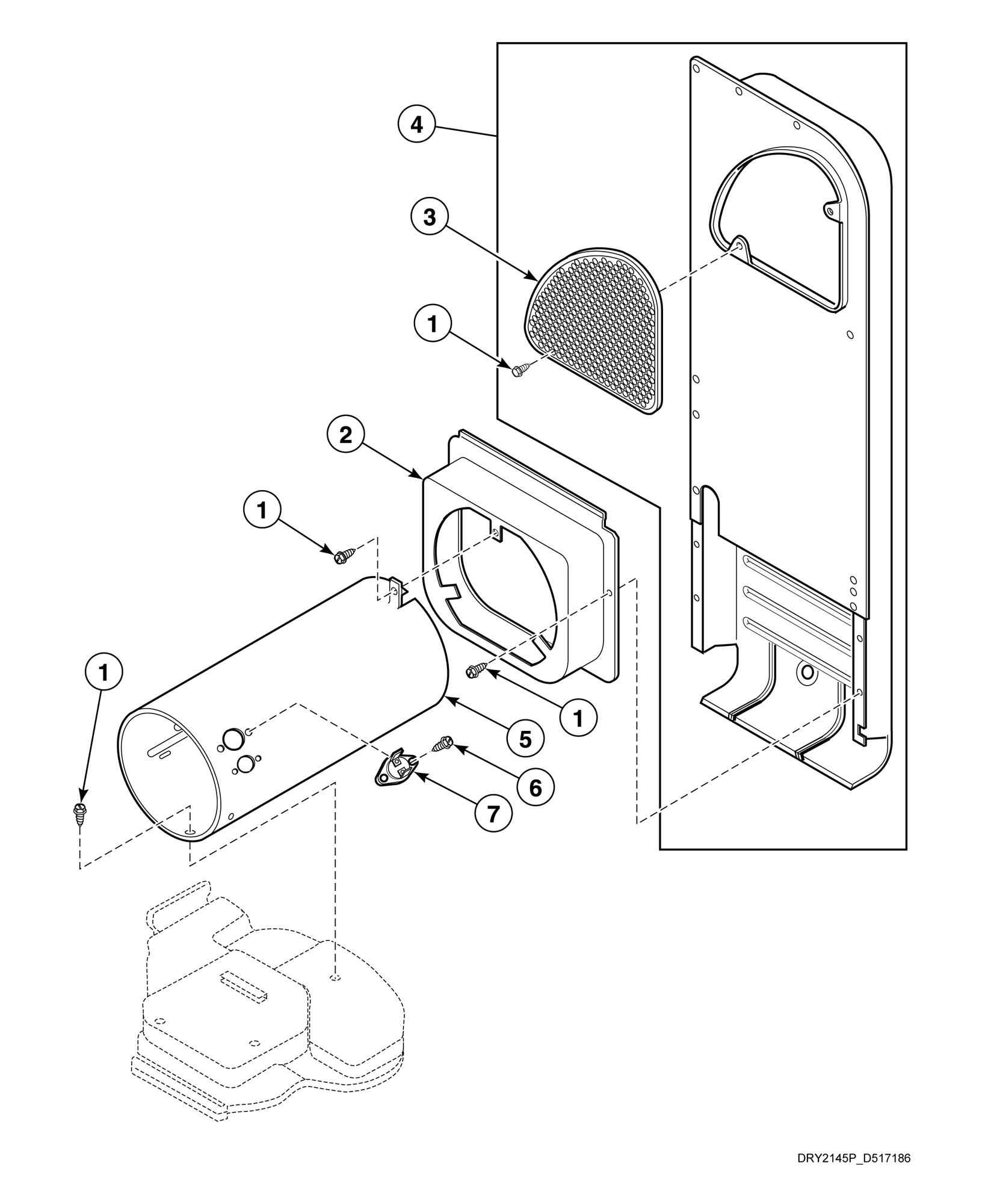

Heater Duct Assembly (Gas Models)

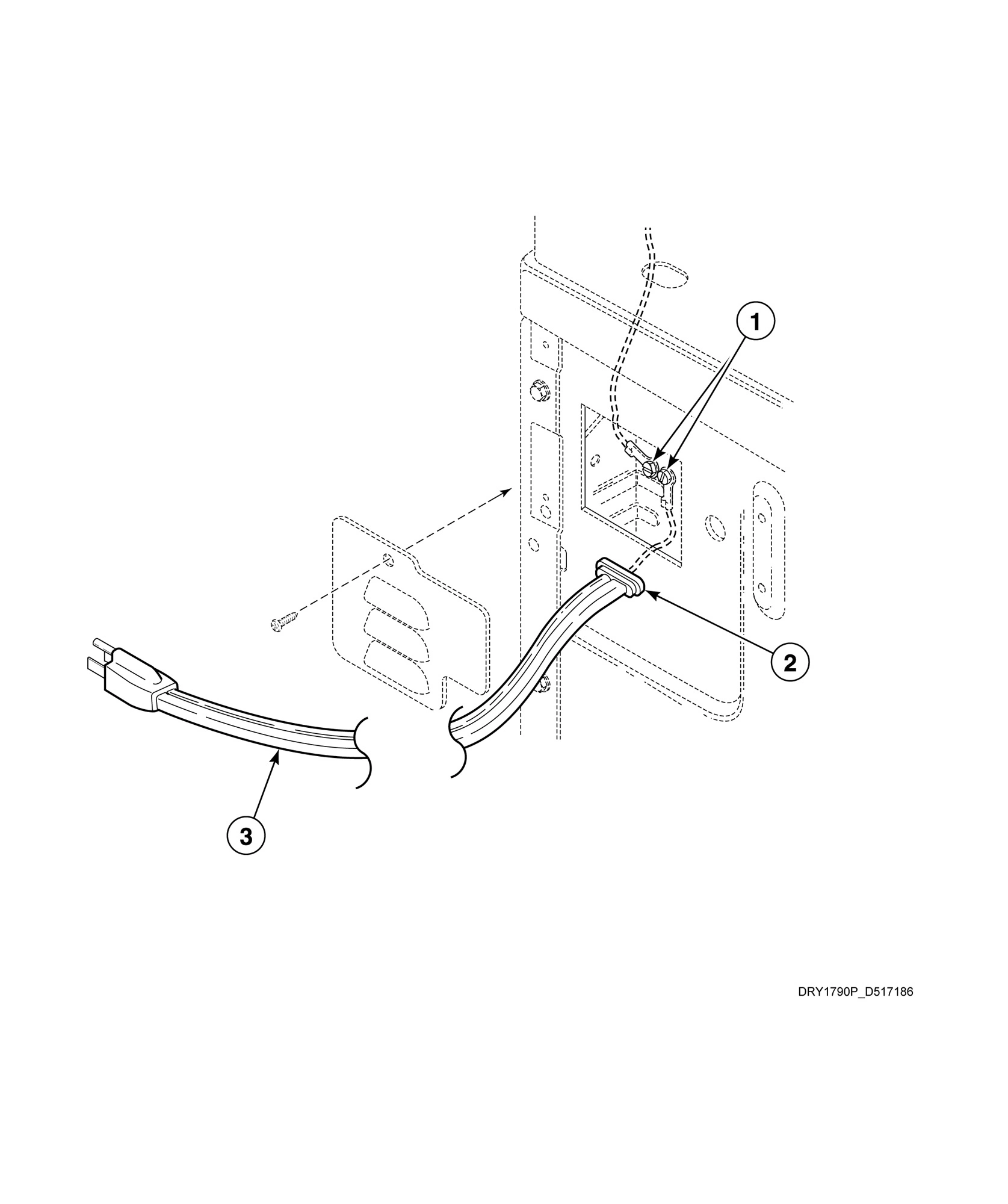

Lead-In Cord

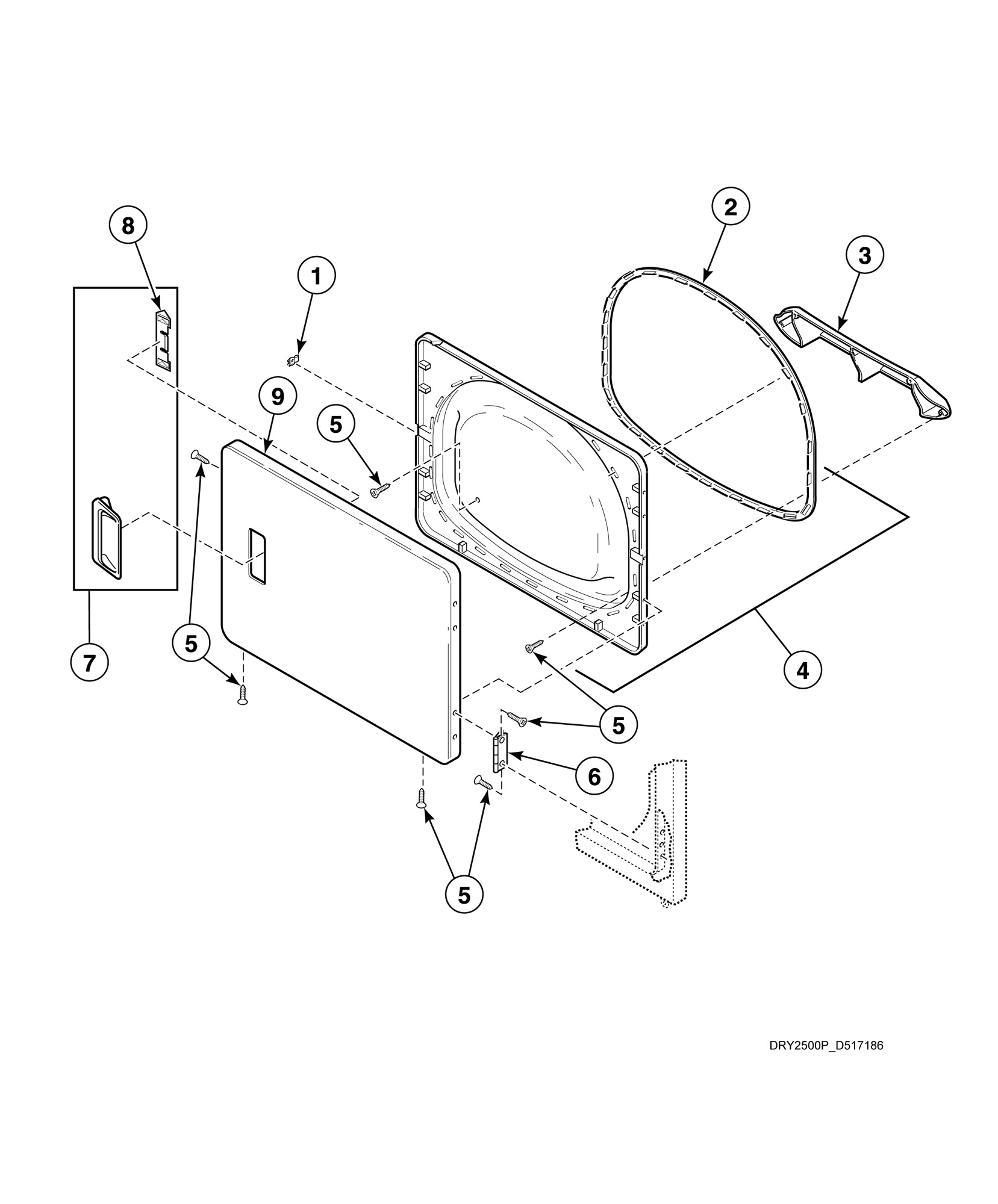

Loading Door

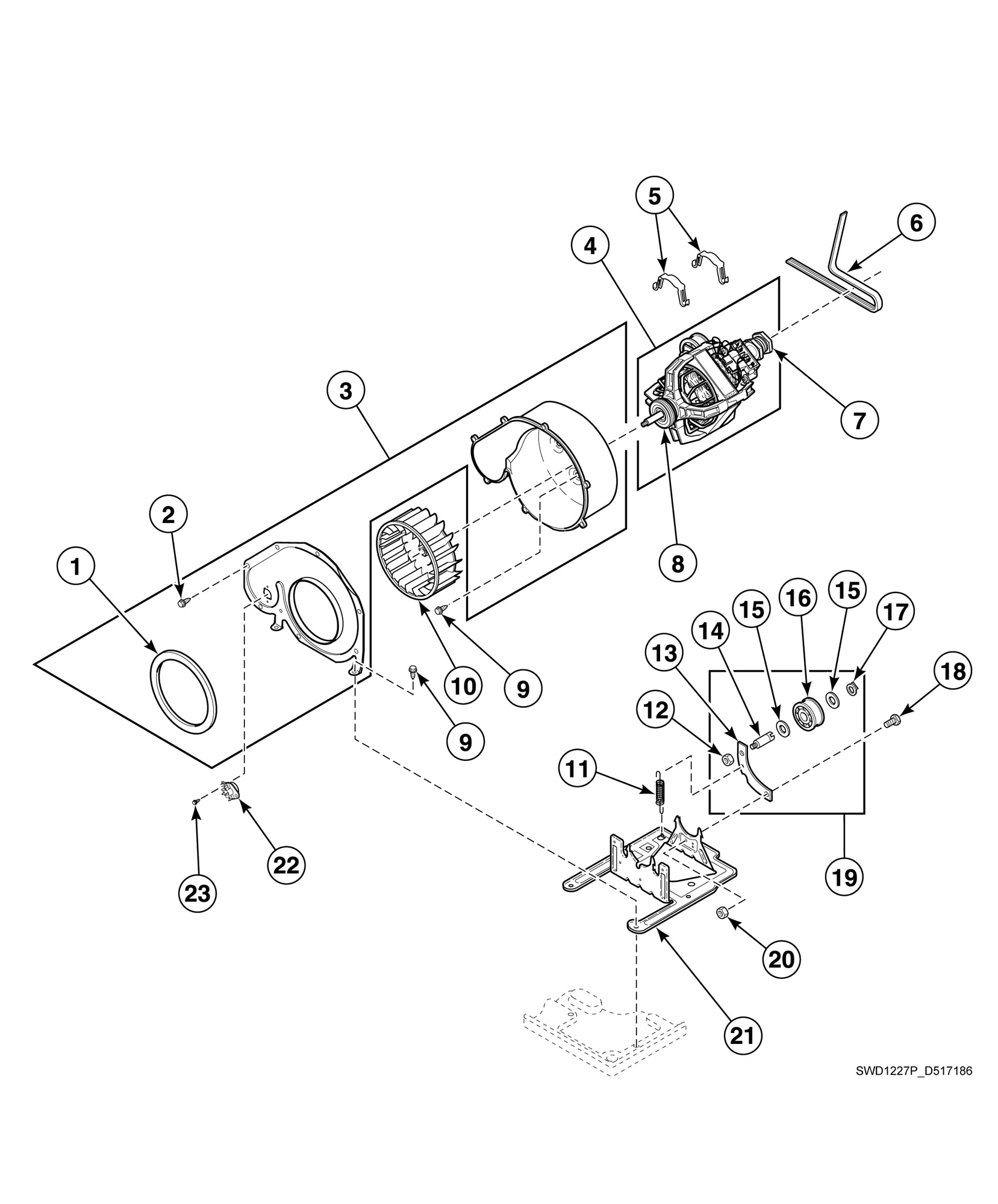

Motor, Exhaust Fan and Belt

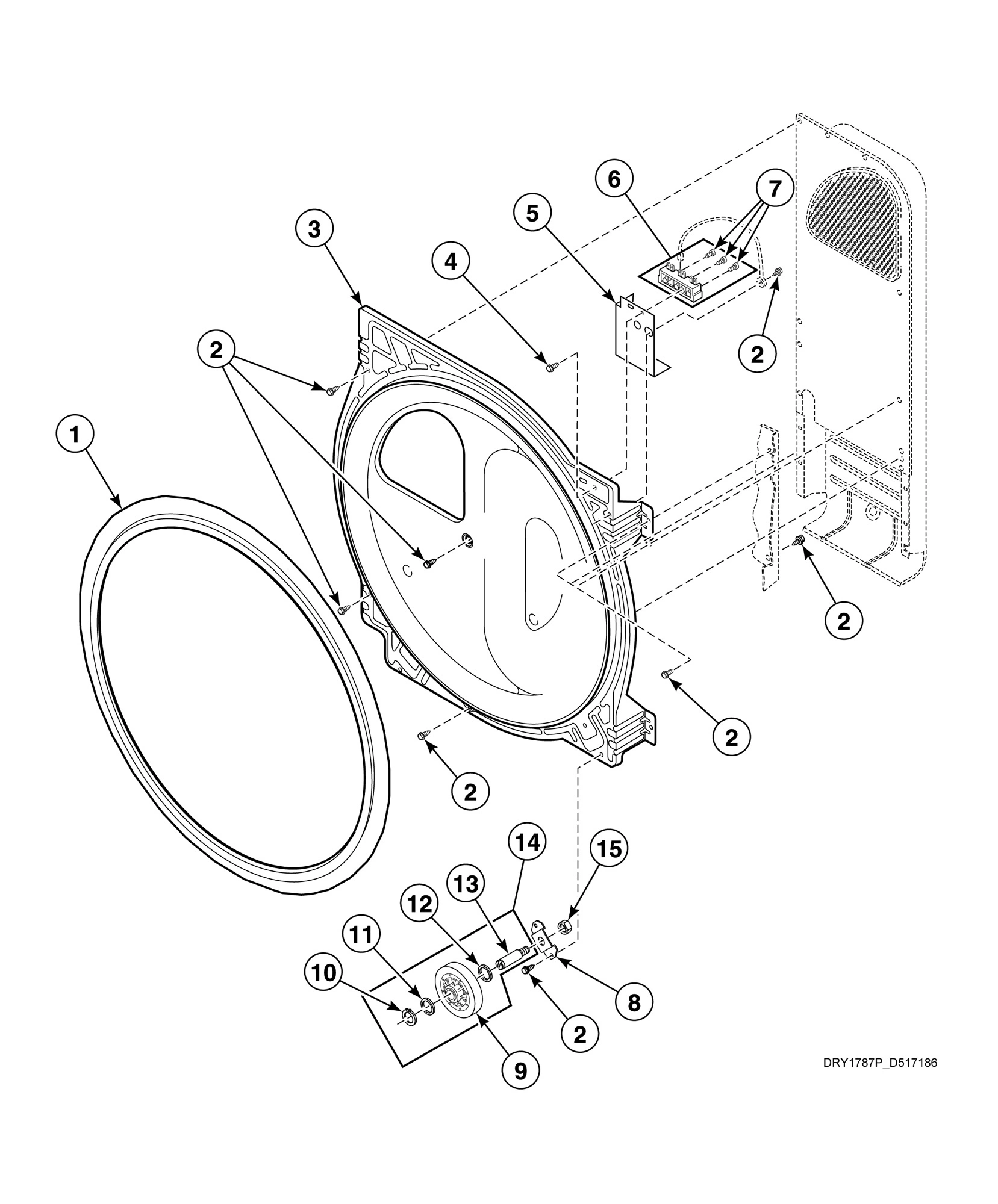

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

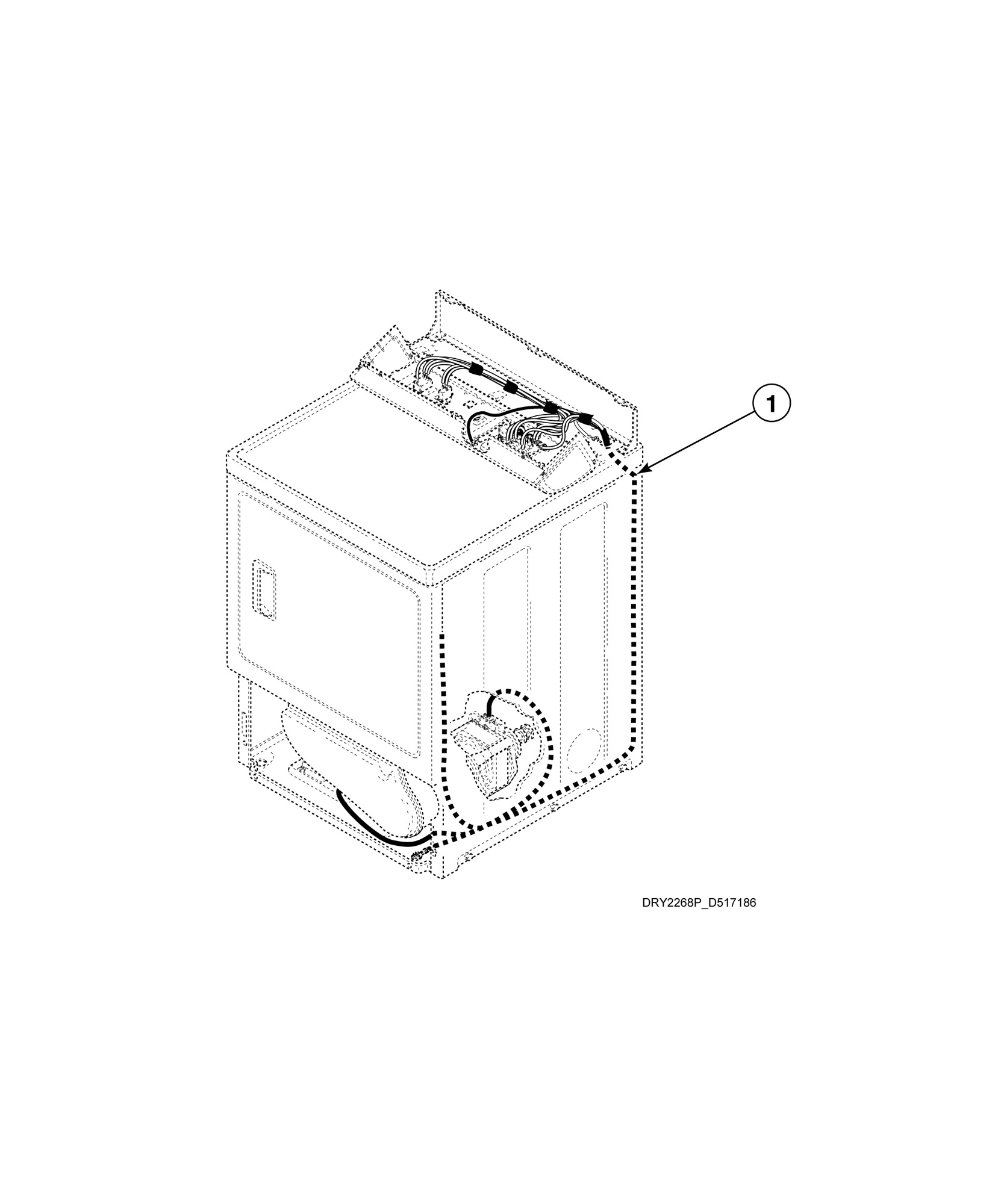

Wire Harnesses and Wires - Rear Control Models
Common parts from model GE ADGE9RGS115CW14 General Electric Model ADGE9RGS115CW14
1
N.G. Orifice (Comment: 22,500 Btu, 9000-9999 GEN D503780 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 10,000 fee GEN D503781 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 8000 feet GEN D503786 Contact Us For Availability
1
Panel Locator GEN 56079 Contact Us For Availability
1
Hood Back Panel GEN 806585 Contact Us For Availability
1
Moisture Sensor Base GEN D513738 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
End Cap (Comment: Left) GEN 203730W Contact Us For Availability
1
Screw (Comment: Earth/Ground) GEN 20530 Contact Us For Availability
1
Door Strike GEN D510181 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Gas Harness Assembly (Comment: Main Harness) GEN D517103 Contact Us For Availability
2
Screw (Comment: Use with painted side panels) GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
2
Screw GEN D500227 Contact Us For Availability
2
Control Support Panel GEN 806430 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Strain Relief GEN 38384 Contact Us For Availability
2
Liner Door Seal GEN D515709 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Warning Label (Comment: English/French) GEN D500316 Contact Us For Availability
3
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, Light g GEN D510102LG Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, White) GEN D510102W Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Screw GEN 203799 Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Outlet Cover (Comment: Black) GEN D515573 Contact Us For Availability
3
Lead-In Cord GEN 202777 Contact Us For Availability
3
Door Liner Grill (Comment: Light gray) GEN D503870LG Contact Us For Availability
3
Door Liner Grill (Comment: White) GEN D503870W Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D510043 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Bracket GEN D510146 Contact Us For Availability
4
Cylinder Assembly (Comment: Stainless steel) GEN D505929LGP Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Cylinder Assembly (Comment: Galvanized) GEN D510265WP Contact Us For Availability
4
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
End Cap (Comment: Right) GEN 203729W Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Door Liner Assembly (Comment: Includes item 2 GEN D516508 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Screw GEN D501285 Contact Us For Availability
5
Screw GEN D500226 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Control GEN D514567P Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Top Panel Kit GEN D510029WP Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Warning Label (Comment: English/French) GEN 44324001 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Control Overlay GEN D516236 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Cylinder Belt GEN D511255P Contact Us For Availability
7
Gas Clearance Label GEN D511004 Contact Us For Availability
7
Screw GEN D501086 Contact Us For Availability
7
Air Duct Assembly GEN D515805LG Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Black, Incl GEN D511213P Contact Us For Availability
7
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
8
Access Panel Plate GEN D510903 Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Hold-Down Clip GEN 35358 Contact Us For Availability
8
Door Handle Wedge GEN D510129W Contact Us For Availability
8
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Graphic Panel GEN 806715 Contact Us For Availability
9
Dryer Door (Comment: White) GEN D515960W Contact Us For Availability
9
Dryer Door (Comment: Stainless steel) GEN D515963 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
10
Flexible Venting Kit GEN 521P3 Contact Us For Availability
10
Screw GEN 804667 Contact Us For Availability
10
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
10
Lint Filter (Comment: White) GEN D503980W Contact Us For Availability
10
Secondary Coil GEN 58804B Contact Us For Availability
10
Blower Fan Assembly GEN D510139P Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
11
Exhaust Duct GEN D516196 Contact Us For Availability
11
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
11
Gas Valve Assembly (Comment: 22,500 Btu, Incl GEN D510506P Contact Us For Availability
11
Screw GEN 204340 Contact Us For Availability
11
Idler Spring GEN D510185 Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, White) GEN D510002WP Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Stainless GEN D512539 Contact Us For Availability
12
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
12
Screw GEN 56124 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
13
Glide Kit (Comment: Includes items 11 and 12 GEN RB170003 Contact Us For Availability
13
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
13
Idler Lever GEN D510133 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
14
Cylinder Light Lens GEN D512106 Contact Us For Availability
14
Booster and Holding Coil GEN 58804A Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Drum Light Lamp GEN 60954 Contact Us For Availability
15
Elbow GEN D513072 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
16
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
Dryer Base GEN D514245 Contact Us For Availability
17
Front Bulkhead (Comment: Galvanized) GEN D513641 Contact Us For Availability
17
Bulkhead Assembly (Comment: White, Includes GEN D515544W Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
18
Screw GEN D500824 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
19
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
20
Nut GEN 52566 Contact Us For Availability
21
Cabinet Side Panel (Comment: Left, White) GEN D510001WP Contact Us For Availability
21
Cabinet Side Panel (Comment: Left, Stainless GEN D512538 Contact Us For Availability
21
Motor Mount GEN D510060 Contact Us For Availability
22
Thermistor Assembly (Comment: Black) GEN D510523 Contact Us For Availability
23
Screw GEN D502535 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
12 Gauge Wire (Comment: Green/yellow stripe, GEN 45477 Contact Us For Availability
× ![]()
