Model GE ADG3SRGS113CW01 General Electric Model ADG3SRGS113CW01 – Common Parts & Diagrams

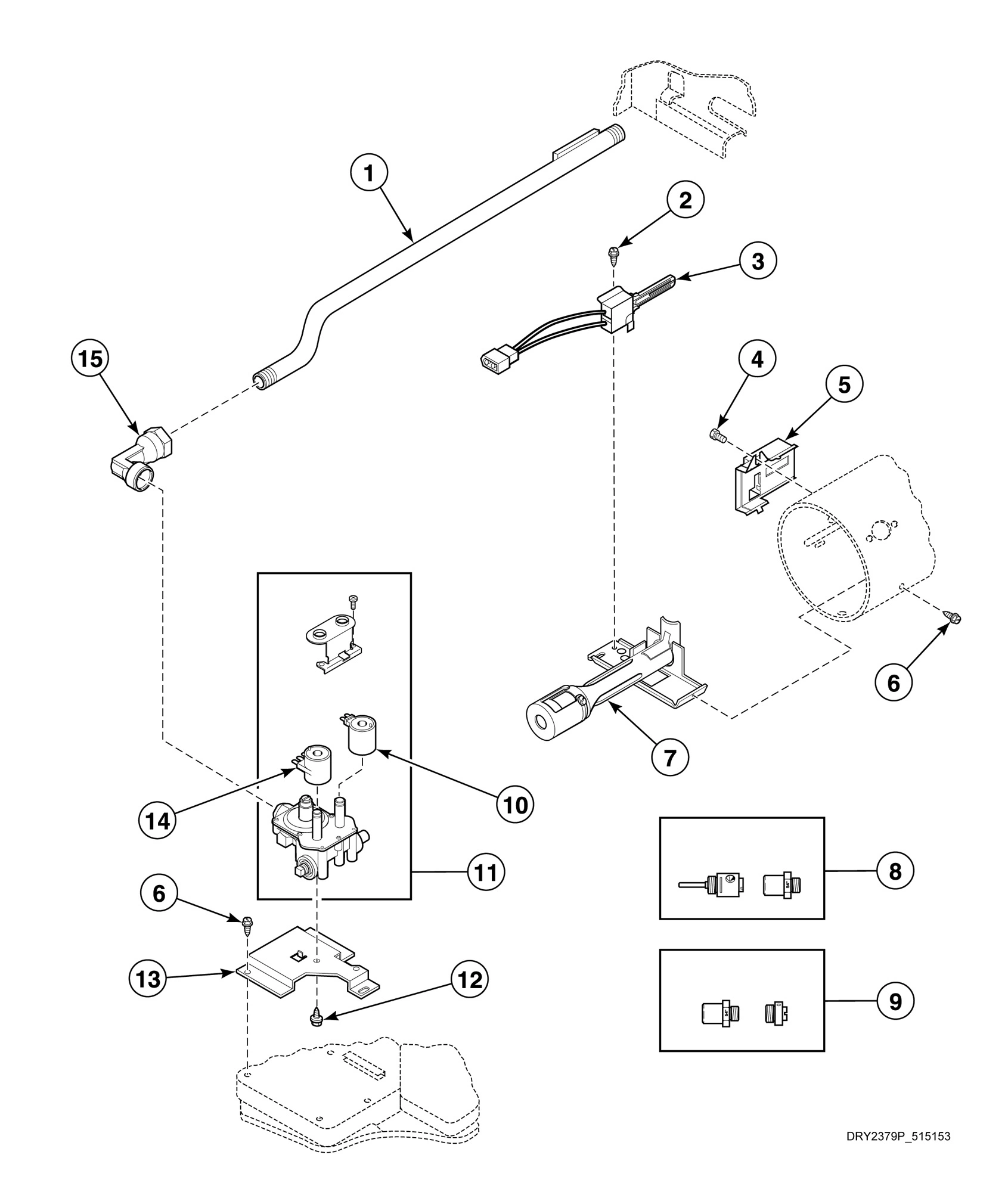

Gas Valve, Igniter and Gas Conversion Kits (Gas Models)

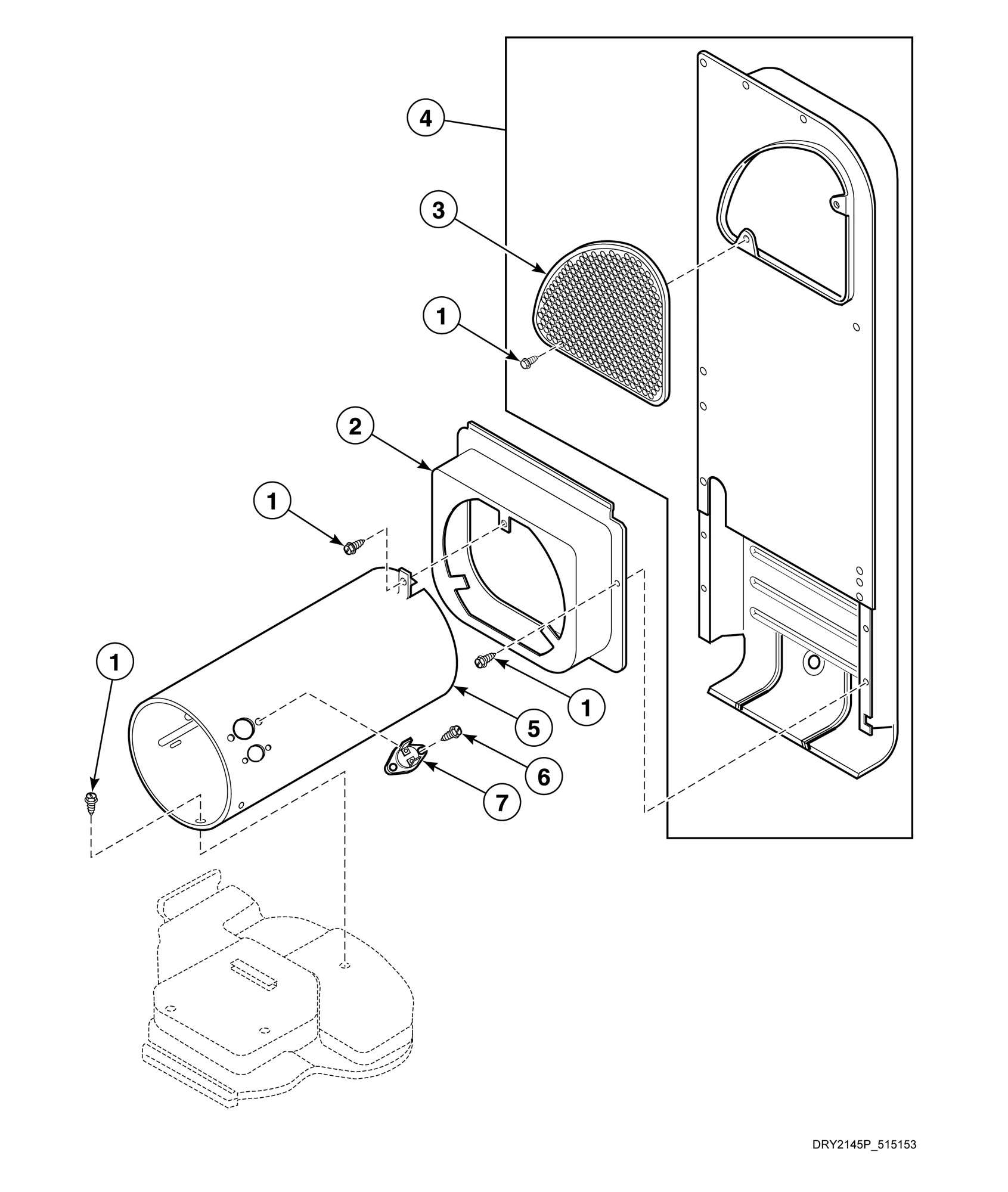

Heater Duct Assembly (Gas Models)
Lead-In Cord (Gas Models)
Loading Door - Without Window
Motor, Exhaust Fan and Belt
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Rear Control Models
Common parts from model GE ADG3SRGS113CW01 General Electric Model ADG3SRGS113CW01
1
Screw GEN 20530 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Insulated Female Spade Terminal GEN 00360 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Wire Harness Assembly (Comment: Main harness) GEN D513665 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Strain Relief GEN 38384 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Blower Housing Cover Assembly GEN D510282 Contact Us For Availability
2
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
2
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) or (2 GEN 00256 Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Outlet Cover (Comment: Black) GEN D515573 Contact Us For Availability
3
Lead-In Cord GEN 202777 Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Screw GEN 31260 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
4
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Whit GEN D510163WP Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Blower Housing (Comment: White, Includes item GEN D511969WP Contact Us For Availability
5
Terminal Block Shield (Comment: All other ele GEN D510237 Contact Us For Availability
5
Male Pin Terminal (Comment: 1/8 inch) GEN 00129 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
2 Circuit Receptacle GEN 56451 Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Black, Incl GEN D511213P Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Ground Wire Assembly GEN D510550 Contact Us For Availability
7
Harness Strap GEN 55881 Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Door Handle Wedge GEN D510129W Contact Us For Availability
8
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
8
Screw GEN 61199 Contact Us For Availability
8
Female Pin Terminal (Comment: 1/8 inch) GEN 00130 Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
9
Dryer Door (Comment: Stainless steel) GEN D512969 Contact Us For Availability
9
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
9
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
2 Circuit Plug GEN 56266 Contact Us For Availability
9
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
10
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
10
Cylinder Roller GEN D510708P Contact Us For Availability
10
Male Pin Terminal (Comment: 1/8 inch) GEN 00127 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
11
3 Circuit Connector GEN 58800 Contact Us For Availability
12
Blower Fan Assembly GEN D510139P Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
13
Idler Spring GEN D510185 Contact Us For Availability
13
Washer GEN D504082 Contact Us For Availability
14
Shaft GEN 56461P Contact Us For Availability
15
Idler Lever GEN D510133 Contact Us For Availability
15
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
16
Nut GEN 56156 Contact Us For Availability
18
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
20
Screw GEN D500824 Contact Us For Availability
21
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
22
Nut GEN 52566 Contact Us For Availability
23
Motor Mount GEN D510060 Contact Us For Availability
24
Thermostat (Comment: Pink/White) GEN D510707P Contact Us For Availability
25
Screw GEN D502535 Contact Us For Availability
NA
NOT ON YOUR MODEL GEN - Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
