Model GE ADEE9RGS175TW01 General Electric Model ADEE9RGS175TW01 – Common Parts & Diagrams

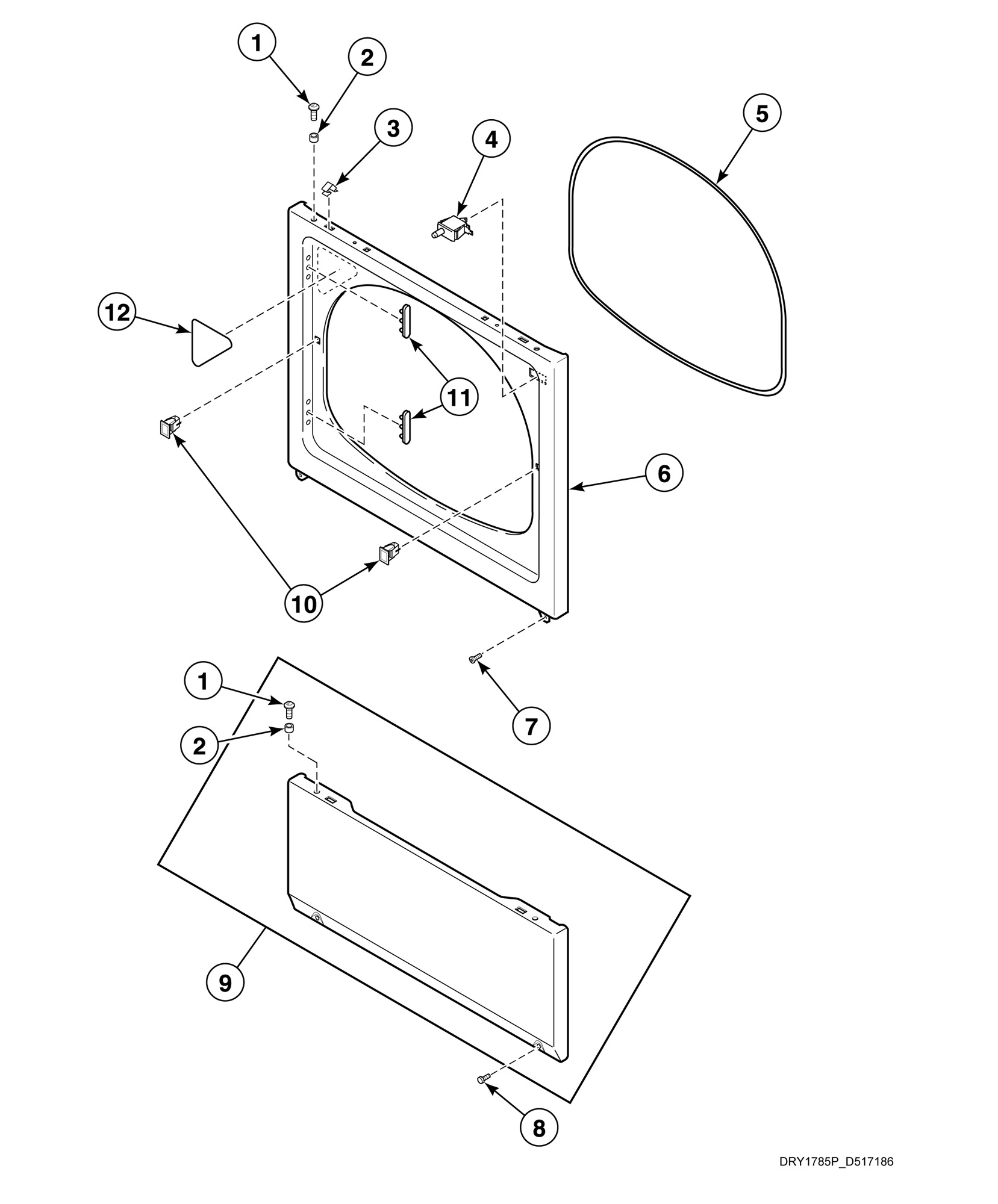

Access Panel, Front Panel and Seal

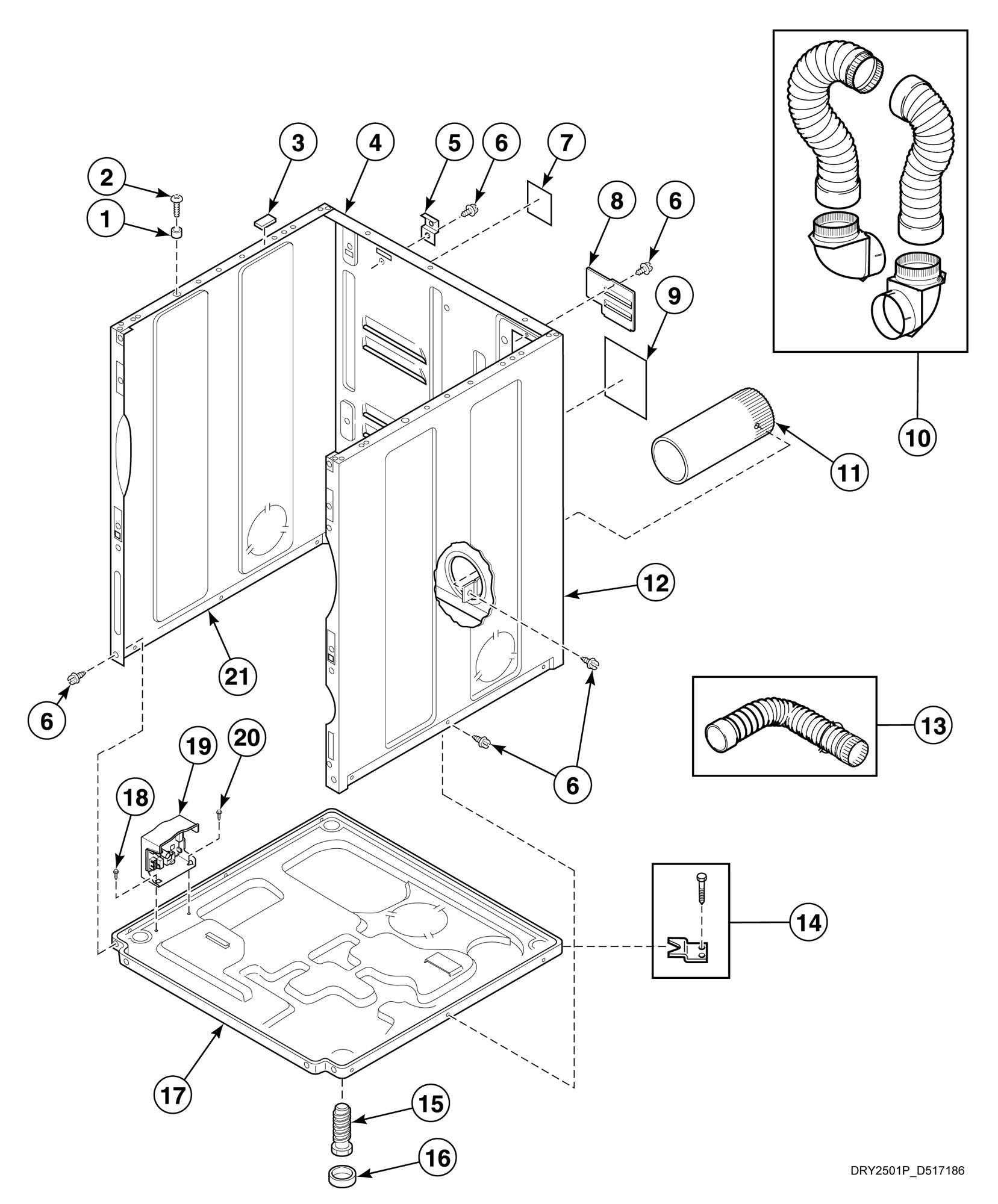

Cabinet, Exhaust Duct and Base
Cabinet Top and Control Hood Back Panel
Cylinder
Front Bulkhead, Air Duct and Felt Seal
Graphic Panel, Control Support Panel and Controls - Rear Control (Drawing 2 of 2)
Heater Duct and Element Assembly (Electric Models)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Wire Harnesses and Wires - Rear Control Models
Common parts from model GE ADEE9RGS175TW01 General Electric Model ADEE9RGS175TW01
1
Panel Locator GEN 56079 Contact Us For Availability
1
Hood Back Panel GEN 806585 Contact Us For Availability
1
Moisture Sensor Base GEN D513738 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
End Cap (Comment: Left) GEN 203730W Contact Us For Availability
1
Electric Harness (Comment: Main harness) GEN D513986 Contact Us For Availability
2
Screw (Comment: Use with painted side panels) GEN 39733 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
2
Screw GEN D500227 Contact Us For Availability
2
Control Support Panel GEN 806430 Contact Us For Availability
2
Outlet Cover (Comment: Aluminized steel) GEN D500820 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Warning Label (Comment: English/French) GEN D500316 Contact Us For Availability
3
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, Light g GEN D510102LG Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, White) GEN D510102W Contact Us For Availability
3
Screw GEN 203799 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D510043 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Bracket GEN D510146 Contact Us For Availability
4
Cylinder Assembly (Comment: Stainless steel) GEN D505929LGP Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Cylinder Assembly (Comment: Galvanized) GEN D510265WP Contact Us For Availability
4
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
End Cap (Comment: Right) GEN 203729W Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Control GEN D514567P Contact Us For Availability
5
Terminal Block Shield (Comment: Through Seria GEN D510237 Contact Us For Availability
6
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
6
Front Panel (Comment: Stainless steel) GEN D512542 Contact Us For Availability
6
Top Panel Kit GEN D510029WP Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Warning Label (Comment: English/French) GEN 44324001 Contact Us For Availability
6
Control Overlay GEN D516225 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
7
NOT ON YOUR MODEL GEN - Contact Us For Availability
7
Screw GEN D501086 Contact Us For Availability
7
Air Duct Assembly GEN D515805LG Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
8
Screw GEN 33562 Contact Us For Availability
8
Access Panel Plate GEN D510903 Contact Us For Availability
8
Screw GEN D500226 Contact Us For Availability
8
Hold-Down Clip GEN 35358 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
9
Access Panel Assembly (Comment: Stainless ste GEN D514251 Contact Us For Availability
9
Electric Clearance Label GEN D511005 Contact Us For Availability
9
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
9
Graphic Panel GEN 806715 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Flexible Venting Kit GEN 521P3 Contact Us For Availability
10
Screw GEN 804667 Contact Us For Availability
10
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
10
Lint Filter (Comment: White) GEN D503980W Contact Us For Availability
10
Heater Kit Assembly (Comment: 4.75 kW, 208 Vo GEN 61928 Contact Us For Availability
10
Heater Kit (Comment: 5.35 kW, 240 Volt/60 Her GEN 964P3 Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Exhaust Duct GEN D516196 Contact Us For Availability
11
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
11
Screw GEN 204340 Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Warning/Caution Label (Comment: English) GEN D500281 Contact Us For Availability
12
Warning Label (Comment: French) GEN D516243 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, White) GEN D510002WP Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Stainless GEN D512539 Contact Us For Availability
12
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
13
Glide Kit (Comment: Includes items 11 and 12 GEN RB170003 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
14
Cylinder Light Lens GEN D512106 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Drum Light Lamp GEN 60954 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
17
Dryer Base GEN D514245 Contact Us For Availability
17
Front Bulkhead (Comment: Galvanized) GEN D513641 Contact Us For Availability
17
Bulkhead Assembly (Comment: White, Includes GEN D515544W Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
21
Cabinet Side Panel (Comment: Left, White) GEN D510001WP Contact Us For Availability
21
Cabinet Side Panel (Comment: Left, Stainless GEN D512538 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
12 Gauge Wire (Comment: Green/yellow stripe, GEN 45477 Contact Us For Availability
× ![]()
