Model GE ADE41FSS171TN01 General Electric Model ADE41FSS171TN01 – Common Parts & Diagrams

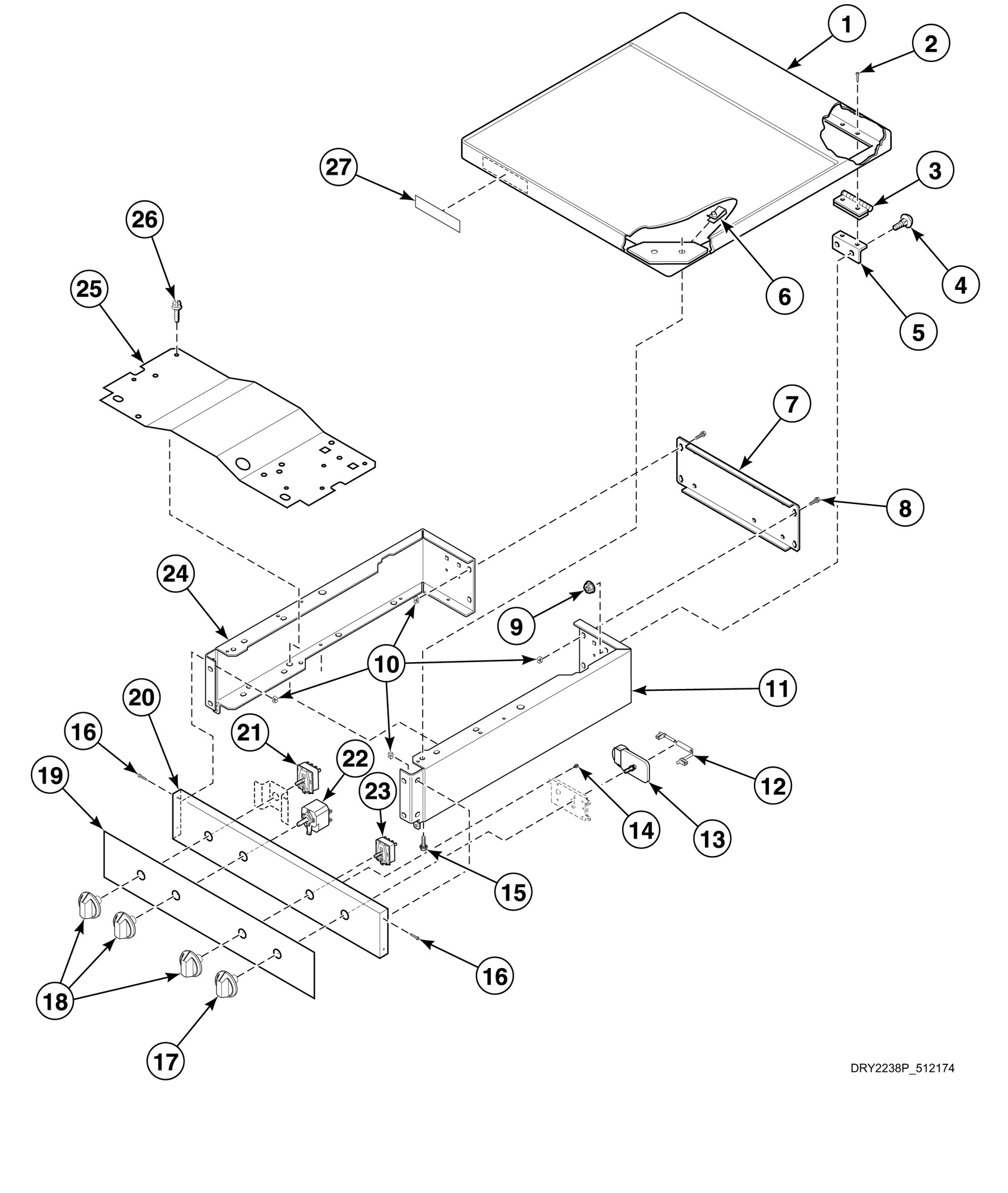

Control Cabinet and Controls

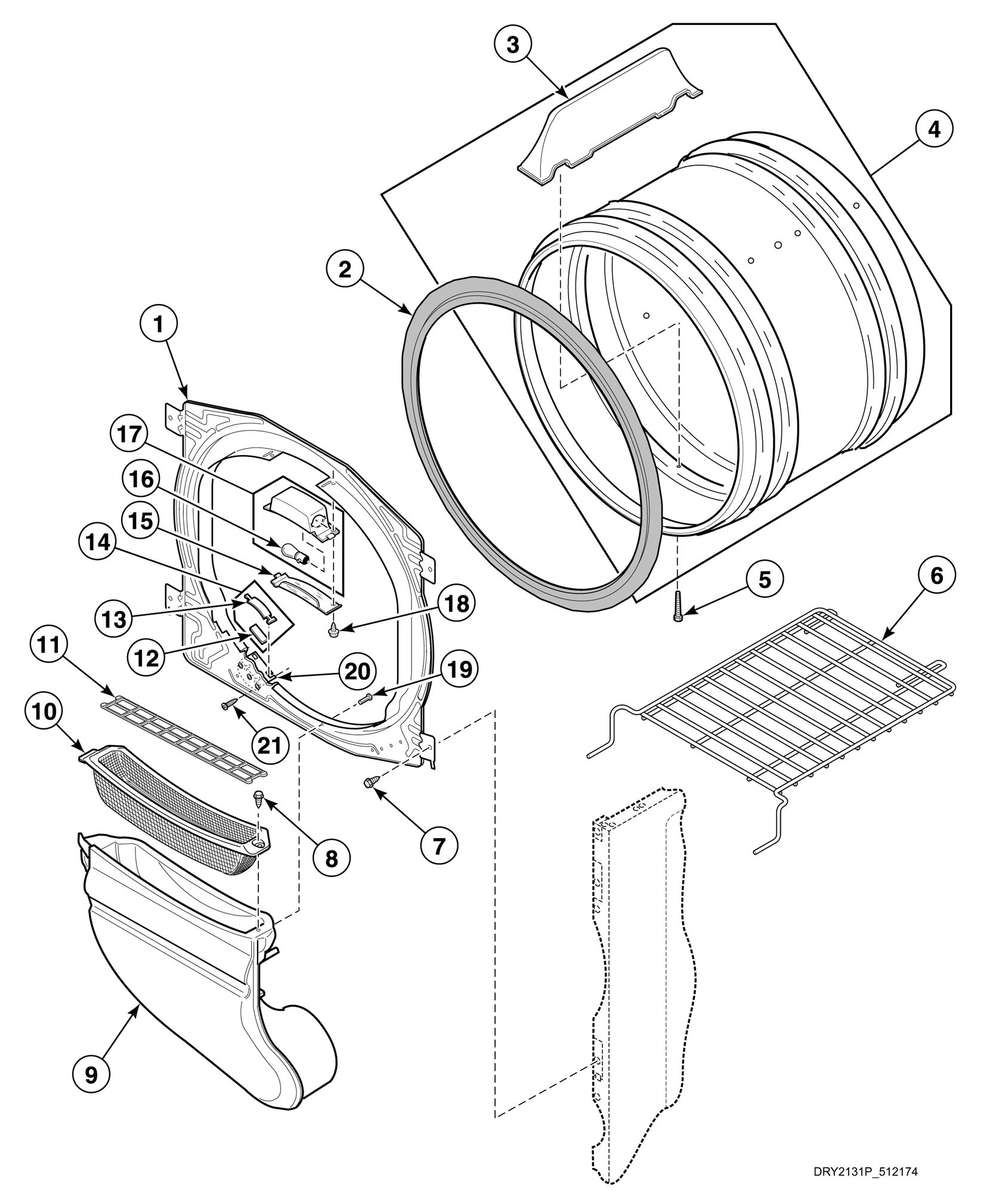

Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light
Heater Duct and Element Assembly (Electric Models)
Loading Door - Without Window (Drawing 1 of 2)
Motor, Exhaust Fan and Belt
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Front Control Models Starting Serial No. 1303025315
Wire Harnesses and Wires - Front Control Models Through Serial No. 1303025314
Common parts from model GE ADE41FSS171TN01 General Electric Model ADE41FSS171TN01
1
Bulkhead Assembly (Comment: White, Punched wi GEN D505899WP Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Galvanized, GEN D512476 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Insulated Female Spade Terminal GEN 00360 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Security Cabinet Harness Assembly (Comment: C GEN D511770 Contact Us For Availability
2
Pop Rivet GEN 685847 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
2
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) 12 ga GEN 00255 Contact Us For Availability
2
Harness Assembly (Comment: Main harness) GEN D513808 Contact Us For Availability
2
Wire Harness Assembly (Comment: Main harness) GEN D511768P Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, Light g GEN D510102LG Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D505246 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Female Pin Terminal (Comment: 1/8 inch) GEN 00128 Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
4
Bolt GEN 29651 Contact Us For Availability
4
Cylinder Assembly (Comment: Stainless steel) GEN D505929LGP Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Gray GEN D513109P Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
5
Top Mounting Bracket GEN D504228 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Male Pin Terminal (Comment: 1/8 inch) GEN 00129 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Nut GEN 36020 Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
6
12 Circuit Receptacle GEN 56855 Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
7
Rear Control Cabinet GEN 801058 Contact Us For Availability
7
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Door Handle GEN 803095 Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch, (2) GEN N/A Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Harness Strap GEN 55881 Contact Us For Availability
8
Screw GEN 70240301 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Handle Cover GEN 803094P Contact Us For Availability
8
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Female Pin Terminal (Comment: 1/8 inch) GEN 00130 Contact Us For Availability
9
Nut GEN 44087201 Contact Us For Availability
9
Air Duct Assembly GEN D510151LG Contact Us For Availability
9
Heater Assembly (Comment: 5.35 kW, 240 Volt) GEN D510329P Contact Us For Availability
9
Dryer Door GEN D513156 Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Female Tab Terminal (Comment: 1/4 inch) GEN 00344 Contact Us For Availability
10
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
10
Heater Kit (Comment: 5.35 kW, 240 Volt, Inclu GEN 964P3 Contact Us For Availability
10
Screw GEN 800548 Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
10
Male Pin Terminal (Comment: 1/8 inch) GEN 00127 Contact Us For Availability
11
Lint Filter Cover (Comment: starting Serial N GEN D510502LG Contact Us For Availability
11
Lint Filter Cover (Comment: through Serial No GEN D510502W Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Glide Kit (Comment: Includes 2 of items 12 an GEN RB170003 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 of items 9-13 GEN RB170002 Contact Us For Availability
15
Cylinder Light Lens GEN D512106 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Drum Light Lamp GEN 60954 Contact Us For Availability
17
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
18
Screw GEN D500227 Contact Us For Availability
19
Screw GEN D501086 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Control Panel Assembly GEN D513161 Contact Us For Availability
20
Cylinder Glide Bracket (Comment: GEN D510145 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Fabric Selector Switch GEN D513506 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Buzzer GEN D510211 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
Selector Switch GEN 803568 Contact Us For Availability
23
Thermostat (Comment: Green) GEN D504515 Contact Us For Availability
24
Control Cabinet (Comment: Left, Stainless ste GEN 803142 Contact Us For Availability
24
Control Cabinet (Comment: Left, Gray) GEN D513702 Contact Us For Availability
24
Screw GEN D502535 Contact Us For Availability
25
Control Cabinet Bottom GEN 801777 Contact Us For Availability
26
Screw (Comment: Use with painted side panels) GEN D503661 Contact Us For Availability
27
Badge GEN 803013 Contact Us For Availability
NA
Wire Assembly (Comment: Extra tumble) GEN D513170P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
