Model Maytag ADB1700ADW4 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

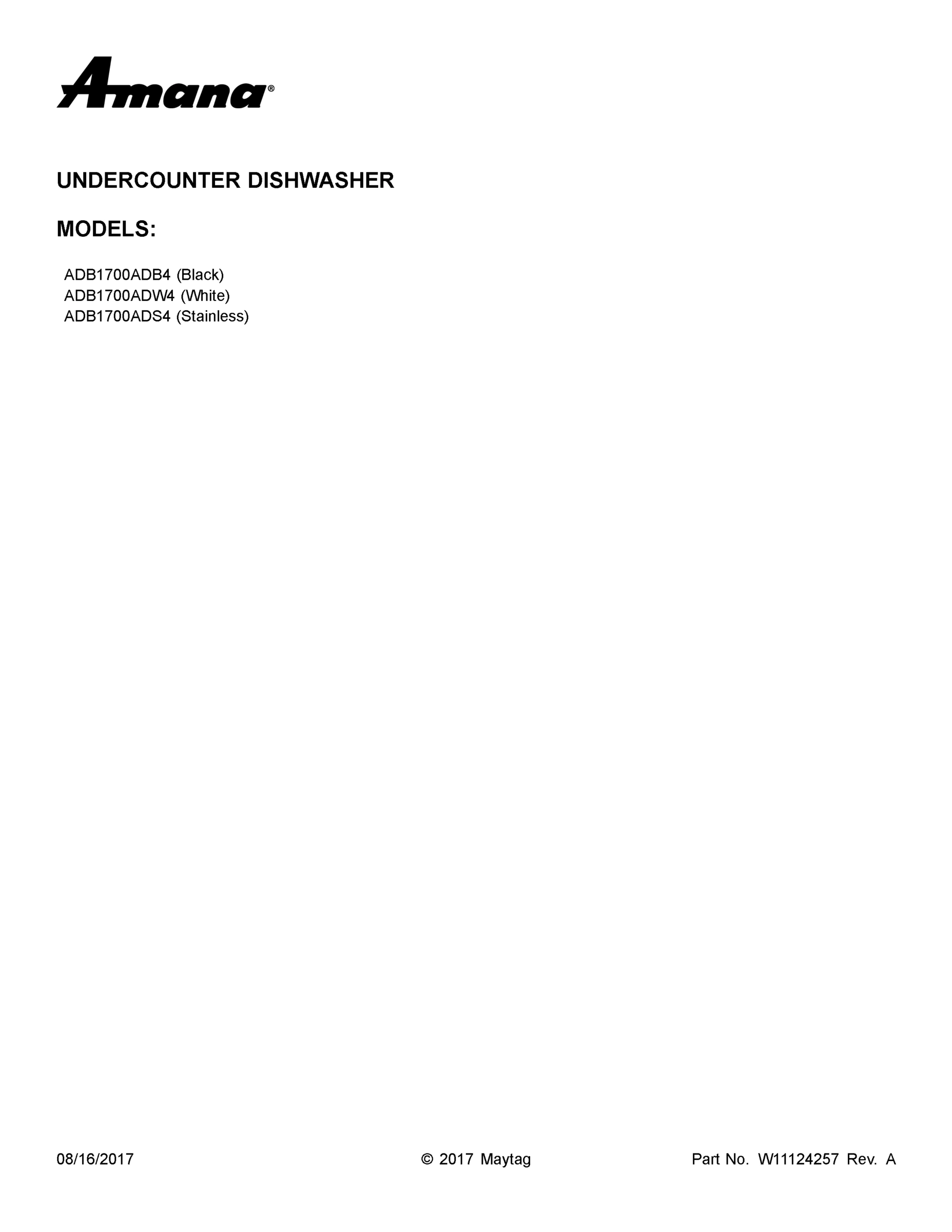

01 - COVER SHEET

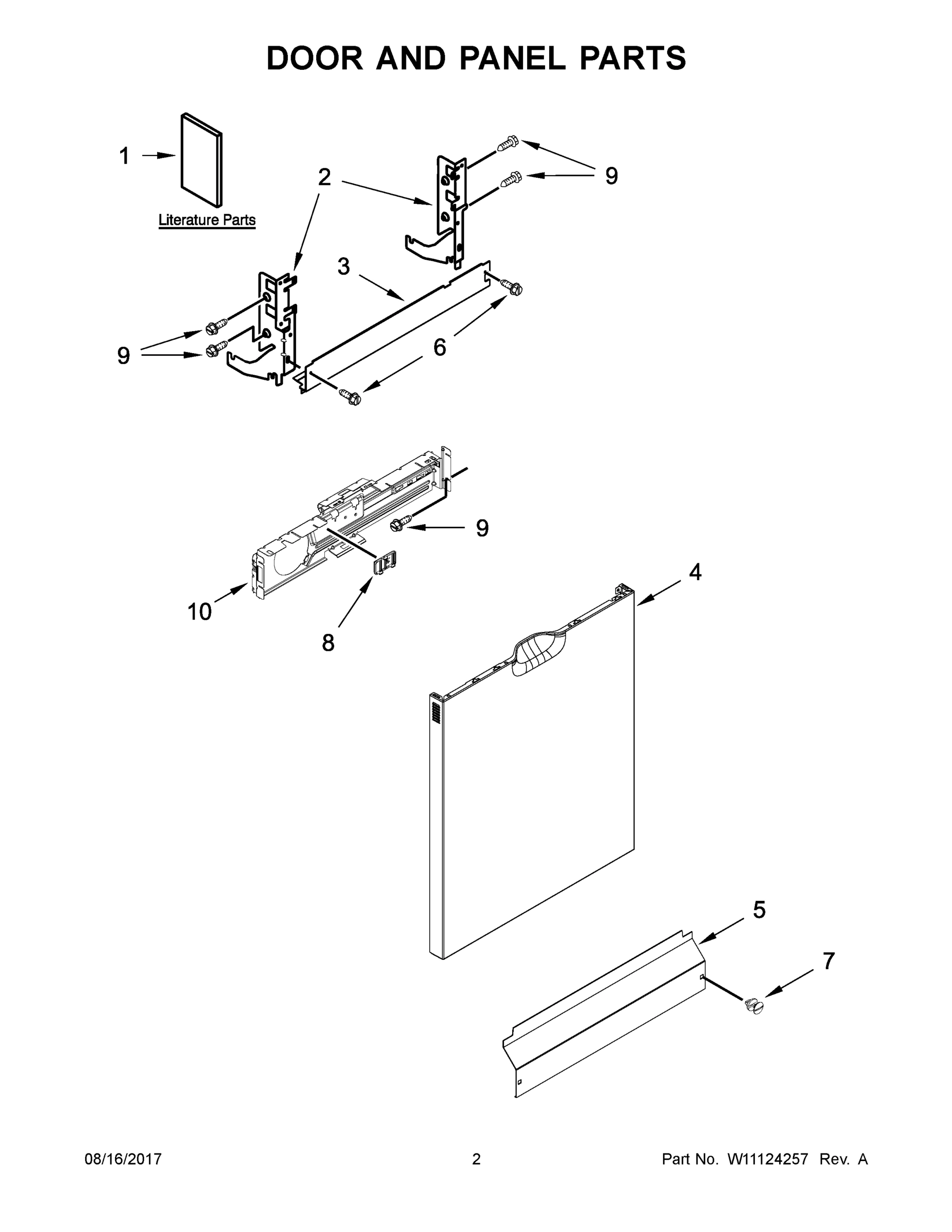

02 - DOOR AND PANEL PARTS

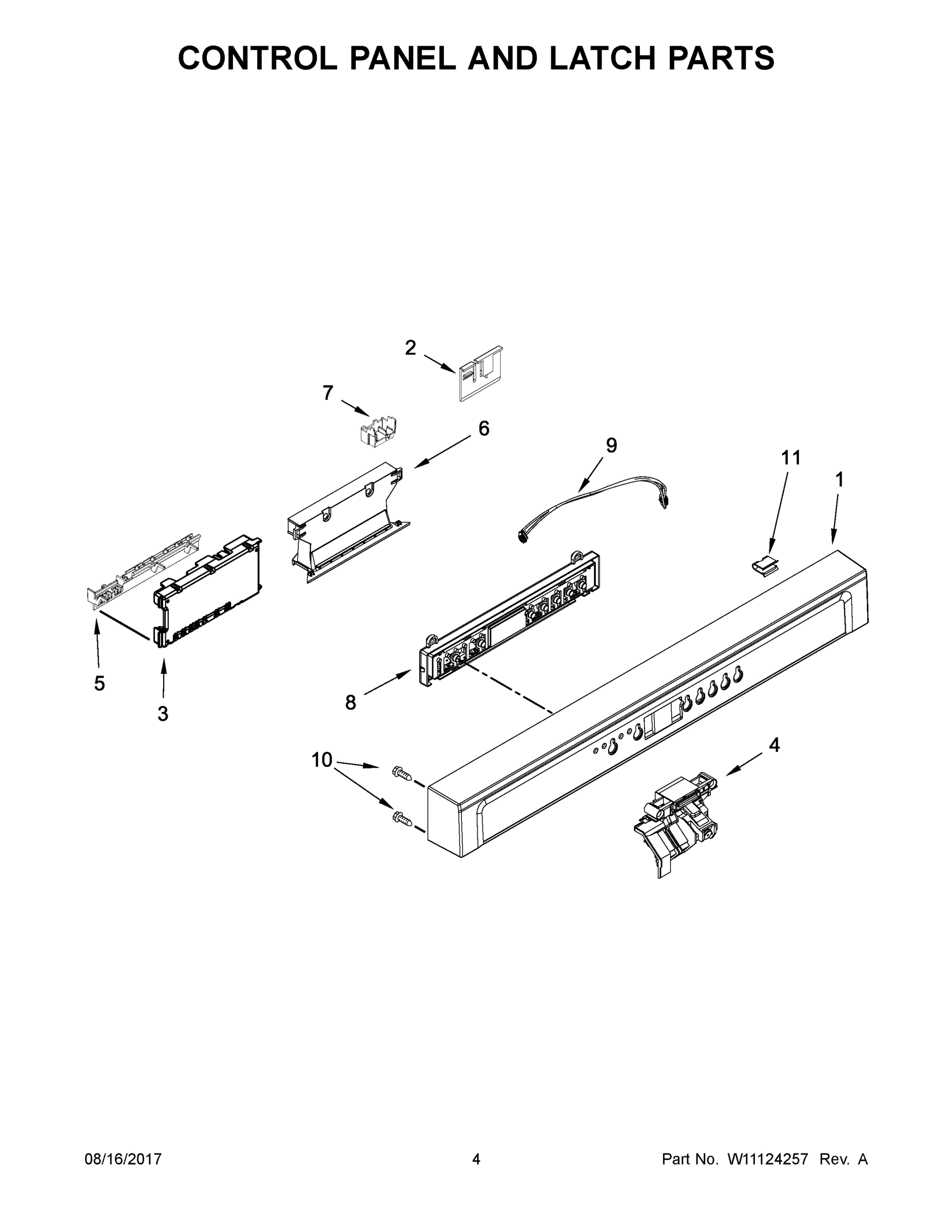

03 - CONTROL PANEL AND LATCH PARTS

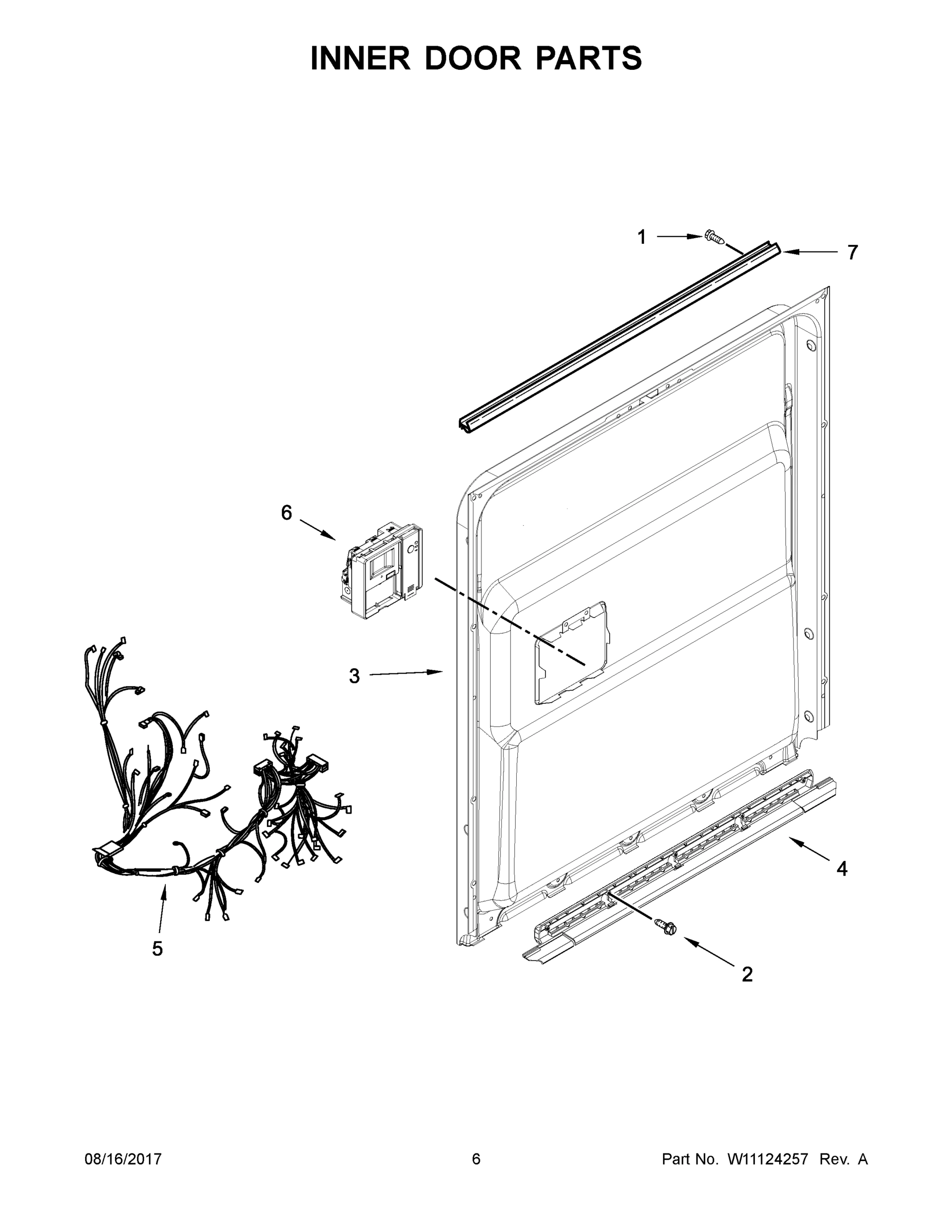

04 - INNER DOOR PARTS

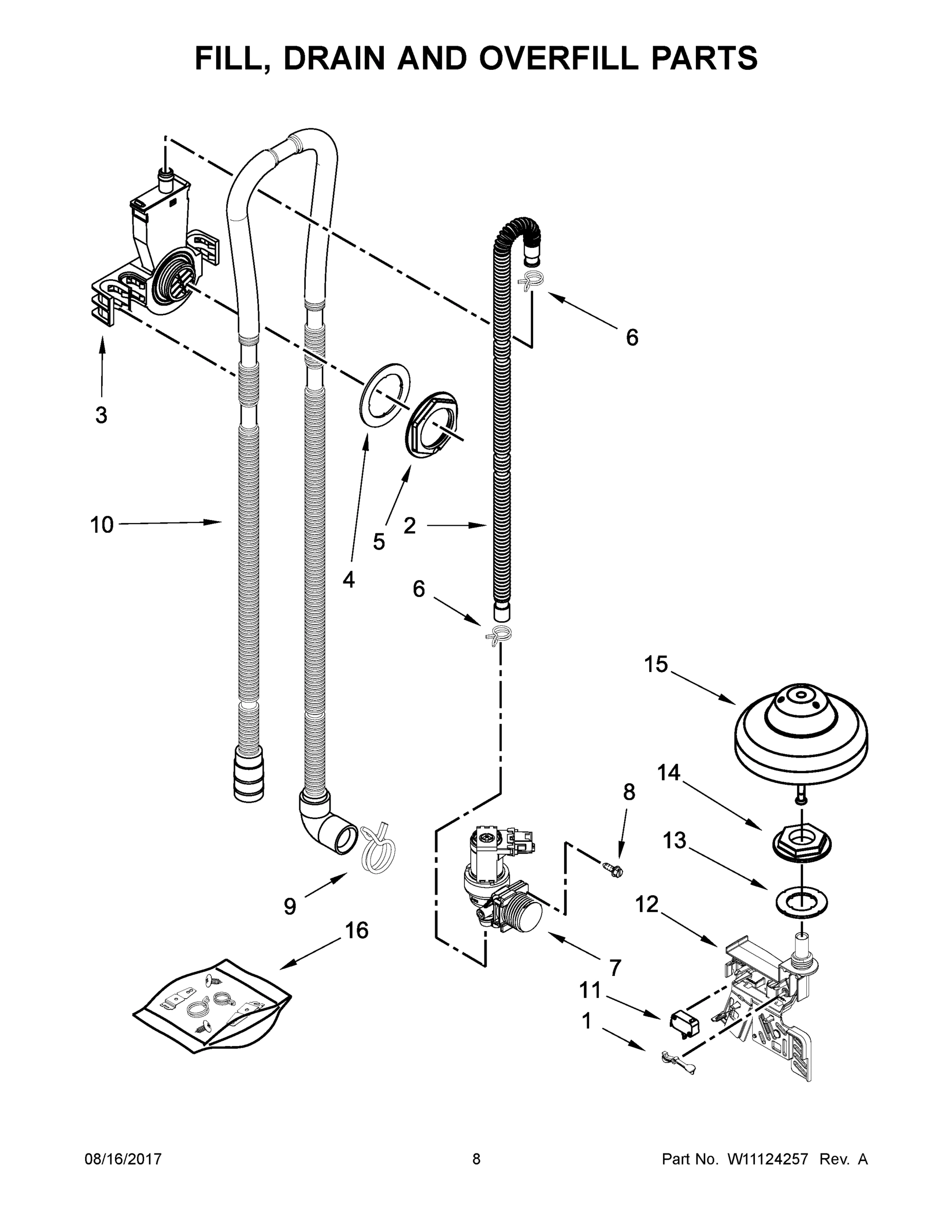

05 - FILL, DRAIN AND OVERFILL PARTS

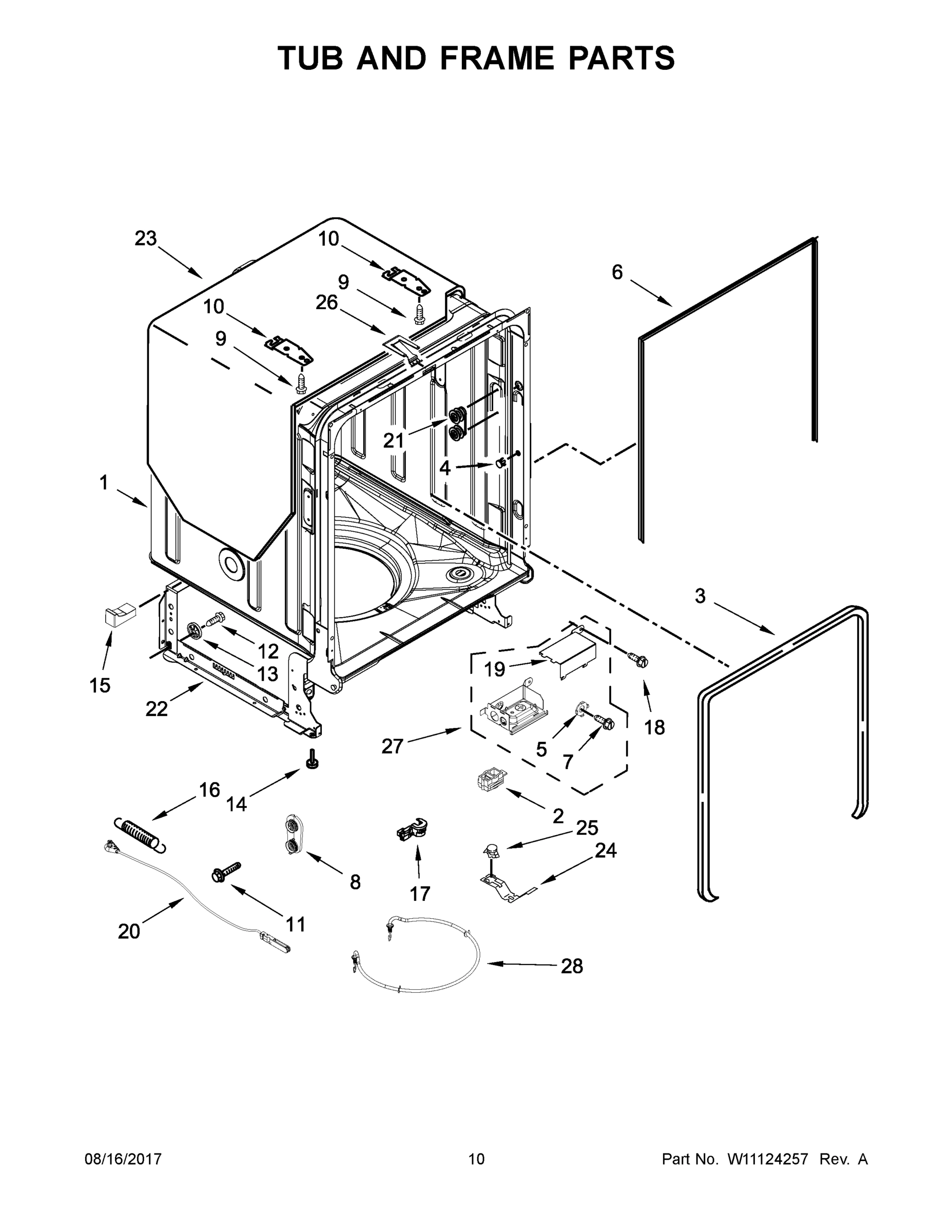

06 - TUB AND FRAME PARTS

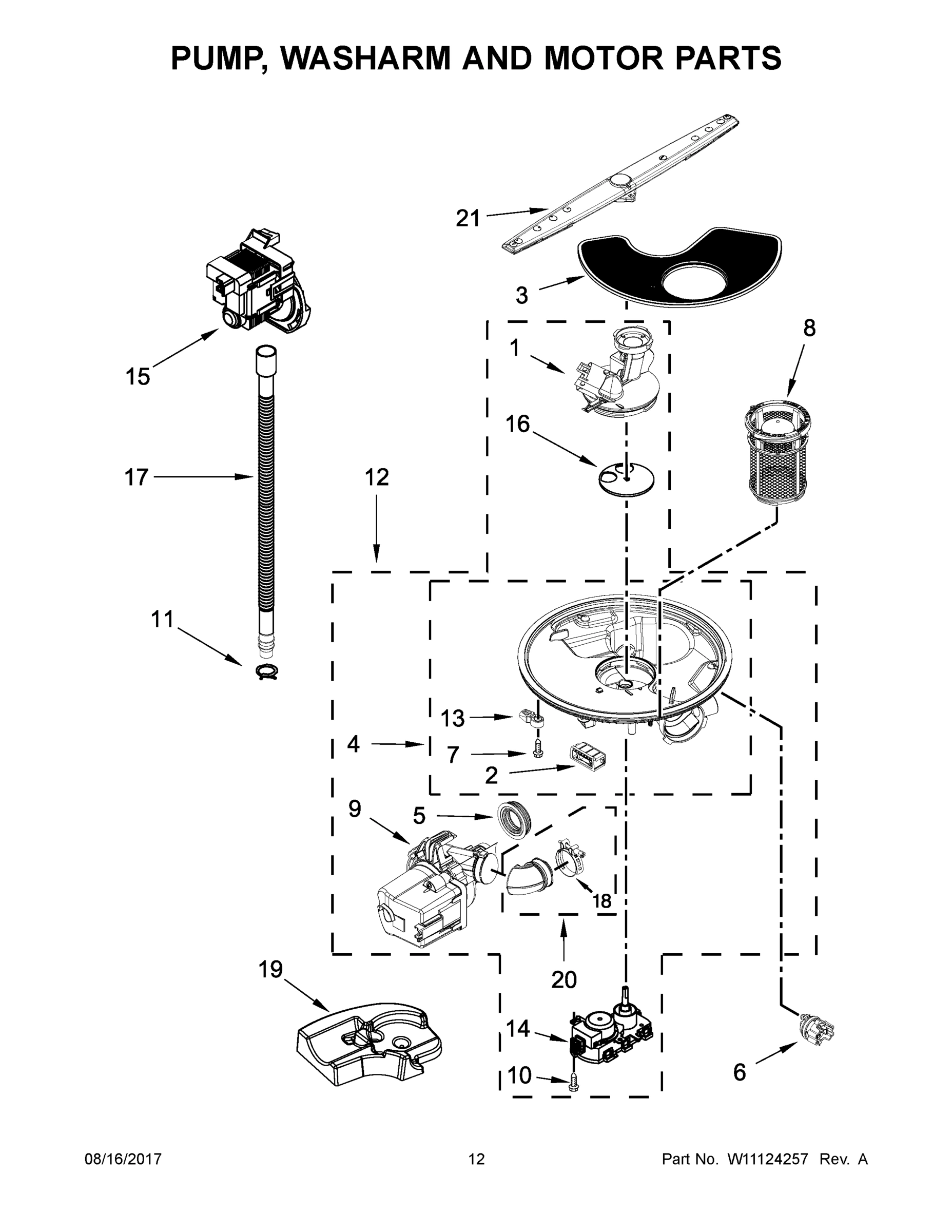

07 - PUMP, WASHARM AND MOTOR PARTS

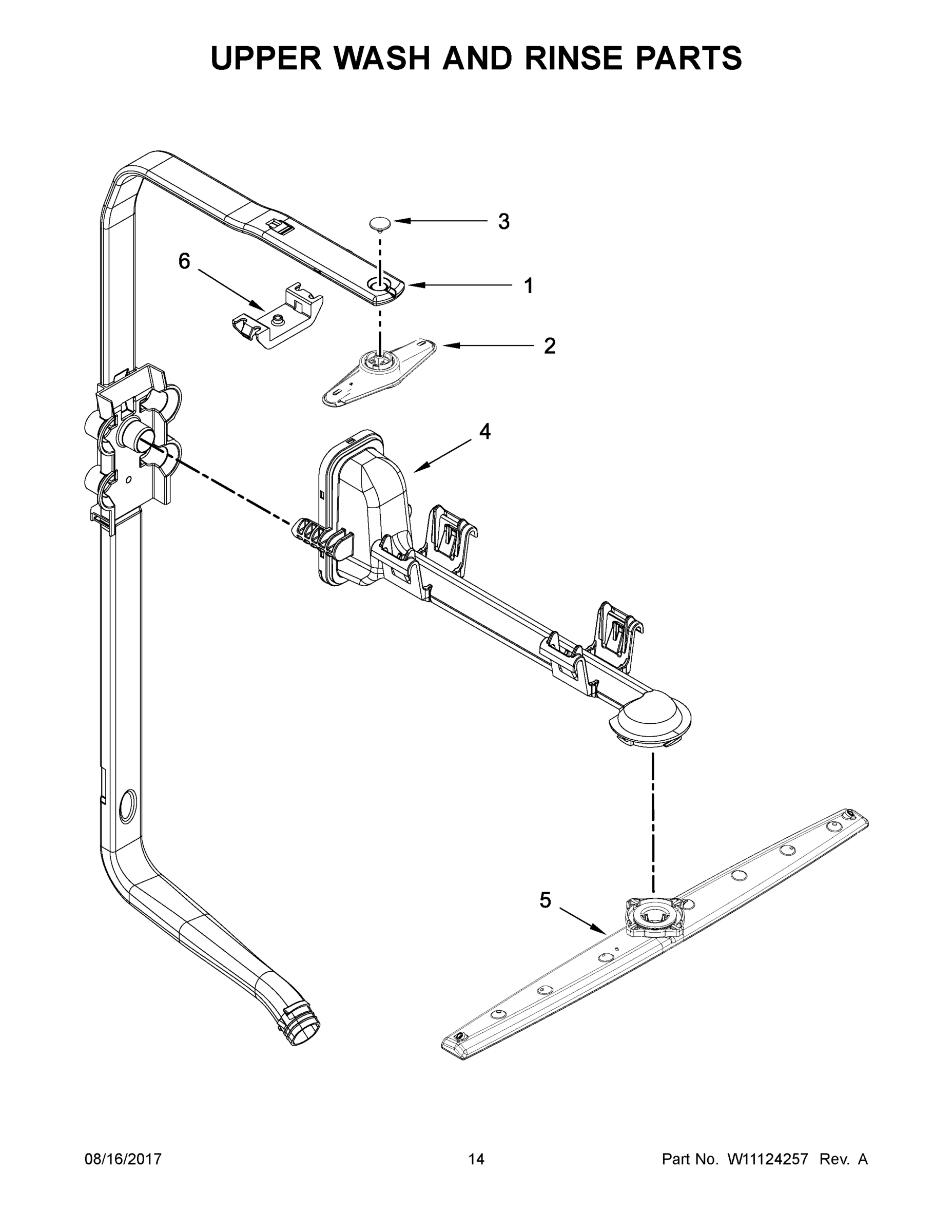

08 - UPPER WASH AND RINSE PARTS

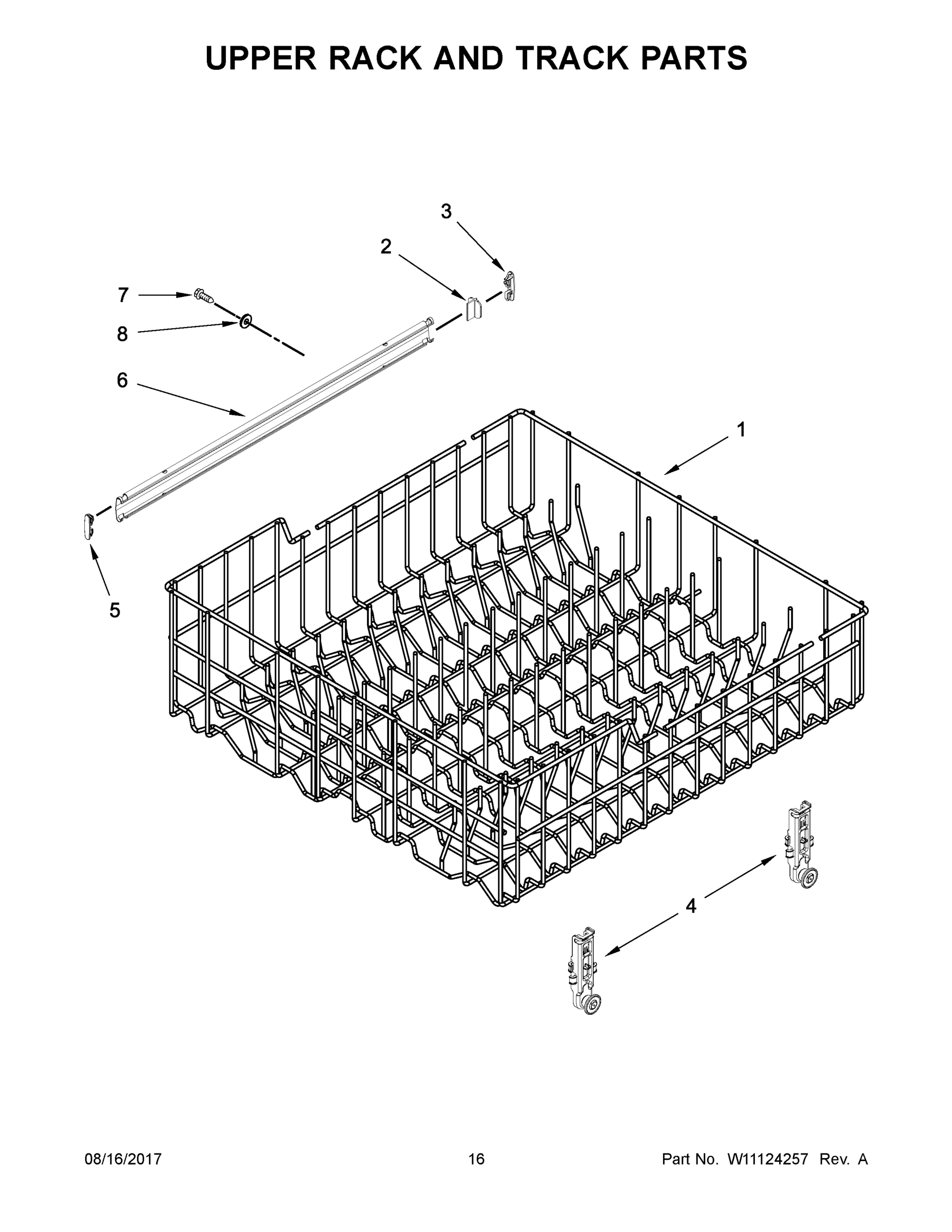

09 - UPPER RACK AND TRACK PARTS

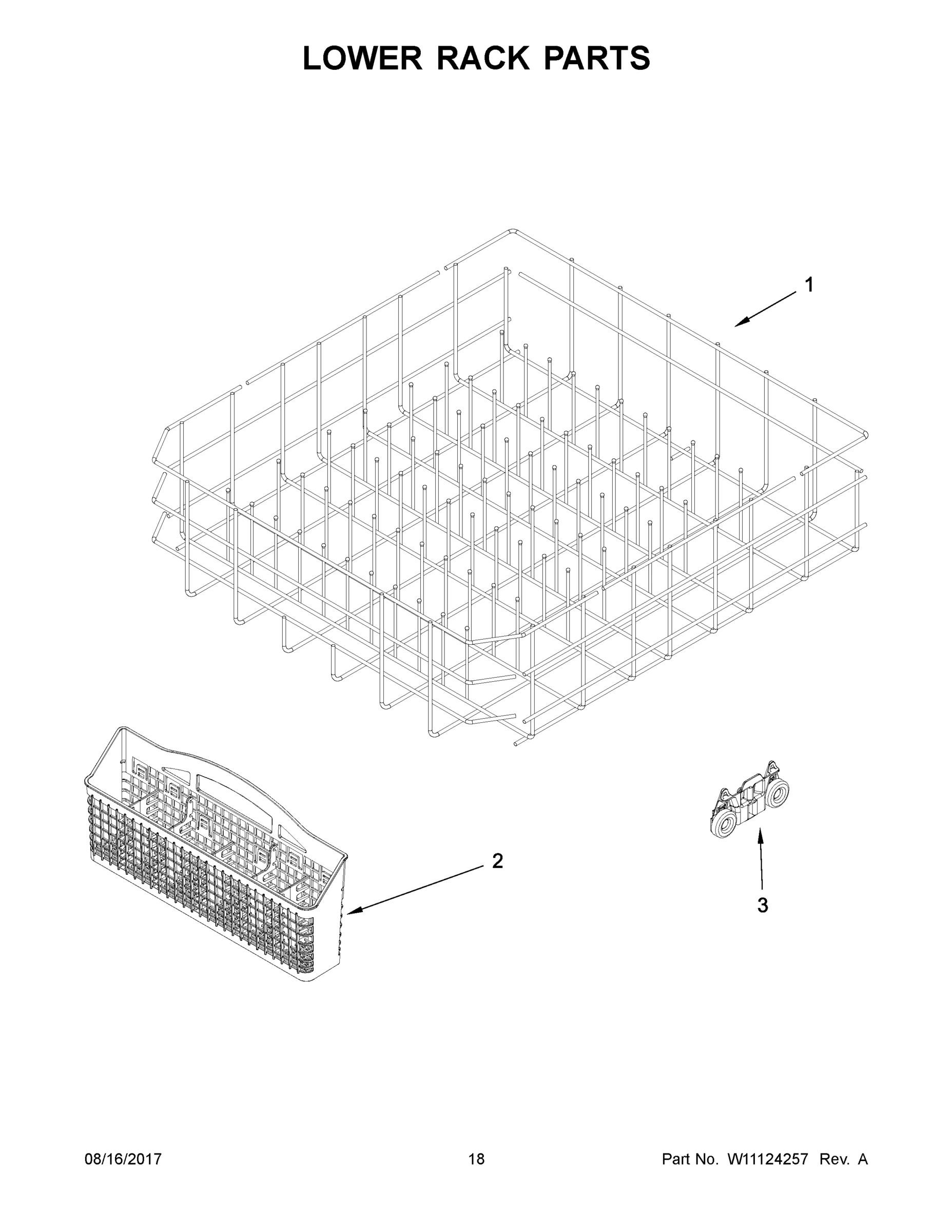

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1700ADW4 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10741197 Contact Us For Availability
1
MAY W11086160 MAY W11086160 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10681492 Contact Us For Availability
1
COVER, OUTLET MAY W10455271 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10340745 Contact Us For Availability
1
DISHRACK, UPPER MAY W10826746 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525641 Contact Us For Availability
1A
MAY W10921034 MAY W10921034 Contact Us For Availability
1A
MAY W11086161 MAY W11086161 Contact Us For Availability
1B
USE & CARE GUIDE MAY W10708663 Contact Us For Availability
1C
TECH SHEET MAY W10904612 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
CLIP, CONTROL MAY W10195237 Contact Us For Availability
2
SCREW MAY W10177098 Contact Us For Availability
2
HOSE MAY W10769066 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
2
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
SPACER, TRACK MAY W10306230 Contact Us For Availability
2
BASKET, SILVERWARE MAY W10179397 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
3
BARRIER, VAPOR MAY W10844384 Contact Us For Availability
3
CONTROL, ELECTRONIC MAY W11130314 Contact Us For Availability
3
INNER DOOR MAY W10712597 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10660528 Contact Us For Availability
3
SCREEN MAY W10463906 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
3
WHEEL & TRANSPORT ASSEMBLY MAY W10195416 Contact Us For Availability
4
PANEL, FRONT (INCLUDES NAMEPLATE) (BLACK) MAY W10734043 Contact Us For Availability
4
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10653840 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10667473 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
PLUG, TUB MAY W10813122 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 5 & 20) MAY W10455268 Contact Us For Availability
4
MANIFOLD MAY W10340681 Contact Us For Availability
4
MOUNT, WHEEL ASSEMBLY MAY W10845762 Contact Us For Availability
4A
PANEL, FRONT (INCLUDES NAMEPLATE) (WHITE) MAY W10735084 Contact Us For Availability
4B
PANEL, FRONT (INCLUDES NAMEPLATE) (STAINLESS) MAY W10671859 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W10441006 Contact Us For Availability
5
BRACE, CONNECTOR MAY W10825369 Contact Us For Availability
5
WIRING HARNESS MAY W10834774 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
5
GROMMET MAY W10538166 Contact Us For Availability
5
SPRAYARM MAY W10498900 Contact Us For Availability
5
STOP, TRACK (REMOVABLE) MAY W10508950 Contact Us For Availability
5A
ACCESS PANEL (WHITE) MAY W10441007 Contact Us For Availability
6
SCREW (BLACK) MAY 302868 Contact Us For Availability
6
HANDLE POCKET (BLACK) MAY W10629511 Contact Us For Availability
6
DISPENSER ASSEMBLY MAY W10620296 Contact Us For Availability
6
SEAL, CABINET MAY W10835073 Contact Us For Availability
6
INDICATOR, OPTICAL WASH MAY W10723295 Contact Us For Availability
6
BRACKET, FEED TUBE MAY W10195690 Contact Us For Availability
6
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
7
FASTENER (BLACK) MAY W10503548 Contact Us For Availability
7
BOX, CONNECTOR MAY W10825638 Contact Us For Availability
7
SEAL, CONSOLE/DOOR MAY W10195007 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327249 Contact Us For Availability
7
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
7
SCREW MAY W10348407 Contact Us For Availability
7
SCREW MAY W10309090 Contact Us For Availability
7A
FASTENER (WHITE) MAY W10503549 Contact Us For Availability
8
SPACER, CONTROL BRACKET PANEL MAY W10463662 Contact Us For Availability
8
MAY W10918486 MAY W10918486 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
FILTER CUP ASSEMBLY MAY W10789806 Contact Us For Availability
8
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
9
SCREW MAY 3400071 Contact Us For Availability
9
JUMPER, 4-WIRE MAY W10566903 Contact Us For Availability
9
CLAMP, HOSE MAY 371505 Contact Us For Availability
9
SCREW MAY 3367670 Contact Us For Availability
9
MOTOR (ALSO ORDER ITEMS 5 & 20) MAY W10854710 Contact Us For Availability
10
BRACKET, CONTROL MAY W10641745 Contact Us For Availability
10
SCREW MAY W10348408 Contact Us For Availability
10
DRAIN LOOP WITH CHECK VALVE ASSEMBLY MAY W10545278 Contact Us For Availability
10
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
10
SCREW MAY 9741232 Contact Us For Availability
11
CLIP, PANEL MAY W10485367 Contact Us For Availability
11
SWITCH, OVERFILL CONTROL MAY W10734532 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
CLAMP, HOSE MAY 8269146 Contact Us For Availability
12
HOUSING, OVERFILL (ALSO ORDER ITEM 13) MAY W10647205 Contact Us For Availability
12
SCREW MAY W10348411 Contact Us For Availability
12
SUMP & MOTOR ASSEMBLY MAY W10917110 Contact Us For Availability
13
GASKET, FLAT MAY 8531743 Contact Us For Availability
13
WHEEL LEG MAY W10190778 Contact Us For Availability
13
TAB, SUMP MAY W10372113 Contact Us For Availability
14
NUT, STANDPIPE MAY W10195038 Contact Us For Availability
14
LEVELER, LEG MAY W10619352 Contact Us For Availability
14
MOTOR, DIVERTER MAY W10849439 Contact Us For Availability
15
FLOAT & RETAINER ASSEMBLY MAY W10195036 Contact Us For Availability
15
SPACER, TUB BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
15
PUMP, DRAIN MAY W10724439 Contact Us For Availability
15A
SPACER, TUB BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
16
SPRING, DOOR BALANCE MAY 8270020 Contact Us For Availability
16
DISC, DIVERTER MAY W10476221 Contact Us For Availability
17
STRAIN RELIEF MAY W10337661 Contact Us For Availability
17
HOSE, DRAIN MAY 8269144 Contact Us For Availability
18
SCREW MAY 3400892 Contact Us For Availability
18
CLAMP, HOSE MAY W10169167 Contact Us For Availability
19
COVER, TERMINAL BOX MAY W10653292 Contact Us For Availability
19
DAMPER, SUMP ASSEMBLY MAY W10300776 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
21
WHEEL AND MOUNT ASSEMBLY MAY W10078083 Contact Us For Availability
21
SPRAYARM MAY W10491331 Contact Us For Availability
22
SUPPORT ASSEMBLY, REAR MAY W10681564 Contact Us For Availability
23
SHIELD, TUB SOUND MAY W10866978 Contact Us For Availability
24
BRACKET, THERMOSTAT MAY W10300703 Contact Us For Availability
25
THERMOSTAT MAY W10195091 Contact Us For Availability
26
STRIKE, LATCH MAY W10544004 Contact Us For Availability
27
ASSEMBLY, TERMINAL BOX MAY W10713315 Contact Us For Availability
28
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACCESSO MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
