Model Maytag ADB1700ADW2 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET

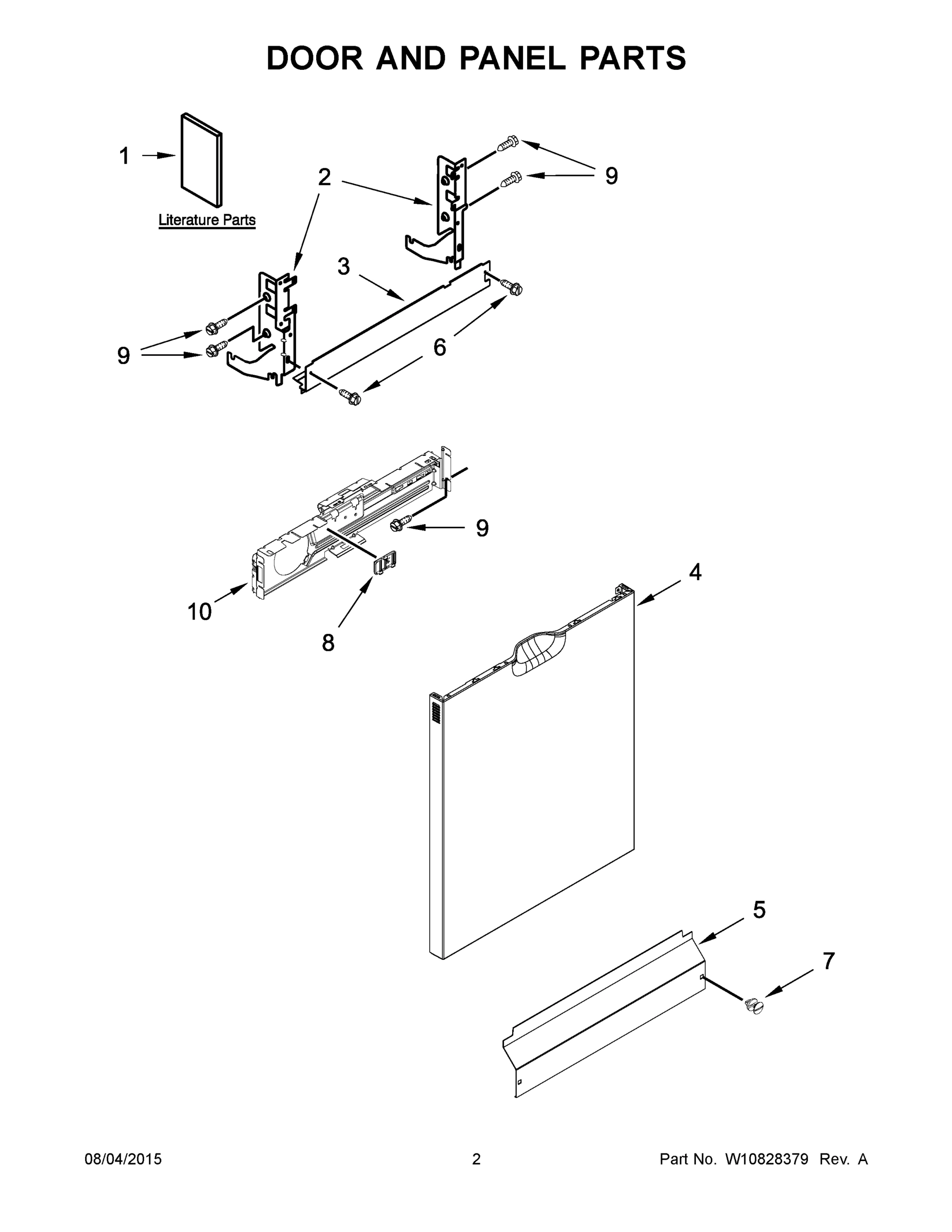

02 - DOOR AND PANEL PARTS

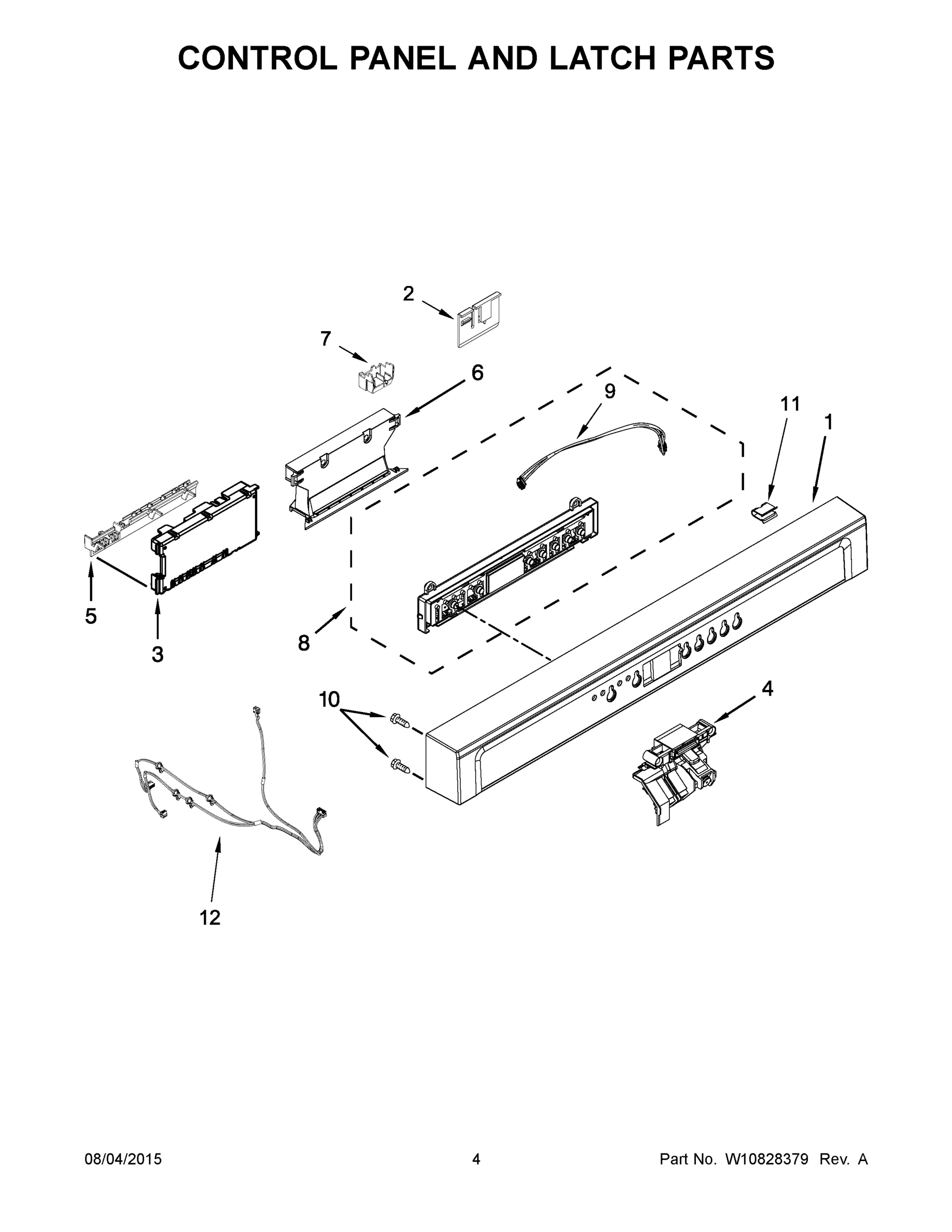

03 - CONTROL PANEL AND LATCH PARTS

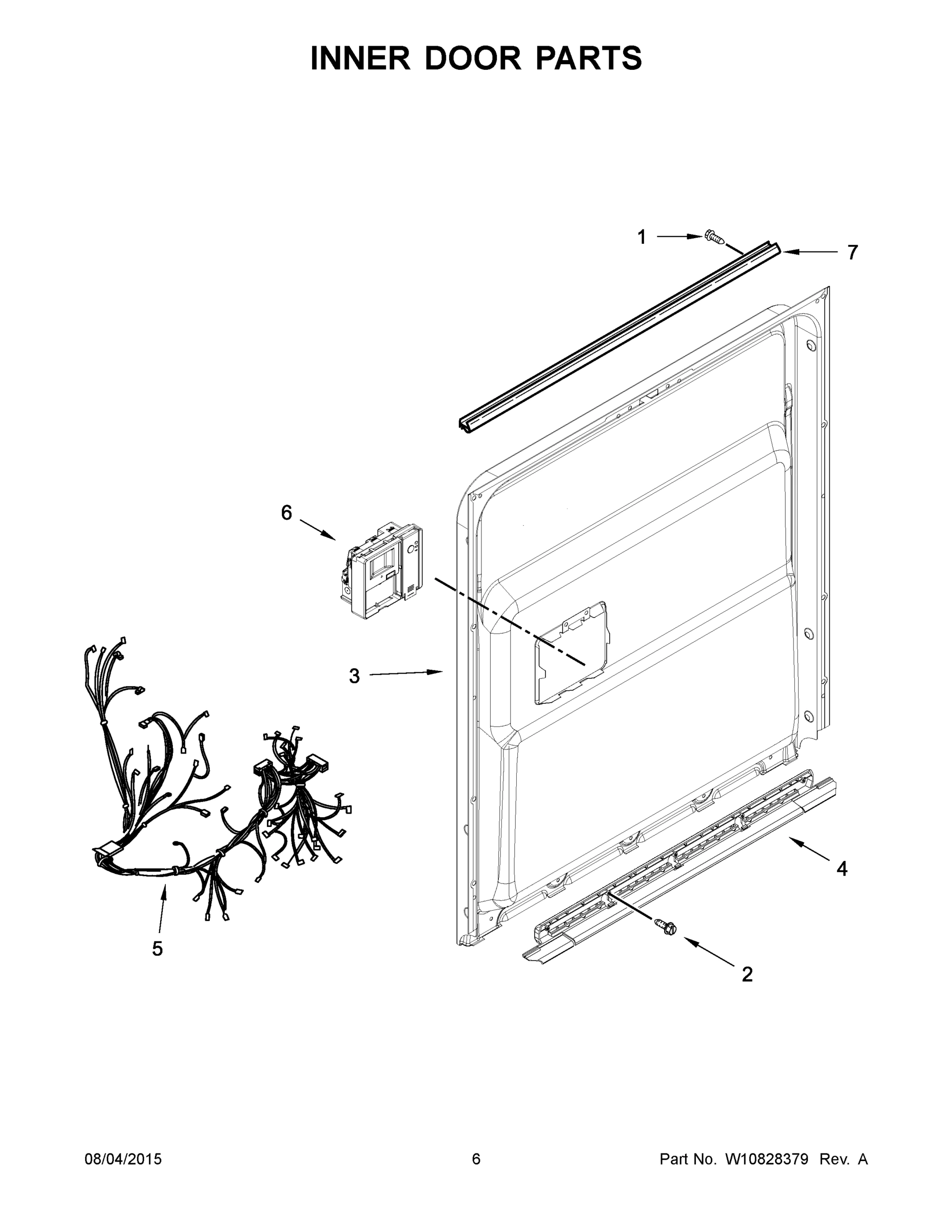

04 - INNER DOOR PARTS

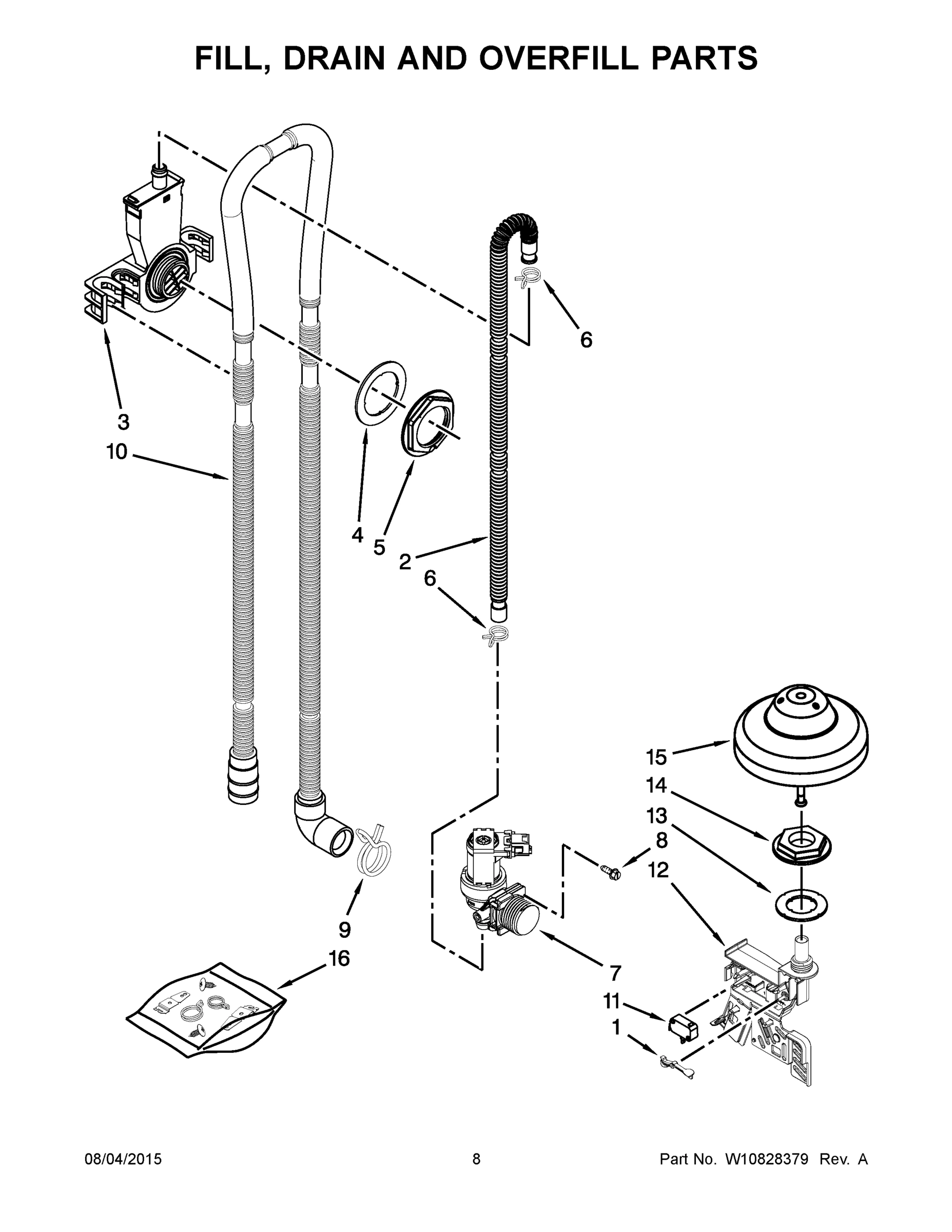

05 - FILL, DRAIN AND OVERFILL PARTS

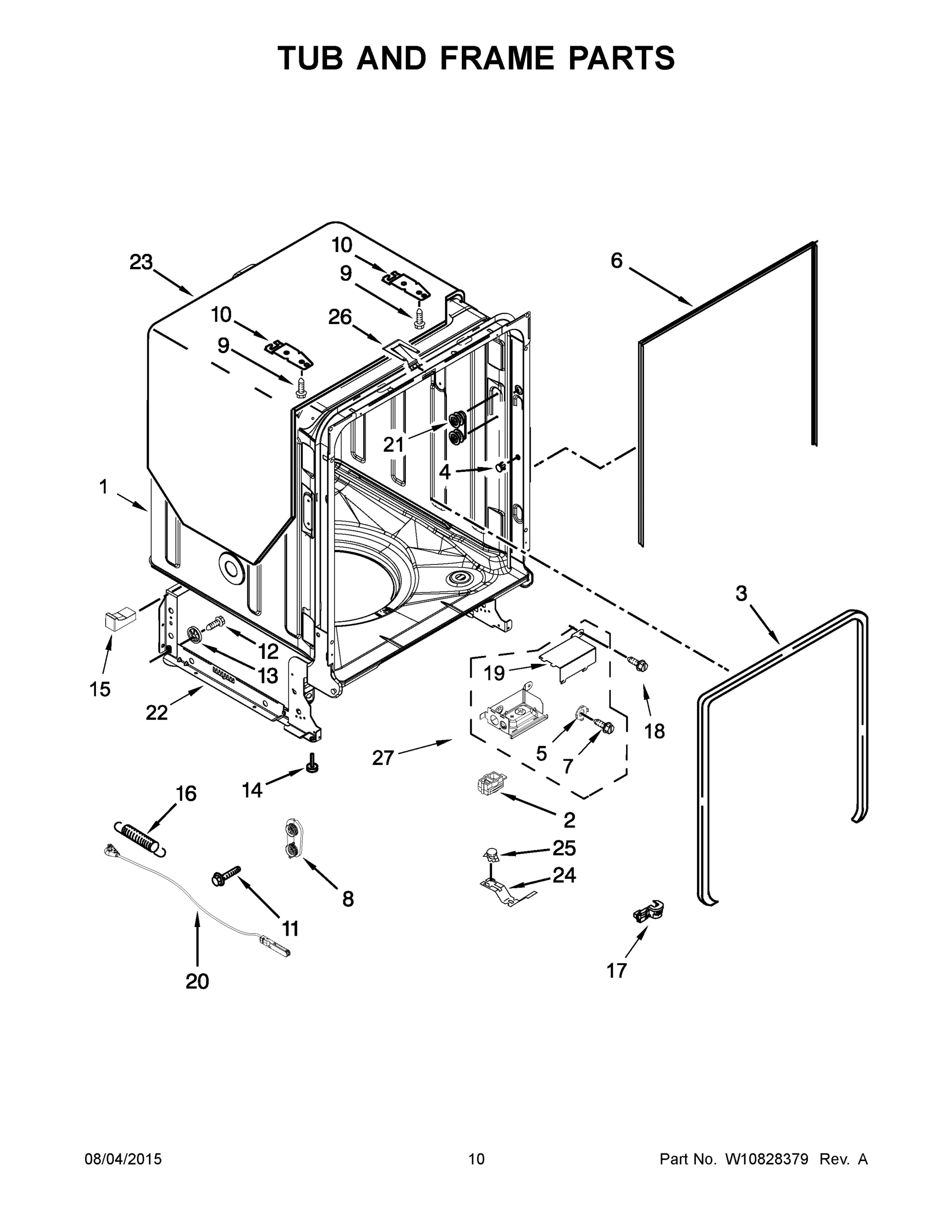

06 - TUB AND FRAME PARTS

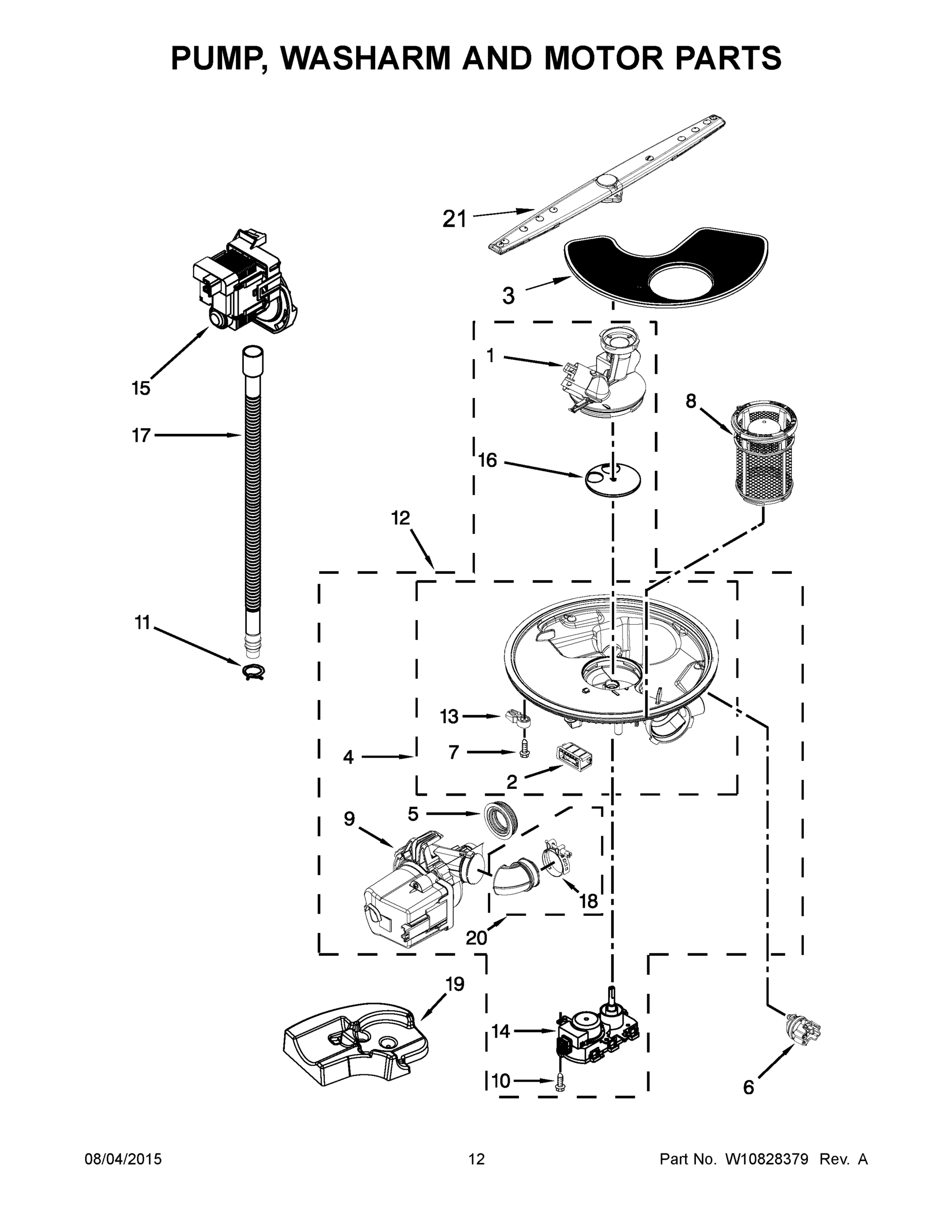

07 - PUMP, WASHARM AND MOTOR PARTS

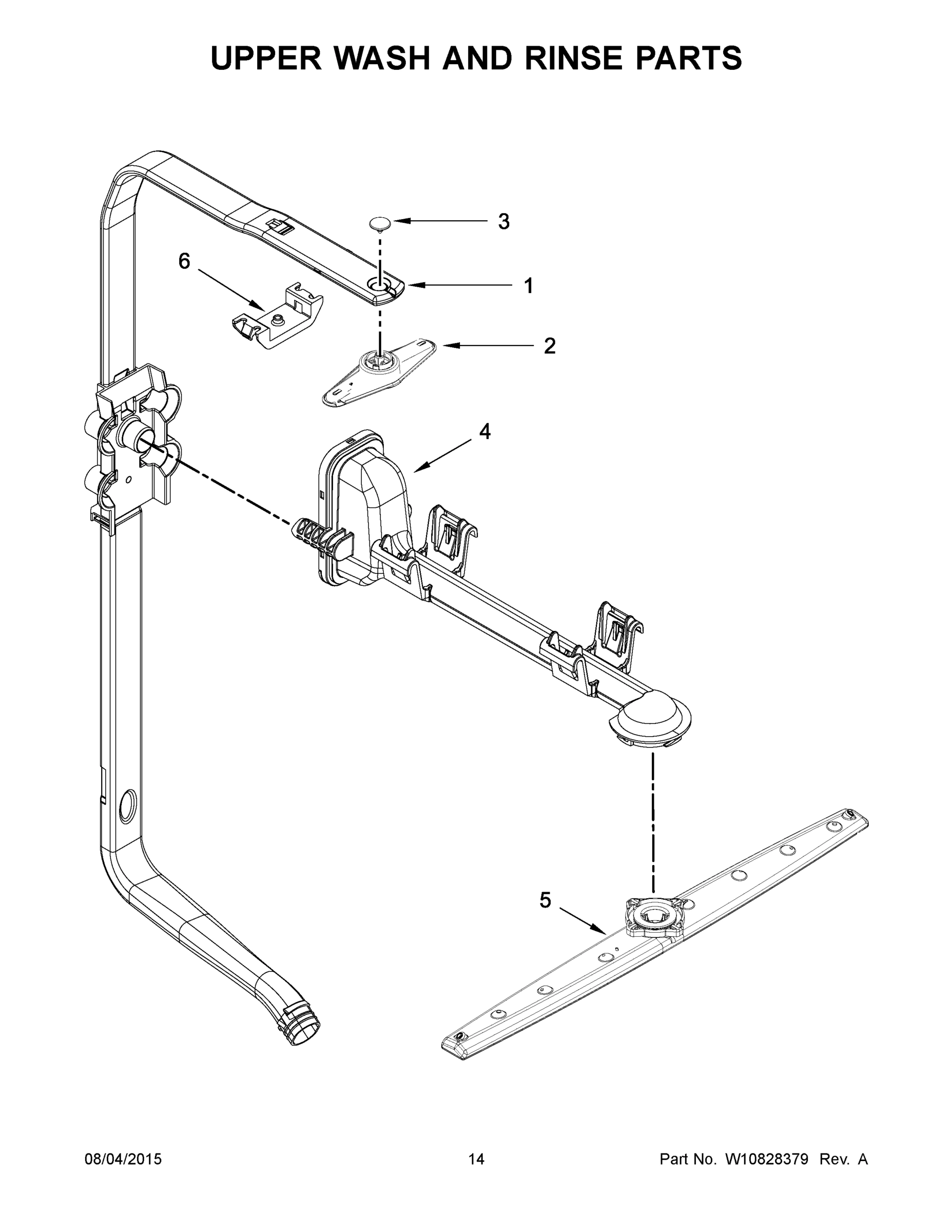

08 - UPPER WASH AND RINSE PARTS

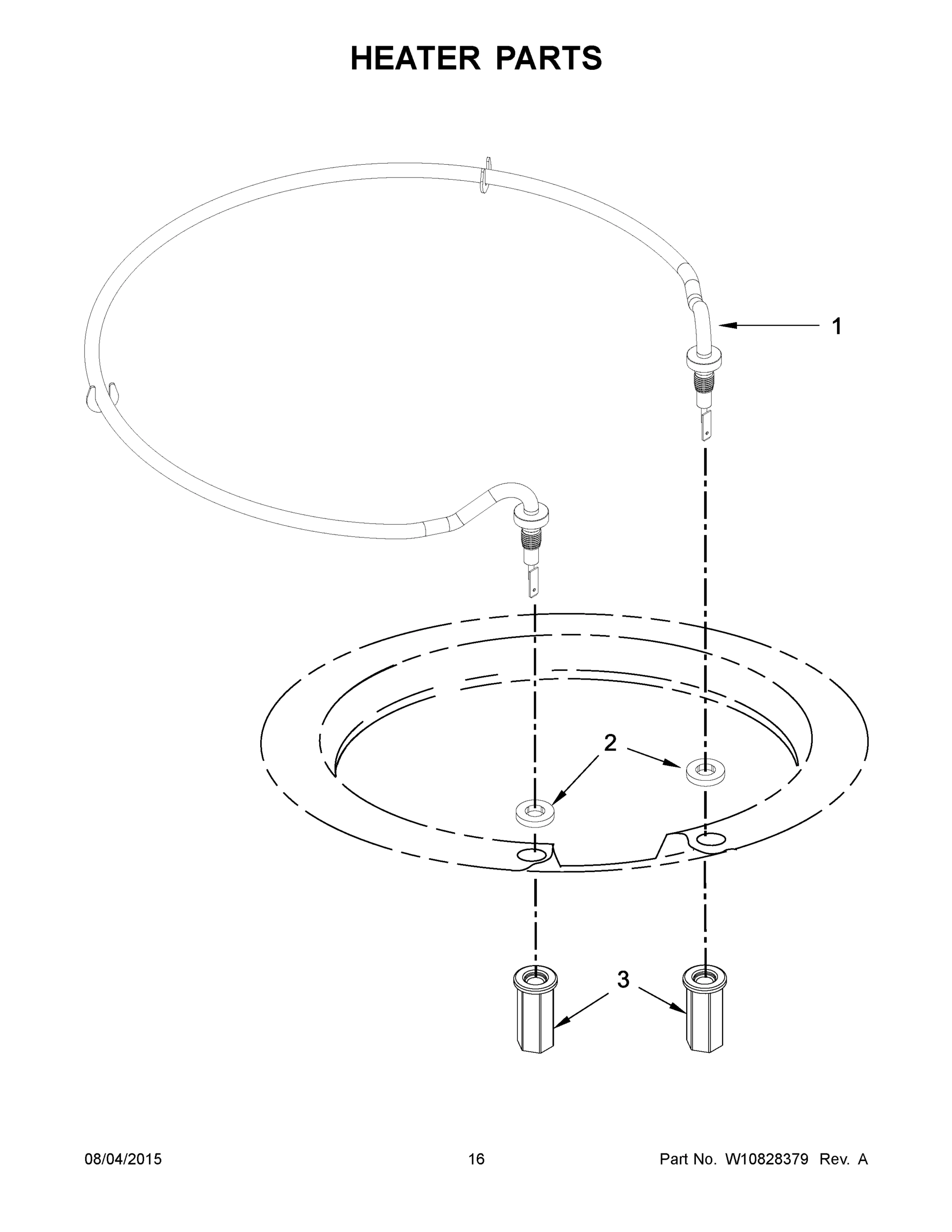

09 - HEATER PARTS

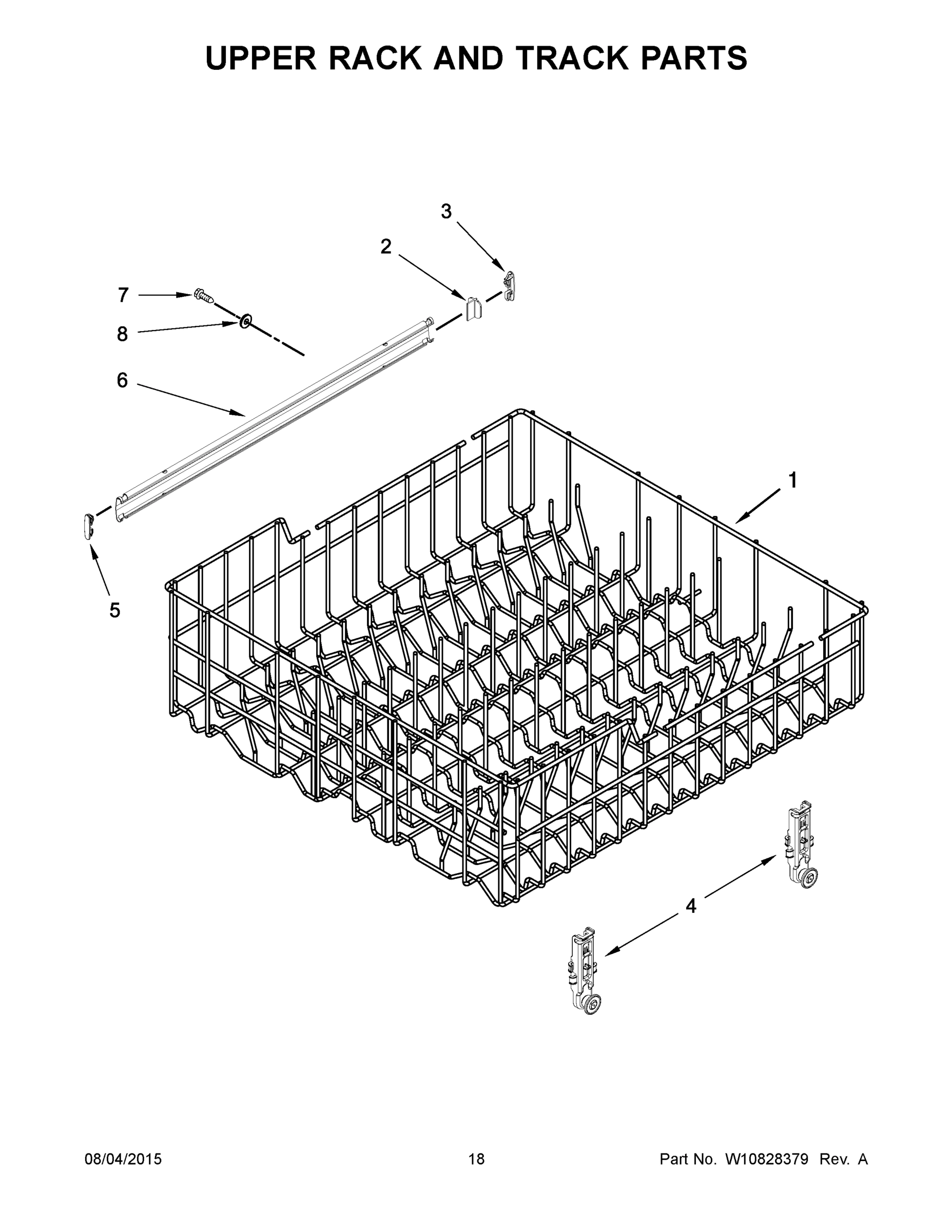

10 - UPPER RACK AND TRACK PARTS

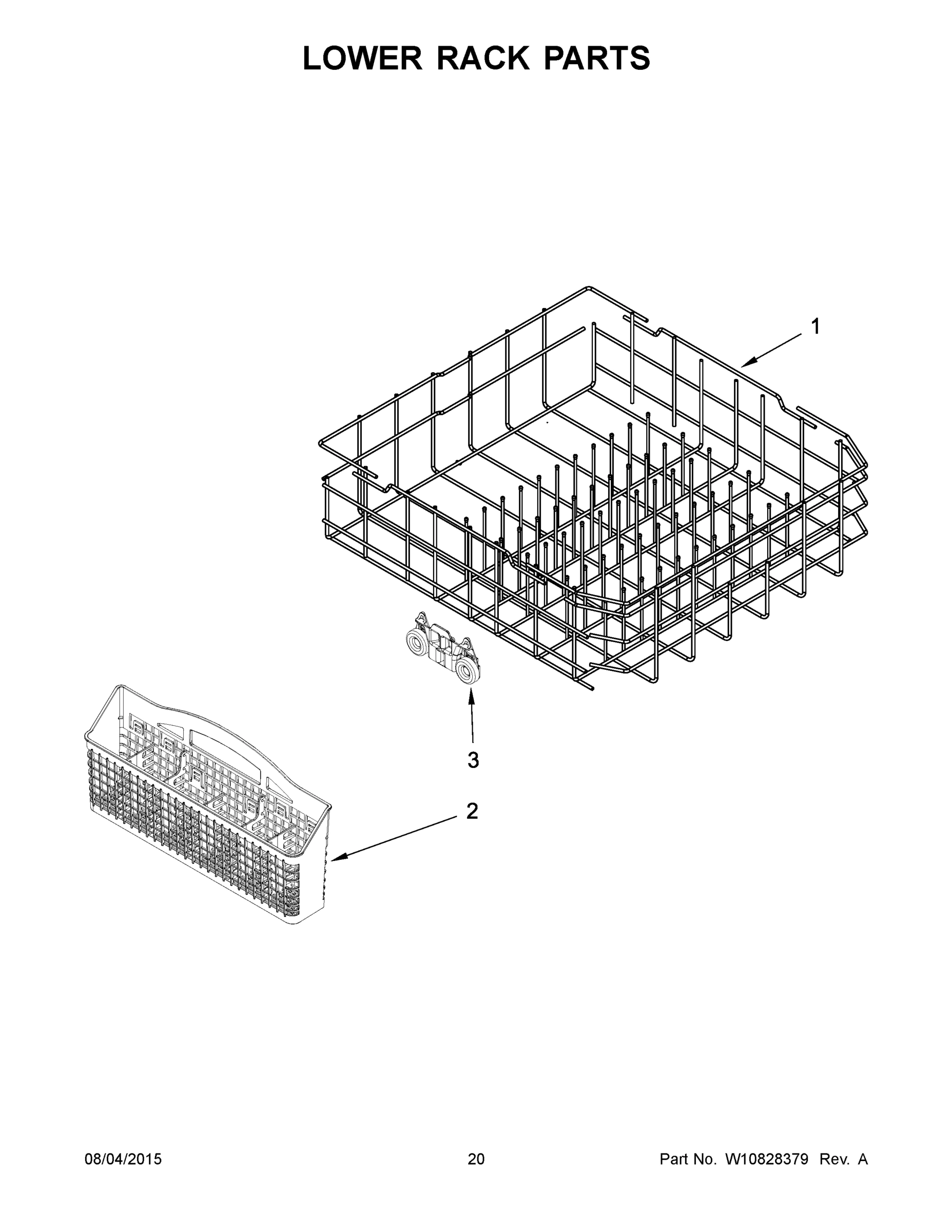

11 - LOWER RACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1700ADW2 DISHWASHER
1
MAY W10741197 MAY W10741197 Contact Us For Availability
1
MAY W10708648 MAY W10708648 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10681492 MAY W10681492 Contact Us For Availability
1
MAY W10455271 MAY W10455271 Contact Us For Availability
1
MAY W10340745 MAY W10340745 Contact Us For Availability
1
MAY W10696509 MAY W10696509 Contact Us For Availability
1
MAY W10300725 MAY W10300725 Contact Us For Availability
1
MAY W10525641 MAY W10525641 Contact Us For Availability
1A
MAY W10733305 MAY W10733305 Contact Us For Availability
1A
MAY W10708649 MAY W10708649 Contact Us For Availability
1B
MAY W10708663 MAY W10708663 Contact Us For Availability
1C
MAY W10751166 MAY W10751166 Contact Us For Availability
1D
MAY W10751168 MAY W10751168 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
CLIP, CONTROL MAY W10195237 Contact Us For Availability
2
MAY W10177098 MAY W10177098 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
2
MAY W10195086 MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
WASHER, HEATER MAY W10446558 Contact Us For Availability
2
MAY W10306230 MAY W10306230 Contact Us For Availability
2
MAY W10179397 MAY W10179397 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
3
MAY W10726645 MAY W10726645 Contact Us For Availability
3
MAY W10746417 MAY W10746417 Contact Us For Availability
3
MAY W10712597 MAY W10712597 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
MAY W10463906 MAY W10463906 Contact Us For Availability
3
MAY 3400918 MAY 3400918 Contact Us For Availability
3
MAY W10687139 MAY W10687139 Contact Us For Availability
3
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
3
MAY W10195416 MAY W10195416 Contact Us For Availability
4
MAY W10734043 MAY W10734043 Contact Us For Availability
4
MAY W10653840 MAY W10653840 Contact Us For Availability
4
MAY W10667473 MAY W10667473 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10623354 MAY W10623354 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 5 & 20) MAY W10455268 Contact Us For Availability
4
MAY W10340681 MAY W10340681 Contact Us For Availability
4
MAY W10300773 MAY W10300773 Contact Us For Availability
4A
MAY W10735084 MAY W10735084 Contact Us For Availability
4B
PANEL, FRONT (INCLUDES NAMEPLATE) (STAINLESS) MAY W10671859 Contact Us For Availability
5
MAY W10441006 MAY W10441006 Contact Us For Availability
5
MAY W10194937 MAY W10194937 Contact Us For Availability
5
MAY W10744908 MAY W10744908 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
5
MAY W10538166 MAY W10538166 Contact Us For Availability
5
MAY W10448645 MAY W10448645 Contact Us For Availability
5
MAY W10508950 MAY W10508950 Contact Us For Availability
5A
MAY W10441007 MAY W10441007 Contact Us For Availability
6
SCREW (BLACK) MAY 302868 Contact Us For Availability
6
MAY W10629511 MAY W10629511 Contact Us For Availability
6
MAY W10620296 MAY W10620296 Contact Us For Availability
6
SEAL, CABINET MAY W10179427 Contact Us For Availability
6
MAY W10705575 MAY W10705575 Contact Us For Availability
6
MAY W10195690 MAY W10195690 Contact Us For Availability
6
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
7
MAY W10503548 MAY W10503548 Contact Us For Availability
7
MAY W10756253 MAY W10756253 Contact Us For Availability
7
MAY W10195007 MAY W10195007 Contact Us For Availability
7
MAY W10327249 MAY W10327249 Contact Us For Availability
7
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
7
MAY W10348407 MAY W10348407 Contact Us For Availability
7
MAY W10309090 MAY W10309090 Contact Us For Availability
7A
MAY W10503549 MAY W10503549 Contact Us For Availability
8
MAY W10463662 MAY W10463662 Contact Us For Availability
8
MAY W10671804 MAY W10671804 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY W10693534 MAY W10693534 Contact Us For Availability
8
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
9
SCREW MAY 3400071 Contact Us For Availability
9
MAY W10566903 MAY W10566903 Contact Us For Availability
9
MAY 371505 MAY 371505 Contact Us For Availability
9
MAY 3367670 MAY 3367670 Contact Us For Availability
9
MOTOR (ALSO ORDER ITEMS 5 & 20) MAY W10610148 Contact Us For Availability
10
MAY W10641745 MAY W10641745 Contact Us For Availability
10
MAY W10348408 MAY W10348408 Contact Us For Availability
10
MAY W10545278 MAY W10545278 Contact Us For Availability
10
MAY 8269145 MAY 8269145 Contact Us For Availability
10
MAY 9741232 MAY 9741232 Contact Us For Availability
11
MAY W10485367 MAY W10485367 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY 8269146 MAY 8269146 Contact Us For Availability
12
MAY W10751782 MAY W10751782 Contact Us For Availability
12
HOUSING, OVERFILL (ALSO ORDER ITEM 13) MAY W10647205 Contact Us For Availability
12
MAY W10348411 MAY W10348411 Contact Us For Availability
12
MAY W10733484 MAY W10733484 Contact Us For Availability
13
MAY 8531743 MAY 8531743 Contact Us For Availability
13
MAY W10190778 MAY W10190778 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
14
MAY W10195038 MAY W10195038 Contact Us For Availability
14
MAY W10619352 MAY W10619352 Contact Us For Availability
14
MAY W10476222 MAY W10476222 Contact Us For Availability
15
MAY W10195036 MAY W10195036 Contact Us For Availability
15
SPACER, TUB BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
15
MAY W10348269 MAY W10348269 Contact Us For Availability
15A
SPACER, TUB BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
MAY W10476221 MAY W10476221 Contact Us For Availability
17
MAY W10337661 MAY W10337661 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
CLAMP, HOSE MAY W10169167 Contact Us For Availability
19
MAY W10653292 MAY W10653292 Contact Us For Availability
19
DAMPER, SUMP ASSEMBLY MAY W10300776 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
MAY W10445975 MAY W10445975 Contact Us For Availability
21
WHEEL AND MOUNT ASSEMBLY MAY W10078083 Contact Us For Availability
21
SPRAYARM MAY W10491331 Contact Us For Availability
22
MAY W10681564 MAY W10681564 Contact Us For Availability
23
SHIELD, TUB SOUND MAY 8573240 Contact Us For Availability
24
MAY W10300703 MAY W10300703 Contact Us For Availability
25
MAY W10195091 MAY W10195091 Contact Us For Availability
26
MAY W10544004 MAY W10544004 Contact Us For Availability
27
MAY W10713315 MAY W10713315 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
