Model Maytag ADB1500ADB2 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

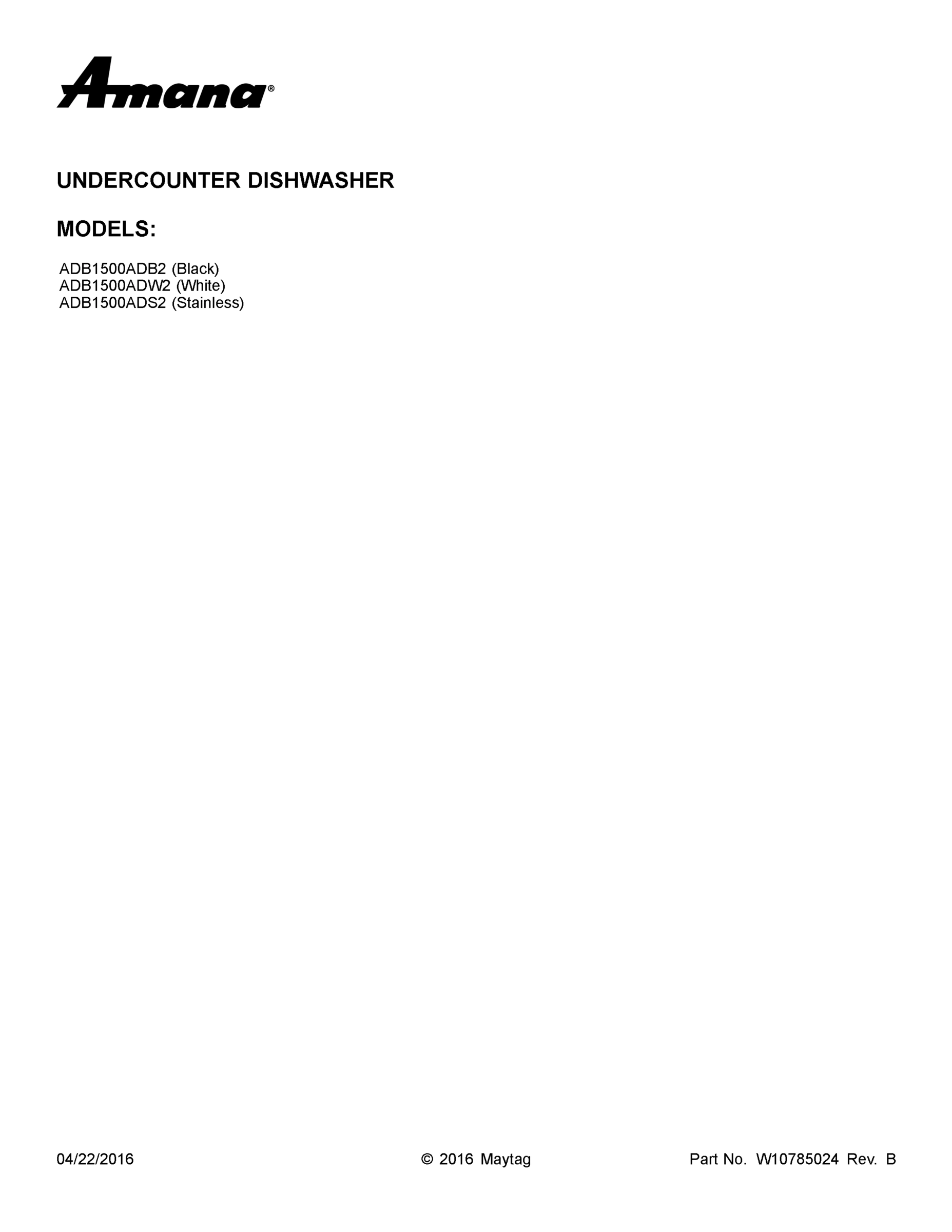

01 - COVER SHEET

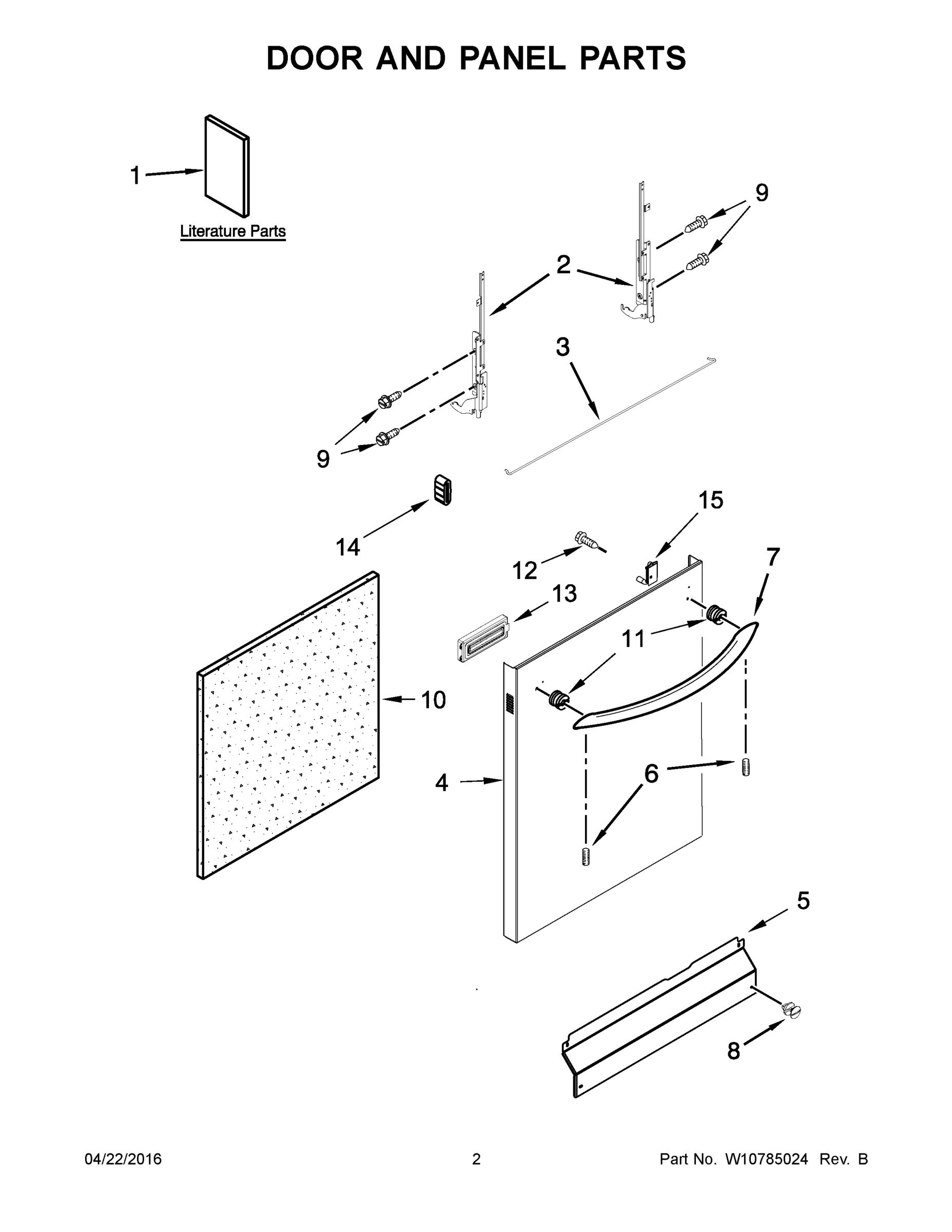

02 - DOOR AND PANEL PARTS

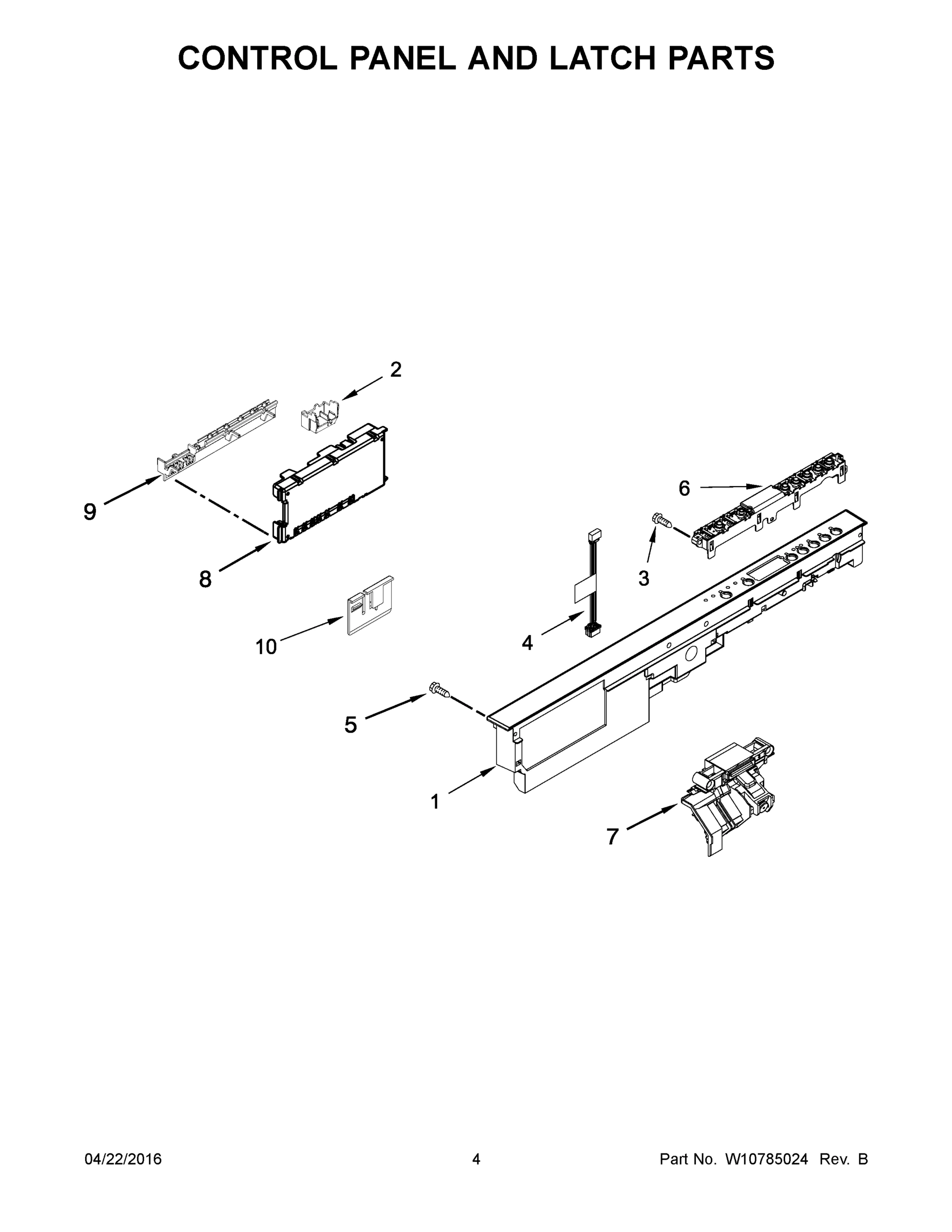

03 - CONTROL PANEL AND LATCH PARTS

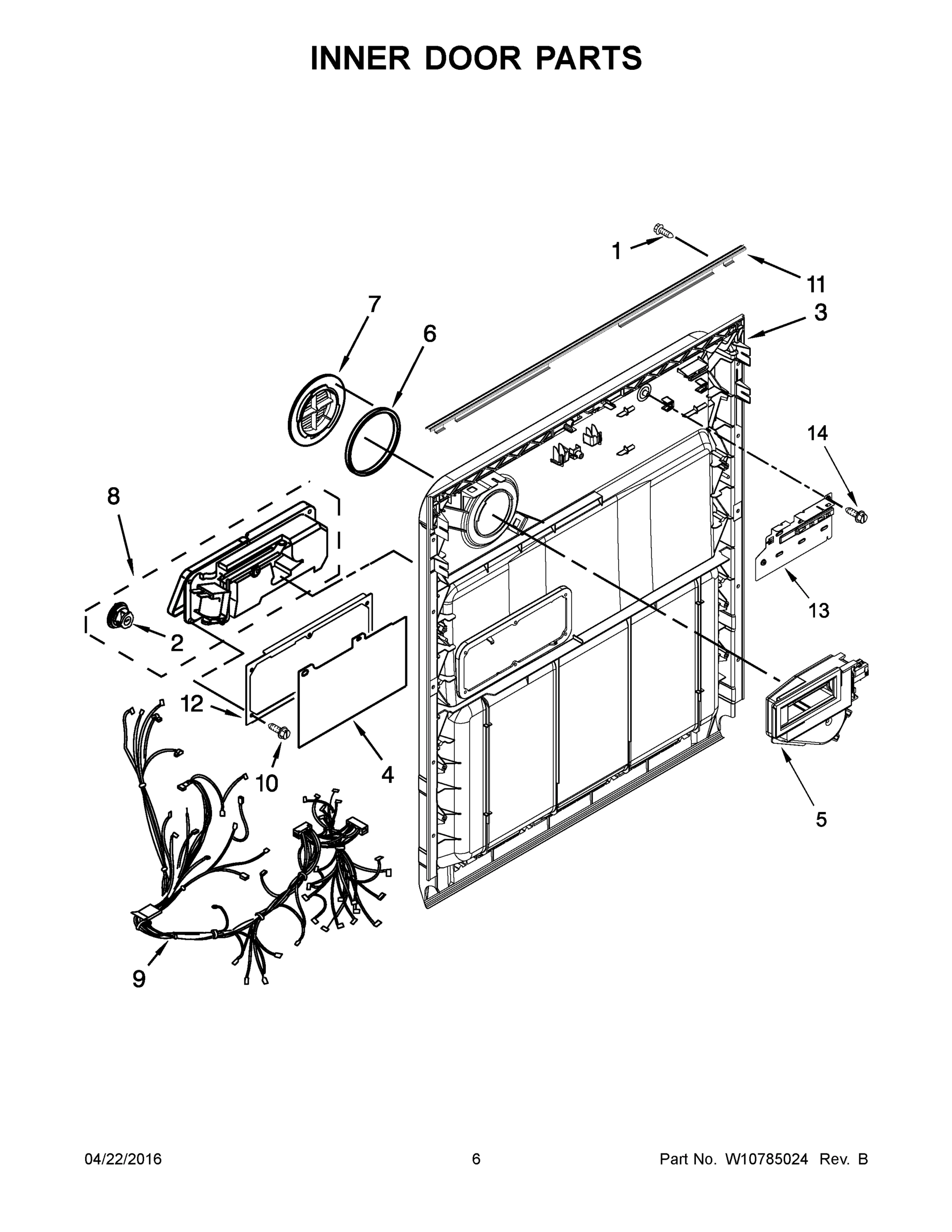

04 - INNER DOOR PARTS

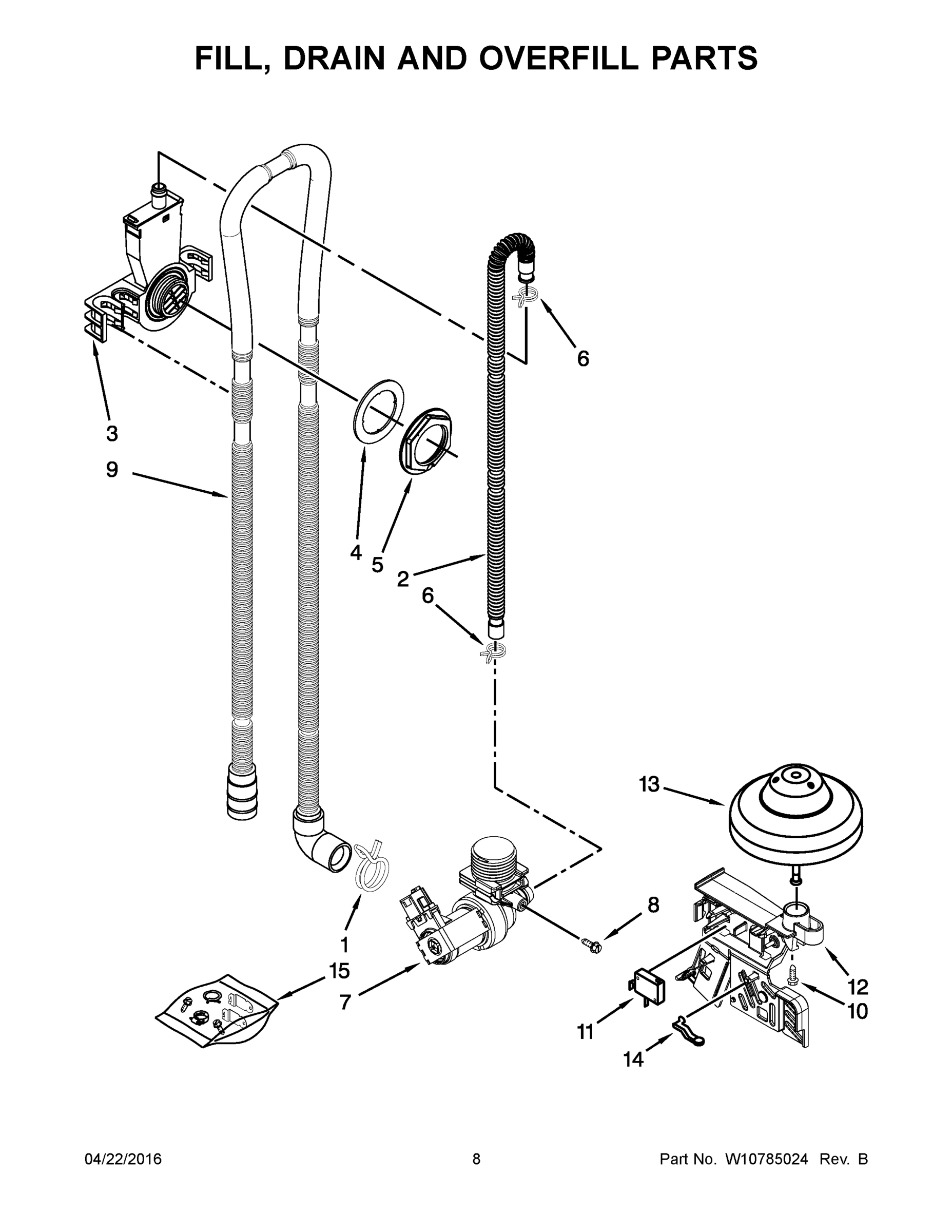

05 - FILL, DRAIN AND OVERFILL PARTS

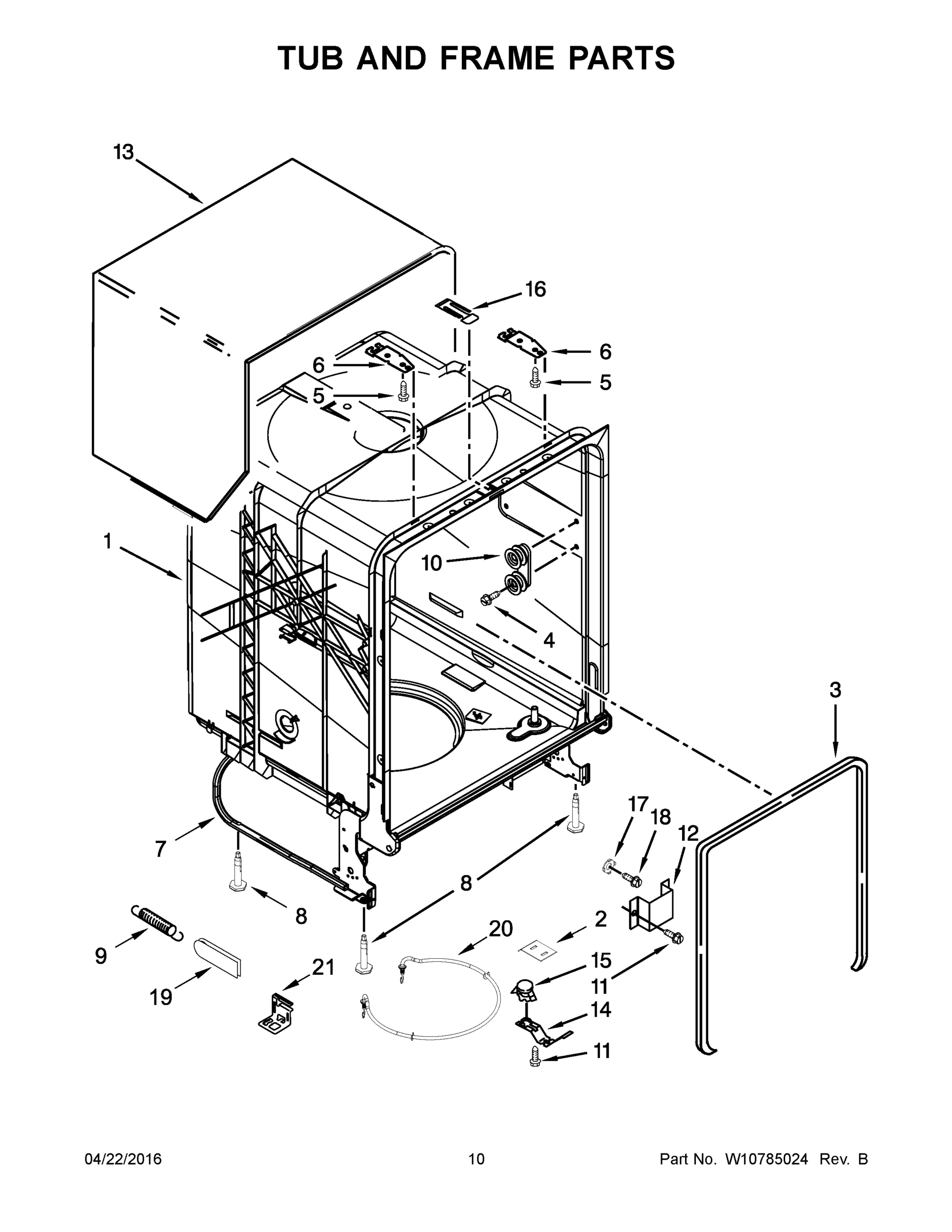

06 - TUB AND FRAME PARTS

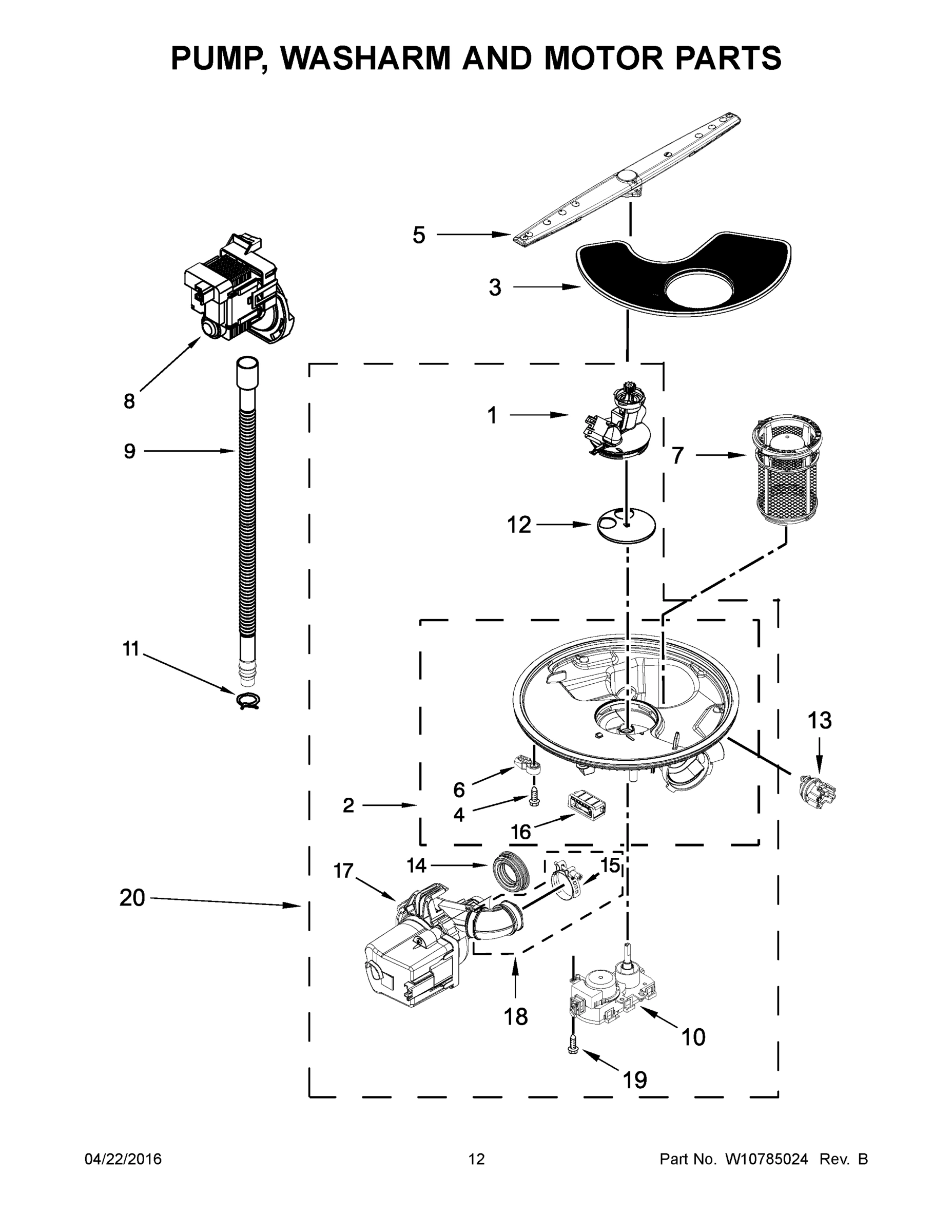

07 - PUMP, WASHARM AND MOTOR PARTS
08 - UPPER WASH AND RINSE PARTS

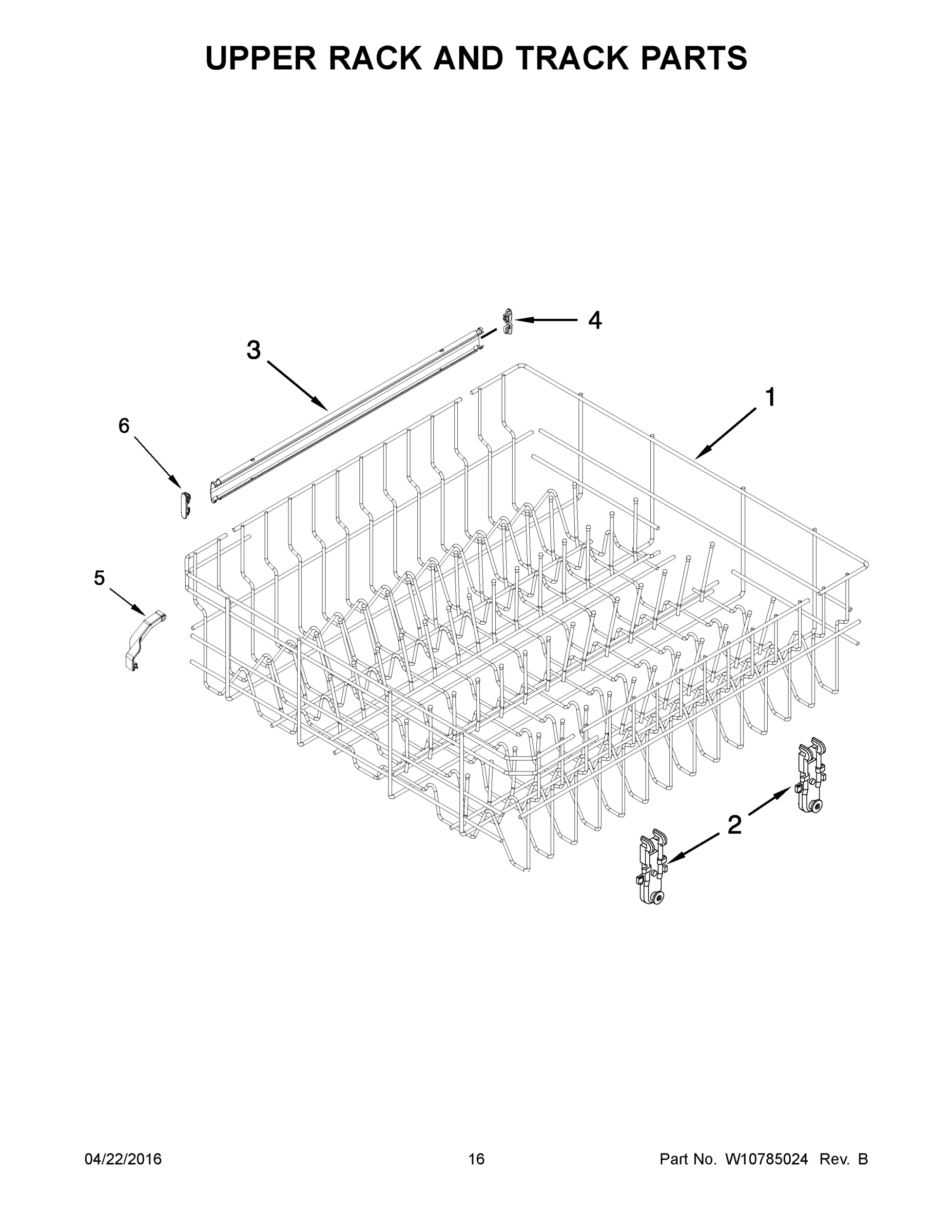

09 - UPPER RACK AND TRACK PARTS

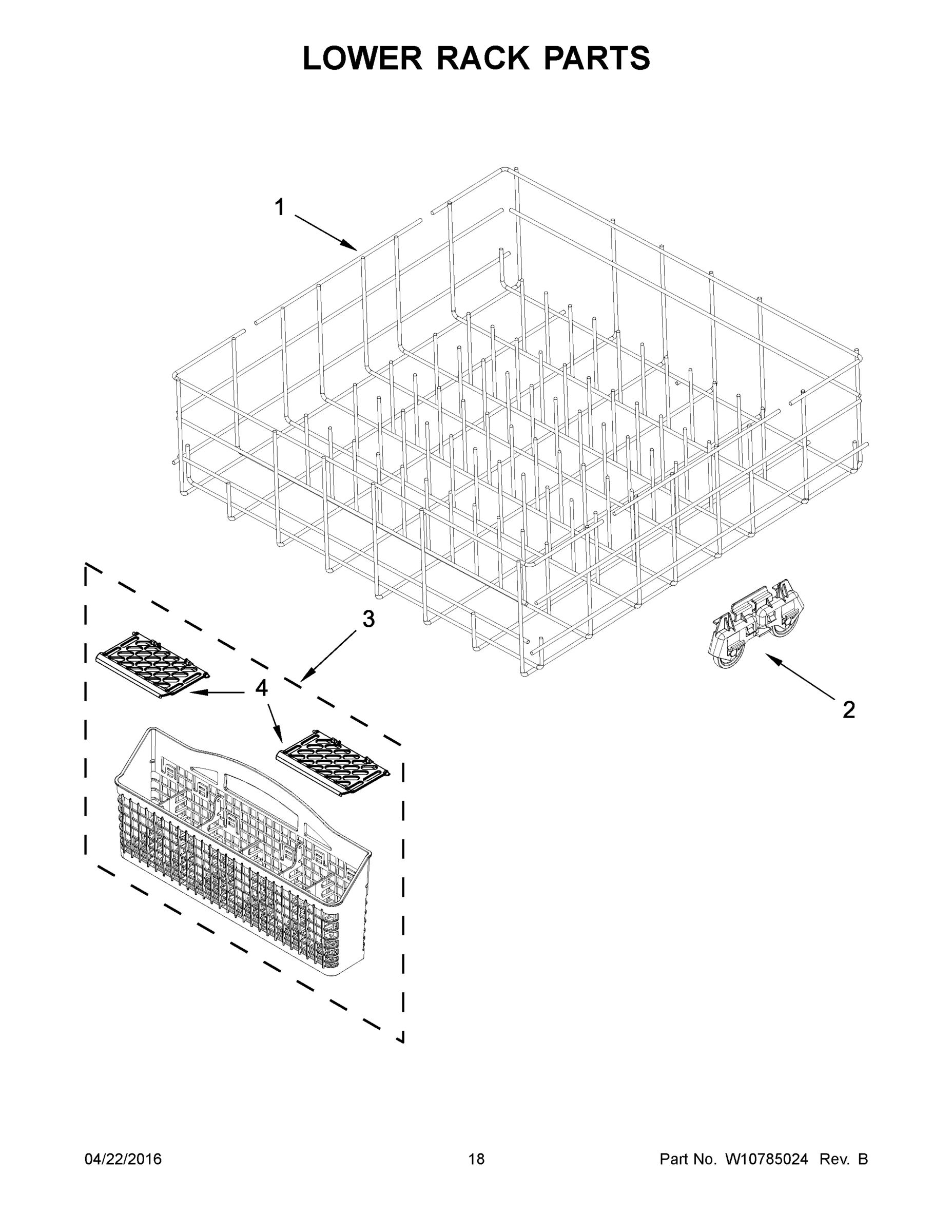

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1500ADB2 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10435040 Contact Us For Availability
1
MAY W10708646 MAY W10708646 Contact Us For Availability
1
MAY W10348413 MAY W10348413 Contact Us For Availability
1
MAY W10349289 MAY W10349289 Contact Us For Availability
1
MAY W10455271 MAY W10455271 Contact Us For Availability
1
MAY W10340745 MAY W10340745 Contact Us For Availability
1
MAY 8539214 MAY 8539214 Contact Us For Availability
1
MAY W10525643 MAY W10525643 Contact Us For Availability
1A
MAY W10708666 MAY W10708666 Contact Us For Availability
1A
MAY W10708647 MAY W10708647 Contact Us For Availability
1B
MAY W10708664 MAY W10708664 Contact Us For Availability
1C
MAY W10610060 MAY W10610060 Contact Us For Availability
1D
MAY W10610059 MAY W10610059 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
MAY W10756253 MAY W10756253 Contact Us For Availability
2
MAY W10524922 MAY W10524922 Contact Us For Availability
2
MAY W10769066 MAY W10769066 Contact Us For Availability
2
MAY W10321574 MAY W10321574 Contact Us For Availability
2
SUMP WITH SEAL (ALSO ORDER ITEMS 14 & 18) MAY W10455268 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
MOUNT, WHEEL ASSEMBLY MAY 8268655 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
3
MAY W10803537 MAY W10803537 Contact Us For Availability
3
MAY W10214176 MAY W10214176 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
MAY W10524469 MAY W10524469 Contact Us For Availability
3
MAY W10463906 MAY W10463906 Contact Us For Availability
3
MAY 3400918 MAY 3400918 Contact Us For Availability
3
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
3
MAY W10193652 MAY W10193652 Contact Us For Availability
4
MAY W10577291 MAY W10577291 Contact Us For Availability
4
MAY W10566903 MAY W10566903 Contact Us For Availability
4
MAY W10482094 MAY W10482094 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10341745 MAY W10341745 Contact Us For Availability
4
MAY W10348407 MAY W10348407 Contact Us For Availability
4
MAY W10340594 MAY W10340594 Contact Us For Availability
4
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
4
MAY W10193647 MAY W10193647 Contact Us For Availability
4A
MAY W10577292 MAY W10577292 Contact Us For Availability
4B
MAY W10577294 MAY W10577294 Contact Us For Availability
5
MAY W10799402 MAY W10799402 Contact Us For Availability
5
MAY W10648588 MAY W10648588 Contact Us For Availability
5
VENT ASSEMBLY (INCLUDES ITEM 6) MAY W10428211 Contact Us For Availability
5
MAY W10508676 MAY W10508676 Contact Us For Availability
5
MAY 3367670 MAY 3367670 Contact Us For Availability
5
SPRAYARM MAY W10491331 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10448645 Contact Us For Availability
5
MAY W10254690 MAY W10254690 Contact Us For Availability
5A
MAY W10799403 MAY W10799403 Contact Us For Availability
6
SET SCREW (SILVER) MAY W10223573 Contact Us For Availability
6
MAY W10732150 MAY W10732150 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269145 MAY 8269145 Contact Us For Availability
6
MAY W10372113 MAY W10372113 Contact Us For Availability
6
MAY W10165274 MAY W10165274 Contact Us For Availability
6
MAY W10082861 MAY W10082861 Contact Us For Availability
7
HANDLE ASSEMBLY (BLACK) MAY W10671799 Contact Us For Availability
7
MAY W10574864 MAY W10574864 Contact Us For Availability
7
MAY W10671926 MAY W10671926 Contact Us For Availability
7
MAY W10327250 MAY W10327250 Contact Us For Availability
7
SUPPORT, BOTTOM MAY W10304231 Contact Us For Availability
7
MAY W10693534 MAY W10693534 Contact Us For Availability
7A
HANDLE ASSEMBLY (WHITE) MAY W10671800 Contact Us For Availability
7B
HANDLE ASSEMBLY (STAINLESS) MAY W10739386 Contact Us For Availability
8
MAY W10503548 MAY W10503548 Contact Us For Availability
8
MAY W10722550 MAY W10722550 Contact Us For Availability
8
MAY W10428217 MAY W10428217 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
MAY W10619352 MAY W10619352 Contact Us For Availability
8
MAY W10348269 MAY W10348269 Contact Us For Availability
8A
MAY W10503549 MAY W10503549 Contact Us For Availability
9
MAY 489470 MAY 489470 Contact Us For Availability
9
MAY W10194937 MAY W10194937 Contact Us For Availability
9
MAY W10641985 MAY W10641985 Contact Us For Availability
9
MAY W10545278 MAY W10545278 Contact Us For Availability
9
MAY W10337934 MAY W10337934 Contact Us For Availability
9
MAY 8269144 MAY 8269144 Contact Us For Availability
10
MAY W10254613 MAY W10254613 Contact Us For Availability
10
MAY W10177098 MAY W10177098 Contact Us For Availability
10
CLIP, CONTROL MAY W10195237 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
WHEEL ASSEMBLY MAY 8575897 Contact Us For Availability
10
MAY W10476222 MAY W10476222 Contact Us For Availability
11
MAY W10195726 MAY W10195726 Contact Us For Availability
11
MAY W10274923 MAY W10274923 Contact Us For Availability
11
MAY 370445 MAY 370445 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
MAY 3400892 MAY 3400892 Contact Us For Availability
12
MAY W10316572 MAY W10316572 Contact Us For Availability
12
MAY W10462232 MAY W10462232 Contact Us For Availability
12
MAY W10316267 MAY W10316267 Contact Us For Availability
12
MAY 8268991 MAY 8268991 Contact Us For Availability
12
MAY W10476221 MAY W10476221 Contact Us For Availability
13
GRILL, VENT ASSEMBLY (BLACK) MAY W10620288 Contact Us For Availability
13
MAY W10183431 MAY W10183431 Contact Us For Availability
13
MAY W10346525 MAY W10346525 Contact Us For Availability
13
MAY W10796453 MAY W10796453 Contact Us For Availability
13
MAY W10705575 MAY W10705575 Contact Us For Availability
13A
GRILL, VENT ASSEMBLY (WHITE) MAY W10620289 Contact Us For Availability
13B
GRILL, VENT ASSEMBLY (SILVER) MAY W10620291 Contact Us For Availability
14
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
14
MAY 8281217 MAY 8281217 Contact Us For Availability
14
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
14
MAY W10539489 MAY W10539489 Contact Us For Availability
14
MAY W10538166 MAY W10538166 Contact Us For Availability
15
MAY W10500331 MAY W10500331 Contact Us For Availability
15
MAY W10786175 MAY W10786175 Contact Us For Availability
15
MAY 3371618 MAY 3371618 Contact Us For Availability
15
CLAMP, HOSE MAY W10169167 Contact Us For Availability
16
MAY W10544004 MAY W10544004 Contact Us For Availability
16
MAY W10195086 MAY W10195086 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MAY W10610148 MAY W10610148 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
18
MAY W10445975 MAY W10445975 Contact Us For Availability
19
MAY 8268990 MAY 8268990 Contact Us For Availability
19
MAY 9741232 MAY 9741232 Contact Us For Availability
20
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10441445 Contact Us For Availability
20
MAY W10733484 MAY W10733484 Contact Us For Availability
21
MAY 8269262 MAY 8269262 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
